USER MANUAL AXP34U338BW AEG

AXP35U538CW2 www.aeg.com Subject to change without notice.

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.aeg.com Register your product for better service: www.registeraeg.com Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• If the supply cord is damaged, it must bereplaced by the manufacturer, its service agent or similarly quali󰘰ed persons in order to avoid a hazard. This manual explains the proper use of your new air conditioner. Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference.

• Contact authorised service technician for repair or maintenance of this unit.

• Contact the installer for installation of this unit.4 www.aeg.com

Point to Keep in Mind When Using Your Air Conditioner CAUTION! Warnings for use

• Do not modify any part of this product.

• Do not insert anything into any part of the unit.

1. Do not operate unit without the air 󰘰lter

2. Do not operate unit near any heat source or open

3. Do not expose the unit outside to direct sunlight and

4. Always store or move the unit in an upright position.

5. Do not cover the appliance when in operation or

immediately after use.

6. Always drain condensation before storing unit.

• The air conditioner is not intended for use by young children of in󰘰rmed persons without supervision.

• Young children should be supervised to ensure that they do not play with the air conditioner.

• There are local council rules regarding maximum allowable noise levels emitted by air conditioners.

• If the power cord is to be replaced, replacement work shall be performed by authorised personnel only.

• Installation work must be performed in accordance with the national wiring standards by authorised personnel only (if applicable). Incorrect connection can cause overheating and 󰘰re.

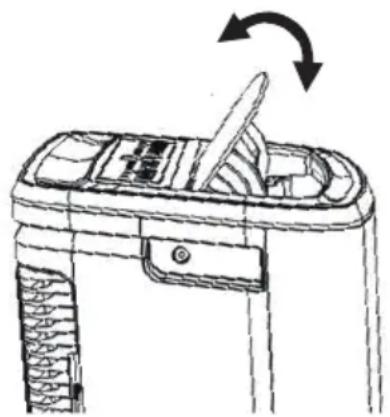

• Take care not to catch 󰘰ngers on fan when adjusting horizontal louvres.

• The fuse is 250V 3.15A, ceramic type.

• Cleaning and user maintenance shall not be made by children without supervision. Be aware that refrigerants may not contain an odour.5 ENGLISH CAUTION! Warning for power supply cord

• This power plug must only be plugged into an appropriate wall socket. Do not use in conjunction with any extension cords.

• Push the power plug securely into the socket and make sure it is not loose.

• Do not pull, deform. or modify the power supply cord, or immerse it in water. Pulling or misuse of the power supply cord can result in damage to the unit and cause electrical shock.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly quali󰘰ed person in order to avoid a hazard. Use only the manufacturer speci󰘰ed power cord for replacement.

• This appliance must be earthed. This appliance is equipped with a cord having an earth wire. The plug must be plugged into an outlet that is properly installed and earthed. Do not under any circumstances cut or remove the square earthed pin (only for UK) from this plug.

• Ensure the power supply used has an appropriate voltage rating. Only use a 220 - 240V, 50Hz, 10A mains electricity supply. Use of a power supply with an improper voltage rating can result in damage to the unit an possibly 󰘰re.

• Always use a anti-explosive circuit breaker or fuse with the proper amp rating. Do not, under any circumstances, use wire, pins or other objects in place of a proper fuse.

• In the event of any abnormality with the air conditioner (eg. a burning smell), do not pull out the plug directly, open the window for ventilation 󰘰rstly, then turn the unit o󰘯 and disconnect the power supply.6 www.aeg.com

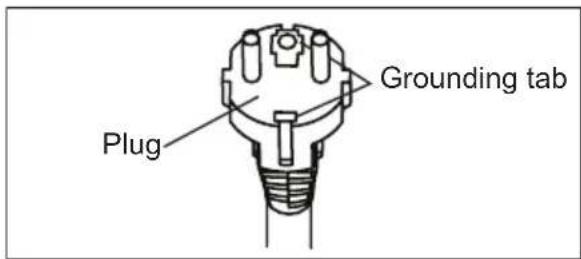

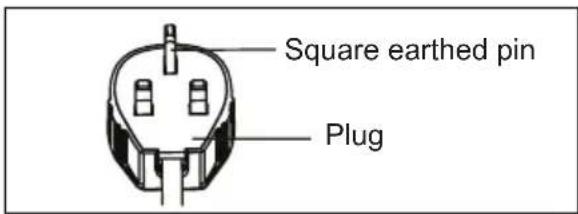

Usage cautions (only for UK) Plug Grounding tab Plug Square earthed pin

• Be sure to turn the unit o󰘯 and disconnect the power supply cord before performing any maintenance or cleaning.

• Do not put unit near any heat source or open 󰘰re when you replacing the 󰘰lters.

• Do not splash or pour water directly onto the unit. Water can cause electrical shock or equipment damage.

• Drainage should be performed whenever moving the air conditioner. If any water remains in the tank, it may spill out while being moved.

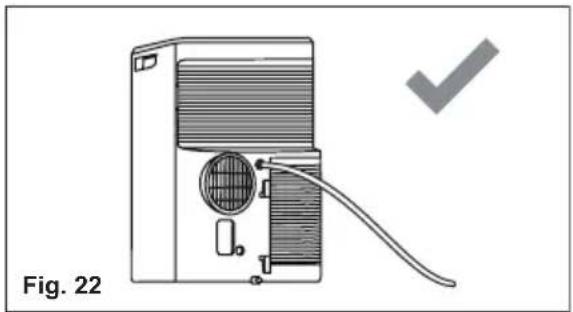

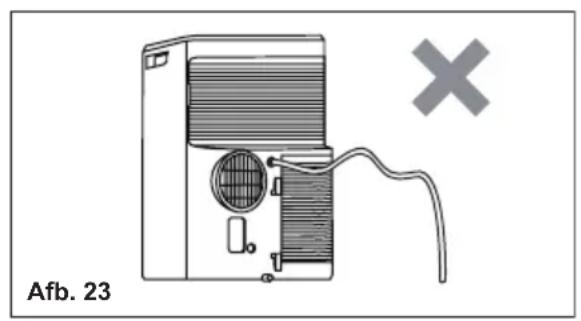

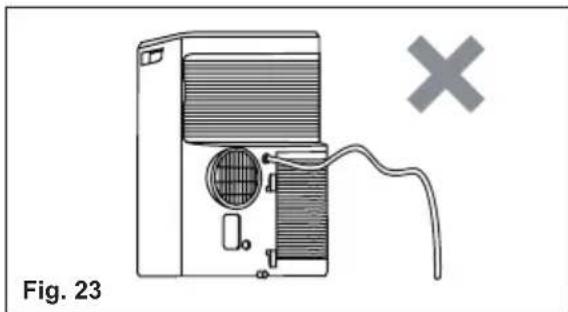

• To ensure proper drainage, the drainage hose must have no kinks and must not be elevated during dehumidi󰘰catioin mode. If not, the drained water may spill out into the room.

• The temperature around the drainage hose must not be below freezing point when used. Drained water may freeze inside the hose, causing water inside the unit to over󰘱ow into the room.

• Do not block the exhaust air outlet with obstacles. Cooling performance may be reduced or stop completely.

• Provide a anti-explosive residual current device (RCD) in order to protect against electric shock in accordance with British Standard and Wiring Rules.7 ENGLISH

• Exposure to direct air󰘱ow for an extended period of time could be hazardous to your health. Do not expose occupants, pets, or plants to direct air󰘱ow for extended periods of time.

• Do not use this air conditioner for non-speci󰘰ed special purposes (e.g. preserving precision devices, food, pets, plants, and art objects). Usage in such a manner could harm such property.

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

• The appliance shall be stored in a room without continuously operating ignition sources (for example: open 󰘱ames, an operating gas appliance or an operating electric heater).

• Do not pierce or burn.

• Compliance with national gas regulations shall be observed.

• Keep ventilation openings clear of obstruction.

• The appliance shall be stored in a well-ventilated area where the room size larger than 12 m

• Thoroughly read all of the warnings.

• When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.

• The appliance must be placed in an area without any continuous sources of ignition (for example: open 󰘱ames, gas or electrical appliances in operation). PLEASE NOTE: CHECK THE PLATE FOR THE TYPE OF REFRIGERANT GAS USED IN YOUR APPLIANCE. Speci󰘰c information regarding appliances with R290 refrigerant gas.8 www.aeg.com Transport of equipment containing 󰄉ammable refrigerants See transport regulations. Marking of equipment using signs See local regulations.

Additional information

• Do not puncture and do not burn.

• Refrigerant gases can be odourless.

• The appliance must be installed, used and stored in an area that is greater than 12 m

• This appliance contains a certain number of grams (see rating label back of unit) of R290 refrigerant gas.

• R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.

• If the appliance is installed, operated or stored in a nonventilated area, the room must be designed to prevent the accumulation of refrigerant leaks resulting in a risk of 󰘰re or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.

• The appliance must be stored in such a way as to prevent mechanical failure.

• Individuals who operate or work on the refrigerant circuit must have the appropriate certi󰘰cation issued by an accredited organisation that ensures competence in handling refrigerants according to a speci󰘰c evaluation recognized by associations in the industry.

• Repairs must be performed based on the recommendations from the manufacturing company. Maintenance and repairs that require the assistance of other quali󰘰ed personnel must be performed under the supervision of an individual speci󰘰ed in the use of 󰘱ammable refrigerants.9 ENGLISH

2.1 Notes on Operation

• Allow 4 minutes for the compressor to restart cooling. If you turn the air conditioner o󰘯 and immediately restart it, allow 4 minutes for the compressor to restart cooling. There is an electronic device in the unit that keeps the compressor turned o󰘯 for 4 minutes for safety.

• In the event of a power failure during use, allow 4 minutes before restarting the unit. After power is reinstated, restart the air conditioner. If the power was o󰘯 for less than four minutes, be sure to wait at least four minutes before restarting the unit. if you restart the air conditioner within four minutes, a protective device in the unit may cause the compressor to shut o󰘯. This protective device will prevent cooling for about 5 minutes. Any previous setting will be cancelled and the unit will return to its initial setting.

• When you turn the unit o󰘯 in cooling mode, the compressor will shut o󰘯 immediately and the upper/under fan motor will stop running after 5 seconds; if operate the unit to fan mode from cooling mode, the compressor will shut o󰘯 immediately and the under fan motor will stop running after 5 seconds; and if operate the unit to heating mode from cooling mode, the compressor will shut o󰘯 immediately and the under fan motor will stop running after 30 seconds.

• Low temperature operation: Is your unit freezing up? Freezing may occur when the unit is set close to 18°C in low ambient temperature conditions, especially at night. In these conditions, a further temperature drop may cause the unit to freeze. Setting the unit to a higher temperature will prevent it from freezing.

• Dehumidi󰘰cation mode increases room temperature. The unit generates heat during dehumidi󰘰cation mode and the room temperature will rise. Warm air will be blown out from the exhaust air outlet, but this is normal and does not indicate a problem with the unit.

• This air conditioner blows the warm air generated by the unit outside the room via the exhaust hose while in cool mode. In the mean time, the same amount of air will enter the room from outside through any openings of the room.

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certi󰘰cate from an industry-accredited assessment authority, which authorises their Disposal of equipment using 󰄉ammable refrigerants See national regulations. Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer’s instructions. Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.10 www.aeg.com carried out under the supervision of the person competent in the use of 󰘱ammable refrigerants.

• The working temperature range of the air conditioner is 16-35

under cooling mode; 5-27

2.2 Warning during usage

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage. The seriousness is classi󰘰ed by the following indications: This symbol indicates the possibility of death or serious injury. Warning during usage This symbol indicates the possibility of injury or damage to property. WARNING! WARNING! CAUTION! Meanings of symbols used in this manual are shown below: This symbol indicates never to do this. This symbol indicates always do this. competence to handle refrigerants safely in accordance with an industry recognised assessment speci󰘰cation.

• Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be Warning Meaning Plug in power plug properly Otherwise, it may cause electric shock, 󰘰re and explosion due to excess heat generation Do not operate or stop the unit by inserting or pulling out Die power plug It may cause electric shock, 󰘰re and explosion due to heat generation Do not damage or use an unspeci󰘰ed power cord It may cause electric shock, 󰘰re and explosion. If the power cord is damaged, it must be replaced by the manufacturer or an authorised service centre or a similarly quali󰘰ed person in order to avoid a hazard Do not modify power cord length or share the outlet with other appliances It may cause electric shock, 󰘰re and explosion due to heat generation Do not operate with wet hands or in damp environment It may cause electric shock Do not direct air󰘱ow at room occupants This could harm your health Always ensure e󰘯ective earthing Incorrect earthing may cause electric shock Do not allow water to run into electric parts It may cause failure of unit or electric shock Always install circuit breaker and a dedicated power circuit Incorrect installation may cause electric shock, 󰘰re and explosion Unplug the unit if strange sounds, smell, or smoke comes from it It may cause electric shock, 󰘰re and explosion Do not use the socket if it is loose or damaged It may cause electric shock, 󰘰re and explosion11 ENGLISH Warning Meaning Do not open the unit during operation It may cause electric shock, 󰘰re and explosion Keep 󰘰rearms away It may cause 󰘰re and explosion Do not use the power cord close to heating appliances It may cause electric shock, 󰘰re and explosion Do not use the power cord near 󰘱ammable gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause electric shock, 󰘰re and explosion Ventilate room before operating air conditioner if there is a gas leakage from another appliance It may cause explosion, 󰘰re, explosion and burns Do not disassemble or modify unit It may cause failure and electric shock CAUTION! Caution Meaning When the air 󰘰lter is to be removed, do not touch the metal parts of the unit It may cause an injury Do not clean the air conditioner with water Water may enter the unit and degrade the insulation. It may cause an electric shock Ventilate the room well when used together with a stove, etc. An oxygen shortage may occur When the unit is to be cleaned, switch o󰘯, and turn o󰘯 the circuit breaker Do not clean unit when power is on as it may cause 󰘰re, explosion and electric shock, it may cause an injury Do not place a pet or house plant where it will be exposed to direct air 󰘱ow This could injure the pet or plant Do not use for special purposes Do not use this air conditioner to preserve precision devices, food, pets, plants, and art objects. It may cause deterioration of quality, etc. Stop operation and close the window in storm or cyclone Operation with windows opened may cause wetting of indoor and soaking of household furniture Hold the plug by the head of the power plug when taking it out It may cause electric shock and damage Turn o󰘯 the main power switch when not using the unit for a long time It may cause failure of product or 󰘰re and explosion Do not place obstacles around air-inlets or inside of air-outlet It may cause failure of appliance or accident Always insert the 󰘰lters securely. Clean 󰘰lter once every two weeks Operation without 󰘰lters may cause failure Do not use strong detergent such as wax or thinner - use a soft cloth Appearance may be deteriorated due to change of product colour or scratching of its surface Do not place heavy object on the power cord and ensure that the cord is not compressed There is danger of 󰘰re, explosion or electric shock12 www.aeg.com

• Check all the accessories are included in the package and please refer to the installation instructions for their usage. Remote control

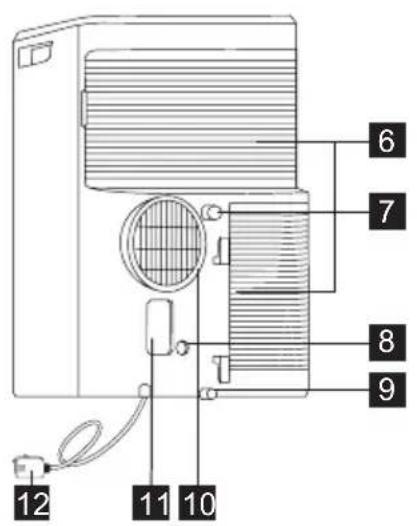

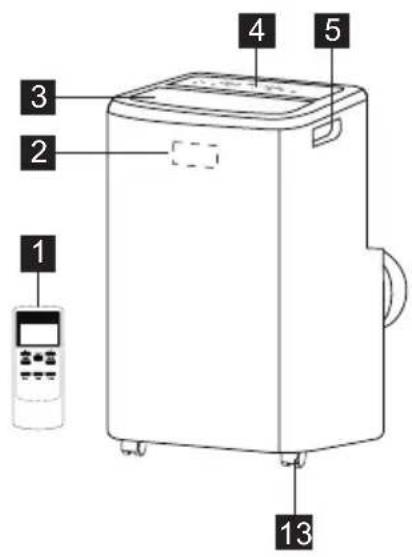

Carrying handle (both sides)

Continuous drain outlet

ACCESSORIES INCLUDED Caution Meaning Do not drink water drained from air conditioner It contains contaminants and could make you sick Use caution when unpacking and installing Sharp edges could cause injury If water enters the unit, turn the unit o󰘯 at the power outlet and switch o󰘯 the circuit breaker. Isolate supply by taking the power- plug out and contact a quali󰘰ed service technician It could cause electric shock and damage PARTS PARTS NAME: QUANTITY:

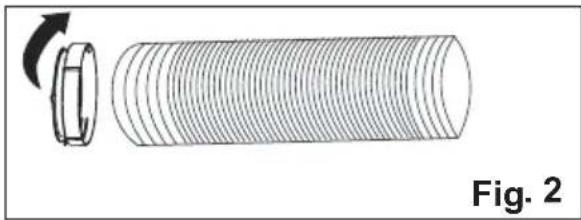

Adaptor A, Exhaust duct, Adaptor B (󰘱at mouth), 1 set

Remote control 1 set

Battery (R03P “AAA” 1.5V) 2 pcs13 ENGLISH

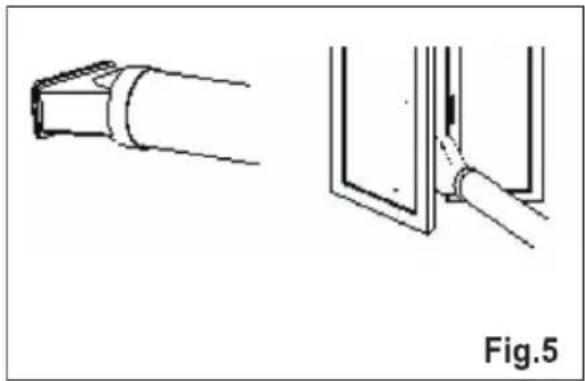

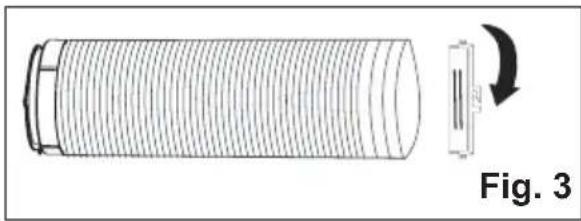

In the Cool Mode the appliance must be placed close to a window or opening so that the warm exhaust air can be ducted outside. First position unit on a 󰘱at 󰘱oor and make sure there’s a minimum of 50cm clearance around the unit, and is within the vicinity of a single circuit outlet power source. Extend either side of the hose (Fig. 1) and screw the hose to adaptor A (Fig. 2). Extend the other side of the hose and screw it to adaptor B (Fig. 3). )LJ ([WHQGWKHVLGHRIKRVH )LJ )LJ

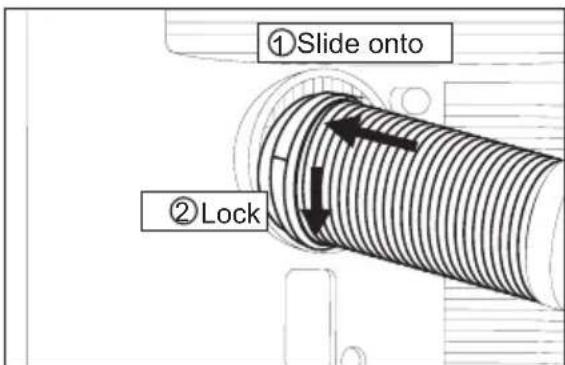

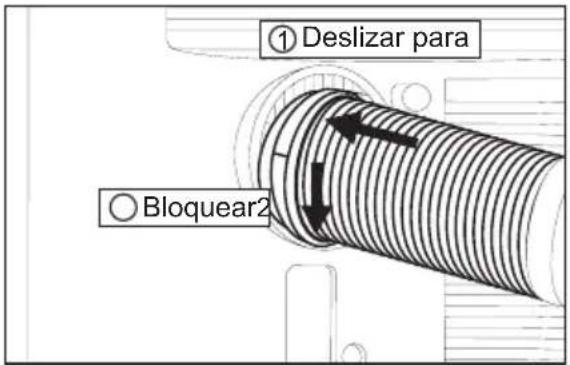

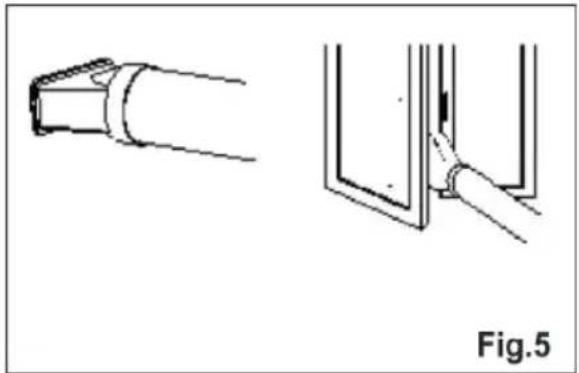

The adaptor A already be screwed to the hose for this unit. A󰘲x the adaptor B into the window. (Fig. 5) Install the adaptor A into the unit (Fig. 4).Fig. 4 /RFN

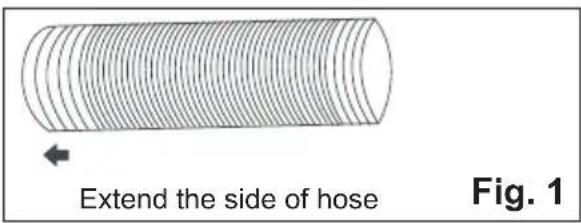

The hose can be extended from its original length of 38cm up to 150cm, but it is the best to keep the length to minimum required. Also make sure that the hose does not have any sharp bends or sags. (Fig. 6) Fig. 614 www.aeg.com

OPERATING INSTRUCTIONS Some of the following instructions can only be used by using the Control Panel. It is not necessary to use the drainage hose in the “cool” mode. Cooling mode Heating mode (on some models) In this mode the exhaust adaptor hose MUST be used. In this mode the exhaust adaptor hose MUST be used.

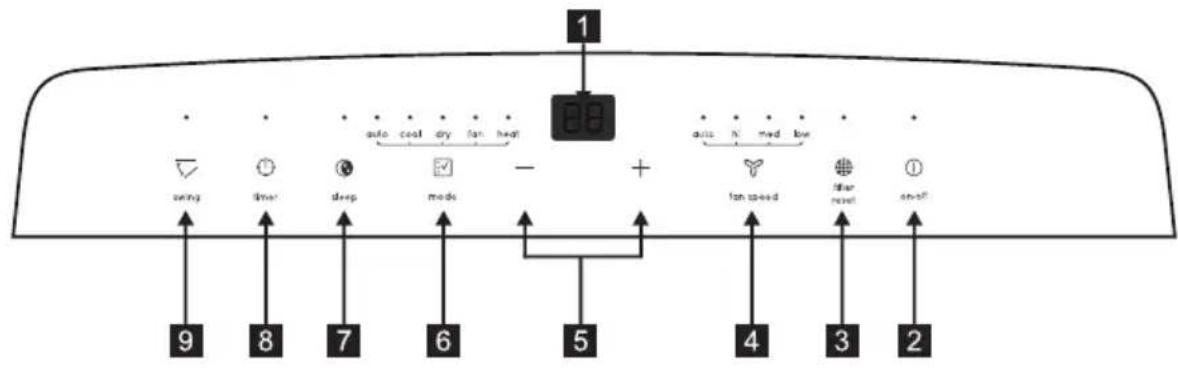

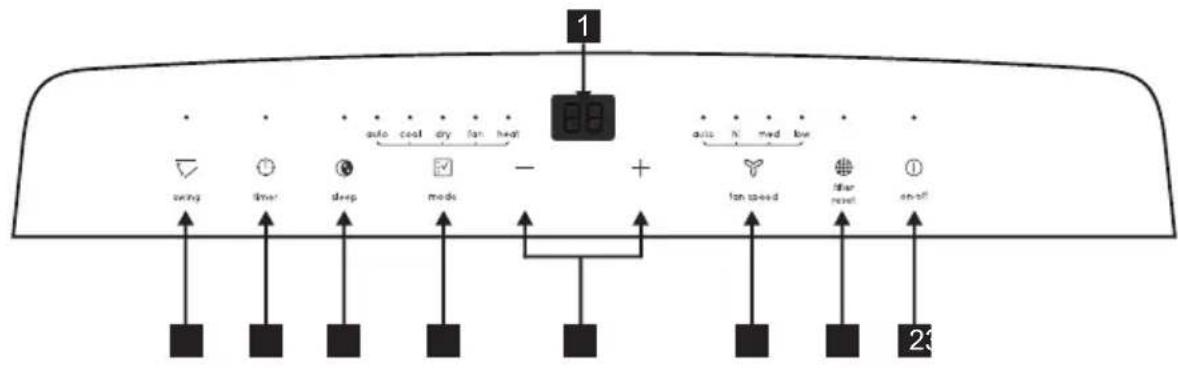

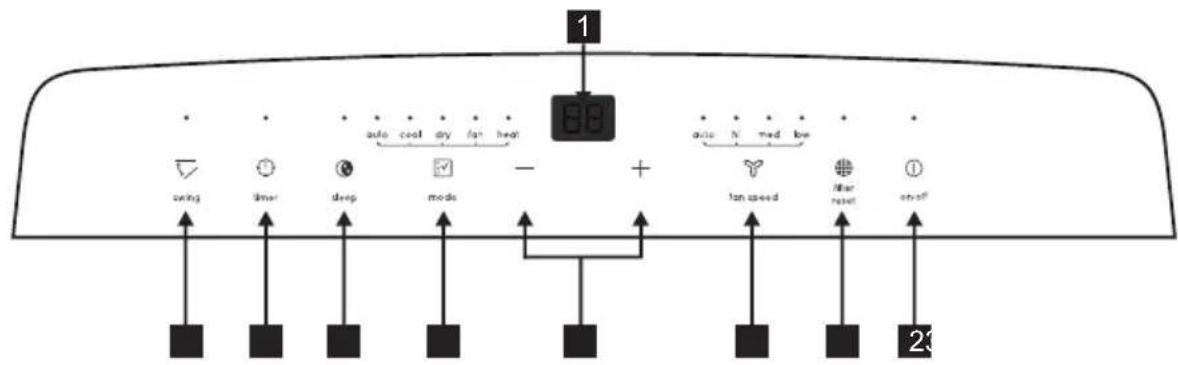

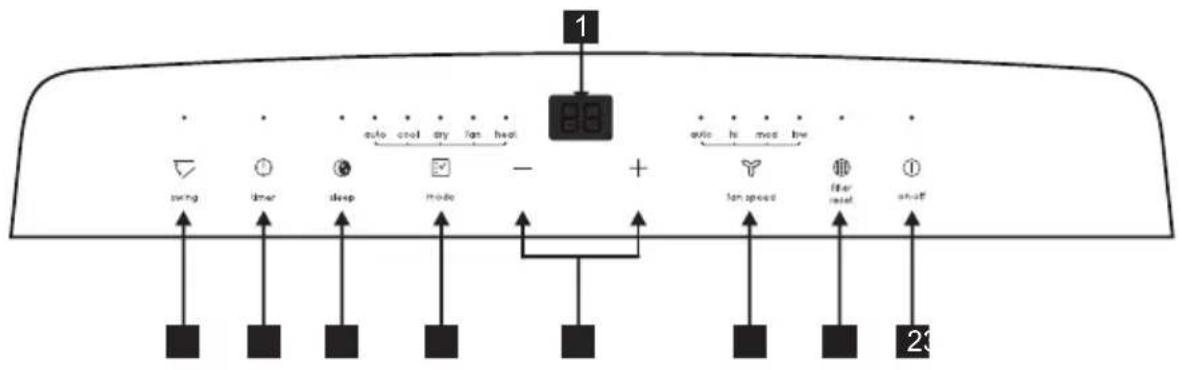

7.1 Usage of the Control Panel

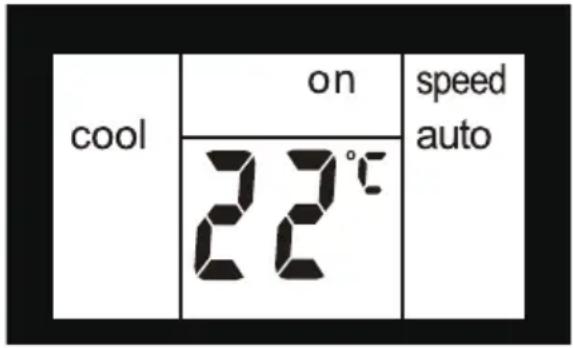

Press the “mode” button until the Cool mode indicator is lit.

Press the “fan speed” button to choose the fan speed according to the illumination of the fan speed indicator. You can choose the fan speed as following sequence: “auto” → “hi” → “med” → “low” → “auto”.

Press the “ ” or “ ” button to choose the temperature you want.

Press the “fan speed” button to choose the fan speed according to the illumination of the fan speed indicator. You can choose the fan speed as following sequence: “auto” → “hi” → “med” → “low” → “auto”.

Press the “ ” or “ ” button to choose the temperature you want.

Connected drain hose. See 7.4 Drainage section.

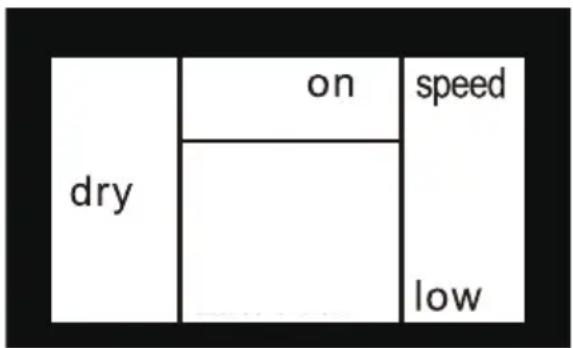

Dry mode Press the “mode” button until the Dry mode indicator is lit. The screen displays the room temperature. At the same time, the “low” fan indicator lights. Note: In this mode, fan speed cannot be selected. Fan mode In this mode, there is no need to use the exhaust hose or drainage hose.

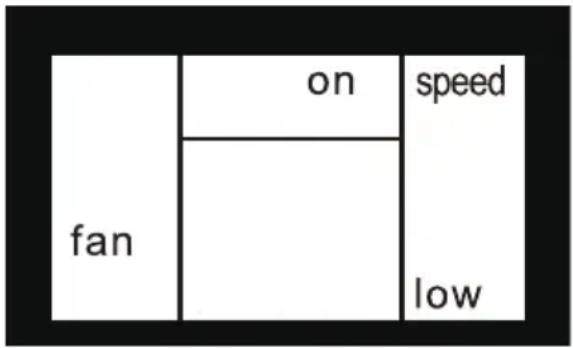

Press the “mode” button until the Fan mode indicator is lit.15ENGLISH Auto mode Timer mode How to delay startup Always have the exhaust hose attached in this mode. When you set the air conditioner in Auto mode, it will automatically select cooling, heating (inapplicable for cooling only models), or fan only operation depending on what temperature you have selected and the room temperature. The air conditioner will control room temperature automatically round the temperature point set by you. Under AUTO mode, you can not select the fan speed.

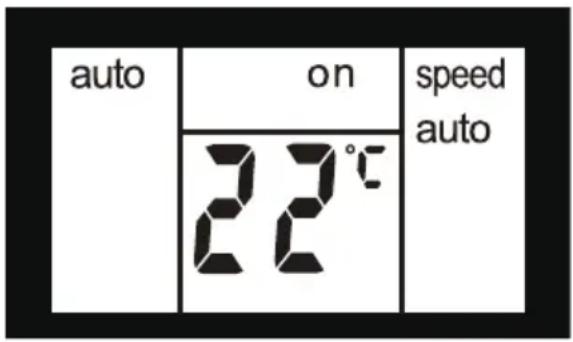

1. Press the “mode” button until the “Auto

mode” indicator lights. After the “Auto mode” is selected the unit will run automatically according to the actual room air temperature. The timer facilitates the user to delay the unit startup or shutdown. Plug in the unit, so the unit turns to standby. Press the “timer” button, then the Timer indicator will switch on and the number of hours on the screen will show “0.0”. Tap or hold the UP arrow “ ” or the DOWN arrow “ ” to change delay start timer at 0.5 hour increments up to 10 hours, then at 1 hour increments up to 24 hours. Press the “timer” button again within 5 seconds, you will quit the timer setting directly. After 5 seconds, the timer function is enabled, the display will show the temperature back. The control will count down the time remaining until startup. The unit will start up in the mode as previously set. To cancel the setting, press the “timer” button again will show the remain time Note: In this mode, auto speed cannot be selected. How to delay shutdown You can delay shutdown when the unit is on. Press the “timer” button, then the Timer indicator will switch on and the number of hours on the screen will show “0.0”. Tap or hold the UP arrow “ ” or the DOWN arrow “ ” to change delay stop timer at 0.5 hour increments up to 10 hours, then at 1 hour increments up to 24 hours. Press the “timer” button again within 5 seconds, you will quit the timer setting directly. After 5 seconds, the timer function is enabled, the display will show the temperature back. The control will count down the time remaining until shuts down. To cancel the setting, press the “timer” button again will show the remaing time and press the button again to quit the function. You can also cancel the setting by pressing the “on/off” button. After cancel the setting, the timer indicator will switch off.

Press the “Fan speed” button to choose the desired fan speed.

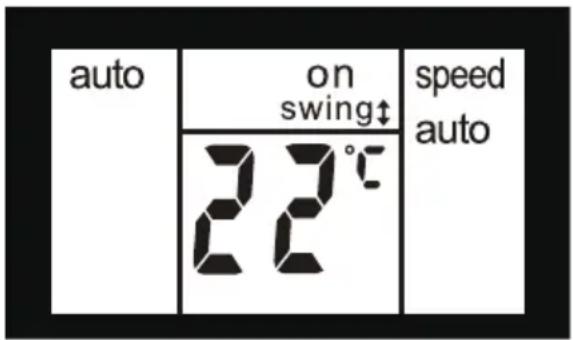

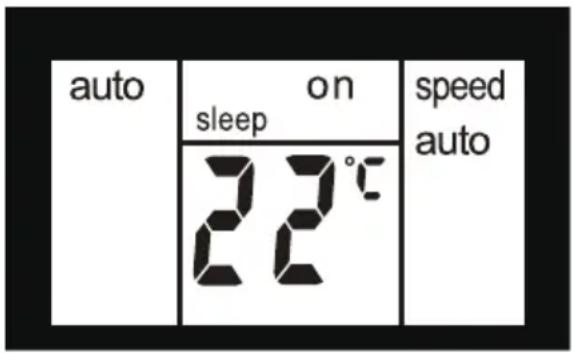

The fan will run at the selected speed and the display will show the room temperature. and press the button again to quit the function. You can also cancel the setting by pressing the “on/off” button. After cancel the setting, the timer indicator will switch off. Sleep mode Active this feature will give you a comfortable temperature and help save energy. Only when the unit is in Cool, Heat or auto mode, you can press the “sleep” button to make the unit run in Sleep mode. Note: Please refer to page 17 for the details about “Sleep” mode. Press the “swing” button to enable louver swing function, the louver on the top panel will swing up and down. Press this button again to disable the louver swing function. Louver Swing Function °F/°C function Press the “ ” and “ ” button the same time for more than 3 seconds to switch between degree Fahrenheit and degrees Celsius. Under Dry/Fan mode, you can not select °F/°C.16 www.aeg.com Filter reset This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more e󰘲cient operation. The 󰘰lter indicator will illuminate after 250 hours of operation. To reset after cleaning the 󰘰lter, press the “󰘰lter reset” button, then the “󰘰lter” indicator will go o󰘯.

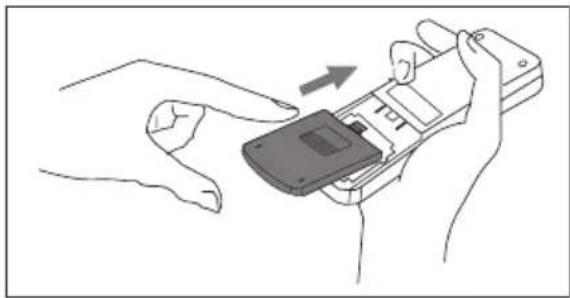

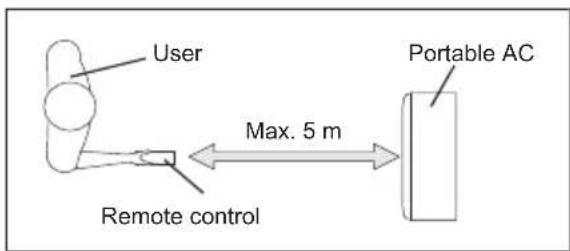

Insert the provided batteries correctly (see the instructions inside the battery compartment). Close up the cover. To replace the old batteries (which have been used up) with two new R03P “AAA” 1.5V batteries, repeat the steps above. Battery Installation and Important Instructions

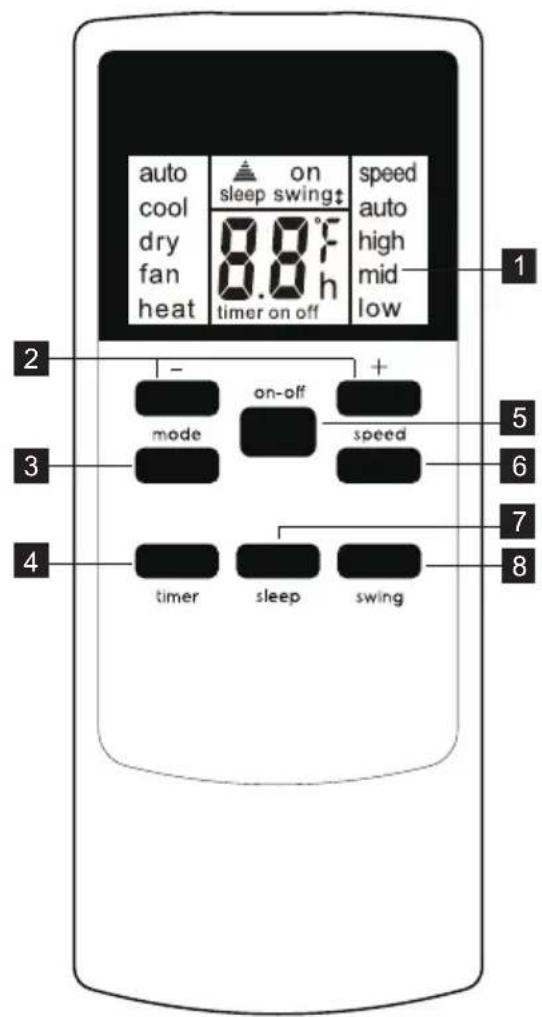

Remote Control screen

If the remote control unit is replaced or discarded, the batteries must be removed and disposed of in accordance with local legislation as they do harm to the environment. Do not mix old and new batteries. Do not mix alkaline, standard (carbon- zinc) or rechargeable (nickel-cadmium) batteries. Do not dispose of batteries in 󰘰re. Batteries may explode or leak. If the remote control is not used for a long time, remove the batteries from the remote control. The remote control must be handled with extreme care. Do not drop it or expose it to direct sunlight or sources of heat. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Point the remote control at the location of the signal receiver. The remote control must be no more than 16 ft (5 meters) away from the unit (without obstacles between the remote control and the unit). Remove the cover at the back of the remote control.17ENGLISH

How to Use the Remote Control Plug in the unit, then press the “on/off” button (when turned on, the unit will operate as the last setting before shutdown. To switch the unit off, press “on/off” button again, then remove the plug. Always switch the unit off by pressing the “on/off” button and wait for few minutes before removing the plug. Press the “mode” button until the left side of LCD screen displays “cool”. Press the “fan speed” button to choose the fan speed “auto”, “high”, “mid”, and “low”. Press the “ ” and “ ” button to choose the temperature you want. Press the “mode” button until the left side of LCD screen displays “dry”. At the same time, the “low” fan symbol appears on the screen. Note: In this mode, fan speed cannot be selected. Press the “mode” button until the left side of LCD screen displays “fan”. In this mode, you can select fan speed Cool mode Dry mode Fan mode Press the “mode” button until the left side of LCD screen displays “heat”. Press the “fan speed” button to choose the fan speed “auto”, “high”, “mid”, and “low”. Press the “ ” and “ ” button to choose the temperature you want. Press the “mode” button until the upper side of LCD screen displays “auto”. Under AUTO mode, you can not select the fan speed. Press the “ ” and “ ” button to choose the temperature you want. When the unit is in Cool, Heat or auto mode, you can press the “sleep” button to make the unit run in Sleep mode. In this mode, the fan speed will be set as “auto” automatically, which cannot be changed. In Cool/Heat mode the selected temperature will increase/decrease by 1°C 30 minutes after the mode is selected. The temperature will then increase/decrease by another 1°C Heat mode (For Heat & Cool models only) AUTO mode Sleep mode “high”, “mid” or “low” by pressing the Fan speed button and referring to the diagram. Note: In this mode, the air exhaust hose does not need to be connected.18 www.aeg.com after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the “Sleep” mode and the unit will shut down automatically. The “Sleep” mode program can be cancelled at any time during operation by pressing the “Sleep”, “mode” or “fan speed” button. Note: In Fan or Dry mode, Sleep mode cannot be set. Press the “swing” button to enable louver swing function, and the upper side of screen will display “ ”. The louver on the top panel will swing up and down. Press this button again to disable the louver swing function. Louver Swing Function °F/°C function Timer mode Press the “ ” and “ ” button the same time for more than 3 seconds to switch between degree Fahrenheit and degrees Celsius. Under Dry/Fan mode, you can not select °F/°C. How to delay startup Plug in the unit, so the unit turns to standby. Press the “timer” button, the screen will display “timer”and “h”, and the “on” will flashing. Tap or hold the UP arrow “ ” or the DOWN arrow “ ” to change delay start timer at 0.5 hour increments up to 10 hours, then at 1 hour increments up to 24 hours. After 3 seconds, the setting will be memorized. The control will count down the time remaining until startup. You can also press the “timer” button again directly and the “on” will stop flashing immediately, then the unit will start up in the mode as previously set. You can set up the mode and the unit will start up as you preferred after “on” stop flashing. To cancel the setting, press the “timer” button again. How to delay shutdown You can delay shutdown when the unit is on. Press the “timer” button, the screen will display “timer”and “h”, and the “off” will flashing. Tap or hold the UP arrow “ ” or the DOWN arrow “ ” to change delay stop timer at 0.5 hour increments up to 10 hours, then at 1 hour increments up to 24 hours. After 3 seconds, the setting will be memorized, and the display will show the time remaining until the unit shuts down.You can also press the “timer” button again directly and the “off” will stop flashing immediately.19ENGLISH NOTE:

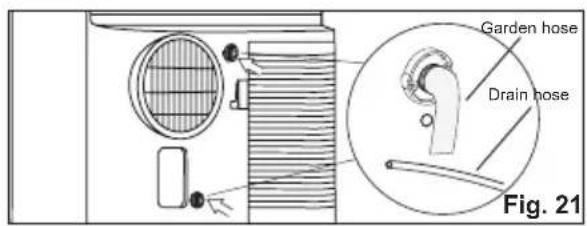

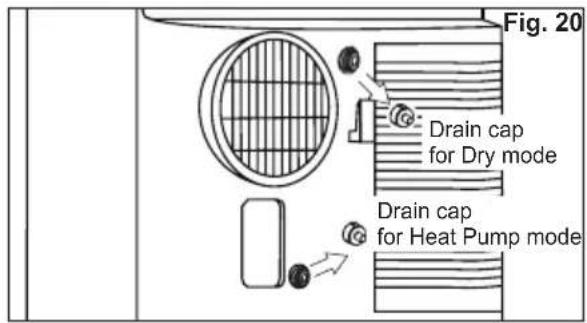

• Unscrew the drain cap of continuous drain outlet(Fig.20).

• Connect one end of the garden hose (sold separately) or drain hose to the drain outlet then lead the other end into a drain that is lower than the unit(Fig.21).

the drain cap, if the unit is running in Cool or Auto mode. When you want to remove the garden hose, prepare a drip tray (not supplied) to collect the condensate from the drain outlet.

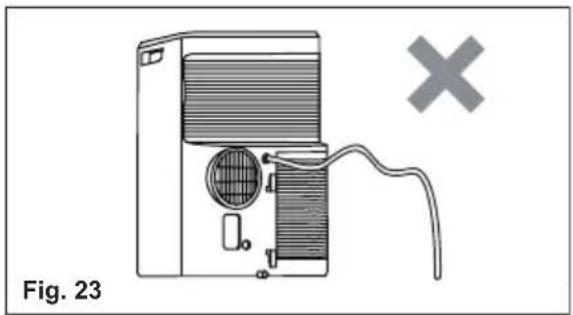

• Please be sure that the height of the drain and section of the drain hose should not be higher than that of the drain outlet, or the continous drainage may not work properly.

• During Cool or Auto mode, it is recommended to disable continuous drainage by replacing the drain cap to the drain outlet, to reach the maximum performance. If the display reads “AS”, “CS” and “ES”, the temperature sensor has failed. Contact your Authorized AEG Service Center. If the display reads “L3”, the condenser DC fan motor has failed. Contact your Authorized AEG Service Center. If the display reads “E4”, the communication between display PCB and main control PCB is faulty. Contact your Authorized AEG Service Center. If the display reads “P1”, bottom tray is full. Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away. Restart the machine until the “P1” symbol disappears. If error repeats, call for service.

Continuous Drainage During the DRY mode or heat pump model, you will need a garden hose (sold separately) or drain hose to drain the condensate from the unit. Follow the steps below:

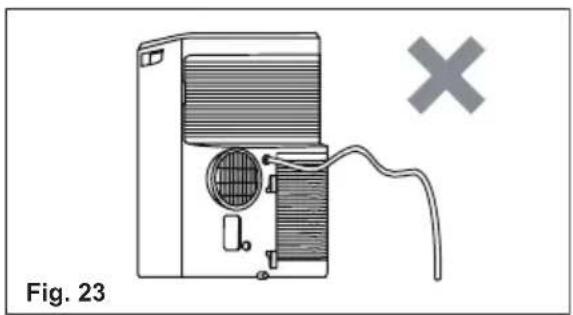

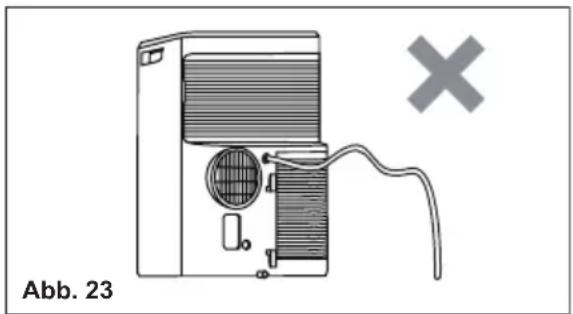

7.4 Drainage instruction

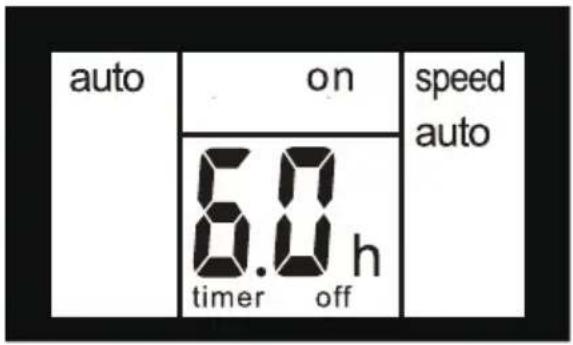

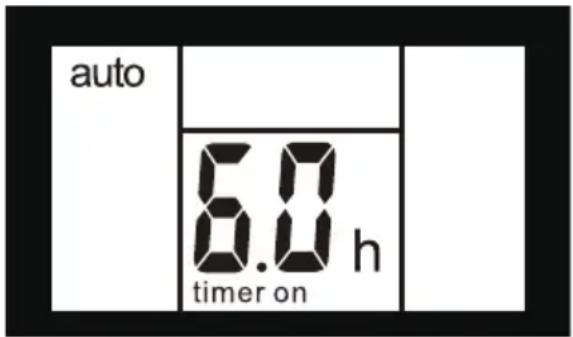

To cancel the setting, press the “timer” button again. Garden hoseDrain hose Fig. 21 Fig. 20 Drain cap for Dry mode Drain cap for Heat Pump mode20 www.aeg.com NOTE: To ensure all condensate residue has been removed, tilt the unit by lifting it slightly upwards from the front until no more condensate comes out from the drain outlet. Emptying the condensate residue inside the unit during winter storage. Put a drip tray (not supplied) under bottom drain outlet, then pull out the drain cap to allow the condensate to 󰘱ow into the drip tray.

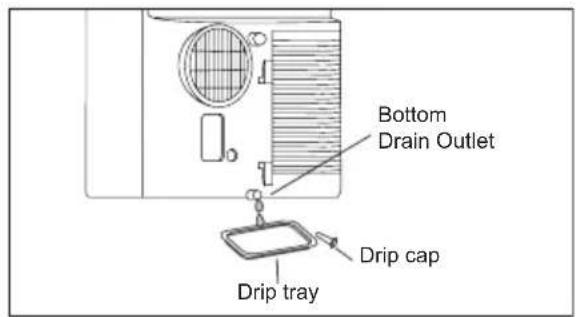

)LJ)LJ%RWWRP'UDLQ2XWOHW'ULSFDS'ULSWUD\

Replace the drain cap to the continuous drain outlet when no condensate 󰘱ows out. Put the drip tray under the bottom drain outlet, then remove the rubber stopper from the drain outlet, to allow the condensate to 󰘱ow into the drip tray. If your drip tray can’t hold all the condensate, a number of 󰘰lls will be needed. Replace the drain cap to the bottom drain outlet when no condensate 󰘱ows out.

CARE & CLEANING Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or 󰘰re hazards. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Never use harsh cleaners, wax or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the air conditioner.

8.1 Cleaning the unit

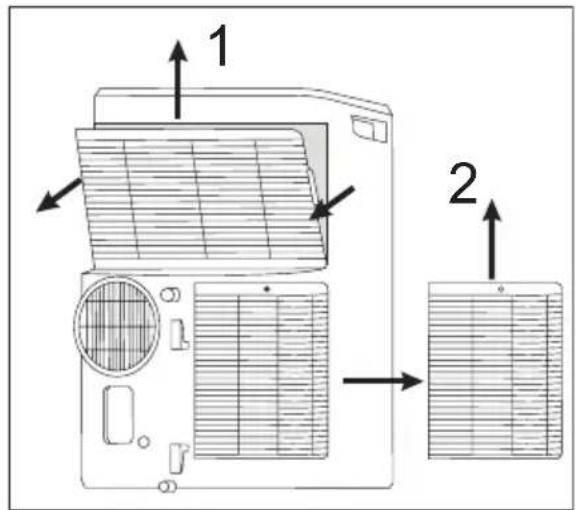

Removed the air 󰘰lter as shown the below 󰘰gure. To keep your air conditioner working e󰘲ciently, you should clean the 󰘰lters every two weeks of operation. Take out the upper air 󰘰lter and the lower air 󰘰lter.

Drain the water collection tank completely and leave the bottom drain cap and rubber plug long time enough to allow any residual water to drain out. Once the tank is completely drained and no more water 󰘱ows out, reinstall the rubber plug and cap.

Make sure the 󰘰lter and drain cap are in place.

Check the cord to make sure it is in good condition, without cracks or damage.

Place new batteries in the remote control.

Install the air conditioner as described in the Installation Instructions.

Wash the 󰘰lter using liquid dishwashing detergent and warm water under 40°C. Rinse 󰘰lter thoroughly. Gently shake excess water from the 󰘰lter. Be sure 󰘰lter is thoroughly dry before replacing. Or, instead of washing you may vacuum the 󰘰lter clean.

Replace the 󰘰lter after the 󰘰lter is dry. Be sure 󰘰lter is thoroughly dry before replacing. If the air conditioner will not be used for an extended period of time: Before using the air conditioner again:

TROUBLE SHOOTING Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Air conditioner will not operate. Air from unit does not feel cold enough. Air conditioner cooling, but room is too warm - NO ice forming on cooling coil behind decorative front.

• Wall plug disconnected. Push plug 󰘰rmly into wall outlet.

• House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.

• Control is OFF. Turn Control ON and set to desired setting.

• Fault code P1 appears in the display window. Drain water as described in

7.3 Drainage Section.

• Room Temperature lower than the set temperature (Cool Mode) or Room Temperature higher than the set temperature (Heat Mode). Reset the temperature.

• Room temperature below 16°C. Cooling may not occur until room temperature rises above 16°C.

• Reset to a lower temperature.

• Compressor shut-o󰘯 by changing modes. Wait approximately 4 minutes and listen for compressor to restart when set in the COOL mode.

• Outdoor temperature below 16°C. To defrost the coil, set Fan mode.

• Air 󰘰lter may be dirty. Clean 󰘰lter. Refer to 8. Care and Cleaning section. To defrost, set to Fan mode.

• Temperature is set too low for nighttime cooling. To defrost the coil, set to Fan mode. Then, set temperature to a higher setting.

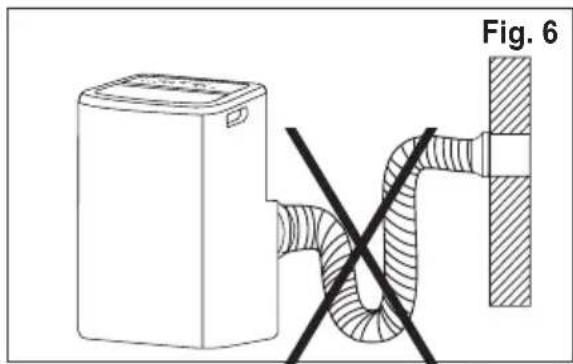

• Exhaust duct not connected or blocked. See 5.1 Exhausting hot air Section.

Remove and clean the 󰘰lter, allow it to dry completely, then reinstall it.

Remove the batteries from the remote control.

Store the air conditioner in a cool, dry location, away from direct sunlight, extreme temperature, excessive dust, and well ventilated.22 www.aeg.com

• Dirty air 󰘰lter - air restricted. Clean air 󰘰lter.

• Outside temperature extremely hot. Set FAN speed to a faster setting to bring air through cooling coils more frequently. Room too cold.

• Set temperature too low. Increase set temperature. Air conditioner cooling, but room is too warm - ice forming on cooling coil behind decorative front. Air conditioner turns on and o󰓐 rapidly.

• Dirty air 󰘰lter - air restricted. Clean air 󰘰lter. Refer to 8. Care and Cleaning section.

• Temperature is set too high. Set temperature to a lower setting.

• Air directional louvers positioned improperly. Position louvers for better air distribution.

• Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit.

• Doors, windows, registers, etc. open - cool air escapes. Close doors, windows, registers, etc.

• Unit recently turned on in hot room. Allow additional time to remove “stored heat” from walls, ceiling, 󰘱oor and furniture.
