USER MANUAL Excelon DNX696S KENWOOD

DNX996XR DNR876S DNX696S DNX576S DNR46EX DNR476S

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new GPS Navigation System.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or service on the product.

Model DNX996XR / DNR876S / DX696S / DX576S / DNR46EX / DNR476S Serial number

US Residence Only

Register Online

Register your KENWOOD product at www.kenwood.com/usa/

Contents

Before Use 2

About the Quick start guide. 2

How to read this manual. 2

Precautions 2

Safety Precautions and Important Information. 4

Basic Operations. 5

Functions of the Buttons on the Front Panel..5

Turning on the Unit. 7

Initial Settings 8

Touch screen operations. 9

HOME screen descriptions. 10

Popup menu. 11

Source selection screen description. 11

Source control screen descriptions. 13

List screen. 13

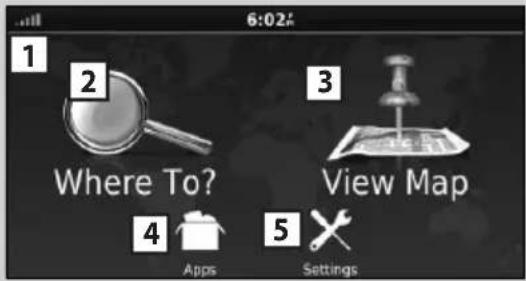

Navigation Operation 14

Disc 16

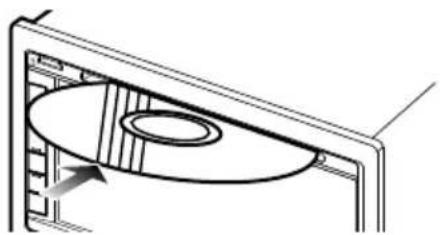

Playing a disc. 16

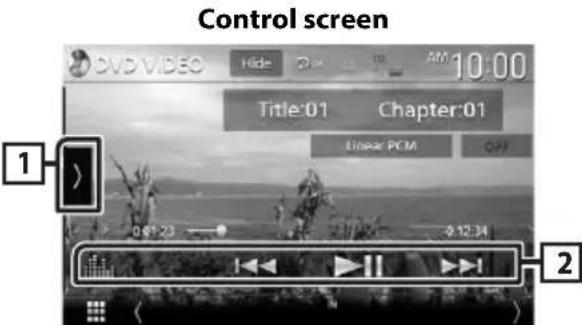

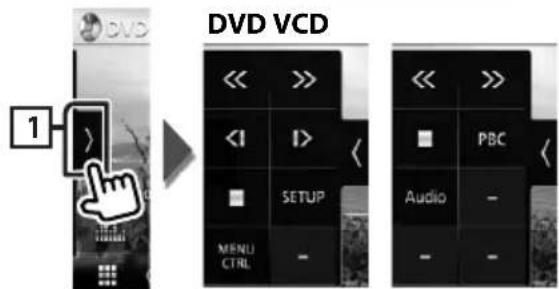

DVD/VCD Basic Operation. 16

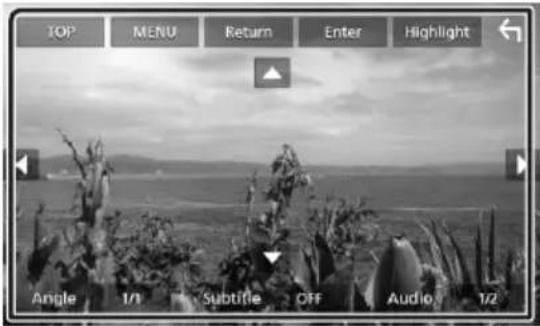

DVD Disc Menu Operation 17

USB/SD/iPod. 18

Connecting a USB device. 18

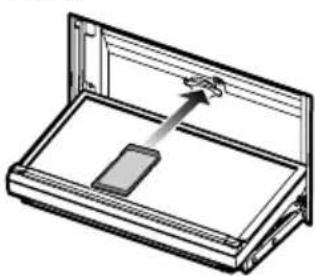

Inserting the SD 18

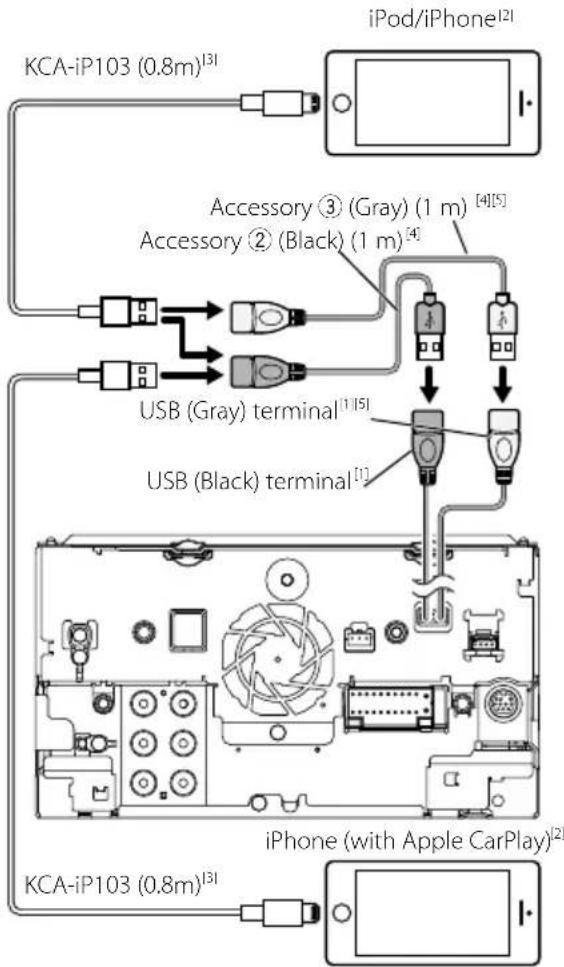

Connect iPod/iPhone 19

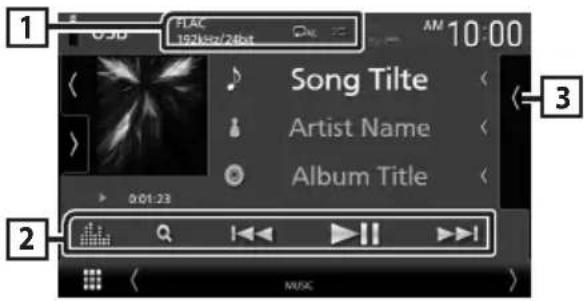

USB/SD/iPod Basic Operation 19

HD Radio™ Tuner/Radio 20

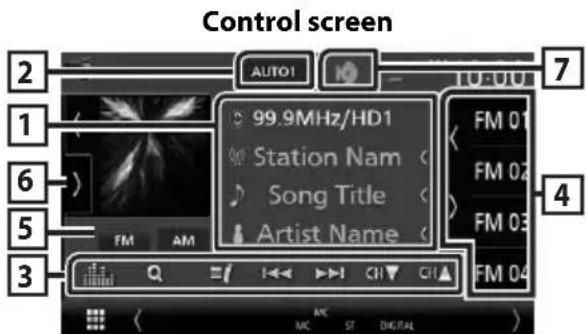

HD Radio Tuner Basic Operation 20

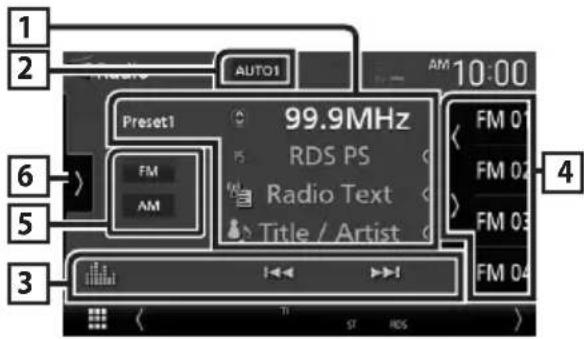

Radio Basic Operation. 21

Memory Operation 21

Bluetooth Control 22

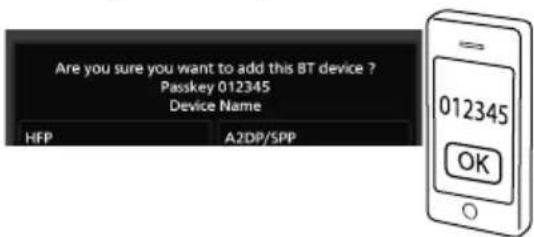

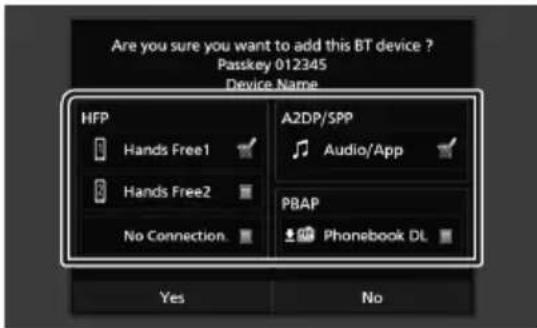

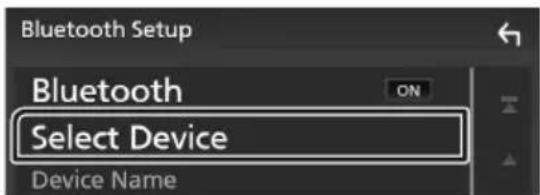

Register the Bluetooth device. 22

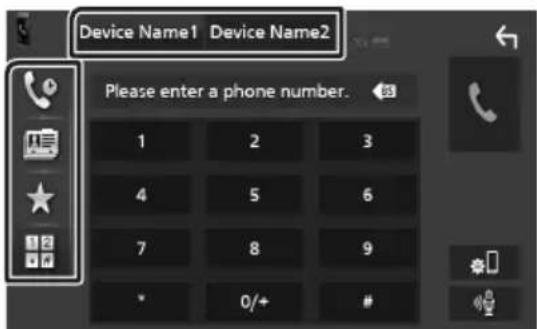

Using the Hands-Free Unit 23

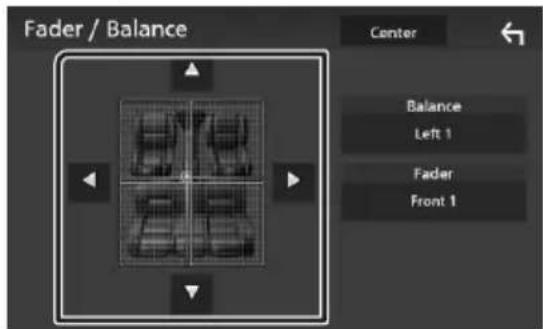

Controlling Audio 25

Connection/Installation 26

Before Installation 26

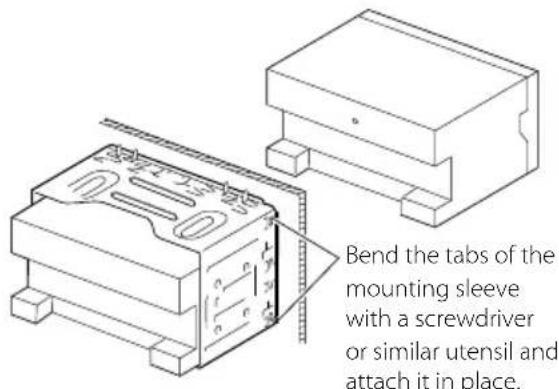

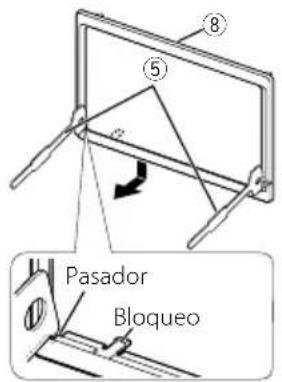

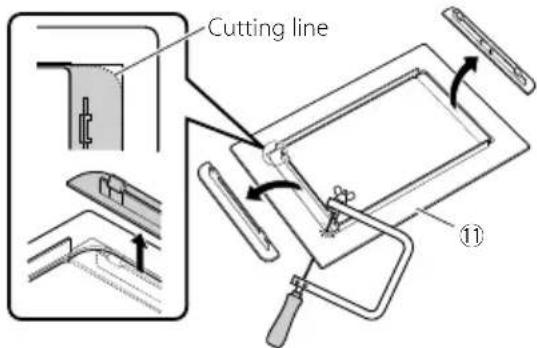

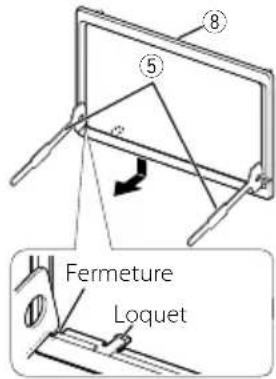

Installing the unit. 28

Appendix 35

Note for specifications. 35

Before Use

About the Quick start guide

• This Quick Start Guide describes basic functions of this unit. For functions not described in this Guide, refer to the Instruction Manual on the following website: http://manual.kenwood.com/edition/im399/

• The Instruction manual is subject to change for modification of specifications and so forth. Be sure to download the latest edition of the Instruction manual for reference.

How to read this manual

• The screens and panels shown in this manual are examples used to provide a clear explanation of operations.

For this reason, they may be different from the actual screens or panels, or some display patterns may be different from the actual ones.

• Display language: English is used for the purpose of explanation. You can select a display language from the [SETUP] menu. See User Interface Setup (P.90) in the Instruction Manual.

Precautions

WARNINGS

To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metallic tools) inside the unit.
• Do not watch or fix your eyes on the unit's display when you are driving for any extended period.
• If you experience problems during installation, consult your KENWOOD dealer.

Precautions on using this unit

• When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area.

• You can select a language to display menus, audio file tags, etc. See User Interface Setup (P.90) in the Instruction Manual.
  The Radio Data System or Radio Broadcast Data System feature won't work in areas where the service is not supported by any broadcasting station.

Protecting the monitor

To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with a sharp tip.

Cleaning the unit

• If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe it with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

NOTE

• Applying spray cleaner directly to the unit may damage its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase the screened print.

Lens fogging

When you turn on the car heater in cold weather, dew may form on the lens in the disc player of the unit due to condensation. This condensation on the lens (also called lens fogging) may not allow discs to play. In such a situation, remove the disc and wait for the dew to evaporate. If the unit still does not operate normally after a while, consult your KENWOOD dealer.

Precautions on handling discs

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use disc type accessories.
• Clean the disc from the center toward the outside rim.
• When removing a disc from this unit, pull it out horizontally.

• If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc.

• Discs that are not round cannot be used.

• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording surface or discs that are dirty cannot be used.
  This unit can only play the following types of CDs.

• This unit may not correctly play discs which do not have the mark.
• You cannot play a disc that has not been finalized. (For the finalization process, see your writing software and your recorder's instruction manual.)

Acquiring GPS signal

The first time you turn on this unit, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle is outdoors in an open area away from tall buildings and trees for fastest acquisition.

After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter.

About GLONASS

This unit uses Global Navigation Satellite System (GLONASS) in addition to GPS.

Combining GPS and GLONASS can refine positioning accuracy than using GPS only.

Caution for Smartphone Users

Simultaneously running multiple applications on your smartphone while screen sharing places heavy demand on the microprocessor of the phone, potentially affecting communication and performance.

For best results while pairing with your Kenwood receiver, please be sure to close any unused applications.

Safety Precautions and Important Information

Read this information carefully before starting to operate the KENWOOD Car Navigation System and follow the instructions in this manual. Neither KENWOOD nor Garmin shall be liable for problems or accidents resulting from failure to observe the instructions in this manual.

WARNING

Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury.

When navigating, carefully compare information displayed on the navigation system to all available navigation sources, including information from street signs, visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation.

Always operate the vehicle in a safe manner.

Do not become distracted by the navigation system while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the screen of the navigation system while driving, and use voice prompts when possible.

Do not enter destinations, change settings, or access any functions requiring prolonged use of the navigation system controls while driving. Stop your vehicle in a safe and legal manner before attempting such operations.

Keep the system volume at a low enough level to be able to hear outside noises while driving. If you can no longer hear outside noises, you may be unable to react adequately to the traffic situation. This may cause accidents.

The navigation system will not display the correct current position of the vehicle the first time it is used after purchase, or if the vehicle battery is disconnected. GPS satellite signals will soon be received, however, and the correct position will be displayed.

Be careful of the ambient temperature. Using the navigation system at extreme temperatures can lead to malfunction or damage. Also note that the unit can be damaged by strong vibration, by metal objects, or by water getting inside the unit.

CAUTION

Failure to avoid the following potentially hazardous situations may result in injury or property damage.

The navigation system is designed to provide you with route suggestions. It does not reflect road closures or road conditions, weather conditions, or other factors that may affect safety or timing while driving.

Use the navigation system only as a navigational aid. Do not attempt to use the navigation system for any purpose requiring precise measurement of direction, distance, location, or topography.

The Global Positioning System (GPS) is operated by the United States government, which is solely responsible for its accuracy and maintenance. The government system is subject to changes that could affect the accuracy and performance of all GPS equipment, including the navigation system. Although the navigation system is a precision navigation device, any navigation device can be misused or misinterpreted and, therefore, become unsafe.

IMPORTANT INFORMATION

Vehicle Battery Preservation

This navigation system can be used when the ignition key is turned to ON or ACC. To preserve the battery, however, it should be used with the engine running whenever possible. Using the navigation system for a long time with the engine switched off can cause the battery to run down.

Map Data Information

One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages displayed to the consumer. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive.

Basic Operations

Functions of the Buttons on the Front Panel

DX996XR

DNR876S

DX696S/DNX576S

DNR46EX/DNR476S

NOTE

The panels shown in this manual are examples used to provide a clear explanation of operations. For this reason, they may be different from the actual panels.

Number	Name Motion
1	Remote Sensor	• Receives the remote control signal.
2	▼,▲ (Volume)	• Adjusts the volume. The volume will go up to 15 when you keep pressing▲.
3	NAV/	• Displays the navigation screen. • Pressing and holding turns the screen off. (DNR876S) • Pressing and holding switches view camera display on/off. The camera whose view is displayed first changes according to the "Camera Setup" setting and the shift lever position in the shift gate. (Except DNR876S)
4	HOME/	• Displays the HOME screen (P.10). • Pressing for 1 second turns the power off. • When the power is off, turns the power on.
5	MENU/	• Displays the popup menu screen. • Pressing for 1 second switches attenuation of the volume on/off.
6	=	• Displays the APP (Apple CarPlay/Android Auto/Wireless Mirroring) screen. • Pressing and holding displays the Voice Recognition screen. • When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, pressing and holding displays Bluetooth pairing waiting dialog.
7	▲	• Displays the Angle Adjust screen. - [DISC EJECT]: Ejects the disc. - [OPEN]: Fully opens the panel to the location of the SD card slot. • When the panel is opened, closes the panel. • To forcibly eject the disc, press it for 2 seconds and then touch [DISC EJECT] after the message is displayed. (DNX996XR only)
8	CAM • Switches view camera display on/off. The camera whose view is displayed first changes according to the "Camera Setup" setting and the shift lever position in the shift gate. • Pressing and holding displays the Angle Adjust screen. - [OPEN]: Fully opens the panel to the location of the SD card slot. • When the panel is opened, closes the panel. (DNR876S only)
Number	Name Motion

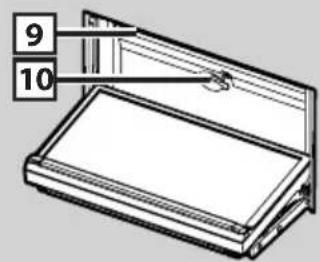

9	Disc insert slot	·A slot to insert a disc media. (DNX996XR / DNX696S / DNX576S only)

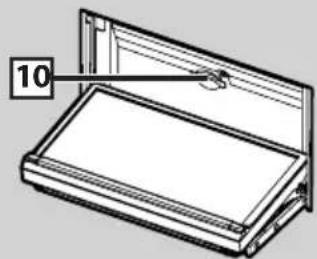

10	SD card slot	·A slot to insert an SD card. ·You can play audio/visual files in the card. * ·An SD card slot for upgrading the map. For how to upgrade the map, refer to the instruction manual of the navigation system. *2 *1 If the map update file remains in the SD card, you cannot play audio/visual files. *2 The system of the unit is rebooted after inserting/removing the MAP SD. (DNX996XR / DNR876S only)
11	microSD card slot	·A slot to insert a microSD card. ·You can play audio/visual files in the card. * ·A microSD card slot for upgrading the map. For how to upgrade the map, refer to the instruction manual of the navigation system. *2 *1 If the map update file remains in the microSD card, you cannot play audio/visual files. *2 The system of the unit is rebooted after inserting/removing the MAP SD. (DNX696S / DNX576S / DNR46EX / DNR476S only)

Turning on the Unit

The method of turning on is different depending on the model.

1 Press the [HOME] button.

DX996XR/DNR876S

DX696S / DX576S / DNR46EX / DNR476S

The unit is turned on.

To turn off the unit:

1 Press the [HOME] button for 1 second.

NOTE

• If it is your first time to turn the unit on after installation, it will be necessary to perform Initial setup (P.8).

Initial Settings

Initial setup

Perform this setup when you use this unit first time.

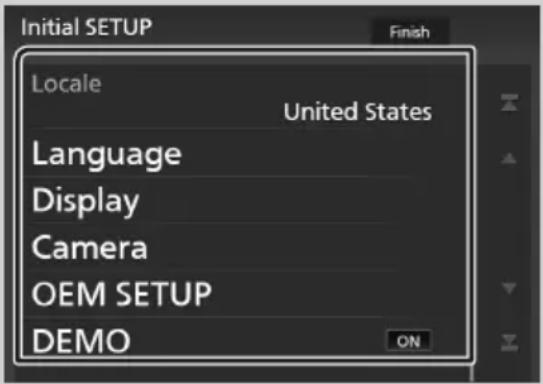

1 Set each item as follows.

■[Locale]

Select the country for the navigation system. The language, the distance unit, and the gasoline unit are set.

① Touch [Locale].
② Select the desired country.

■[Language]

Select the language used for the control screen and setting items. Default is "American English(en)".

① Touch [Language].
② Touch [Language Select].
③ Select the desired language.
④ Touc

For details, see User Interface Setup (P.90) in the Instruction Manual.

■[Display]

Set the key illumination color.

If it is hard to see the image on the screen even, adjust the viewing angle.

① Touch [Display].
② Touch [Key Color].
③ Select the desired color.
④ Touc

(DNX996XR / DNR876S only)

⑤ Touch [Display Adjustment].
⑥ Adjust a viewing angle and a tilt position.
⑦ Touc

(DNX696S / DNX576S / DNR46EX / DNR476S only)

⑤ Touch [Viewing Angle].
Select a viewing angle.
⑦ Touch5].

Viewing Angle

You can adjust the viewing angle when the image on the screen is difficult to see evenly. The smaller the (negative) value, the more whitish the image on the screen looks. "0" (Default)/"-1"/"-2"/"-3"

For details, see Display Setup (P.92) in the Instruction Manual.

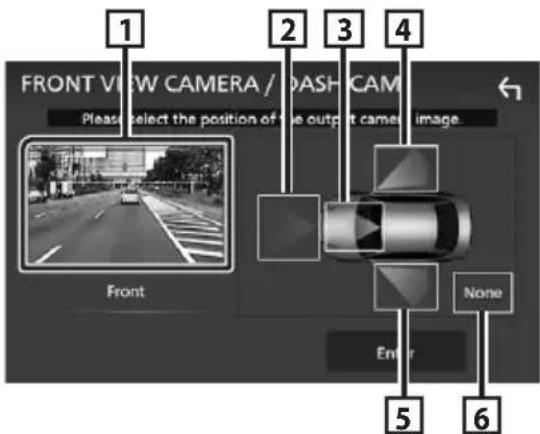

[Camera]

Set the parameters for the camera.

① Touch [Camera].
② Set each item and touch [1].

For details, see Camera Setup (P.84) in the Instruction Manual.

[OEM SETUP]

This function requires a commercial adaptor. Consult your KENWOOD dealer for details.

[DEMO]

Set the demonstration mode. Default is "ON".

2 Touch [Finish].

NOTE

These settings can be made from the SETUP menu. See Setup (P.89) in the Instruction Manual.

Calendar/clock settings

1 Press the [MENU] button.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

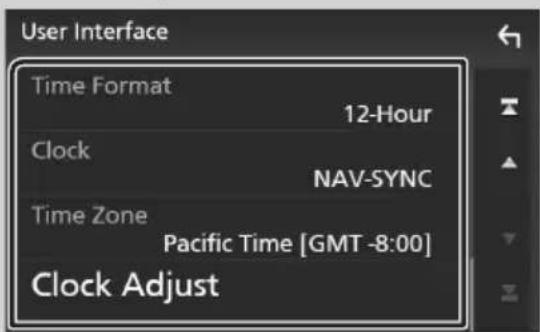

3 Touch [User Interface].

User Interface screen appears.

4 Set each item as follows.

Scroll the page to show hidden items.

Time Format

Select the time display format.

[12-Hour] (Default)/[24-Hour]

■[Clock]

[NAV-SYNC] (Default): Synchronizes the clock time with navigation GPS data.

[Manual]: Set the clock manually.

Time Zone

If you have selected [Manual] for Clock, select the time zone.

Clock Adjust]

If you select [Manual] for Clock, adjust the date and time manually.

NOTE

• Please set the date and time. If they are not set, some functions may not work.

Touch screen operations

To perform operations on the screen, you need to touch, touch and hold, flick or swipe to select an item, display a setting menu screen or change pages.

Touch

Touch the screen gently to select an item on the screen.

Touch and hold

Touch the screen and keep your finger in place until the display changes or a message is displayed.

Flickr

Slide your finger quickly to the left or right on the screen to change the page. You can scroll a list screen by flicking up/down on the screen.

- Swipe

Slide your finger up or down on the screen to scroll the screen.

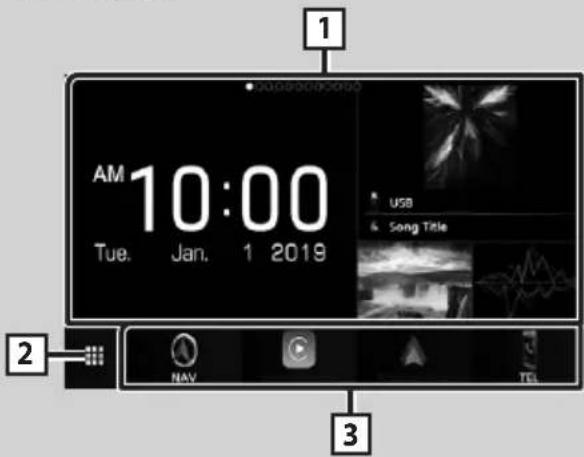

HOME screen descriptions

Most functions can be performed from the HOME screen.

• Widget

• You can change the widget by flicking left or right on the widget area.

• Touch the widget to display the detailed screen.

• Displays the source selection screen. (P.11)

• Short-cut playback source icons (P.12)

Display the HOME screen

Press the [HOME] button.

DX996XR/DNR876S

DNX696S / DNX576S / DNR46EX / DNR476S

HOME screen appears.

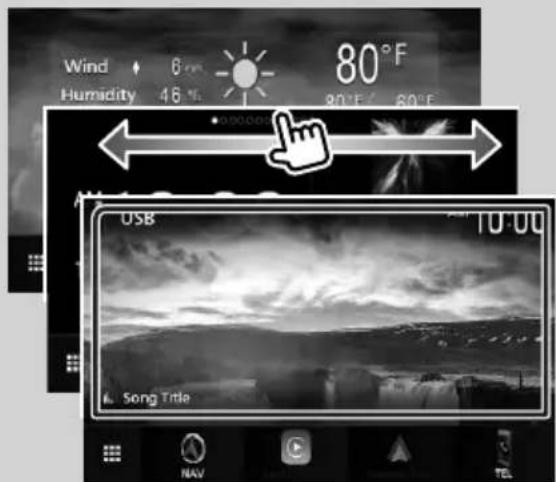

Widget

Press the [HOME] button.

HOME screen appears.

You can change the widget by flicking left or right on the widget area.

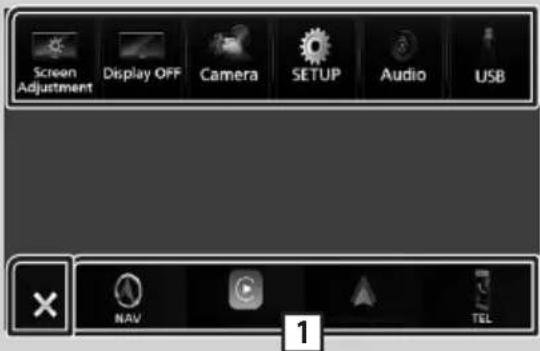

Popup menu

1 Press the [MENU] button.

Popup menu appears.

2 Touch to display the popup menu.

DNX996XR / DNR876S / DNR46EX / DNR476S

DNX696S/DNX576S

The contents of the menu are as follows.

Screen Adjustment	• Displays the Screen Adjustment screen.
Camera	• Turns the display off. To turn on the screen: Touch the display.
SETUP	• Displays the SETUP Menu screen.

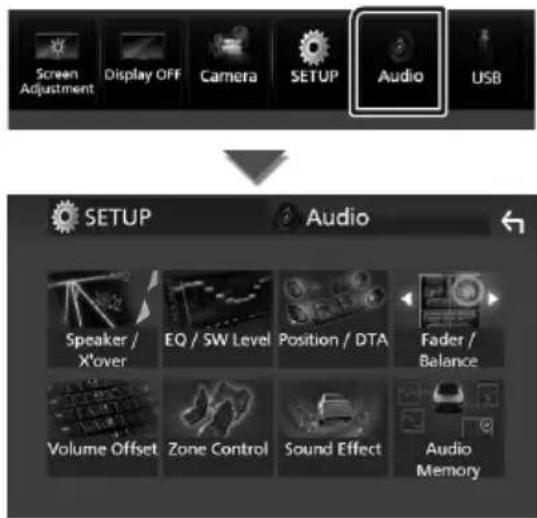

Audio	• Displays the Audio screen. (P.25)
USB	• Displays the control screen of current source. Icon feature differs depending on the source. This icon is for USB source.
×	• Close the popup menu. DNX996XR / DNR876S / DNR46EX / DNR476S only
△	• Touch to eject the disc. • Touch for 2 seconds to forcibly eject the disc and then touch [Yes] after the message is displayed. DNX696S / DNX576S only

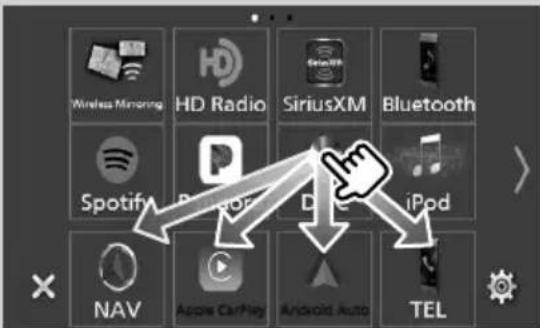

1	• Short-cut source icons: The source changes to the one you have set with a short-cut. For the short-cut setting, refer to Customize Short-cut source icons on HOME screen (P.12).

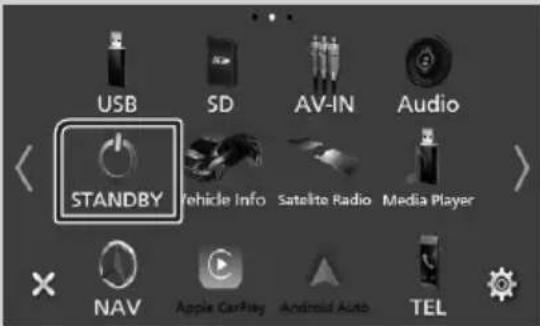

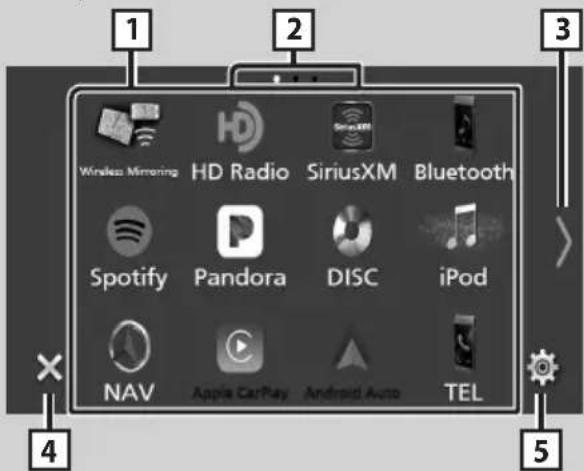

Source selection screen description

You can display icons of all playback sources and options on the source selection screen.

Changes playback sources. For playback sources, see P.13
Page indication
Changes pages. (Touch /). You can also change pages by flicking left or right on the screen.
- Returns to the previous screen.
- Displays the SETUP Menu screen.

Select the playback source

Press the [HOME] button.

HOME screen appears.

2 Touch From the screen, you can select the following sources and functions.

NAV	• Displays the navigation screen. (P.14)
Apple CarPlay	• Switches to the Apple CarPlay screen from the connected iPhone.
APPSHIRE AUR	• Switches to the Android Auto screen from the connected Android device.

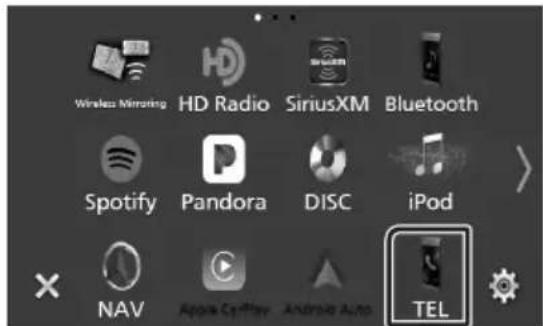

TEL	• Displays the Hands Free screen. (P.23) When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, displays Bluetooth pairing waiting dialog.*

Basic Operations

Radio	• Switches to the Radio broadcast. (P.21) DX576S / DNR46EX / DNR476S only
HD Radio	• Switches to the HD Radio broadcast. (P.20) DX996XR / DNR876S / DX696S only
SinuXOM	• Switches to the SiriusXM® satellite radio broadcast.
Bluetooth	• Plays a Bluetooth audio player.
DISC	• Plays a disc. (P.16) DX996XR / DX696S / DX576S only
iPod	• Plays an iPod/iPhone. (P.18)
USB	• Plays files on a USB device. (P.18)
SD	• Plays files on an SD card. (P.18)
Pandora	• Switches to Pandora.
Spotify	• Switches to Spotify.
AVIN	• Switches to an external component connected to the AV-IN input terminal.*
Switches to the Wireless Mirroring screen from the connected Android device. DX996XR / DNR876S only
Audio	• Displays the Audio screen. (P.25)
STANDBY	• Puts the unit in standby. (P.12)

1 When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto. If Apple CarPlay or Android Auto are connected during talking by the Bluetooth device or iDataLink phone, the current call will be continued.
2 CA-C3AV (optional accessory) is connected to the AV-IN input terminal for visual. (P.32)

Put the unit in standby

Press the [HOME] button. HOME screen appears.
2 Touch
3 Touch [STANDBY].

Customize Short-cut source icons on HOME screen

You can arrange the positions of the source icons as you like.

Press the [HOME] button. HOME screen appears.
2 Touch
3 Touch and hold the icon which you want to move in the customizing mode.
4 Drag the icon to the desired position.

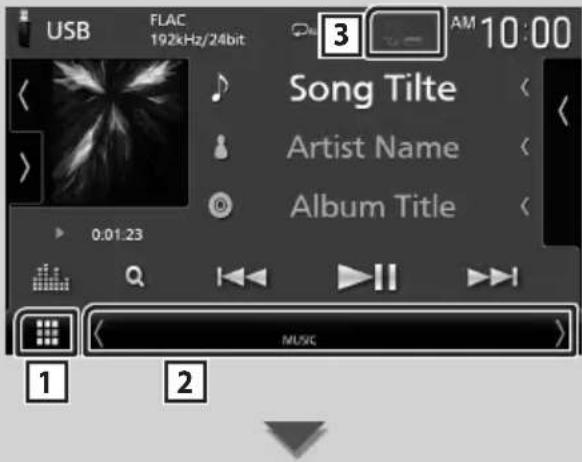

Source control screen descriptions

There are some functions which can be performed from most screens.

Indicators

Navigation information

Short-cut source icons

1 sources icon

Displays the source selection screen. (P.11)

Secondary screen

The Secondary screen changes to another one every time you touch it. You can also change the Secondary screen by flicking left or right on the screen.
- Indicators: Displays the current source condition and so on.
- Navigation information: Displays the current location and the direction. The screen changes to the navigation screen when you touch here.
- Short-cut source icons: The source changes to the one you have set with a short-cut. For the short-cut setting, refer to Customize Short-cut source icons on HOME screen (P.12).

3TELY

• Connected Bluetooth device information.

List screen

There are some common function keys in the list screens of most sources.

Display the list screen

1 Touch [Q].

The list screen appears.

1 xt scroll

Scrolls the displayed text.

2 Play

Keys with various functions are displayed here.

• Play: Plays all tracks in the folder containing the current track.
• Q A-Z: Jumps to the letter you entered (alphabetical search).
  Top Up ves to the upper hierarchy level.

3 ]Page scroll

You can change pages to display more items by pressing [ ]

• [ ]: Displays the top or bottom page.

4urn

Returns to the previous screen.

Navigation Operation

For details on the navigation function, please refer to the Navigation Instruction Manual.

Display the navigation screen

Press the [NAV] button.

DX996XR / DNR876S

DNX696S / DNX576S / DNR46EX / DNR476S

The navigation screen appears.

2 Touch

Main Menu screen appears.

How to Use the Navigation System

1 Operatethe desired function from the Main Menu screen.

GPS and GLONASS signal status.
Finds a destination.
3 Views the map.

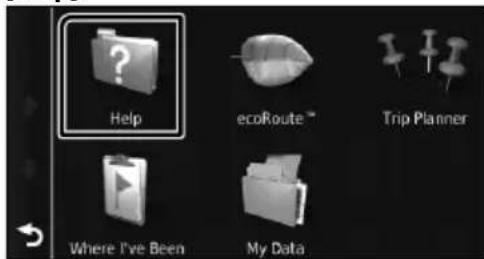

4 Uses the Apps such as ecoRoute and Help.
5 Adjusts the settings.

NOTE

• GLONASS reception is not available on all device models.

NOTE

• You can get additional information about using the navigation system from Help. To display Help, touch [Apps] and then touch

[Help].

• For more information about your navigation system, download the latest version of the Owner's Manual from http://manual.kenwood.comedition/im399/

2 Enter your destination and start the guidance.

Finding points of interest

① Touch [Where To?].
② Select a category and a subcategory.
③ Select a destination.
④ Touch [Go!].

NOTE

To enter letters contained in the name, touch the Search bar and enter the letters.

3 Follow your route to the destination.

NOTE

• The speed limit icon feature is for information only and does not replace the driver's responsibility to abide by all posted speed limit signs and to use safe driving judgment at all times. Garmin and JVC KENWOOD will not be responsible for any traffic fines or citations that you may receive for failing to follow all applicable traffic laws and signs.

Your route is marked with a magenta line. As you travel, your navigation system guides you to your destination with voice prompts, arrows on the map, and directions at the top of the map. If you depart from the original route, your navigation system recalculates the route.

1 Views the Next Turn page or the junction view page, when available.
2 Views the Turn List page.
3 Views the Where Am I? page.
4 Stops the currents route.
5 | Displays traffic information on the route.
6 Returns to the Main menu.
Data field. Touch to display a different data field.
Vehicle speed. Touch to display a trip information.
9 Displays more options.

NOTE

• Touch and drag the map to view a different area of the map.
• A speed limit icon could appear as you travel on major roadways.

-Adding a stop

① While navigating a route, touch D] and then touch [Where To?].
② Search for the extra stop.
③ Touch [Go!].
④ Touch [Add to Active Route] to add this stop before your final destination.

Taking a detour

① While navigating a route, touch = ].
② Touch[ ]

Manually avoiding traffic on your route

① From the map, touch
② Touch [Traffic On Route].
③ If necessary, touch the arrows to view other traffic delays on your route.
④ Touch ]> [Avoid].

Viewing the traffic map

The traffic map shows color-coded traffic flow and delays on nearby.

① From the map, touch
② Touch [Traffic Conditions].

■About traffic

• Traffic service is not available in some areas or countries.
• Garmin and JVC KENWOOD are not responsible for the accuracy or timeliness of the traffic information.
• You can receive INRIX traffic information and weather forecast by connecting your iPhone or Android smartphone in which the "KENWOOD Traffic Powered By INRIX" application is installed.

For details, see "KENWOOD Traffic Powered By INRIX" application.

Updating maps

You can purchase updated map data from Garmin.

① Go to www.garmin.com/kenwood.
② From the Map Updates section, select Update
③ Follow the on-screen instructions.

Disc (DNX996XR / DNX696S / DNX576S)

Playing a disc

Insert a disc

DNX996XR

1 Press the [▲] button.

2 Touch [DISC EJECT].

The panel opens.

3 Insert the disc into the slot.

The panel closes automatically. The unit loads the disc and playback starts.

DX696S/DNX576S

1 Insert the disc into the slot.

The unit loads the disc and playback starts.

Eject a disc

DNX996XR

1 Press the [▲] button.
2 Touch [DISC EJECT].

When removing a disc, pull it horizontally.

3 Press the [▲] button.

The panel closes.

DNX696S/DNX576S

1 Press the button.

Popup menu appears.

2 Touch

When removing a disc, pull it horizontally.

NOTE

• This is not displayed on the popup menu screen of Apple CarPlay or Android Auto source. Change Apple CarPlay or Android Auto source to other one to display the popup menu screen.

DVD/VCD Basic Operation

NOTE

The control screen disappears when no operation is done for 5 seconds.

1 When the operation buttons are not displayed on the screen, touch area.

1 Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• ■]: Stops playback. Touching twice will play the disc from the beginning when you play it next time.
  Fast-forwards or fast-backward the disc. Each time you touch the key, the speed changes. 2 times, 10 times.
  DVD only): Plays in slow motion forward or backward.
• [SETUP] (DVD only): Touch to display the DVD SETUP screen.
• [MENU CTRL] (DVD only): Touch to display the DVD-VIDEO disc menu control screen. (P.17)
• [PBC] (VCD only): Touch to turn Playback control (PBC) on or off.
• [Audio] (VCD only): Touch to change audio output channels.

Operation keys

• [I▶I] [▶▶I]: Searches for the previous/next content.

Touch and hold to fast-forward or fast-backward the disc. (It will be cancelled automatically after about 50 seconds.)

• [▶III]: Plays or pauses.
  I: Displays the Graphic Equalizer screen. (P.25)

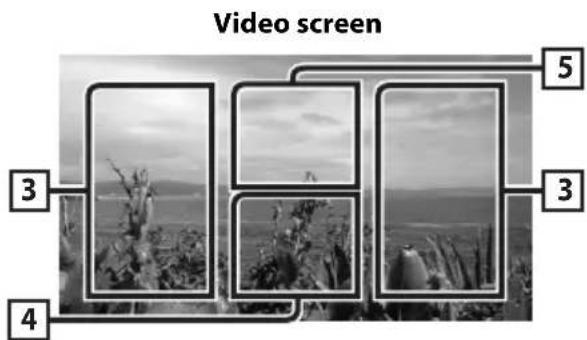

3 Searching area

Touch to search for the next/previous content.

4Key display area

Touch to display the control screen.

5 [MENUCTRL] (DVD only)

Touch to display the DVD-VIDEO disc menu control screen. (P.17)

DVD Disc Menu Operation

You can set up some functions using the DVDVIDEO disc menu.

1 Touch area.

Menu Control screen appears.

2 Perform your desired operation as follows.

To display the top menu Touch [TOP].
To display the menu Touch [MENU].
To display the previous menu Touch [Return].*
To enter selected item Touch [Enter].
To enable direct operation Touch [Highlight] to enter the highlight control mode.
To move the cursor Touch [A], [V], [A], [B].
To switch among subtitle languages Touch [Subtitle]. Each time you touch this key, subtitle languages are switched.
To switch among audio languages Touch [Audio]. Each time you touch this key, audio languages are switched.
To switch among picture angles Touch [Angle]. Each time you touch this key, picture angles are switched.

• These keys may not function depending on the disc.

USB/SD/iPod

Connecting a USB device

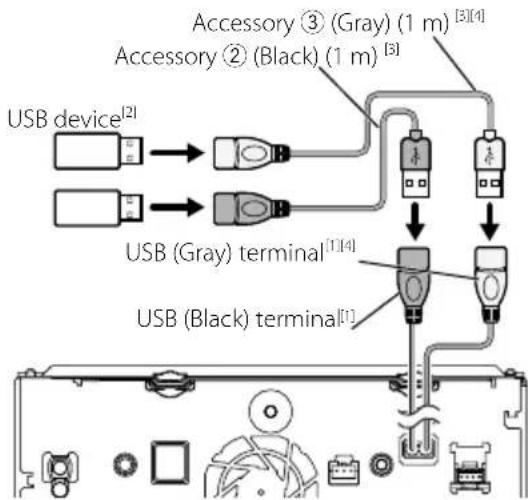

1 Connect the USB device with the USB cable. (P.33)

Disconnect the USB device

1 Press the [HOME] button.
2 Touch a source other than [USB].
3 Detach the USB device.

Usable USB device

You can use a mass-storage-class USB device with this unit.

The word "USB device" appearing in this manual indicates a flash memory device.

Inserting the SD

DX996XR

1 Press the [▲] button.
2 Touch [OPEN] to the panel fully opens.
3 Insert the SD card into the slot until it clicks.

4 Press the [▲] button.

DNR876S

1 Press and hold the [CAM] button.

2 Touch [OPEN] to the panel fully opens.
3 Insert the SD card into the slot until it clicks.
4 Press and hold the [CAM] button.

DNX696S/DNX576S/DNR46EX/DNR476S

1 Insert the microSD card into the slot until it clicks.

Remove the SD card

DX996XR

1 Press the [▲] button.
2 Touch [OPEN] to the panel fully opens.
3 Push the SD card until it clicks and then remove your finger from the card. The card pops up so that you can pull it out with your fingers.
4 Press the [▲] button.

DNR876S

1 Press and hold the [CAM] button.
2 Touch [OPEN] to the panel fully opens.
3 Push the SD card until it clicks and then remove your finger from the card. The card pops up so that you can pull it out with your fingers.
4 Press and hold the [CAM] button.

DNX696S/DNX576S/DNR46EX/DNR476S

Push the microSD card until it clicks and then remove your finger from the card. The card pops up so that you can pull it out with your fingers.

Connect iPod/iPhone

Preparation

• With an Apple CarPlay-capable iPhone, turn off Apple CarPlay by operating the iPhone at functional setup before connecting iPhone. For details of the setup method, contact the manufacturer of the terminal.
  Only one iPod/iPhone can be connected.

Wired connection

Preparation

• Connect an iPod/iPhone with the KCA-iP103 (optional accessory) while Apple CarPlay is not connected.

1 Connect the iPod/iPhone using the KCA-iP103. (P34)

• To disconnect the iPod/iPhone connected with the cable:

1 Detach the iPod/iPhone.

Bluetooth connection

Pair the iPhone through Bluetooth.

Preparation

• To connect an iPhone via Bluetooth, register it as a Bluetooth device and do the profile setting for the connection beforehand. See Register the Bluetooth device (P.22).
• Connect an iPhone via Bluetooth while Apple CarPlay and an iPod/iPhone are not connected via USB.

Connectable iPod/iPhone

The following models can be connected to this unit.

Made for

iPhone X

iPhone 6s

iPhone 5c

iPhone 8 Plus

Plus

iPhone 5

iPhone 8

iPhone 6s

• iPod

iPhone 7 Plus

iPhone 6 Plus

touch (6th

iPhone 7

iPhone 6

generation)

iPhone SE

iPhone 5s

USB/SD/iPod Basic Operation

1 Press the [HOME] button.
2 Touch
3 Touch [USB], [SD], or [iPod]. (P.11)

Control screen

1 [CODEC]

• When a high-resolution source is played, its format information is displayed.
• : Repeats the current track/folder.
  : Randomly plays all tracks in the current folder.

Operation keys

• Q]: Searches track/file.
• [▶▶I]: Searches the previous/next track/file.

Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [▶■] : Plays or pauses.

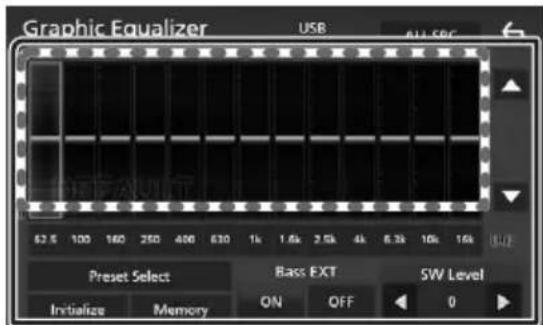

• : Displays the Graphic Equalizer screen. (P.25)

Content list

• Touch the right side of the screen to display the Content list. Touch again to close the list.
• Displays the playing list. When you touch a track/file name on the list, playback will start.

HD Radio™ Tuner/Radio

HD Radio Tuner Basic Operation (DNX996XR / DNR876S / DNX696S)

To listen to the HD Radio source, touch [HD Radio] icon on the source selection screen. (P.11)

NOTE

• HD Radio broadcasting is for North American sales area only.
  The screen shot below is for tuner. It may be different from the one for HD Radio broadcasting.

Information display

• Displays the information on the current station: Frequency and Channel
• Touching allows you to switch between Content A, Content B and Content C.
• Content A: Station name, Song Title, Artist Name
• Content B: Station Message, Radio Text
• Content C: PTY Genre, Album Name

2 Seek mode

Touch to switch seek mode in the following sequence: [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]:Tunes in a station with good reception automatically.
• [AUTO2]:Tunes in the memorized stations one after another.
• [MANUAL]: Switches to the next frequency manually.

3 Operation keys

• [▶▶] [▶▶] :Tunes in a station. The method of switching frequencies can be changed (see 2 Seek mode).

• [CH▼] [CH▲]: Selects a channel.

• [Q]: Display the Channel List screen.
  :Display a list of registered bookmarks.

• : Displays the Graphic Equalizer screen. (P25)

4 Preset list

• Touching allows you to change the display size.
• Recalls the memorized station or channel.
• When touched for 2 seconds, stores the currently being received station or channel in the memory.

5 Band buttons

Switches bands (between FM and AM).

6 Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• [10key Direct]: Display the direct station/channel search screen.
• [AME]: Presets stations automatically. (P.21)
• [RCV]: Change the HD Radio reception mode. [Auto]: Switch between digital and analog audio automatically.

[Digital]: Select this to tune to digital audio only.

[Analog]: Select this to tune to analog audio only.

• [PTY] (FM only): Searches for a program by program type.
  Stores the information about the song being received.
• [Emergency Alerts]: Turn on or off the alert message.
• [Alert Message Log]: Displays the alert message received.

7 Indicator display

While receiving an HD Radio station, it lights with orange when the audio is digital and lights with gray when it is analog. While receiving an analog station, it is off.

Radio Basic Operation (DNX576S / DNR46EX / DNR476S)

To listen to the Radio source, touch [Radio] icon on the source selection screen. (P.11)

Control screen

Information display

• Displays the information on the current station: Frequency
• Touching [ ] allows you to switch between Content A and Content B.
• Content A: PS name, Radio Text, Title & Artist
• Content B: PTY Genre, Radio Text plus Preset#: Preset number

2 Seek mode

Touch to switch seek mode in the following sequence: [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]:Tunes in a station with good reception automatically.
  [AUTO2]:Tunes in the memorized stations one after another.
• [MANUAL]: Switches to the next frequency manually.

3 Operation keys

• [1] [▶] : Tunes in a station. The method of switching frequencies can be changed (see 2 Seek mode).
  1: Displays the Graphic Equalizer screen. (P25)

4 Preset list

• Touching [1] allows you to change the display size.
• Recalls the memorized station.
• When touched for 2 seconds, stores the currently being received station in the memory.

5 Band buttons

Switches bands (between FM and AM).

6 Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• [TI] (FM only): Selects the traffic information mode.
• [AME]: Presets stations automatically. (P.21)
• [PTY] (FM only): Searches for a program by program type.
• [MONO] (FM only): Selects the Monaural reception mode.

Memory Operation

Auto memory

You can store stations with good reception in the memory automatically.

1 Touch desired band key.
2 Touch on the left side of the screen. Touch [AME].
3 Touch [Yes].

Auto memory starts.

Manual memory

You can store the currently being received station or channel in the memory.

1 Select the station or channel you wish to store in the memory.
2 Touch [FM#] (#:1-15) or [AM#] (#:1-5) in which you want to store the station or channel for 2 seconds until a beep sounds.

Preset select

1 Touch on the right side of the screen. Select a station or channel from the list.

Bluetooth Control

Register the Bluetooth device

It is necessary to register the Bluetooth audio player or cell-phone in this unit before using the Bluetooth function.

1 Press the [MENU] button.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Bluetooth].

Bluetooth SETUP screen appears.

4 Touch [Select Device] on the Bluetooth Setup screen.

5 Touch on the Select Device screen.

Bluetooth pairing waiting dialog appears.

6 Search for the unit ("DNX*/ "DNR***") from your smartphone/cellphone.

Complete steps 6 to 9 within 30 seconds.

7 Operate your smartphone/cell-phone according to the displayed messages.

• Confirm the request both on the smartphone/cell-phone.

• Input the PIN Code in your smartphone/cell-phone.

PIN Code is set to "0000" as the default.

8 Select the function you want to use.

HFP [Hands Free1]/[Hands Free2]/[No Connection.]

Select the hands-free number to connect.

A2DP/SPP [Audio/App]

Select if you want to use the audio player app in your smartphone over A2DP, and the other apps in your smartphone over SPP.

PBAP [Phonebook DL]

Select if you want to transfer your phonebook data.

9 Touch [Yes].

When data transmission and connection have completed, the Bluetooth connection icon appears on the screen.

NOTE

• When registering the iPhone that is available for Apple CarPlay wirelessly, a confirmation message appears. Touch [Yes] to display the Apple CarPlay screen for wireless connection.

Using the Hands-Free Unit

You can use the telephone function by connecting the Bluetooth telephone to this unit.

NOTE

• If you use the hands-free function frequently, move the TEL short-cut button (icon) to the Home screen. (P.12)
• While Apple CarPlay or Android Auto is connected, the Bluetooth Hands-Free function and two Bluetooth devices connections cannot be used. Only the Apple CarPlay or Android Auto Hands-Free function can be used.

Make a call

1 Press the [HOME] button.

2 Touch

3 Touch [TEL].

Hands Free screen appears.

NOTE

• If your cell-phone supports PBAP, you can display the phone book and call lists onto the touch panel screen when the cell-phone is connected. - Phone book: up to 1000 entries - Up to 50 entries including dialed calls, received calls, and missed calls

4 Select a dialing method.

• Call using call records
• J: Call using the phonebook
• [★]: Call using the preset number
• [ ]: Call by entering a phone number

Select the cell-phone to use

When you connect two cell-phones

1) Touch Device name Device name] to select the phone you want to use.

Call using call records

1 Touch

2 Select the phone number from the list.

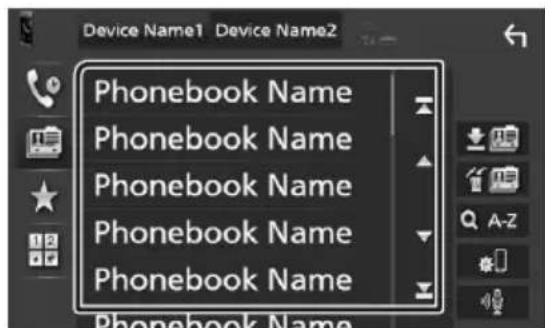

Call using the phonebook

1 Touch

2 Touch Q A-Z].
3 Select the initial.

• Characters with no corresponding name will not appear.
• A first character with an accent character such as "ü" can be searched for with a non-accent character "u". A character with an accent character in a sentence cannot be searched for.

4 Select the person you want to call from the list.

Bluetooth Control

5 Select the phone number from the list.

NOTE

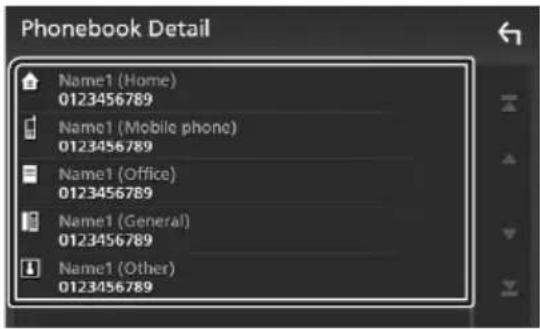

• You can sort the phone numbers in the list by last name or first name. For details, see Hands-Free Setup (P.82) in the Instruction Manual.

Call using the preset number

1 Touch
2 Touch the name or phone number.

Call by entering a phone number

1 Touch
2 Enter a phone number with number keys.

3 Touch

Receive a call

1 Touch answer a phone call or to reject an incoming call.

NOTE

While monitoring the picture from the view camera, this screen does not appear even if a call comes in.

To end call

1 While talking, touch

Operations during a call

Adjust the volume of your voice

1) Touch [Speech Quality].
2) Touch [<] or [>] for [Microphone Level].

Adjust the receiver volume

Press the [] or [] button.

Mute your voice

Touch to mute or not to mute your voice.

Output the dial tone

Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys on the screen.

- Switching between speaking voice output destinations

Touching 1ch time switches speaking voice output destinations between the cell-phone and the speaker.

To close the Hands-Free popup screen

Touching [× ] to close the Hands-Free popup screen.

To display it again

① Press the [HOME] button.
② Touch.
③ Touch [TEL].

Controlling Audio

You can adjust various settings such as audio balance or subwoofer level.

1 Press the [MENU] 车 button.

Popup menu appears.

2 Touch [Audio].

Controlling General Audio

1 Touch [Fader / Balance].

2 Set each parameter as follows.

[Fader], [Balance]

Adjust the volume balance around the touched area.

[ ] and [ ] adjust the right and left volume balance.

[▲] and [▼] adjust the front and rear volume balance.

Center]

Clear the adjustment.

Equalizer Control

You can adjust equalizer by selecting the optimized setting for each category.

1 Touch [EQ/SW Level].
2 Touch the screen and set the Graphic Equalizer as desired.

Gain level (area in dotted frame)

Adjust the gain level by touching each frequency bar.

You can select a frequency bar and adjust its level by [▲], [▼].

[Preset Select]

Display the screen for selecting the preset equalizer curve.

[Memory]

Saves the adjusted equalizer curve as "User1" to "User4".

Initialize

Initialize (flatten) the current EQ curve.

[ALL SRC]

Apply the adjusted equalizer curve to all sources. Touch [ALL SRC] and then touch OK on the confirmation screen.

[BassEXT] (Bass Extend Settings)

When turned on, the frequencies lower than 62.5Hz is set to the same gain level (62.5 Hz).

[SW Level]

Adjust the subwoofer volume.

Connection/Installation

Before Installation

Before installation of this unit, please note the following precautions.

WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.

NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.
  Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If the power is not turned ON ("There is an error in the speaker wiring. Please check the connections." is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to

a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
  After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30^ or less.

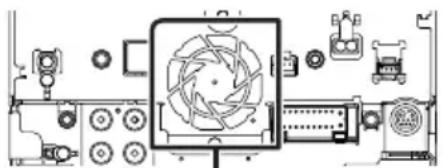

• This unit has the cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit is blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.

Cooling fan

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

• Reception may drop if there are metal objects near the Bluetooth antenna.

Bluetooth antenna unit

Supplied accessories for installation

①

x1

②

x1

(3) [1]

x1

4

x1

(5)

x2

6

x6

7

x6

8

x1

9

x1

11

x1

12[2]

X1

13

x4

[1] DNX996XR / DNR876S / DNX696S only
[2] DNX996XR only
[3] DNX996XR / DNX696S only

Installation procedure

1) To prevent a short circuit, remove the key from the ignition and disconnect the terminal of the battery.
2) Make the proper input and output wire connections for each unit.
3) Connect the speaker wires of the wiring harness.
4) Connect the wiring harness wires in the following order; ground, battery, ignition.
5) Connect the wiring harness connector to the unit.
6) Install the unit in your car.
7) Reconnect the terminal of the battery.
8) Perform the Initial Setup. See Initial setup (P.8).

Installing the unit

Non-Japanese cars

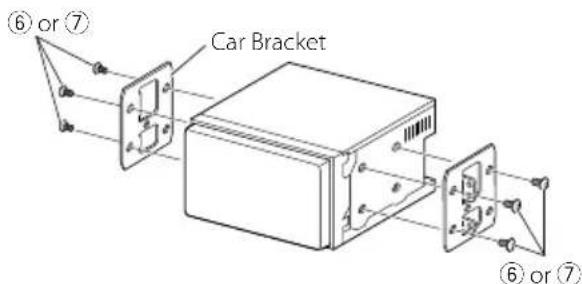

Japanese cars

NOTE

Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip).

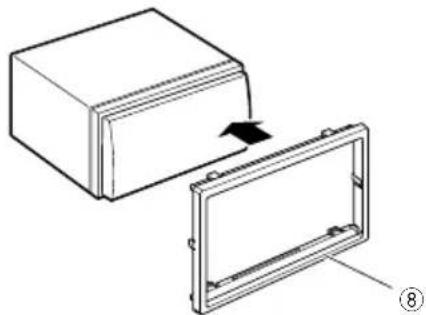

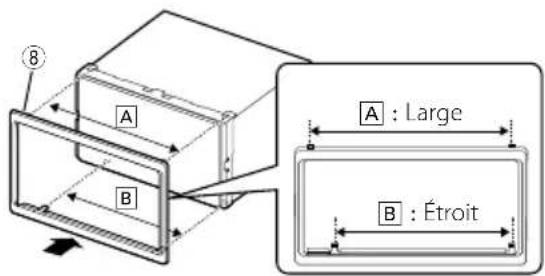

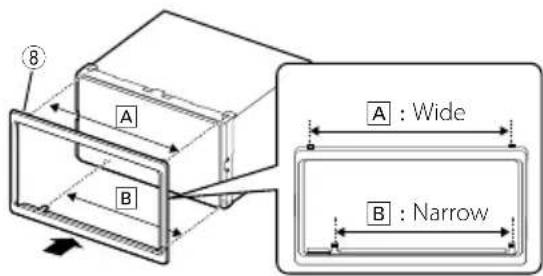

Trim plate

1) Attach accessory ⑧ to the unit.

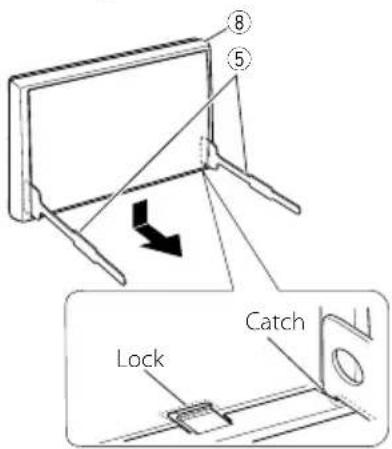

DX996XR/DNR876S

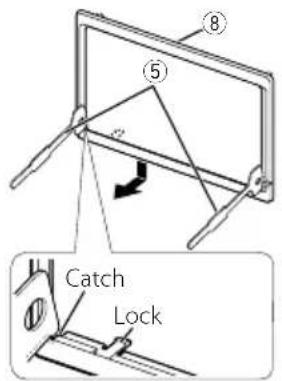

DNX696S/DNX576S/DNR46EX/DNR476S

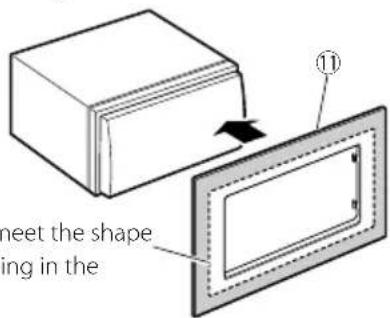

- General Motors cars (DNX996XR)

1) Cut out accessory ① to meet the shape of the opening of the center console.
2) Attach accessory ⑪ to the unit.

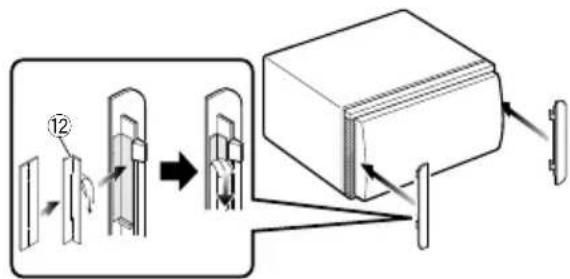

Toyota/Scion cars (DNX996XR)

1) Cut out accessory ① as illustrated.

2) Fold double-sided adhesive (accessory 12) along the slit and attach it to accessory 1 cut-out against the center rib as illustrated. Use 2 pieces of accessory 12 for 1 accessory 11 cut-out.
3) Attach accessory 1 cut-out to the unit.

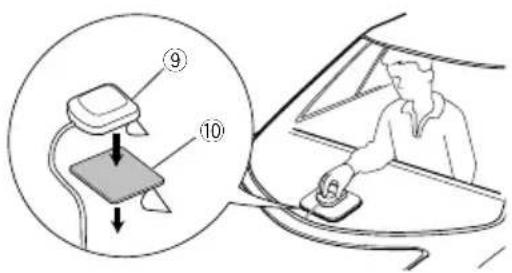

GPS antenna

GPS antenna is installed inside of the car. It should be installed as horizontally as possible to allow easy reception of the GPS satellite signals.

To mount the GPS antenna inside your vehicle:

1) Clean your dashboard or other surface.
2) Remove the separator of the metal plate (accessory 10).
3) Press the metal plate (accessory 10) down firmly on your dashboard or other mounting surface. You can bend the metal plate (accessory 10) to conform to a curved surface, if necessary.
4) Remove the separator of the GPS antenna (accessory 9), and stick the antenna to the metal plate (accessory 10).

NOTE

• Use the supplied GPS antenna. Using the GPS antenna other than the supplied one may cause a drop in positioning accuracy.
  Depending on the type of car, reception of the GPS satellite signals might not be possible with an inside installation.
• Please install this GPS antenna in an area away from any antennas that are used with CB radios or satellite televisions.
• The GPS antenna should be installed at a position that is spaced at least 12 inch (30 cm) from cellular phone or other transmitting antennas. Signals from the GPS satellite may be interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint may cause a drop in performance.

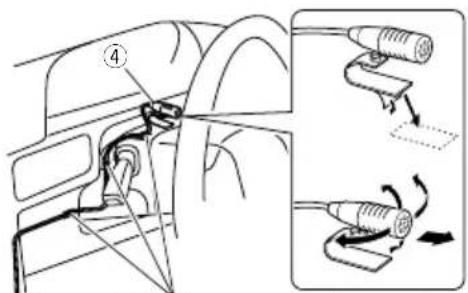

Microphone unit

1) Check the installation position of the microphone (accessory 4).
2) Clean the installation surface.
3) Remove the separator of the microphone (accessory 4), and stick the microphone to the place shown below.
4) Wire the microphone cable up to the unit with it secured at several positions using tape or other desired method.
5) Adjust the direction of the microphone (accessory 4) to the driver.

Fix a cable with a commercial item of tape.

Connection/Installation

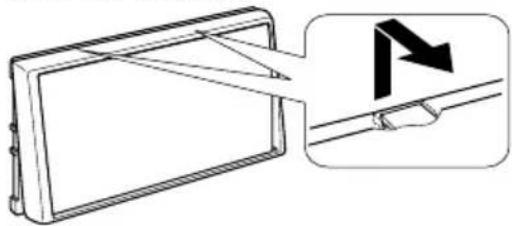

Removing the trim plate

1) Engage the catch pins on the extraction key (accessory 5) and remove the two locks on the lower level.

Lower the trim plate (accessory 8) and pull it forward as shown in the figure.

DX996XR/DNR876S

DNX696S/DNX576S/DNR46EX/DNR476S

NOTE

• The trim plate can be removed from the top side in the same manner.

2) When the lower level is removed, remove the upper two locations.

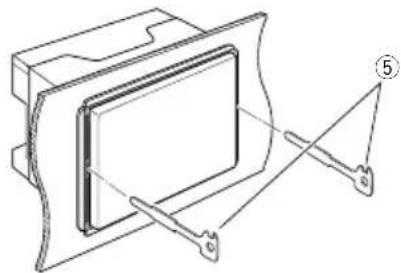

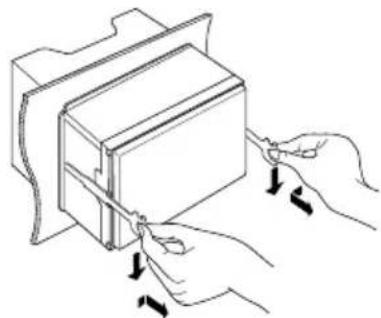

Removing the unit

1) Remove the trim plate by referring to step 1 in "Removing the trim plate".

2) Insert the two extraction key (accessory 5) deeply into the slots on each side, as shown.

3) Lower the extraction key toward the bottom, and pull out the unit halfway while pressing towards the inside.

NOTE

• Be careful to avoid injury from the catch pins on the extraction key.

4) Pull the unit all the way out with your hands, being careful not to drop it.

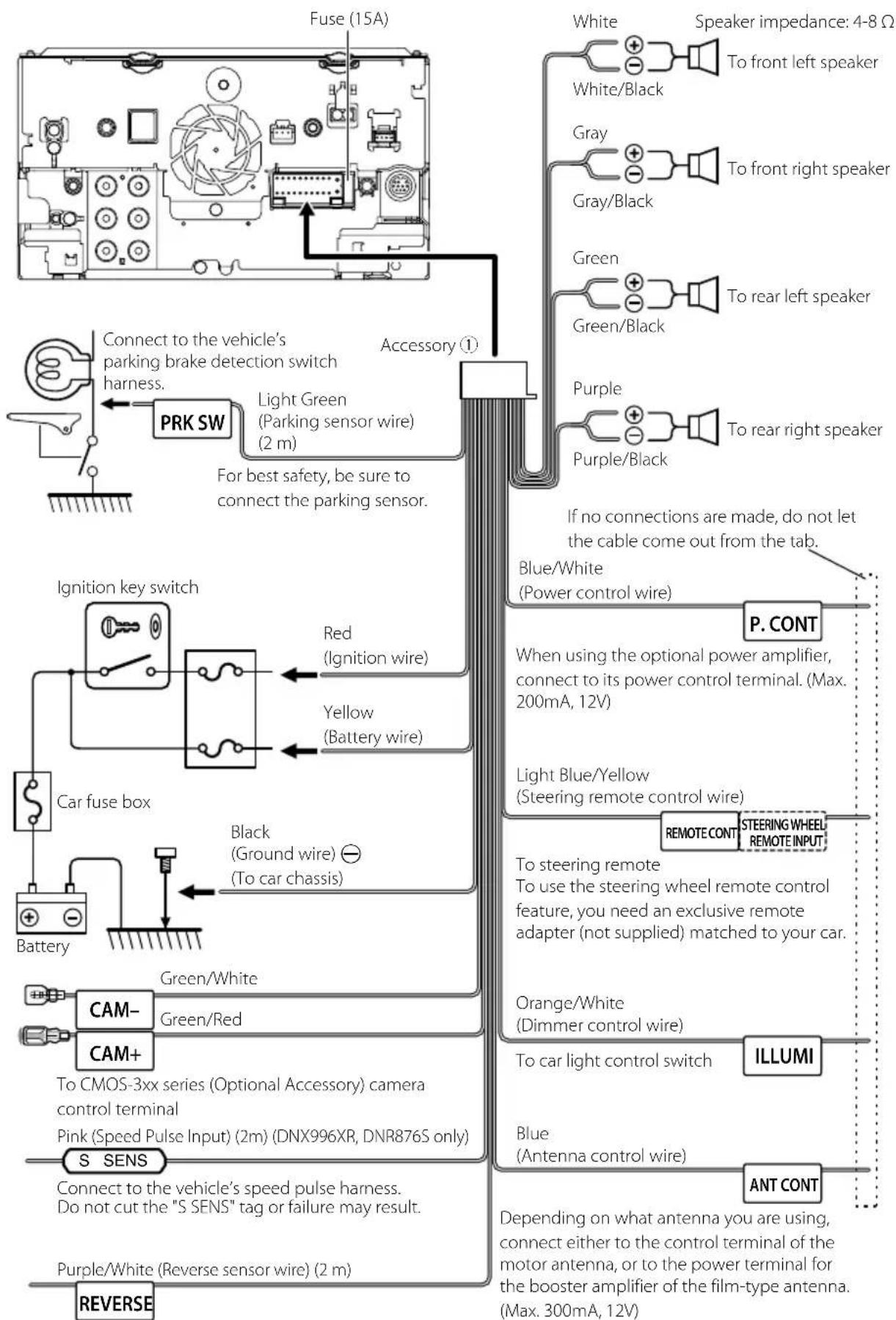

Connecting wires to terminals

Connect to vehicle's reverse lamp harness when using the optional rear view camera.

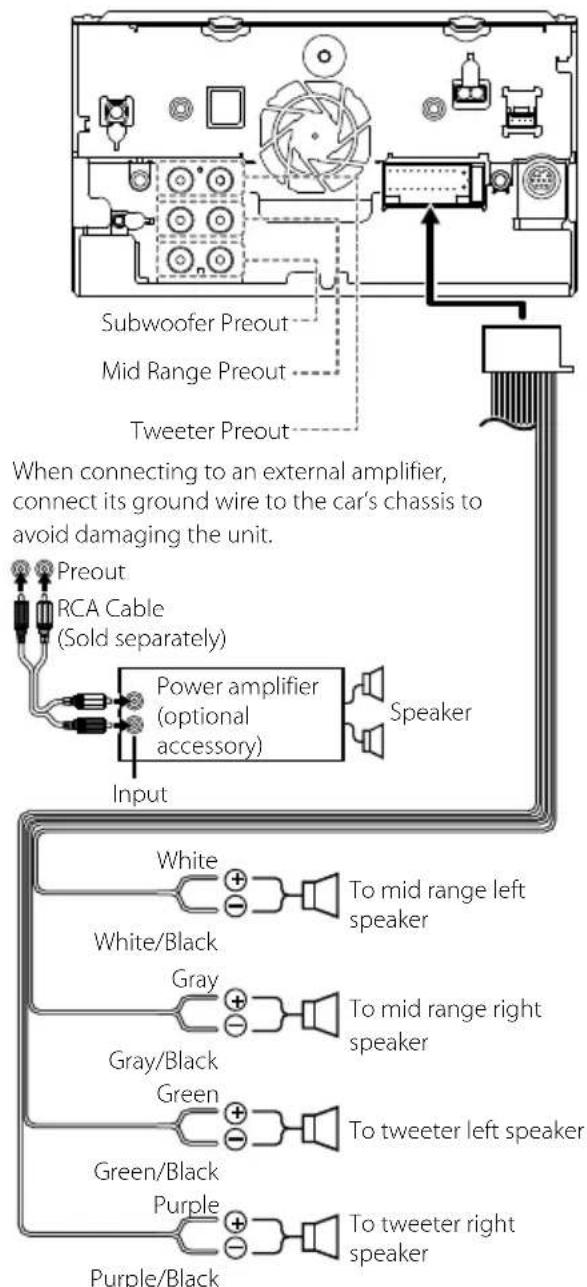

3-way speaker system setup

- DNX996XR / DNX696S
Speaker impedance: 4-8 Ω

NOTE

• For speaker system setup, see 3-way speaker system setup (P.95) in the Instruction Manual.
• For speaker setup and crossover setup, see Speaker / X'over setup (P.96) in the Instruction Manual.
• For how to connect speaker wires to terminals other than speaker terminals and Preout terminals, see Connecting the system and external components (P.32) and Connecting wires to terminals (P.31).

Connecting the system and internal components

When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.

Rear Audio Preout (Left; White, Right; Red)

Front Audio Preout (Left; White, Right; Red)

Subwoofer Preout (Left; White, Right; Red)

SiriusXM Connect Vehicle Tuner connector For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included with the tuner.

iDatalink connector

This jack accepts either AV-IN or Side (Left or Right) View Camera Input. (P.35)

[DNX996XR / DNX696S :] Accessory 13: Mini plug to RCA cable*

or CA-C3AV (Optional Accessory)
[DNR876S / DNX576S / DNR46EX / DNR476S:]
CA-C3AV (Optional Accessory)

Dashboard camera interface Connect a Dashboard Camera DRV-N520 (optional accessory).P34)

8	Accessory ⑨: GPS Antenna Use the supplied GPS antenna. Using the GPS antenna other than the supplied one may cause a drop in positioning accuracy.
9	Accessory ④: Bluetooth Microphone
10	Rear view camera input (Yellow)
11	Front view camera/Director camera input (Yellow). (P.35)
12	VIDEO Output (Yellow)

*1 Connecting Mini plug to RCA cable to AV-IN terminal enables you to use the Side (Left or Right) View Camera only. If you connect CA-C3AV (Optional Accessory), AV-IN (for visual) or the Side (Left or Right) View Camera is available.

Connecting a USB device

[1] USB maximum power supply current: DC 5V=1.5 A
Sold separately
[3]SeeSecuring the USB extension cable (P.34).
[4] DNX996XR / DNR876S / DNX696S only

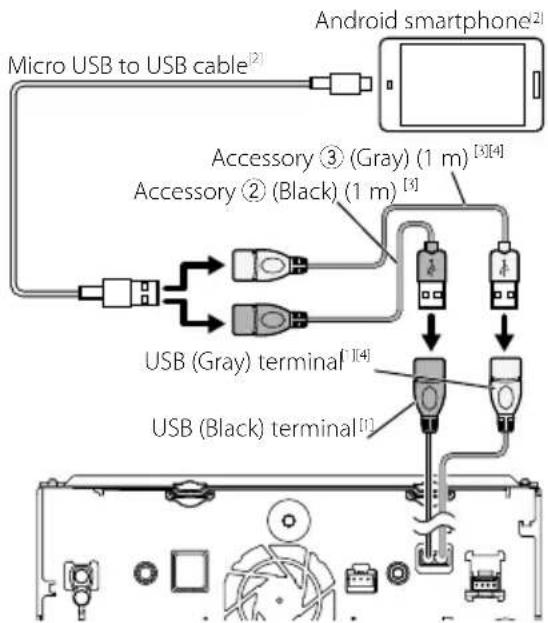

Connecting an Android smartphone

[1] USB maximum power supply current: DC 5 V = 1.5 A
[12] Sold separately
[3]SeeSecuring the USB extension cable (P.34).
[2] DX996XR / DNR876S / DX696S only

Connecting an iPod/iPhone

USB maximum power supply current: DC 5 V = 1.5 A
[12] Sold separately
[3] Optional accessory
4SeeSecuring the USB extension cable (P.34).
DNX996XR / DNR876S / DX696S only

Securing the USB extensione

Secure the USB extension cable with insulating tape or the like so that its connectors are not disconnected.

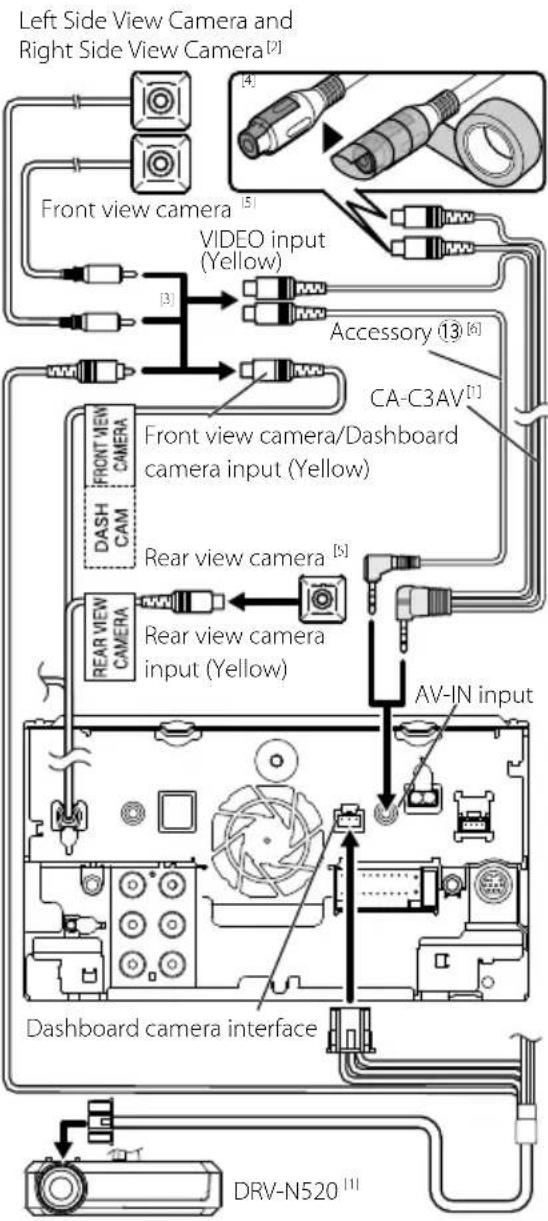

Connecting the camera

[1] Optional accessory
[2] Sold separately
[3] Up to 2 cameras of Dashboard camera, Front view camera, Left Side View Camera and Right Side View Camera can be connected. (P.35)
[4] Insulate audio input terminals of CA-C3AV (Optional Accessory) when connecting to the Camera.
[5] CMOS-3xx series (Optional Accessory) or commercially available camera.
[6] DNX996XR / DNX696S only

To set up the camera assignment settings

1 Press the [MENU] button.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.
3 Touch [Camera].
Camera screen appears.
4 Touch [Camera Assignment Settings].
5 Set each item as follows.

[FRONTVIEWCAMERA/DASH CAM]

Set the camera assignment from view camera connected to Front view camera/ Dashboard camera input terminal.

■AV-IN

Set the camera assignment from view camera connected to AV-IN input terminal.

6 Select the view camera to set up.

[Picture from view camera]
[Front]
3 [ Dashboard Camera]
4 [Right]
[Left]
[None]

7 Touch [Enter].

Appendix

Note for specifications

Bluetooth section

Frequency : 2.402 - 2.480 GHz

Output Power :Power Class2

General

Operating Voltage : 12 V DC car battery

Speaker Impedance:4-8Ω

Appendix

Copyrights

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

DVD is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.
This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- This software is based in part on the work of the independent JPEG Group.
- The "AAC" logo is a trademark of Dolby Laboratories.
- Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
- Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
- Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.
Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
- HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. For patents see http://dts.com/patents. HD Radio and the HD, HD Radio, and "ARC" logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.
- INRIX is a registered trademark of INRIX, Inc.
- Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
- SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.
Android, Android Auto, Google Play and other marks are trademarks of Google LLC.
- BlackBerry®, RIM®, Research In Motion® and related trademarks, names and logos are the property of Research In Motion Limited and are registered and/

or used in the U.S. and countries around the world. Used under license from Research In Motion Limited.

• SDXC and microSDXC Logos are trademarks of SD-3C LLC.
• Wi-Fi is a registered trademark of Wi-Fi Alliance.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.
• This product includes FontAvenue® fonts licenced by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.

FontAvenue

This product includes "Ubiquitous QuickBoot TM" technology developed by Ubiquitous Corp. Ubiquitous QuickBoot TM is a trademark of Ubiquitous Corp. Copyright © 2017 Ubiquitous Corp. All rights reserved.

Ubiquitous

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (j)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVCVIDEO") AND/OR (jj)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVCVIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (j) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4VIDEO") AND/OR (jj) DECODING MPEG-4VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.

• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1VIDEO") AND/OR (ii) DECODE VC-1VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

- libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS AS IS"AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libvorbis

Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND EDITORS 'AS IS' AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR EDITORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,OR PROFITS; OR BUSINESS INTERRUIPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libogg

Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this
  software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLLECTORS AS IS' AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Table des matieres

DNX696S / DNX576S / DNR46EX / DNR476S

DNX696S / DNX576S / DNR46EX / DNR476S

DNX696S/DNX576S/DNR46EX/DNR476S

DNX696S/DNX576S/DNR46EX/DNR476S

1 Debranchez I'iPod/I'iPhone.

Connexion Bluetooth

HFP [Hands Free1] / [Hands Free2] / [No Connection.]

Procedure installation

DNX696S/DNX576S/DNR46EX/DNR476S

Voitures General Motors (DNX996XR)

DNX696S/DNX576S/DNR46EX/DNR476S

REMARQUE

- DNX996XR / DNX696S

REMARQUE

[FRONTVIEWCAMERA/DASHCAM]

is a trademark of DVD Format/Logo Corporation registered in the U.S., Japan countries.

• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• This software is based in part on the work of the independent JPEG Group.
• The "AAC" logo is a trademark of Dolby Laboratories.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.
  Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
• HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. For patents see http://dt.com/patents. HD Radio and the HD, HD Radio, and "ARC" logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.
• INRIX is a registered trademark of INRIX, Inc.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.
• Android, Android Auto, Google Play and other marks are trademarks of Google LLC.
• BlackBerry®, RIM®, Research In Motion® and related

trademarks, names and logos are the property of Research In Motion Limited and are registered and/or used in the U.S. and countries around the world. Used under license from Research In Motion Limited.

• SDXC and microSDXC Logos are trademarks of SD-3C LLC.
• Wi-Fi is a registered trademark of Wi-Fi Alliance.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.
• This product includes FontAvenue® fonts licenced by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.

FontAvenue

• This product includes "Ubiquitous QuickBoot TM" technology developed by Ubiquitous Corp. Ubiquitous QuickBoot TM is a trademark of Ubiquitous Corp. Copyright © 2017 Ubiquitous Corp. All rights reserved.

• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (j)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVCVIDEO") AND/OR (jj)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (j) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4VIDEO") AND/OR (jj) DECODING MPEG-4VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.

• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1VIDEO") AND/OR (ii) DECODE VC-1VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

• libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS AS IS"AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• libvorbis

Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,OR PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• libogg

Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this
  software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLLECTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Contidente

DNX696S / DNX576S / DNR46EX / DNR476S

DNX696S / DNX576S / DNR46EX /

DNR476S

DNX696S / DNX576S / DNR46EX / DNR476S

Disco(DNX996XR / DNX696S / DNX576S)

DNX696S/DNX576S/DNR46EX/DNR476S

DNX696S/DNX576S/DNR46EX/DNR476S

HFP [Hands Free1]/[Hands Free2]/[No Connection.]

[1] DNX996XR / DNR876S / DNX696S solo
[2] DNX996XR solo
[3] DNX996XR/DNX696S solo

DNX696S/DNX576S/DNR46EX/DNR476S

DNX696S/DNX576S/DNR46EX/DNR476S

NOTA

Picture from view camera
2 [Front]
[ Dashboard Camera]
4 [Right]
[Left]
[None]

7 Toque [Enter].

Apéndice

is a trademark of DVD Format/Logo Corporation registered in the U.S., Japan countries.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- This software is based in part on the work of the independent JPEG Group.
- The "AAC" logo is a trademark of Dolby Laboratories.
- Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
- Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
- Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.
Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
- HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. For patents see http://dts.com/patents. HD Radio and the HD, HD Radio, and "ARC" logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.
- INRIX is a registered trademark of INRIX, Inc.
- Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
- SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.
Android, Android Auto, Google Play and other marks are trademarks of Google LLC.
- BlackBerry®, RIM®, Research In Motion® and related trademarks, names and logos are the property of

Research In Motion Limited and are registered and/or used in the U.S. and countries around the world. Used under license from Research In Motion Limited.

• SDXC and microSDXC Logos are trademarks of SD-3C LLC.
• Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.
• This product includes FontAvenue® fonts licenced by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.

FontAvenue

This product includes "Ubiquitous QuickBoot TM" technology developed by Ubiquitous Corp. Ubiquitous QuickBoot TM is a trademark of Ubiquitous Corp. Copyright © 2017 Ubiquitous Corp. All rights reserved.

Ubiquitous

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (j)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVCVIDEO") AND/OR (jj)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4VIDEO") AND/OR (ii) DECODING MPEG4VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.

• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1VIDEO") AND/OR (ii) DECODE VC-1VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

- libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS AS IS"AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libvorbis

Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND EDITORS 'AS IS' AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR EDITORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libogg

Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this
  software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLLECTORS AS IS' AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

NOTE

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

• This equipment generates, used and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation

2967-3, ISHIKAWA-MACHI,

THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

IC (Industry Canada) Notice

This device complies with Industry Canada's applicable licence-exempt RSSs.

Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAUTION

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

■Note de 'IC (Industrie Canada)

Supplier's Declaration of Conformity

Trade Name: KENWOOD

Products: GPS NAVIGATION SYSTEM

Model Name: DNX996XR / DNR876S /

DNX696S / DNX576S /

DNR46EX/DNR476S

Responsible Party: JVCKENWOOD USA

CORPORATION

2201 East Dominguez Street,

Long Beach, CA 90810, U.S.A.

PHONE:[phone]

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

CALIFORNIA, USA

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

This HD Radio receiver enables

HD2/HD3

Bookmark

Digital Sound

Program Info

Artist Experience

Emergency Alerts
