ILCE6100L - Camera SONY - Free user manual and instructions

Product type	Interchangeable lens camera
Brand	Sony
Model	ILCE-6100L
Lens mount	Sony E-mount
Image sensor	APS-C CMOS (23.5 mm × 15.6 mm)
Effective pixels	Approx. 24.2 megapixels
Total pixels	Approx. 25.0 megapixels
Electronic viewfinder	1.0 cm (0.39 type) electronic viewfinder
Screen	7.5 cm (3.0 type) tiltable TFT active matrix touchscreen
Power source	Rechargeable battery NP-FW50 (7.2 V ---)
Battery charging	Via AC adaptor (supplied) and micro-USB cable
Dimensions (W × H × D)	120 × 66.9 × 59.4 mm (with grip) / 120 × 66.9 × 49.9 mm (from grip to screen)
Weight	Approx. 396 g (battery and SD memory card included)
Operating temperature	0 to 40 °C
Storage temperature	-20 to 55 °C
Compatible storage media	SD memory cards, Memory Stick
Video formats	XAVC S, AVCHD
Wireless connectivity	Built-in Wi-Fi, QR Code for smartphone connection
Main features	Continuous shooting, 4K video recording, built-in flash, selfie screen, airplane mode
Supplied accessories	Camera, battery NP-FW50, micro-USB cable, AC adaptor, shoulder strap, eyepiece, body cap, startup guide, reference guide
Maintenance and cleaning	Clean the flash surface with a soft cloth; avoid exposure to dust and moisture
Safety	Do not point the lens at an intense light source; use a tripod with a screw less than 5.5 mm; turn off the camera when charging
Spare parts and repairability	Battery NP-FW50, AC adaptor AC-UUD12/AC-UUE12; consult Sony support

Frequently Asked Questions - ILCE6100L SONY

How to insert the battery and memory card into the camera?

Open the battery/memory card compartment cover. Insert the battery while pressing the lock lever, following the correct orientation. Insert the memory card (SD or Memory Stick) with the beveled corner oriented as shown in the manual. Close the cover.

How to charge the camera battery?

Make sure the camera is off. With the battery inserted, connect the camera to the AC adaptor (supplied) via the micro-USB cable, then plug the adaptor into a wall outlet. The charge lamp lights up; it turns off when charging is complete.

How to attach a lens to the Sony ILCE-6100L?

Remove the body cap and the lens rear cap. Align the white mark on the lens with the one on the camera (mounting marks). Gently turn the lens in the direction of the arrow until it clicks into the locked position.

How to set the language and clock on the camera?

Set the ON/OFF switch to ON. Use the control dial to select the language and press the center to confirm. Then set the geographic location, daylight saving time, date/time, and date format. Confirm with [Enter]. To change later, go to MENU → Setup → Date/Time Setup or Area Setting.

How to take a photo with the camera?

Turn the mode dial to select the shooting mode. Press the shutter button halfway to focus, then press it fully to take the photo. You can also use the flash by pressing the flash pop-up button.

How to record a movie with the camera?

Press the MOVIE button on the camera to start recording. Press it again to stop. Recording can be started from any shooting mode by default.

How to view photos and videos on the camera?

Press the Playback button to switch to playback mode. Use the control dial to navigate between images (left/right). To play a video, select it and press the center of the dial.

How to transfer images to a smartphone?

Install the Imaging Edge Mobile app on your smartphone. On the camera, go to MENU → Network → Send to Smartphone Function → Send to Smartphone → Select on This Device and choose images. Launch Imaging Edge Mobile on the smartphone and select 'Scan QR Code of Camera'. Scan the QR Code displayed on the camera. The selected images will be transferred.

How to clean the camera and flash?

Remove any dirt from the flash surface with a soft cloth. Dirt on the flash may cause smoke or burns when emitting light. The camera is dust and moisture resistant but not waterproof.

What to do in case of overheating during prolonged video recording?

The camera body and battery may heat up normally. Avoid prolonged skin contact. If using the camera in a hot environment or with the 'Auto Power Off Temp.' setting set to 'High', use a tripod. If discomfort occurs, stop use and consult a doctor.

USER MANUAL ILCE6100L SONY

https://www.sony.net/SonyInfo/Support/

SONY®

5-009-876-41(1)

06100

α6100

E-mount

"Help Guide" (Web manual)

Refer to "Help Guide" for in-depth instructions on the many

functions of the camera.

https://rd1.sony.net/help/ilc/1950/h_zz/

Interchangeable Lens Digital Camera/Startup Guide GB

Appareil photo à objectif interchangeable/Guide de démarrage FR

Digitalkamera mit Wechselobjektiv/Einführungsanleitung DE

Cámara Digital de Lentes Intercambiables/Guía de inicio ES

Fotocamera digitale con obiettivo intercambiabile/Guida di avvio IT

Câmara Digital de Objetivas intercambiáveis/Guia de início PT

Digitale camera met verwisselbare lens/Beknopte gids NL

Aparat cyfrowy z wymiennymi obiektywami/Przewodnik uruchamiania PL

Цифровой фотоаппарат со сменным объективом/Руководство по началу работы RU

Цифровий фотоаппарат зі змінним об'єктивом/Посібник із початку роботи UA

Digitalkamera med utbytbart objektiv/Startguide SE

Digitaalinen kamera vaihdettavalla objektiivilla/Aloitusopas FI

Digitalkamera med utskiftbart objektiv/Startveiledning NO

Digitalkamera med udskifteligt objektiv/Startvejledning DK

©2019 Sony Corporation Printed in China

5009876410

ILCE-6100

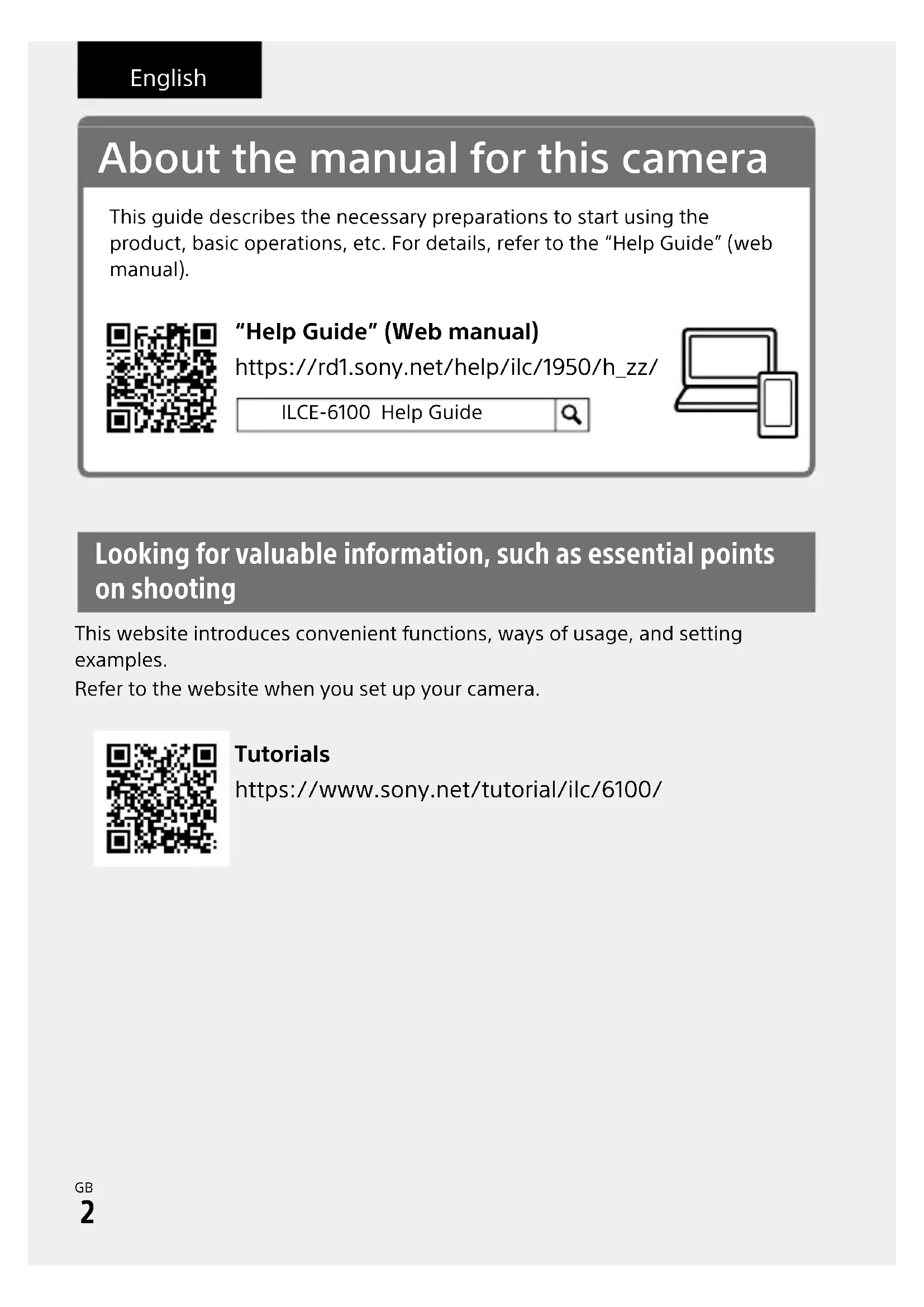

About the manual for this camera

This guide describes the necessary preparations to start using the product, basic operations, etc. For details, refer to the "Help Guide" (web manual).

QR code image containing encoded data, no visible human-readable text

"Help Guide" (Web manual)

https://rd1.sony.net/help/ilc/1950/h_zz/

ILCE-6100 Help Guide

Simple line drawing of a laptop and smartphone (no text or symbols)

Looking for valuable information, such as essential points on shooting

This website introduces convenient functions, ways of usage, and setting examples.

Refer to the website when you set up your camera.

QR code image containing encoded data, no visible human-readable text

Tutorials

https://www.sony.net/tutorial/ilc/6100/

Preparations

Checking the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)
  • Power cord (mains lead) (1)* (supplied in some countries/regions)

* Multiple power cords may be supplied with this equipment. Use the appropriate one that matches your country/region. See page 11.

- Rechargeable battery pack NP-FW50 (1)

• Micro USB cable (1)
• AC Adaptor (1)

The type of the AC Adaptor may differ depending on the country/region.

• Shoulder strap (1)
• Eyepiece cup (1)
• Body cap (1)*

* Only for the ILCE-6100

• Startup Guide (this manual) (1)
  • Reference Guide (1)

GB

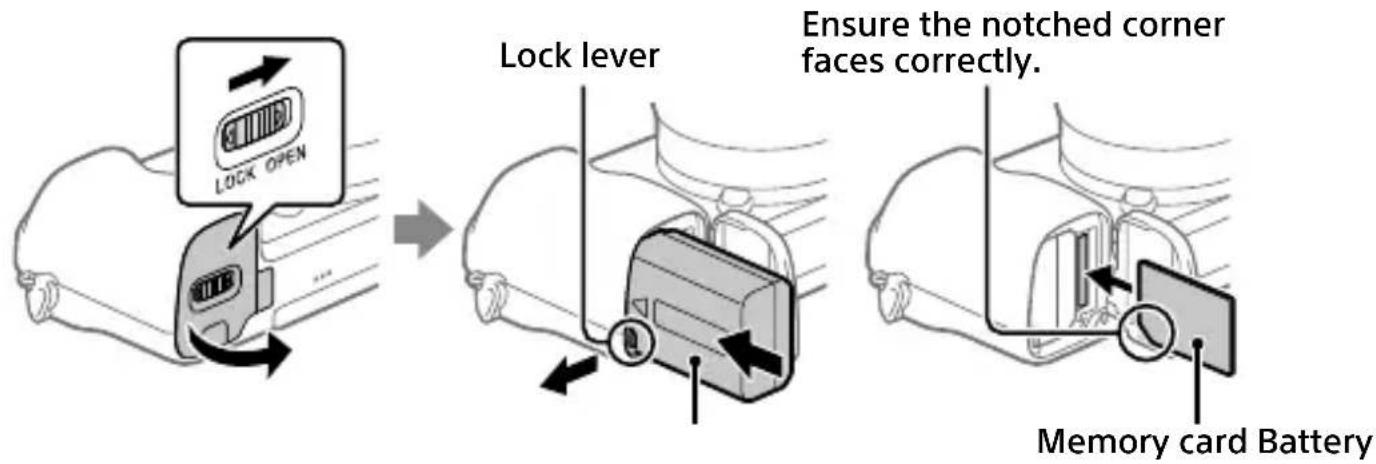

Inserting the battery pack (supplied)/memory card (sold separately) into the camera

Open the battery/memory card cover, and insert the battery pack and a memory card into the camera. Then, close the cover.

LOCK OPEN Lock lever Ensure the notched corner faces correctly. Memory card Battery

Battery pack

Make sure that the battery pack is facing in the correct direction, and insert it while pressing the battery lock lever.

Memory card

Insert the memory card with the notched corner facing as illustrated.

This camera is compatible with SD memory cards or Memory Stick media. For details on the compatible memory cards, refer to the "Help Guide."

When you use a memory card with this camera for the first time, format the card using the camera in order to stabilize the performance of the memory card.

Note

- Formatting erases all data, including protected images and registered settings (M1 to M4). Once erased, this data cannot be restored. Save valuable data to a computer, etc. before formatting.

Charging the battery pack

1 Turn the power off.

If the camera is turned on, the battery pack will not be charged.

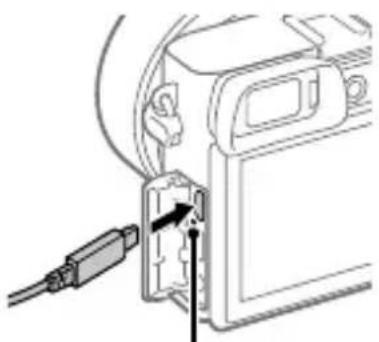

2 Connect the camera with the battery pack inserted to the AC Adaptor (supplied) using the micro USB cable (supplied), and connect the AC Adaptor to the wall outlet (wall socket).

The charge lamp will light up when charging starts. When the charge lamp turns off, charging is completed.

Diagram of a device with an attached cable and connector, showing no text or symbols

Charge lamp

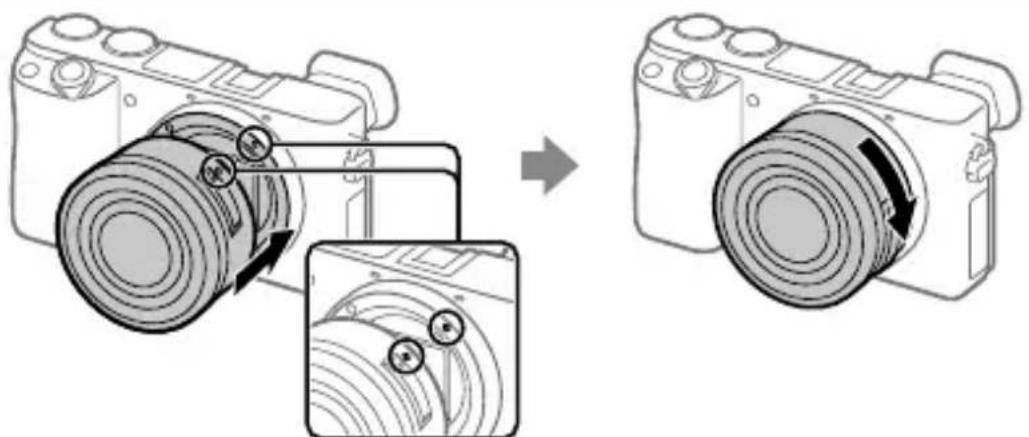

Attaching a lens

Diagram showing a camera being processed, with one view and another showing the same motion (no text or symbols present)

Mounting indexes

1 Remove the body cap from the camera and the rear lens cap from the rear of the lens.
2 Mount the lens by aligning the two white index marks (mounting indexes) on the lens and camera.
3 While pushing the lens lightly toward the camera, turn the lens slowly in the direction of the arrow until it clicks into the locked position.

Setting the language and the clock

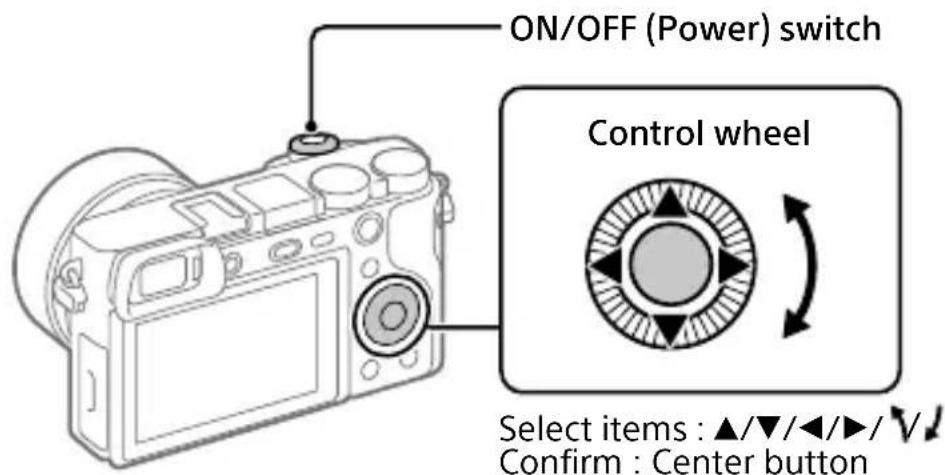

ON/OFF (Power) switch Control wheel Select items : ▲/▼/◄/►/ V Confirm : Center button

GB

1 Set the ON/OFF (Power) switch to "ON" to turn on the camera.
2 Select the desired language and then press the center of the control wheel.
3 Make sure that [Enter] is selected on the screen and then press the center button.
4 Select the desired geographic location and then press the center button.
5 Set [Daylight Savings], [Date/Time], and [Date Format], and then select [Enter] and press the center button.

If you want to reconfigure the date/time or the area setting at a later point, select MENU → (Setup) → [Date/Time Setup] or [Area Setting].

Shooting

Shooting still images

1 Select the desired shooting mode by turning the mode dial.
2 Press the shutter button halfway down to focus.
3 Press the shutter button all the way down.

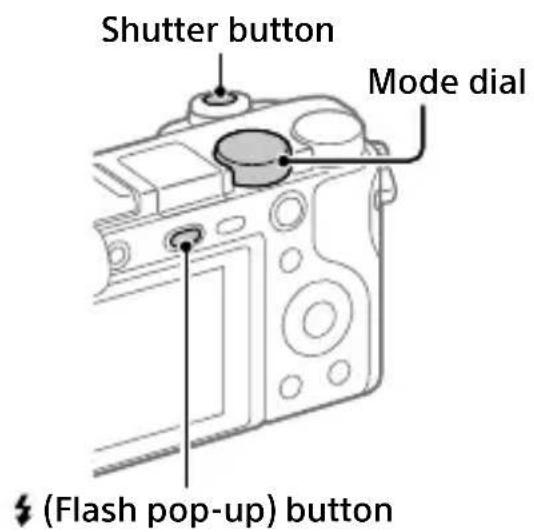

Shutter button Mode dial

(Flash pop-up) button

Changing the monitor angle

You can change the monitor angle to shoot from any position you like.

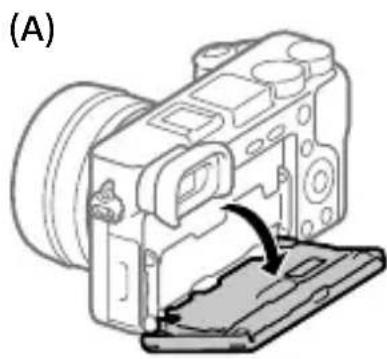

(A) High position (holding the camera high)

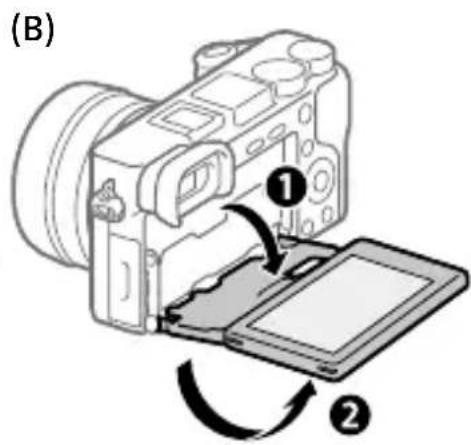

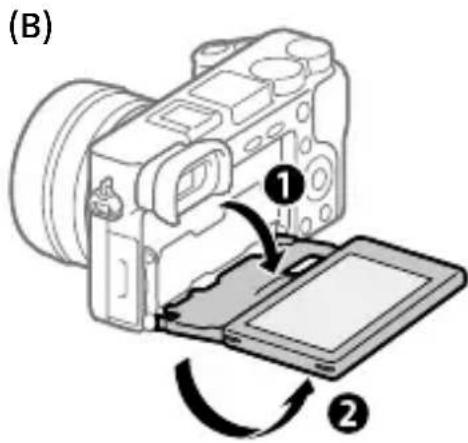

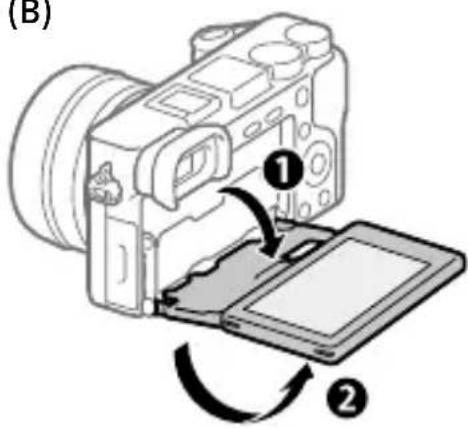

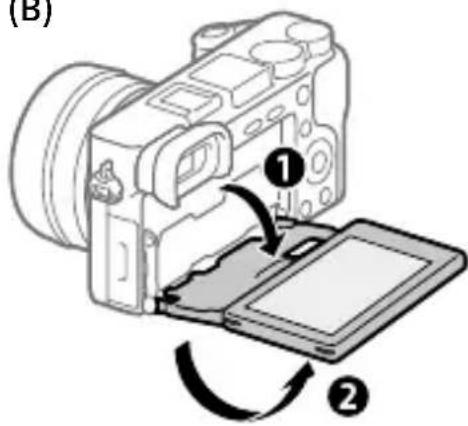

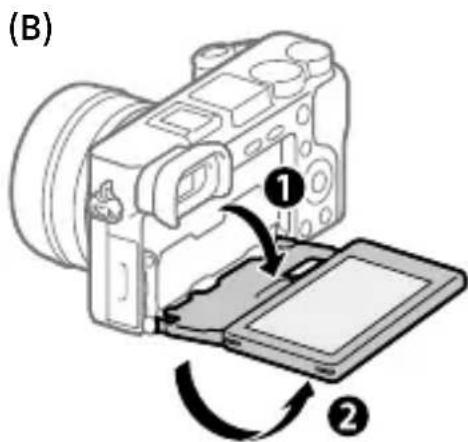

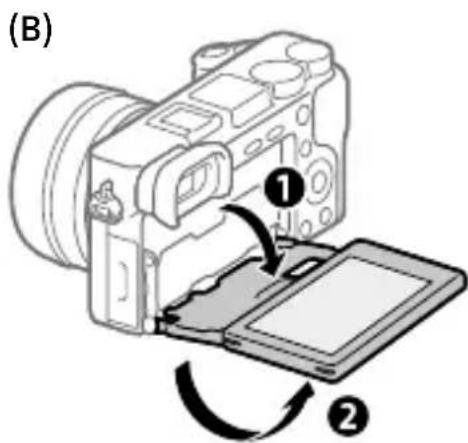

(B) Low position (holding the camera low)

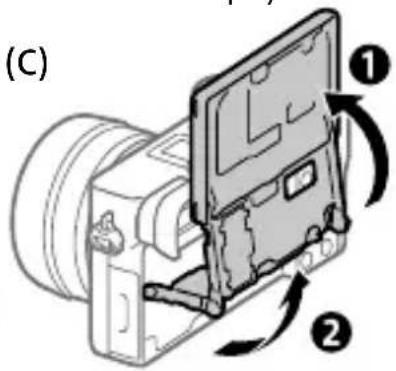

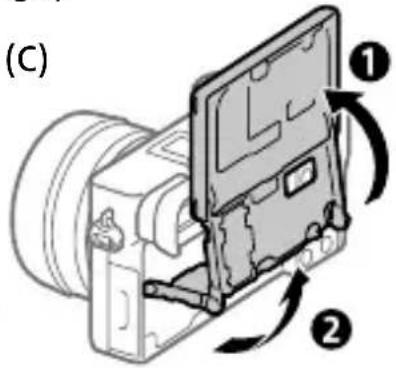

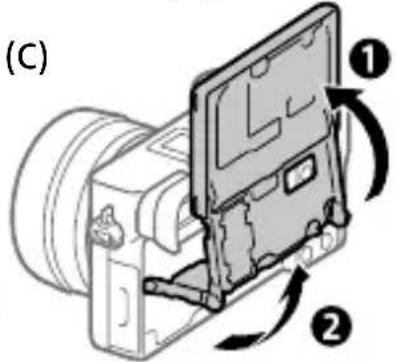

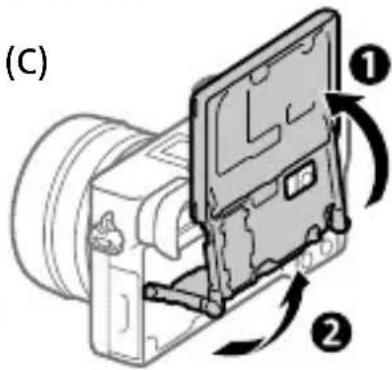

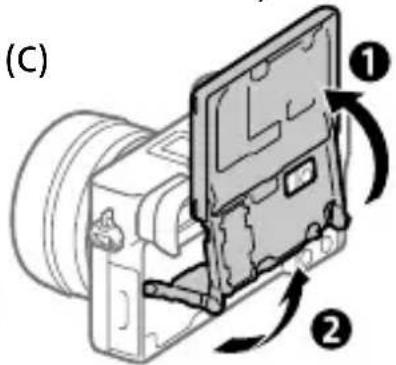

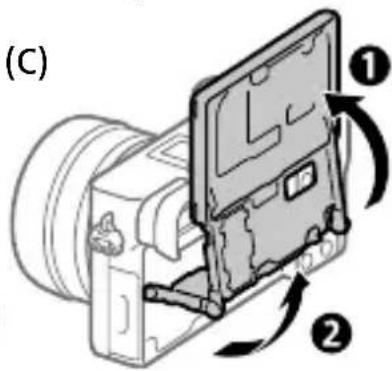

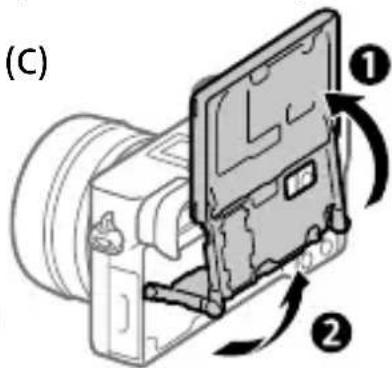

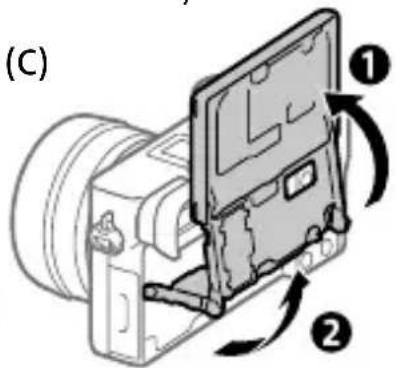

(C) Selfie position (facing the monitor toward you to take a selfie)

Diagram of a camera module with an arrow indicating a component or insertion (no text or symbols present)

(B) ① ②

(C) ① ②

Using the flash

Press the ♣(Flash pop-up) button to pop up the flash.

Shooting movies

1 Press the MOVIE (Movie) button to start recording.

Movie recording can be started from any shooting mode in the default setting.

2 Press the MOVIE button again to stop recording.

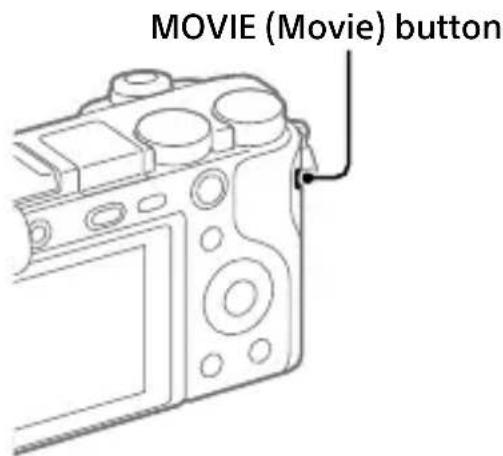

MOVIE (Movie) button

GB

| Viewing

1 Press the (Playback) button to switch to the playback mode.
2 Select an image with the control wheel.

You can move to the previous image/next image by pressing the left/right side of the control wheel.

To start playing back a movie, press the center button on the control wheel.

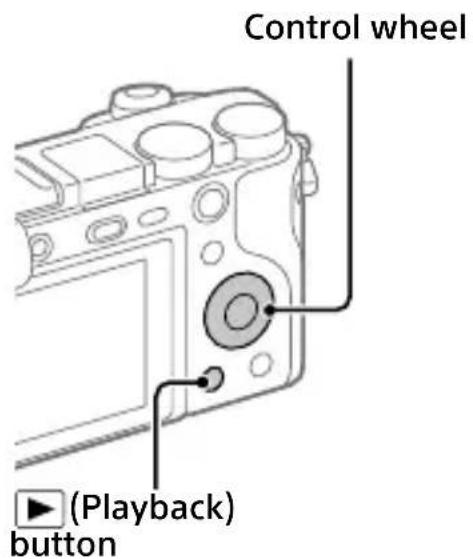

Control wheel (Playback) button

Transferring images to a smartphone

You can transfer images to a smartphone by connecting the camera and a smartphone via Wi-Fi.

1 : Install Imaging Edge Mobile on your smartphone.

To connect the camera and your smartphone, Imaging Edge Mobile is required.

Install Imaging Edge Mobile to your smartphone in advance.

If Imaging Edge Mobile is already installed on your smartphone, be sure to update it to the latest version.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

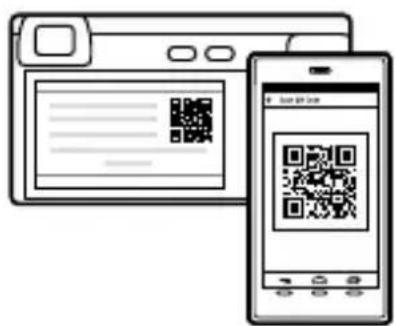

2 Connect the camera and your smartphone using the QR Code.

① : MENU → (Network) → [Send to Smartphone Func.] → [Send to Smartphone] → [Select on This Device] → images to transfer. If you want to select images on the smartphone, select [Select on Smartphone].

② : Launch Imaging Edge Mobile on your smartphone, and select [Scan QR Code of the Camera].

③ : Scan the QR Code displayed on the camera using your smartphone.

Illustration showing a QR code scanning on a browser versus a smartphone displaying it, both connected to a mobile device.

3 The selected images will be transferred.

If you are using Android, you can transfer images after the first time simply by launching Imaging Edge Mobile with Step 2-② above.

If image transfer does not start, select the camera to connect on the screen of your smartphone.

For details on how to connect to a smartphone, refer to the following support sites:

https://www.sony.net/dics/iem02/

• For details on other connection methods or how to use the smartphone as a remote commander to operate the camera, refer to the "Help Guide."
• The Wi-Fi functions introduced in this manual are not guaranteed to operate on all smartphones or tablets.
• The Wi-Fi functions of this camera are not available when connected to a public wireless LAN.

Managing and editing images on a computer

GB

PlayMemories Home

PlayMemories Home allows you to import still images and movies to your computer and view or use them. You need to install PlayMemories Home to import XAVC S movies or AVCHD movies to your computer.

Imaging Edge

Imaging Edge is a software suite that includes functions such as remote shooting from a computer, and adjusting or developing RAW images recorded with the camera.

For details on the computer software, refer to the following URL.

https://www.sony.net/disoft/

Notes on use

Refer to "Precautions" in the "Help Guide" as well.

Notes on handling the product

- This camera is designed to be dust-and moisture-resistant, but is not waterproof or dust-proof.

- Remove any dirt from the surface of the flash. Dirt on the surface of the flash may emit smoke or burn due to heat generated by the emission of light. If there is dirt/dust, clean it off with a soft cloth.

- Do not leave the lens or the viewfinder exposed to a strong light source such as sunlight. Because of the lens's condensing function, doing so may cause smoke, fire, or a malfunction inside the camera body or the lens. If you have to leave the camera exposed to a light source such as sunlight, attach the lens cap to the lens.

- When you shoot with backlighting, keep the sun sufficiently far away from the angle of view. Otherwise, the sunlight may enter the focus inside the camera and cause smoke or fire. Even if the sun is slightly away from the angle of view, it may still cause smoke or fire.

- Do not directly expose the lens to beams such as laser beams. That may damage the image sensor and cause the camera to malfunction.

- Do not look at sunlight or a strong light source through the lens when it is detached. This may result in unrecoverable damage to the eyes or cause a malfunction.

- Do not leave the camera, the supplied accessories, or memory cards within the reach of infants. They may be accidentally swallowed. If this occurs, consult a doctor immediately.

Notes on the monitor and electronic viewfinder

- The monitor and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, there may be some small black dots and/or bright dots (white, red, blue or green in color) that constantly appear on the monitor and electronic viewfinder. These are imperfections due to the manufacturing process and do not affect the recorded images in any way.

- When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, motion sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder.

- If the monitor or electronic viewfinder is damaged, stop using the camera immediately. The damaged parts may harm your hands, face, etc.

Notes on continuous shooting

During continuous shooting, the monitor or viewfinder may flash between the shooting screen and a black screen. If you keep watching the screen in this situation, you may experience uncomfortable symptoms such as feeling of unwellness. If you experience uncomfortable symptoms, stop using the camera, and consult your doctor as necessary.

Notes on recording for long periods of time or recording 4K movies

- The camera body and battery may become warm with use – this is normal.

- If the same part of your skin touches the camera for a long period of time while using the camera, even if the camera does not feel hot to you, it may cause symptoms of a low-temperature burn such as redness or blistering. Pay special attention in the following situations and use a tripod, etc.

• When using the camera in a high temperature environment
• When someone with poor circulation or impaired skin sensation uses the camera
• When using the camera with [Auto Power OFF Temp.] set to [High]

Notes on using a tripod

Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

Sony lenses/accessories

Using this unit with products from other manufacturers may affect its performance, leading to accidents or malfunction.

Warning on copyrights

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

Notes on location information

If you upload and share an image tagged with a location, you may accidentally reveal the information to a third party. To prevent third parties from obtaining your location information, set [☐ Location Info. Link Set.] to [Off] before shooting images.

Notes on discarding or transferring this product to others

Before discarding or transferring this product to others, be sure to perform the following operation to protect private information.

- Select [Setting Reset] [Initialize].

Notes on discarding or transferring a memory card to others

Executing [Format] or [Delete] on the camera or a computer may not completely delete the data on the memory card. Before transferring a memory card to others, we recommend that you delete the data completely using data deletion software. When discarding a memory card, we recommend that you physically destroy it.

Note on network functions

When you use network functions, unintended third parties on the network may access the camera, depending on the usage environment. For example, unauthorized access to the camera may occur in network environments to which another network device is connected or can connect without permission. Sony bears no responsibility for any loss or damage caused by connecting to such network environments.

How to turn off wireless network functions (Wi-Fi, etc.) temporarily

When you board an airplane, etc., you can turn off all wireless network functions temporarily using [Airplane Mode].

Power Cord

For the customers in the UK, Ireland, Malta, Cyprus and Saudi Arabia Use the power cord (A). For safety reasons, the power cord (B) is not intended for above countries/regions and shall therefore not be used there. For the customers in other EU countries/regions Use the power cord (B).

(A) (B)

Illustration of a cable with two plug connectors (no text or symbols)

For Customers in the U.S.A.

For question regarding your product or for the Sony Service Center nearest you, call 1-800-222-SONY (7669).

Supplier's Declaration of Conformity

Trade Name : SONY

Model : WW642826

Responsible Party : Sony Electronics Inc. Address : 16535 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Specifications

Camera

[System]

Camera Type: Interchangeable Lens Digital Camera

Lens: Sony E-mount lens

[Image sensor]

Image format: APS-C size (23.5 mm × 15.6 mm), CMOS image sensor

Effective pixel number of camera: Approx. 24 200 000 pixels

Total pixel number of camera: Approx. 25 000 000 pixels

[Electronic Viewfinder]

Type: 1.0 cm (0.39 type) Electronic Viewfinder

[Monitor]

Wide, 7.5 cm (3.0 type) TFT drive, touch panel

[General]

Rated input: 7.2 V, 2.3 W

Operating temperature: 0 to 40°C (32 to 104°F)

Storage temperature: -20 to 55°C (-4 to 131°F)

Dimensions (W/H/D) (Approx.):

120 × 66.9 × 59.4 mm

120 × 66.9 × 49.9 mm

(from grip to monitor)

4 3/4 × 2 3/4 × 2 3/8 in.

4 3/4 × 2 3/4 × 2 in.

(from grip to monitor)

Mass (Approx.): 396 g (14.0 oz) (including battery pack, SD memory card)

AC Adaptor

AC-UUD12/AC-UUE12

Rated input: 100 - 240 V ∼, 50/60 Hz, 0.2 A

Rated output: 5 V = 1.5 A

Rechargeable battery pack NP-FW50

Rated voltage: 7.2 V ---

Design and specifications are subject to change without notice.

Trademarks

• XAVC S and XAVC registered trademarks of Sony Corporation.
- AVCHD and AVCHD logotype are trademarks of Panasonic Corporation and Sony Corporation.
- Android and Google Play are trademarks or registered trademarks of Google LLC.
- Wi-Fi, the Wi-Fi logo and Wi-Fi Protected Setup are registered trademarks or trademarks of the Wi-Fi Alliance.
• QR Code is a trademark of Denso Wave Inc.
- In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the ^TM or ^® marks may not be used in all cases in this manual.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

https://www.sony.net/

GB

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutoriels

https://www.sony.net/tutorial/ilc/6100/

Préparatifs

Mechanical assembly diagram showing a camera body with a base component and an arrow indicating rotation (no text or symbols present)

(B) ① ②

(C) ① ②

Bouton (Lecture)

FR

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Two digital devices: a browser displaying a QR code and a smartphone displaying a QR code, both connected to a mobile app interface.

Simple line drawing of a plug with a coiled cable (no text or symbols)

Spécifications

Appareil photo

[Système]

Batterie rechargeable NP-FW50

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

ILCE-6100 Hilfe

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutorials

https://www.sony.net/tutorial/ilc/6100/

Vorbereitungen

Diagram of a camera module with an arrow indicating assembly or insertion (no text or symbols present)

(B) ① ②

(C) ① ②

DE

Blitzbenutzung

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface with browser and smartphone screens, both displaying text and data.

DE

Two types of electrical plug connectors shown in line drawings (no text or symbols)

Technische Daten

Kamera

[System]

Kameratyp:

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutoriales

https://www.sony.net/tutorial/ilc/6100/

Preparativos

Diagram of a camera module with cable and connector, showing internal components (no text or symbols)

Luz de carga

Diagram showing camera lens adjustment before and after, with no text or symbols present

Índices de montura

Technical line drawing of a mechanical device with a curved arrow indicating a component (no text or symbols present)

(B) ① ②

(C) ① ②

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface with a web browser and smartphone displaying it.

Simple line drawing of a plug with a bulb and plug (no text or symbols)

Especificaciones

Cámara

[Sistema]

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

ILCE-6100 Guida

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutorial

https://www.sony.net/tutorial/ilc/6100/

Preparazioni

Diagram of a camera module with cable and connector, showing internal wiring (no text or symbols)

Diagram showing camera lens assembly before and after transformation, with no text or symbols present

Indici di montaggio

Technical line drawing of a camera module with an arrow indicating assembly or motion (no text or symbols present)

(B)

(B) ① ②

(C) ① ②

Uso del flash

Technical line drawing of a camera body panel with no visible text or symbols

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Two digital devices: a browser displaying a QR code and a smartphone displaying a QR code, both connected to a mobile phone.

Simple line drawing of a power plug with three terminals (no text or symbols)

Dati tecnici

Fotocamera

[Sistema]

Tipo di fotocamera:

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutoriais

https://www.sony.net/tutorial/ilc/6100/

Preparativos

Diagram of a camera module with an attached cable and connector (no text or symbols)

Diagram showing camera lens adjustment before and after, with no text or symbols present

Índices de montagem

Technical line drawing of a mechanical device with a curved arrow indicating a component (no text or symbols present)

(B) ① ②

(C) ① ②

Utilizar o flash

Line drawing of a DSLR camera casing with mounting holes and a cable (no text or symbols)

Botão MOVIE (Filme)

PT

Visualização

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface with browser and smartphone screens, both displaying text fields.

Simple line drawing of a cable with a plug and socket (no text or symbols)

Especificações

Câmara

[Sistema]

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

ILCE-6100 Helpgids

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Zelfstudiematerialen

https://www.sony.net/tutorial/ilc/6100/

Voorbereidingen

Diagram showing a camera being processed, with one image showing the lens and arrow indicating rotation (no text or symbols present)

Vattingmarkeringen

Technical line drawing of a mechanical device with a curved arrow indicating a component or assembly (no text or symbols present)

(B) ① ②

(C) ① ②

Line drawing of a camera body panel with no text or symbols

NL

Weergave

Technical line drawing of a camera body component with no visible text or symbols

(weergave-)knop

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface with browser and smartphone screens, both displaying text and data.

Simple line drawing of a coiled electrical plug with a terminal block (no text or symbols)

Technische gegevens

Camera

[Systeem]

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Samouczki

https://www.sony.net/tutorial/ilc/6100/

Przygotowania

Diagram of a camera module with an attached cable and connector (no text or symbols)

Lampka ładowania

Diagram illustrating camera lens adjustment process, showing before and after states with directional arrows

Wskaźniki mocowania

Diagram of a camera module with an arrow indicating assembly or motion (no text or symbols present)

(B) ① ②

(C) ① ②

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface on a web browser and smartphone, both displaying a separate QR code.

Simple line drawing of a cable with a plug and socket (no text or symbols)

Dane techniczne

Aparat

[System]

Typ aparatu:

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Учебные материалы

https://www.sony.net/tutorial/ilc/6100/

Подготовка

Diagram of a camera module with an attached cable and connector (no text or symbols)

Индикатор зарядки

Diagram showing a camera being processed, with one view and another showing the same motion (no text or symbols present)

Метка крепления

Diagram of a camera assembly with an arrow indicating a component or insertion (no text or symbols present)

(B)

(B) ① ②

(C) ① ②

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface with browser and smartphone screens, both displaying text fields.

Simple line drawing of a cable with a plug and socket (no text or symbols)

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

ILCE-6100 Довідка

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Навчальні посібники

https://www.sony.net/tutorial/ilc/6100/

Підготовка

Diagram of a camera module with an attached cable and connector (no text or symbols)

Diagram showing a camera being processed, with one image showing the lens and arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with a curved arrow indicating a component (no text or symbols present)

(B) ① ②

(C) ① ②

Line drawing of a camera body panel with no text or symbols

UA

Перегляд

1 Натисніть кнопку

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface with a web browser and smartphone displaying it.

Illustration of a coiled electrical plug with three pins (no text or symbols)

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Handledning

https://www.sony.net/tutorial/ilc/6100/

Förberedelser

Diagram of a camera module with cable and connector, showing internal components (no text or symbols)

Laddningslampa

Diagram showing a camera being processed, with no text or symbols present

Monteringsmärken

Mechanical assembly diagram showing a camera body with a base component and an arrow indicating rotation (no text or symbols present)

(B) ① ②

(C) ① ②

MOVIE (film)-knapp

Uppspelning

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface with a browser displaying text and a smartphone displaying a QR code.

Simple line drawing of a cable with a plug and socket (no text or symbols)

Tekniska data

Kamera

[System]

Kameratyp: Digitalkamera med utbytbart objektiv Objektiv: Sony-objektiv med E-fattning

[Bildsensor]

Bildformat: APS-C-format (23,5 mm × 15,6 mm), CMOS-bildsensor Effektivt antal bildpunkter på kameran: Ca. 24 200 000 bildpunkter Totalt antal bildpunkter på kameran: Ca. 25 000 000 bildpunkter

[Elektronisk sökare]

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Opetusohjelmat

https://www.sony.net/tutorial/ilc/6100/

Valmistelut

Diagram of a camera module with an arrow indicating assembly or motion (no text or symbols present)

(B) ① ②

(C) ① ②

Salaman käyttäminen

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a browser displaying a QR code and a smartphone displaying a QR code, both connected to a mobile device.

Illustration of a straight electrical plug with three pins (no text or symbols)

Tekniset tiedot

Kamera

[Järjestelmä]

Kameran tyyppi:

QR code image containing encoded data, no visible human-readable text

"Hjelpeveiledning" (Internett-håndbok)

https://rd1.sony.net/help/ilc/1950/h_zz/

ILCE-6100 Hjelpeveiledning

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Veiledninger

https://www.sony.net/tutorial/ilc/6100/

Forberedelser

Kontrollere leverte deler

Tallet i parentes angir antall deler.

Diagram of a camera module with cable and connector, showing internal components (no text or symbols)

Ladelampe

Diagram showing a camera being adjusted to form a circular lens, with no text or symbols present.

Fatningsindekser

Technical line drawing of a mechanical device with an arrow indicating assembly or transformation (no text or symbols present)

(B)

(B) ① ②

(C) ① ②

Bruke blitsen

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a browser displaying a QR code and a smartphone displaying a QR code, both connected to a mobile device.

Simple line drawing of a cable with a plug and socket (no text or symbols)

Spesifikasjoner

Kamera

[System]

Kameratype: Digitalkamera med utskiftbart objektiv

Justert spenning: 7,2 V ---

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/1950/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Vejledninger

https://www.sony.net/tutorial/ilc/6100/

Forberedelser

Diagram of a camera module with cable and connector, showing internal components (no text or symbols)

Opladningslampe

Diagram showing camera assembly process with two views of the camera (no text or symbols present)

Monteringsindeks

Technical line drawing of a mechanical device with an arrow indicating assembly or transformation (no text or symbols present)

(B)

(B) ① ②

(C) ① ②

Brug af blitzen

Tryk på ♣(Blitz pop-op)-knappen for poppe blitzen op.

Optagelse af film

1 Tryk på MOVIE (Film)-knappen for at starte optagelsen.

MOVIE (Film)-knap

Visning

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a browser displaying a QR code and a smartphone displaying a QR code, both connected to a mobile device.

Simple line drawing of a plug with a bulb (no text or symbols)

DK

Specifikationer

Kamera

[System]

Kameratype:
