M7200 - Wi-Fi hotspot TP-LINK - Free user manual and instructions

Product Type	Wi-Fi 4G LTE Hotspot
Brand	TP-Link
Model	M7200
Dimensions (approx.)	100 x 60 x 15 mm
Weight (approx.)	100 g
Power Supply	Rechargeable lithium-ion battery (2000 mAh)
Charging	Via mains charger (recommended) or computer USB port
Main Functions	4G LTE sharing, Wi-Fi hotspot for up to 10 users, management via tpMiFi app or web interface
4G LTE Bands	Multiple bands (depending on region)
Wi-Fi	802.11 b/g/n, 2.4 GHz
Wi-Fi Security	WPA/WPA2, recommended to change SSID and password
Management	tpMiFi app (iOS/Android) or web page http://tplinkmifi.net
SIM Card	Nano/Micro SIM with Mini SIM adapter included (card not included)
Display	OLED display for status information
Buttons	Power, Reset (microswitch)
Power Consumption	Automatic sleep after 10 minutes without connection
Care and Cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Keep away from water, fire, moisture. Do not disassemble. Use only recommended charger.
Spare Parts and Repairability	Removable battery but not included. No official spare parts; professional repair recommended.
Warranty	3 years (material and manufacturing defects)
Certifications	CE, RoHS, European directive 2014/53/EU

Frequently Asked Questions - M7200 TP-LINK

How to install the SIM card and battery?

Remove the back cover, insert the SIM card (with Mini SIM adapter if needed) and the battery into the designated slots. SIM and micro SD cards are not included.

How to connect to the internet with the M7200?

Press and hold the power button for 5 seconds. On your Wi-Fi device, select the default SSID and enter the password shown on the label.

How to change the Wi-Fi password?

Use the tpMiFi app (iOS/Android) or log into the web interface at http://tplinkmifi.net (or 192.168.0.1) with password admin. Go to Wi-Fi settings to change SSID and security key.

What to do if I cannot access the web interface?

Check that your device is connected to the MiFi Wi-Fi, the address entered is correct (http://tplinkmifi.net), and your device is obtaining an IP address automatically.

What to do if I cannot access the internet?

Check the SIM card PIN status (unlock if needed), the APN settings provided by your operator (Dial-up > View Profile Details), enable data roaming if necessary, and check that mobile data is enabled. Also check the data limit.

How to restore factory settings on the M7200?

With the device on, remove the cover and press and hold the RESET button with a paperclip until the screen shows 'Power Off'. This erases all settings.

How many users can connect simultaneously?

The TP-Link M7200 supports up to 10 devices connected simultaneously via Wi-Fi.

How to save battery?

The MiFi automatically turns off Wi-Fi after 10 minutes without any connected device. Press the power button to restore connection.

Can I use a micro SD card?

No, the micro SD slot is not present on this model. The M7200 does not support external storage.

What are the important safety precautions?

Keep the device away from water and fire. Do not disassemble. Use only the recommended charger. Do not dispose of the battery in fire. Follow the safety instructions in the manual.

USER MANUAL M7200 TP-LINK

TP-Link Technologies Co., Ltd.

South Building (floors 1,3,7,8) and 28th floor, Central Science & Technology Park

Shennan Road, Nanshan, Shenzhen, China

TP-Link UK Limited, Unit 2 & 3 Liveview (142-144) Cardiff Road, Reading RG1 8EW

TP-Link Italia S.r.l., Via Gobetti 2/A, 20003 Cernusco sul Naviglio (MI)

TP-Link France SAS, 16-18 rue des Moines, 78160 Vélizy-Villacoublay, France

TP-Link İletişim Teknolojileri Ltd. Şti., Sarıyer Mah. Bakırköy Cad. Söğüt Sokak No:157/2 Kat:3, 34175 Umraniye, Istanbul

TP-Link Iberia S.L., Calle Quintero de los Ríos 17, 9E, 28050 Madrid, Spain

TP-Link Netherlands B.V., Archimedesbaan 15, 3439 ME Nieuwegein

TP-Link (Nordic) AB, Fenixvägen 14, Box 13, 131 52 Nacka, Sweden

TP-Link Hellas Ltd., Marathonodromou 77, Marousi 15124, Greece

MWS, TP-Link Portugal, Unipessoal, Lda., Avenida da Liberdade, 245, 7°E, 1250-143 Lisbon, Portugal

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other

brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as

translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2017 TP-Link

Technologies Co., Ltd. All rights reserved.

www.tp-link.com

7106507506 REV2.1.0

Quick Installation Guide

Mobile Wi-Fi

CONTENTS

01 / Deutsch 05 / English 09 / Español 13 / Ελληνικά 17 / Français 21 / Italiano 25 / Português 29 / Suomi 33 / Nederlands 37 / Svenska 41 / Norsk 45 / Dansk 49 / Türkçe

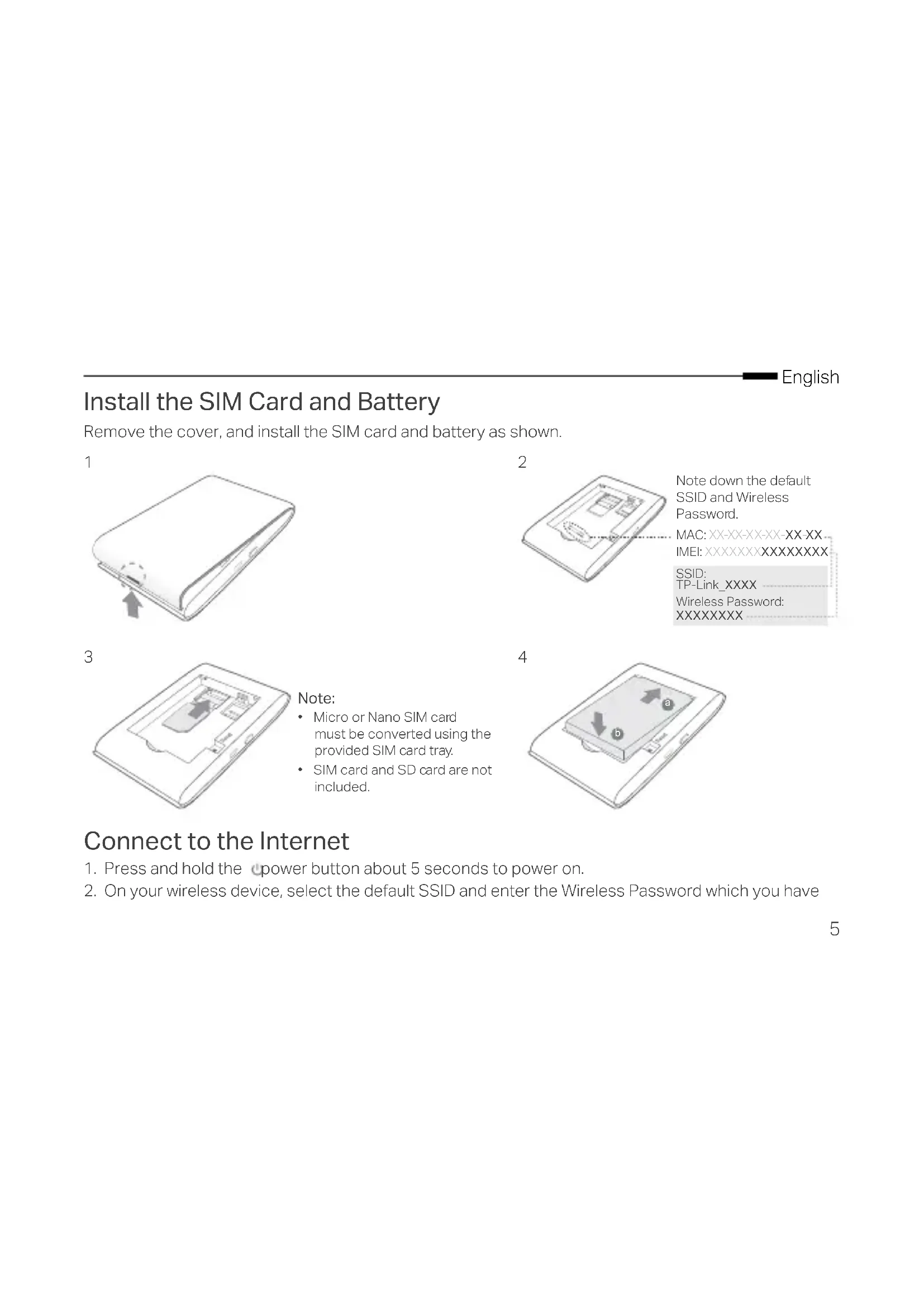

Install the SIM Card and Battery

Remove the cover, and install the SIM card and battery as shown.

1

2

3

Note:

• Micro or Nano SIM card must be converted using the provided SIM card tray.
• SIM card and SD card are not included.

4

Connect to the Internet

1. Press and hold the power button about 5 seconds to power on.
2. On your wireless device, select the default SSID and enter the Wireless Password which you have

English

noted down.

Note: We highly recommend that you change the default wireless name and password for network security.

Enjoy!

Note:

If you can't access the internet, please refer to FAQ > Q3. - For power saving, the Mobile Wi-Fi will turn off the Wi-Fi connection if no wireless devices are connected to the Mobile Wi-Fi for 10 minutes. Press the power button to resume the Wi-Fi connection.

Charging Your Mobile Wi-Fi

Method 1: Via a Wall Outlet (Recommended)

Method 2: Via a Computer

tpMiFi App

Download the tpMiFi App (for iOS and Android) to conveniently manage your Mobile Wi-Fi.

1. Search for the tpMiFi App from the Apple Store or Google Play, or scan the QR code.
2. Connect your wireless device to the Mobile Wi-Fi.
3. Launch tpMiFi and enter admin to log in.

FAQ (Frequently Asked Questions)

Q1. Is there any other alternative to manage the Mobile Wi-Fi besides the tpMiFi app?

A. You can manage the Mobile Wi-Fi by using its web management page.

1. Connect your Wi-Fi device to the Mobile Wi-Fi's wireless network.
2. Open your web browser and type http://tplinkmifi.net or http://192.168.0.1 in the address bar, then enter the default password admin, and click Login.

Q2. What should I do if I cannot log in to the web management page?

• Verify that your device is connected to the Mobile Wi-Fi.
• Verify that you have entered http://tplinkmifi.net or http://192.168.0.1 correctly.
• Verify that your device is set to obtain an IP address automatically.

Q3. What should I do if I cannot access the internet?

A1. Check PIN status

Refer to Q1 to log in to the web management page on your phone. If the current SIM card status is "PIN Locked", you will need to unlock it using the PIN code.

A2. Verify the ISP parameters

1. Refer to Q1 to log in to the web management page on your phone. Go to Dial-up > View Profile Details and verify the parameters (i.e. APN, Username, and Password) provided by your ISP.
2. If not, return to the Dial-up page and create a new profile with the correct information, then choose the newly created profile from the Profile List.

A3. Check the Data Roaming settings

1. If your SIM card is operated in a roaming service area, refer to Q1 to log in to the web management page on your phone.
2. Go to Dial-up and enable the Data Roaming option.

A4. Check Mobile Data

Refer to Q1 to log in to the web management page on your phone. Go to Dial-up to verify that Mobile Data is On. If not, enable this option.

A5. Check Data Limit

Refer to Q1 to log in to the web management page on your phone. Go to Device > Data Usage Settings to check whether your data usage has exceeded the Total/Monthly allowance.

Q4. How do I restore the Mobile Wi-Fi to its factory default settings?

• With the Mobile Wi-Fi powered on, remove the cover. Use a pin to press and hold the RESET button until the "Power Off" appears on the screen OR all LEDs turn on momentarily.

Note: Restoring the Mobile Wi-Fi to its factory defaults will clear all previous settings and you have to reconfigure it.

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Do not disassemble, crush, puncture, short external contacts, or dispose of the battery in fire or water. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

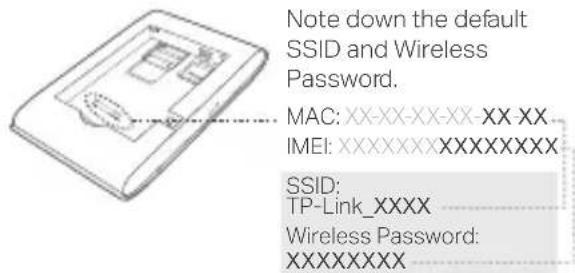

Installing the SIM Card and Battery

MAC:XX-XX-XX-XX XX XX IMEI:XXXXXXXXXXXXX

SSID: TP-Link_XXXXX Wireless Password: XXXXXXXXX

3

Note:

The Micro Nano SIM card should be inserted carefully following the direction of the SIM card. The SIM card and SD card are not included.

4

1. Go to Dial-up and enable the Data Roaming option.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in accordance with TP-Link's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
