USER MANUAL IAN 305985 AURIOL

Operation and safety notes

FR BE

MONTRE SLIMLINE

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

Description of parts. 14
Technical data 14
Scope of delivery 14
Before first use 14

Changing the battery. 15

Setting the time. 15
Water resistance 15
Adjusting the watch strap (HG03978E /HG03978F) 15
Cleaning and care 16
Disposal. 16
Warranty 18

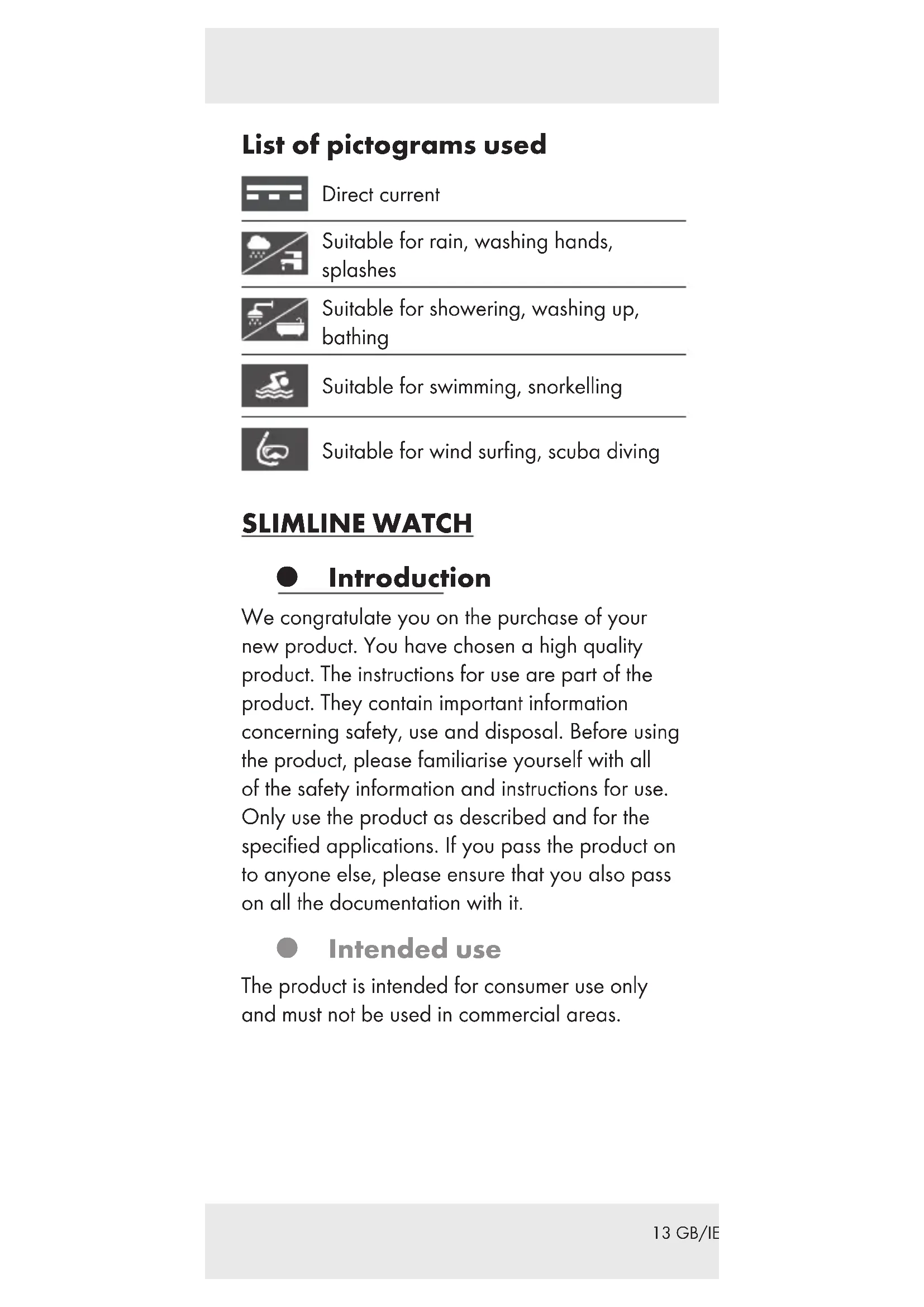

List of pictograms used

Direct current

Suitable for rain, washing hands, splashes

Suitable for showering, washing up, bathing

Suitable for swimming, snorkelling

Suitable for wind surfing, scuba diving

SLIMLINE WATCH

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for consumer use only and must not be used in commercial areas.

Description of parts

1 Minute hand
Crown
3 Second hand (HG03978E/HG03978F)
4 Hour hand
5 Unlock position
6 Slider (HG03978E/HG03978F)
7 Locking plate (HG03978E/HG03978F)

Technical data

Battery: 1 × 1.5 V =

Button cell (type SR621SW)

Model number:

HG03978A: Yellow gold, black band

HG03978B: Rose gold, white band

HG03978C: Silver, gray band

HG03978D: Rose gold, burgundy band

HG03978E: Silver, metal mesh

HG03978F: Rose gold, rose gold mesh

Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch
1 Battery (pre-installed)
1 Set of instructions for use

Before first use

Remove all packaging materials from the product.

- Changing the battery

Note: Have batteries changed in a specialist shop.

Setting the time

1. To set the time, pull the crown 2 out to the unlock position 5
2. Turn the crown 2 to set the hour 4 and minute hands 1.
3. When the crown 2 is pushed back to the normal position, the second hand 3 begins to run (HG03978E / HG03978F only).

Water resistance

Figure C shows the permissible areas of use. Please note that the water resistance is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the in-built sealing elements diminishes with daily use.

Adjusting the watch strap (HG03978E / HG03978F)

See Fig. D:

To adjust the circumference of the strap, use a small flat-head screwdriver (not included) to open the locking plate 7 of the slider 6 in the direction of the arrow.

After adjusting the right length, locate the slider 6 with the indent at the bottom matching the strap indent at the back. Then press down the locking plate 7

Cleaning and care

Clean the product on the outside only with a soft, wet and clean cloth.
Rinse the product under the running water if necessary. Dry thoroughly after rinse.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

CE

Pile bouton (type SR621 SW)

Numero de modulo :
