USER MANUAL PowerDash FH50700 HOOVER

IMPORTANT: Read carefully before assembly and use.

Designed in the USA. Made in China. ©2018 Techtronic Floor Care Technology Limited. All Rights Reserved. Distributed by, Royal Appliance Mfg. Co. Charlotte, NC 28262. All Rights Reserved. 961152077-R0

USER MANUAL

Welcome to Hoover ownership.

Make it official.

Register your carpet cleaner by:

Calling 1-800-944-9200 Visiting Hoover.com or Hoover.ca

IT'S GUARANTEED.

Get cleaning confidence for up to 1 year with the Hoover limited warranty. See warranty for complete details.

Table of Contents

Safety Instructions 4

Carton Contents 6

Product Guide 7

How to Assemble Your PowerDashTM 8

Before You Begin Cleaning 9

Getting Started with your PowerDashTM 10

Maintenance 12

Hoover Cleaning Solution Guide. 19

Troubleshooting 21

Warranty 22

French 25

Spanish 49

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DAMAGE OR INJURY:

• Fully assemble before operating.
• Operate vacuum only at voltage specified on data label on back of vacuum canister.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
• Do not use outdoors.
• Do not immerse. Use only on carpet moistened by cleaning process.
  To Reduce the Risk of Fire and Electric Shock due to internal component damage, use only HOOVER cleaning fluid intended for use with this appliance. See the Cleaning Fluid section section (page 19) of this manual.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any

openings.
- Use only as described in this manual. Use only manufacturer's recommended attachments and products.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs. To avoid personal injury or damage and to prevent the cleaner

from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.

• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood sandings, or use in areas where they may be present.
• Connect to a properly grounded outlet only. See Grounding Instructions.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters and tanks in place.
• Do not clean over floor electrical outlets.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm. WASH HANDS AFTER HANDLING.

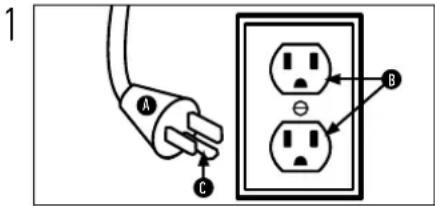

GROUNDING INSTRUCTIONS:

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor (C) and grounding plug (A). The plug must be inserted into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING:

Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a

nominal 120-volt circuit and has a grounding plug that looks like the plug (A) illustrated in Fig. 1. A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available (Fig. 2). The temporary adapter should be used only until a properly grounded outlet (B) can be installed by a qualified electrician (Fig. 1). The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a permanent ground (G) such as a properly grounded outlet box cover (Fig. 2). Whenever the adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

CAUTION:

TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.

• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.

• Do not use sharp objects to clean out hose as they can cause damage.
• To assist in reducing drying time, be certain the area is well ventilated when using detergents and other cleaners with this machine.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Do not store extractor with solution in tanks.
• With brushes and brush roll on, do not allow cleaner to sit in one location for an extended period of time, as damage to the floor can result.
• Do not use this extractor on hard floors. Using this machine on hard floors may scratch or damage your floor.
• Water will drip from the brushes and underside of the product after use and may puddle. To avoid damage to wood and laminate flooring and to avoid potential slip hazard, after use (a) do not leave the product on wood and laminate surfaces and remove to a hard surface and (b) place unit on absorbent material (such as a towel) to soak up drips.

Carton Contents

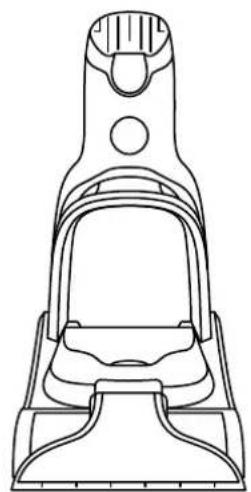

Carpet Cleaner

Upper Handle Clean Water

Upper Handle Pole

Tank

Dirty Water Tank

PowerSpin Brush Roll

Sample Bottle of Cleaning Solution

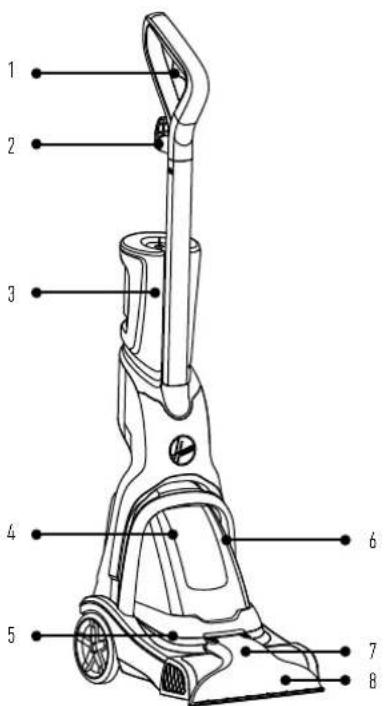

Product Guide

1. Water/Solution Trigger
2. Cord Wrap
3. Clean Water Tank
4. Dirty Water Tank
5. Filter (Under Dirty Water Tank)
6. Quick Pour Spout
7. Removable Nozzle
8. PowerSpin Brush
9. Upper Handle
10. Upper Handle Pole
11. On/Off Pedal
12. Dirty Water Tank Handle Release (NOT A CARRY HANDLE!)
13. Handle Release Pedal

How to Assemble

1 Insert the Upper Handle into the Upper Handle Pole until you hear a "CLICK".

3 Slide the Clean Water Tank securely into place on the back of the unit. Push down firmly.

2 Insert the upper Handle Pole into the base until you hear a "CLICK".

4 Wrap the power cord around the cord hooks for convenient storage.

Before You Begin Cleaning:

Vacuum carpet and upholstery thoroughly with a Hoover vacuum before use.

Don't use the carpet cleaner as a traditional vacuum cleaner.

Use your Hoover carpet cleaner only if upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Don't clean fabric marked "S" ("solvent/dry" clean only).

Test for colorfastness in a small, hidden area. Gently rub surface with a dampened white cloth. Wait ten minutes and check for color removal or bleed with a white paper towel.

Move furniture out of area to be cleaned. Place aluminum foil or wax paper under legs of furniture too heavy to move to prevent wood finishes from staining carpet. Pin up furniture skirts and draperies.

Pretreat spots and heavy traffic areas with a Hoover Cleaning Solution. See the "Cleaning Solutions" section.

Available at additional cost if not included with your model.

Pretreating:

For best results, pretreat stains with a Hoover spot treatment (see Hoover Cleaning Solution Guide, pg. 19) to help loosen and remove even the most stubborn stains.

NOTE: To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.

NOTE: To avoid damage to wood floors underneath area rugs or carpet, place waterproof material (ex: plastic) underneath them before cleaning.

Getting Started With Your PowerDash" Carpet Cleaner:

Fill the Clean Water Tank

1 Remove the Clean Water Tank from the back of the unit.

3 Add Hoover cleaning solution to the Solution fill line.

2 Remove the cap from the bottom and add warm water to the Water fill line.

Replace and tighten cap. Slide the Clean Water Tank back into the unit. Push down firmly.

Getting Started With Your PowerDash" Carpet Cleaner:

How to Clean Carpets with your PowerDash:

Plug power card into electrical outlet.
Step on the Handle Release Pedal to recline the unit for cleaning position.

3 Step on ON/OFF Pedal to turn ON.

4 Squeeze trigger for a slow forward and backward wet stroke".
5 Release trigger for a slow forward and backward dry stroke*.

*follow these steps for best results

IMPORTANT

For full suction, it is important that the Dirty Water Tank is properly secured before cleaning.

CAUTION

Do not clean over floor electrical outlets. Water will drip from the brushes and underside of the product after use and may puddle. To avoid damage to wood and laminate flooring and to avoid potential slip hazard, after use (a) do not leave the product on wood and laminate surfaces and move to a hard surface and (b) place unit on an absorbent material (such as a towel) to soak up drips.

Continue using dry strokes until little water is visible passing through the nozzle.

For best results, Hoover recommends rinsing carpet with water only. This removes residual carpet cleaning solution. Fill Solution Tank with water and repeat. For heavily soiled areas, repeat. Avoid saturating carpet.

NOTE: Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see "Automatic shut-off"). You will also see the float rise and shut off suction at the same time.

Maintenance

How to Empty and Clean your Tanks:

Dirty Water Tank:

Turn the cleaner off and unplug from electrical outlet.
Press lath and remove Dirty Water Tank from the back of the unit.

3 Carry Dirty Water Tank in an upright position and place on a flat surface.
4 Open Quick Pour Spout and empty.
5 Replace and close the Quick Pour Spout.

Prior to replacing tank, check and clean filter as needed.
7 Replace Dirty Water Tank by tilting back then rocking it forward to snap into place.

Maintenance

How to Empty and Clean your Tanks:

Clean Water Tank:

1 Remove tank from the unit.

2 Unscrew cap. Empty tank, rinse and allow to air dry.

3 Replace the tank once it is clean and dry.

Maintenance

How to Clean Nozzle

To prevent possible leaking, remove tanks from the unit.
Unit should be in upright position.
3 Grip the top of the nozzle and pull up to remove. Lift the unit up slightly to remove nozzle.

4 Rinse the nozzle under running water to remove any dirt or debris. Allow it to dry.
5 Replace the nozzle by aligning the tabs at the bottom of the nozzle to the foot.
Snap nozzle into place.

Maintenance

Belt Maintenance

HOW TO REMOVE

Turn unit off and unplug from electrical outlet.
2 Flip cleaner on its side to expose bottom of cleaner.

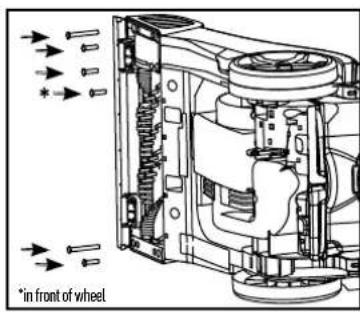

3 To remove belt covers, use Philips screwdriver to remove 6 screws. Arrows show location of screws.

4 Remove bell covers from unit.

BELT PART #: 440012733 - TO BUY, VISIT HOOVER.COM

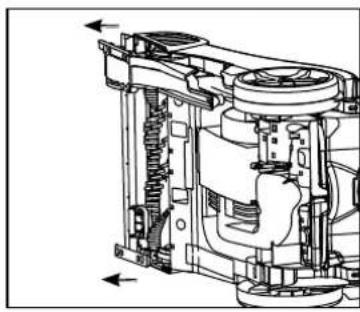

5 Pull brushroll toward user to remove from unit.
6 Remove belt. Dispose of old belt.

CAUTION

To reduce the risk of injury from moving parts, unplug before servicing.

IMPORTANT

Rotate brushrolls manually to make sure belt is not twisted or pinched.

Maintenance

Belt Maintenance

HOW TO REPLACE

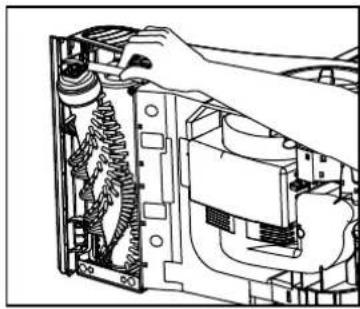

1 Place new belt on motor shaft.

2 Slip brushroll through belt. Caref

3 Position non-belt side end cap of brushroll into pocket.
4 other end cap into pocket, making sure that the end caps are in their correct orientation.

BELT PART #: 440012733 - TO BUY, VISIT HOOVER.COM

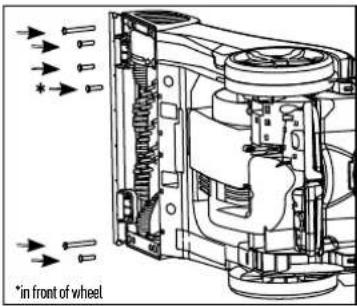

Replace belt covers and secure by replacing all 6 screws.

CAUTION

To reduce the risk of injury from moving parts, unplug before servicing.

IMPORTANT

Rotate brushrolls manually to make sure belt is not twisted or pinched.

Maintenance

How to Remove and Clean Brushroll

HOW TO REMOVE

Turn unit off and unplug from electrical outlet.
2 Flip cleaner on its side to expose bottom of cleaner.

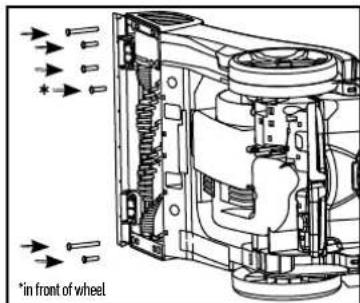

3 To remove belt covers, use Philips screwdriver to remove 6 screws. Arrows show location of screws.

4 Remove belt cover from unit.

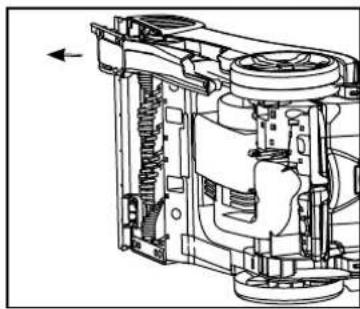

Pull brushroll toward user to remove from unit.
6 Rinse brushroll and all to dry.

CAUTION

To reduce the risk of injury from moving parts, unplug before servicing.

IMPORTANT

Rotate brushrolls manually to make sure belt is not twisted or pinched.

Maintenance

How to Remove and Clean Brushroll

HOW TO REPLACE

1 Slip brushroll through belt.
With bell in place, pull and slide brushroll into unit, making sure that the brushroll end caps are in correct orientation.

3 Replace belt cover and secure by replacing all 6 screws.

BRUSHROLL PART #: 440012796 - TO BUY, VISIT HOOVER.COM

CAUTION To reduce the risk of injury from moving parts, unplug before servicing.

IMPORTANT Rotate brushrolls manually to make sure belt is not twisted or pinched.

STORAGE Before storing: Empty Clean Water Tank and let air dry. Replace on cleaner. Empty Dirty Water Tank, rinse tank and lid thoroughly with clean water and let air dry. Allow brushes and underside of carpet cleaner to air dry thoroughly before storing carpet cleaner on a carpeted or wood surface.

LUBRICATION The motor is equipped with bearings that contain sufficient lubrication for the life of the motor. The addition of lubricant could cause damage. Therefore, do not add lubricant to motor bearings.

Hoover® Cleaning Solution Guide

Use only Hoover cleaning solutions to prevent potential harm to your carpet cleaner and keep your warranty.

For best results, use your Carpet Cleaner + Spot Treatment + Solutions.

Hoover has a full line of Detergents and Spot Treatments to complement your Hoover carpet cleaner and the specific condition of your carpet. To prevent project interruption, keep Detergent on hand and store with your carpet cleaner. Spot Treatment may be used as a pretreatment immediately before you clean your carpets, or as an independent treatment between cleaning your carpets.

EXPERT CARPET SOLUTIONS: PROFESSIONAL GRADE

EXPERT CLEAN™ CARPET WASHER DETERGENT

Powerful, professional strength cleaner lifts dirt and removes allergens for our deepest, extreme clean.

EXPERT CLEAN™ SPOT TREATMENT GEL

Professional grade targeted gel removes tough stains like ground-in dirt, allergens, chocolate and wine.

EXPERT PET™ CARPET WASHER DETERGENT

Powerful, professional strength enzymes break down biological stains, dirt and odor for a truly deep clean.

EXPERT PET SPOT TREATMENT SPRAY

Professional grade targeted enzyme spray removes tough stains like dirt, oils, urine and residual odor.

PLUS CARPET SOLUTIONS

CLEAN PLUSTM CARPET WASHER DETERGENT

Powerful cleaner for everyday dirt and grime.

CLEAN PLUS™ SPOT SPRAY

Powerful spot spray for everyday dirt and grime.

PET PLUS™ CARPET WASHER DETERGENT

Powerful cleaner enhanced with enzymes to tackle pet messes and eliminate odor.

Powerful spot spray enhanced with enzymes to tackle pet messes and eliminate odor.

PRO PLUS™ CARPET WASHER DETERGENT

Professional strength carpet & upholstery solution removes stubborn stains and odors.

HARD FLOOR SOLUTIONS

MULTI-FLOOR PLUS™ HARD FLOOR SOLUTION

Powerful hard floor cleaning solution removes everyday dirt and grime.

TILE & GROUT PLUS™ HARD FLOOR SOLUTION

Powerful hard floor cleaning solution cleans and revitalizes tile and grout surfaces.

Powerful hard floor cleaning solution combines with steam to safely wash hard floors.

Need Help?

If you need further assistance

If your product needs servicing within the warranty period, please contact Customer Service at 1-800-944-9200; Mon-Fri 7am-6pm EST. Always identify your carpet washer by the complete model number when requesting information or ordering parts. (The model number of the carpet washer is located on the data plate).

PLEASE DO NOT RETURN THIS CLEANER TO THE STORE.

Troubleshooting:

Any other servicing should be done by an authorized service representative.

USE TROUBLESHOOTING GUIDE AS A FIRST STEP TO RESOLVE ANY PROBLEMS YOU MAY BE EXPERIENCING.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call Customer Service at 1-800-944-9200 for further instruction before continuing use.

WARNING

To reduce the risk of personal injury - Unplug before cleaning or servicing.

QUESTIONS OR CONCERNS?

Contact Us:

1-800-944-9200

If you have any questions or, visit Hoover.com or connect with us:

Twitter: @HooverUSA

Facebook: facebook.com/hoover

Do not return to store. See back of product for model number.

WARNING

To reduce risk of fire and electric shock due to internal component damage, use only Hoover cleaning products intended for use with the appliance as noted.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Cleaner won't run 1.	Not firmly plugged in 1. Plug unit in firmly
	2. No voltage in wall plug 2. Check fuse or breaker in home
	3. Blown fuse or tripped breaker	3. Replace fuse or reset breaker in home
	4. Fuse in cleaner blown	4. Take to service center
Low suction 1. Dirty	Water Tank full/automatic shut off engaged	1. Remove and empty Dirty Water Tank.See "How to Empty" page 12
	2. Dirty Water Cap or Plug not on correctly	2. Tighten
	3. Dirty Water Tank Debris Filter Clogged	3. See "How to Clean" page 12
	4. Blockage in nozzle 4. See "How to Clean" page 13
	5. Recovery Tank not properly secured 5. Replace Recovery Tank and secure recovery tank latch
	6. Clogged Filter 6. Clean it
Clean water won't dispense	1. Clean Water Tank not firmly in place	1. Make sure tank is securely locked in position
	2. Clean Water Tank or solution container empty	2. Refill container according to cleaning instructions
		3. Ensure trigger is being pulled
Brushes won't rotate during floor cleaning		Check for jams and/or broken belt

SERVICE & WARRANTY

SERVICE INFORMATION

ANY SERVICING SHOULD BE DONE BY AN AUTHORIZATION SERVICE REPRESENTATIVE CALL 1-800-944-9200 USA & CANADA

In the event that further assistance is required, visit an authorized service center. Find one nearest you by visiting our website at www.hoover.com. Costs of any transportation to and from any place of repair are to be paid by the owner. Always identify your product by the model number and manufacturing code when requesting information or ordering replacement parts. (The model number and manufacturing code are on the back of the product).

LIMITED ONE YEAR WARRANTY (DOMESTIC USE)

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner's Manual, your HOVER® product is warranted against original defects in material and workmanship a full year from date of purchase (the "Warranty Period"). During the Warranty Period, Hoover® will provide labor and parts at no cost to you to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is warranted, take or send the product to either a Hoover® Sales and Service Center or Hoover® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Hoover® online at www.hoover.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, call the Hoover® Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST. In Canada, contact Hoover® Canada, Carson Building, 100 Carson St., Etobecoke, Ontario M8W 3R9, Phone: [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), filter, brushroll and belt, improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Hoover®, owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls, however, if you mail your product to a Hoover® Sales and Service Center for warranty service, cost of shipping will be paid one way.

This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Hoover® products.

OTHER IMPORTANT TERMS

This warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty.

THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMOY PROVIDED BY HOOVER®, ALL OTHER WARRANTYES, EXPRESSED OR IMplied, INCLUDING WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL HOOVER® BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ASING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

POWERDASH

CARPET CLEANER

COMMENT LA REMPLACER

EXPERT CLEAN™ CARPET WASHER DETERGENT

EXPERT PET™ CARPET WASHER DETERGENT

CLEAN PLUSTM CARPET WASHER DETERGENT

MULTI-FLOOR PLUS™ HARD FLOOR SOLUTION

RéCLamation AU TITRE DE LA GARANTIE

EXPERT CLEAN™ CARPET WASHER DETERGENT

EXPERT PET™ CARPET WASHER DETERGENT

CLEAN PLUSTM CARPET WASHER DETERGENT

MULTI-FLOOR PLUS™ HARD FLOOR SOLUTION
