USER MANUAL KMT4203OB KITCHENAID

Plate of baked bread slices including sliced bread, sesame seeds, and a glass jar filled with red juice (no text or symbols visible)

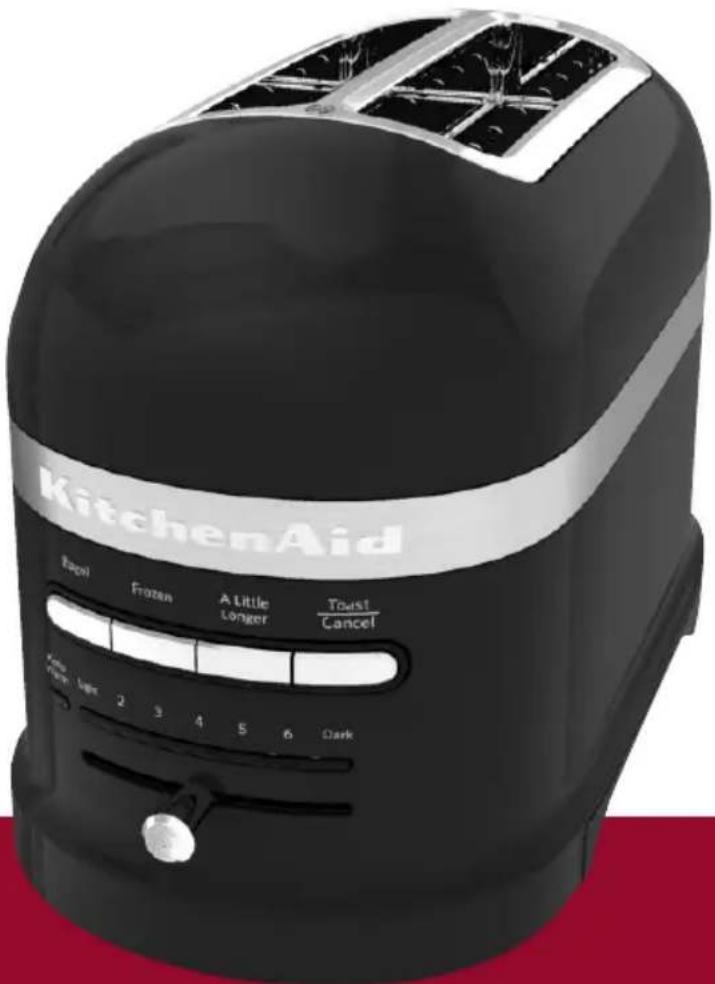

KMT2203 • KMT4203

Toaster

INSTRUCTIONS

Grille-pain

INSTRUCTIONS

Tostador

INSTRUCCIONES

Welcome to the world of KitchenAid®

We're committed to helping you create a lifetime of delicious meals for family and friends. To help ensure the longevity and performance of your appliance, keep this guide handy. It will empower you with the best way to use and care for your product. Your satisfaction is our #1 goal. Remember to register your product online at www.kitchenaid.com, or by mail using the attached Product Registration Card.

KITCHENAID HASSLE-FREE REPLACEMENT WARRANTY QUALITY

KitchenAid Bowel Frozen A Little Longer Toast Cancel Light 2 3 4 5 6 Dark

USA and Canada:

1.800.832.7173

KitchenAid.com

KitchenAid.ca

Table of Contents

TOASTER SAFETY

Important Safeguards....4

Electrical Requirements....5

PARTS AND FEATURES....6

USING YOUR TOASTER

Before First Use 7

Making Toast....8

SPECIAL TOASTING FUNCTIONS

Keep Warm....9

Toasting Bagels....9

Toasting Frozen Items....9

A Little Longer....10

CARING FOR YOUR TOASTER....10

TROUBLESHOOTING....||

WARRANTY....12

Proof of Purchase & Product Registration

Always keep a copy of the itemized sales receipt showing the date of purchase of your Toaster. Proof of purchase will assure you of in-warranty service. Before you use your Toaster, please fill out and mail your product registration card packed with the unit, or register online at www.kitchenaid.com.

This will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. This card does not verify your warranty. Please complete the following for your personal records:

Model Number

Serial Number

Date Purchased

Store Name

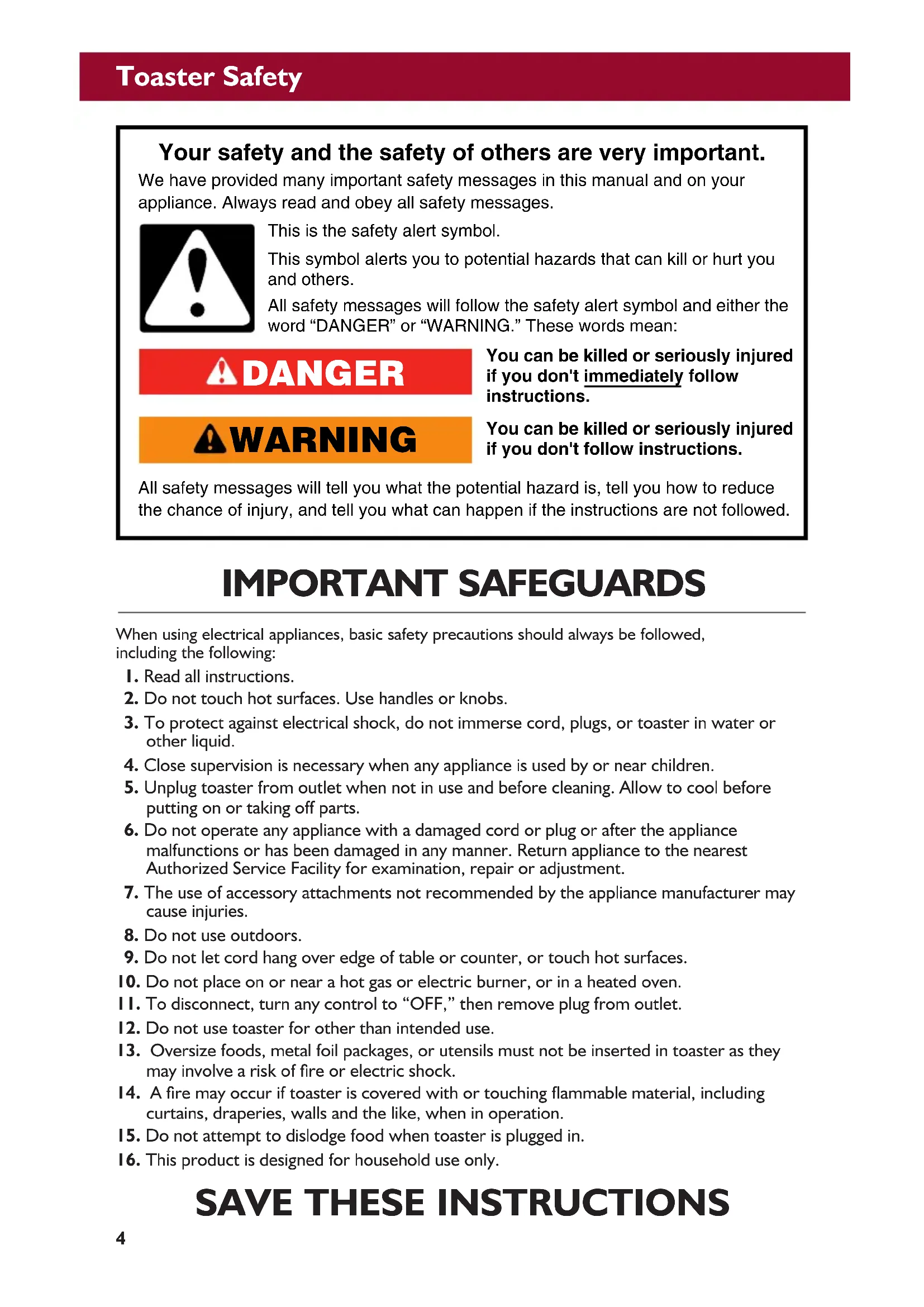

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

Warning symbol: black triangle with exclamation mark (no text or numbers)

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

I. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or toaster in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug toaster from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair or adjustment.

1. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

2. Do not use outdoors.

3. Do not let cord hang over edge of table or counter, or touch hot surfaces.

4. Do not place on or near a hot gas or electric burner, or in a heated oven.

II. To disconnect, turn any control to "OFF," then remove plug from outlet.

1. Do not use toaster for other than intended use.

2. Oversize foods, metal foil packages, or utensils must not be inserted in toaster as they may involve a risk of fire or electric shock.

3. A fire may occur if toaster is covered with or touching flammable material, including curtains, draperies, walls and the like, when in operation.

4. Do not attempt to dislodge food when toaster is plugged in.

5. This product is designed for household use only.

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Volts: 120 Volts AC only.

Hertz: 60 Hz

NOTE: Your toaster has a 3-prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Longer detachable power supply cords or extension cords are available and may be used if care is exercised in their use.

If a longer detachable power supply cord or extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
• The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.

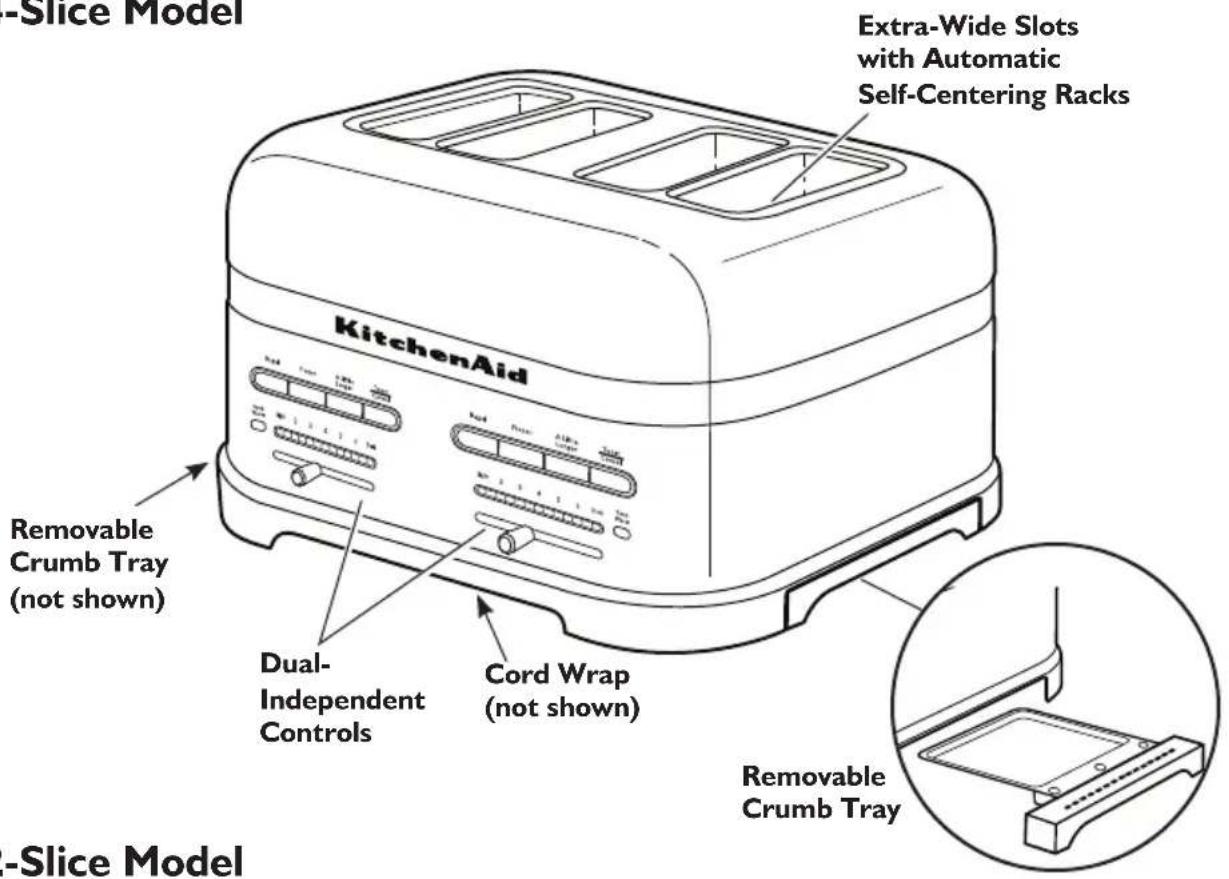

4-Slice Model

Slice Model Extra-Wide Slots with Automatic Self-Centering Racks KitchenAid Removable Crumb Tray (not shown) Dual- Independent Controls Cord Wrap (not shown) Slice Model Removable Crumb Tray

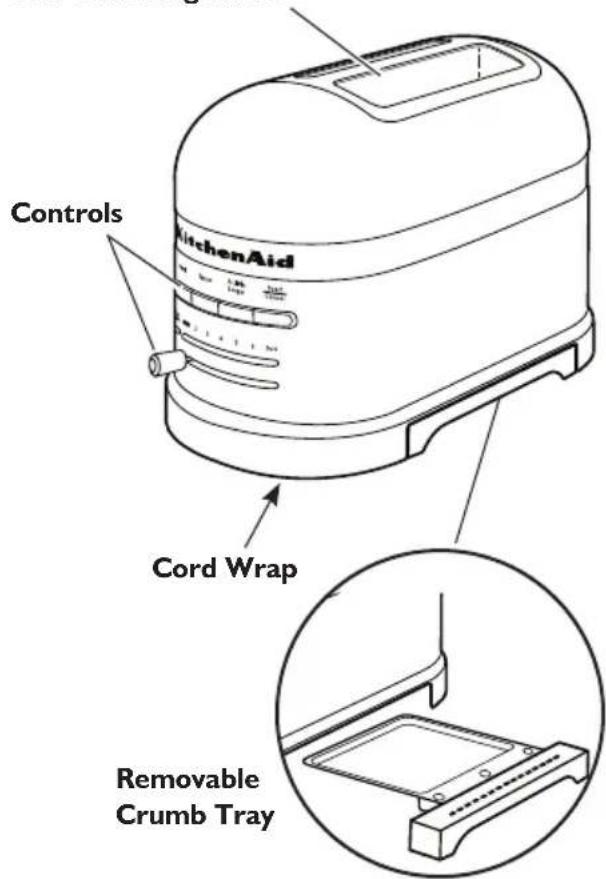

2-Slice Model

Extra-Wide Slots with Automatic Self-Centering Racks

Controls KitchenAid Cord Wrap Removable Crumb Tray

Extra-Wide Slots with Automatic Self-Centering Racks

Extra-wide slots allow you to easily toast bread, bagels, and English muffins up to 1^1/_8 " (2.8 cm) thick. Self-centering racks help ensure even heating of thin or thick breads. An automatic lift mechanism raises and lowers racks.

Controls

Easy-to-use controls allow you to quickly select the desired settings and light to provide visual feedback.

Cord Wrap

The cord wrap provides convenient storage of the cord when not in use.

Removable Crumb Tray

The removable crumb tray slides out for quick removal of crumbs. Hand-wash only.

Dual Independent Controls (4-slice models only)

Dual independent controls allow you to select different settings for each pair of slots.

Parts and Features

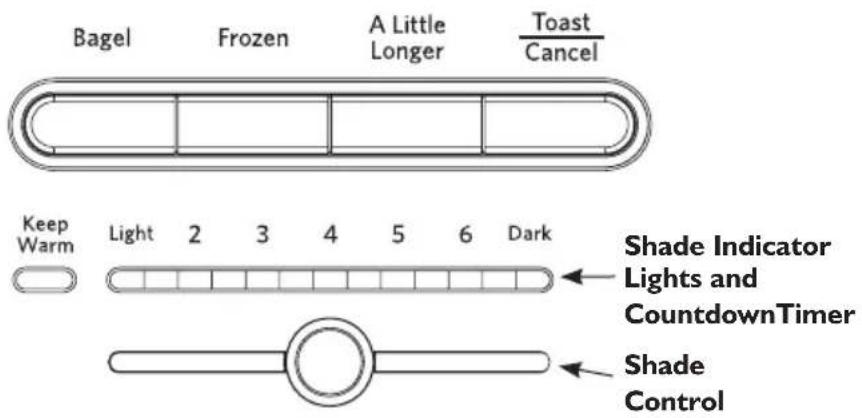

Controls

Bagel Frozen A Little Longer Toast Cancel Keep Warm Light 2 3 4 5 6 Dark Shade Indicator Lights and CountdownTimer Shade Control

Keep Warm

If the food is not removed within 45 seconds of the end of a cycle, the toaster will automatically lower the food and activate a "Keep Warm" cycle using low heat for up to 3 minutes. The KEEP WARM indicator will light while this cycle is active. You can cancel this cycle at any time by pressing TOAST/CANCEL.

Shade Control & Countdown Timer

Precisely sets the desired brownness level. Indicator lights show the setting at a glance. During toasting, lights on the shade setting bar will blink to indicate time left in the toasting cycle.

Bagel

Your toaster features a special setting for toasting bagels, ensuring optimal heat and time for the best results. The heating elements will adjust to nicely toast the inside of a cut bagel without burning the bagel's outside surface.

Frozen

Your toaster features a Frozen mode for gently defrosting frozen bread before toasting. Use Frozen for frozen foods only.

A Little Longer

If you have a preferred brownness setting but would like to toast something “a little longer”, you can do so at the touch of a button, without changing your favorite setting.

Toast/Cancel

This is an automatic toaster. As soon as bread is placed in either slot it will begin to lower and toasting will begin using the selected settings. Some food may be too light to trigger automatic toasting. If the food does not begin to drop after 3 seconds press TOAST/CANCEL to start the cycle manually. Press again to cancel a toasting cycle already in process, or to end a Keep Warm cycle.

Using Your Toaster

Before First Use

Before using your toaster, check the extra-wide slots and remove any packing or printed material that might have fallen inside during shipping or handling. Do not probe inside the toaster with a metal object.

You may see light smoke the first time you use the toaster. This is normal. The smoke is harmless and will soon disappear.

Using Your Toaster

Making Toast

I. Shorten cord, if necessary, by wrapping cord under the base. The toaster's feet are tall enough to allow the cord to exit from under any side of the toaster.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3-prong outlet.

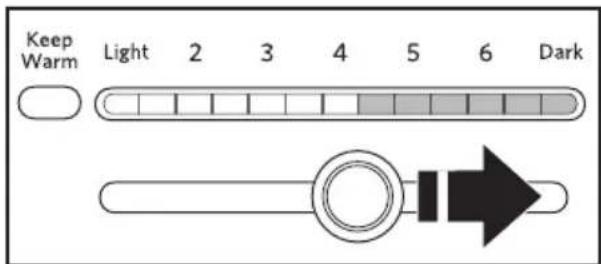

2. Move the Shade Control to select the degree of brownness you want. Move the Shade Control to the right for darker toast or to the left for lighter. The indicator lights will display the shade level, from Light to Dark.

NOTE: Different types of bread and their moisture levels may require different shade settings. For example, dry bread will brown more rapidly than moist bread and will require a lighter setting.

Keep Warm Light 2 3 4 5 6 Dark →

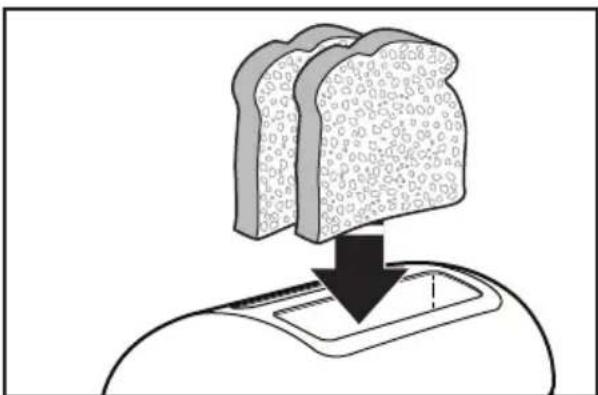

1. Insert bread or other food to be toasted in slot(s).

Diagram showing a sandwich being placed on a surface with a downward arrow indicating compression (no text or symbols present)

NOTE: For even toasting on 2-slot models, toast only one bread type and thickness at a time. If toasting two different types or thicknesses of bread with 4-slot models with Dual Independent Controls, be sure to toast only one bread type in each pair of slots.

1. As soon as bread is placed in either slot it will automatically begin to lower and toasting will begin. Some food may be too light to trigger

automatic toasting. If the food does not begin to drop after 3 seconds press TOAST/CANCEL to start the cycle manually.

1. (Optional) Press desired special toasting function button within 5 seconds. See the "Special Toasting Functions" section for more information.
2. When the toaster is finished, it will automatically raise the food and a signal will sound. If food is not removed within 45 seconds, the toaster will enter Keep Warm mode.
3. To cancel toasting at any time, press TOAST/CANCEL. The toaster will raise the toast and turn off.

Special Toasting Functions

Keep Warm

If the food is not removed within 45 seconds of the end of a cycle, the toaster will automatically lower the food and activate a "Keep Warm" cycle using low heat for up to 3 minutes. The KEEP WARM indicator will light while this cycle is active.

To cancel Keep Warm mode and

remove toast:

Press the TOAST/CANCEL button once. The toast will come up and the toaster will turn off.

If toast is not removed within

3 minutes, the toast will come up and the toaster will automatically turn off.

Toasting Bagels

Your toaster features a special setting for toasting bagels, ensuring optimal heat and time for the best results. The heating elements will adjust to nicely toast the inside of a cut bagel without burning the bagel's outside surface.

I. With the Shade Control set to the desired level of brownness, press the BAGEL button.

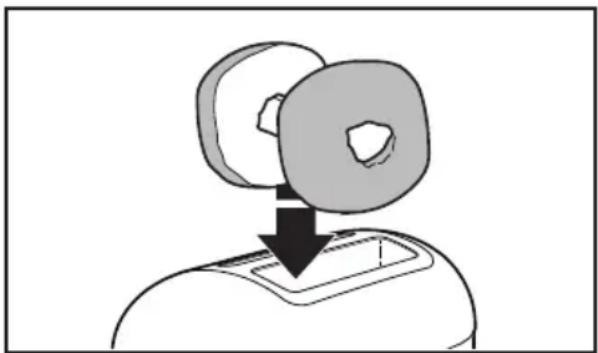

1. Insert bagel halves with the cut sides facing in, as shown. The toaster will automatically lower the bagel and start toasting.

Diagram of a device with a circular component being inserted into a slot, showing a black arrow indicating the insertion direction (no text or symbols present)

1. When the bagel is ready, the toaster will raise it and a signal will beep. If bagel is not removed within 45 seconds, the toaster will enter Keep Warm mode.

Toasting Frozen Items

Your toaster features a Frozen mode for gently defrosting frozen bread before toasting. Use Frozen for frozen foods only.

For regular bread and similar foods:

I. With the desired brownness level selected, press the FROZEN button.

1. Insert frozen bread into the toaster slots.

2. The toaster will automatically lower the bread, run a defrosting cycle to thaw the bread, then toast it to the desired brownness setting.

For frozen bagels:

I. With the desired brownness level selected, press the BAGEL button then the FROZEN button.
2. Insert frozen bagel into the toaster slots.
3. The toaster will automatically lower the bagel, run a defrosting cycle to thaw the bagel, then toast it to the desired brownness setting.

Special Toasting Functions

A Little Longer

If you have a preferred brownness setting but would like to toast something “a little longer”, you can do so at the touch of a button, without changing your favorite setting.

To use this feature after a toasting cycle is complete:

I. Wait for the food to raise automatically. A signal will sound.

1. If you desire more browning, just press A LITTLE LONGER and the food will resume toasting.

1. When the toaster is finished, it will automatically raise the food and a signal will sound. If food is not removed within 45 seconds, the toaster will enter Keep Warm mode.

NOTE: This feature may also be used to extend the toasting time from the beginning of the cycle.

I. Insert bread or other food to be toasted in slot(s).
2. Wait for the bread to lower automatically, or press TOAST/CANCEL to start the cycle.
3. Press the A LITTLE LONGER button.
4. The toaster will extend toasting time.
5. When the toaster is finished, it will automatically raise the food and a signal will sound. If food is not removed within 45 seconds, the toaster will enter Keep Warm mode.

Caring for Your Toaster

I. Unplug the toaster and let it cool before cleaning.

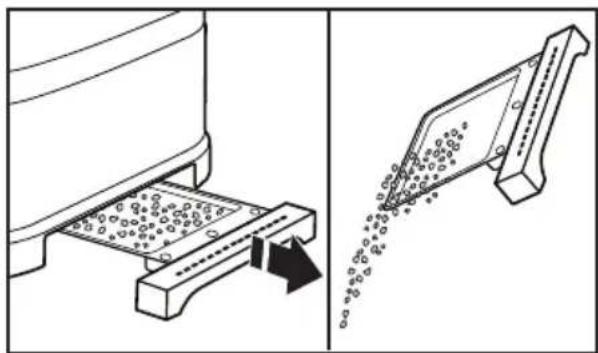

2. Grasp the center of the crumb tray then slide it out. Shake the crumbs into a waste container. It is recommended that the crumb tray be emptied after each use. Crumb tray is hand-wash only.

IMPORTANT: The tray will be hot immediately following a toasting cycle.

Diagram showing two stages of a mechanical device: one with a slide and arrow indicating motion, the other with particles flowing through a slot (no text or symbols)

1. Wipe toaster with a soft, damp cotton cloth. Do not use paper towels, abrasive cleansers or liquid cleaning products. Do not immerse toaster in water.

NOTE: If grease or oil splatters on the toaster, wipe splatters away immediately using a clean, damp cotton cloth.

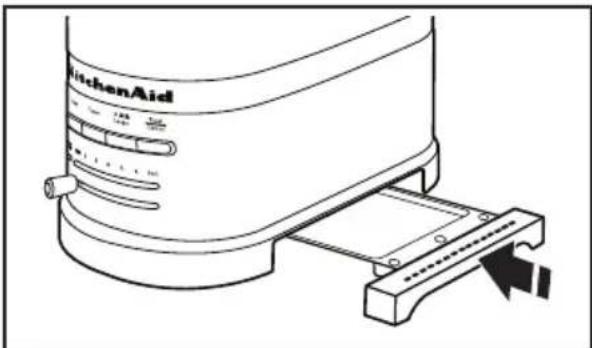

1. Return crumb tray to toaster. Press it in firmly until it clicks into position. Do not use the toaster without the crumb tray in proper position.

Line drawing of a kitchen appliance with a right-hand side panel and a scroll, no text or symbols present.

NOTE: KitchenAid does not recommend the use of a toaster cover.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. If the toaster still does not work, check the household fuse or circuit breaker.

If the problem cannot be corrected:

See the KitchenAid Warranty and Service sections. Do not return the toaster to the retailer; retailers do not provide service.

If your toaster should fail to operate, check the following:

I. Check that the toaster is plugged into a grounded 3-prong electrical outlet. If it is, unplug the toaster.

1. Plug in toaster.

KitchenAid® Pro-Line Total Replacement Limited Warranty for the 50 United States, the District of Columbia, Puerto Rico, and Canada

This warranty extends to the purchaser and any succeeding owner for KitchenAid Pro-Line products operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Limited Five Years from the date of purchase.Total ReplacementWarranty:

KitchenAid Will Pay Hassle-Free Replacement of your Pro-Line product. See for Your Choice of: the next page for details on how to arrange for replacement, or call the Customer eXperience Center toll-free at 1-800-832-7173.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.

KitchenAid Will A. Repairs when your Pro-Line product is used in other than Not Pay for: normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Pro-Line product to an Authorized Service Center.D. Replacement parts or repair labor costs for Pro-Line products operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.

DISCLAIMER OF IMPLIED WARRANTIES IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties or merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state and province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY KitchenAid makes no representations about the quality, durability or need for service or repair of this appliance other than the representations contained in this Warranty. If you want longer or more comprehensive coverage than the limited warranty that comes with this appliance, you should ask KitchenAid or your retailer about buying a service contract.LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPLACEMENT OR REPAIR AS PROVIDED HEREIN. KITCHENAID SHALL NOT BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state and province to province.

Hassle-Free Replacement Warranty – 50 United States, District of Columbia, and Puerto Rico

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Pro-Line product should fail within the first five years of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Pro-Line product returned to us. Your replacement unit will also be covered by our five year limited warranty. Please follow these instructions to receive this quality service.

If your Pro-Line product should fail within the first five years of ownership, simply call our toll-free Customer eXperience Center at 1-800-832-7173 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement Pro-Line product, use the carton and packing materials to pack up your original Pro-Line product.

Hassle-Free Replacement Warranty – Canada

We're so confident the quality of our products meets the exacting standards of the KitchenAid® brand that, if your Pro-Line product should fail within the first five years of ownership, KitchenAid Canada will replace your Pro-Line product with an identical or comparable replacement. Your replacement unit will also be covered by our five year limited warranty. Please follow these instructions to receive this quality service.

If your Pro-Line product should fail within the first five years of ownership, take the Pro-Line product or ship collect to an Authorized KitchenAid Service Centre. In

the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Pro-Line product will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer eXperience Centre at 1-800-832-7173.

Or write to us at: Customer eXperience Centre KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

Arranging for Service after the Warranty Expires, or Ordering Accessories and Replacement Parts

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-832-7173 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased your Pro-Line product for information on how to obtain service.

For service information in Canada:

Call toll-free I-800-832-7173.

Or write to: Customer eXperience Centre KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

KITCHENIAID HASSLE-FREE REPLACEMENT WARRANTY QUALITY

KitchenAid Angel Frozen A Little Longer Toast Cancel Light 2 3 4 5 6 Dark

É.-U. et Canada :

1.800.832.7173

KitchenAid.com

KitchenAid.ca

Table des matières

CONSIGNES DE SÉCURITÉ DU GRILLE-PAIN

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Diagram showing a sandwich being placed on a surface with a downward arrow indicating compression (no text or symbols present)

(brunissement/annulation)

pour démarrer un

Diagram of a device with a circular component being inserted into a slot, showing a black arrow indicating the insertion direction (no text or symbols present)

Diagram showing a mechanical device pressing down on a platform and then pouring granular material into a slotted container (no text or symbols present)

Line drawing of a kitchen Aid blender with a slide and scroll attachment (no text or symbols)

Customer eXperience Centre

KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7

KITCHEN-AID HASSLE-FREE REPLACEMENT WARRANTY QUALITY

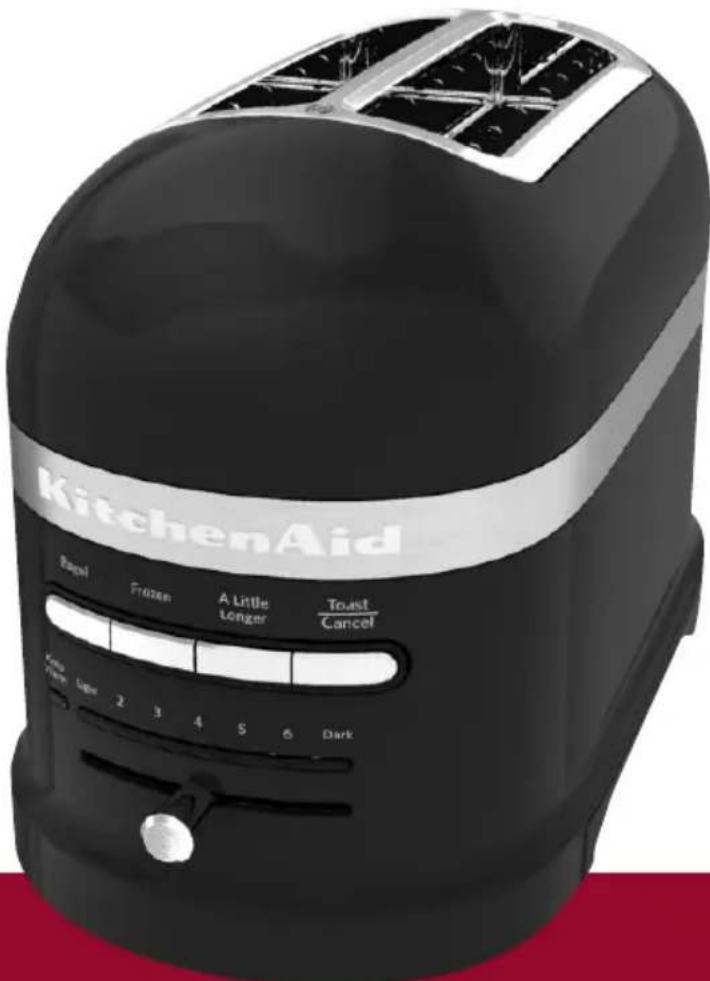

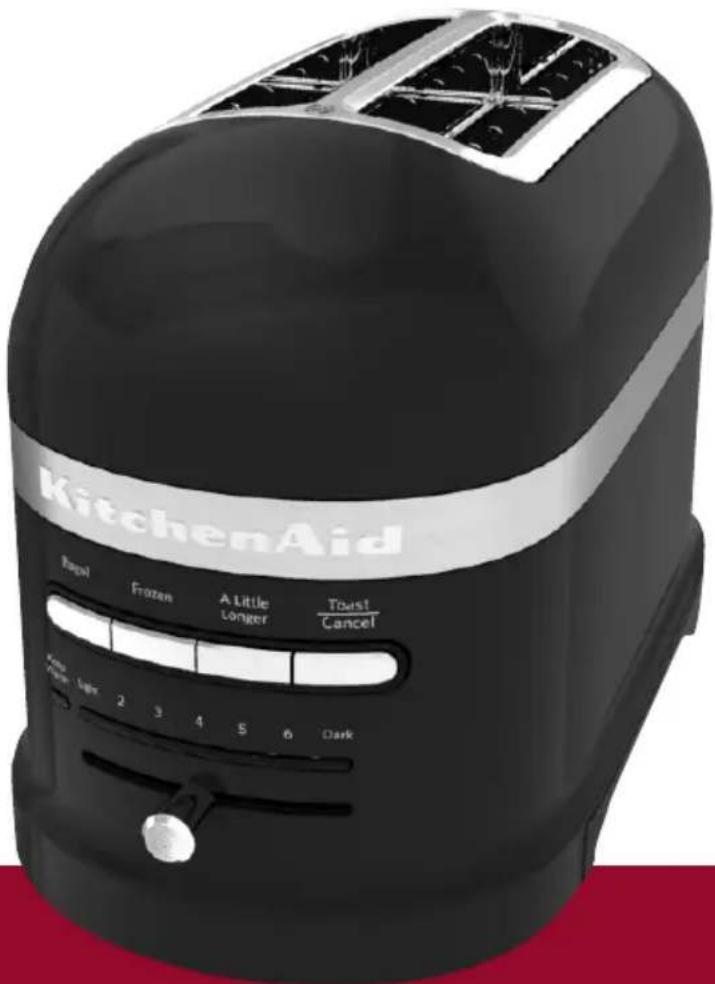

KitchenAid Basil Frozen A Little Longer Toast! Cancel Light 2 3 4 5 6 Dark

En EE.UU. y Canadá:

1.800.832.7173

KitchenAid.com

KitchenAid.ca

Índice

Warning symbol with exclamation mark inside triangle, commonly used to indicate caution or hazard.

Diagram showing a sandwich being placed on a surface with a downward arrow indicating compression (no text or symbols present)

Diagram of a robotic arm with a circular head and handle, showing a downward force or insertion (no text or symbols)

Diagram showing a mechanical device pressing down with a directional arrow indicating motion, and a close-up of particles being poured into a container (no text or symbols present)

Line drawing of a kitchen aid kit with a slide and handle, showing no text or symbols on the device itself.

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

KitchenAid®

® Registered trademark/™ Trademark/The shape of the mixer is a registered trademark of KitchenAid, U.S.A.

All rights reserved.
