| Product Type | Toaster |
| Brand | KitchenAid |
| Model | KMT4116CU |
| Usage | Household only |
| Number of slices | 2 slices (long slot for 4 slices) |
| Voltage | 120 V AC |
| Frequency | 60 Hz |
| Power plug | 3-prong grounded plug |
| Toasting functions | Simple toast, Bagel, Defrost, Keep Warm, Lift & Look |
| Browning control | Continuous variable (light to dark) |
| Auto shut-off | Yes (end of cycle + Cancel) |
| Keep warm | Up to 3 minutes after toasting |
| Crumb tray | Removable, hand washable |
| Cleaning | Wipe with a damp cloth, do not immerse |
| Safety | Polarized plug, important safety instructions, auto shut-off |
| Warranty | 1 year full warranty (hassle-free replacement) |
| Customer service (USA) | 1-800-541-6390 |
| Customer service (Canada) | 1-800-807-6777 |
| Customer service (Mexico) | 01-800-0022-767 |
Frequently Asked Questions - KMT4116CU KITCHENAID
User questions about KMT4116CU KITCHENAID
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Toaster in PDF format for free! Find your manual KMT4116CU - KITCHENAID and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KMT4116CU by KITCHENAID.
USER MANUAL KMT4116CU KITCHENAID
We're committed to helping you create a lifetime of delicious meals for family and friends. To help ensure the longevity and performance of your Toaster, keep this guide handy. It will empower you with the best way to use and care for your product. Your satisfaction is our #1 goal. Remember to register your product online at www.kitchenaid.com or by mail using the enclosed Product Registration Card.
Join us in the kitchen at www.kitchenaid.com.
TABLE OF CONTENTS
TOASTER SAFETY
Important safeguards. 4
Electrical requirements 5
PARTS AND FEATURES
Parts and accessories.. 6
USING THE TOASTER
Before first use 7
Toasting 8
SPECIAL TOASTING FUNCTIONS
Toasting Bagels 9
Defrosting 10
KeepWarm
Lift & See 12
CARE AND CLEANING 12
TROUBLESHOOTING 13
WARRANTY AND SERVICE 14
PROOF OF PURCHASE & PRODUCT REGISTRATION
Always keep a copy of the itemized sales receipt showing the date of purchase of your Toaster. Proof of purchase will assure you of in-warranty service. Before you use your Toaster, please fill out and mail your product registration card packed with the unit, or register on-line at www.kitchenaid.com. This card will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. This card does not verify your warranty. Please complete the following for your personal records:
Model Number
Serial Number
Date Purchased
Store Name

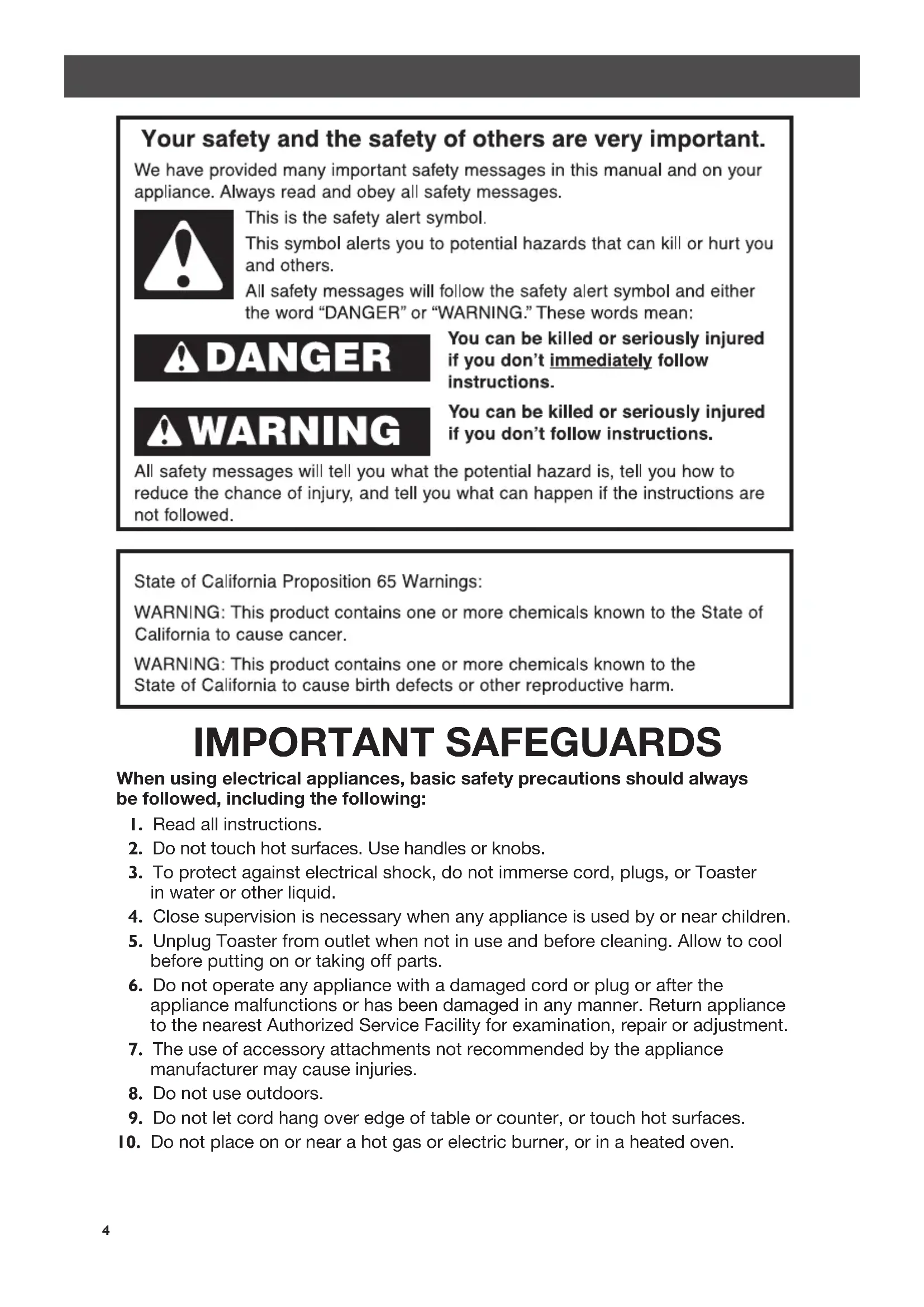

Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:
DANGER
You can be killed or seriously injured if you don't immediately follow instructions.
WARNING
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
State of California Proposition 65Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the following:
I. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or Toaster in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug Toaster from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
II. To disconnect, turn any control to "OFF," then remove plug from outlet.
12. Do not use Toaster for other than intended use.
13. Oversize foods, metal foil packages, or utensils must not be inserted in Toaster as they may involve a risk of fire or electric shock.
14. A fire may occur if Toaster is covered with or touching flammable material, including curtains, draperies, walls and the like, when in operation.
15. Do not attempt to dislodge food when Toaster is plugged in.
SAVE THESE INSTRUCTIONS
This product is designed for household use only.
Electrical requirements
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
Voltage: 120 Volts A.C. only
Frequency: 60 Hz
NOTE: Your toaster has a 3-prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or technician install an outlet near the appliance.
A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
Longer detachable power supply cords or extension cords are available and may be used if attention is exercised in their use. If a longer detachable power supply cord or extension cord is used:
The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.

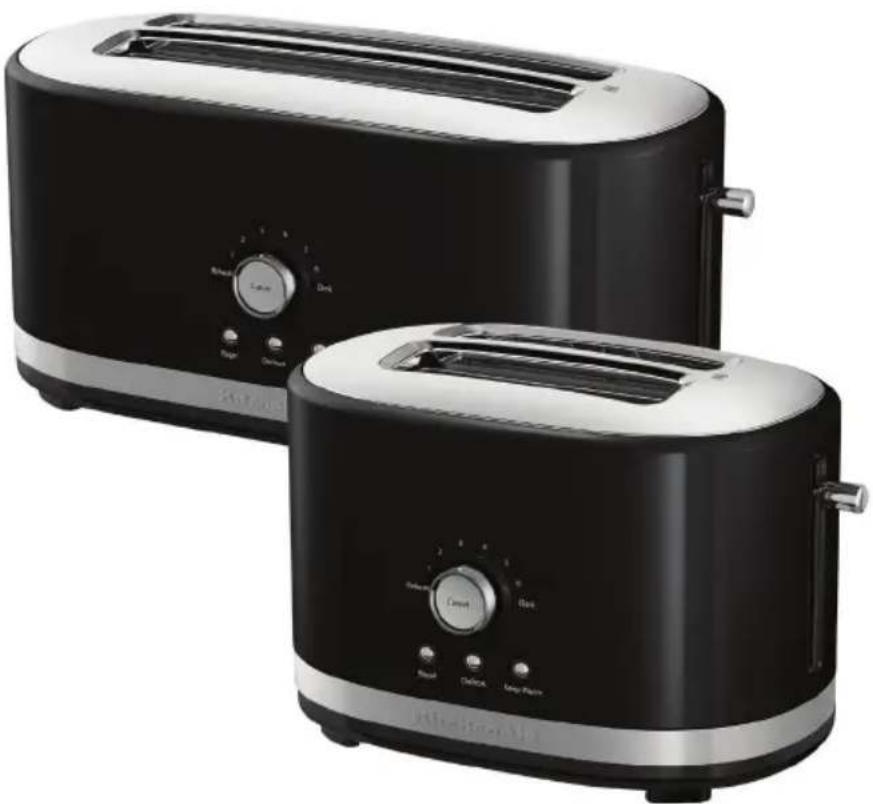

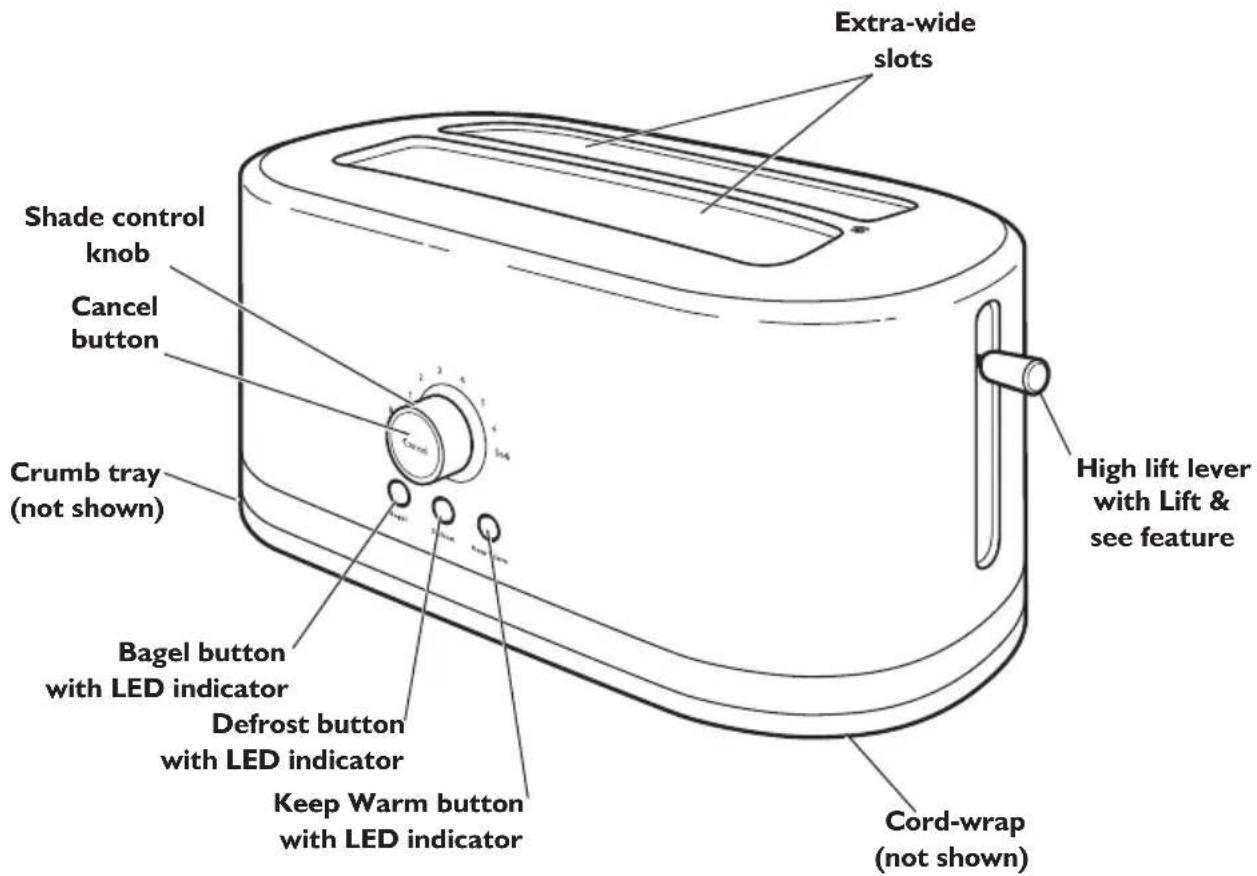

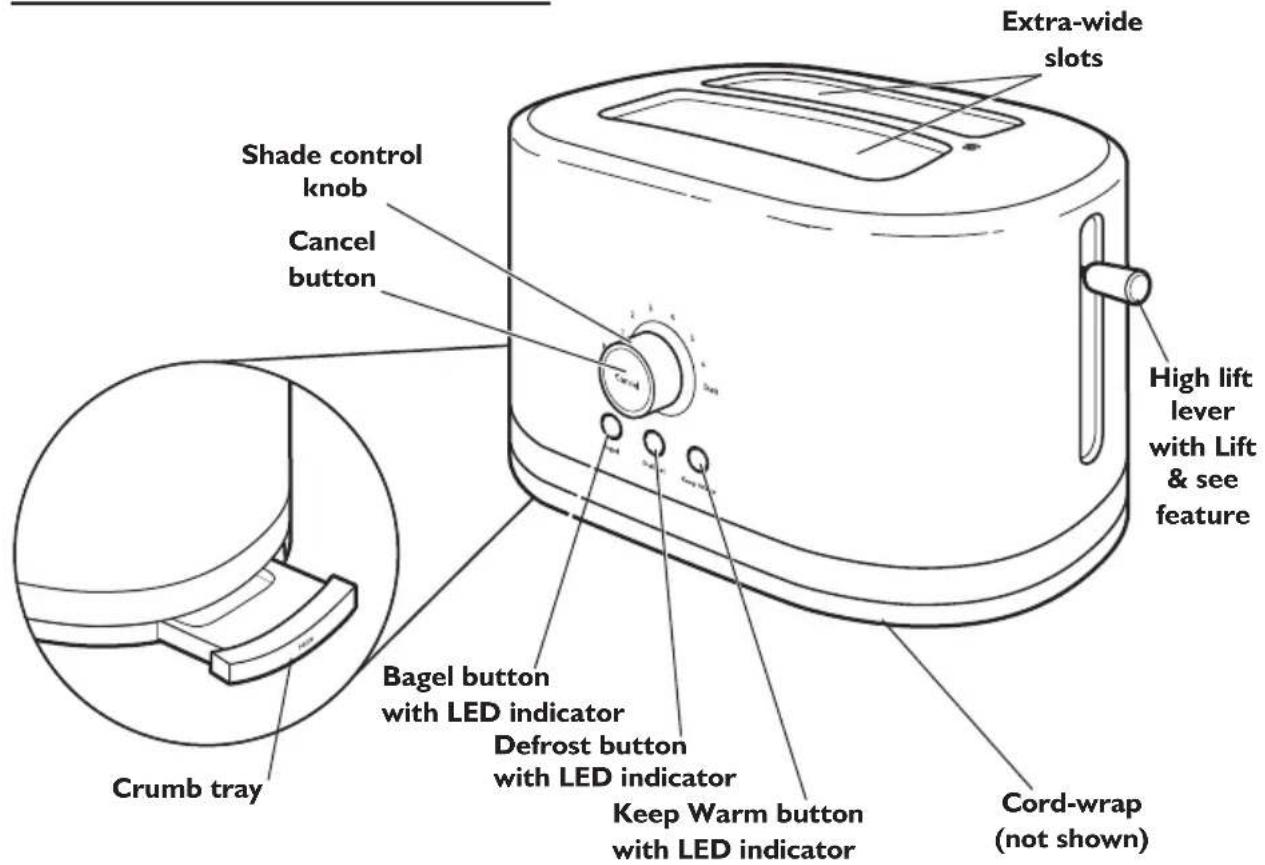

Parts and accessories
2-Slice
Long slot (4-slice)
USING THE TOASTER
Your KitchenAid® Toaster offers ease of use and exceptional control. With simple start-to-finish toasting, the Toaster automatically defrosts, toasts bread or bagels, then keeps them warm before serving.
Before first use
Before using your Toaster, check the extra-wide slots and remove any packing or printed material that might have fallen inside during shipping or handling. To avoid damage to the Toaster, do not probe inside the Toaster slots with any metal objects.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
1

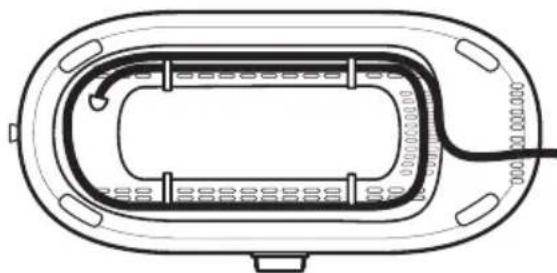

Shorten cord, if necessary, by wrapping cord under the base. The toaster's feet are tall enough to allow the cord to exit from under any side of the toaster.
2

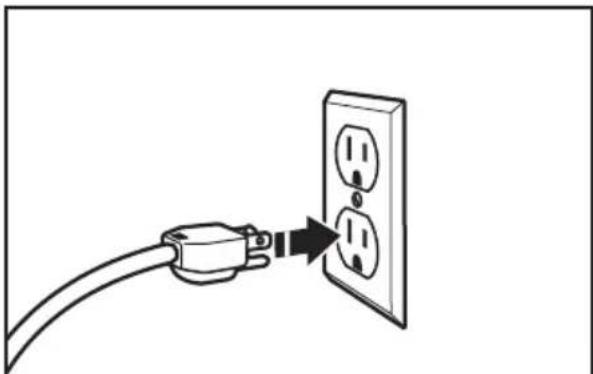

Plug into a grounded 3-prong outlet.
NOTE: You may see light smoke the first time you use the Toaster. This is normal. The smoke is harmless and will soon dissipate.
Simple start-to-finish toasting
Simple start-to-finish toasting: Select any, or all, of the three special toasting functions (defrost, bagel, or keep warm), and the Toaster will automatically move from one step to the next without any additional effort on your part.
Toasting

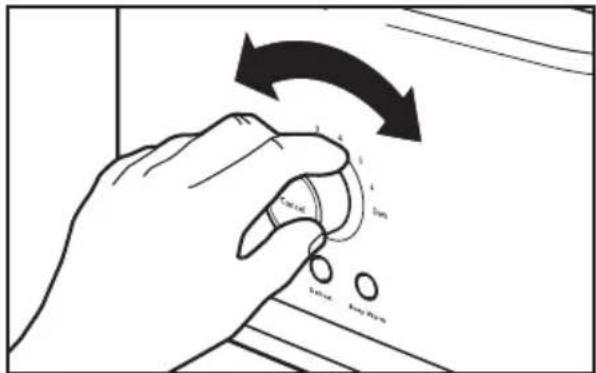

Select your desired shade by turning the shade control knob to the right for darker toasting or to the left for lighter.
toasting. To reheat toast that has cooled, turn the shade control knob to the far left of the shade control settings.
NOTE: The age, type, and moisture level of different breads may require different shade settings. For example, dry bread will brown more rapidly than moist bread and will require a lighter setting.

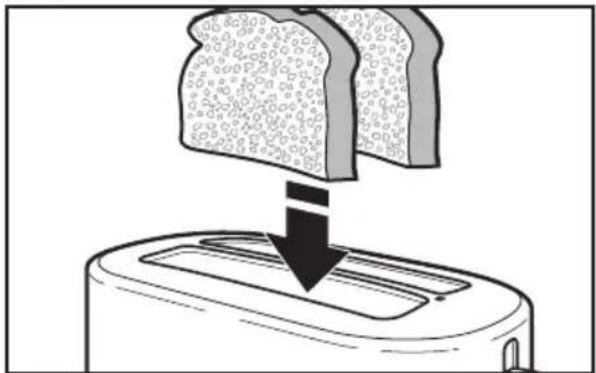

2 Insert bread or other food to be toasted into the slot(s).
NOTE: For even toasting, toast only one bread type and thickness at a time. If toasting bagels, be sure to press the Bagel button. See "Toasting Bagels."

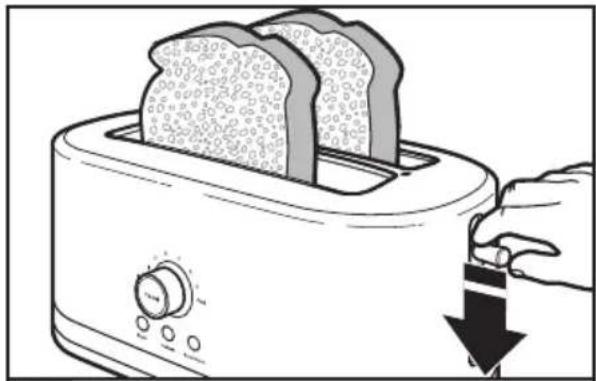

3 Press down on lift lever to start the.
toasting cycle. If Keep Warm isn't selected, the toast will rise automatically at the end of the cycle and the Toaster will turn off.
4 To cancel toasting at any time, press CANCEL. The Toaster will raise the toast and turn off.
NOTE: To activate the Keep Warm function, press down on the lift lever, then press the KEEP WARM button.
TIP: For smaller items, lift up on the lift lever to raise toast above the top of the Toaster.
Toasting Bagels
Your Toaster features a special setting for bagels, ensuring optimal heating time for the best results. The heating elements will adjust to nicely toast the inside of a cut bagel without burning the outside surface.

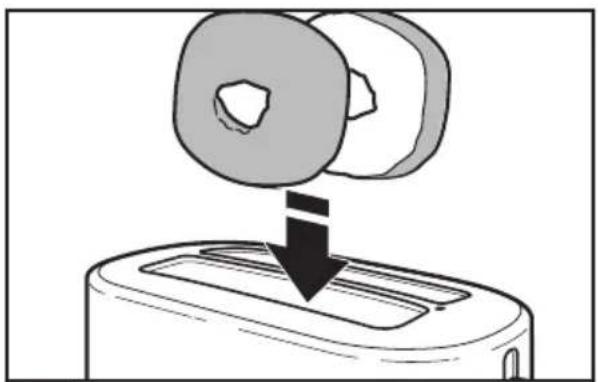

Insert bagels with the cut side facing in as shown.

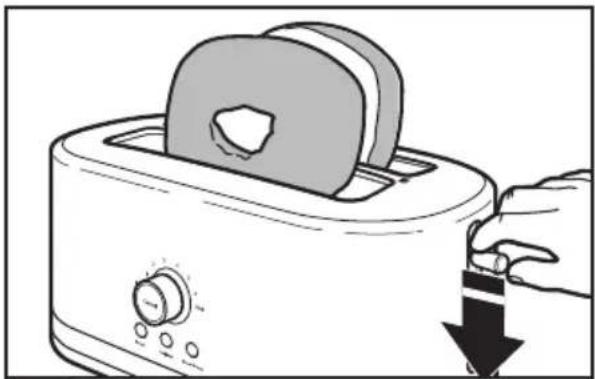

2 With the shade control knob set to your desired shade, press down on the lift lever to start the toasting cycle.
3 Press the BAGEL button. The Bagel indicator light will glow. If Keep Warm isn't selected, the bagel(s) will rise automatically at the end of the cycle and the Toaster will turn off.
TIP: The Bagel function can be used at the same time as the Defrost and Keep Warm functions.
Defrosting
The Defrost function adds additional time to the toasting cycle to defrost frozen items before toasting them.

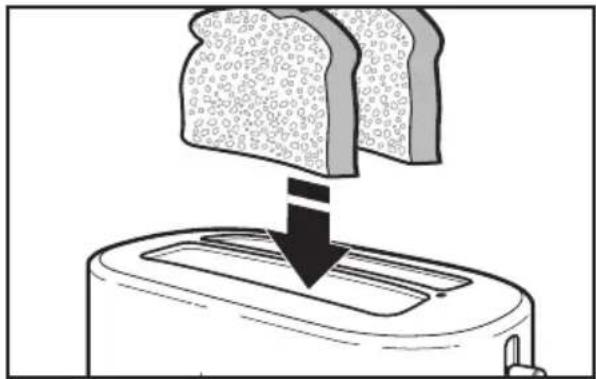

Insert bread or other food to be toasted into the slot(s).

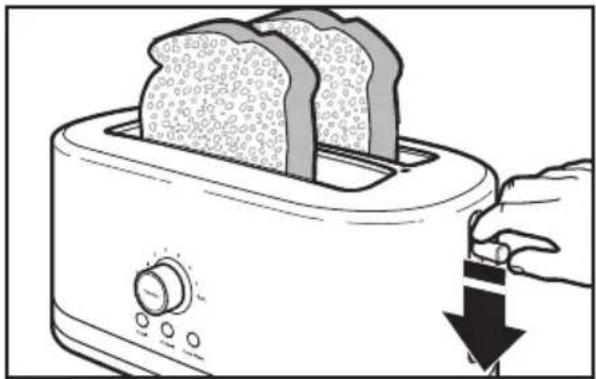

2 With the shade control knob set to your desired shade, press down on the lift lever to start the toasting cycle.

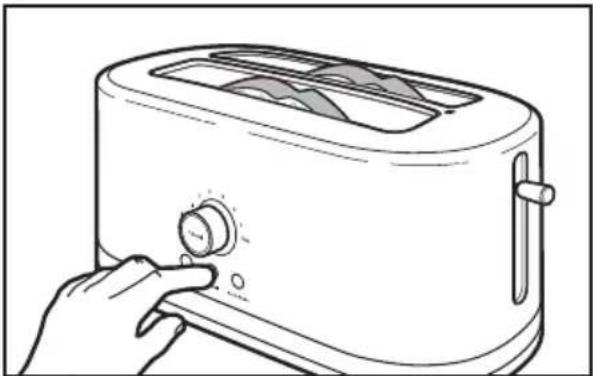

3 Press the DEFROST button. The Defrost indicator light will glow. If Keep Warm isn't selected, the toast will rise automatically at the end of the cycle and the Toaster will turn off.
TIP: The Defrost function can be used at the same time as the Bagel and Keep Warm functions.
Keep Warm
The Keep Warm function holds toast in low, gentle heat for 3 minutes after toasting.
Insert bread or other food to be toasted into the slot(s).
2 With the shade control knob set to your desired shade, press down on the lift lever to start the toasting cycle.

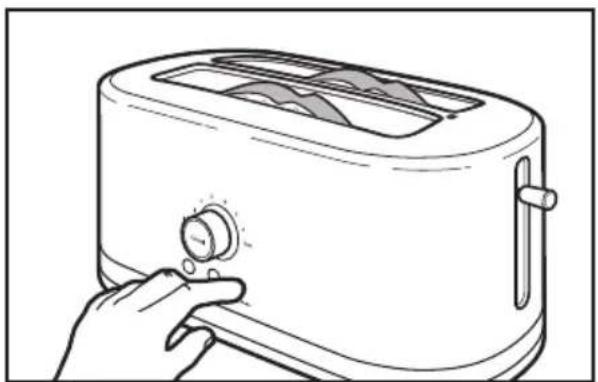

3 Press the KEEP WARM button. The Keep Warm indicator light will blink slowly.

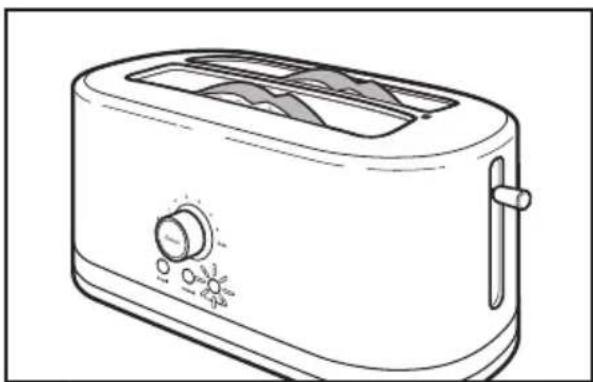

4 When the toasting cycle is complete, the Keep Warm indicator light will stop blinking and glow continuously while the toaster keeps the toast warm for 3 minutes after toasting.
TIP: The Keep Warm function can be used at the same time as the Bagel and Defrost functions.
Lift & See
With the Lift & See feature, you can check toasting progress without stopping the toasting cycle.

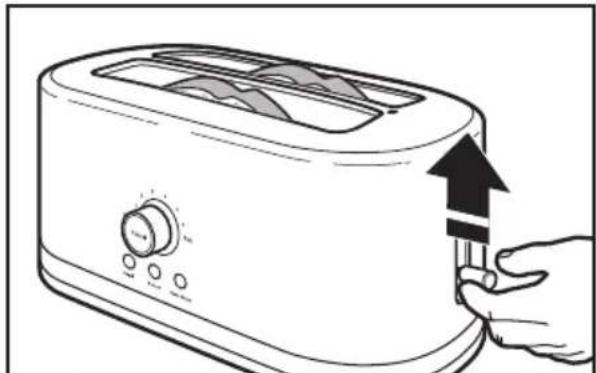

I Raise the lift lever any time during the toasting cycle to view the toast's progress.
Press down on lift lever to lower the toast back into the toaster.
TIP: For smaller items, lift up on the lift lever to raise toast above the top of the Toaster.
CARE AND CLEANING
IMPORTANT: The tray will be hot immediately following a toasting cycle. Allow Toaster to cool before emptying the crumb tray.

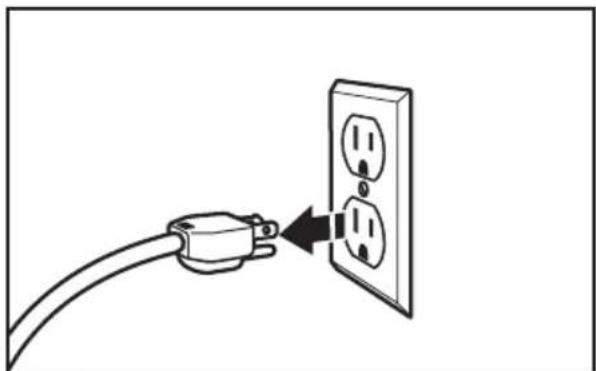

Unplug the Toaster and let it cool before cleaning.

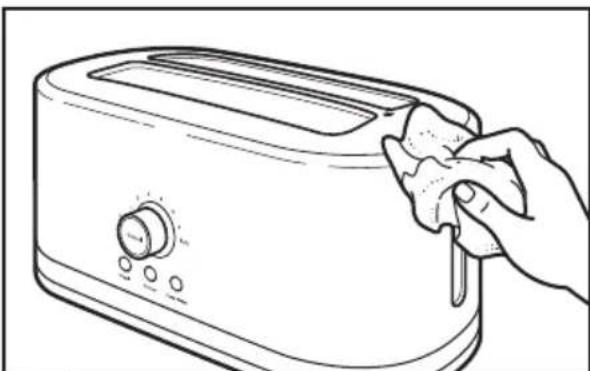

2 Wipe Toaster with a soft, damp cotton cloth. Do not use paper towels, abrasive cleansers or liquid cleaning products. Do not immerse Toaster in water.
NOTE: If grease or oil splatters on the Toaster, wipe splatters away immediately using a clean, damp cotton cloth.

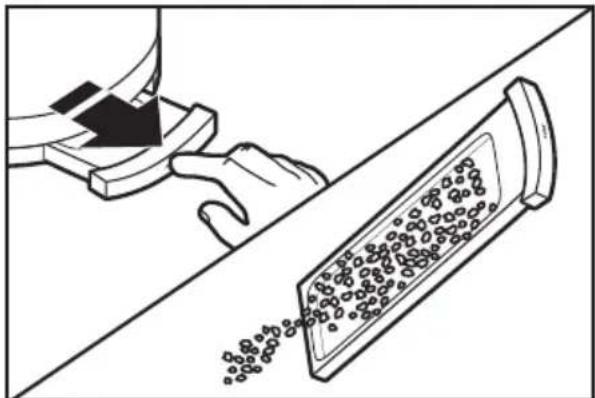

3 Press "PUSH" (located in center of the crumb tray) so that it opens slightly, then slide it out of the Toaster. Shake the crumbs into a waste container. For consistent browning results, empty the crumb tray after each use. Crumb tray is hand-wash only.

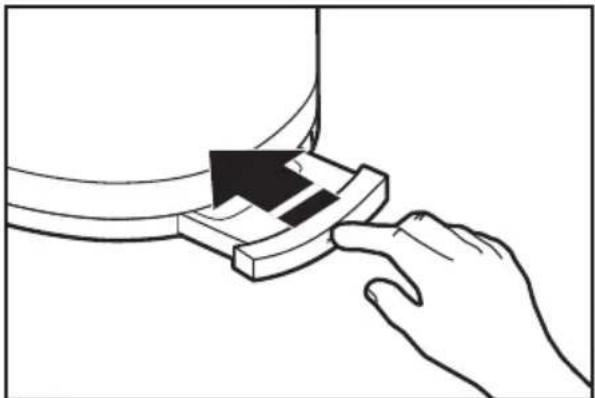

4 Return crumb tray to Toaster. Press in on the center of the crumb tray until it clicks into position. Do not use the Toaster without the crumb tray fully in place.
NOTE: KitchenAid does not recommend the use of a toaster cover.
TROUBLESHOOTING
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
If your toaster should fail to operate, check the following:
- Check that the Toaster is plugged into a grounded 3 prong electrical outlet. If it is, unplug the Toaster.
- Plug in Toaster.
- If the Toaster still does not work, check the household fuse or circuit breaker.
If the problem cannot be corrected:
See the KitchenAid "Warranty and Service" sections. Do not return the Toaster to the retailer; retailers do not provide service.
KitchenAid® Toaster Warranty for the 50 United States, the District of Columbia, Puerto Rico, and Canada
This warranty extends to the purchaser and any succeeding owner for Toasters operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.
Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:
Hassle-Free Replacement of your Toaster. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at I-800-541-6390.
OR
The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:
A. Repairs when Toaster is used in other than normal single family home use.
B. Damage resulting from accident, alteration, misuse or abuse.
C. Any shipping or handling costs to deliver your Toaster to an Authorized Service Center.
D. Replacement parts or repair labor costs for Toaster operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTY; LIMITATION OF REMEDIES
IMPLIED WARRANTY, INCLUDING TO THE EXTENT APPLICABLE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDING TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTY THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
IF THIS PRODUCT FAILS TO WORK AS WARRANTYED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.
Hassle-Free Replacement Warranty - 50 United States, District of Columbia, and Puerto Rico
We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Toaster should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Toaster returned to us. Your replacement unit will also be covered by our one year limited warranty.
If your Toaster should fail within the first year of ownership, simply call our
toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)
When you receive your replacement Toaster, use the carton, packing materials, and prepaid shipping label to pack up your original Toaster and send it back to KitchenAid.
Hassle-Free Replacement Warranty - Canada
We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Toaster should fail within the first year of ownership, we will replace your Toaster with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.
If your Toaster should fail within the first year of ownership, simply call our toll-free Customer eXperience Center
at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.
When you receive your replacement Toaster, use the carton, packing materials, and prepaid shipping label to pack up your original Toaster and send it back to KitchenAid.
Arranging for Service after the Warranty Expires, or Ordering Accessories and Replacement Parts
In the United States and Puerto Rico:
For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:
Customer eXperience Center, KitchenAid Small Appliances, P.O.Box 218, St. Joseph, MI 49085-0218
Outside the United States and Puerto Rico:
Consult your local KitchenAid dealer or the store where you purchased the Toaster for information on how to obtain service.
For service information in Canada:
Call toll-free 1-800-807-6777.
For service information in Mexico: Call toll-free 01-800-0022-767.
