USER MANUAL KMT211CU KITCHENAID

.....................................................24USO DEL TOSTADOR KITCHENAID

• Tostado de roscas p. 27
• LIMPIEZA DEL TOSTADOR p. 28
• SOLUCIÓN DE PROBLEMAS p. 28
• PRUEBA DE COMPRA Y REGISTRO DEL PRODUCTO p. 29
• GARANTÍA p. 29
• Garantía de reemplazo sin dificultades – en los 50 estados de Estados Unidos y el Distrito de Columbia p. 30
• Garantía de reemplazo sin dificultades - en Canadá p. 30
• Cómo obtener servicio bajo la garantía en Puerto Rico p. 30
• Cómo obtener servicio después de que expire la garantía - En todas las ubicaciones p. 31
• Cómo obtener servicio en otros lugares p. 31

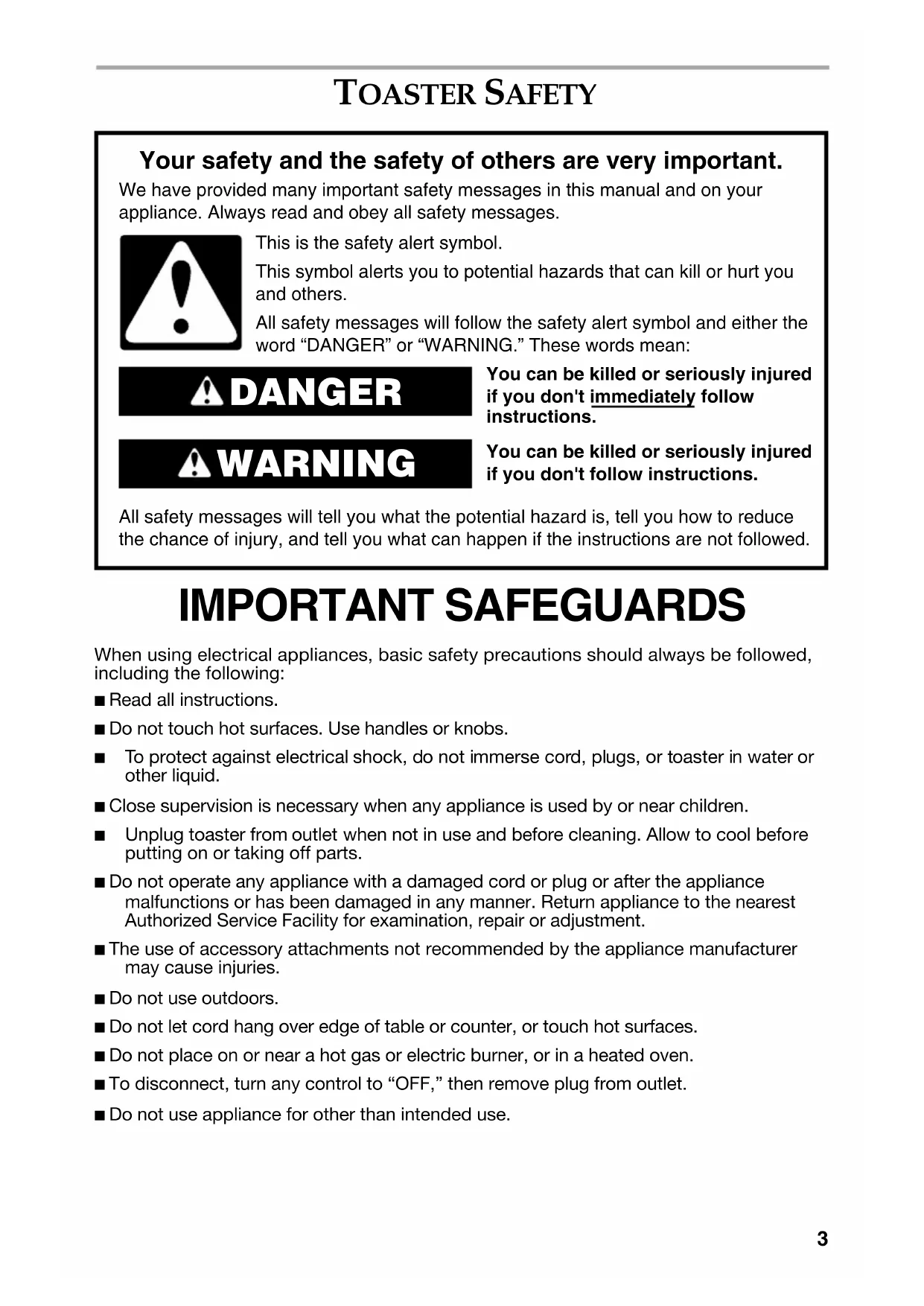

• Cómo pedir accesorios y piezas de repuesto TOASTER SAFETY IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:■ Read all instructions.■ Do not touch hot surfaces. Use handles or knobs. ■ To protect against electrical shock, do not immerse cord, plugs, or toaster in water or other liquid.■ Close supervision is necessary when any appliance is used by or near children. ■ Unplug toaster from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.■ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair or adjustment.■ The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.■ Do not use outdoors.■ Do not let cord hang over edge of table or counter, or touch hot surfaces.■ Do not place on or near a hot gas or electric burner, or in a heated oven.■ To disconnect, turn any control to “OFF,” then remove plug from outlet.■ Do not use appliance for other than intended use.You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow instructions.All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: DANGER WARNING4 ■ Oversize foods, metal foil packages, or utensils must not be inserted in toaster as they may involve a risk of fire or electric shock. ■ A fire may occur if toaster is covered with or touching flammable material, including curtains, draperies, walls and the like, when in operation.■ Do not attempt to dislodge food when toaster is plugged in.■ This product is designed for household use only. p. 313

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS Voltage: 120 volts, A.C. only.Hertz: 60 HzNOTE: Your toaster has a 3-prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or technician install an outlet near the appliance.A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.Longer detachable power supply cords or extension cords are available and may be used if care is exercised in their use.If a longer detachable power supply cord or extension cord is used:■ The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.■ The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING5 KITCHENAID

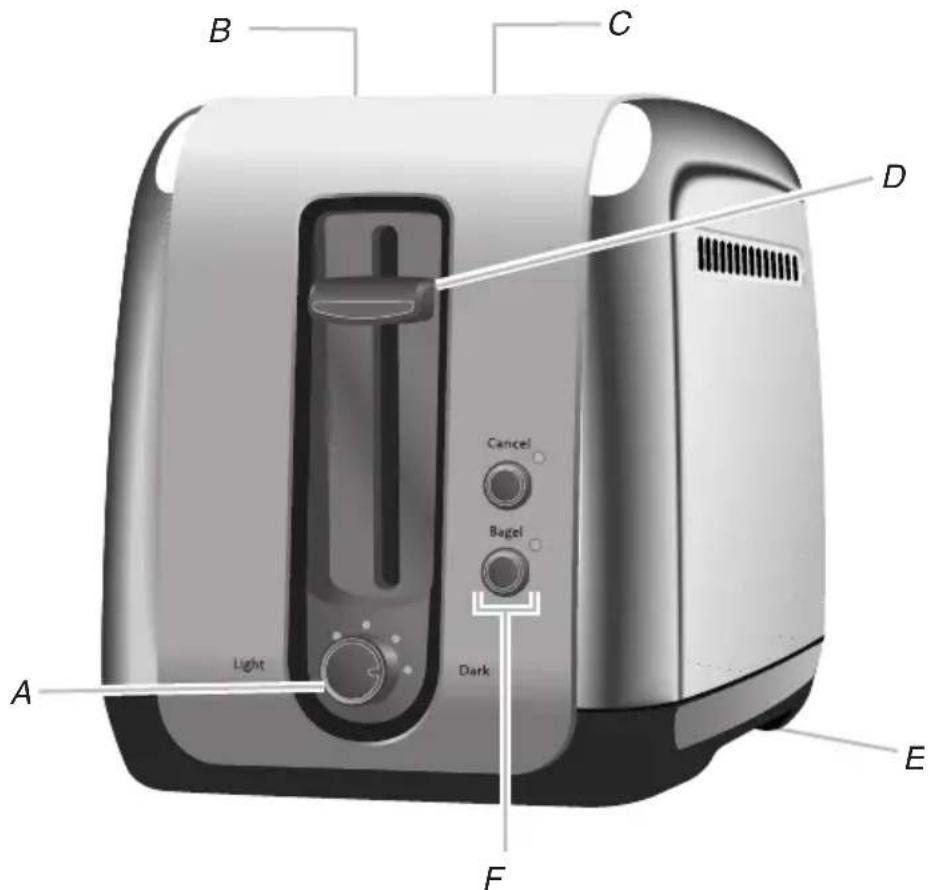

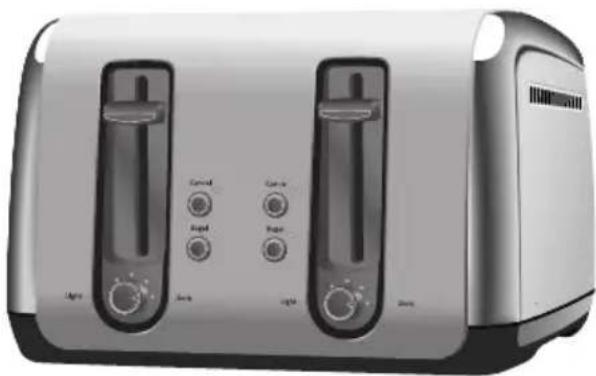

TOASTER FEATURES Models KMT211 and KMT411 Dual Independent Controls (Model KMT411 Only) Same great features as Model KMT211 with dual cavities for 2-slice or 4-slice toasting. One-Touch Buttons and Dial Knobs for each pair of slots work independently of each other, allowing toasting of a bagel or other item in one pair of slots while the second pair of slots could make toast. Heat System Heavy gauge heating elements mounted on extra-thick boards are installed in the toaster to ensure even browning. Toasting time is automatically adjusted to ensure consistent toasting slice after slice. High Lift Lever Lever lifts toast above toaster for easy access and removal. Extra-Wide Slots Handles bagels, English muffins, and thick breads easily. Self-Centering Bread Racks Centers thick or thin breads perfectly for even toasting.A. Dial shade control (5 settings)B. Self-centering cage and steel interiorC. Extra-wide slots (1.5" [3.8 cm])D. High-lift leverE. Under base cord wrapF. Special toasting functionsFeature not shown: Removable crumb tray

Removable Crumb Tray(s) Durable, full-width, steel tray (two side-by- side trays on KMT411) can be washed in the top rack of a dishwasher. Under Base Cord Wrap Keeps extra cord out of sight and out of the way. Dial Shade Control (5 settings) and Toasting Progress Rotating knobs for precision control. Turn the dial knob to the right for darker and to the left for lighter shade toasting. The dial knob will light up to count down the toasting time. Stainless Steel or Painted Steel Housing Stainless steel and painted steel surfaces are constructed for durability and style. Steel Interior Durable and deep toasting cavity helps to ensure even browning. Function Lights Indicate special functions when they are selected. Bagel Button Toasts the cut-side of a bagel or English muffin while gently warming the outer surfaces. Cancel Button Cancels the toasting cycle. KITCHENAID

TOASTER USE Models KMT211 KMT411 Before using your toaster, check the Extra- Wide Slots and remove any packing or printed material that might have fallen inside during shipping or handling. Do not probe inside the toaster with a metal object. You may see light smoke the first time you use the toaster. This is normal, and the smoke will soon disappear. TO USE:

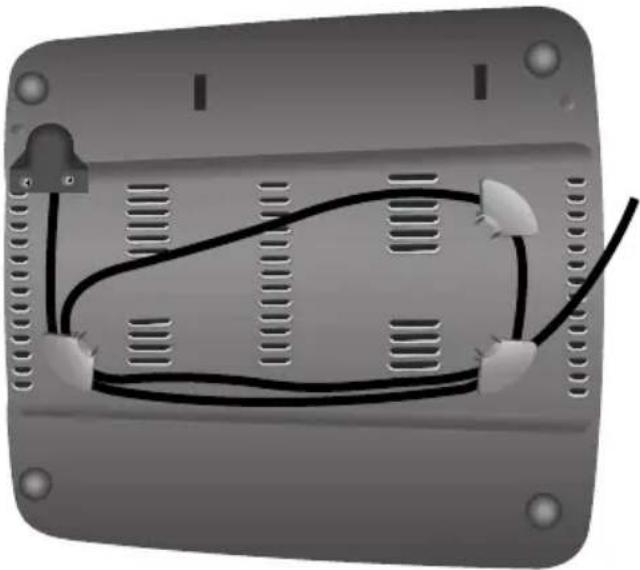

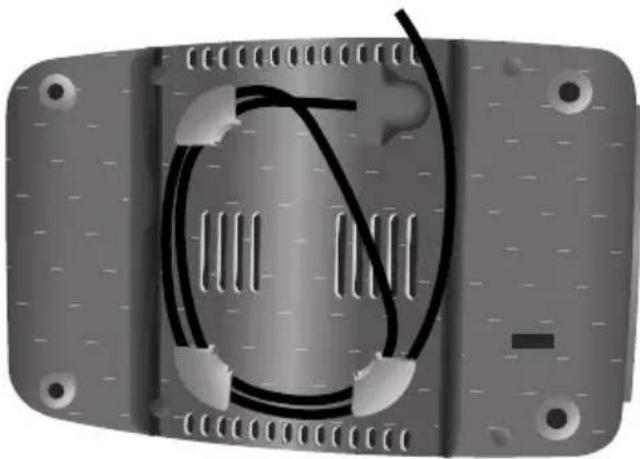

1. Shorten cord, if necessary, by wrapping

cord under the base. The toaster’s feet are tall enough to allow the cord to exit from under any side of the toaster.7

2. Plug into a grounded 3-prong outlet.

3. Insert bread or other food to be toasted

into slot. NOTE: For even toasting on model KMT211, toast only one bread type and thickness at a time. For 4-slot model KMT411, with Dual Independent Controls, if toasting of two different breads is desired, be sure to toast only one bread type in each pair of slots.

4. Turn the Dial Shade Control to select the

degree of darkness you want. Turn the Shade Control to the right for darker toasting or to the left for lighter. NOTE: Different types of bread and their moisture levels may require different shade settings. For example, dry bread will brown more rapidly than moist bread and will require a lighter setting.

5. (Optional) Press Bagel button if desired.

See “Bagel Toasting” for more information.

6. Push the lever down until it locks in

place. The centering racks will adjust slot width automatically to hold food upright for even toasting. When toasting is completed, the toaster will shut off and raise the toast. To cancel toasting anytime, press CANCEL. The toaster will shut off and raise the toast. Bagel Toasting Selecting the Bagel function will toast the thickest bagels and English muffins evenly, gently browning the bottoms while toasting the sides that are sliced. Bagel Toasting produces perfect results by shutting off power to the heating elements on one side of the toasting cavity.

1. Insert the bagel so that the flat (sliced)

side of the bagel faces the center of the toaster.

2. Set the Shade Control to the level you

want. English muffins will generally take more time to toast than bagels.

3. Push the lever down until it locks.

4. Press BAGEL. The Bagel function, once

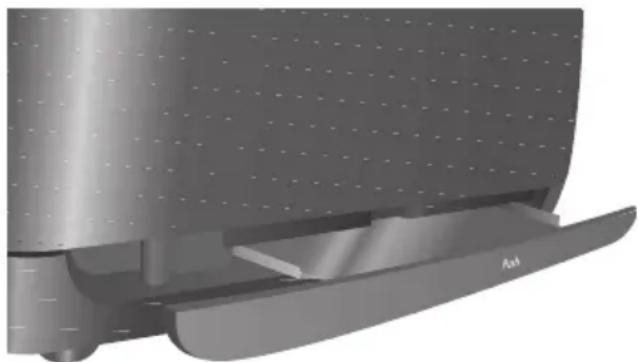

selected, cannot be canceled except by canceling the toasting cycle. Do this by pressing CANCEL. The toaster will shut off and raise the bagel. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING8 TOASTER CARE 1. Unplug the toaster and let it cool before cleaning.2. Press and release the center of the crumb tray then slide it out. Shake the crumbs into a waste container. It is recommended that the crumb tray be emptied after each use. The crumb tray is top rack dishwasher safe. IMPORTANT: The tray will be hot immediately following a toasting cycle. 3. Wipe toaster with a soft, damp cotton cloth. Do not use paper towels, abrasive cleansers or liquid cleaning products. Do not immerse toaster in water.NOTE: If grease or oil splatters on the toaster, wipe splatters away immediately using a clean, damp cotton cloth.4. Return crumb tray to toaster. Press it in firmly until it clicks into position. Do not use the toaster without the crumb tray in proper position. NOTE: KitchenAid does not recommend the use of a toaster cover. TROUBLESHOOTING ■ If your toaster should fail to operate, check the following:Check that the toaster is plugged into a proper electrical outlet. If it is, unplug the toaster.■ Plug in toaster.■ If the toaster still does not work, check the household fuse or circuit breaker.■ If the problem cannot be corrected:See the KitchenAid warranty and service sections. Do not return the toaster to the retailer; retailers do not provide service. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING9

PROOF OF PURCHASE AND PRODUCT

REGISTRATION Always keep a copy of the sales receipt showing the date of purchase of your toaster. Proof of purchase will assure you of in-warranty service. Before you use your toaster, please fill out and mail your product registration card packed with the unit. This card will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. This card does not verify your warranty. Please complete the following for your personal records: Model Number ___________________________________________________________________________ Serial Number ___________________________________________________________________________ Date Purchased__________________________________________________________________________ Store Name and Location_________________________________________________________________ KITCHENAID

TOASTER WARRANTY DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. Length of Warranty: KitchenAid Will Pay For: KitchenAid Will Not Pay For: 50 United States, the District of Columbia, Canada, and Puerto Rico: One-year limited warranty from date of purchase. 50 United States, the District of Columbia and Canada: Hassle-free replacement of your toaster. See the following page for details on how to arrange for replacement.

In Puerto Rico: The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. To arrange for service, follow the instructions in the “How to Arrange for Warranty Service in Puerto Rico.” A. Repairs when toaster is used in other than normal single family home use. B. Damage resulting from accident, alteration, misuse or abuse or use with products not approved by KitchenAid. C. Replacement parts or repair labor costs for toaster when operated outside the country of purchase.10 Hassle-Free Replacement Warranty – 50 United States and District of Columbia We’re so confident the quality of our products meets the exacting standards of KitchenAid that, if your toaster should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original toaster returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this high-quality service. If your KitchenAid

toaster should fail within the first year of ownership, simply call our toll-free Customer Satisfaction Center at 1-800-541-6390 Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement toaster, use the carton and packing materials to pack up your original toaster. In the carton, include your name and address on a sheet of paper along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Hassle-Free Replacement Warranty – Canada We’re so confident the quality of our products meets the exacting standards of the KitchenAid

brand that, if your toaster should fail within the first year of ownership, KitchenAid Canada will replace your toaster with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this high-quality service. If your KitchenAid

toaster should fail within the first year of ownership, take the toaster or ship collect to an Authorized KitchenAid Service Centre. In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement toaster will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner, call our toll-free Customer eXperience Centre at 1-800-807-6777. Or write to us at: Customer eXperience Centre KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7 How to Arrange for Warranty Service in Puerto Rico Your KitchenAid

toaster is covered by a one-year limited warranty from the date of purchase. KitchenAid will pay for replacement parts and labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. Take the toaster or ship prepaid and insured to an Authorized KitchenAid Service Center. Your repaired toaster will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner, call toll-free 1-800-541-6390 to learn the location of a Service Center near you. How to Arrange for Service after the Warranty Expires – All Locations Before calling for service, please review the “Troubleshooting” section. For service information in the 50 United States, District of Columbia, and Puerto Rico, call toll-free 1-800-541-6390. Or write to: Customer Satisfaction Center KitchenAid Portable Appliances P.O. Box 218, St. Joseph, MI 49085-0218 Or contact an Authorized Service Center near you. For service information in Canada, call toll-free 1-800-807-6777. Or write to: Customer eXperience Centre KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B711 How to Arrange for Service Outside these Locations Consult your local KitchenAid dealer or the store where you purchased the toaster for information on how to obtain service. For service information in Mexico, call the KitchenAid

line 01-800-002-2767 How to Order Accessories and Replacement Parts To order accessories or replacement parts for your toaster in the 50 United States, District of Columbia, and Puerto Rico, call toll-free 1-800-541-6390 Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m. Or write to: Customer Satisfaction Center KitchenAid Portable Appliances P.O. Box 218 St. Joseph, MI 49085-0218 To order accessories or replacement parts for your toaster in Canada, call toll-free 1-800-807-6777. Or write to: Customer eXperience Centre KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7 To order accessories or replacement parts for your toaster in Mexico, call the KitchenAid
