KMT2116CU - Toaster KITCHENAID - Free user manual and instructions

Product Type	2-Slice Toaster
Brand	KitchenAid
Model	KMT2116CU
Dimensions (L x W x H)	Approximately 30 x 20 x 20 cm
Weight	Approximately 2 kg
Power Supply	120 V ~ 60 Hz
Power	Approximately 1500 W
Main Functions	Toast, Defrost, Bagel, Keep Warm, Lift & Look, Cancel
Browning Control	Variable Adjustment Knob
Indicator Lights	Bagel, Defrost, Keep Warm
Extra-Wide Slots	Yes
Crumb Tray	Removable, hand washable
Cord Rewind	Yes, under the base
Exterior Material	Stainless steel / plastic
Automatic Shut-Off	Yes, at end of cycle
Overheat Protection	Yes
Usage	Household use only
Cleaning	Wipe with a damp cloth, do not immerse
Warranty	1 year, free replacement
After-Sales Service	KitchenAid Authorized Service Center
Repairability	Not user-serviceable, contact authorized service

Frequently Asked Questions - KMT2116CU KITCHENAID

How do I toast bagels with the KitchenAid KMT2116CU toaster?

Insert the bagels with cut sides facing inward. Set the desired browning level, lower the lever, then press the Bagel button. The indicator lights up. The toaster automatically adjusts heat to toast the inside without burning the outside. The program ends with an automatic lift.

How do I use the defrost function?

Place frozen bread in the slots, set the browning level, lower the lever, then press the Defrost button. The indicator lights up. The toaster adds a delay to defrost before toasting. The toast automatically lifts at the end.

How do I activate the keep warm function?

After setting the browning level and lowering the lever, press the Keep Warm button. The indicator blinks slowly. At the end of toasting, the indicator becomes steady and the toaster keeps the toast warm for 3 minutes.

How do I check the cooking without stopping the cycle?

Use the Lift & Look function: raise the lever at any time to check progress, then lower it again to continue the cycle. This does not interrupt the program.

How do I clean the KitchenAid KMT2116CU toaster?

Unplug the appliance and let it cool down. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners. For the crumb tray, press the center to open it, remove it and empty the crumbs. Hand wash it, then reinsert until it clicks.

What should I do if the toaster does not work?

Check that the plug is firmly inserted into a 3-prong grounded outlet. If the problem persists, test the home's fuse or circuit breaker. If the toaster still does not start, contact KitchenAid customer service at 1-800-541-6390 (U.S.) or 1-800-807-6777 (Canada).

What are the important safety precautions?

Do not immerse in water. Use on a stable surface, away from curtains and flammable materials. Do not let the cord hang over edge. Do not insert metal utensils. Unplug after use and before cleaning. Keep out of reach of children.

How do I adjust the browning for different types of bread?

Turn the browning control knob: to the right for more toasted, to the left for less toasted. Dry bread requires a lower setting than fresh bread. Adjust to your taste.

How do I cancel the current toasting cycle?

Press the Cancel button. The toaster immediately lifts the toast and turns off. You can then safely remove the bread.

What to do if there is smoke during first use?

A small amount of smoke is normal during first use. It is due to the heating of new elements and is harmless. It will disappear after a few cycles. Ensure the slots are free of any packaging.

USER MANUAL KMT2116CU KITCHENAID

Two black Kioskew refrigerators with control knobs, displayed side by side (no visible text or symbols)

KitchenAid®

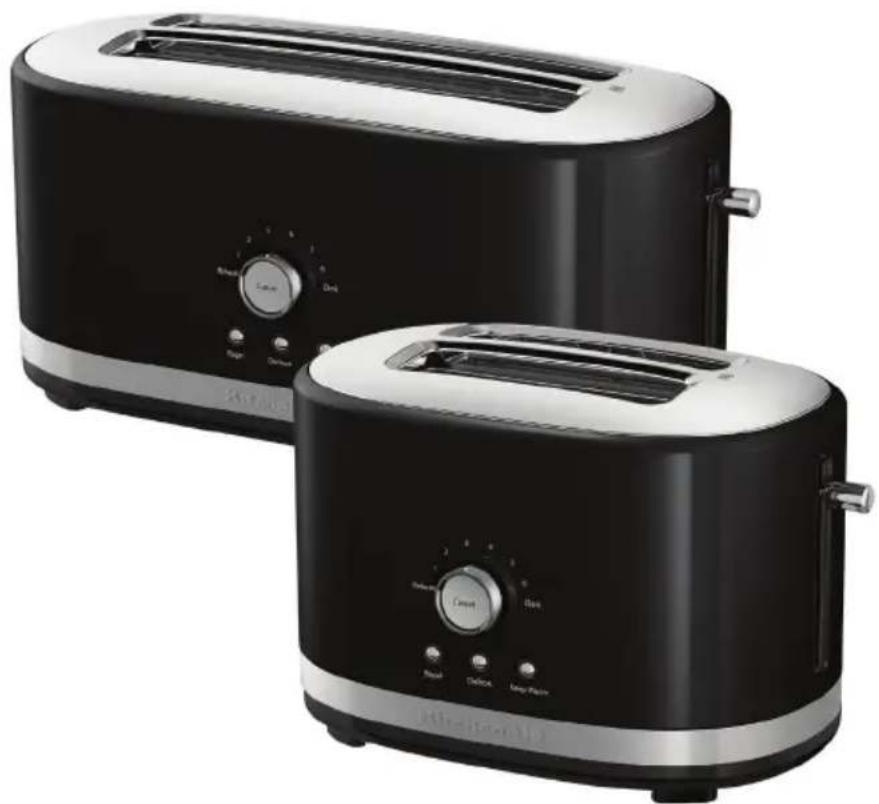

WELCOME TO THE WORLD OF KITCHENAID.

We're committed to helping you create a lifetime of delicious meals for family and friends. To help ensure the longevity and performance of your Toaster, keep this guide handy. It will empower you with the best way to use and care for your product. Your satisfaction is our #1 goal. Remember to register your product online at www.kitchenaid.com or by mail using the enclosed Product Registration Card.

Two black Kioskew refrigerators with control knobs and brand logos (no visible text or symbols on the main image)

Join us in the kitchen at www.kitchenaid.com.

TABLE OF CONTENTS

TOASTER SAFETY

Important safeguards....4

Electrical requirements 5

PARTS AND FEATURES

Parts and accessories....6

USING THE TOASTER

Before first use 7

Toasting....8

SPECIAL TOASTING FUNCTIONS

Toasting Bagels....9

Defrosting....10

Keep Warm....II

Lift & See 12

CARE AND CLEANING....12

TROUBLESHOOTING....13

WARRANTY AND SERVICE....14

PROOF OF PURCHASE & PRODUCT REGISTRATION

Always keep a copy of the itemized sales receipt showing the date of purchase of your Toaster. Proof of purchase will assure you of in-warranty service. Before you use your Toaster, please fill out and mail your product registration card packed with the unit, or register on-line at www.kitchenaid.com. This card will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. This card does not verify your warranty. Please complete the following for your personal records:

Model Number

Serial Number

Date Purchased

Store Name

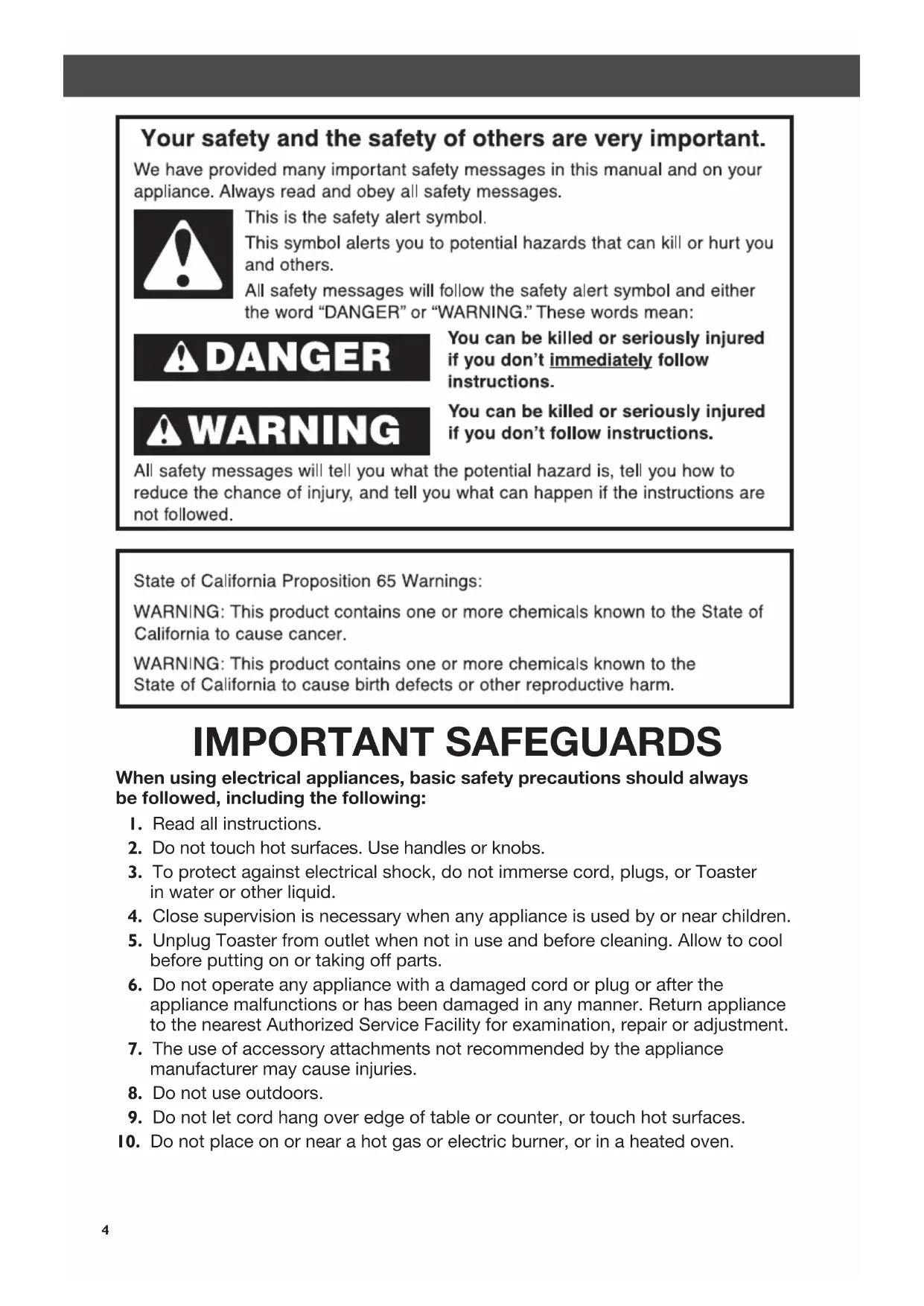

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

I. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or Toaster in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug Toaster from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.

II. To disconnect, turn any control to "OFF," then remove plug from outlet.
12. Do not use Toaster for other than intended use.
13. Oversize foods, metal foil packages, or utensils must not be inserted in Toaster as they may involve a risk of fire or electric shock.
14. A fire may occur if Toaster is covered with or touching flammable material, including curtains, draperies, walls and the like, when in operation.
15. Do not attempt to dislodge food when Toaster is plugged in.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

Electrical requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Voltage: 120 Volts A.C. only

Frequency: 60 Hz

NOTE: Your toaster has a 3-prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or technician install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Longer detachable power supply cords or extension cords are available and may be used if attention is exercised in their use. If a longer detachable power supply cord or extension cord is used:

■ The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
■ The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.

Parts and accessories

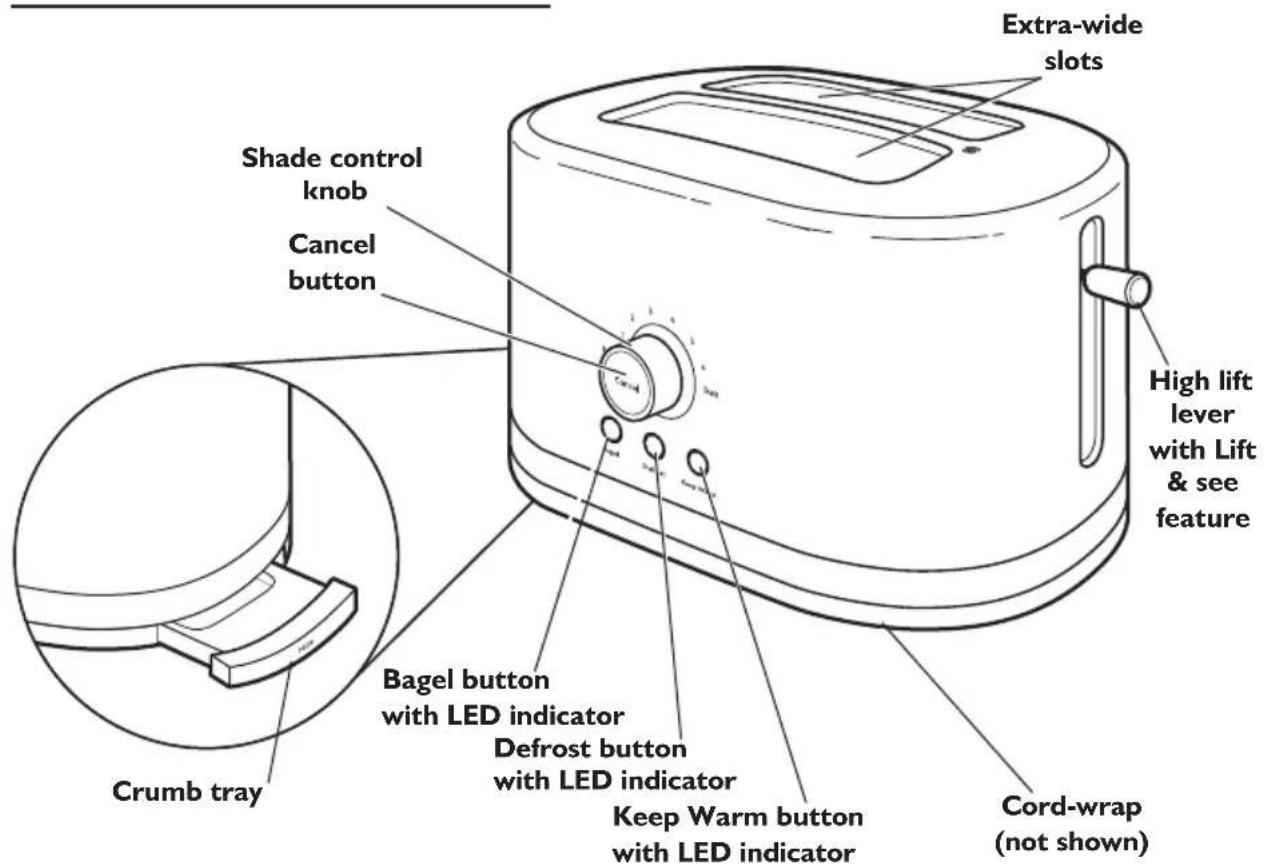

2-Slice

Extra-wide slots Shade control knob Cancel button High lift lever with Lift & see feature Carm4 Bagel button with LED indicator Defrost button with LED indicator Keep Warm button with LED indicator Cord-wrap (not shown) Crumb tray

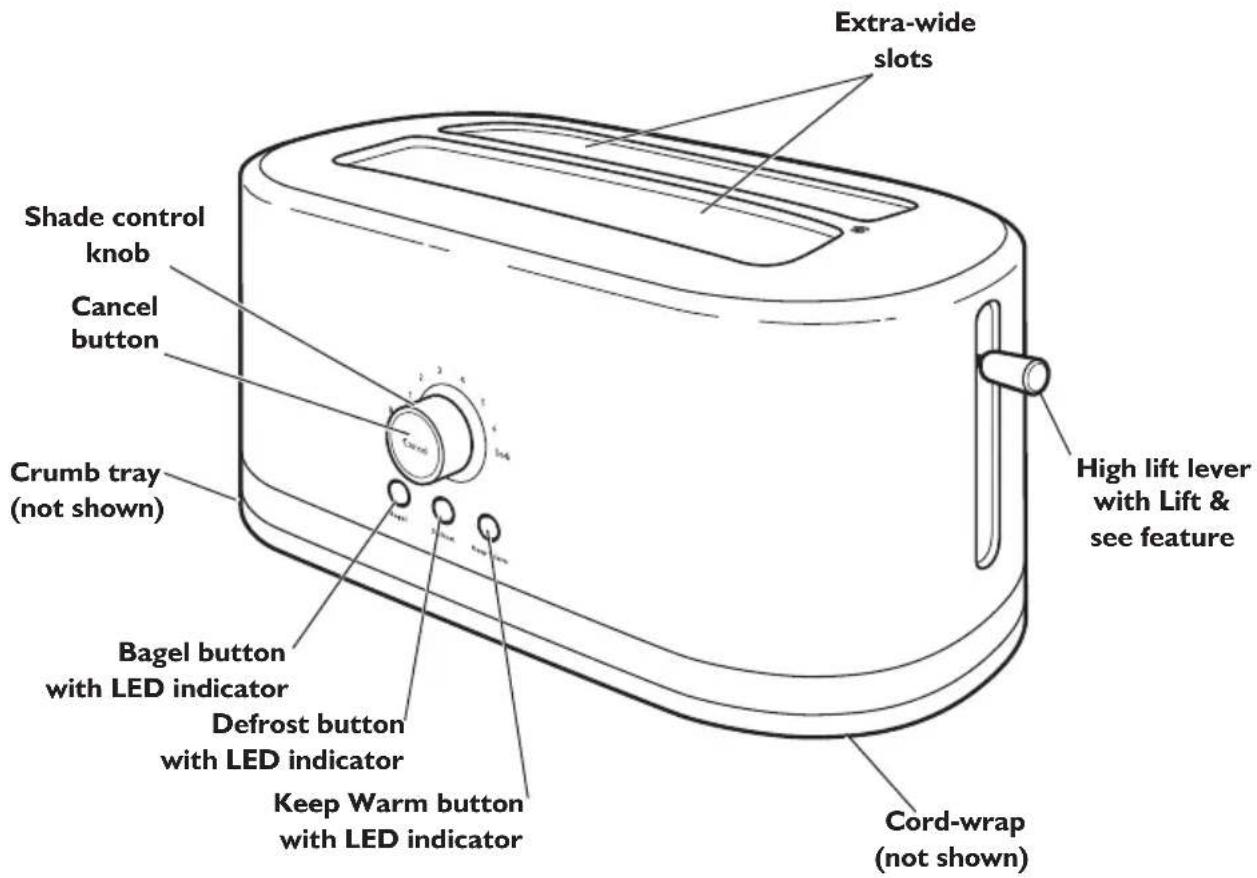

Long slot (4-slice)

Extra-wide slots Shade control knob Cancel button Crumb tray (not shown) Bagel button with LED indicator Defrost button with LED indicator Keep Warm button with LED indicator High lift lever with Lift & see feature Cord-wrap (not shown)

USING THE TOASTER

Your KitchenAid® Toaster offers ease of use and exceptional control. With simple start-to-finish toasting, the Toaster automatically defrosts, toasts bread or bagels, then keeps them warm before serving.

Before first use

Before using your Toaster, check the extra-wide slots and remove any packing or printed material that might have fallen inside during shipping or handling. To avoid damage to the Toaster, do not probe inside the Toaster slots with any metal objects.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Top-down schematic of a vehicle or enclosure with internal compartments and wiring (no text or symbols)

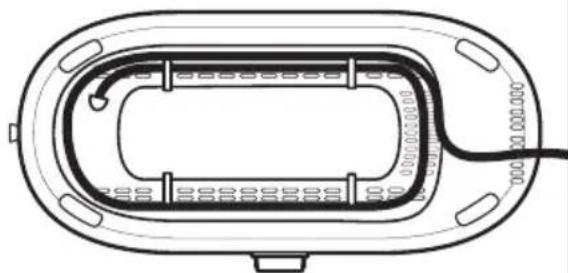

Shorten cord, if necessary, by wrapping cord under the base. The toaster's feet are tall enough to allow the cord to exit from under any side of the toaster.

Illustration of a cable inserted into an electrical outlet with two outlets (no text or symbols)

2 Plug into a grounded 3-prong outlet.

NOTE: You may see light smoke the first time you use the Toaster. This is normal. The smoke is harmless and will soon dissipate.

Simple start-to-finish toasting

Simple start-to-finish toasting: Select any, or all, of the three special toasting functions (defrost, bagel, or keep warm), and the Toaster will automatically move from one step to the next without any additional effort on your part.

Toasting

Close Close Close Close

|

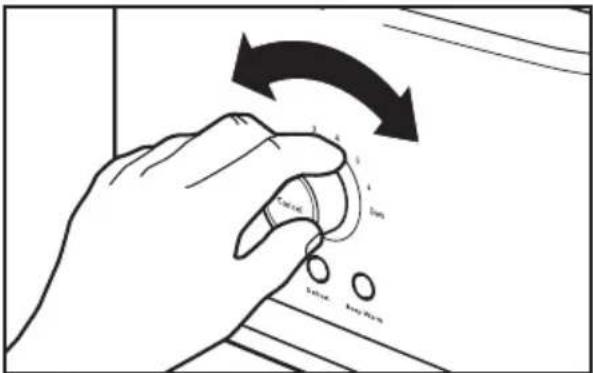

Select your desired shade by turning the shade control knob to the right for darker toasting or to the left for lighter toasting. To reheat toast that has cooled, turn the shade control knob to the far left of the shade control settings.

NOTE: The age, type, and moisture level of different breads may require different shade settings. For example, dry bread will brown more rapidly than moist bread and will require a lighter setting.

Diagram showing a dental tool pressing down on a toothed appliance (no text or symbols present)

2

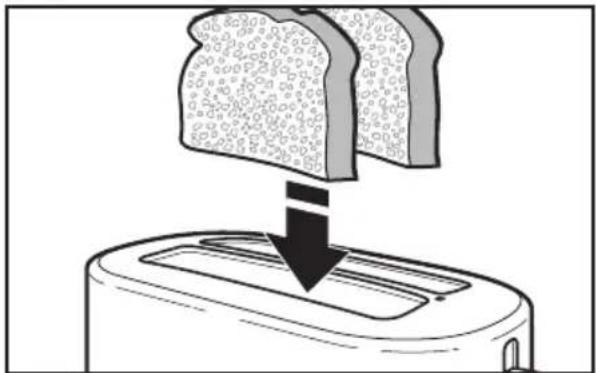

Insert bread or other food to be toasted into the slot(s).

Illustration of a hand using a toaster to cut a single bite into a single sheet of bread (no text or symbols present)

3

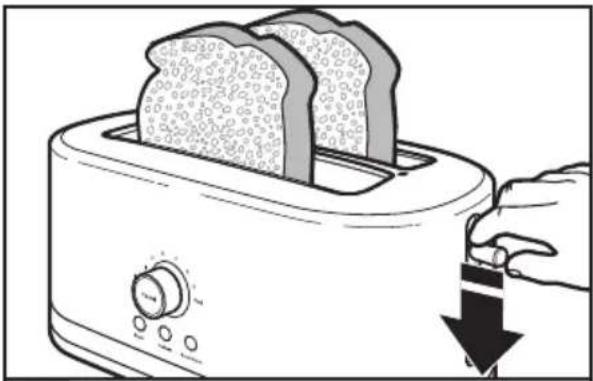

Press down on lift lever to start the toasting cycle. If Keep Warm isn't selected, the toast will rise automatically at the end of the cycle and the Toaster will turn off.

NOTE: To activate the Keep Warm function, press down on the lift lever, then press the KEEP WARM button.

NOTE: For even toasting, toast only one bread type and thickness at a time. If toasting bagels, be sure to press the Bagel button. See "Toasting Bagels."

Line drawing of a hand pressing down on a two-tanita toaster with control buttons (no text or symbols)

4

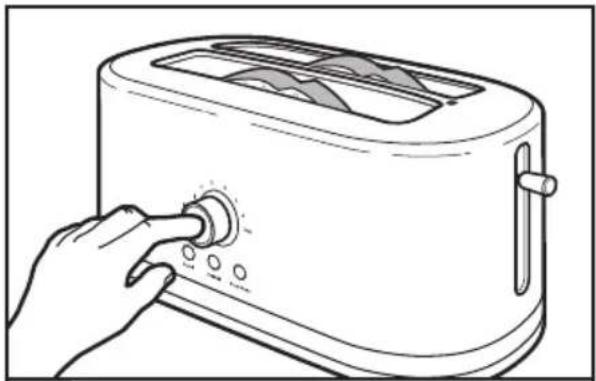

To cancel toasting at any time, press CANCEL. The Toaster will raise the toast and turn off.

TIP: For smaller items, lift up on the lift lever to raise toast above the top of the Toaster.

Toasting Bagels

Your Toaster features a special setting for bagels, ensuring optimal heating time for the best results. The heating elements will adjust to nicely toast the inside of a cut bagel without burning the outside surface.

Illustration of a computer mouse with a magnified view showing the lens and screen (no text or symbols)

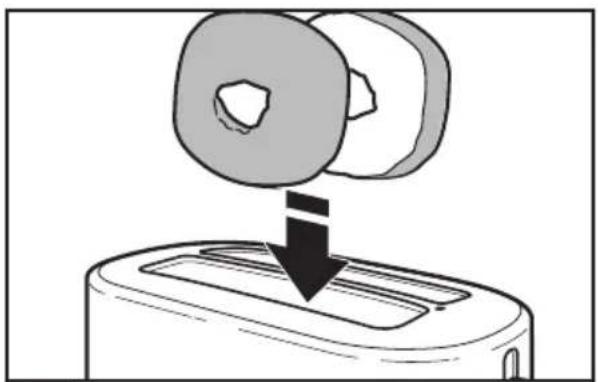

Insert bagels with the cut side facing in as shown.

Illustration of a toaster with a handle and blade, showing the blade being inserted (no text or symbols present)

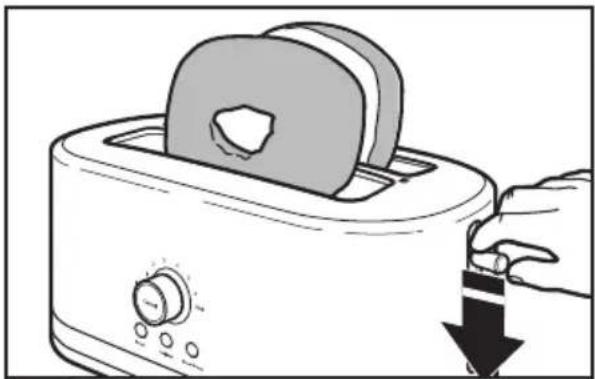

2 With the shade control knob set to your desired shade, press down on the lift lever to start the toasting cycle.

Line drawing of a hand holding a toaster with a knob (no text or symbols)

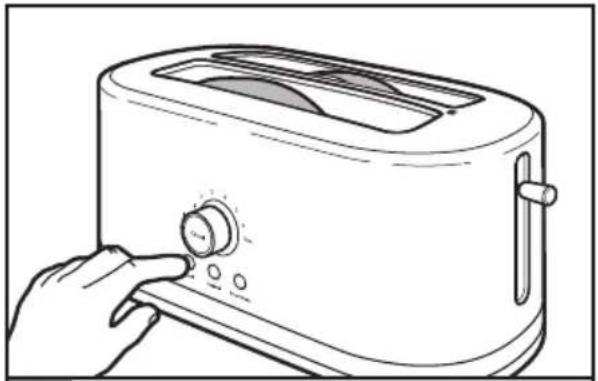

3 Press the BAGEL button. The Bagel indicator light will glow. If Keep Warm isn't selected, the bagel(s) will rise automatically at the end of the cycle and the Toaster will turn off.
TIP: The Bagel function can be used at the same time as the Defrost and Keep Warm functions.

Defrosting

The Defrost function adds additional time to the toasting cycle to defrost frozen items before toasting them.

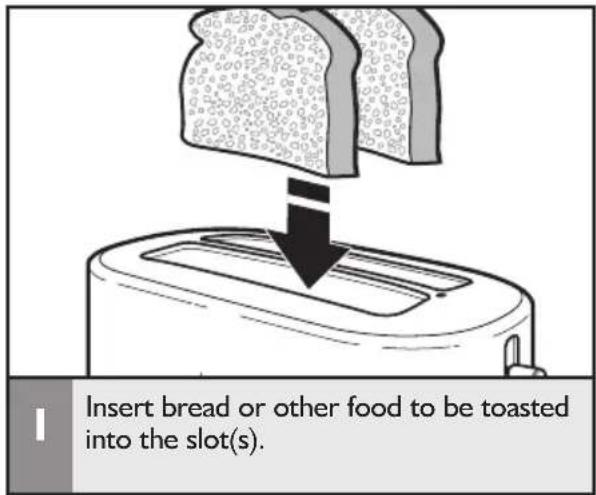

Insert bread or other food to be toasted into the slot(s).

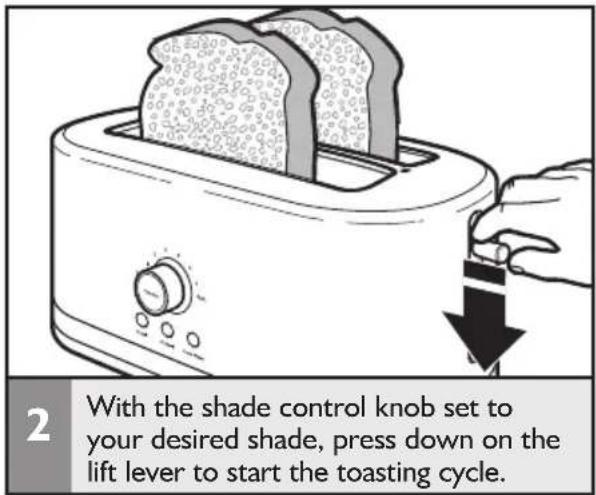

2 With the shade control knob set to your desired shade, press down on the lift lever to start the toasting cycle.

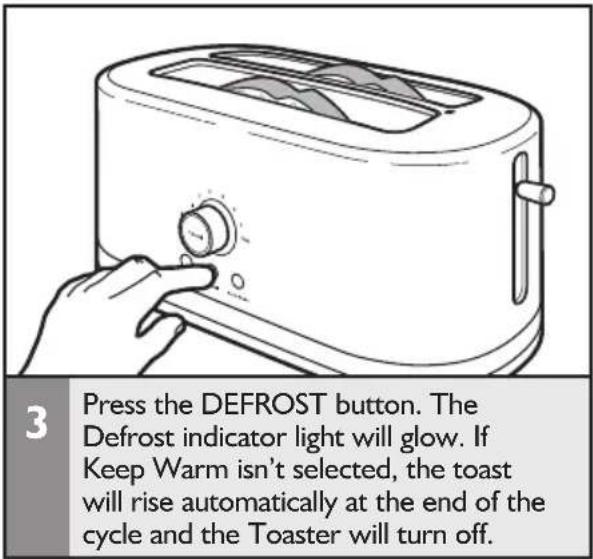

Press the DEFROST button. The Defrost indicator light will glow. If Keep Warm isn't selected, the toast will rise automatically at the end of the cycle and the Toaster will turn off.

TIP: The Defrost function can be used at the same time as the Bagel and Keep Warm functions.

Keep Warm

The Keep Warm function holds toast in low, gentle heat for 3 minutes after toasting.

Illustration of a toaster with a sandwich being inserted into the tray (no text or symbols)

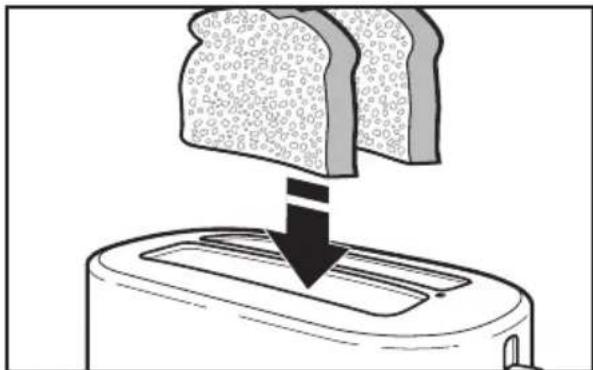

Insert bread or other food to be toasted into the slot(s).

Illustration of a hand using a toaster to cut into a single sheet of bread, with a downward arrow indicating the cutting process (no text or symbols present)

2 With the shade control knob set to your desired shade, press down on the lift lever to start the toasting cycle.

Line drawing of a hand holding a toaster with a rotary knob (no text or symbols)

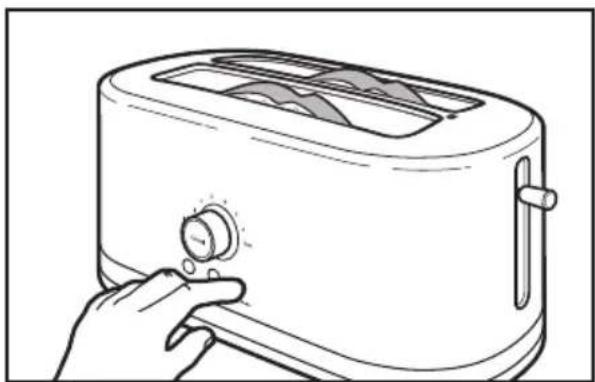

3 Press the KEEP WARM button. The Keep Warm indicator light will blink slowly.

Line drawing of a standard toaster with handle and control knob (no text or symbols)

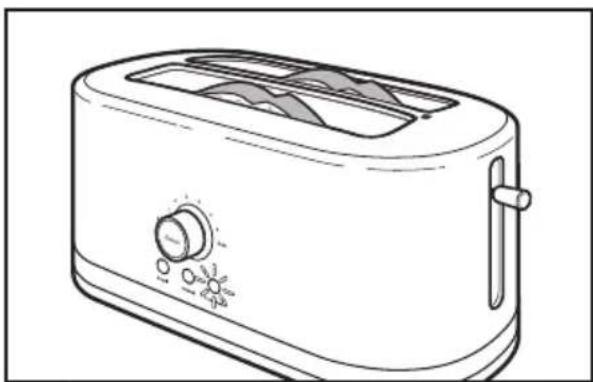

4 When the toasting cycle is complete, the Keep Warm indicator light will stop blinking and glow continuously while the toaster keeps the toast warm for 3 minutes after toasting.

TIP: The Keep Warm function can be used at the same time as the Bagel and Defrost functions.

Lift & See

With the Lift & See feature, you can check toasting progress without stopping the toasting cycle.

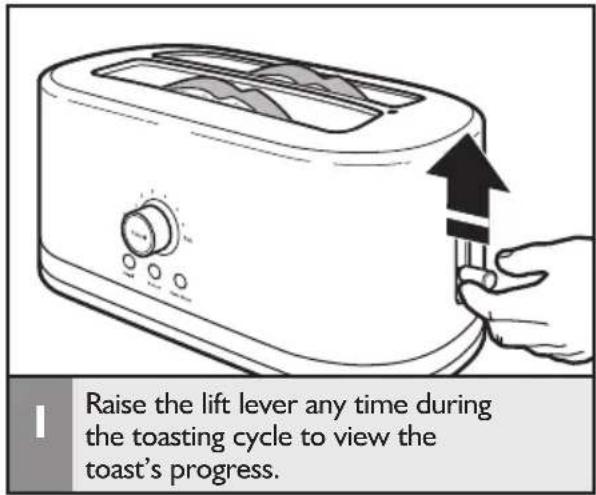

Raise the lift lever any time during the toasting cycle to view the toast's progress.

TIP: For smaller items, lift up on the lift lever to raise toast above the top of the Toaster.

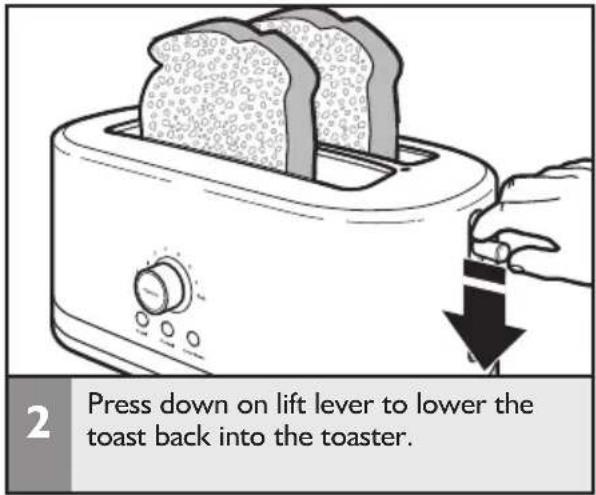

2 Press down on lift lever to lower the toast back into the toaster.

2

Press down on lift lever to lower the toast back into the toaster.

CARE AND CLEANING

IMPORTANT: The tray will be hot immediately following a toasting cycle. Allow Toaster to cool before emptying the crumb tray.

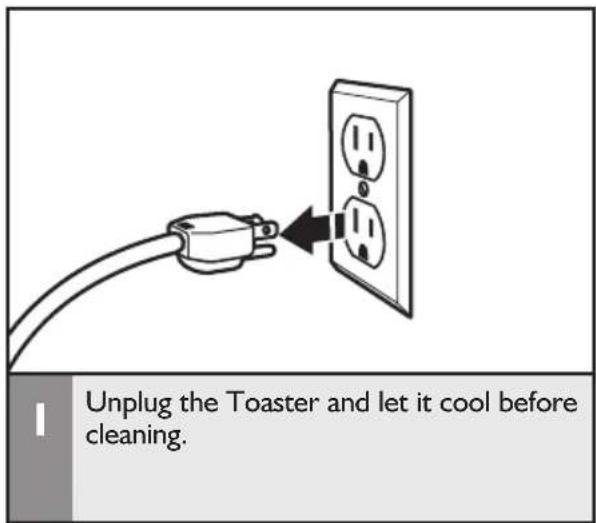

Unplug the Toaster and let it cool before cleaning.

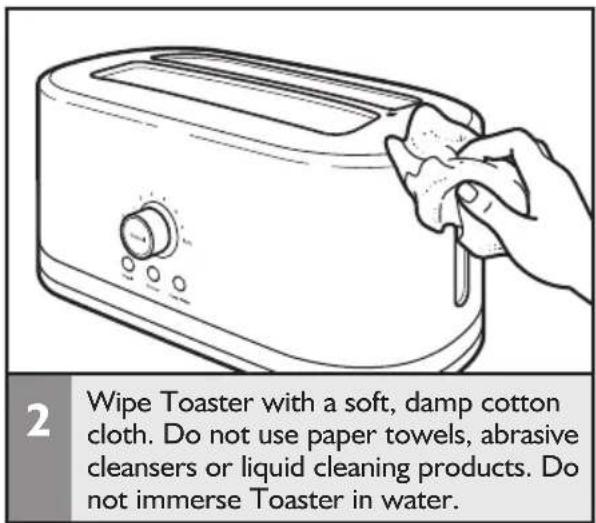

2 Wipe Toaster with a soft, damp cotton cloth. Do not use paper towels, abrasive cleansers or liquid cleaning products. Do not immerse Toaster in water.

NOTE: If grease or oil splatters on the Toaster, wipe splatters away immediately using a clean, damp cotton cloth.

Illustration of a hand using a tool to clean granular material from a slotted container (no text or symbols)

3

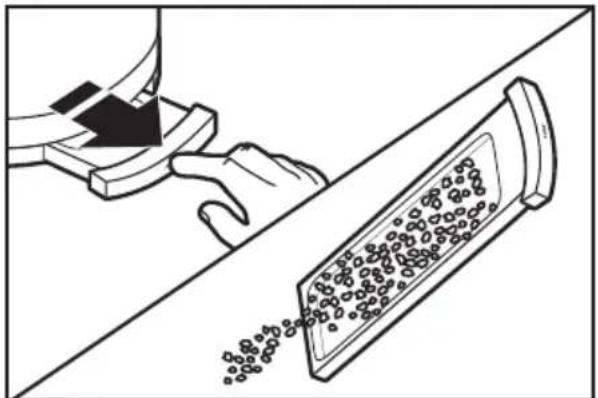

Press "PUSH" (located in center of the crumb tray) so that it opens slightly, then slide it out of the Toaster. Shake the crumbs into a waste container. For consistent browning results, empty the crumb tray after each use. Crumb tray is hand-wash only.

Line drawing of a hand pressing a button on a device (no text or symbols)

4

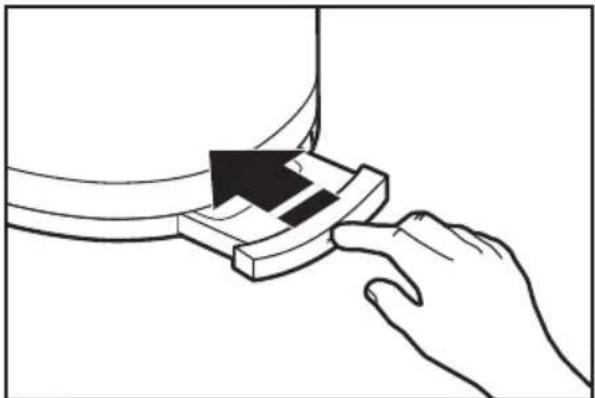

Return crumb tray to Toaster. Press in on the center of the crumb tray until it clicks into position. Do not use the Toaster without the crumb tray fully in place.

English

NOTE: KitchenAid does not recommend the use of a toaster cover.

TROUBLESHOOTING

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

If your toaster should fail to operate, check the following:

I. Check that the Toaster is plugged into a grounded 3 prong electrical outlet. If it is, unplug the Toaster.
2. Plug in Toaster.
3. If the Toaster still does not work, check the household fuse or circuit breaker.

If the problem cannot be corrected:

See the KitchenAid "Warranty and Service" sections. Do not return the Toaster to the retailer; retailers do not provide service.

KitchenAid® Toaster Warranty for the 50 United States, the District of Columbia, Puerto Rico, and Canada

This warranty extends to the purchaser and any succeeding owner for Toasters operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.

KitchenAid Will Pay for Your Choice of:

KITCHENAID HASSLE-FREE REPLACEMENT WARRANTY QUALITY

Hassle-Free Replacement of your Toaster. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.

OR

The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.

KitchenAid Will Not Pay for:

A. Repairs when Toaster is used in other than normal single family home use.

B. Damage resulting from accident, alteration, misuse or abuse.

C. Any shipping or handling costs to deliver your Toaster to an Authorized Service Center.

D. Replacement parts or repair labor costs for Toaster operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

Hassle-Free Replacement Warranty – 50 United States, District of Columbia, and Puerto Rico

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Toaster should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Toaster returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Toaster should fail within the first year of ownership, simply call our

toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Toaster, use the carton, packing materials, and prepaid shipping label to pack up your original Toaster and send it back to KitchenAid.

Hassle-Free Replacement Warranty – Canada

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Toaster should fail within the first year of ownership, we will replace your Toaster with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Toaster should fail within the first year of ownership, simply call our toll-free Customer eXperience Center

at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Toaster, use the carton, packing materials, and prepaid shipping label to pack up your original Toaster and send it back to KitchenAid.

Arranging for Service after the Warranty Expires, or Ordering Accessories and Replacement Parts

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Toaster for information on how to obtain service.

For service information in Canada: Call toll-free I-800-807-6777.

For service information in Mexico: Call toll-free 01-800-0022-767.

BIENVENUE DANS LE MONDE DE KITCHENAID.

Two black Kioskew refrigerators with control knobs, displayed against a white background (no visible text or symbols)

Top-down schematic of a vehicle or enclosure with internal compartments and wiring (no text or symbols)

1

Illustration of a plug inserted into an electrical outlet with three outlets (no text or symbols)

2

Diagram illustrating hand turning a knob with labeled parts and directional arrows indicating rotation or movement.

|

Illustration of a toaster with a bite being inserted into the tray (no text or symbols)

2

Illustration of a toaster with two slices being opened, showing a hand holding the tray (no text or symbols)

3

Line drawing of a hand pressing a button on a two-tanita toaster (no text or symbols present)

4

Diagram of a device with a handle and arrow indicating downward motion (no text or symbols)

I

Illustration of a hand using a toaster to press down a button (no text or symbols present)

2

Line drawing of a hand holding a toaster with a knob (no text or symbols)

3

Illustration of a toaster with a sandwich being inserted into the tray (no text or symbols)

Illustration of a hand using a toaster to cut into a single sheet of bread, with a downward arrow indicating cutting (no text or symbols present)

Line drawing of a hand holding a toaster with a knob (no text or symbols)

Line drawing of a standard toaster with two shades and a handle (no text or symbols)

Line drawing of a toaster with a hand inserting a plug into it (no text or symbols)

Illustration of a hand using a toaster to cut slices, with a downward arrow indicating cooling (no text or symbols present)

Line drawing of a cable inserted into an electrical outlet with two outlets (no text or symbols)

Line drawing of a hand cleaning a toaster with a cloth (no text or symbols)

Illustration of a hand using a tool to clean or store items on a cutting board (no text or symbols visible)

3

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

4

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Two black Kioskew refrigerators with control knobs and buttons, displayed against a white background (no visible text or symbols on the devices themselves)

Únase a nosotros en la cocina, visite www.kitchenaid.com.

ÍNDICE

Top-down schematic of a vehicle or enclosure with internal compartments and wiring (no text or symbols)

Line drawing of a cable inserted into an electrical outlet with three outlets (no text or symbols)

Close Turn Saddle Solve

|

Illustration of a toaster with a sandwich being inserted into the tray (no text or symbols)

2

Illustration of a hand using a toaster to cut into slices, with a downward arrow indicating the cutting process (no text or symbols present)

3

Line drawing of a hand pressing down on a toaster tower (no text or symbols)

4

CONSEJO: For smaller items, lift up on the lift lever to raise toast above the top of the Toaster.

Line drawing of a toaster with a hand inserting a pencil into it (no text or symbols)

Illustration of a hand using a toaster to press a single bite into a single sheet of bread (no text or symbols present)

Line drawing of a cable inserted into an electrical outlet with two outlets (no text or symbols)

Line drawing of a hand cleaning a toaster with a cloth (no text or symbols)

Illustration of a hand using a tool to clean or store items on a cutting board (no text or symbols visible)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

®/™ © 2015 KitchenAid. All rights reserved. Used under license in Canada.
