USER MANUAL KMTT200 KITCHENAID

• Toaster Warranty p. 10
• Hassle-Free Replacement Warranty – 50 United States and District of Columbia p. 11
• Hassle-Free Replacement Warranty – Canada p. 11
• How to Arrange for Warranty Service in Puerto Rico p. 11
• How to Arrange for Service after the Warranty Expires – All Locations p. 12
• How to Arrange for Service Outside these Locations p. 12
• How to Order Accessories and Replacement Parts 4885_KMTT_UCG_E_8.indd 14885_KMTT_UCG_E_8.indd 1 11/28/05 4:00:16 PM11/28/05 4:00:16 PMENGLISH Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:You can be killed or seriously injured if you don’t immediately follow instructions.You can be killed or seriously injured if you don’t follow instructions.All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. DANGER WARNING p. 12

Toaster Safety IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock, do not immerse cord, plugs, or Toaster in water or other liquid. 4. Close supervision is necessary when any appliance is used by or near children. 5. Unplug Toaster from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. 6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair or adjustment. 7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 8. Do not use outdoors. 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric burner, or in a heated oven. 11. To disconnect, turn any control to “OFF,” then remove plug from outlet. 12. Do not use appliance for other than intended use. 4885_KMTT_UCG_E_8.indd 24885_KMTT_UCG_E_8.indd 2 11/28/05 4:00:16 PM11/28/05 4:00:16 PMENGLISH

13. Oversize foods, metal foil packages, or utensils must not be inserted in Toaster as

they may involve a risk of fire or electric shock.

14. A fire may occur if Toaster is covered with or touching flammable material, including

curtains, draperies, walls and the like, when in operation.

15. Do not attempt to dislodge food when Toaster is plugged in.

16. This product is designed for household use only.

SAVE THESE INSTRUCTIONS

Electrical Requirements Volts: 120 Volts A.C. only. Hertz: 60 Hz Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING NOTE: Your Toaster has a 3-prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. 4885_KMTT_UCG_E_8.indd 34885_KMTT_UCG_E_8.indd 3 11/28/05 4:00:17 PM11/28/05 4:00:17 PMENGLISH

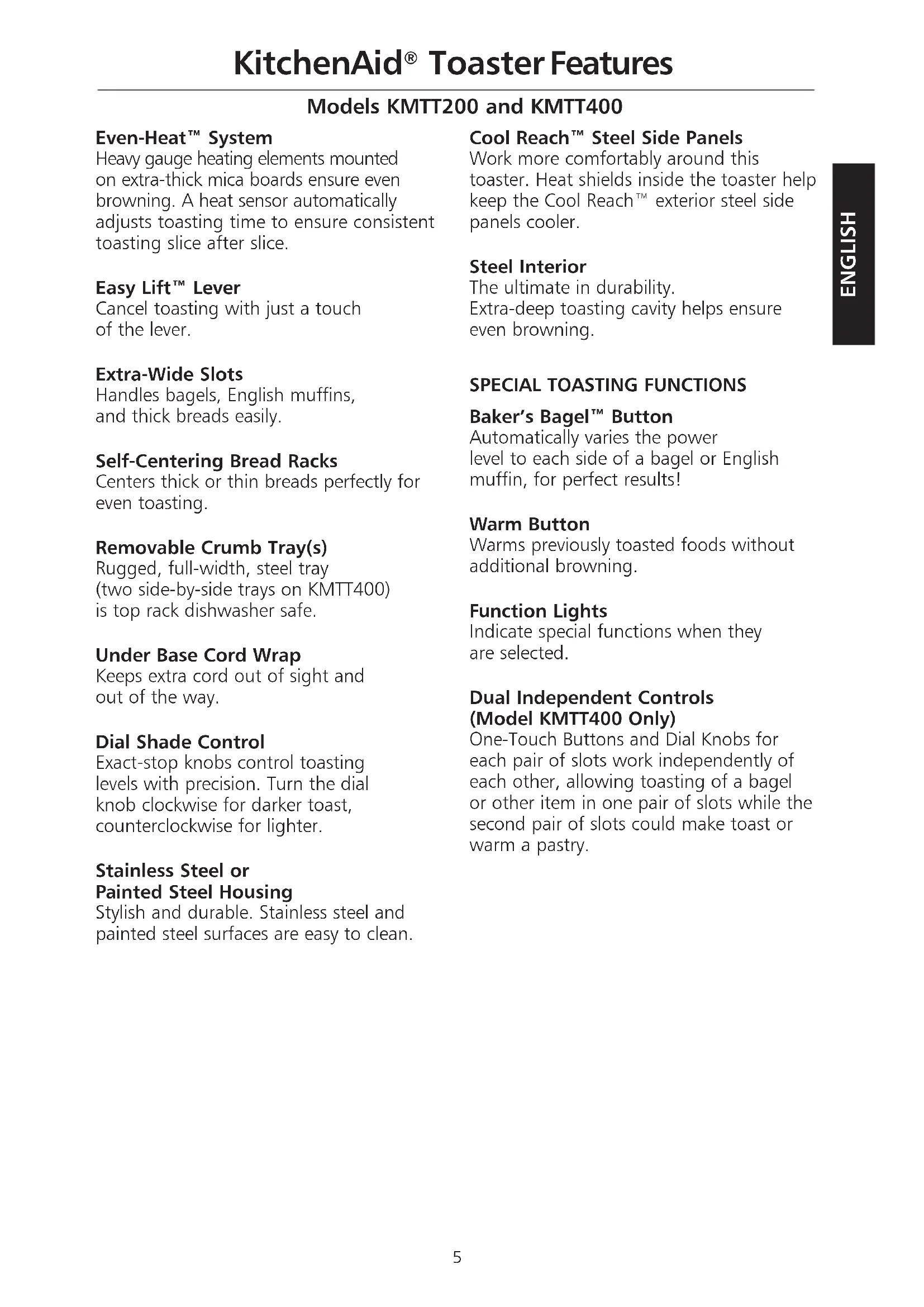

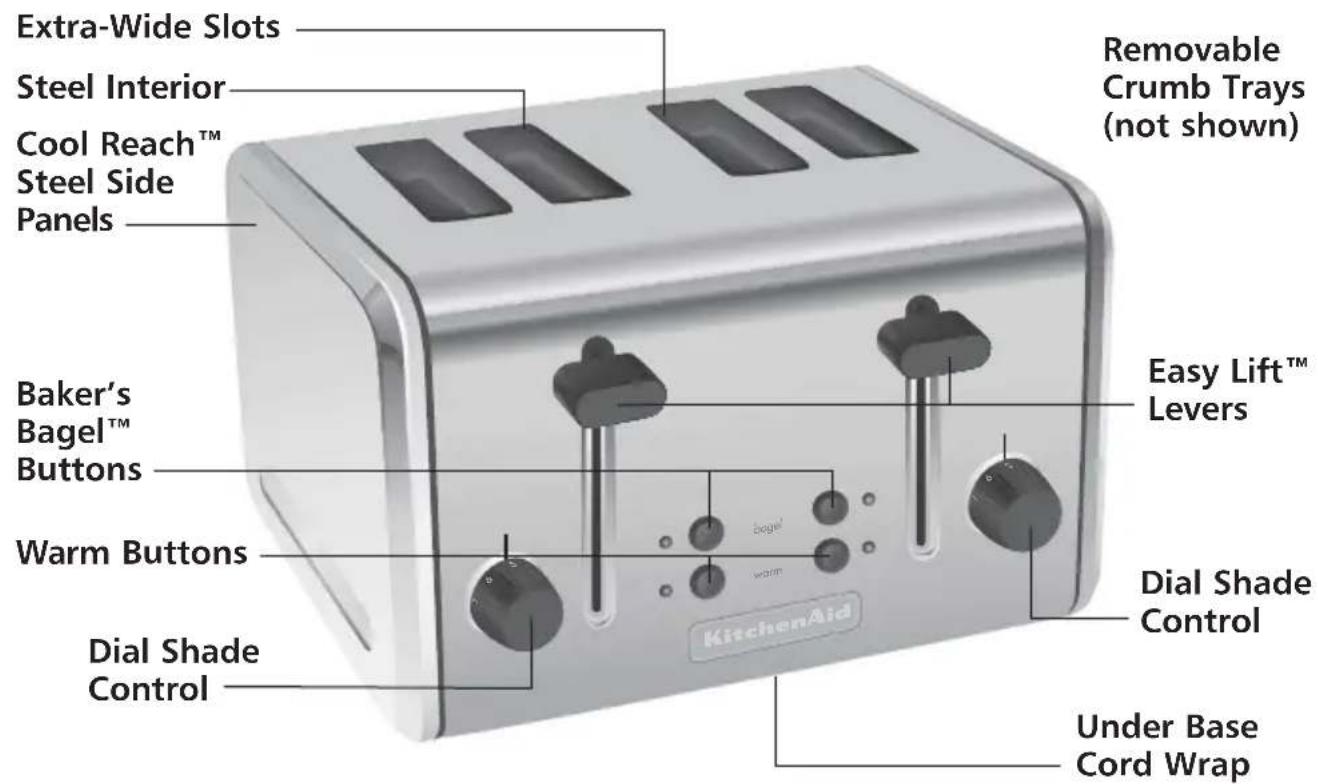

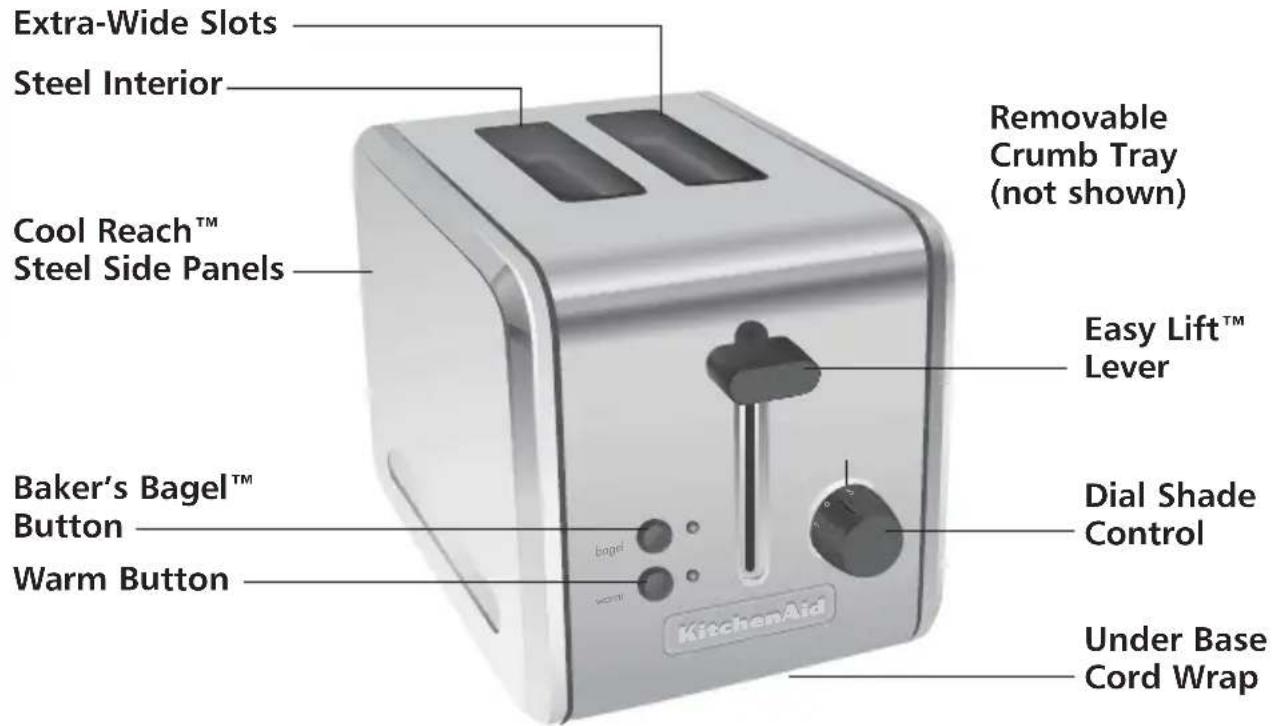

Toaster Features Models KMTT200 and KMTT400 Even-Heat™ System Heavy gauge heating elements mounted on extra-thick mica boards ensure even browning. A heat sensor automatically adjusts toasting time to ensure consistent toasting slice after slice. Easy Lift™ Lever Cancel toasting with just a touch of the lever. Extra-Wide Slots Handles bagels, English muffins, and thick breads easily. Self-Centering Bread Racks Centers thick or thin breads perfectly for even toasting. Removable Crumb Tray(s) Rugged, full-width, steel tray (two side-by-side trays on KMTT400) is top rack dishwasher safe. Under Base Cord Wrap Keeps extra cord out of sight and out of the way. Dial Shade Control Exact-stop knobs control toasting levels with precision. Turn the dial knob clockwise for darker toast, counterclockwise for lighter. Stainless Steel or Painted Steel Housing Stylish and durable. Stainless steel and painted steel surfaces are easy to clean. Cool Reach™ Steel Side Panels Work more comfortably around this toaster. Heat shields inside the toaster help keep the Cool Reach™ exterior steel side panels cooler. Steel Interior The ultimate in durability. Extra-deep toasting cavity helps ensure even browning.

SPECIAL TOASTING FUNCTIONS

Baker’s Bagel™ Button Automatically varies the power level to each side of a bagel or English muffin, for perfect results! Warm Button Warms previously toasted foods without additional browning. Function Lights Indicate special functions when they are selected. Dual Independent Controls (Model KMTT400 Only) One-Touch Buttons and Dial Knobs for each pair of slots work independently of each other, allowing toasting of a bagel or other item in one pair of slots while the second pair of slots could make toast or warm a pastry. 4885_KMTT_UCG_E_8.indd 54885_KMTT_UCG_E_8.indd 5 11/28/05 4:00:17 PM11/28/05 4:00:17 PM6 ENGLISH Before using your Toaster, check the Extra-Wide Slots and remove any packing or printed material that may have fallen inside during shipping or handling. Do not probe inside the Toaster with a metal object. You may see light smoke the first time you use the Toaster. This is normal. The smoke is harmless and will soon disappear. TO USE:

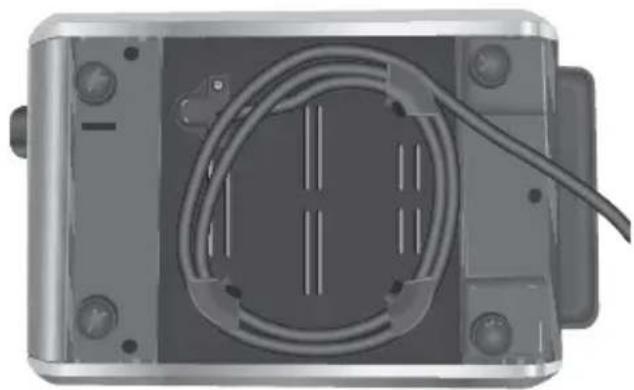

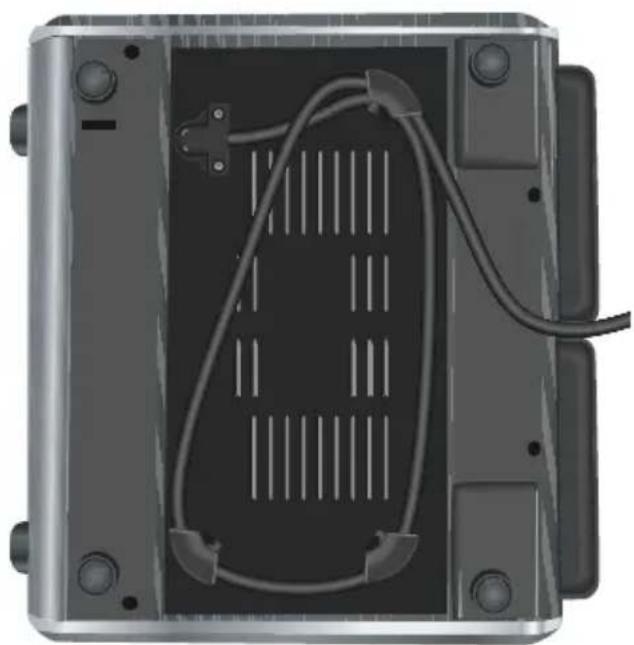

1. Shorten cord, if necessary, by wrapping

cord under the base.

2. Plug into a grounded 3-prong outlet.

3. Insert bread or other food to be

4. Turn the Dial Shade Control to select

the degree of darkness you want. Turn the Shade Control clockwise for darker toast, counterclockwise for lighter. NOTE: Different types of bread and their moisture levels may require different shade settings. For example, dry bread will brown more rapidly than moist bread and will require a lighter setting. Using Your KitchenAid

Toaster Models KMTT200 and KMTT400

KMTT200 KMTT400 Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING 4885_KMTT_UCG_E_8.indd 64885_KMTT_UCG_E_8.indd 6 11/28/05 4:00:18 PM11/28/05 4:00:18 PM7 ENGLISH For even toasting on model KMTT200, toast only one bread type and thickness at a time. For 4-slot model KMTT400, with Dual Independent Controls, if toasting of two different breads is desired be sure to toast only one bread type in each pair of slots.

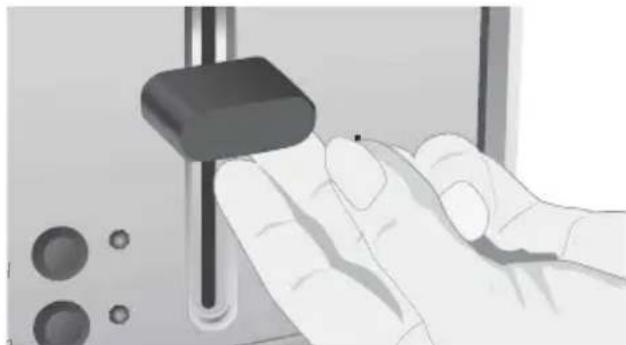

5. Push the Easy Lift™ lever

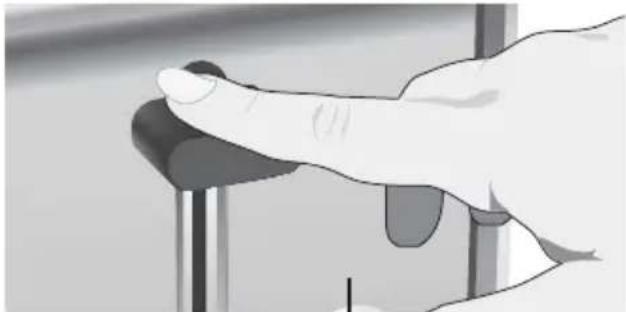

down until it locks in place. The centering racks will adjust slot width automatically to hold food upright for even toasting. When toasting is completed, the Toaster will shut off and raise the toast. To cancel toasting anytime, lift gently on the Easy Lift™ lever. The Toaster will shut off and raise the toast.

Using Your KitchenAid

Toaster Models KMTT200 and KMTT400 After you lower the Easy Lift™ lever to begin toasting, you can select the special toasting functions by pressing the appropriate button. The function lights will indicate which function is selected. After a toasting cycle is complete, all functions will be cleared. Baker’s Bagel™ Toasting Selecting the Bagel Button will toast the thickest bagels and English muffins evenly, gently browning the bottoms while toasting the sides that are sliced. An exclusive KitchenAid process, Baker’s Bagel™ Toasting produces perfect results by reducing power to the heating elements on one side of the toasting cavity by 50%.

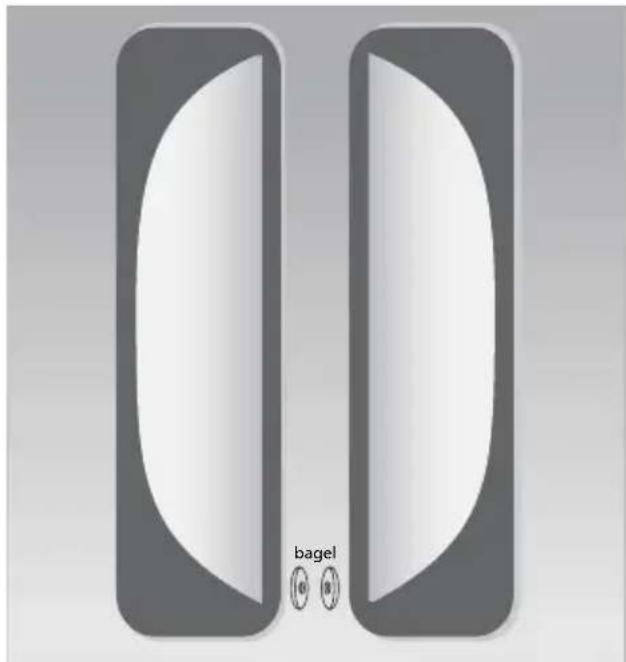

1. Insert the bagel so that the flat (sliced)

side of the bagel faces the center of the Toaster. Special Toasting Functions bagel 4885_KMTT_UCG_E_8.indd 74885_KMTT_UCG_E_8.indd 7 11/28/05 4:00:18 PM11/28/05 4:00:18 PM8 ENGLISH

2. Set the Shade Control to the level you

want. English muffins will generally take more time to toast than bagels.

3. Push the Easy Lift™ lever down until

Bagel™ function, once selected, cannot be cancelled except by cancelling the toasting cycle. Do this by lifting gently on the Easy Lift™ lever. The Toaster will shut off and raise the bagel. To Warm Toasted Items The Warm function will warm toast and other items quickly without additional browning.

1. Insert the previously toasted item in

bread slot. Do not place bread with butter or any other topping in the Toaster! Use Warm for dry bread and bagels only.

2. No Shade adjustment is necessary –

the Warm function overrides whatever Shade level you have set.

3. Push the Easy Lift™ lever down until

function, once selected, cannot be cancelled except by cancelling the toasting cycle. Do this by lifting gently on the Easy Lift™ lever. The Toaster will shut off and raise the toast. The Warm function cannot be used in combination with the Baker’s Bagel™ function. bagel warm Special Toasting Functions

1. Unplug the Toaster and let it cool

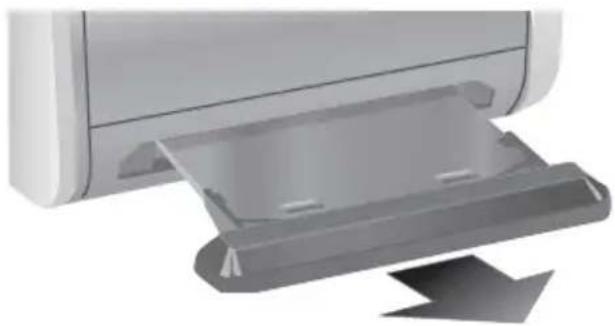

2. Slide out the crumb tray and shake

the crumbs into a waste container. It is recommended that the crumb tray be emptied after each use. The crumb tray is top rack dishwasher safe. IMPORTANT: the tray will be hot immediately following a toasting cycle.

3. Wipe Toaster with a soft, damp cotton

cloth. Do not use paper towels, abrasive cleansers or liquid cleaning products. Do not immerse Toaster in water. NOTE: If grease or oil splatters on the Toaster, wipe splatters away immediately using a clean, damp cotton cloth.

4. Return crumb tray to Toaster. Press it

in firmly until it clicks into position. Do not use the Toaster without the crumb tray in proper position. NOTE: KitchenAid does not recommend the use of a Toaster cover. Cleaning Your Toaster 4885_KMTT_UCG_E_8.indd 84885_KMTT_UCG_E_8.indd 8 11/28/05 4:00:19 PM11/28/05 4:00:19 PM9 ENGLISH Troubleshooting If your Toaster should fail to operate, check the following: – See if the Toaster is plugged into a proper electrical outlet. If it is, unplug the Toaster. – Plug in Toaster. – If the Toaster still does not work, check the household fuse or circuit breaker on the electrical circuit the Toaster is connected to and make sure the circuit is closed. If the problem cannot be corrected: – Or if the error codes have rendered the Toaster permanently inoperable, see the KitchenAid Warranty and Service sections on pages 10-11. Do not return the Toaster to the retailer; they do not provide service. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING 4885_KMTT_UCG_E_8.indd 94885_KMTT_UCG_E_8.indd 9 11/28/05 4:00:19 PM11/28/05 4:00:19 PM10 ENGLISH Length of Warranty: 50 United States, the District of Columbia, Canada, and Puerto Rico: One-year limited warranty from date of purchase. KitchenAid Will Pay For: 50 United States, the District of Columbia and Canada: Hassle-free replacement of your Toaster. See the following page for details on how to arrange for replacement.

In Puerto Rico: The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. To arrange for service, follow the instructions on page 11. KitchenAid Will Not Pay For: A. Repairs when Toaster is used in other than normal single family home use. B. Damage resulting from accident, alteration, misuse or abuse or use with products not approved by KitchenAid. C. Replacement parts or repair labor costs for Toaster when operated outside the country of purchase. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. KitchenAid

Toaster Warranty 4885_KMTT_UCG_E_8.indd 104885_KMTT_UCG_E_8.indd 10 11/28/05 4:00:20 PM11/28/05 4:00:20 PM11 ENGLISH Hassle-Free Replacement Warranty – 50 United States and District of Columbia We’re so confident the quality of our products meets the exacting standards of KitchenAid that, if your Toaster should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Toaster returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your KitchenAid

Toaster should fail within the first year of ownership, simply call our toll-free Customer Satisfaction Center at 1-800-541-6390 Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Toaster, use the carton and packing materials to pack up your original Toaster. In the carton, include your name and address on a sheet of paper along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Hassle-Free Replacement Warranty – Canada We’re so confident the quality of our products meets the exacting standards of the KitchenAid

brand that, if your Toaster should fail within the first year of ownership, KitchenAid Canada will replace your Toaster with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your KitchenAid

Toaster should fail within the first year of ownership, take the Toaster or ship collect to an Authorized KitchenAid Service Centre. In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Toaster will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer Interaction Centre at 1-800-807-6777. Or write to us at: Customer Interaction Centre KitchenAid Canada 1901 Minnesota Court Mississauga, ON L5N 3A7 How to Arrange for Warranty Service in Puerto Rico Your KitchenAid

Toaster is covered by a one-year limited warranty from the date of purchase. KitchenAid will pay for replacement parts and labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. Take the Toaster or ship prepaid and insured to an Authorized KitchenAid Service Center. Your repaired Toaster will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner, call toll-free 1-800-541-6390 to learn the location of a Service Center near you. 4885_KMTT_UCG_E_8.indd 114885_KMTT_UCG_E_8.indd 11 11/28/05 4:00:20 PM11/28/05 4:00:20 PM12 ENGLISH How to Arrange for Service after the Warranty Expires – All Locations Before calling for service, please review the Troubleshooting section on page 9. For service information in the 50 United States, District of Columbia, and Puerto Rico, call toll-free 1-800-541-6390. Or write to: Customer Satisfaction Center KitchenAid Portable Appliances P. O. Box 218 St. Joseph, MI 49085-0218 Or contact an Authorized Service Center near you. For service information in Canada, call toll-free 1-800-807-6777. Or write to: Customer Interaction Centre KitchenAid Canada 1901 Minnesota Court Mississauga, ON L5N 3A7 How to Arrange for Service Outside these Locations Consult your local KitchenAid dealer or the store where you purchased the Toaster for information on how to obtain service. For service information in Mexico, call toll-free 01-800-024-17-17 (JV Distribuciones)

01-800-902-31-00 (Industrias Birtman) How to Order Accessories and Replacement Parts To order accessories or replacement parts for your Toaster in the 50 United States, District of Columbia, and Puerto Rico, call toll-free 1-800-541-6390 Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m. Or write to: Customer Satisfaction Center, KitchenAid Portable Appliances, P. O. Box 218, St. Joseph, MI 49085-0218 To order accessories or replacement parts for your Toaster in Canada, call toll-free 1-800-807-6777. Or write to: Customer Interaction Centre KitchenAid Canada 1901 Minnesota Court Mississauga, ON L5N 3A7 To order accessories or replacement parts for your Toaster in Mexico, call toll-free 01-800-024-17-17 (JV Distribuciones)
