USER MANUAL RoboVac L70 Hybrid eufy

Abstract graphic with a white circular shape and scattered triangular shapes on a teal background (no text or symbols)

Cleaning

eufy

For FAQs and more information, please visit:

www.eufylife.com

Owner's Manual

RoboVac L70 Hybrid

T2190 51005001682 V01

Gebrauchsanweisung | Manual del propietario

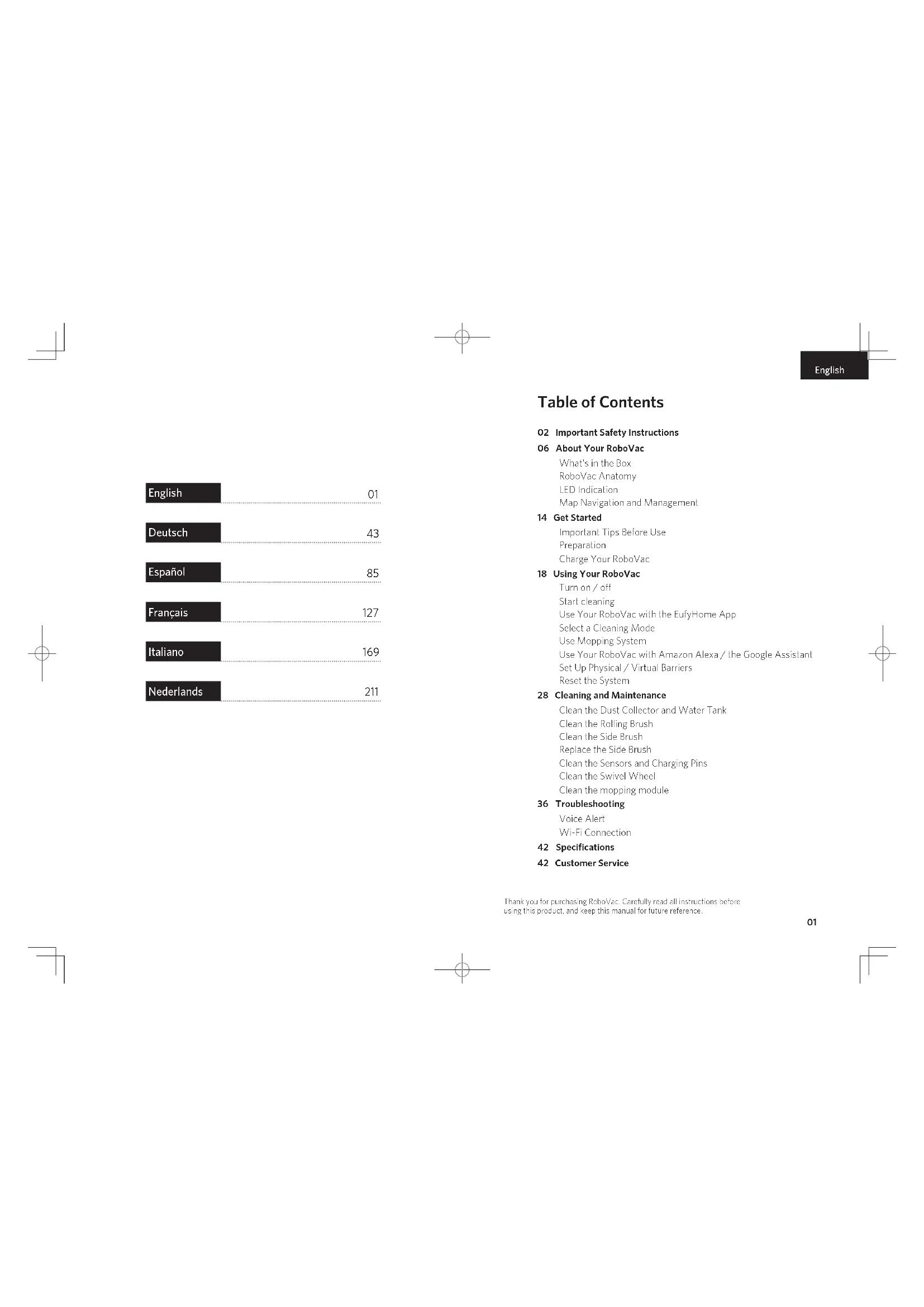

02 Important Safety Instructions

06 About Your RoboVac

What's in the Box

RoboVac Anatomy

LED Indication

Map Navigation and Management

14 Get Started

Important Tips Before Use

Preparation

Charge Your RoboVac

18 Using Your RoboVac

Turn on / off

Start cleaning

Use Your RoboVac with the EufyHome App

Select a Cleaning Mode

Use Mapping System

Use Your RoboVac with Amazon Alexa / the Google Assistant

Sel Up Physical / Virtual Barriers

Reset the System

28 Cleaning and Maintenance

Clean the Dust Collector and Water Tank

Clean the Rolling Brush

Clean the Side Brush

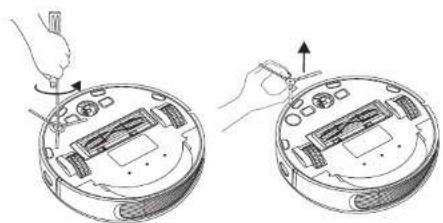

Replace the Side Brush

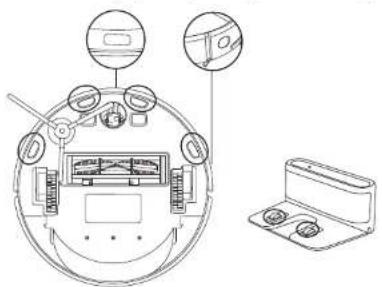

Clean the Sensors and Charging Pins

Clean the Swivel Wheel

Clean the mopping module

36 Troubleshooting

Voice Alert

Wi-Fi Connection

42 Specifications

42 Customer Service

Thank you for purchasing RaboVac. Carefully read all instructions before using this product, and keep this manual for future reference.

EnglishEng

Important Safety Instructions

To reduce the risk of injury or damage, read these safety instructions carefully and keep them at hand when setting up, using, and maintaining this device.

WARNING SYMBOLS USED

This is the safety alert symbol. This symbol alerts you to potential hazards that could result in property damage and/or serious bodily harm or death.

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of this device in a safe way and understand the hazards involved.
  • Children should be supervised to ensure they do not play with this device.
  • Cleaning and maintenance shall not be performed by children without adult supervision.
• This device is only to be used with the power supply unit provided.
• Before cleaning or maintaining this device, the plug must be removed from the socket-outlet.
• The battery in this device should only be replaced by a skilled professional.
• When removing the battery, disconnect the device from the supply mains.
• For the purposes of recharging the battery, only use the detachable power supply unit provided with this device.

02 03

• The battery must be removed before this device is disposed of. To remove the battery, first unscrew the screws on the bottom, then remove the back cover. Remove the battery by disconnecting the quick connector.
• The used battery should be placed in a sealed plastic bag and disposed of safely according to local environmental regulations.
• The external flexible cable or cord of the power supply unit cannot be replaced; if the cord is damaged, the power supply unit shall be disposed of.
  • This device is for indoor use only.
• This device is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when this device is operating.
• Store and operate this device in room temperature environments only.
  • Clean with a cloth dampened with water only.
• Do not use this device to pick up anything that is burning or smoking.
• Do not use this device to clean up spills of bleach, paint, chemicals, or anything wet.
• Before using this device, pick up objects like clothing and loose paper. Lift up cords for blinds or curtains, and move power cords and fragile objects out of the way. If this device passes over a power cord and drags it, an object could be pulled off a table or shelf.
• If the room to be cleaned has a balcony, a physical barrier should be used to prevent access to the balcony and to ensure safe operation.
  • Do not place anything on top of this device.

EnglishEng

• Be aware that this device moves around on its own. Take care when walking in the area where this device is operating to avoid stepping on it.
• Do not operate this device in areas with exposed electrical outlets on the floor.
• Do not expose the electronics of this device, its battery, or the integrated Charging Base. There are no user-serviceable parts inside.
• Do not use this device on an unfinished, unsealed, waxed or rough floor. It may result in damage to the floor and this device. Use only on hard floor surfaces or low-pile carpet.
  • Do not use the mopping module on carpets.
• This device has been designed to be used on floors without scratching them. We still recommend that you test this device on a small area of the room to be cleaned to ensure no scratches are made before cleaning the whole room.
• Only use attachments recommended or described in this manual.
  • Do not handle the appliance or plug with wet hands.
• Ensure that the dust bag and/or filters are correctly in-place before usage.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose the battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable), except as indicated in the instructions for use and care.

04 05

- Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

- The laser distance sensor of this device meets the standards for Class I Laser Products in IEC 60825-1:2014 and will not generate hazardous laser radiation.

Notice

This symbol on the device or its packaging indicates: Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal at least free of charge.

Declaration of Conformity

This product complies with the radio interference requirements of the European Community. Hereby, Anker Innovations Limited declares that the radio equipment type T2790 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.eu6ylife.com/

Maximum output power: 18 dBm (For EU)

Frequency band: 2.4G band (2.4000GHz - 2.4835GHz)

EnglishEng

Trademark Notice

• Amazon, Echo, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
- Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
• Google Play and the Google Play logo are trademarks of Google Inc.
• Google Home is a trademark of Google Inc.

About Your RoboVac

What's in the Box

RobuVac

Charging Base

Power Adapter

Waterproof Pad Owner's Manual Mopping Module (with Washable Mapping Cloth)

Other Documents

RoboVac Anatomy

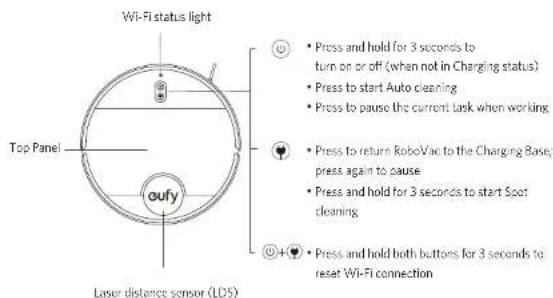

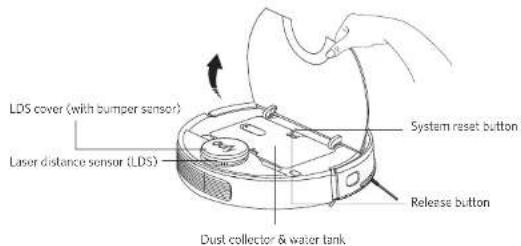

A. Top

Wi-Fi status light Top Panel oufy Laser distance sensor (LDS) Press and hold for 3 seconds to turn on or off (when not in Charging status) Press to start Auto cleaning Press to pause the current task when working Press to return RoboVac to the Charging Base; press again to pause Press and hold for 3 seconds to start Spot cleaning Press and hold both buttons for 3 seconds to reset Wi-Fi connection

LDS cover (with bumper sensor) Laser distance sensor (LDS) System reset button Release button Dust collector & water tank

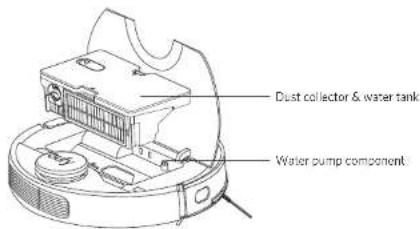

Dust collector & water tank Water pump component

EnglishEng

B. Dust collector & Water tank

Water inlet cover Water inlet Cleaning brush Filter Dust disposal outlet

Water pump connector Buckles Button for separating dust collector & water tank

High-performance filter Foam filter Pre-filter

08 09

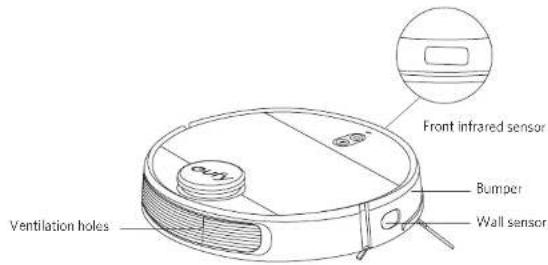

C. Side

Front infrared sensor Bumper Wall sensor Ventilation holes

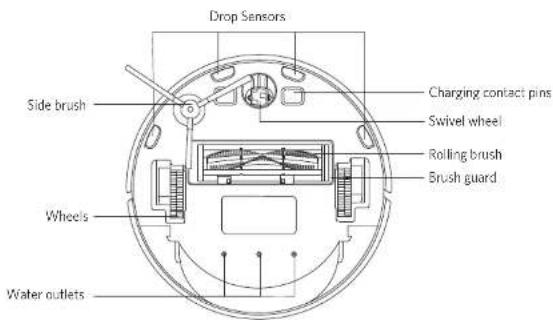

D. Bottom

Drop Sensors Side brush Charging contact pins Swivel wheel Rolling brush Brush guard Wheels Water outlets

EnglishEng

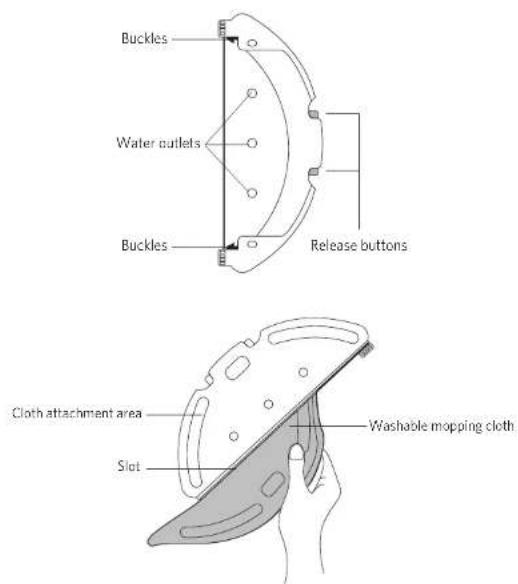

E. Mopping module

F. Charging Base

External view

Status light Charging contact pins

10 11

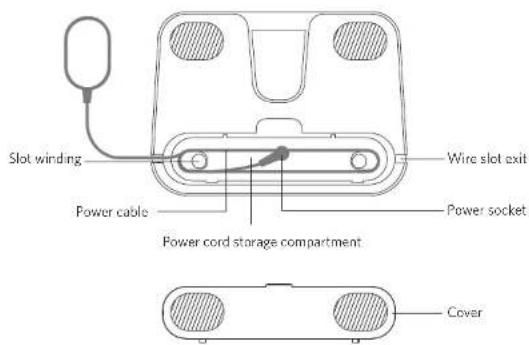

Internal view

Slot winding Power cable Power cord storage compartment Wire slot exit Power socket Cover

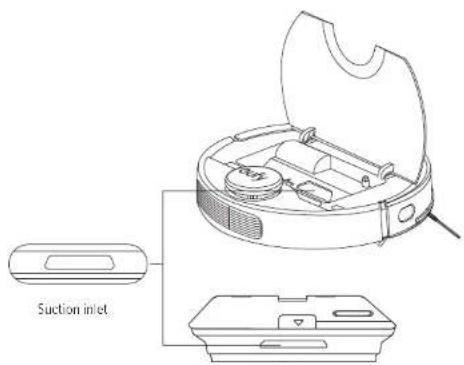

G. Suction Inlet

Suction inlet

EnglishEng

LED Indication

You can see the status of RoboVac from the LED indicators.

(Power Status Lights)	Status
Solid blue	• Standby / Cleaning (when not on Charging Base)• Fully charged
Solid purpose • Low power and returning to Charging Base
Breathing blue	• Charging (power level ≥ 20%)• Loading system
Breathing purple • Charging (power level < 20%)
Flashes blue 3 times	• Status indication (along with voice prompts)
Flashing red	• Error indication (along with voice prompts)Refer to the “Troubleshooting>Voice Alert” section in this manual for solutions.

When RoboVac is inactive and not on the Charging Base for 10 minutes, it automatically switches to sleep mode and the light becomes dim to conserve power.

(Wi-Fi Status Light)	Status
Slowly flashing blue	Waiting for connection (RoboVac cannot connect to Wi-Fi network in sleep mode)
Rapidly flashing blue Connecting with your wireless router
Solid blue Connected to your wireless router

Map Navigation and Management

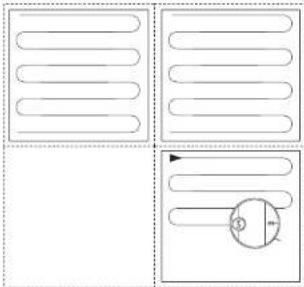

Navigation

Once Auto cleaning starts, RoboVac moves from the Charging Base, automatically scans to generate maps, intelligent y determines its cleaning route, and divides the space into zones. The cleaning paths are planned along the walls, following a bow-shaped cleaning method to complete the cleaning of each zone one by one.

Pure diagram of four rectangular panels with horizontal lines and a central circular symbol, no text or labels present.

Real-time Mapping & Floor plan

Real-time mapping helps you know the cleaning path and environment easily. A floor plan will be built after cleaning. The map will be updated real-time during each cleaning to ensure normal navigation.

To create a complete floor plan:

1. open your doors for RoboVac to map each room,
2. remove any objects that may be in the way or gel. RuboVac stuck.

Do not remove the Charging Base after a floor plan is created.

Relocalization & Remapping

If the position of RoboVac / Charging Base is adjusted or the surroundings are changed significantly, RoboVac will try to relocalize and may remap to match the surroundings.

• RoboVac will resume cleaning if the relocalization is successful.
- If the relocalization fails, RoboVac will remap to ensure normal navigation with a new cleaning.

EnglishEng

- If the original map has the virtual boundary information, RoboVac will not start a new cleaning to avoid going across the restricted zone.

Make sure RoboVac starts each cleaning from the Charging Base.

During cleaning, do not move the device frequently. It moved, place RoboVac back to the original position.

Get Started

Important Tips Before Use

a

b

©

d

©

F

Remove power cords and small objects from the floor that may entangle RoboVac.
b Fold tasseled edges of area rugs underneath to prevent tangling RoboVac. Avoid cleaning very dark-colored high-pile rugs or rugs thicker than 1.02 in/26 mm as they may cause RoboVac to malfunction.
C Keep RoboVac away from spaces lower than 4.17 in/106 mm to prevent RoboVac from getting stuck. If necessary, place a physical barrier to block off the problem areas.
d Keep RoboVac away from wet areas during cleaning.
e RoboVac may climb on top of objects less than 0.67 in/17 mm in height (the height will be reduced if the mopping module is installed). Remove these objects if possible.
f Anti-drop sensors will prevent RoboVac from tumbling down stairs and steep drops in most cases. Sensors are less effective if dirty or used on carpetec/reflective/very dark-colored floors. It is recommended to place physical barriers to block off areas where RoboVac may fall.

Place physical barriers in front of fireplaces and areas that may cause damage to RoboVac if entered.

Preparation

1. Remove the 'foam blocks beside the bumper' before use.
2. Connect the adapter to the Charging Base and put extra cable in the slot as illustrated.

Extra power cord on the ground may be pulled by the main unit to cause an interruption of charging.

1. Place the Charging Base on a level surface and against a wall.

1. Remove objects within 1.6 ft/0.5 m of the isn't and right side and within 4.9 ft/1.5 m of the front of the Charging Base. If you cannot remove the objects, check whether RoboVac can return to the Charging Base normally; if not, contact eufy customer service for help.

EnglishEng

1. Insert the Charging Base into the waterproof pad to keep the floor dry. Make sure it is firmly installed. If mopping is not needed, you can skip this step

Simple line drawing of a device with a bracket and a separate housing, no text or symbols present.

1. Connect the adapter to a wall outlet.

Line drawing of a device with a cable and connector (no text or symbols)

LED Indicator on Charging Base	Status
Solid white	Charging Base connected to power source (When RoboVac is not docked)
Off RoboVac properly	connected to Charging Base

Install the Charging Base in a location that RoboVac can easily access. It is recommended to place the Charging Base against a wall, and on a hard-level surface rather than on rugs or carpets.

• Always keep the Charging Base plugged in, otherwise RoboVac will not automatically return to it.
  To ensure proper charging, do not frequently move the Charging Base. When its location is changed, RoboVac may remap due to failure in relocalization (see About Your RoboVac > Map Navigation and Management for details).

Charge Your RoboVac

• RoboVac has a pre-installed rechargeable battery that has to be fully charged before use.
• RoboVac will return to the Charging Base at the end of a clearing cycle or when its battery is running low.

Method 1: Attach RoboVac to the Charging Base by aligning its charging pins with the charging pins on the base.

Technical line drawing of a robotic vacuum cleaner with attached device (no text or symbols)

Method 2: Press 🚪 on the main unit to send RoboVac to the Charging Base.

Line drawing of a robotic vacuum cleaner with a close-up inset showing the handle (no text or symbols)

- To preserve the battery's lifespan, recharge at least once every 6 months. - To enter Reduced Power Standby mode when RoboVac is being charged, press and hold ⏻ & ♦ simultaneously on RoboVac for 20 seconds until the Power Status Lights turn off. Wi-Fi is disabled while this mode is active. Press to exit. Reduced Power Standby mode.

EnglishEng

Auto Recharge and Resume

RoboVac returns to the Charging Base automatically to recharge when:

• RoboVac has finished cleaning;
- Cleaning is not complete and the battery level becomes low; Once recharged to 80% battery capacity, RoboVac will resume to finish the remaining cleaning.

- Do not move the Charging Base during cleaning, otherwise RoboVac may fail to return for recharge. If failed, you have to manually attach it to the Charging Base.

Using Your RoboVac

Turn on / off

• RoboVac turns on automatically when attached to the Charging Base and connected to power.
• When RoboVac is not on the Charging Base, press and hold for 3 seconds to turn on the main unit. Wait until the Power Status Light turns solid blue.
• When RoboVac is not on the Charging Base, press and hold for 3 seconds again to turn off the main unit.

Switch to Sleep Mode

- When inactive and not on the Charging Base for 10 minutes, RoboVac automatically stops cleaning and switches to sleep mode. In sleep mode, press any button to wake it up.

Start cleaning

RoboVac cannot start clearing if the battery level is less than 20%. In this case, recharge RoboVac first before cleaning.

1. Press ☑ to start cleaning in Auto Mode.

➢ RoboVac moves around to scan the environment and build the map automatically.

Line drawing of a robotic vacuum cleaner with a circular inset showing a dial (no text or symbols)

1. Press Again to pause cleaning

➢ Press ⏻ to resume cleaning.

When cleaning is paused, docking the main unit onto the Charging Base will stop the clearing.

If cleaning is paused for 10 minutes, RoboVac automatically stops cleaning and switches to sleep mode.

1. Press to stop current cleaning and return to the Charging Base

- Before clearing, sort out cables and cords to avoid power interruption or any damaging caused by pulling the cord during cleaning.

- In Auto cleaning mode, RoboVac will clean twice by default if the clearing time is less than 10 minutes.

Use Your RoboVac with the EufyHome App

To fully enjoy all the available features, it is recommended to control your RoboVac via the EufyHome app.

Before you start, make sure that:

• Your smartphone or tablet is connected to a Wi-Fi network.
• Your smartphone or tablet is running OS 8.0 (or above) or Android 4.4 (or above).
  • The 2.4GHz band wireless signal is enabled on your wireless router.

EnglishEng

• The Wi-Fi status light on RoboVac is slowly flashing blue.
- RoboVac is attached to the Charging Base to ensure it has enough power during setup.

FuyiHome Fuyifime Download on the App Store GETITON Google Play

1. Download the EufyHome app from the App Store (iOS devices) or Google Play (Android devices).
2. Open the app and create a user account
3. Tap the "-" icon to add RoboVac to your EufyHome account.
4. Follow the instructions in the app to set up the Wi-Fi correction.
   After connecting successfully, you can control RoboVac via the app.
   With the app, you can select cleaning at your desired suction level, schedule clearing, view the cleaning map, set up "No-Mop" or "No-Go" zones, check the network connection status, and access additional features.

Wi-Fi Status Light

	Slowly flashing blue Waiting for connection
	Rapidly flashing blue Connecting with your wireless router
	Solid blue Connected with your wireless router

If you have any problems during the Wi-Fi setup process, refer to the "Troubleshooting > Wi-Fi connection" section in this Manual.

- If RoboVac gets stuck in any space, tap Find My Robot in the app to find the machine. This function is available in the app only.

Reset the Wi-Fi Connection

Press and hold (and simultaneously for 3 seconds to reset the Wi-Fi connection if necessary.

You will hear a voice prompt when the Wi-Fi connection has been reset, and the Wi-Fi status light will slowly flash blue. Now you can follow the Wi-Fi instructions in the cufy-Home app to set up the Wi-Fi connection.

20 21

Schedule Cleaning

With the FulyHome app, you can schedule RoboVac to start cleaning at a particular time.

You can sell the time and customize the clearing schedules from Sunday to Saturday on the EuryHome app. This function is available in the app only.

Select a Cleaning Mode

You can press at any time to pause the current cleaning cycle.

1. Auto cleaning

1. Press ⏻ start cleaning in Auto Mode

Line drawing of a robotic vacuum cleaner with a circular component inserted, showing no text or symbols.

1. Press Again to pause cleaning.

- By default, RoboVac starts in Auto clearing mode when it is turned on.

EnglishEng

2. Spot cleaning

RoboVac intensively cleans a specific area with a size of 4.9 ft x 4.9 ft / 1.5 m x 1.5 m. Useful if there is a concentrated area of dust or debris. When the cleaning of a certain zone is finished, it automatically returns to the Charging Base.

4.5½/15m 4.5½/15m φ (φ) (φ)

• Press and hold for 3 seconds to start Spot cleaning.

3°

3. Zone cleaning (available via the app only)

In this mode, set up a cleaning zone in the Euryl Home app. RoboVac will clean this zone only and return to the Charging Base after cleaning.

Start Zone cleaning only after RobuVac has created the map.

- It is recommended that RoboVac moves from the Charging Base to start Zone cleaning.

4. Manual-controlled cleaning (available via the app only)

You can direct RoboVac to clean a particular area by using manual controls in the EutyHome app.

5. Select a Suction Power Level

In the FullyHome app, select a suction power level according to your needs.

• Quiet
• Standard (Default)
• Turbo
  • Max

- You can select the "Mop Only" suction level in mopping mode. When mopping is finished, RoboVac will change to default suction level automatically.

6. Select BoostIQ™ feature

In the Eufyl home app, select the BoostIQ™ feature according to your needs. RoboVac will automatically increase the suction power if it detects that stronger power is needed to ensure the best clean. BoostIQ™ is ideal for cleaning thicker carpets and hard-to-sweep messes, which will reduce the total cleaning time, but increase the noise level. If the vacuuming noise caused by BoostIQ™ disturbs you, you can disable this feature.

Use Mopping System

- The mopping mode is only intended for a clean floor without stubborn stains or liquids. To avoid slaining floors, do not use the mopping function when dust is mixed with liquids such as coffee or ink.

• Mopping System cleans best on smooth hard surfaces and may not perform so well on uneven tiles, heavily waxed floors or rough surfaces like slate or brick, which may snag the clearing pad.
  • The mopping mode is not recommended when no one is at home.
• Do not use the mopping mode on a carpeted floor. It is recommended to set a "No Map" zone in the Eu'yHome app to avoid cleaning the carpeted area.

EnglishEng

1. Take out the water tank and put it back into the main unit after filling the water.

Diagram showing a device's internal components and assembly steps, including parts opened, assembled, and final assembly with a piping bag.

- Do not use any other clearing solution other than water. Cleaning solutions, even natural ones, can clog the water release system and break down the materials inside the device

- To add water into the water tank or install the mopping module, pause the cleaning first. Do not manually move the device.

1. Wel the mopping cloth and wring it until it does not drip. Insert the cloth along the bracket slot and stick it firmly.

Illustration showing a hand holding a triangular ruler and a separate view of a blade with arrows indicating motion (no text or symbols)

1. Install the mopping module into the bottom of RopoVac until a click is heard.

oufy

When the mopping module is inserted, RoboVac automatically switches to the mopping mode.

1. Select a clearing mode to start cleaning.

➢ RoboVac automatically sweeps and mops in the selected mode.
If you want RoboVac to mop without vacuuming, select "Mop-Only" mode in the Eufyl Home app.
You can also select the mopping water level (3 levels) in the app according to your needs.

- To achieve a better mopping effect, it is recommended to clean the door with RooVac three times before installing the mopping module.

1. When RoboVac finishes working and returns to the Charging Base, hold the two buckles by hand, drag backward and remove the mopping module.

eufy

When the mopping module is removed, the system automatically exits mopping made without water release.

• Although water release is stopped when cleaning is paused, the mopping cloth will still be well. Be careful not to keep RoboVac in one location for lots long, as the excessive moisture caused by the cloth can damage the floor.
• To avoid damaging wooden floors, make sure the Charging Base is attached to the waterproof pad.

EnglishEng

1. Empty any remaining water from the water tank. Clear the mopping cloth to avoid it being microwed and producing unpleasant smell.

It is recommended to clean the mopping cloth after mopping each time.

- Remove the mopping module when RoboVac is under charging or not in use.

Use Your RoboVac with Amazon Alexa / the Google Assistant

Amazon Alexa or the Google Assistant is a smart voice control device that enables you to control RoboVac with your voice.

Before you start, make sure that:

• RoboVac is attached to the Charging Base to ensure there is enough power.
• RoboVac is connected with the EufyHome app
- You have an Alexa-enabled device (i.e. Amazon Echo, Echo Dot and Amazon Tap, Echo Show, Echo Spot) or a device enabled with the Google Assistant (i.e. Google Home, Google Home Mini). These devices are sold separately.
- The Amazon Alexa app or Google Home app is already installed on your smart device, and you have created an account.

To control RoboVac with Amazon Alexa or the Google Assistant

1. Open the EufyHome app and lap "Smart Integrations" in the top left

2. Follow the on-screen instructions to complete the setup.

- Currently this feature only supports English, German, French, and Spanish. You can check regularly if more languages are supported at https://www.eufylife.com/support/.

Set Up Physical / Virtual Barriers

Boundary Strips (Sold Separately)

Physical barriers including boundary strips can keep RoboVac away from cleaning certain areas. RoboVac will recognize the barriers and will not cross into the blocked-off area.

1. Identify the area or item you do not want RoboVac to get close to.
2. Place the boundary strips FLAT on the floor or under an area rug.

Simple line drawing of a vehicle or container with a checkmark and X mark, no text or symbols present.

• Make sure the boundary strips are placed on the same surface plane RoboVac is used on.
• If the boundary strips are rolled up, remove and then re-apply on the floor with adhesive tape. Otherwise the boundary strips may not work well.

Virtual Boundary (Available on the App Only)

In the FullyHome app, you can set up a "No-Go Zone" or "No-Mop Zone" as a restricted area. This eliminates the need to use physical barriers, including Boundary Strips. This feature is designed for dividing the cleaning zones, not for isolating hazardous areas.

• No-Go Zone: RoboVac will not enter the zone to vacuum or mop.
- No-Mop Zone: RoboVac will not enter the zone to map, while vacuuming is still allowed.

- To set a virtual boundary, RoboVac must initially perform a cleaning run to create a floor plan.

• To clean your home with virtual boundary, ensure that RoboVac is on the Charging Base and that the Base has not been manually moved during cleaning.
• Although a virtual boundary is set, RoboVac may still enter the restricted zone due to such reasons as relocalization, wrong positioning or abnormal sensors.
• Moving the device or changing the environment may cause mapping failed and rebuilt with virtual boundary cost.

EnglishEng

Reset the System

You can reset the system if there is no response when pressing any button on RoboVac.

1. Make sure RoboVac is not on the Charging Base.
2. Use a clip to press the Reset button.

Line drawing of a robotic vacuum cleaner with a hand adjusting the gear (no text or symbols)

▶ RoboVac will automatically turn off.
3. Dock RoboVac onto the Charging Base or press to turn it on.
The system is reset.

- After resetting the system, RoboVac may lose its map and the original settings including the virtual boundary.

Cleaning and Maintenance

Before cleaning and maintaining, turn off the device and unplug the adapter.

For optimal performance, follow the instructions below to clean and maintain RoboVac regularly. The cleaning/replacement frequency will depend on your usage habits of RoboVac.

Recommended cleaning/replacement frequency

RoboVac Part Cleaning Frequency Replacement Frequency
Dust Collector After each use -
Filter Once every week Every 6 months
Rolling Brush Once every week Every 6-12 months
Side Brush	Once every month	Every 3-6 months (or when visibly worn)
Brush Guard	Once every month	Every 3-6 months (or when the silicone rubber strip on the brush guard becomes visibly worn)

28 29

RoboVac Part Cleaning Frequency Replacement Frequency

Sensors	Once every month	-
Charging Pins	Once every month	-
Swivel Wheel	Once every month	-
Mopping Module	After each use -
Mopping Cloth	After each use Every 3	6 months (or when visibly worn)
Water Tank	After each use -

Clean the Dust Collector and Water Tank

1. Open the top panel of ReboVac and press the release button to remove the dust collector and water tank.
2. Take out the filter assembly.

Line drawing of a robotic vacuum cleaner with internal components and fan (no text or symbols)

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

1. Take out the pre-filter, foam filter, and high-performance filter.
2. Clean the filters with a vacuum cleaner or a cleaning brush. You can also wash the filters for deep cleaning.

EnglishEng

1. Empty the dust collector. Tap the dust collector to get rid of any excess diri.

Line drawing of a hand pouring liquid into a cup (no text or symbols)

1. Press the dust collector release button to separate the dust collector from the water tank.

Technical line drawing of a mechanical device with a drop symbol and a hand pointing to a component (no text or labels)

1. Rinse the water tank, dust collector and filter assembly thoroughly with water.

Illustration of kitchen fixtures including a faucet, a washing machine, and a drawer with a lid (no text or symbols)

Do not use hot water, or any detergent, to clean the filter assembly.

30 31

1. Air dry the water tank, dust collector and filter assembly completely before next use.

Illustration of household appliances including a sun, timer, tray, and storage unit (no text or symbols)

1. Replace the pre-filter, foam filter, and high-performance filter.

2. Put the filter assembly back into the dust collector.

Illustration showing a hand holding a folded paper or sheet and a device with a brush (no text or symbols)

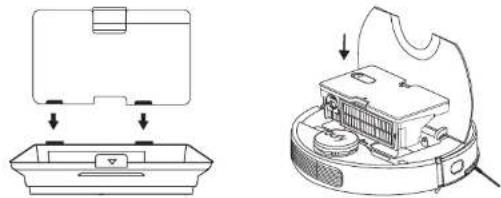

1. Reinstall the dust collector with the water tank

2. Push the assembly back into the main unit.

Technical line drawing showing a device with a lid and base, alongside its internal components (no text or symbols)

EnglishEng

Clean the Rolling Brush

1. Pull on the release tabs to unlock the brush guard as shown.
2. Lift the rolling brush to remove.
3. Clean the rolling brush with a clearing tool or a vacuum cleaner
4. Reinstall the ro ling brush by inserting the fixed protruding end first and then clicking into place.
5. Press down to snap the brush guard into place.

①

②

③

4

5

Clean the Side Brush

Foreign substances, such as hair, can easily get tangled in the side brush, and dirt may adhere to it. Be sure to clean it regularly.

1. Use a Phillips screwdriver to Unscrew the screw.

32 33

1. Carefully unwind and pull off any hair or string that is wrapped between the main unit and the side brush.
2. Use a cloth dampened with warm water to remove dust from the brush or to gently reshape it.

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Only use the side brush when it is completely dry

Replace the Side Brush

The side brushes may become bent or damaged after being used for a period of time. Follow the instructions below to replace it.

Illustration of two robotic vacuum cleaner setups with hand tool (no text or symbols)

1. Use a Philips screwdriver to unscrew the screw on the side brush.
2. Pull off the old side brush and snap the new one into place.
3. Screw down the screw to fasten the side brush

EnglishEng

Clean the Sensors and Charging Pins

To maintain the best performance, clean the drop sensors and charging pins regularly.

• Dust off the sensors and charging contact pins using a cloth or cleaning brush.

Diagram of a car dashboard with labeled components and interior views

Clean the Swivel Wheel

Hair or dust particles can easily get entangled in the swivel wheel. Be sure to clean the swivel wheel periodically and as needed.

1. Pull out the swivel wheel.

Technical line drawing of a circular robotic device with internal components and an upward arrow indicator (no text or symbols)

1. Clean any hair or debris wrapped around the wheel or entangled inside the wheel cavity.

34 35

1. Reinstall the wheel and push in until it clicks into place.

Do not clean the swivel wheel with water.

Clean the mopping module

It is recommended to clean the mopping cloth after each use.

Diagram illustrating the process of removing a leaf from a water surface into sunlight, with labeled steps and visual elements.

1. Remove the mopping cloth from the module.
2. Clean the cloth with water and air-dry it completely to avoid being mildewed or producing unpleasant smell.

Troubleshooting

Problems Solutions
RoboVac cannot be activated.	Make sure RoboVac is connected to a power source.Make sure the battery is fully charged.If you still have trouble, reset the RoboVac (refer to the "Using Your RoboVac > Reset the System" section in this manual).
RoboVac suddenly stops working.	Check if RoboVac is trapped or stuck on an obstacle.Check if the battery level is too low.If you still have trouble, turn off RoboVac, wait for 3 seconds, and then turn it back on.
You cannot schedule cleanings.	Make sure RoboVac is turned on.You can set the time of day and scheduled cleaning time via the EufyHome app.Make sure the scheduled time has been set correctly.Check if RoboVac's power is too low to start cleaning.RoboVac will not start a scheduled cleaning while are already performing a task.
Suction power is weak.	Check if any obstructions are blocking the suction inlet.Empty the dust collector.Clean the filter with waterCheck if the filter is wet due to water or other liquid on the floor. Air-dry the filter completely before use.
RoboVac cannot be charged.	Check if the indicator on the Charging Base lights up (when RoboVac is not on the Charging Base). If not, contact the eufy service center to repair or replace the Charging Base.Check if the indicator on the Charging Base is off and the light on the main unit is breathing during charging.Dust off the charging contact pins with a dry cloth
RoboVac cannot return to the Charging Base.	Remove checks within 1.6 ft/0.5 m to the left and right side and within 4.9 ft/1.5 m of the front of the Charging Base.Make sure RoboVac started cleaning from the Charging Base and has not been moved during cleaningWhen RoboVac is in the vicinity of the Charging Base, it will return more quickly. However, if the Charging Base is located far away, RoboVac will need more time to return. Please be patient as it works its way back.Clean the charging contact pins.

Problems Solutions
The rolling brush does not rotate.	Clean the rolling brush.Check if the rolling brush and brush guard have been installed properly.
RoboVac's movements or travel path are abnormal.	Clean the sensors carefully with a dry cloth.Restart RoboVac by turning RoboVac off and on.
Water is not released during mopping.	Make sure there is enough water in the water tank.Check if the mopping module is correctly installed. Once correctly installed, you will hear the corresponding voice prompts.Check if the water outlets are blocked.
RoboVac cannot connect to a Wi-Fi network.	Make sure your Wi-Fi router supports the 2.4GHz and 802.11b/g/n bands, the 5GHz band is not supported. For details, refer to the "Troubleshooting > Wi-Fi connection" section in this manual.
You cannot control RoboVac with Amazon Alexa.	Check if there are any Internet connection problems.Check whether you have installed the Amazon Alexa app onto your smart device and enabled "EufyHome - RoboVac" skill in the Amazon Alexa app. For details, refer to the "Smart Integrations" page in the EufyHome App.Make sure you have a EufyHome account and that it is connected to RoboVac.Make sure you are using correct Alexa voice-commands.
You cannot control RoboVac with the Google Assistant.	Check if there are any Internet connection problems.Check if you have installed the Google Home app onto your smart device and initiated the "EufyHome" action in the Google Home app. For details, refer to the "Smart Integrations" page in the EufyHome App.Check if you are using the proper commands when talking to the Google Assistant. When making your request, first say the wake words "Ok Google".Repeat your question. Speak clearly to the Google Assistant.

EnglishEng

Voice Alert

When RoboVac encounters a problem, the red indicator on RoboVac will be flashing and you will hear the relevant voice prompts. Follow the voice prompts to solve the problems.

Voice Prompt Cause and Solution
Error 1: Front bumper stuck	Front bumper is stuck. Tap it repeatedly to remove any dust; if no, then move the device to a new position and try again.
Error 2: Wheel stuck. Check the wheel and move it to a new position.	Wheel may be stuck or trapped. Clear any obstacles in the surrounding area and check the wheel for any trapped dust. Move the device to a new position and try again.
Error 3: Side brush stuck Side brush	may be stuck. Please clean it and try again.
Error 4: Rolling brush stuck. Remove and clean the rolling brush.	Remove the rolling brush, roller joint, roller brush cover, and suction inlet to clean it. Once cleaned, place the terms back into the device and try again.
Error 5: Device trapped. Clear the surrounding area.	Device is trapped. Clear any obstacles in the surrounding area and try again.
Error 6: Device trapped. Place device near the position where the problem occurred.	Device may be suspended in air. Move it to a new position close to the original position and try again. If the device is still unable to start, clean the edge sensor and try again.
Error 7: Wheel suspended. Please move the device to a new position.	Wheels may be suspended in air. Move the device to a flat surface and a new position close to the original position than try again.
Error 8: Low battery, shut ing down device. Please charge your device.	Low Battery: system will shut down. Charge the device and try again.
Error 9: Magnetic Boundary Strip detected. Move device to a different area.	Device is too close to a strong magnetic field or strip. Move the device to a different area and try again.
Error 11: Front infrared sensor needs cleaning.	Front infrared sensor is blocked by dust and requires clearing.
Error 12: Right wall sensor needs cleaning.	Clean the right side wall sensor since it's covered in dust.
Error 13: Device tilted. Please put the device on a flat surface to start.	Device may be tilted. Put the device on a flat surface and try again.

Voice Prompt Cause and Solution
Error 14: Please insert dust collector and filter	Put the dust collector and filter back in and confirm that they are in place. Then restart the device.
Error 17: Restricted area detected. Move device to a different area	Device is too close to the restricted area. Move the device to a new position and try again.
Error 18: Laser cover may be stuck	Pressure sensor for laser cover is stuck. Move the device to a new position and try again.
Error 19: Laser sensor may be stuck	Laser ranging sensor is covered in cust. Clean it and try again.
Error 20: Laser sensor may be blocked.	Laser sensor is blocked by:An empty environmentMetal mirrors.Other multi-reflection devicesRemove any obstacles and move the device to a different area.
Error 21: Charging Base blocked by surrounding obstacles	Charging base is blocked by obstacles, clear any obstacles around the charging base and try again.
Error S1: Battery Error. Refer to Owner's Manual or App for help.	- Open the battery compartment and check whether the battery is connected and restart the device.- Battery Temperature may be too high or low; wait until the battery falls to normal temperatures before usage (O° - 40 °C/C 32 °F to 104 °F).If the issue persists, contact customer support for help.
Error S2: Wheel Module Error.Refer to Owner's Manual or App for help.	- Check whether the wheels are stuck or dust is trapped inside before restarting the device.- If the issue persists, contact customer support for help.
Error S3: Side Brush Error. Refer to Owner's Manual or App for help.	- Check whether the side brush is stuck in an unknown object before restarting the device.- If the issue persists, contact customer support for help.
Error S4: Suction Fan Error. Refer to Owner's Manual or App for help.	- Check whether the fan blades are stuck in an unknown object before restarting the device.- Clean the dust collector and filter before restarting the device.- If the issue persists, contact customer support for help.

EnglishEng

Voice Prompt Cause and Solution
Error S5: Rolling Brush Error. Refer to Owner's Manual or App for help.	- Remove and clean the roller brush, roller brush connection, roller brush cover and suction inlet before restarting the device.- If the issue persists, contact customer support for help.
Error S6: Water Pump Error. Refer to Owner's Manual or App for help.	- Clean the water tank, water pump connection, water pump interface, and water outlet at the bottom of the device before restarting the device hidden under the cloth cover.- If the issue persists, contact customer support for help.
Error S7: Laser Sensor Error. Refer to Owner's Manual or App for help.	- Check and clean the laser sensor for unknown objects before restarting the device.- If the issue persists, contact customer support for help.

Wi-Fi Connection

Before Wi-Fi setup, make sure RoboVac and your Wi-Fi network meet the following requirements.

Wi-Fi Setup Requirements

• RoboVac:
• RoboVac is fully charged and the main power switch on the bottom of RoboVac is turned on.
• Wi-Fi status light slowly flashes blue

- Wi-Fi Network

- Use the correct password for your network.

Do not use a VPN (Virtual Private Network) or Proxy Server.

- Your Wi-Fi router supports 802.1lb/g/n and IPv4 protocol

- You are using a 2.4GHz router or a dual-band router that is configured to support a 2.4GHz frequency band. RoboVac does not support 5GHz frequency band.

IT RoboVac cannot connect to the Wi-Fi network and you are using a 2.4/5GHz/mixed network, switch to a 2.4GHz/mixed network for Wi-Fi setup. You can switch back once your setup is complete.

- When connecting to a hidden network, make sure you enter the correct network name, SSID (case sensitive), and connecting to a 2.4GHz wireless network.

- When using a network extender/repeater, make sure the network name (SSID) and password are the same as your primary network.

The firewall and port settings of your Wi-Fi router allow RoboVac to connect with the Fully servers.

Network Security Requirement

- WPA and WPA2 using TKIP, PSK, AES/CCMP encryption

Wi-Fi Channels

• The FCC requires that all wireless devices in the United States operate on the 1-TI wireless spectrum channels.
• Some countries outside North America can use spectrum channels higher than channel II. Refer to your local regulatory agency to determine which channels are accessible.
• A future software release will support access to channels above 11 for users outside North America. Until then, use channels 1-11.

If you cannot control RoboVac with your smartphone, try the solutions below to solve the problem. If the problem persists, contact the early service center for help.

Wi-Fi Status Light Cause Solutions
Solid blue	RoboVac has connected to your router, but cannot access the Internet.	Check if your router is connected to the Internet.Check with your Internet provider to see if there is any Internet connection problem.
Rapidly flashing blue	RoboVac cannot connect to your wireless router.	Check if you have modified your network name and password.Reset Wi-Fi connection if necessary. Refer to the "Use Your RoboVac with the EufyHome App > Reset the Wi-Fi connection" section in this manual.
Slowly flashing blue	Wi-Fi connection is reset or has not been set up before.	Set up Wi-Fi connection with RoboVac. Refer to the "Use Your RoboVac with the EufyHome App" section in this manual.Reset Wi-Fi connection if necessary. Refer to the "Use Your RoboVac with the EufyHome App > Reset the Wi-Fi connection" section in this manual.
Off	RoboVac is turned off.RoboVac's power level is low.RoboVac is in Sleep mode.	Make sure RoboVac is turned onCharge RoboVac by attaching it to the Charging Base.

English

Specifications

RoboVac	Input 24 V 15 A	==
	Battery Voltage 14.4 V	==
	Power Consumption 50 W
	Battery Type	14.4 V === Li-Ion 5200 mAh (Typica)
	Dust Collector Capacity	0.45 L
	Cleaning Time Max. 150 mins
	Charging Time 240 - 300 mins
Charging Base	Input 24 V 15 A	==
	Output 24 V 15 A	==

Customer Service

For FAQs and more information, please visit www.eufylife.com.

[e-mail]

www.eufylife.com

(US)·1(800) 9887973 Mon-Fri 9.00cm - 5.00pm (P1)	(中国)·86400 0590 036 周一至周五 9:00 - 17:30
(UK)·44(0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT)	(日本)·8103 4655 7823 月-金 9:00 - 17:00
(DE)·49(0) 69 9579 7960 Mo-Fri 6:00 - 11:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

Anker Innovations Limited

Room 1315-19, Hollywood Plaza, 610 Nathan Road, Morykok, Kowloon, Hong Kong

42

Inhalt

Pure diagram of four rectangular panels with horizontal lines and a central circular arrow, no text or symbols present.

Simple line drawing of a device with a bracket and a separate slot, no text or symbols present

Line drawing of a device with a cable and connector (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached device and control panel (no text or symbols)

Line drawing of a robotic vacuum cleaner with a close-up inset showing the handle (no text or symbols)

Diagram of a robotic vacuum cleaner with a close-up view of the component (no text or symbols)

EupHome EupHome Download on the App Store GET IT ON Google Play

Line drawing of a robotic vacuum cleaner with a circular component above it (no text or symbols)

4.5/15m 4.9/16m 6 any

Diagram showing a device's internal components and assembly process (no text or labels)

Illustration showing a hand holding a knife cutting a plate, with an arrow indicating the process (no text or symbols present)

Simple line drawing of a vehicle or container with a checkmark and X mark, no text or symbols present.

Line drawing of a hand using a vacuum cleaner to clean a small electronic device (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with internal components (no text or symbols)

Diagram of a mechanical device with a lever and curved arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid into a glass cup (no text or symbols)

Line drawing of a hand inserting a water droplet into a container (no text or symbols)

Diagram showing household appliances including a faucet, a washing machine, and a rack (no text or labels)

Illustration of household items including a sun, clock, storage box, and drawer (no text or symbols)

Illustration showing a hand using a tool to lift a flat surface and then to lift a device with a brush (no text or symbols present)

Technical line drawing showing a device with a lid and base, alongside its internal components (no text or symbols)

Deutsch De

Line drawing of a robotic vacuum cleaner inside a circular housing, showing internal components and a hand holding the tool (no text or symbols)

Illustration of two circular vacuum cleaner designs being adjusted, showing internal components and a hand holding a tool (no text or symbols present)

Diagram of a smart home control panel with labeled components and navigation arrows

Technical line drawing of a circular robotic device with internal components and an upward arrow indicator (no text or symbols)

Diagram illustrating the process of surface water treatment with labeled steps: surface water being washed, receiving water, and sunlight streaming.

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fu 9:00am - 5:00pm (P'T)	(中国) -86 400 0550 036 同一至周五 9:00 - 17:00
(UK) -44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT)	(日本) -81 03 4455 7823 月-金 9:00 - 17:00
(DE) -49 (0) 69 95/9 7960 Mo-Fr 6:00 - 11:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

Índice

Pure diagram of four panels showing horizontal and vertical lines with a circular arrow, no text or symbols present.

Two identical diagrams showing a corner with a checkmark and an X symbol, no text or labels present.

Line drawing of a device with a rectangular housing and a separate rectangular component, connected by an arrow to a circular outline (no text or symbols)

Line drawing of a device with a cable and connector (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached device (no text or symbols)

Technical diagram of a robotic vacuum cleaner with labeled parts and a close-up inset showing the handle mechanism.

Line drawing of a robotic vacuum cleaner with a circular inset showing a component (no text or symbols)

Line drawing of a circular device with a handle and labeled component (no text or symbols)

Diagram showing a device assembly process with labeled parts and steps, including a valve or drain component.

Illustration showing a hand holding a triangular tool and a separate blade with arrows indicating motion (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand adjusting the component (no text or symbols)

Line drawing of a robotic vacuum cleaner with internal components (no text or symbols)

Diagram of a mechanical device with a lever and curved arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid into a glass cup (no text or symbols)

Line drawing of a hand inserting a water droplet into a container (no text or symbols)

Diagram showing kitchen sink components including faucet, drawer, and storage tray (no text or labels)

Illustration of household items including a sun, clock, storage box, and drawer (no text or symbols)

Illustration showing a hand pressing down on a folded panel and a mechanical device with a lever (no text or symbols)

Technical line drawing showing a device with a lid and base, alongside its internal components (no text or symbols)

Español Esp

Diagram of a robotic vacuum cleaner with internal components and a hand inserting a cable (no text or symbols)

Illustration of two robotic vacuum cleaner designs with hand tool (no text or symbols)

Diagram of a car interior with labeled components and a separate device panel

Technical line drawing of a circular robotic device with internal components and an upward arrow indicator (no text or symbols)

Diagram illustrating the process of removing a leaf from a pan into a surface, with sunlight as the sun.

[e-mail]

www.eufylife.com

(US) -1 [phone] Mon-Fri 9:00am - 5:00pm (PT)

(UK) -44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT)

(DE) -49 (0) 69 9579 7960 Mo-Fri 6:00 - 11:00

(中国)-86 400 0550 036 周一至周五 9:00-17:30

(日本)-81 03 4455 7823 月-金 9:00-17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

126

Table des matières

Technical line drawing of a robotic vacuum cleaner with internal components (no text or symbols)

Pure diagram of four rectangular panels with horizontal lines and a central circular arrow, no text or symbols present.

Two identical mechanical component diagrams with checkmark and cross symbols, no text or labels present

Line drawing of a mechanical component with a separate housing and a circular base (no text or symbols)

Line drawing of a handheld device with a cable and connector (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached device and control panel (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing a pin or knob (no text or symbols)

Line drawing of a robotic vacuum cleaner with a close-up inset showing the component (no text or symbols)

Technical diagram of a vacuum cleaner with labeled component and circular dial indicator

Diagram showing a robotic vacuum cleaner's internal components and their assembly steps (no text or labels)

Illustration showing two hands holding a flat blade and a folded blade, with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to clean or install a small electronic device (no text or symbols visible)

Technical line drawing of a robotic vacuum cleaner with internal components (no text or symbols)

Diagram of a mechanical device with a lever and curved arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid into a cup (no text or symbols)

Diagram showing a hand pressing a button into a device with a water droplet symbol indicating water level.

Diagram showing kitchen sink components including faucet, drawer, and drawer holder (no text or labels)

Illustration of household items including a sun, clock, storage box, and drawer (no text or symbols)

Illustration showing a hand holding a folded paper or sheet and a mechanical device with a lever (no text or symbols)

Technical line drawing showing a device with a lid and base, alongside its internal components (no text or symbols)

Français Fr

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Illustration of two hand-crank robotic vacuum cleaner setups, showing internal components and adjustment arrows (no text or symbols)

Diagram of a car dashboard with labeled components and interior views

Technical line drawing of a circular robotic device with internal components and an upward arrow indicator (no text or symbols)

160 161

Diagram illustrating the process of surface weathering from a hand to sunlight, showing water transfer and evaporation steps.

[e-mail]

www.eufylife.com

(US) -1 [phone] Mon-Fri 9:00am - 5:00pm (PT)

(UK) -44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT)

(DE) -49 (0) 69 9579 7960 Mo-Fri 6:00 - 11:00

(中国)-86 400 0550 036 周一至周五 9:00-17:30

(日本)-81 03 4455 7823 月-金 9:00-17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

ItalianoFranc

Sommario

Pure diagram of four panels showing U-shaped pipes and a circular dial with 'H' label, no text or symbols present.

Two identical line drawings of a corner bracket with a checkmark and an 'X' symbol, no text or labels present.

Simple line drawing of a mechanical component with a circular base and an arrow pointing to it (no text or symbols)

Simple line drawing of a device with a cable and connector (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached device (no text or symbols)

Technical diagram of a robotic vacuum cleaner with labeled parts and a close-up inset showing the component.

Line drawing of a robotic vacuum cleaner with a circular inset showing a handle (no text or symbols)

Technical line drawing of a mechanical device with a circular component and labeled parts (no text or symbols)

Diagram showing a device assembly process with labeled parts and steps, including a valve or drain component.

Illustration showing a hand holding a knife cutting a surface, with an arrow indicating the process (no text or symbols present)

Simple line drawing of a vehicle or container with a checkmark and X mark, no text or symbols present.

Line drawing of a robotic vacuum cleaner with a hand adjusting the component (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with internal components (no text or symbols)

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid into a glass cup (no text or symbols)

Line drawing of a hand inserting a water droplet into a container (no text or symbols)

Diagram showing household appliances including a faucet, a storage unit, and a rack (no text or labels)

Illustration of household items including a sun, clock, storage box, and drawer (no text or symbols)

Illustration showing a hand pressing down on a folded paper or sheet, and a close-up of the paper being inserted with a tool (no text or symbols present)

Diagram showing a device with a lid and base, and its internal components with arrows indicating assembly (no text or symbols present)

Italiano Ital

Line drawing of a robotic vacuum cleaner with a hand inserting a cable (no text or symbols)

Illustration of two robotic vacuum cleaner designs with hand tool (no text or symbols)

Diagram of a car dashboard with labeled parts and interior views, including front, rear, and side views.

Technical line drawing of a circular robotic device with internal components and a directional arrow (no text or symbols)

202 203

Diagram illustrating the process of a food item being processed with a faucet, showing steps from raw material to sun and water.

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9:00am - 5:00pm (PT)	(中国) [phone] 周一至周五 9:00-17:30
(UK) -44 (0) 1604936200 Mon-Fri 6:00 - 11:00 (GMT)	(日本) -810344557623 月-金 9:00-17:00
(DE) -49 (0) 699579760 Mo-Fri 6:00 - 11:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

NederlandsItali

Inhoudsopgave

Four-panel diagram showing a U-shaped tube layout, a circular dial with arrow indicating direction (no text or symbols)

Two identical line drawings of a corner bracket with a checkmark and an 'X' mark, no text or symbols present.

Simple line drawing of a device with a bracket and a separate rectangular component, no text or symbols present.

Line drawing of a laptop connected to a cable via a connector (no text or symbols)

Line drawing of a robotic vacuum cleaner with a mounted device and a circular base (no text or symbols)

Line drawing of a robotic vacuum cleaner with a close-up inset showing the handle (no text or symbols)

Line drawing of a robotic vacuum cleaner with a circular component inserted, showing no text or symbols

EufyHome EufyHome Download on the App Store GET IT ON Google Play

Technical line drawing of a mechanical device with a circular component and a base plate (no text or symbols)

4.5/15m 4.9/16m 6 any

• Hou€ 3 seconder ingedrukt om gericht schoonmaken te starter.

3°

Diagram showing a robotic device with internal components and a close-up of its internal structure, no text or symbols present.

Illustration showing two hand-drawn diagrams: one with a knife cutting a blade, the other with a blade being cut (no text or symbols)

Line drawing of a hand using a tool to clean or install a small electronic device (no text or symbols visible)

Technical line drawing of a robotic vacuum cleaner with internal components (no text or symbols)

Diagram of a mechanical device with a lever and directional arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a triangular ruler and then folding into a grid (no text or symbols)

Nederlands

Line drawing of a hand pouring liquid into a glass cup (no text or symbols)

Line drawing of a hand inserting a water droplet into a container (no text or symbols)

Illustration of kitchen fixtures including a faucet, a storage tray, and a rack (no text or symbols)

Illustration of household items including a sun, timer, toilet, and storage unit (no text or symbols)

Illustration showing a hand pressing down on a folded paper sheet and a device with a handle (no text or symbols)

Technical line drawing showing a device with a lid and base, alongside its internal components (no text or symbols)

Nederlands

De borstelrol schoonmaken

Line drawing of a robotic vacuum cleaner with a hand inserting a cable (no text or symbols)

Illustration of two robotic vacuum cleaner designs with hand tool (no text or symbols)

Diagram of a car dashboard with labeled parts including steering wheel, dashboard, and control panel

Technical line drawing of a circular device with internal components and an upward arrow indicating motion (no text or symbols)

244 245

Diagram illustrating the process of sun radiation, showing how sunlight increases water flow through a pipe and then to sunlight.

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9.00pm - 5.00pm (PT) (UK) [phone] Mon-Fri 6.00 - 11:00 (GMT) (DE) [phone] Mo-Fri 6:00 - 11:00

(中国) - 864000550036 周一至周五9:00-17:30 (日本) - 810344557823 月-金9:00-17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial
