HomeVac S11 Infinity - Vacuum Cleaner eufy - Free user manual and instructions

Product type	Cordless stick vacuum
Brand	Eufy
Model	HomeVac S11 Infinity
Dimensions (L x W x H)	265 x 215 x 1145 mm
Weight	1.5 kg
Color	White and silver
Power supply	Lithium-ion battery 22.2 V / 2000 mAh
Run time	Up to 40 minutes (Eco mode) / 15 minutes (Turbo mode)
Charging time	Approximately 4 hours
Dustbin capacity	0.6 L
Filtration	Cyclonic filter + washable HEPA filter
Suction power	Up to 20 kPa of suction
Noise level	Approximately 70 dB
Main features	3 suction modes (Eco, Normal, Turbo), front LED, converts to handheld vacuum
Included accessories	Motorized brush, crevice tool, 2-in-1 brush, wall mount, power adapter
Maintenance and cleaning	Clean the filter every month, empty the dustbin after each use
Safety	Automatic shut-off in case of overheating, safe battery with overcharge protection
Spare parts and repairability	Replacement filter, replaceable battery, accessories available separately
General information	2-year warranty, CE certified manufacturing

Frequently Asked Questions - HomeVac S11 Infinity eufy

How do I empty the vacuum dustbin?

Press the dustbin release button on the front of the unit, remove it, and empty the contents into a trash bin. You can also rinse the dustbin with warm water.

How do I clean the filter?

Remove the filter by turning the dustbin cap. Gently tap to remove dust, then wash with cold water. Let dry completely for 24 hours before reinstalling. Do not use detergent.

How long does the battery last?

The run time is approximately 40 minutes in Eco mode, 25 minutes in Normal mode, and 15 minutes in Turbo mode. Results may vary depending on surface type and accessories used.

How do I charge the vacuum?

Plug the power adapter into the charging port on the back of the handle or place the vacuum on the wall mount. The LED indicator blinks during charging and stays solid when fully charged.

Can the vacuum be used as a handheld vacuum?

Yes, press the tube release button to separate the motor unit from the tube. Then attach the desired accessory directly to the motor for portable use.

What accessories are included?

The kit includes a motorized brush for hard floors and carpets, a crevice tool for tight spaces, a 2-in-1 brush for delicate surfaces, a wall mount, and the power adapter.

How do I install the wall mount?

Attach the mount to the wall using screws and wall plugs (not included). Ensure it is level. Place the vacuum in the mount for storage and charging.

What should I do if the vacuum loses power?

Check if the dustbin is full or the filter is clogged. Clean the filter and empty the dustbin. Also inspect the brush for any hair tangles or debris.

How do I replace the battery?

The battery is built-in and replaceable. Contact Eufy customer service to obtain a replacement battery. To remove it, unscrew the battery compartment screws and disconnect the connector.

Is the vacuum suitable for pet hair?

Yes, the motorized brush is designed to effectively pick up pet hair on carpets and hard floors. Remember to clean the brush regularly to avoid tangles.

USER MANUAL HomeVac S11 Infinity eufy

For FAQs and more information, please visit:

www.eufylife.com

Handstick Vacuum Cleaner

Owner's Manual

T2501 51005002031 V01

02 Important Safety Instructions

05 Overview

07 Assembling

08 Wall Mounting

09 Recharging

11 Using

11 Maintenance

14 Specifications

15 Customer Service

Thank you for purchasing this appliance. Carefully read all instructions before using this product, and keep this manual for future reference.

Important Safety Instructions

READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• Recharge only with the charger (US: YLS0241A-T300080; UK: YLS0241A-U300080; AU: YLS0241A-A300080; EU: YLS0241A-E300080) specified by the manufacturer. A charger that is suitable for one type of battery pack may cause a risk of fire when used with another battery pack.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• The battery must be removed from the device before the device is disposed of.
• This appliance must be disconnected from the mains supply when removing the battery.
• The used battery should be placed in a sealed plastic bag and disposed of safely according to local environmental regulations.
  • Fully assemble before operating.
• Intended for household use only.
• Do not use outdoors or on wet surfaces.
• Do not leave this appliance unattended when it is plugged in. Unplug it from the outlet when you are not using it and before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer recommended attachments.

• For the purposes of recharging the battery, only use the detachable power supply unit provided with this device.

• Do not use with a damaged cord or plug. If the appliance is not working as it should, or has been dropped, damaged, or submerged in water, contact our customer service for advice.
• Do not handle the plug or appliance with wet hands.
• Do not unplug the adapter by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.
• Do not put any object into openings or vents. Do not use if any opening is blocked. Keep free of dust, lint, hair, and anything else that may reduce airflow.
• Keep hair, loose clothing, fingers, and other body parts away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
  • Always turn off this appliance before connecting or disconnecting the motorized floor brush.
• To prevent unintentional starting, ensure the appliance is switched off before installing the battery pack, picking up or carrying the appliance. Do not carry the appliance with your finger on the power switch, doing so may cause accidents.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not use without the dust collector and/or filters in place.
• Store this appliance indoors, in a cool and dry area.
• Make sure that the outlet voltage corresponds to the voltage rating on the charger's label.
• Do not attempt to repair or disassemble this appliance. There are no user-serviceable parts inside. Repair or service must be performed by a qualified repairman and only identical replacement parts can be used. This will ensure the safety of the appliance.
• This appliance includes a rechargeable lithium-ion battery pack. Do not expose the battery pack or appliance to fire or excessive temperature (above 130^ ), as it may catch fire and/or explode.
• Do not use a damaged or modified battery pack, as it may catch fire and/or explode.
• Charging, using and storage of the appliance should be within the ambient temperature range of 8-35°C.
• Follow all the charging instructions and do not charge the battery pack out of the temperature range specified in the instructions, otherwise, it may damage the battery and increase the risk of fire.
• Do not attempt to disassemble the battery pack.

EnglishEng

SAVE THESE INSTRUCTIONS

This symbol on the device or its packaging indicates:

Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal at least free of charge.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type T2501 is in compliance with Directives 2014/35/EU & 2014/30/EU.

The full text of the EU declaration of conformity is available at the following internet address: https://www.eufylife.com/

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

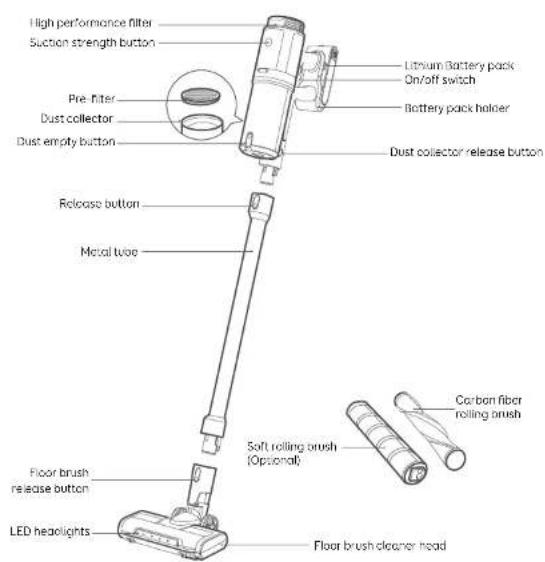

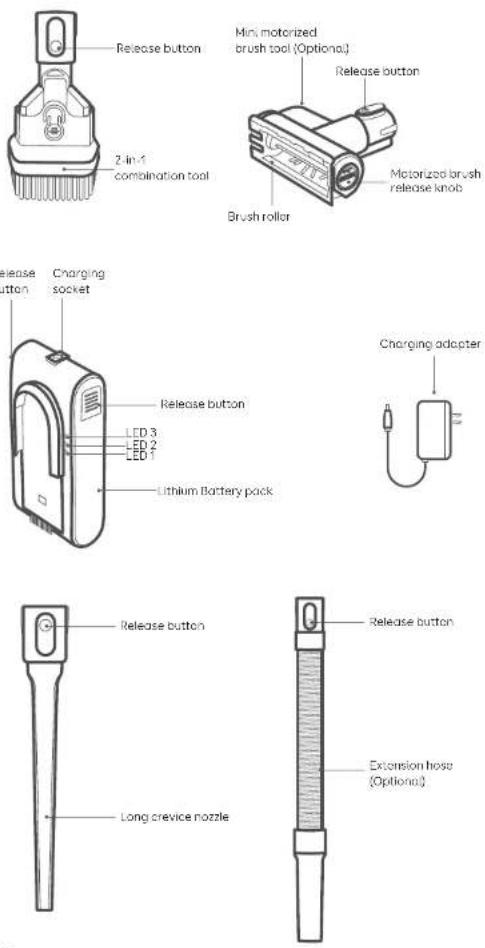

Overview

EnglishEng

06 07

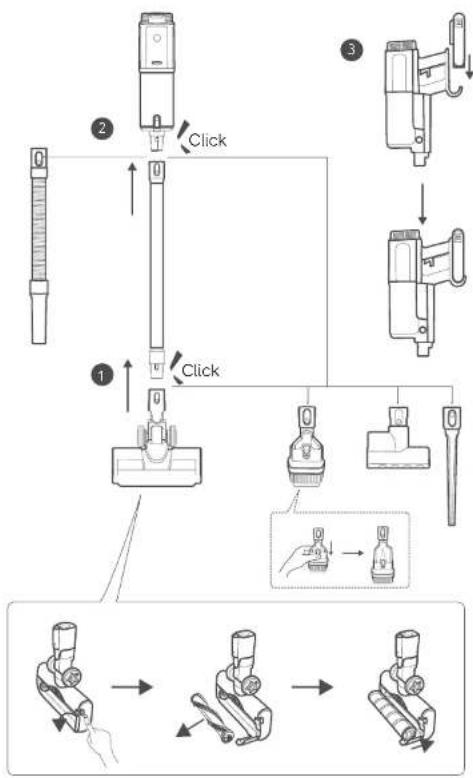

Assembling

Attach your desired cleaning accessory to the metal tube as illustrated.

EnglishEng

Wall Mounting

The vacuum cleaner cannot stand on its own. Make sure it is mounted securely.

1

2

3

4

5

08 09

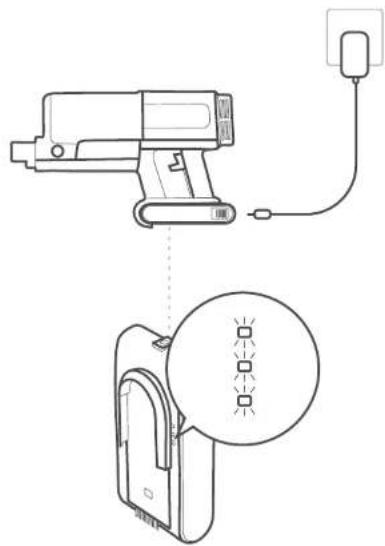

Recharging

The vacuum cleaner is powered by the built-in lithium battery. Before first use, charge the battery for more than 3.5 hours.

• The vacuum cleaner cannot work while charging.
- The vacuum cleaner cannot be charged when the ambient temperature is above 35°C.

Technical line drawing showing a handheld device connected to a power outlet and a circular diagram with four square markers (no text or symbols)

EnglishEng

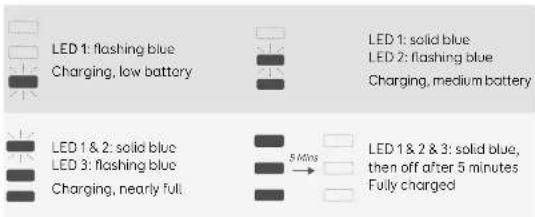

Lights during charging

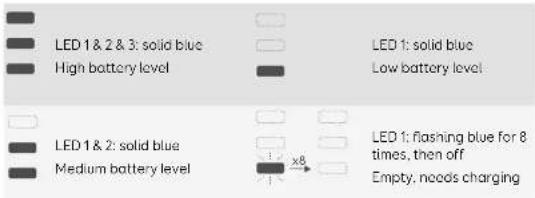

Lights during vacuuming

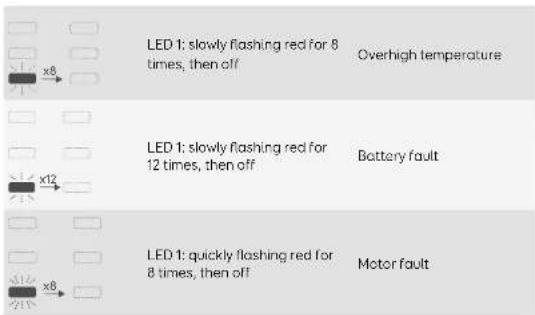

Lights when in trouble

10 11

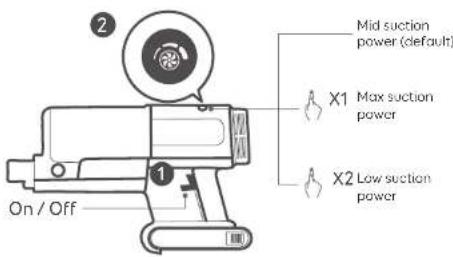

Using

Before use, make sure that

• the battery is fully charged.

- the dust cup and filters are cleaned, dried, and fixed in place.

Do not use to clean up water.

Maintenance

Empty the Dust Collector

EnglishEng

Clean the Dust Collector

Clean the Filters

Wash the filters with cold water at least once every month. Ensure the filters are completely dry before reassembly.

12 13

HomeVac Part	Cleaning Frequency	Replacement Frequency
Dust collector	After each use	-
Filter	Once every week (Twice a week if you have a pet)	Every 6 months or after every 50 rounds of cleaning

Clean the Rolling Brushes

Illustration of a mechanical device with cylindrical components and a tool inserted (no text or symbols)

Clean the Mini Motorized Brush

1

2

3

4

5

Customer Service

For FAQs and more information, please visit www.eufylife.com.

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9.00cm - 5.00pm (PT)

(UK) [phone] Mon-Fri 6:00 - 11:00 (GMT)

(DE) [phone] Mo-Fr 6:00 - 11:00

(中国)-864000550036 周一至周五9:00-17:30

(日本)·810344557823月-金9:00-17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

Specifications

Model T2501

Charging Input 30V 0.8A

...

Rated Power 350W

Running Time Max. 40 minutes (one battery)

Battery Cell Capacity 2500 mAh

Battery Rating DC25.2V Li-ion 2500mAh 63Wh

Charging Time 3.5 hours

Inhaltsverzeichnis

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong

DeutschDe

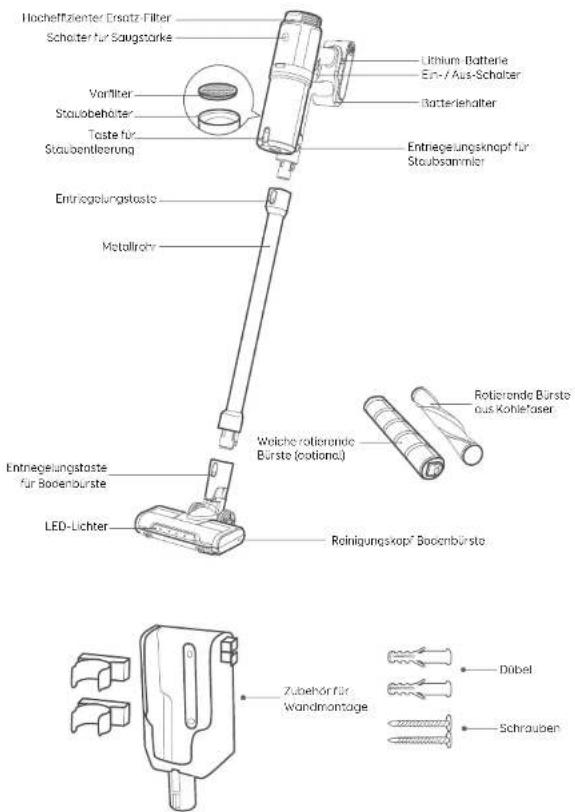

Übersicht

Diagram showing a handheld device connected to a power outlet via cable, with a close-up of its internal components (no text or symbols present)

Technical illustration of a mechanical device with cylindrical components and a lever mechanism (no text or symbols)

Technische Daten

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9:00am - 5:00pm (PT)

(UK) [phone] Mon-Fri 6:00 - 11:00 (GMT)

(DE) [phone] Mo-Fr 6:00 - 11:00

(中国)·864000550036 周一至周五9:00-17:30

(日本) [phone] 月-金9:00 - 17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

30

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

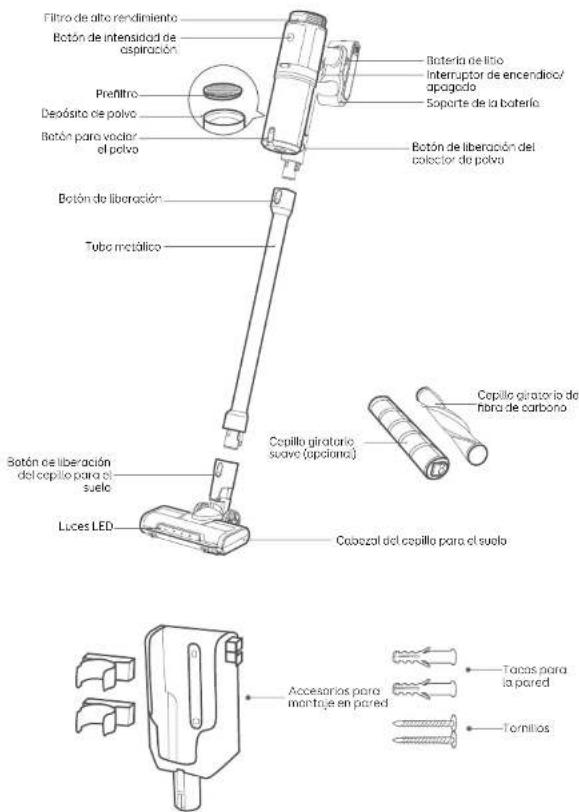

Descripción general

Technical line drawing showing a handheld device connected to a power outlet and a circular diagram with four square markers (no text or symbols)

EspañolEsp

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9:00am - 5:00pm (PT)

(UK) [phone] Mon-Fri 6:00 - 11:00 (GMT)

(DE) [phone] Mo-Fr 6:00 - 11:00

(中国) - 86 400 0550 036 周一至周五 9:00 - 17:30

(日本)·810344557823月-金9:00-17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

Especificaciones

Modelo T2501

Technical line drawing of a handheld device connected to a power outlet, with an inset showing a circular diagram of three square indicators (no text or symbols present)

Technical illustration of a mechanical device with cylindrical components and a base assembly (no text or symbols)

Spécifications

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9:00am - 5:00am (PT)

(UK) [phone] Mon-Fri 6:00 - 11:00 (GMT)

(DE) =49 (0) 69 9579 7960 Mo-Fr 6:00 - 11:00

(中国) + 86 400 0550 036 周一至周五 9:00 - 17:30

(日本) [phone] 月-金9:00 - 17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

60

Montaggio a parete

Technical line drawing showing a handheld device connected to a power outlet and a circular diagram with four square markers (no text or symbols)

Italianolta

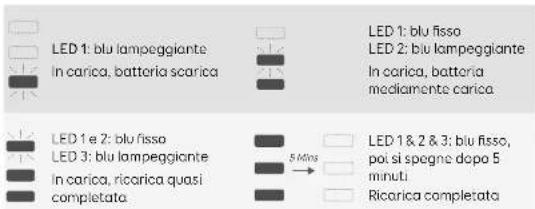

Spie luminose durante la ricarica

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9:00am - 5:00pm (PT)

(UK) [phone] Mon-Fri 6:00 - 11:00 (GMT)

(DE) -49 (0) 69 9579 7960 Mo-Fr 6:00 - 11:00

(中国) -86 400 0550 036 周一至周五 9:00 - 17:30

(日本)·810344557823月-金9:00-17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

Specifiche

Modello T2501

Technical line drawing showing a device connected to a power outlet and a magnified view of its internal components (no text or symbols present)

Illustration of a mechanical device with cylindrical components and a lever mechanism (no text or symbols)

Specifications

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9:00am - 5:00pm (PT)

(UK) [phone] Mon-Fri 6:00 - 11:00 (GMT)

(DE) [phone] Mo-Fr 6:00 - 11:00

(中国) [phone] 周一至周五 9:00 - 17:30

(日本) [phone] 月-金9:00 - 17:00

@EufyOfficial

@EufyOfficial

@EufyOfficial

@EufyOfficial

90

Русский

Оглавление

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Ionkoh

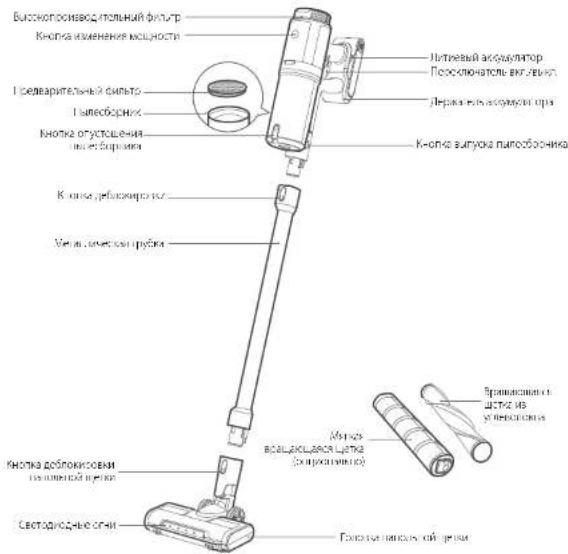

Общий вид

Diagram showing a handheld device connected to a power outlet and a circular device with four square indicators (no text or symbols present)

РусскийРус

Очистка фильтров

РусскийРус
