HomeVac H11 Pure - Vacuum Cleaner eufy - Free user manual and instructions

Product Type	Handheld Vacuum Cleaner
Model	HomeVac H11 Pure
Dimensions (H x W x D)	11.0 x 5.2 x 4.3 inches (approx.)
Weight	1.5 lbs (0.68 kg)
Power Source	Cordless, rechargeable battery
Battery Type	Lithium-ion (11.1V, 2200mAh)
Run Time	Up to 20 minutes on low speed
Charging Time	3-4 hours
Dust Capacity	0.6 liters (approx.)
Filtration System	Washable high-efficiency filter
Suction Power	8000 Pa (max)
Motor Speed Settings	2-speed (Standard / Boost)
LED Lights	LED headlight for dark areas
Attachments Included	Crevice tool, brush tool
Emptying Method	One-touch dust cup emptying
Filter Maintenance	Wash and dry completely every 2-3 months
Safety Features	Overheat protection, auto shut-off
Spare Parts Available	Replacement filter, battery (sold separately)
Repairability	Battery replaceable, motor not serviceable
Warranty	1 year limited
Compatible Surfaces	Hard floors, upholstery, car interior

Frequently Asked Questions - HomeVac H11 Pure eufy

How long does the battery last?

The battery lasts up to 20 minutes on standard mode and about 10 minutes on boost mode.

Can I use the vacuum while charging?

No, the vacuum cannot be used while charging. It must be fully disconnected from the charger to operate.

How do I clean the filter?

Remove the filter and rinse it under running water. Let it air dry completely (at least 24 hours) before reinserting.

How often should I replace the filter?

Replace the filter every 3 to 6 months depending on usage, or sooner if it becomes damaged.

What attachments come with the HomeVac H11 Pure?

It includes a crevice tool for tight spaces and a brush tool for upholstery and delicate surfaces.

How do I empty the dust cup?

Press the button on the dust cup to release and empty the contents. You can rinse the cup with water if needed.

What does the red LED light indicate?

A blinking red light indicates low battery. A solid red light during charging means it is charging; green means fully charged.

Is the battery removable and replaceable?

Yes, the battery is removable and replaceable. You can purchase a spare battery separately for extended runtime.

What is the suction power?

The maximum suction power is 8000 Pa (Pascals) on boost mode.

Can I vacuum liquids?

No, this vacuum is designed for dry materials only. Do not use it to pick up liquids, as it will damage the device.

USER MANUAL HomeVac H11 Pure eufy

For FAQs and more information, please visit:

www.eufylife.com

Handheld Vacuum Cleaner

Owner's Manual

01 Important Safety Instructions
11 What's in the Box
12 Charging
14 Vacuuming
16 Using the Ozone Purification Function
17 Cleaning and Maintenance
19 Specifications
20 Customer Service

Thank you for purchasing the handheld vacuum cleaner. Carefully read all instructions before using this product, and keep this manual for future reference.

Important Safety Instructions

When using an electrical appliance, you should always follow these basic precautions.

READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

- Do not store this appliance in a car. - Do not use or store this appliance in an environment with a high temperature, as it may damage the device or cause battery explosion.

• Fully assemble before operating.
  • Intended for household use only.
• Do not use outdoors or on wet surfaces.

• Do not leave the vacuum cleaner unattended when it is plugged in. Unplug it to an outlet when you are not using it and before servicing.
  01 02

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer recommended attachments.
• Do not use with a damaged cord or plug. If the appliance is not working as it should, or has been dropped, damaged, or submerged in water, contact our customer service for advice.
• Do not handle the plug or appliance with wet hands.
• Do not unplug the adapter by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.
• Do not put any object into openings or vents. Do not use if any opening is blocked. Keep free of dust, lint, hair, and anything else that may reduce airflow.
• Keep hair, loose clothing, fingers, and other body parts away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not carry the appliance with your finger on the power switch, doing so may cause accidents.

• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not use without the dust collector and/or filters in place.
• Store your vacuum cleaner indoors, in a cool and dry area.
• Do not attempt to repair or disassemble the appliance. There are no user-serviceable parts inside. Repair or service must be performed by a qualified repairman and only identical replacement parts can be used. This will ensure the safety of the appliance.
• Children should be supervised to ensure that they do not play with the vacuum.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• This appliance includes a rechargeable lithium-ion battery pack. Do not expose the battery pack or appliance to fire or excessive temperature (above 130^ ), as it may catch fire and/or explode.

• Do not use a damaged or modified battery pack, as it may catch fire and/or explode. 03 04

• Usage and storage of the appliance should be within the ambient temperature range of 0-40°C.

• The charging speed may become slower in environments with temperatures below 10^ , which is a common phenomenon.
• Follow all the charging instructions and do not charge the battery pack out of the temperature range specified in the instructions, otherwise, it may damage the battery and increase the risk of fire.
• Do not attempt to disassemble the battery pack.
• The battery must be removed from the device before the device is disposed of.
• The device must be disconnected from the mains supply when removing the battery.
• The used battery should be placed in a sealed plastic bag and disposed of safely according to local environmental regulations.
• Leaks from battery cells can occur under extreme conditions. If any liquid gets on the skin, wash quickly with soap and water. If any liquid gets into the eyes, do not rub eyes, immediately flush them with clean water continuously for a minimum of 15 minutes. Seek medical attention immediately.

SAVE THESE INSTRUCTIONS

This symbol on the device or its packaging indicates: Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal at least free of charge.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help.

The following importer is the responsible party (for FCC matters only).

Company Name: POWER MOBILE LIFE, LLC Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541 Telephone: [phone]

ISED Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type T2520 is in compliance with Directives 2014/35/EU & 2014/30/EU.

07 08

The full text of the EU declaration of conformity is available at the following internet address: https://www.eufylife.com/

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

AUSTRALIA & NEW ZEALAND WARRANTY

This document details the terms and conditions of the warranty provided with this product.

Please disregard any other representations contained on this product's packaging or provided with this product, which constitute or appear to constitute a warranty.

Subject to the exclusions and limitations set out below, we warrant to you that if you purchase a product directly from us, or, from any of our authorized resellers, that it will not contain defects which are a result of faulty manufacturer workmanship or materials. This warranty subsists for 24 months from the date of purchase. This warranty is provided in addition to your rights under the Australian & New Zealand Consumer Law.

Subject to any rights you have under the Australian & New Zealand Consumer Law, we will not be liable for defects which

are a result of damage or loss caused by factors beyond our control, any product which has not been maintained according to any care or maintenance instructions provided with the product, any alterations to a product which are not performed by us, or damage or defects caused to the product due to unusual or non-recommended use. We will not be liable for any special, indirect, consequential or economic loss or damage or loss of profits whatsoever suffered by you or any other person resulting from any act or omission by us. Our total liability in respect of this Warranty against Defects is limited to the replacement of the goods.

This Warranty against Defects is provided in addition to other rights and remedies that you may have at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

In order to claim the warranty, you must return the product to the retailer from which it was purchased or if that retailer is part of a National network, a store within that chain, along with satisfactory proof of purchase. The retailer will then return the goods to Directed Electronics Australia authorized by Anker Innovations Limited. Directed Electronics Australia will repair, 09 10

replace or refurbish the product at its discretion. The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics Australia, will be borne by you.

This warranty is offered by Directed Electronics Australia.

Customer service support number ([phone] Mon-Fri 8:30am - 5:00pm (AEST) and customer service email address [e-mail].

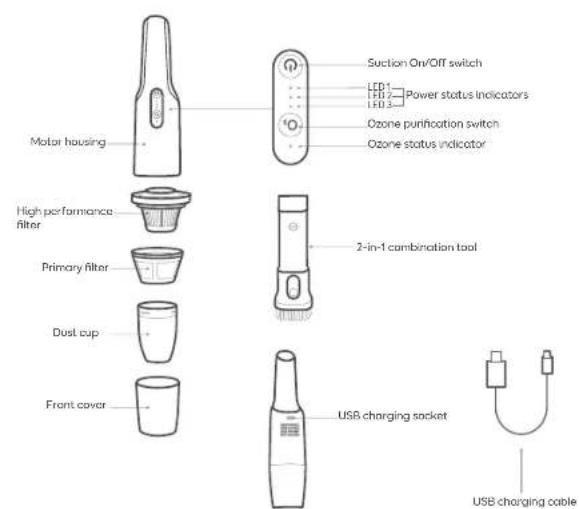

What's in the Box

Charging

The vacuum cleaner is powered by the built-in lithium battery. Before first use, charge the battery for more than 2.5 hours.

• The vacuum cleaner cannot work while charging.
• The vacuum cleaner cannot be charged when the ambient temperature is above 40°C.
• It is not recommended to charge through a USB socket on a computer, as it cannot provide enough charging current.

Simple line drawing of a bottle with a connector and a small icon above it (no text or symbols)

1. Place the vacuum cleaner on a flat surface.
2. Charge the vacuum cleaner with the supplied USB cable through the USB charging socket.

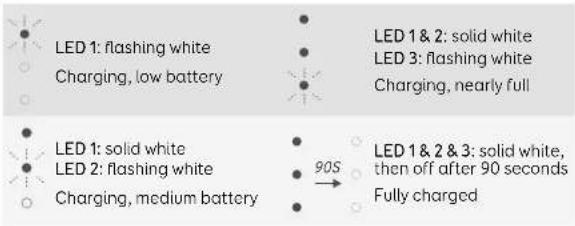

Lights During Charging

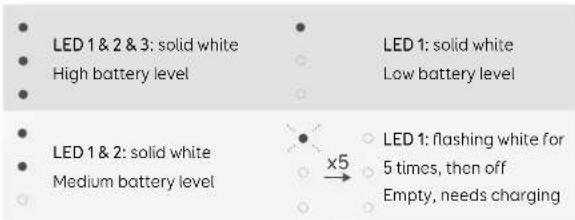

Lights During Vacuuming

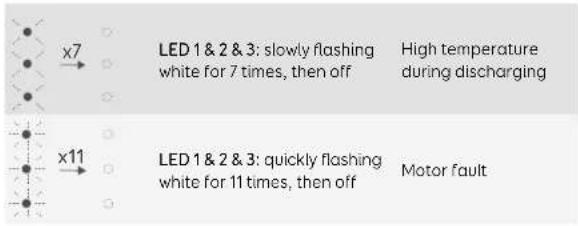

Lights When Experiencing Issues

Vacuuming

1. Hold the cleaner in hand, and pull out the front cover.
2. To clean dust and garbage adhering to corners, crevices and other places, insert the 2-in-1 combination tool into the dust cup.
3. Press to start vacuuming. • To turn off, press again.
4. Press to start vacuuming.
   • To turn off, press again.

Diagram of a device with a cylindrical body and a pointed tip, showing an arrow indicating motion (no text or symbols)

Line drawing of a handheld device with a circular button and handle (no text or symbols)

Do not use to clean up water.

15 16

Using the Ozone Purification Function

• The ozone purification function should be used in a sealed space without human beings or livestock.

• The dust suction and ozone purification function can not work at the same time.

• Install the front cover and place the vacuum cleaner on a flat surface.

Line drawing of a mechanical tool or device with no visible text or symbols

1. Press twice to start ozone purification. At full power, ozone purification can work about 15 times.
   →The vacuum cleaner will automatically stop ozone purification after 20 minutes.

Simple line drawing of a mechanical device with a circular component and a base (no text or symbols)

Light During Ozone Purification Mode

Working

Solid blue

Not working

Off

Flashing blue for 7 times, then off

Error alert

Cleaning and Maintenance

1. Remove the front cover and other accessories.

1. Remove the high performance filter and primary filter from the dust cup.

2. Empty the dust cup.

3. Wash the filters and dust cup. Air-dry them completely before next use. Do not wash the motor housing and other parts.

Diagram showing a step-by-step assembly of a container with liquid, no text or symbols present

Simple line drawing of a bucket with particles falling from top (no text or symbols)

17 18

1. Reassemble the filters and dust cup before next use.

Diagram showing a mechanical device with two parts and directional arrows indicating rotation or assembly (no text or symbols)

HomeVac Part Cleaning Frequency		ReplacementFrequency
Dust Cup After each use -
Filter	Once every week (Twice a week if you have a pet)	Every 6 months or after every 50 rounds of cleaning

Specifications

Model T2520
Charging Input 5V 2A	---
Rated Power 70W
Max Running Time 13 minutes
Charging Time 2.5 - 3.5 hours

19 20

Customer Service

For FAQs and more information, please visit www.eufylife.com

Email: [e-mail]
Live Chat: www.eufylife.com
Customer service hotline:

(US) [phone] Mon-Fri 9:00am - 5:00pm (PT)
(UK) [phone] Mon-Fri 6:00 - 11:00 (GMT)
(DE) [phone] Mo-Fr 6.00 - 11.00
(AU) (-61) 3 8331 4800 (AUS) Mon-Fri 9:00 - 17:00 (AEST)
(中国) [phone] 周一至周五 9:00 - 17:30
(日本)*810344557823 月-金9:00-17:00

f @EufyOfficial @EufyOfficial
@EufyOfficial @EufyOfficial

Tabla de contenidos

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Simple line drawing of a bottle with a connector and a small icon above it (no text or symbols)

Diagram of a device with a cylindrical body and a pointed tip, showing an arrow indicating process (no text or symbols present)

Line drawing of a handheld device with a circular button and handle (no text or symbols)

Line drawing of a mechanical tool or device with no visible text or symbols

Simple line drawing of a mechanical device with a circular component and a base (no text or symbols)

Diagram showing a step-by-step assembly of a container with liquid, no text or symbols present

Simple line drawing of a bucket with particles falling from top (no text or symbols)

33 34

Diagram showing a mechanical device with two views of a cup and a handle, no text or symbols present
