Product type	Extractor and recirculating hood (recyclable)
Brand	Indesit
Model	IHPC 9.4 AM X
Height (cm)	90
Width (cm)	40
Depth (cm)	15
Power supply	220-240 V, 50/60 Hz
Lighting power	2 x 20 W halogen (12 V, G4)
Suction speeds	3 speeds + stop
Controls	Mechanical switches for lighting and speeds
Grease filter type	Washable metal (dishwasher safe)
Charcoal filter type	Circular, replace every 4 months (not supplied)
Installation version	Extractor (external discharge) or recirculating (recycling with charcoal kit)
Minimum distance from hob	55 cm (electric), 65 cm (gas or mixed)
Exhaust duct diameter	15 cm (or 12.5/12 cm depending on configuration)
Grease filter maintenance	Monthly cleaning
Lamp replacement	Halogen 12 V - 20 W max - G4
Safety	Disconnect before maintenance; use by children with supervision; do not flame under the hood
Weight (approx.)	12 kg

Frequently Asked Questions - IHPC 9.4 AM X INDESIT

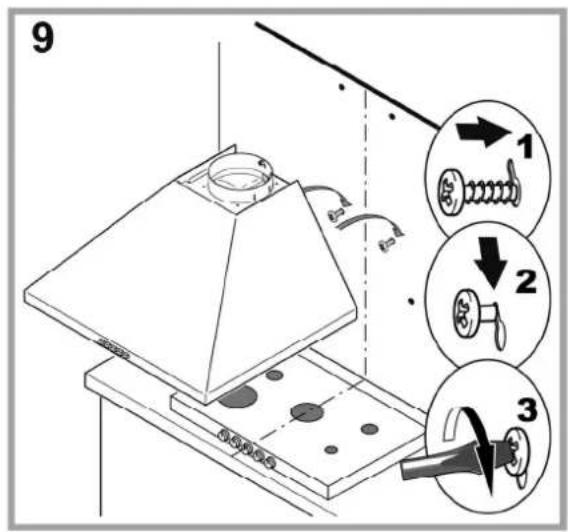

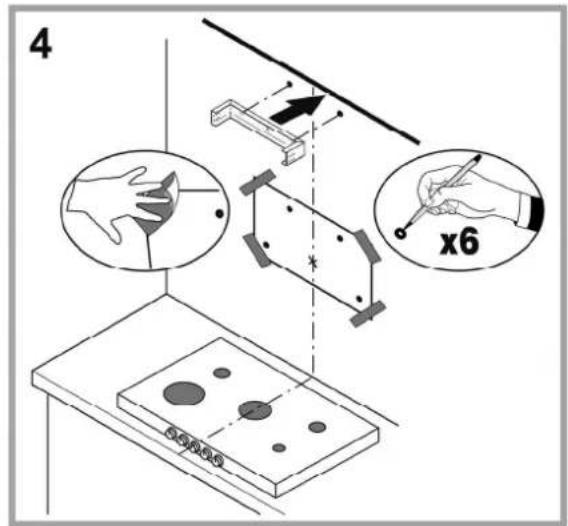

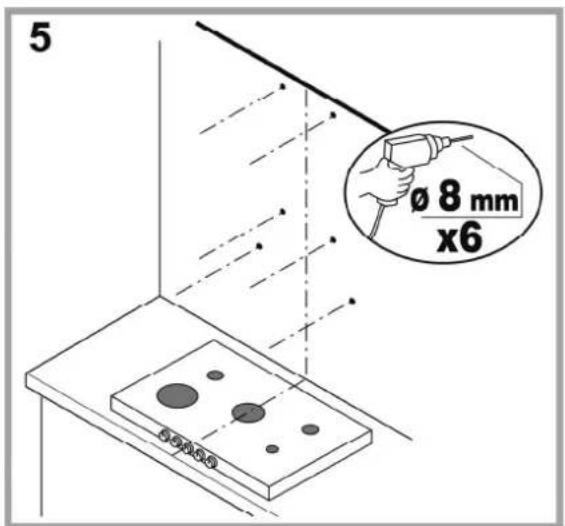

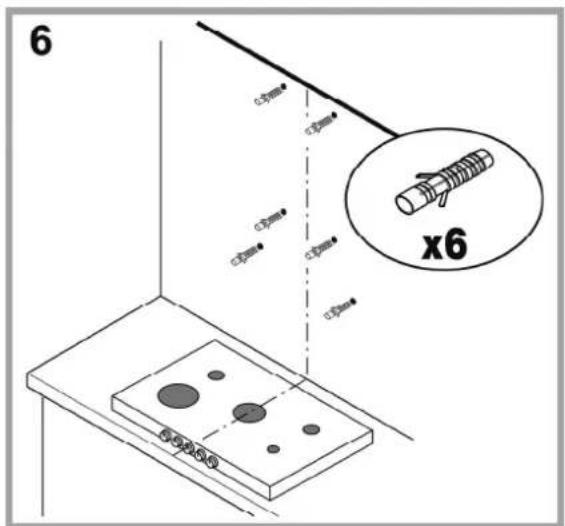

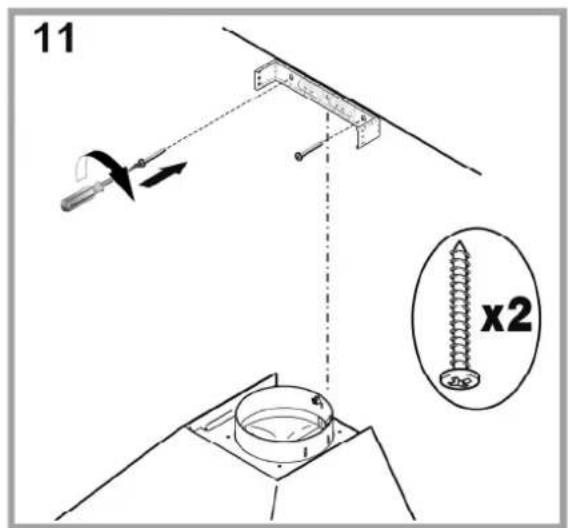

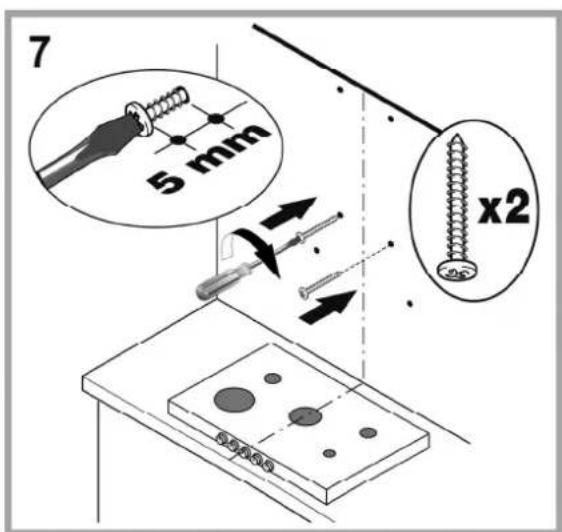

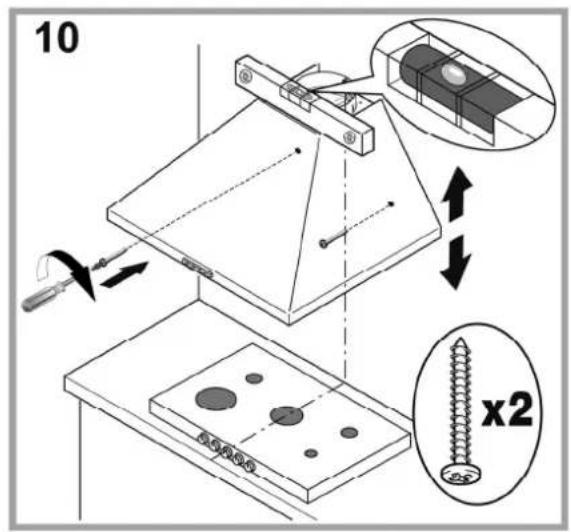

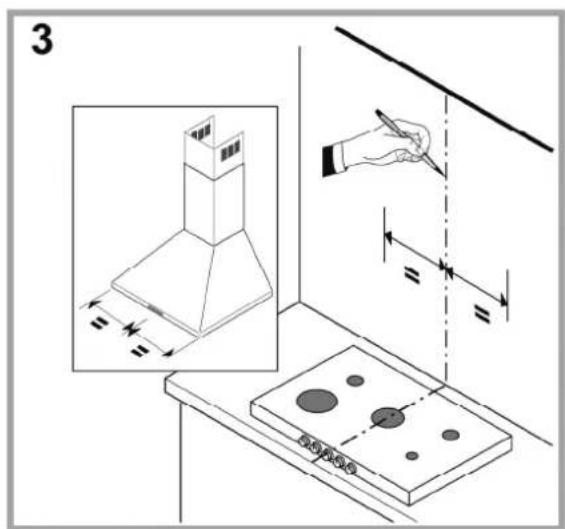

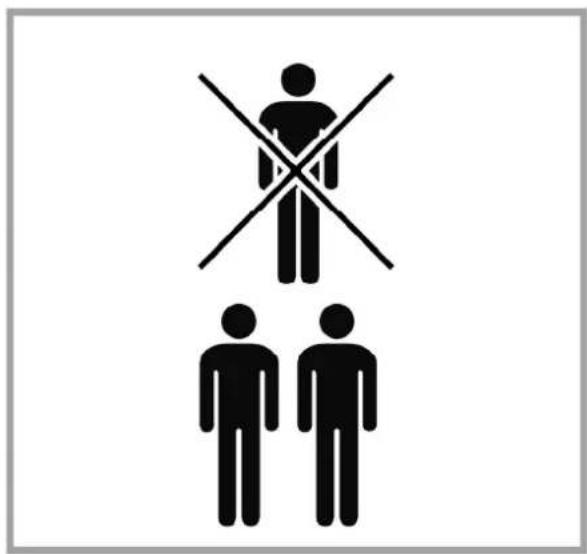

How to install the Indesit IHPC 9.4 AM X hood ?

Installation must be carried out by a qualified professional. Respect the minimum distance above the hob: 55 cm for an electric cooker, 65 cm for a gas or mixed cooker. Use the supplied fixings and an exhaust duct of the appropriate diameter (15 cm preferred). The hood can be used in extractor version (external discharge) or recirculating version (recycling with charcoal kit).

How to clean the grease filters of the hood ?

The metal grease filters should be cleaned at least once a month. You can wash them by hand with a non-aggressive detergent or in the dishwasher at low temperature and short cycle. Pull the spring handle to remove them. Note: dishwasher washing may discolour the filter but does not affect its performance.

When and how to change the charcoal filter ?

The charcoal filter must be replaced every 4 months at most, or sooner if odours persist. It cannot be cleaned or regenerated. To change it, turn the circular filter counterclockwise to remove it, then install the new one by turning clockwise.

How to replace the halogen lamps ?

First unplug the hood. Wait for the lamps to cool down. Use a small flat-head screwdriver to unclip the protective cover. Replace the bulb with a halogen 12 V - 20 W max - G4 (suitable for open lighting). Close the cover by snapping it back into place. Do not touch the bulb with bare hands.

What to do if the hood does not work ?

First check the power supply (power outage?). Make sure a speed has been selected. If the hood switches off during operation, check the circuit breaker. Unplug for 5 seconds then plug back in. If the problem persists, contact after-sales service.

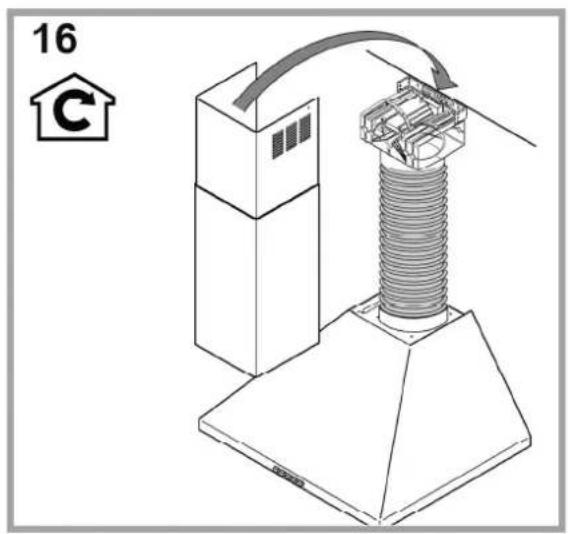

How to switch from extractor to recirculating version ?

To use the hood in recirculating version (recycling), you must install an activated charcoal filter kit (sold separately). Remove the grease filter, install the circular charcoal filters on each side around the motors, then refit the grease filter. The hood is supplied ready for the extractor version.

The hood makes noise, is this normal ?

A certain noise level is normal, especially at high speed. To reduce noise, use the maximum diameter exhaust duct (15 cm) and as few bends as possible. If the noise is abnormal, check that the duct is not blocked and that the filters are clean.

Can I use the hood without a grease filter ?

No, never. The hood must never be used without the grease filter correctly fitted. This could damage the hood and create a fire risk. The grease filters must be in place at all times.

What to do if the hood is not sucking well ?

First check the selected speed (increase if necessary). Make sure the kitchen is sufficiently ventilated. If you are in recirculating version, the charcoal filter may be saturated. Also check that the exhaust duct is not blocked or too long.

How to maintain the hood daily ?

Clean the exterior of the hood with a damp cloth and a neutral liquid detergent. Never use abrasive products, alcohol or metal tools. The grease filters should be cleaned monthly. Replace the charcoal filter every 4 months. Unplug the hood before any maintenance.

USER MANUAL IHPC 9.4 AM X INDESIT

Illustration of two gloves with a warning symbol (no text or labels)

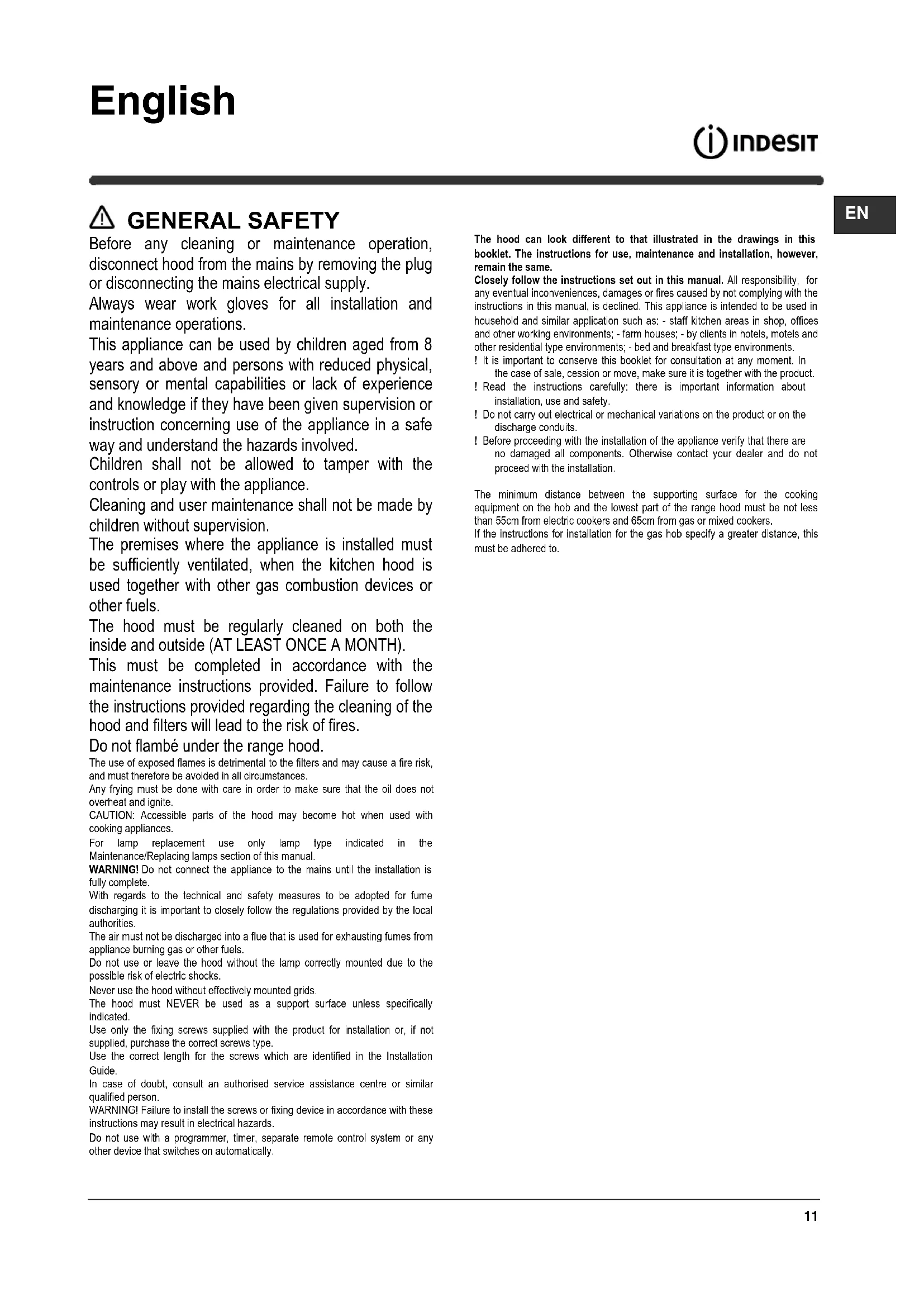

⚠ SICUREZZA GENERALE

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a magnifying glass with a small blue object, alongside a pointer and circular components (no text or symbols)

SMALTIMENTO

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not flambé under the range hood.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

! Read the instructions carefully: there is important information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 55cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Replacing the power cable

Warning! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

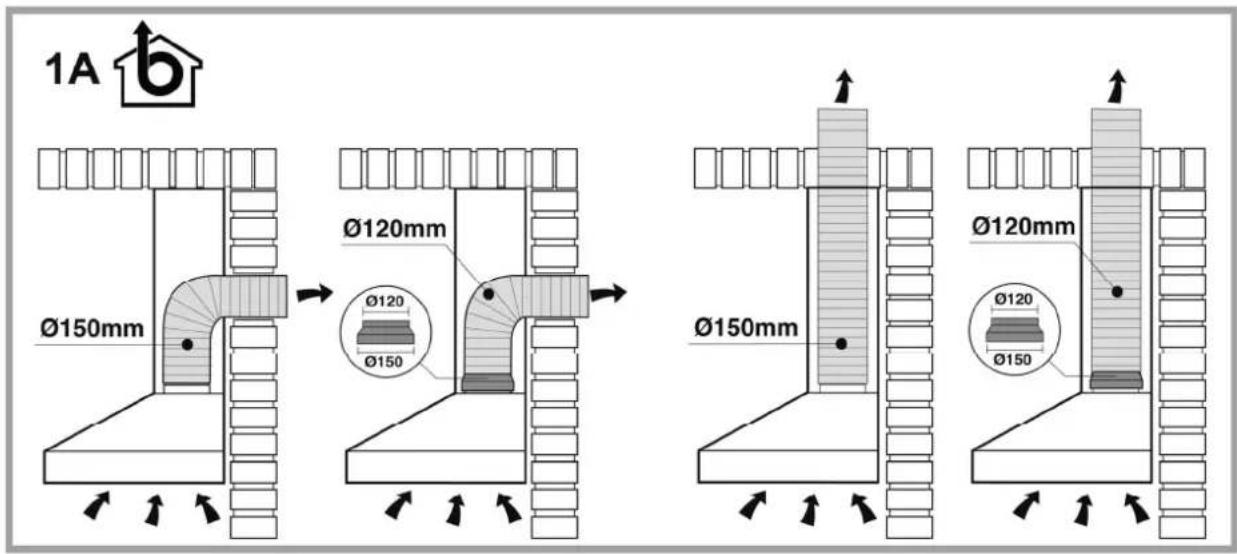

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

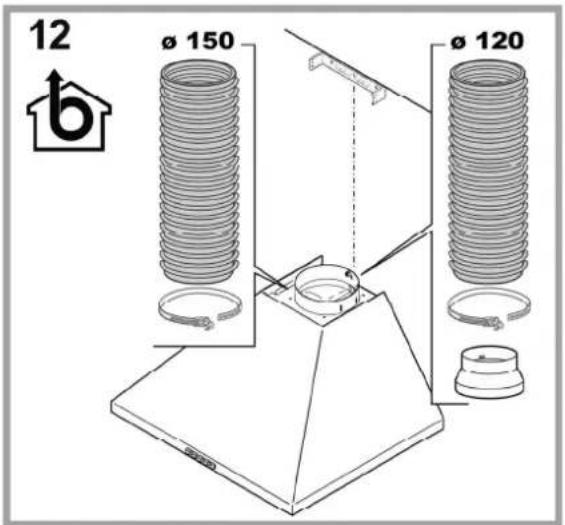

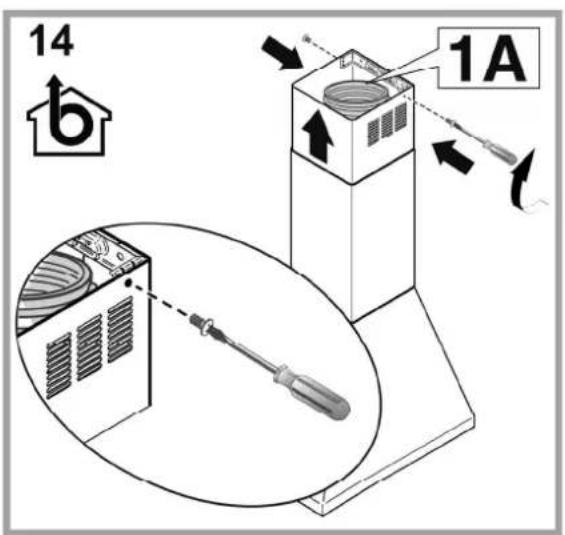

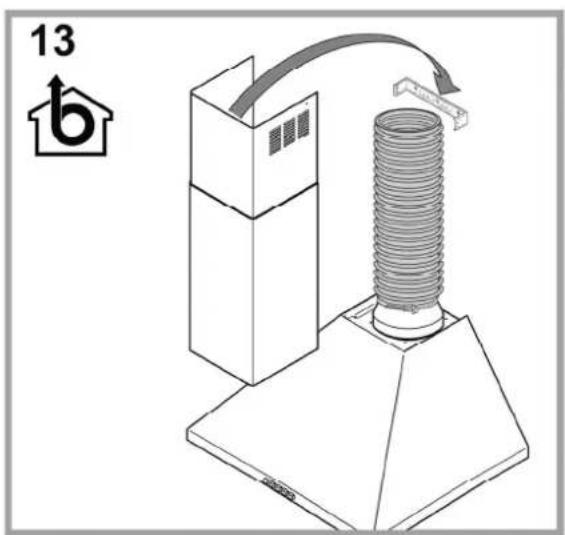

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

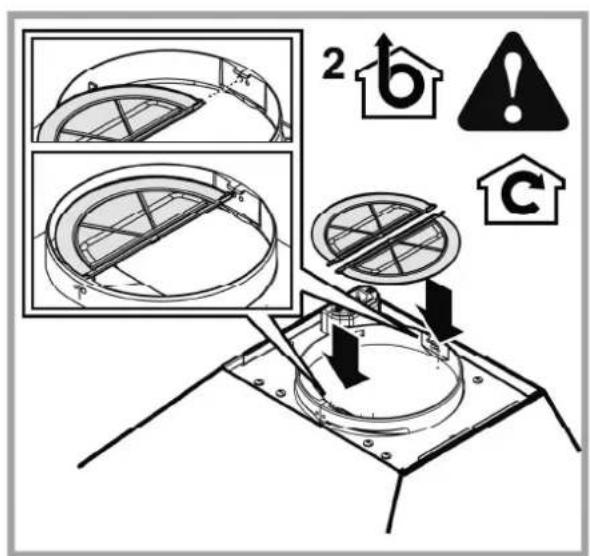

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

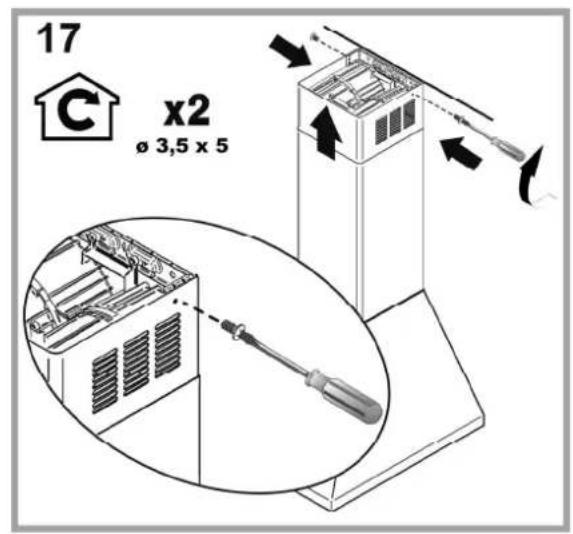

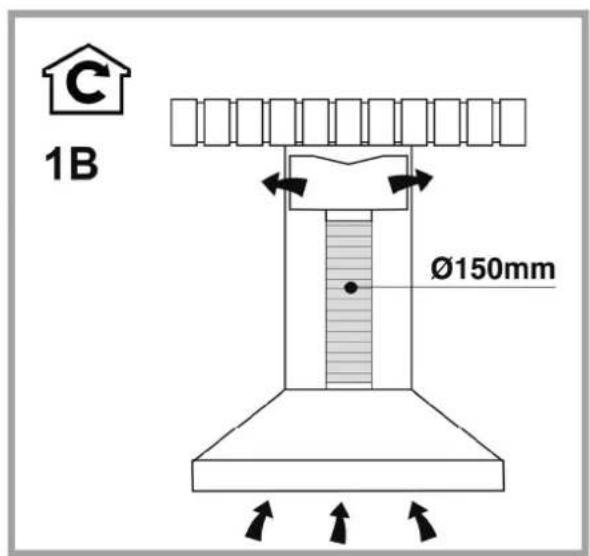

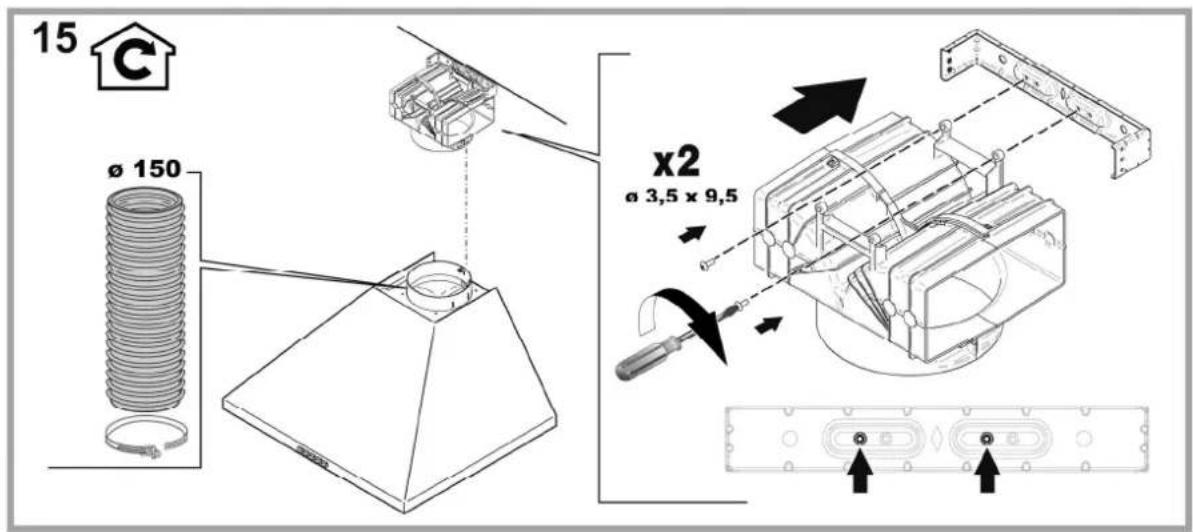

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

T1. ON/OFF light switch
T2. Speed 1/OFF switch
T3. 2-speed selection
T4. 3-speed selection

MAINTENANCE

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

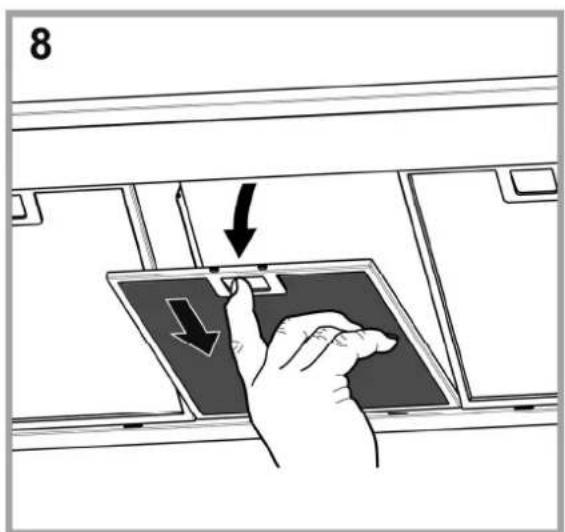

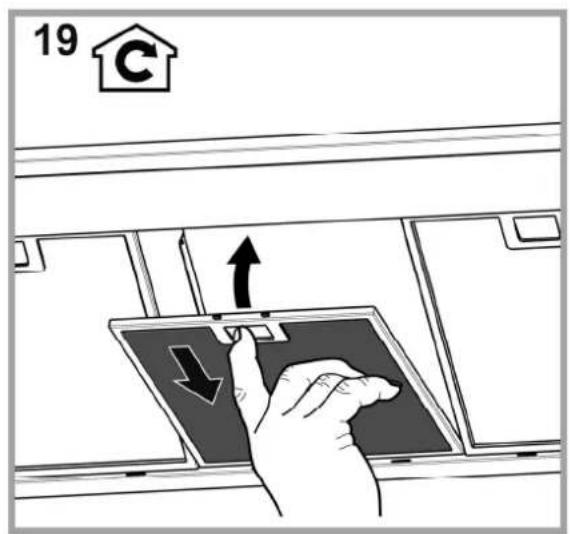

Maintenance of the anti-grease filters

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle.

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

Maintenance of the charcoal filter

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

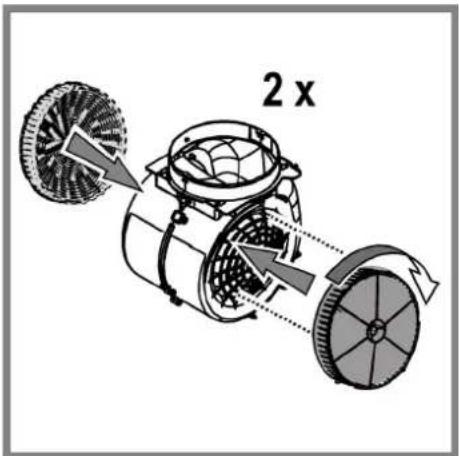

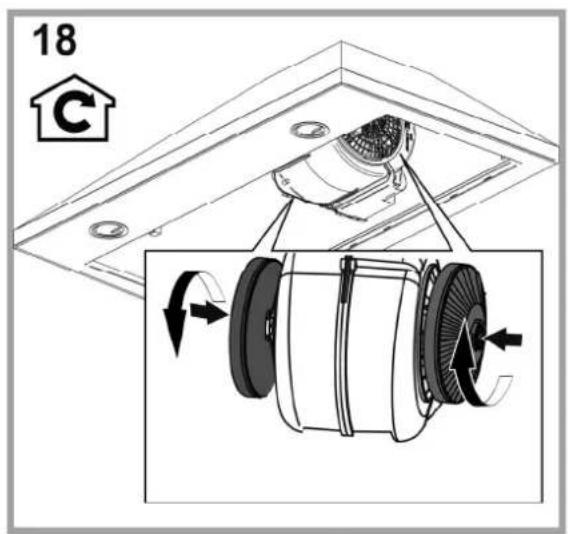

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

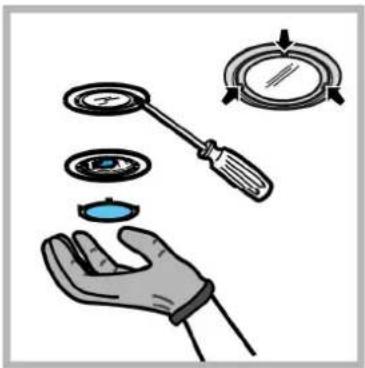

Replacing lamps

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the old light bulb with the one of the same type as specified in the feature label or near the light lamp on the hood.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.

2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

3. Reinstall the light cover. (it will snap shut).

Illustration of a hand holding a magnifying glass with a screwdriver, and another hand holding a small blue object (no text or symbols present)

DISPOSAL

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

• If the hood performs inefficiently:

Check that:

- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

• If the hood has turned off during normal functioning:

Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Model	Height (cm)	Width (cm)	Depht (cm)	of exhaust tube (cm)
IHPC 9.5 AM X	[7206]59 -76,5	90	40	15-12,5-12
IHPC 9.4 AM X
IHPC 6.4 AM X	[2723]59 -76,5	60	40	15-12,5-12
IHPC 6.4 AM K
IHPC 6.5 AM X	[70 - 87]70 - 87

Please check the plate in order to verify the total absorption and the light absorption.

	Power(W)	Voltage(V)	Cap	Dimensions(mm)
Halogen 2 x 20W 12		G4 33x∅10

Components not provided with the product
