USER MANUAL WITL 851 (EU) INDESIT

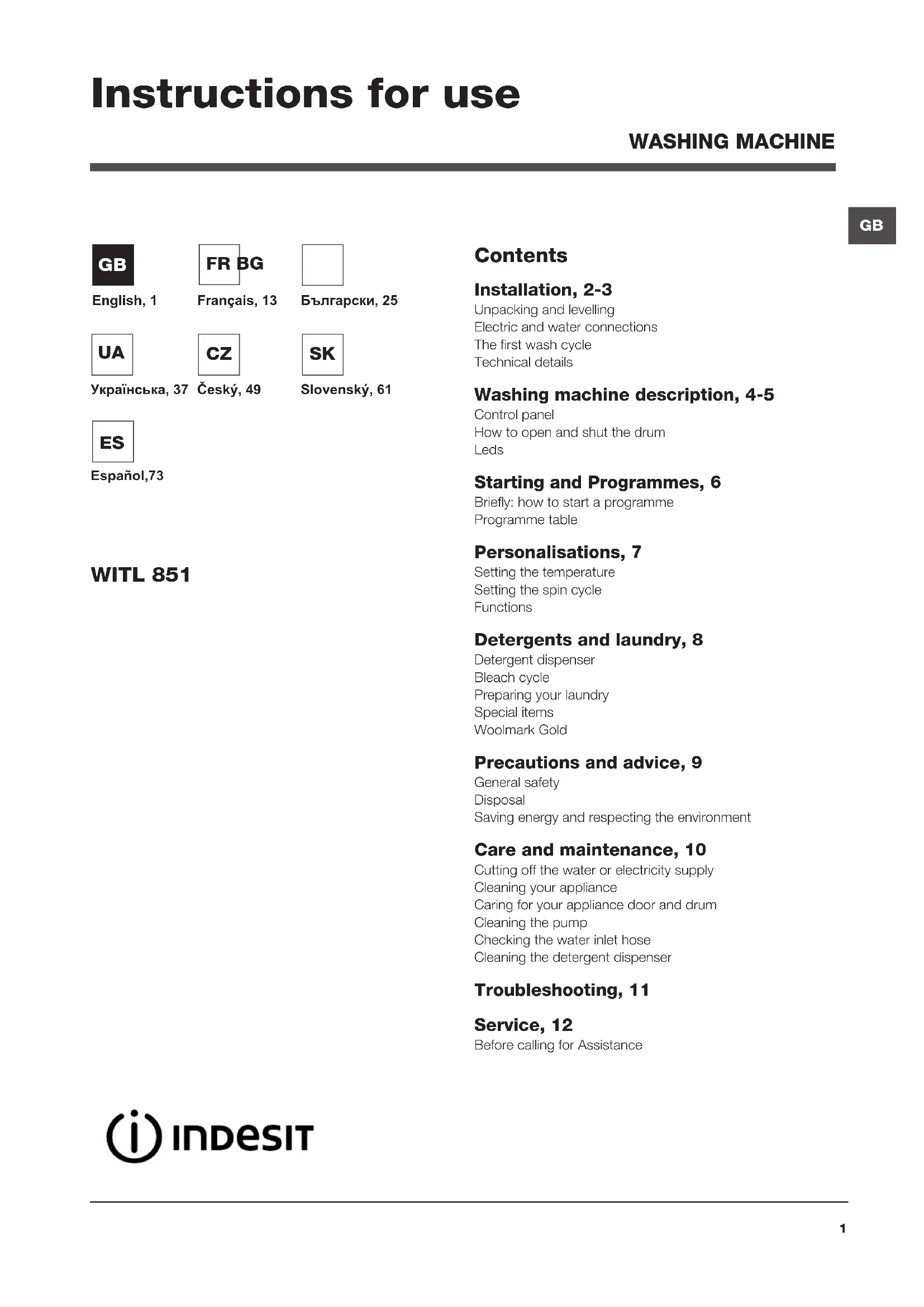

WASHING MACHINE WITL 851 Instructions for use Contents Installation, 2-3 Unpacking and levelling Electric and water connections The first wash cycle Technical details Washing machine description, 4-5 Control panel How to open and shut the drum Leds Starting and Programmes, 6 Briefly: how to start a programme Programme table Personalisations, 7 Setting the temperature Setting the spin cycle Functions Detergents and laundry, 8 Detergent dispenser Bleach cycle Preparing your laundry Special items Woolmark Gold Precautions and advice, 9 General safety Disposal Saving energy and respecting the environment Care and maintenance, 10 Cutting off the water or electricity supply Cleaning your appliance Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose Cleaning the detergent dispenser Troubleshooting, 11 Service, 12 Before calling for Assistance English, 1

! Keep this instruction manual in a safe place for future refe- rence. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. ! Read these instructions carefully: they contain vital infor- mation on installation, use and safety. Unpacking and levelling Unpacking

1. Unpack the washing

washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

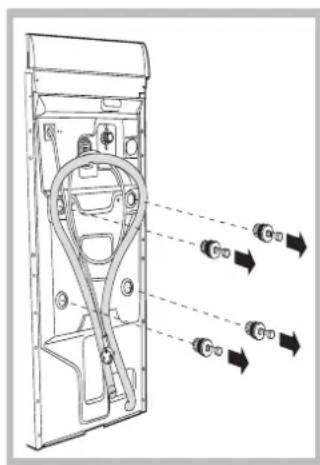

3. Remove the four protec-

tive screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the

plastic plugs provided.

5. Keep all the parts: you will need them again if the washing

machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten

the shorter ones at the top. ! Packaging materials are not children’s toys. Levelling

1. Install the washing machine

on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not perfectly

level, compensate for any unevenness by tightening or lo- osening the adjustable front feet (see figure); the angle of inclina- tion, measured according to the worktop, must not exceed 2°. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Electric and water connections Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to a cold water tab using a ¾ gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

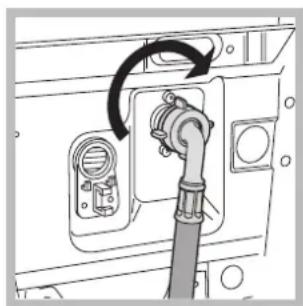

2. Connect the other end of

the water inlet hose to the washing machine, screwing it onto the applian- ce’s cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are

no kinks or bends in the hose. ! The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). ! If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman. ! Never use hoses that have already been used. Installation3

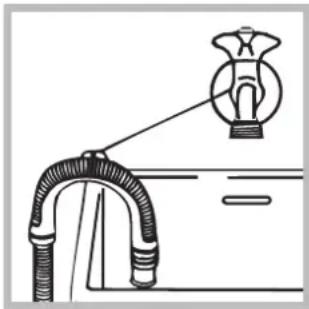

Connecting the drain hose Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater. ! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.Electric connectionBefore plugging the appliance into the mains socket, make sure that: • the socket is earthed and in compliance with the applicable law;• the socket is able to sustain the appliance’s maximum power load indicated in the Technical details table (on the right);• the supply voltage is included within the values i ndicated on the Technical details table (on the right);• the socket is compatible with the washing machine’s plug. If this is not the case, replace the socket or the plug. ! The washing machine should not be installed in an ou- tdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms. ! When the washing machine is installed, the mains so- cket must be within easy reach. ! Do not use extensions or multiple sockets. ! The power supply cable must never be bent or dange- rously compressed. ! The power supply cable must only be replaced by an authorised serviceman.Warning! The company denies all liability if and when these norms are not respected. The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

Technical details ModelWITL 851Dimensions40 cm wide85 cm high 60 cm deepCapacityfrom 1 to 5 kgElectric connectionsPlease refer to the technical data plate fixed to the machine.Water connectionsmaximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 42 litresSpin speedup to 800 rpmTest wash cycles in accordance with directives 1061/2010 and 1015/2010.Programme : Cotton standard 60°C; Programme : Cotton standard 40°C.This appliance is compliant with the following European Community Directives: - 2004/108/CEE (Electromagnetic Compatibility) - 2006/95/CE (Low Voltage)- 2012/19/EU4

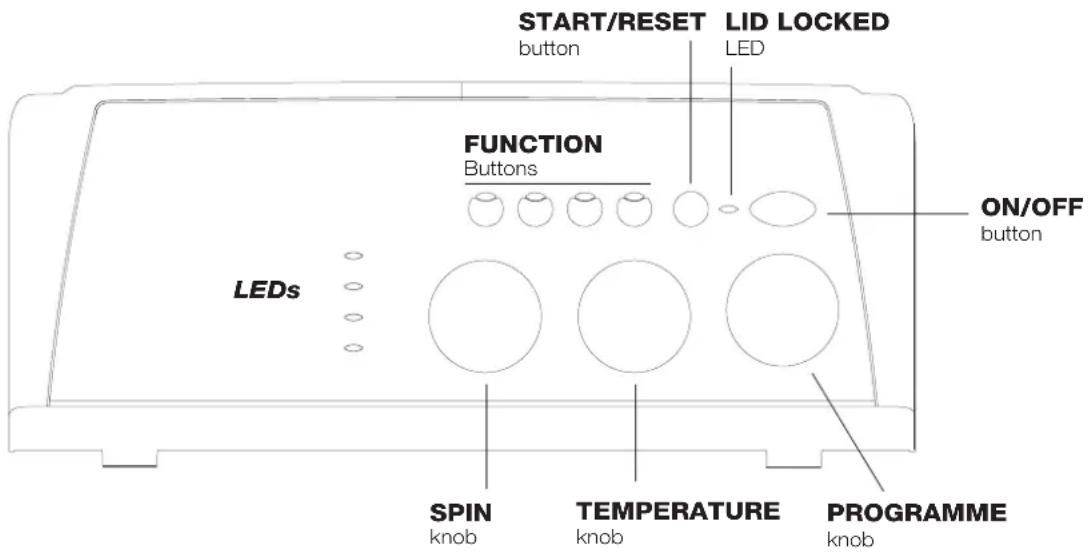

ON-OFF/LID LOCK led: If this LED is on, the appliance Lid is locked to prevent it from being opened accidentally; to avoid any damages, you must wait for the lamp to flash before you open the Lid.

! The rapid flashing of the ON-OFF/LID LOCK Led together with the flashing of at least one other LED indicates there is an abnormality (see page 11). Control panel Washing machine description ON/OFF button SPIN knob TEMPERATURE knob START/RESET button FUNCTION Buttons PROGRAMME knob LEDs LID LOCKED LED Detergent dispenser to add detergent and fabric sof- tener (see page 8). LEDs to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 5). FUNCTION keys to select the functions available. The button corresponding to the function selected will remain on. SPIN SPEED knob to set the spin speed or exclude the spin cycle completely (see page 7). TEMPERATURE knob to set the temperature or the cold wash cycle (see page 7). ON/OFF key to turn the washing machine on and off. START/RESET key to start the programmes or cancel incorrect settings. ON-OFF/LID LOCK led, to find out whether the wash- ing machine is on (flashing) and if the lid may be opened (see page 5). PROGRAMME knob to set the programmes (see page 6). The knob stays still during the cycle. Standby mode This washing machine, in compliance with new energy sa- ving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON/OFF button briefly and wait for the machine to start up again.5

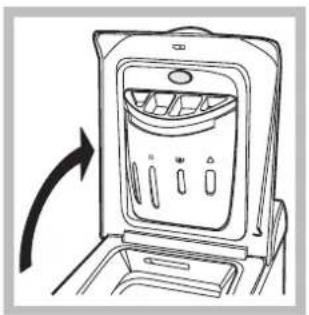

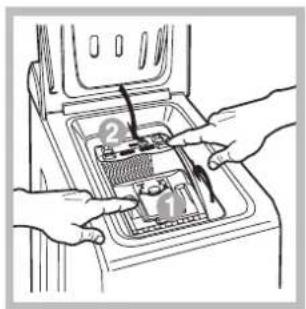

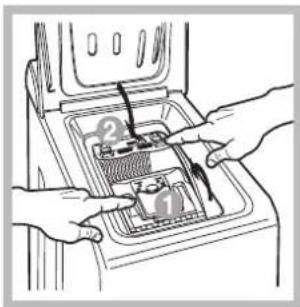

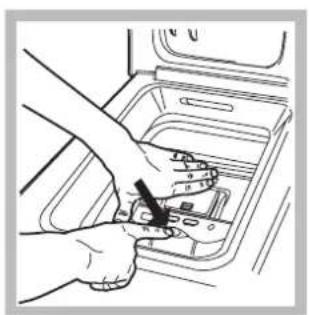

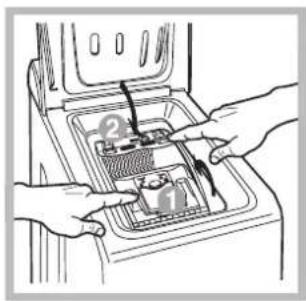

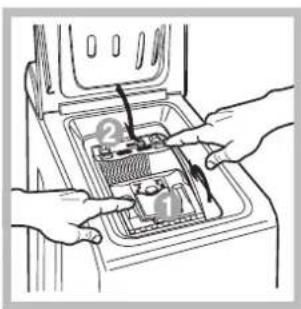

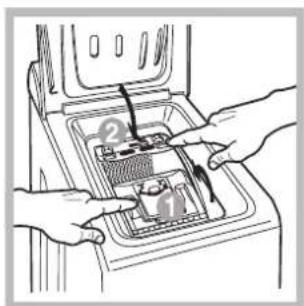

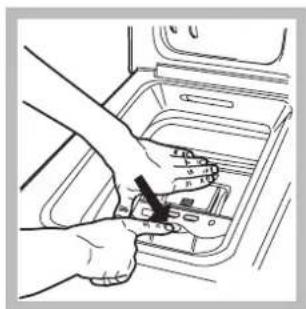

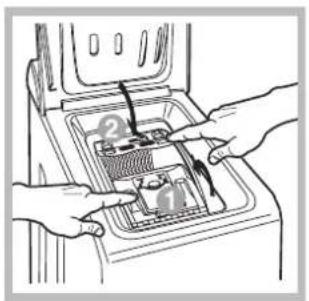

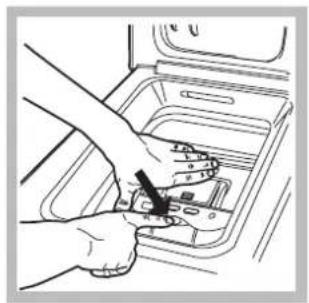

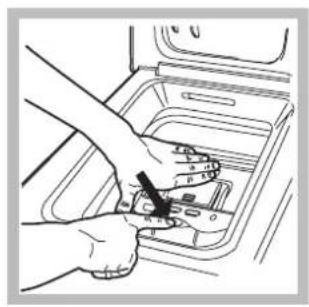

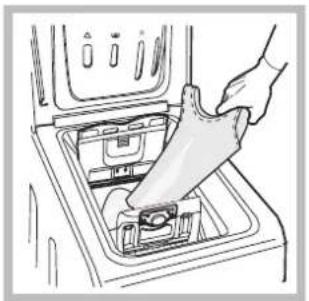

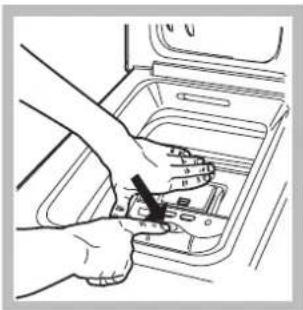

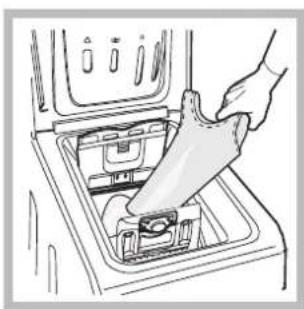

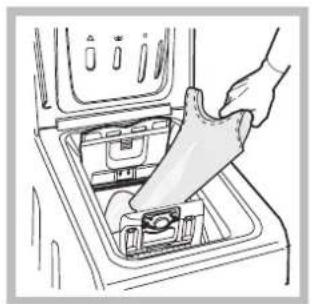

Fig. 1 Fig. 2 A) Opening (Fig. 1). Lift the external lid and open it completely. B) Then open the drum using both hands as shown in Fig. 2: - press the button indicated by the arrow in Fig. 2 lightly downwards, with one hand firmly resting on the doors to prevent them from suddenly opening and hurting your fingers; - therefore follow the appliance doors along as these unhook and open easily. C) Loading the washing machine. (Fig. 3). D) Shutting (Fig. 4). - close the drum fully by first shutting the front door followed by the rear one; - then ensure the hooks on the front door are perfectly housed within the seat of the rear door; - after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose; - finally shut the external lid. How to open and to close the drum Fig. 3 Fig. 4 Cycle phase under way: During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way: Prewash Wash Rinse Spin cycle Note: during draining, the LED corresponding to the Spin cycle phase will be turned on. Function buttons The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the program- me set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another fun- ction you selected previously, only the last one selected will be enabled. Leds The LEDS provide important information. This is what they can tell you: Delay set: If the Delay Timer function has been enabled (see page. 7), once you have started the programme, the LED corre- sponding to the delay set will begin to flash: As time passes, the remaining delay will be displayed, and the corresponding LED will flash: Once the set delay is complete, the flashing LED will turn off and the programme set will start.6

Starting and Programmes Programme table Notes-For programmes 9 and 10, we advise against exceeding a wash load of 3.5 kg.-For programme 14 we advise against exceeding a wash load of 2 kg. Cotton Standard 20°C (wash cycle 8) ideal for lightly soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks. Express (wash cycle 12) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (12 at 30°C), it is possible to wash different fabrics toge- ther (except for wool and silk items), with a maximum load of 3 kg. Briefly: starting a programme

1. Switch the washing machine on by pressing button .

All the LEDS will light up for a few seconds and the ON-OFF/ DOOR LOCK Led will begin to flash.

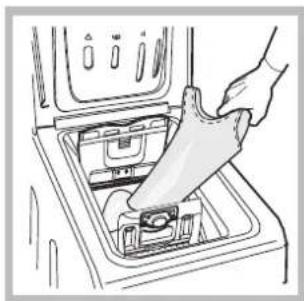

2. Load your laundry into the washing machine, add the

detergent and any fabric softener (see page 8) and shut the appliance door.

3. Set the PROGRAMME knob to the programme required.

4. Set the wash temperature (see page 7).

5. Set the spin speed (see page 7).

6. Start he programme by pressing the START/RESET button.

To cancel it, keep the START/RESET button pressed for at least 2 seconds.

7. When the programme is finished, the ON-OFF/DOOR

LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button . Wash cyclesDescription of the wash cycleMax. temp. (°C) Max. speed (rpm)DetergentsMax. load (kg)Residual dampness %Energy consumption kWh Total water ltCycle durationPrewash Wash Fabric softenerBleachStandard Cotton with prewash: extremely soiled whites. 90° 800 - 5 71 1,82 64 150’

Cotton: extremely soiled whites. 90° 800 - 5 71 1,90 60 135’

Coloured Cottons: lightly soiled whites and delicate colours. 40° 800 - 5 71 0,53 50 90’

Wool: for wool, cashmere, etc. 40° 800 -

Cotton: Lightly soiled whites and delicate colours (shirts, jumpers, etc.) 40° 800 -

Synthetics: Delicate colours (all types of slightly soiled garments) 40° 800 -

Express: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).30° 800 - - 3 71 0,25 33 30’Sport13 Special Shoes30° 600 -

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.2) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.For all Test Institutes:2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.

3) Long wash cycle for synthetics: set wash cycle 4; with a temperature of 40°C.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor- ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.7

Setting the temperature Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6). The temperature can be lowered, or even set to a cold wash ( ). Setting the spin speed Turn the SPIN SPEED knob to set the spin speed for the programme selected. The maximum spin speeds for each programme are as follows: Programmes Maximum spin speed Cottone 800 rpm Synthetics 800 rpm Wool 800 rpm Silk no The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol . The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme. Note. To avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed. When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency. If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning. The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes. Functions To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set. Option Effect Comments Enabled with programmes:Delay TimerDelays the start of the wash by up to 9 hours.Pess the button repeatedly until the LED corresponding to the desired delay is turned on. The fifth time the button is pressed, the function will be disabled.N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it. All BleachingBleaching cycle de-signed to remove the toughest stains.Please remember to pour the bleach into extra compartment 4 (see page 8). This option is incompatible with the EASY IRON option.2, 3, 4,

8 andRinse cycle.Easy ironBy selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum.To drain the water so that the laundry may be removed, press the START/RESET button.This option is incompatible with the BLEACHING option.1, 2, 3, 4, , 8, 9, 10, 11.Extra RinseIncreases the efficiency of the rinse.Recommended when the appliance has a full load or with large quantities of detergent. 1, 2, 3, 4, , , 7, 8, 9, 10, 11, 13, 14, and Rinse cycle.8

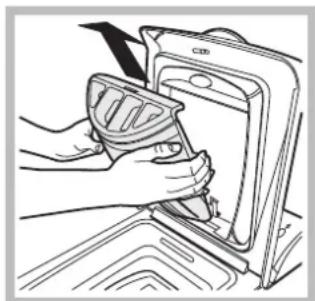

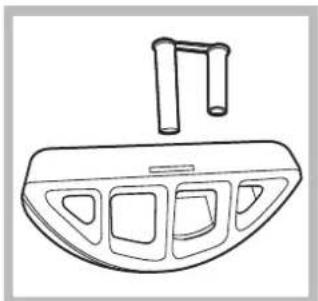

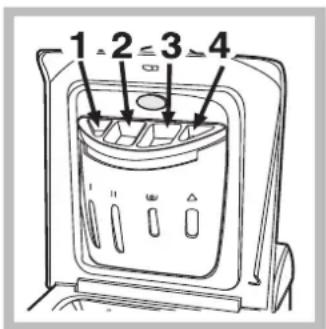

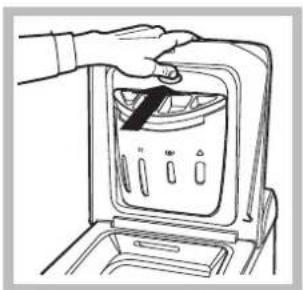

Detergent dispenser Good washing results also depend on the correct dose of detergent: adding too much detergent won’t necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. ! Do not use hand washing detergents because these crea- te too much foam. ! Use powder detergent for white cotton garments, for pre- washing, and for washing at temperatures over 60°C. ! Follow the instructions given on the detergent packaging. Open up the detergent dispenser and pour in the detergent and fabric softe- ner, as follows. compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid) Liquid detergent should only be poured in immediately prior to the wash cycle start. ! Do not use hand wash detergent because it may form too much foam. compartment 3: Additives (fabric softeners, etc.) When pouring the softener in compartment 3, avoid exceeding the “max” level indicated. The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see page 10. The fabric softener should not overflow from the grid. compartment 4: Bleach Bleach cycle Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool. When pouring in the bleach, be careful not to exceed the “max” level indicated on compartment 4 (see figure). To run the bleach cycle alone, pour the bleach into compart- ment 4 and set the Rinse programme (for cotton fabrics) and push the button Bleaching. Preparing your laundry

• Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites.

• Empty all pockets and check for loose buttons.

• Do not exceed theweight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g Special items Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg. Detergents and laundry9

Precautions and advice ! The washing machine was designed and built in com- pliance with the applicable international safety regula- tions. The following information is provided for your safety and should consequently be read carefully. General safety

• This appliance has been designed for non- professional, household use and its functions must not be changed.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and know- ledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervi- sed to ensure that they do not play with the appliance.

• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.

• Never touch the washing machine when barefoot or with wet or damp hands or feet.

• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.

• Do not touch the drain water as it could reach very high temperatures.

• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.

• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.

• Always keep children well away from the appliance while in operation.

• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Before loading your laundry into the washing machine, make sure the drum is empty. Disposal The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when pur- chasing a similar new product. All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances. Saving energy and respecting the environment Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment. Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegra- dable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.

• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board’s peak load. The Delay Timer option (see page 7) helps to organise your wash cycles accordingly.

• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.10

Care and maintenance Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance’s water system and also prevent leaks.• Unplug your appliance when cleaning it and during all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance can be cle-aned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently. Caring for your appliance door and drum
• Always leave the appliance door ajar to prevent unplea-sant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same. ! Make sure the wash cycle has ended and unplug the appliance.To recover any objects that have fallen into the pre-chamber: 1. remove the plinth at the bottom on the front side of the washing machine by pulling from the side with your hands (see figure);2. unscrew the lid rotating it anticlock-wise (see figure): a little water may trickle out. This is perfectly normal;3. clean the interior thoroughly;4. screw the lid back on;5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance. Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. ! Never use hoses that have already been used. How to clean the detergent dispenser Fig. 1 Fig. 2 Cleaning: Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them. Reassembly: Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1). Disassembly: Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1). Fig. 3 Fig. 411

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can’t easily be solved by consulting the following list. Troubleshooting Problem The washing machine won’t start. The wash cycle won’t start. The washing machine fails to load water. The washing machine continuou- sly loads and unloads water. The washing machine does not drain or spin. The washing machine vibrates too much during the spin cycle. The washing machine leaks. The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED. There is too much foam. Possible causes/Solution:

• The appliance is not plugged into the socket, or not enough to make contact.

• There has been a power failure.

• The appliance door is not shut properly. The Lid locked Led flashes.

• The button has not been pressed.

• The START/RESET button has not been pressed.

• The water tap is not turned on.

• A delayed start has been set (using the Delay Timer, see page 7).

• The water inlet hose is not connected to the tap.

• The water tap is not turned on.

• There is a water shortage.

• The water pressure is insufficient.

• The START/RESET button has not been pressed.

• The drain hose is not fitted between 65 and 100 cm from the floor (see page 3).

• The free end of the hose is underwater (see page 3).

• The wall drainage system doesn’t have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

• The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6).

• The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 7).

• The drain hose is bent (see page 3).

• The drain duct is clogged.

• The drum was not unblocked correctly during installation (see page 2).

• The washing machine is not level (see page 2).

• The washing machine is closed in between furniture cabinets and the wall (see page 2).

• The water inlet hose is not screwed on correctly (see page 2).

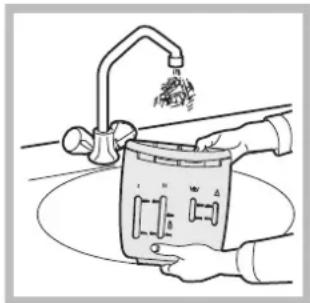

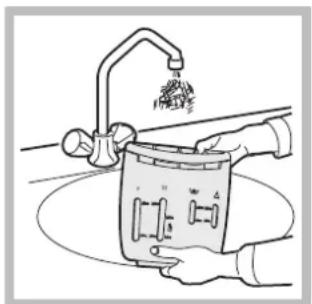

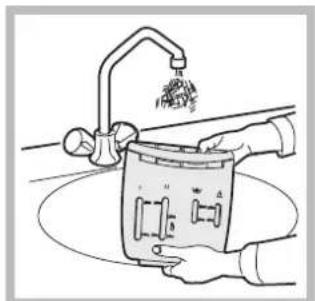

• The detergent dispenser is obstructed (to clean it, see page 10).

• The drain hose is not secured properly (see page 3).

• Switch off the machine and unplug the appliance; wait for approximately 1 minute then switch it on again. If the problem persists, contact Assistance.

• The detergent is not suitable for machine washing (it should bear the definition “for washing machines” or “hand and machine wash”,or the like).

• You used too much detergent.12

Before calling for Assistance:

• Check whether you can solve the problem on your own (see page 11);

• Restart the programme to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate. ! Always request the assistance of authorised servicemen. Notify the operator of:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine. Service13
