Product type	Electric meat grinder
Brand	Moulinex
Model	ME606131
Power supply	220-240 V, 50/60 Hz
Power	800 W (estimated)
Grinding capacity	Approximately 2 kg/min (estimated)
Blade material	Self-sharpening stainless steel
Included grinding plates	3 plates: small holes (very fine), medium holes (fine), large holes (coarse)
Included accessories	Removable tray (plastic and aluminum), meat pusher, sausage attachment, cookie attachment, kebbe attachment, vegetable cutter (drums and cones), coulis attachment, cleaning brush
Main functions	Grinding, sausage making, kebbe, cookies, vegetable cutting (slicing, shredding, grating, dicing), making coulis and juices
Reverse function	Yes, Reverse button (momentary reverse) to clear jams
Safety	Grinder head unlock button, safety instructions booklet included
Care and cleaning	Accessories washable with soapy water; plate and blade must be oiled after cleaning
Storage	Integrated accessory storage cover
Dimensions (L x W x H)	Approximately 30 x 20 x 25 cm (estimated)
Weight	Approximately 4 kg (estimated)
Repairability	Spare parts available (blade, plates, accessories)

Frequently Asked Questions - ME606131 MOULINEX

How to prepare meat before grinding?

Cut the meat into pieces about 2 cm x 2 cm. Remove bones, cartilage, and tendons to avoid damaging the appliance.

What to do if the grinder is blocked?

Stop the appliance (position 0), then press the Reverse button for a few seconds to clear the food. Then restart.

How to clean the grinder after use?

Wash all accessories with soapy water, rinse and dry immediately. The plate and blade must remain greasy: coat them with oil after drying.

Can I grind foods other than meat?

Yes, you can grind bread or other soft foods. For the vegetable cutter, use firm ingredients. Do not grind bones or very hard foods.

How to use the sausage attachment?

First grind the meat and season. Soak the casing in warm water, thread it onto the funnel leaving 5 cm. Start the appliance and feed the ground meat. For quality sausages, avoid air and tie links every 10-15 cm.

How to make cookies with this appliance?

Prepare a slightly soft dough. Choose the design by aligning the arrow with the desired shape. Supply the hopper until you get the desired quantity.

How to make kebbe?

Pass the meat 2 to 3 times through the grinder to obtain a fine paste. Use the kebbe attachment (die and ring) to form the kebbe.

What vegetable cutting accessories are provided?

The appliance offers drums (slicing, coarse shredding, fine shredding, grating, ice) and cones (fine shredding, grating, slicing, julienne, dicing accessory). They are used with the appropriate hopper.

How to prepare coulis or juices?

Use fresh fruits. Assemble the coulis accessory with the appropriate filter (mixed hole filter for coulis, small holes for juice). Place a container under the juice guide to collect the liquid and another at the end for waste. Pass the pulp a second time for maximum extraction.

Where to find the full manual?

The user manual is available for free download in PDF format on the site notice-facile.com for the Moulinex model ME606131.

USER MANUAL ME606131 MOULINEX

Line drawing of a pair of kitchen feeders (no text or symbols)

Illustration of a hand operating a mechanical device with arrows indicating motion or force (no text or symbols present)

Illustration of industrial machinery components with no visible text or symbols

Illustration of industrial machinery components including rollers, a filter, and a conveyor system (no text or symbols)

Line drawing of a hand operating a device with an arrow indicating rotation (no text or symbols)

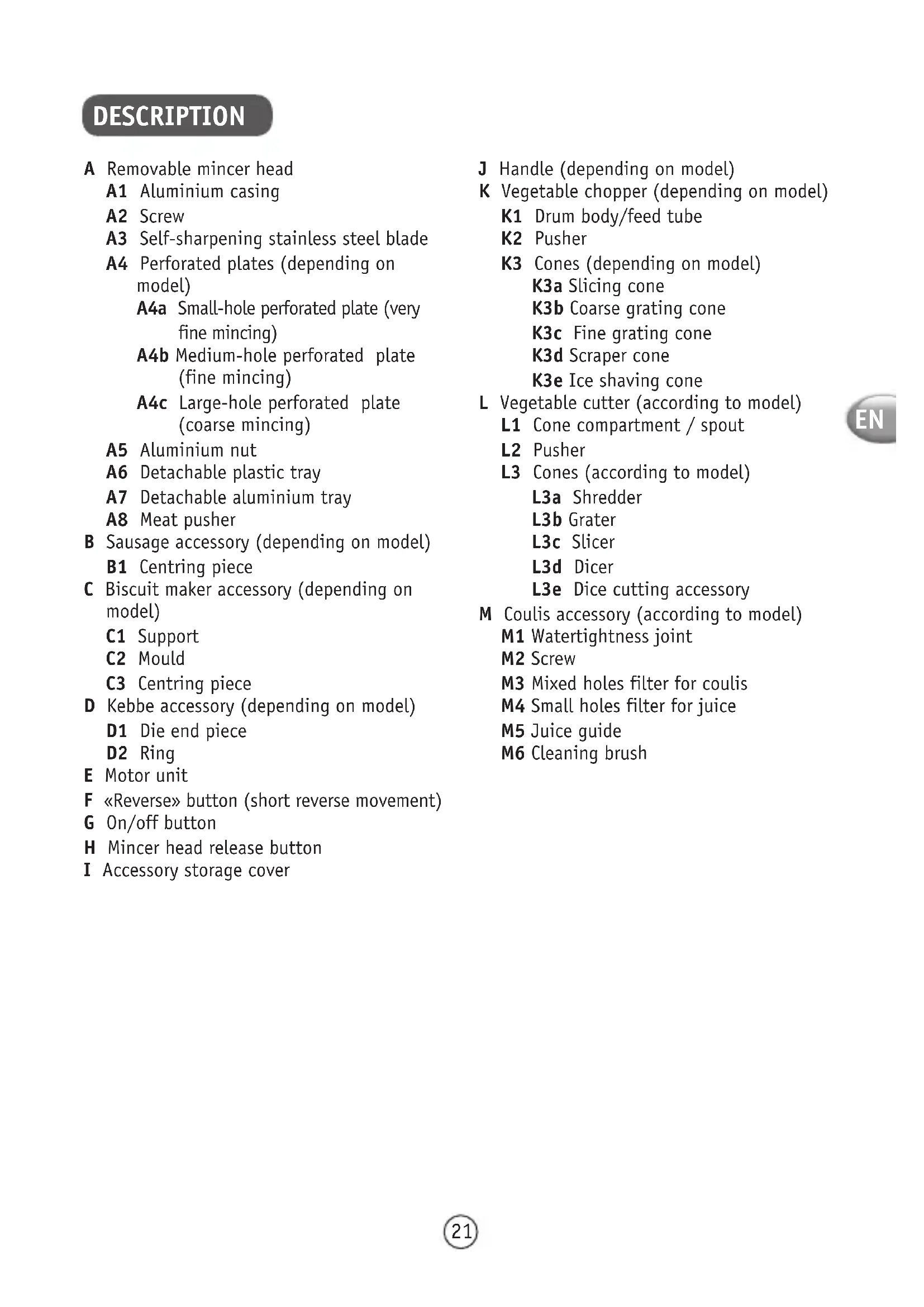

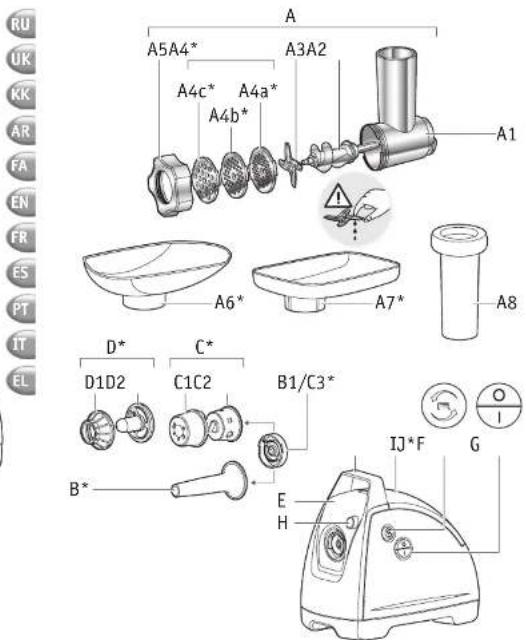

A Removable mincer head

A1 Aluminium casing

A2 Screw

A3 Self-sharpening stainless steel blade

A4 Perforated plates (depending on model)

A4a Small-hole perforated plate (very fine mincing)

A4b Medium-hole perforated plate (fine mincing)

A4c Large-hole perforated plate (coarse mincing)

A5 Aluminium nut

A6 Detachable plastic tray

A7 Detachable aluminium tray

A8 Meat pusher

B Sausage accessory (depending on model)

B1 Centring piece

C Biscuit maker accessory (depending on model)

C1 Support

C2 Mould

C3 Centring piece

D Kebbe accessory (depending on model)

D1 Die end piece

D2 Ring

E Motor unit

F «Reverse» button (short reverse movement)

G On/off button

H Mincer head release button

I Accessory storage cover

J Handle (depending on model)

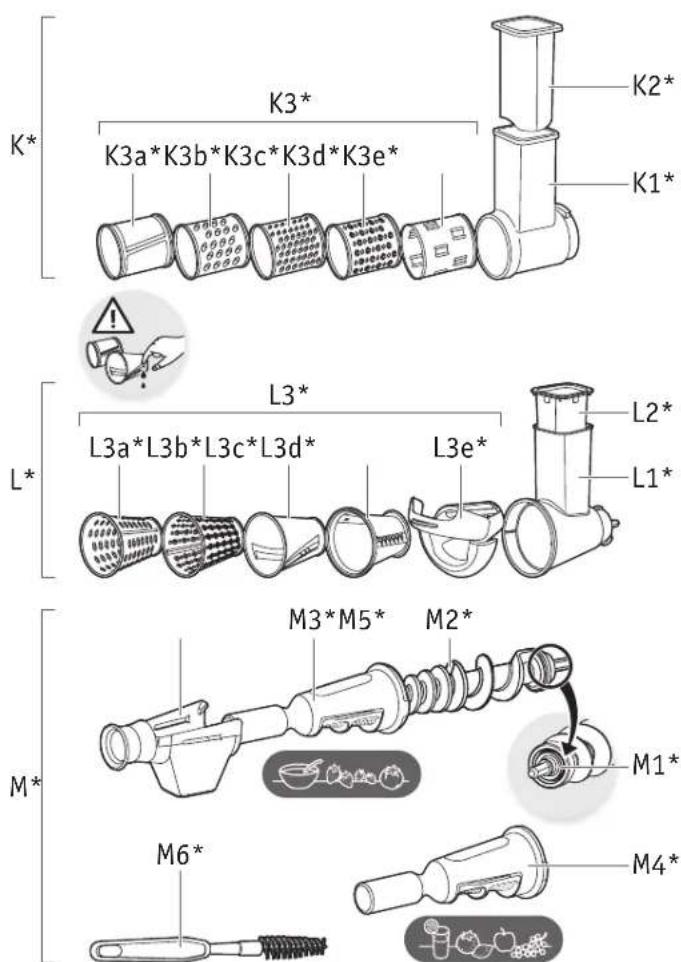

K Vegetable chopper (depending on model)

K1 Drum body/feed tube

K2 Pusher

K3 Cones (depending on model)

K3a Slicing cone

K3b Coarse grating cone

K3c Fine grating cone

K3d Scraper cone

K3e Ice shaving cone

L Vegetable cutter (according to model)

L1 Cone compartment / spout

L2 Pusher

L3 Cones (according to model)

L3a Shredder

L3b Grater

L3c Slicer

L3d Dicer

L3e Dice cutting accessory

M Coulis accessory (according to model)

M1 Watertightness joint

M2 Screw

M3 Mixed holes filter for coulis

M4 Small holes filter for juice

M5 Juice guide

M6 Cleaning brush

Note: Safety instruction booklet LS-123456 is supplied with the appliance.

Before using your appliance for the first time, read the booklet carefully and keep it in a safe place.

BEFORE FIRST USE

• Wash all accessories in warm water and washing up liquid. Rinse, and carefully dry them straight away.
• The perforated plate and the cutter must remain greased. Coat them with cooking oil.
• Do not switch on the appliance when it is empty or if the mincer plates are not greased.

ATTENTION: The blades of the cones are extremely sharp; handle the cones with great care, always holding them by the plastic parts.

EN

USE: MEAT GRINDER HEAD (FIG. 1.1 TO 1.6)

Prepare the entire quantity of food to be minced, remove any bones, gristle and tendons. Cut the meat into pieces. (approx. 2 cm x 2 cm)

Tip: At the end of operation, you can pass a few pieces of bread through the grinder in order to extract all the ground meat.

Notes:

• Only use your appliance for mincing raw meat. Do not mince cooked meat.
• Do not use your appliance for more than 14 minutes.

What should you do if the machine is clogged?

• Stop the mincer by pressing position "0" of the On/Off button (G).
• Then press the "Reverse" button (F) for a few seconds to release the jam.
• Press position "I" of the On/Off button (G) to continue mincing.

USE: SAUSAGE ACCESSORY (FIG. 2.1 TO 2.6)

Important: this accessory can only be used after the meat has been minced, seasoned and the preparation has been well mixed.

After leaving the skin to soak in warm water to regain its elasticity, slide it onto the funnel and let it overhang by around 5 cm (which you will seal by tying a knot with a link). Start the appliance, feed the mince through the mincer, following the skin as it fills.

Note: this work will be done more easily with two people, one to feed the mince through and the other to take care of filling the skin.

Give the sausages the required length by clamping and twisting the skin. For a quality sausage, take care to avoid trapping air during filling and make sausages that are 10 to 15 cm long (separate the sausages by making a link and tying a knot with the link).

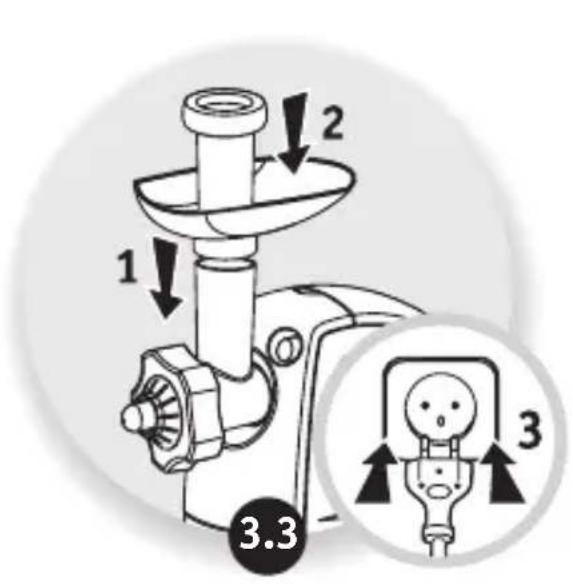

USE: KEBBE ACCESSORY (FIG. 3.1 TO 3.3)

Practical tip:

To make a fine Kebbe or Kefta paste, run the meat through the mincer two or three times until you obtain the desired smoothness.

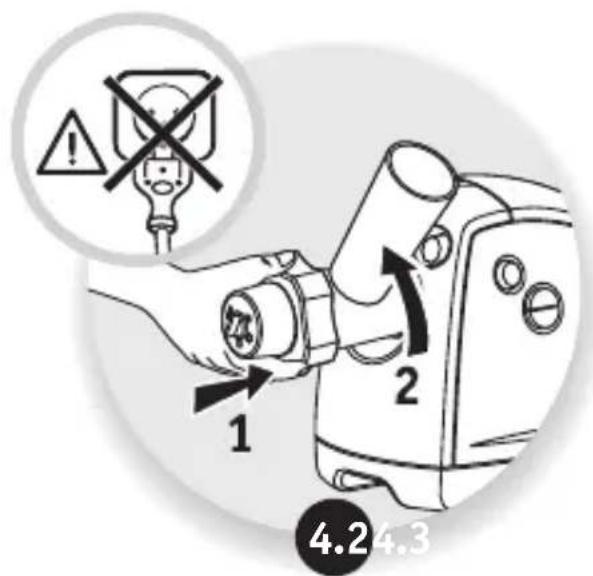

USE: BISCUIT ACCESSORY (FIG. 4.1 TO 4.3)

Prepare the dough. For best results, use a soft dough.

Choose the design by aligning it with the arrow.

Repeat the process until you have obtained the desired amount of biscuits.

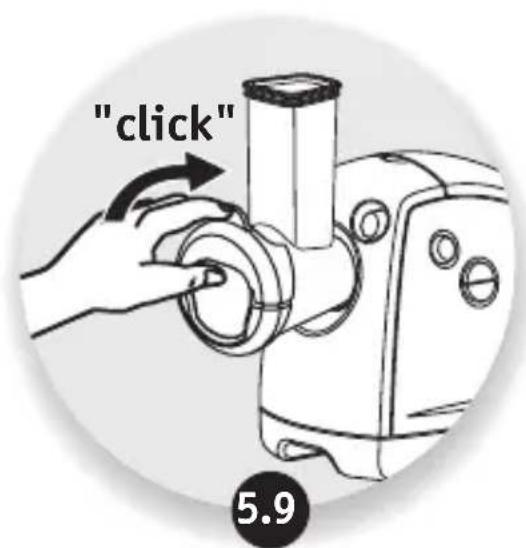

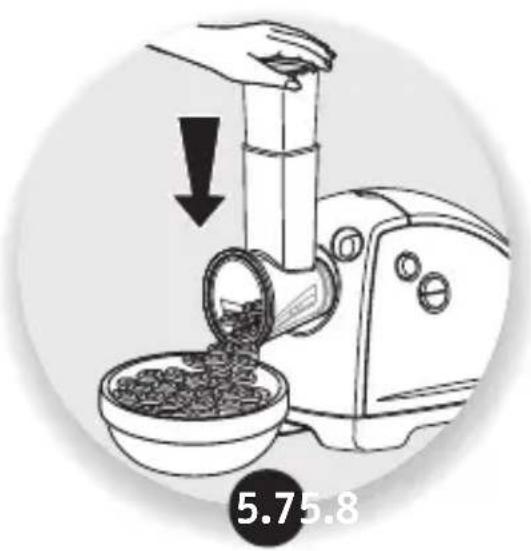

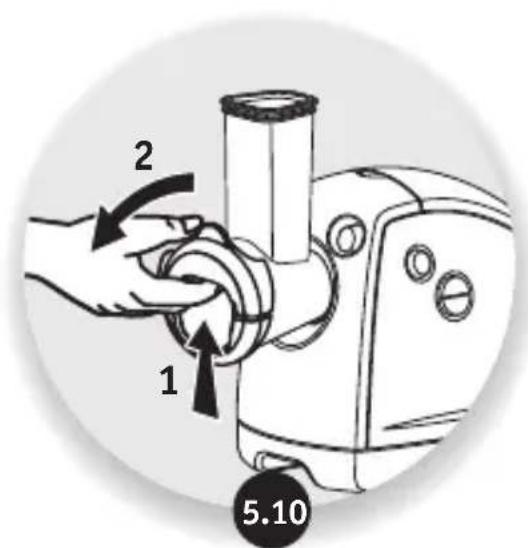

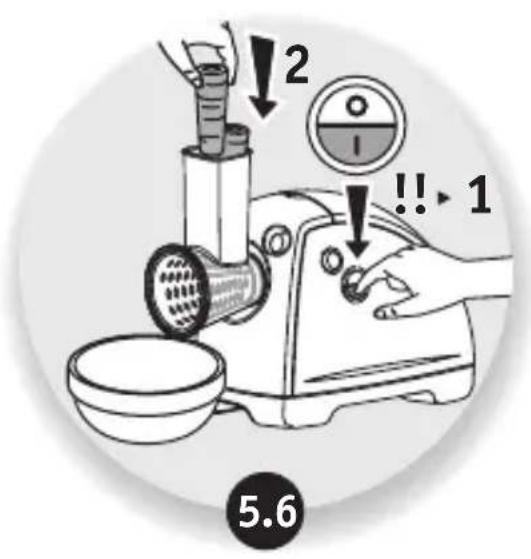

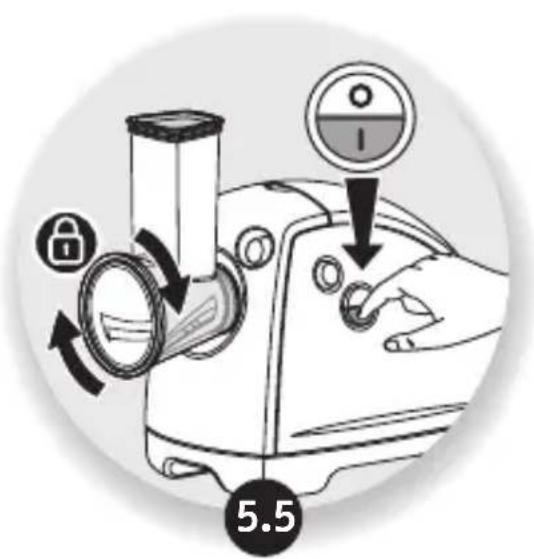

USE: VEGETABLE CHOPPER (FIG. 5.1 TO 5.10)

Useful tips for best results:

The ingredients that you use must be firm to obtain satisfactory results and to avoid the accumulation of food in the compartment.

Do not use the appliance to grate or cut food products that are too hard such as sugar cubes or pieces of meat.

USE: COULIS ACCESSORY (FIG. 6)

Use: Place a container under the juice groove (K5) to collect the juice and another one at the end of the filter to collect any residues. If you wish to make coulis or juice, using fresh fruits only is an imperative. According to the season and to the quality of your fruits, we recommended that you run the pulp through a second time to extract the maximum possible amount of coulis or juice.

Juice: Use filter L4

Coulis: Use filter L3

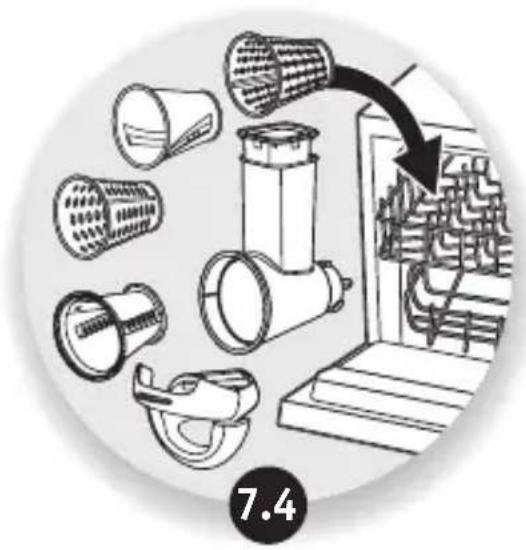

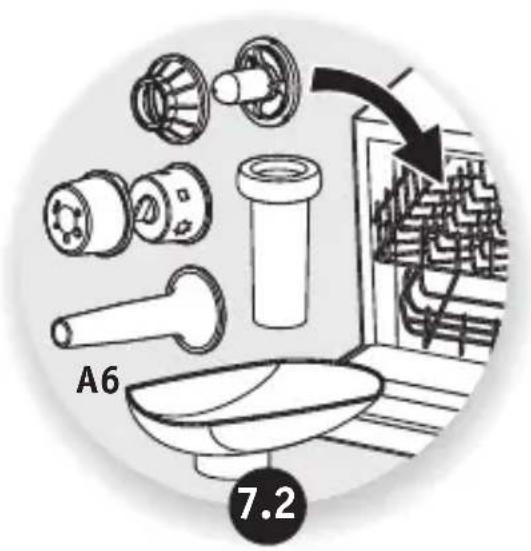

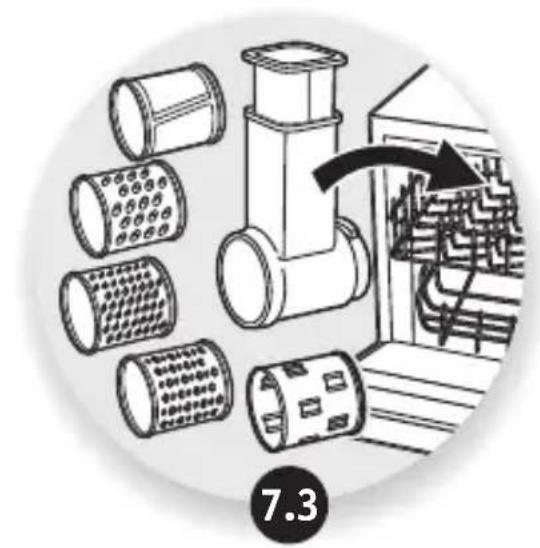

CLEANING (FIG. 7.1 TO 7.4)

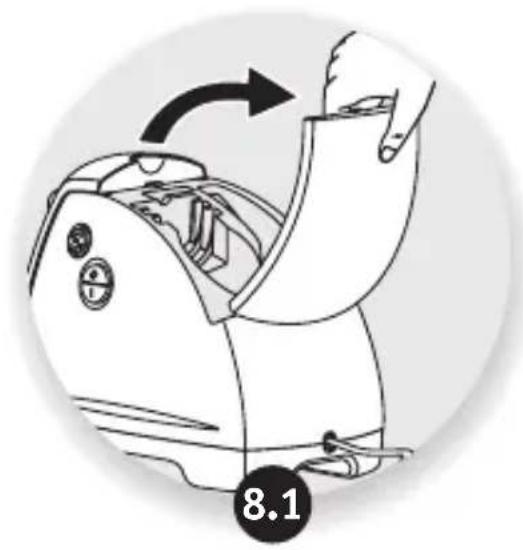

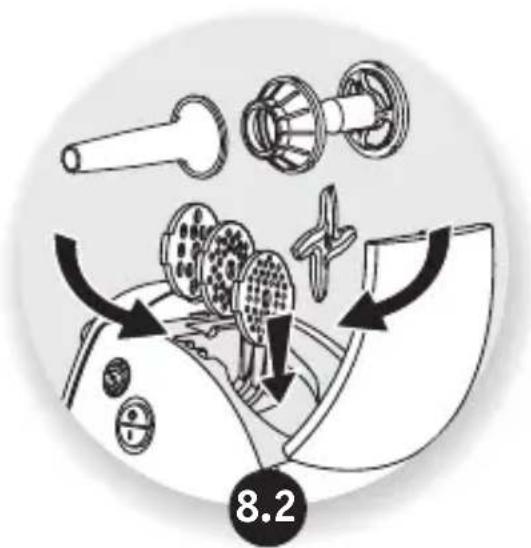

STORAGE OF ACCESSORIES (FIG. 8.1 TO 8.2)
