80382 - Coffee grinder HAMILTON BEACH - Free user manual and instructions

USER MANUAL 80382 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online.

For Questions: 1.800.851.8900 For recipes, tips, product information and registration: www.hamiltonbeach.com

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put unit, cord, or plug in water or other liquid.
6. Turn the appliance OFF (O), then unplug from outlet when not in use, before putting on or taking off parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted

by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
8. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Check removable grinding chamber for presence of foreign objects before using.
13. Do not use appliance for other than intended purpose.
14. Do not attempt to defeat any interlock mechanism.
15. Check that the appliance is OFF (O) before plugging cord into wall outlet. To disconnect, turn the control to OFF (C); then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
16. Do not remove hopper lid until grinder has completely stopped rotating.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with

a polarized plug (one wide blade) to reduce the risk of electric shock.

The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

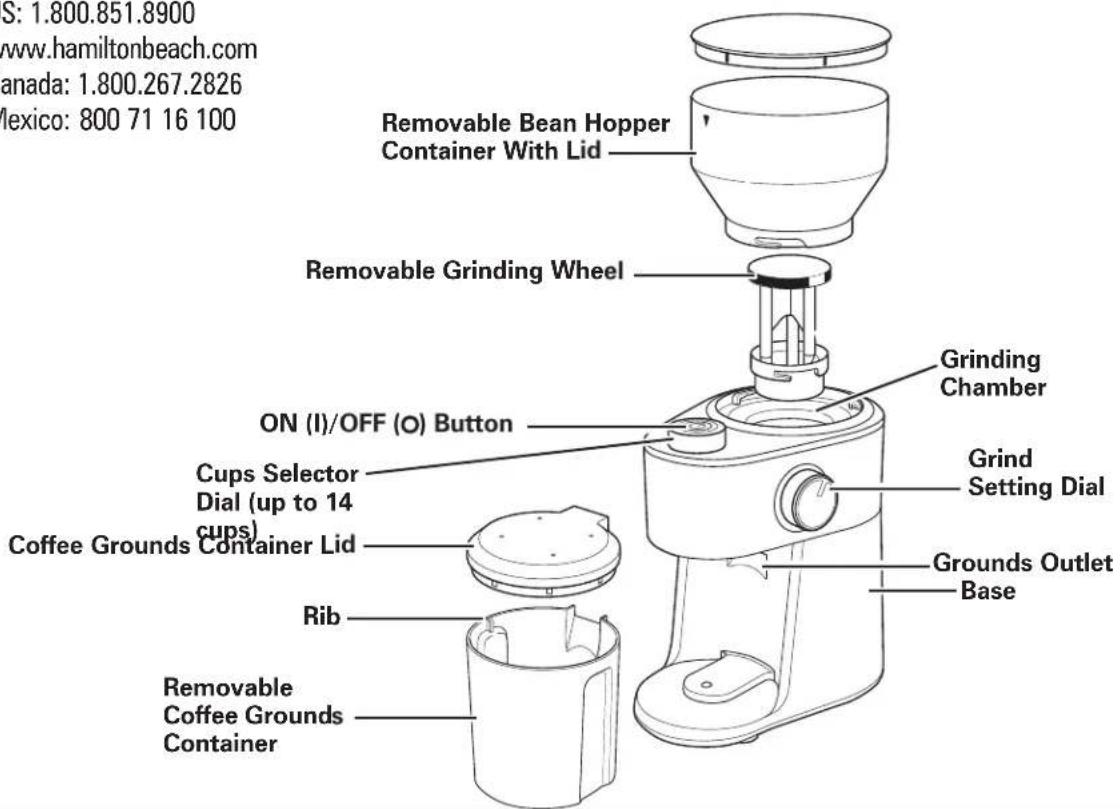

Parts and Features

Before first use: Wash Removable Bean Hopper Container and Lid and Coffee Grounds Container and Lid in hot, soapy water. Rinse and dry.

To order parts:

US:1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 800 71 16 100

Using the Coffee Grinding

1. Align arrow at top of Bean Hopper with unlock icon at the top of Grinding. Turn counterclockwise to lock.
2. Add coffee beans to Bean Hopper and place Bean Hopper Lid securely on top of Hopper.
3. Align slot in Coffee Grounds Container Lid with Rib in Coffee Grounds Container and press down to secure Lid in place.
4. Place empty Coffee Grounds Container on Grinding Base, aligning cutout of container with Base. Slide Coffee Grounds Container onto Base until it clicks into place. Failure to use an empty coffee grounds container may cause damage to the Coffee Grinding, rendering it inoperable.
5. Turn Cup Selector Dial to desired amount, from 2 to 14 cups.
6. Rotate Grind Setting Dial to desired grind, from coarse to fine.
7. Plug into outlet. Press ON (I)/OFF (o) button to grind beans. Grinding will automatically turn off at end of selected grind. Unplug.
8. Pull Grounds Container straight out.
9. Pour grounds into paper filter of coffee maker or into an airtight container for storage.

TIPS:

• For best flavor, store coffee beans in an airtight container.
• Grind beans immediately before brewing.
• Grinding times will vary by amount and fineness setting.
  To ensure optimal grinding performance, allow Coffee Grinding to cool for at least 1 minute between uses.
• Coffee flavor and strength are personal preferences. Vary the type of coffee beans, amount of coffee, and fineness of grind to find the flavor you prefer.

CUP SELECTOR SWITCH SETTINGS

SELECT CUPS
2 1-2
4 3-4
8 5-8
12 9-12
14 13-14

COFFEE GRINDING CHART

IF GRINDING: GRIND SETTING

Percolator/French Press Coarse

Drip Coffee Maker Medium

Steam or Pump Espresso Maker Fine

Care and Cleaning

WARNING Electrical Shock Hazard. Disconnect power before

cleaning. Do not immerse cord, plug, or base in any liquid.

1. Unplug.
2. Grinding Wheel should not be immersed in water. Use Cleaning Brush to remove any buildup.
3. Wash Removable Bean Hopper Container with Lid and Removable Coffee Grounds Container with Lid in hot, soapy water. Rinse and dry.

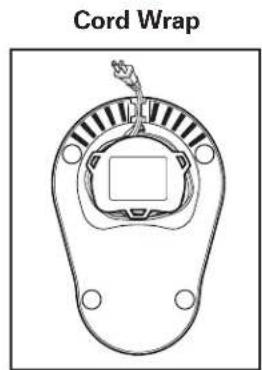

4. Wipe the outside of Coffee Grinding with a soft, damp cloth. Wrap Cord around Cord Wrap on the bottom of Grinding to store.
5. Clean Removable Grinding Wheel using a soft brush. Do not immerse in water or place in dishwasher.
6. Use Cleaning Brush to clean around Grounds Outlet.

Troubleshooting

Grinder will not turn on.

• Make sure Bean Hopper Container with Lid and Grounds Container with Lid are in place.

Grinder will not grind coffee beans.

• Make sure Removable Grinding Wheel is in place.

Grind is too fine.

• Turn Grind Setting Dial counterclockwise to a coarser setting.

To Remove Bean Hopper Container and Grinding Wheel (not dishwasher-safe)

1. Unplug.
2. Bean Hopper Container should be empty of coffee beans before removing from Grindcr or beans will spill onto counter. Turn Container clockwise to unlock, and lift it up.
3. Turn Removable Grinding Wheel clockwise to unlock, and lift it up.
4. Clean with a soft bristle brush.
5. Place Grinding Wheel into center of Grinding Chamber. Turn counterclockwise to lock.

To Install Bean Hopper Container and Grinding Wheel (not dishwasher-safe)

1. Unplug.
2. Align arrow at top of Bean Hopper with unlock icon at top of grinder. Turn counterclockwise to lock.
3. Place Grinding Wheel into center of Grinding Chamber. Turn counterclockwise to lock.

Coffee is too weak.

• Increase Cup Selector Dial amount for a stronger-tasting coffee.

ON/OFF button is flashing.

• Make sure Bean Hopper Container with Lid and Grounds Container with Lid are in place.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

Notes
