Custom Grind 80396RC - Coffee grinder HAMILTON BEACH - Free user manual and instructions

Product Type	Electric Coffee Grinder
Brand	Hamilton Beach
Model	Custom Grind 80396RC
Use	For household use only
Power Supply	120 V ~ 60 Hz
Maximum Grinding Capacity	Up to 10 cups
Grind Settings	Coarse, medium, fine
Quantity Selector	Cup number setting
Automatic Shut-off Function	Yes, end of grinding cycle
Lid Safety Lock	Yes, with locking click
Removable Grinding Chamber	Yes, washable
Removable Lid	Yes
Built-in Cord Storage	Yes, in the base
Housing Material	Plastic
Maintenance and Cleaning	Wash lid and chamber in warm soapy water; do not immerse base
Safety	Polarized plug; do not use with external timer
Warranty	5 years in Canada, 1 year in the USA
Country of Origin	Not specified

Frequently Asked Questions - Custom Grind 80396RC HAMILTON BEACH

How to use the Hamilton Beach Custom Grind 80396RC coffee grinder?

Remove the lid, pour beans directly into the grinding chamber up to the desired level (use the cup markings). Place the lid by aligning the arrow with the unlock symbol, then turn clockwise to lock. Select the cup quantity and grind type (coarse, medium, or fine) on the selector. Press the Start/Stop button to start; the grinder shuts off automatically.

What grind settings are available?

The grinder offers three settings: COARSE for percolator or French press, MEDIUM for drip coffee, and FINE for steam or pump espresso machine.

How to clean the coffee grinder?

Always unplug the appliance before cleaning. Wash the removable lid and grinding chamber in warm soapy water, rinse and dry. Never immerse the base, cord or plug in water.

What to do if the lid is difficult to remove?

The lid must be unlocked before removing. Turn it counterclockwise to the unlocked position, then lift vertically.

What is the maximum grinding capacity?

The grinding chamber can hold up to 10 cups of coffee beans, as indicated by the markings on the chamber.

Can I use an extension cord with this grinder?

Yes, you can use an approved extension cord if the cord is too short. Make sure its electrical ratings are equivalent or greater than the appliance's (120 V ~ 60 Hz). Place it to avoid tripping hazard.

How to store the power cord?

Unplug the appliance. Hold the grinder with one hand and pull the base down with the other. Wrap the cord around the notch in the base, place it in the cutout leaving the plug out, then push the base up to hide the cord.

What to do if the grinder stops during use?

The grinder stops automatically at the end of the grinding cycle. If an unexpected stop occurs, check that the chamber is not too full and the lid is locked properly. Let the appliance cool for about 1 minute before using again.

Is the coffee grinder under warranty?

Yes, this product is covered by a limited warranty of 5 years in Canada and 1 year in the USA from the purchase date, against defects in materials or workmanship. The warranty does not cover normal wear, abuse, or misuse.

Can I grind foods other than coffee?

No, this appliance is designed only for grinding coffee beans. Do not use it for other purposes, as this could damage the appliance or pose a safety risk.

USER MANUAL Custom Grind 80396RC HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Please call us – our friendly

associates are ready to help.

USA: 1.800.851.8900

Questions?

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put unit, cord, or plug in water or other liquid.
6. Turn the appliance OFF(●) then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts.

8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

9. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.

10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Check removable grinding chamber for presence of foreign objects before using.
14. Do not use appliance for other than intended purpose.
15. Do not remove grinding cover until blade has completely stopped rotating.
16. Be certain cover is securely locked in place before operating appliance.
17. Do not attempt to defeat the cover interlock mechanism.
18. Check that the appliance is OFF (before plugging cord into wall outlet. To disconnect, turn the control to OFF then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
19. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse

2

the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

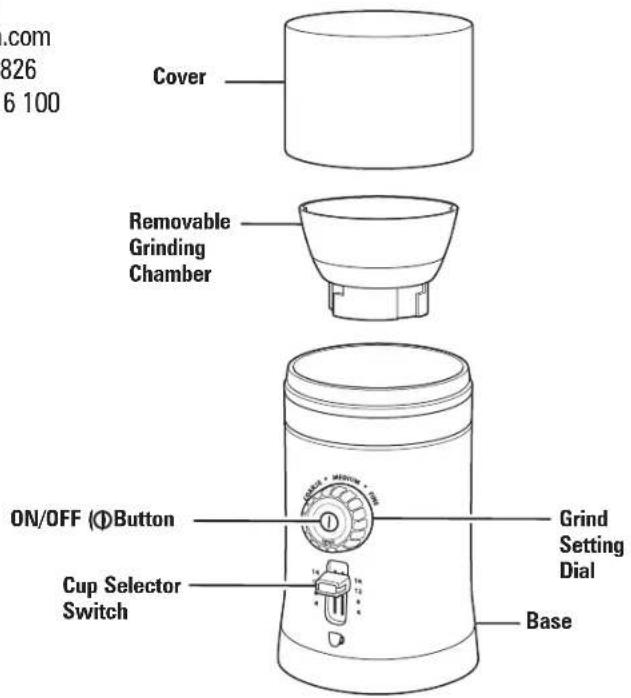

Parts and Features

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

BEFORE FIRST USE: Wash all removable parts in hot, soapy water. Rinse and dry.

Using the Coffee Grinder

Diagram of a mechanical device with directional arrows and a circular base (no text or symbols)

Remove grinding cover, if locked in place, by turning counterclockwise to unlock position; then lift straight up.

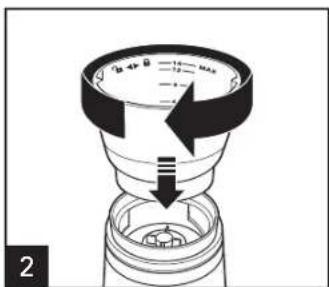

Twist grinding chamber clockwise to locked position. Make sure that the grinding chamber is FIRMLY locked into position.

Line drawing of a hand pouring liquid into a container (no text or symbols)

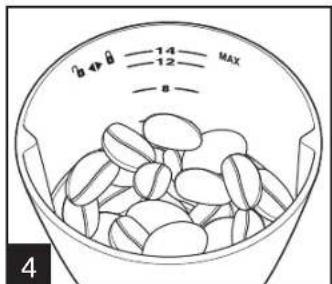

Pour coffee beans directly into grinding chamber and fill to desired level.

Use the convenient cup markings, which correspond to cups of brewed coffee.

Place grinding cover onto grinder. Make sure the arrow on cover is aligned with the unlock symbol on back of grinder. Turn lid clockwise to locked position. Grinding cover will "click" when locked into position.

Line drawing of a cylindrical container with a lid and label, no text or symbols present

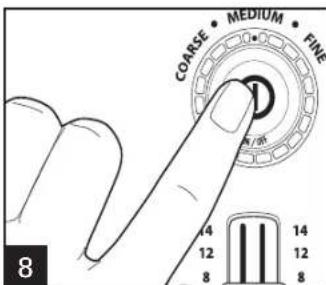

Move switch up or down to select the amount of cups you will be brewing. Turn grind setting dial clockwise to select COARSE, MEDIUM, or FINE grind. Refer to charts on page 5 for grinding and cup selection. Press the ON/OFF (①) button to start grinding. Grinder will turn off automatically at the end of selected grind.

Using the Coffee Grinder (cont.)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Lift cover straight up to remove. If locked in place, turn counterclockwise to unlock; then lift straight up.

Twist grinding chamber counterclockwise to unlock; then lift straight up.

Illustration of hands pouring dark granular substance into a glass bowl (no text or symbols)

Pour grounds from grinding chamber into a paper filter or into an airtight container.

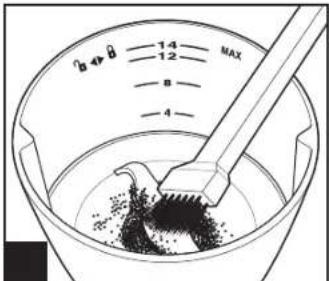

Use a small soft-bristled brush to remove grounds at the bottom of the grinding chamber.

TIPS:

• For best flavor, store coffee beans in an airtight container.
• Grind beans immediately before brewing.
• Grinding times will vary by amount and fineness setting.
  • To ensure optimal grinding performance, allow coffee grinder to cool for at least 1 minute between uses.
• Coffee flavor and strength are personal preferences. Vary the type of coffee beans, amount of coffee, and fineness of grind to find the flavor you prefer.

CUP SELECTOR SWITCH SETTINGS

SELECT CUPS
4 1-4
8 5-8
12 9-12
14 13-14

COFFEE GRINDING CHART

IF GRINDING: GRIND SETTING
Percolator/French Press Coarse
Drip Coffee Maker Medium
Steam or Pump Espresso Maker Fine

Care and Cleaning

Diagram showing a plug inserted into an electrical socket with two outlets, connected to a cable (no text or symbols present)

Unplug from wall outlet. Wash cover and grinding chamber in hot, soapy water. Rinse and dry.

Line drawing of a faucet and bucket on a surface with chains, no text or symbols present

WARNING Electrical Shock Hazard.

Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

Line drawing of a hand cleaning a jar with a cloth (no text or symbols)

Wipe the outside of coffee grinder with a soft, damp cloth.
NOTE: Cover will become cloudy with use.

How to Store Cord

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Unplug from wall outlet.

Illustration of a hand holding a cylindrical device with a dial and a downward arrow indicating motion (no text or symbols)

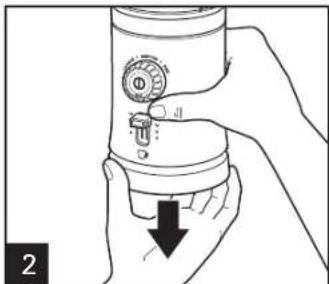

Hold coffee grinder in one hand and pull down on the base with your other hand. Wrap cord around hidden area of base. Place cord in cutout of base, leaving the plug outside the base. Push base up to store cord.

Simple line drawing of a cylindrical device with a coiled cable and a plug inserted, labeled with number 3 (no text or symbols on the diagram itself)

pull down on the base with your other hand. Wrap cord around hidden base, leaving the plug outside the base. Push base up to store cord.

Illustration of a hand holding a cylindrical object with a black arrow pointing to a small component (no text or symbols present)

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Diagram of a mechanical device with directional arrows and a labeled component (no text or symbols)

Line drawing of a hand pouring liquid into a jar (no text or symbols)

Line drawing of a cylindrical container with a lid and handle, no text or symbols present

Illustration of hands pouring granular substance into a bowl (no text or symbols)

CHOISIR TASSES
4 1–4
8 5–8
12 9–12
14 13–14

TABLEAU DE MEULAGE DE CAFÉ

Diagram showing a plug inserted into an electrical socket with two outlets, illustrating the process (no text or symbols present)

Line drawing of a kitchen sink with faucet and two buckets on a surface (no text or symbols)

Line drawing of a hand cleaning a jar with a cloth (no text or symbols)

Diagram showing a plug inserted into an electrical socket with two outlets, connected to a cable (no text or symbols present)

Illustration of a hand holding a cylindrical device with a dial and a downward arrow indicating action (no text or symbols)

Simple line drawing of a cylindrical object with a coiled cable and a plug inserted, labeled '3' in the corner (no text or symbols on the object itself)

Illustration of a hand holding a cylindrical object with an arrow pointing to a small component (no text or symbols present)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Line drawing of a cylindrical container with a lid and a small icon, no text or symbols present

Illustration of hands pouring dark granular substance into a bowl (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two socket outlets, connected to a cable (no text or symbols present)

Desenchufe del tomacorriente. Lave

Line drawing of a kitchen sink with faucet and two buckets on a surface (no text or symbols)

Line drawing of a hand cleaning a jar with a cloth (no text or symbols)

Diagram showing a plug inserted into an electrical socket with two outlets, connected to a cable (no text or symbols present)

Illustration of a hand holding a cylindrical device with a knob and a downward arrow indicating motion (no text or symbols)

Simple line drawing of a cylindrical device with a coiled cable and a probe inserted (no text or symbols)

Illustration of a hand holding a cylindrical object with a black arrow pointing to a small component (no text or symbols present)

Hamilton Beach®
