IN 900 BSC - Basket AMICA - Free user manual and instructions

Brand	Amica
Model	IN 900 BSC
Category	Hob hood
Installation type	Wall-mounted (on vertical wall)
Width	90 cm
Power supply	220-240 V ~ 50 Hz
Operating modes	Extraction (external evacuation) and recirculation (charcoal filter)
Fan speeds	3 adjustable speeds (speeds 1 and 2 for normal use, speed 3 for heavy smoke)
Lighting	Independent, on/off via separate button
Grease filter	Metal (aluminium), dishwasher safe or hand washable
Grease filter cleaning frequency	At least once a month
Charcoal filter (optional)	For recirculation mode, not washable, replacement every 2 months
Exhaust duct diameter	120 mm or 150 mm
Minimum mounting height above hob	Refer to cooking hob specifications (usually 65-75 cm for electric, 75-85 cm for gas)
Material	Stainless steel (likely)
Weight	Approximately 15-25 kg (estimate)
Warranty	According to provided warranty card
Usage	Household use only
Standards	Compliant with European directives (Low Voltage, EMC, RoHS, etc.)

Frequently Asked Questions - IN 900 BSC AMICA

What is the recommended mounting height for the Amica IN 900 BSC hood?

The mounting height above an electric hob is indicated in the technical data sheet. For a gas hob, follow the distance recommended by the hob manufacturer. In general, allow 65-75 cm for an electric hob and 75-85 cm for a gas hob.

How to install the hood in extraction mode?

In extraction mode, air is evacuated outside via a rigid or flexible duct of 120 or 150 mm diameter. Remove the charcoal filter if present. Connect the duct to a ventilation opening. Call a qualified installer.

How to switch to recirculation mode?

In recirculation mode, filtered air is returned to the room. An active charcoal filter must be installed. On some models, an internal lever allows switching between modes. For telescopic hoods, an exhaust hose must be directed towards the room.

How often should the grease filter be cleaned?

The metal grease filter should be cleaned at least once a month, in the dishwasher or by hand with a mild detergent. A filter saturated with grease can become flammable.

When should the charcoal filter be replaced?

The active charcoal filter cannot be washed and must be replaced every 2 months, or more often with heavy use. It absorbs odors until saturation.

Can I use the hood without the grease filter?

No, it is strictly forbidden to use the hood without the grease filter installed. This poses a fire risk and damages the appliance.

What to do if the hood stops working or the power cord is damaged?

If the cable is damaged, it must be replaced by the manufacturer, its after-sales service, or a qualified person. Do not attempt to repair it yourself.

How to clean the external surface of the hood?

Use a damp cloth and a mild detergent. Do not use solvents, alcohol, abrasive products, or rough sponges, especially on stainless steel surfaces.

Can children use the hood?

This appliance can be used by children aged 8 years and above under supervision. Children must not play with the appliance. Cleaning and maintenance must not be performed by children without supervision.

What to do if the hood does not turn on after installation?

First check that the plug is properly connected and the circuit breaker has not tripped. Make sure the power cord is not damaged and the hood is correctly installed. If the problem persists, contact after-sales service.

USER MANUAL IN 900 BSC AMICA

Before using the appliance, please carefully read this manual!

Vertical wall pattern with 3D block structure and label '1b' (no text or symbols beyond the label)

min 650mm Gas cookers

Vertical brick wall pattern with a numbered label '1c' at the bottom (no other text or symbols)

D C A B 2a

D C E A B 2b

3a

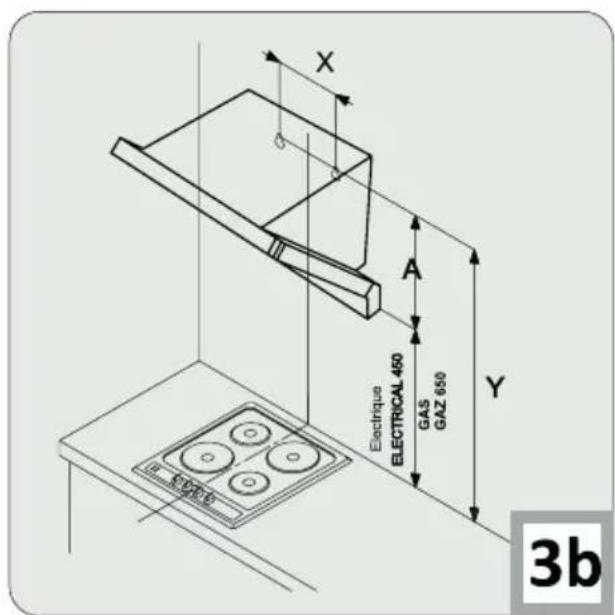

X A Electrical 450 GAS GAZ 650 Y 3b

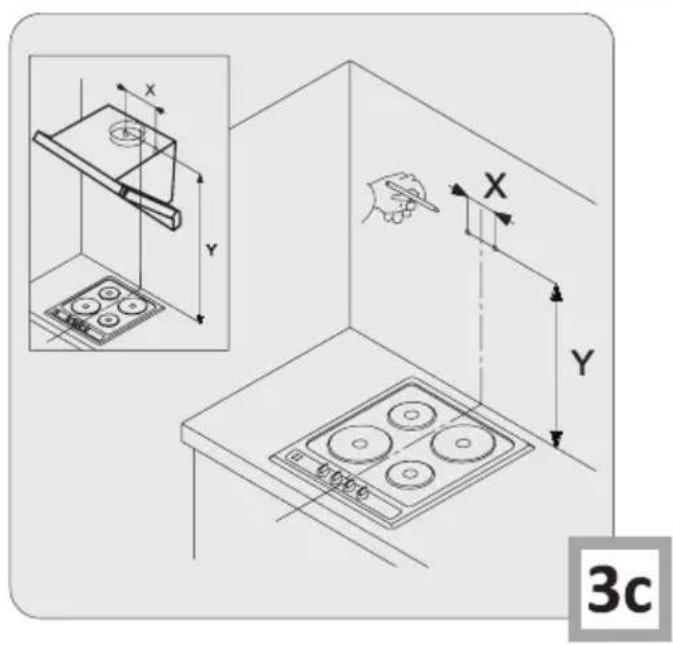

Technical diagram showing kitchen appliance placement with X and Y coordinate axes and a magnified inset of a stove or stove.

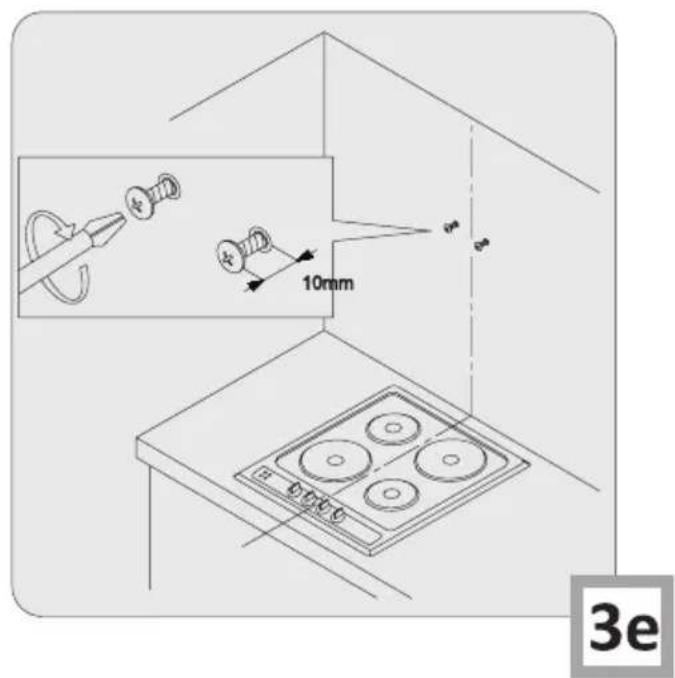

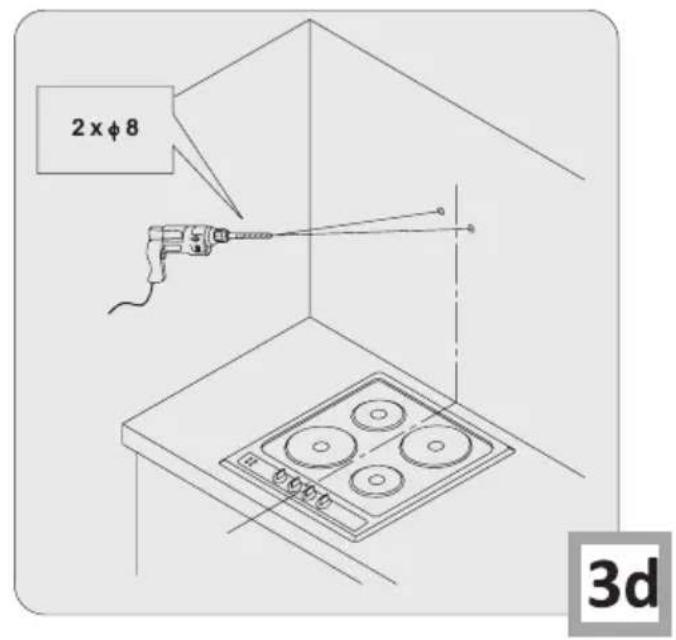

2 x φ 8 3d

10mm 3e

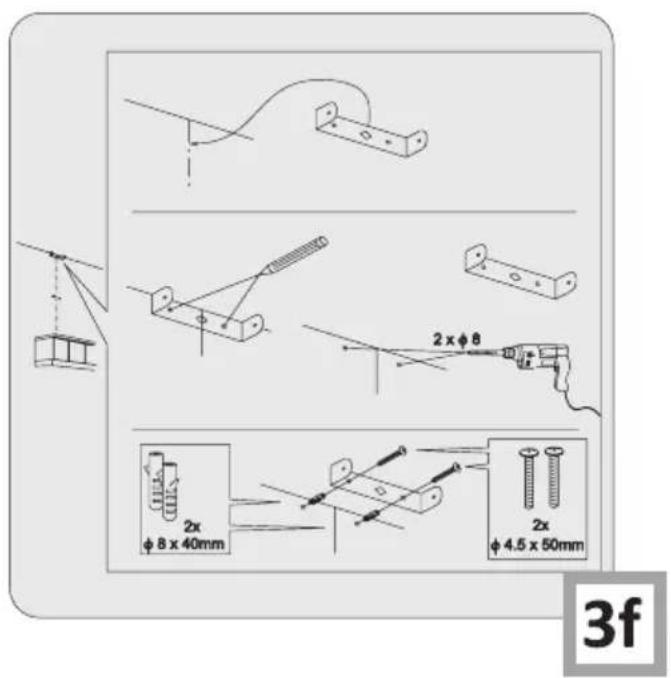

2x φ8 φ8 x 40mm 2x φ 4.5 x 50mm 3f

10 cm φ16 cm φ0.5 φ0.5 3g

>1 cm φ16 cm >30 cm φ2 φ3 3h

W cm 220-240V -50-60Hz >1 cm W - 2cm >30 cm φ3 φ3 3i

Diagram illustrating a hand holding a small object under a lock, with an open lock symbol and a 3-junction lock mechanism labeled '3j'.

Technical line drawing of a mechanical component with circular features and a dashed vertical axis (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing a hand holding a circular ring (no text or symbols present)

Technical line drawing of a mechanical assembly with cylindrical components and a coiled spring, labeled '3m' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with a coiled pipe and attached cylindrical component (no text or symbols)

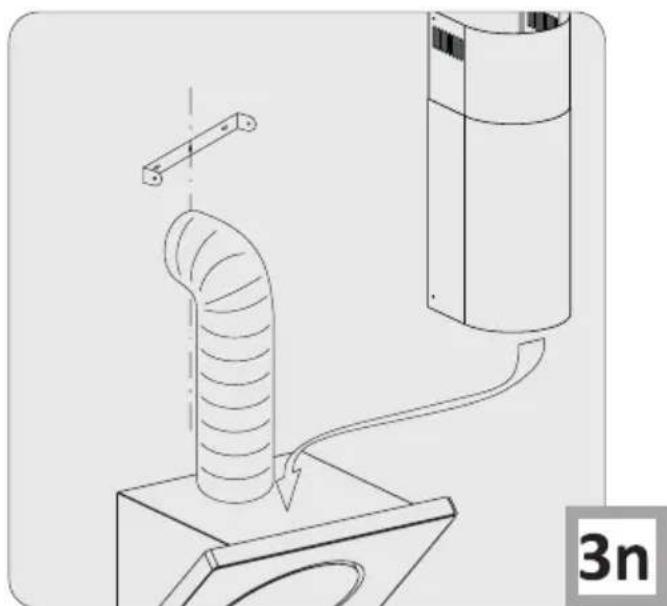

4x φ 3.9 x 9.5 3n

① 4

Technical illustration of a mechanical device with an inset showing a hand holding a tool, labeled '5' (no text or symbols on the diagram itself)

Three technical diagrams showing a grid-patterned panel assembly process, with no visible text or symbols.

GRATULUJEMY WYBORU SPRZĘTU MARKI AMICA

Szanowni Państwo,

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Simple line drawing of a three chasing recycling symbol (no text or labels)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

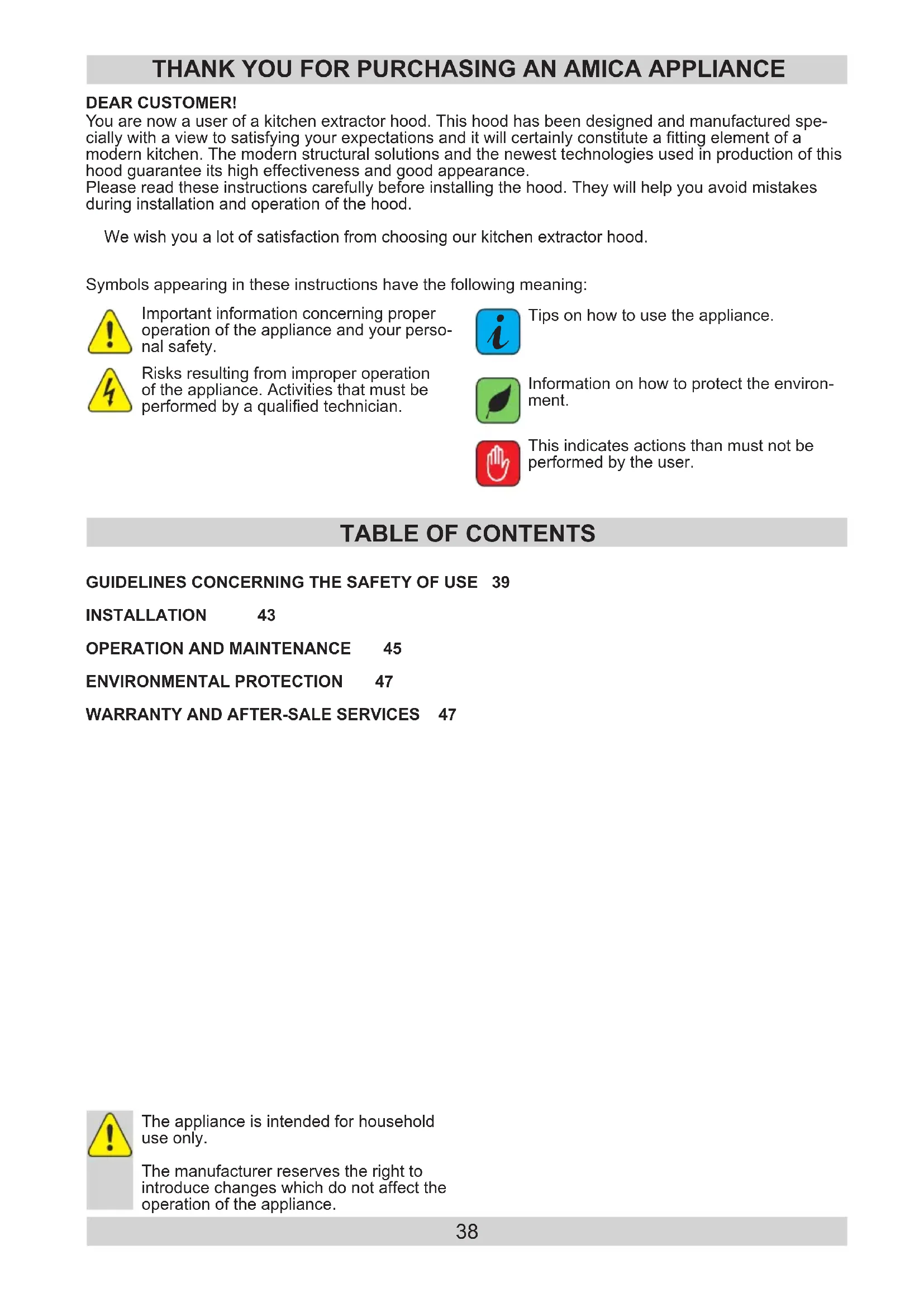

THANK YOU FOR PURCHASING AN AMICA APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS

GUIDELINES CONCERNING THE SAFETY OF USE 39

INSTALLATION 43

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi
- Cooker hood is designed to remove cooking odours. Do not use co-oker hood for other purposes.
- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

- Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

● The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b/c).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- Any food cooked in fat shall be constantly monitored, since over-heated fat can ignite very easily.

- Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.

- The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).

- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

- Do not abut against the hood

- The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

- If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.

- Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.

- Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.

● Before installing unwind and straighten the power cord.

- Warning! The packaging materials (polyethylene bags, small pieces of foamed polystyrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

- Never use the hood without effectively mounted grating!

● The flaming of foods beneath the hood itself is severely prohibited.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

● WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazardsii

Elements

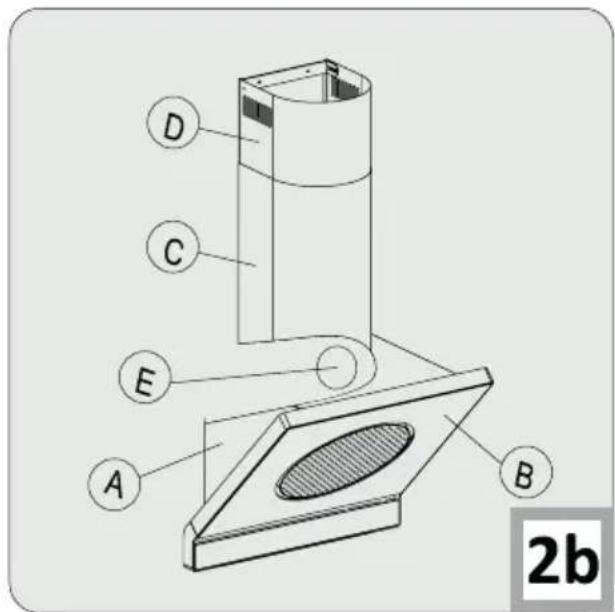

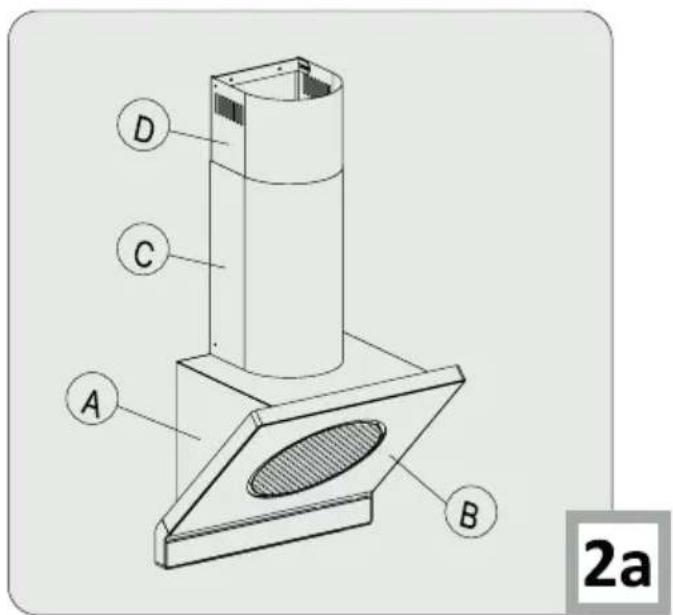

kitchen hood consists of the following elements (Fig. 2...):

Installation

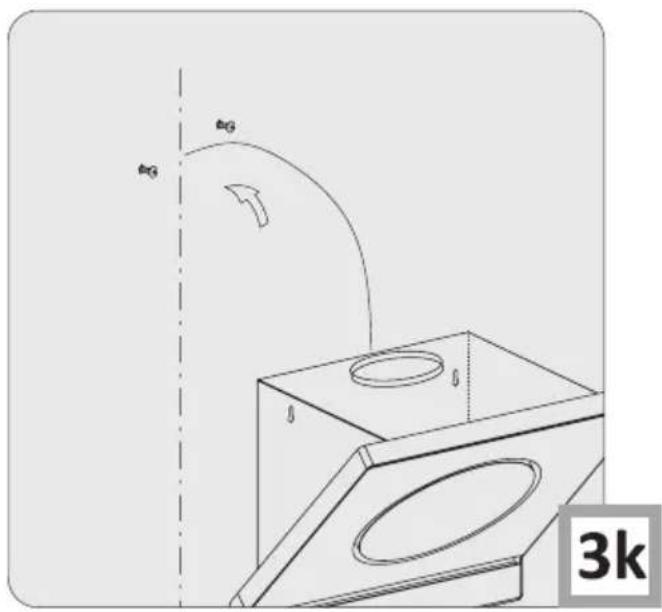

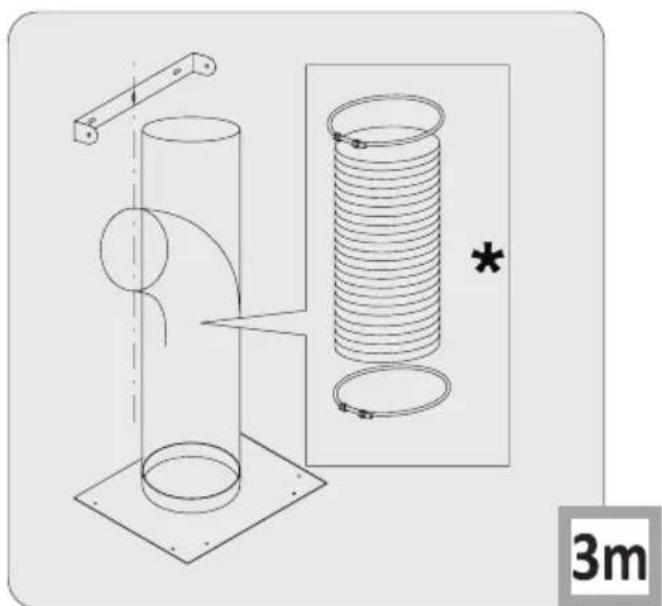

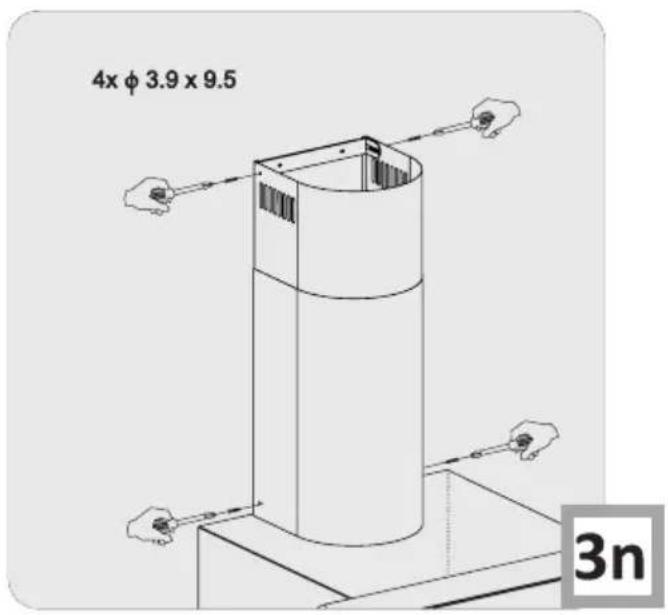

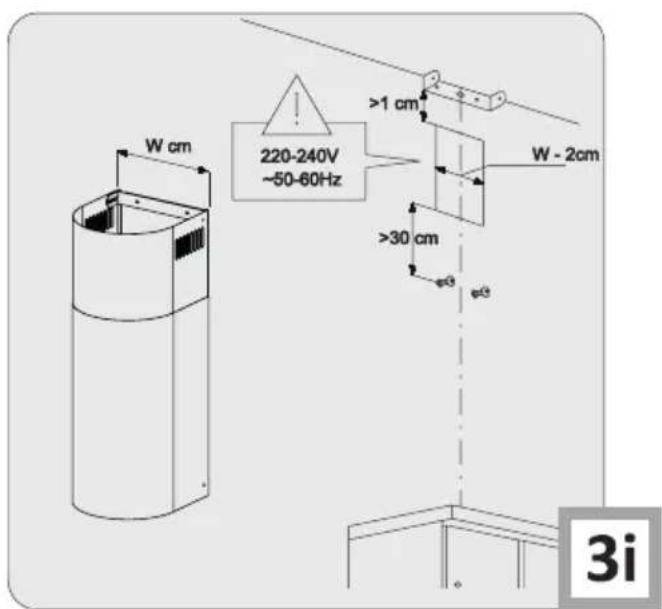

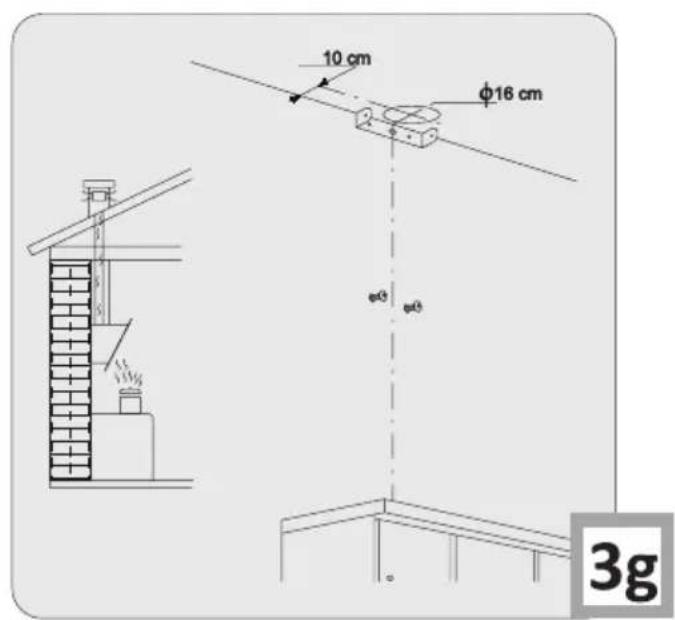

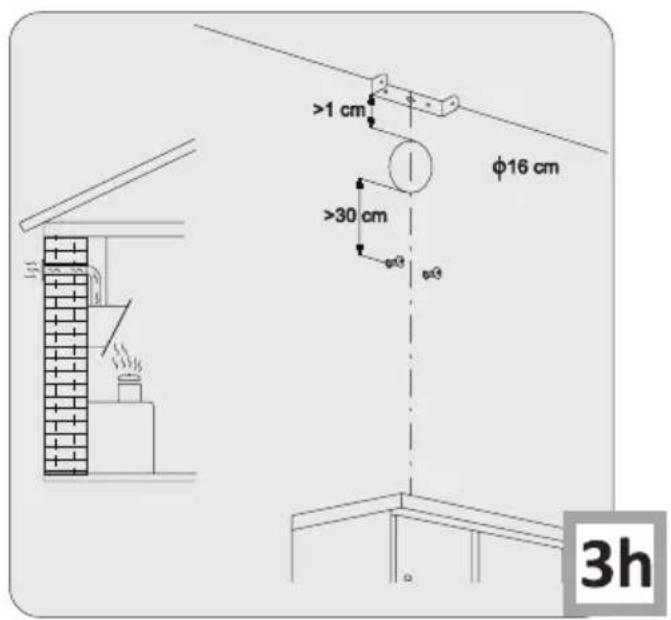

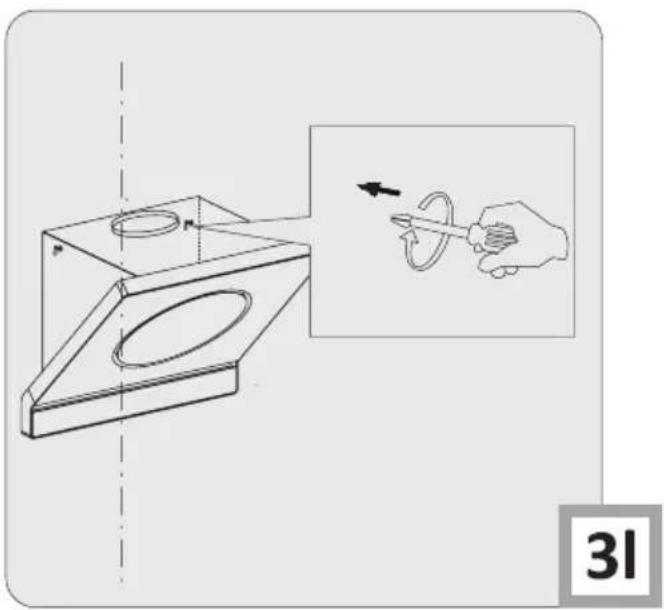

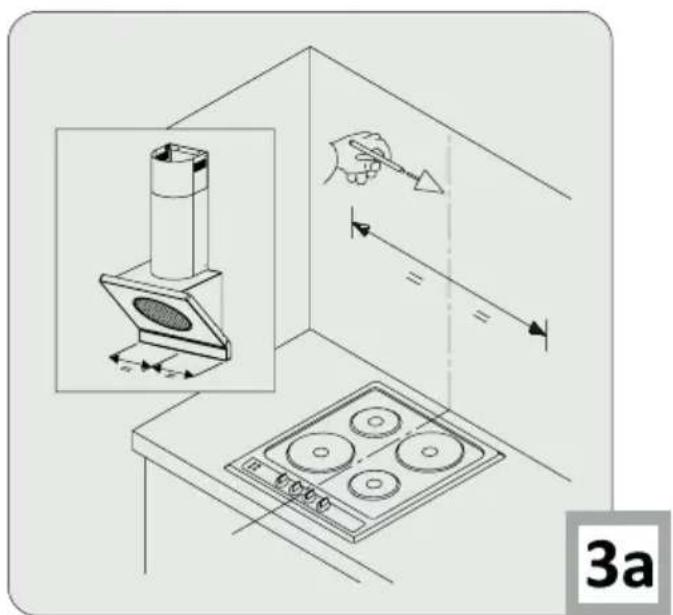

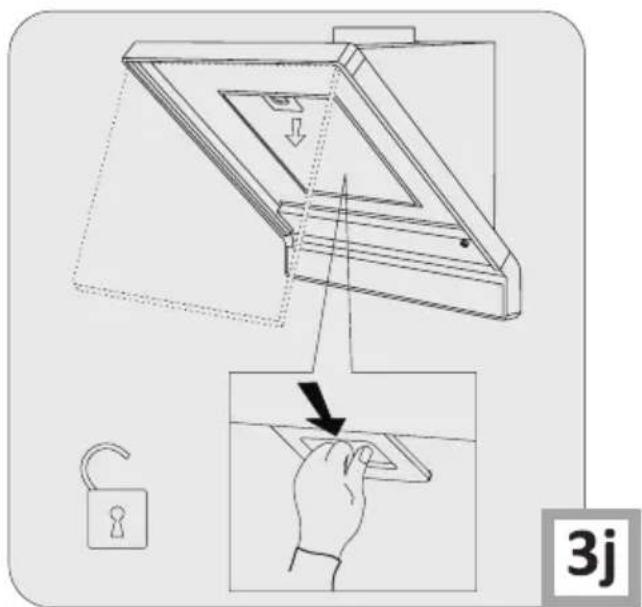

Step-by-step appliance installation is shown on Fig. 3...

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

In some universal hoods you need to switch lever inside the hood (Fig. 8) to switch between the extraction and air recirculation modes. The cleaned air is returned to the room through the holes in the top of the unit.

Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Fan speeds

The lowest and medium speeds should be used under normal conditions and with low concentration of fumes. The maximum speed should be used in case of high concentration of kitchen fumes, e.g. during frying or grilling.

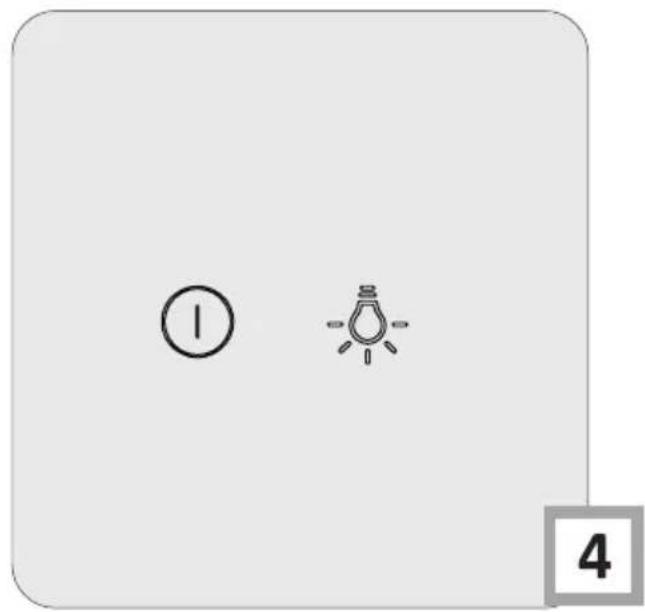

Use control panel to control your cooker hood (Fig. 4)

- Touch ⏻ to turn off the hood.

- Touch to turn lights on/off independently of fan operation. Touch this sensor briefly to lights on/off.

Operation of hood by induction hob - see instruction manual of induction hob - page 27-28

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

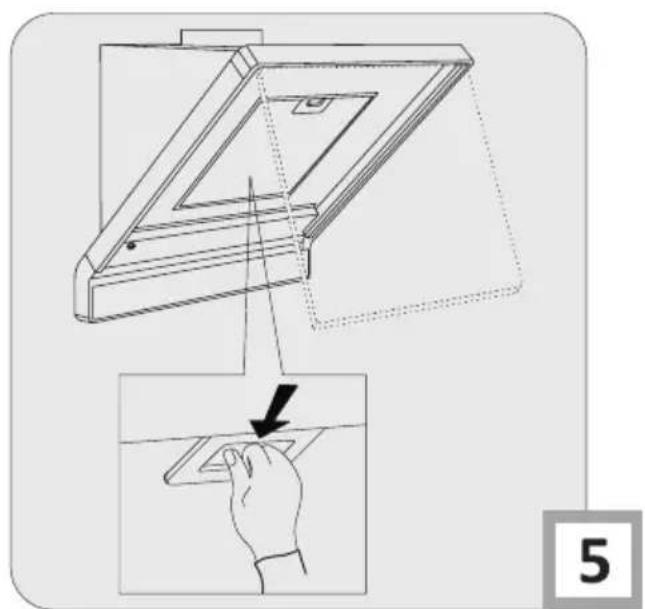

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

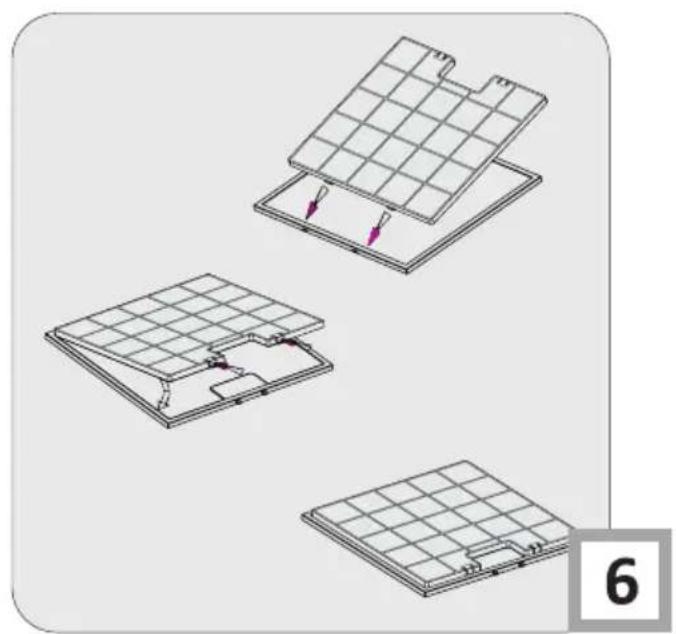

Dismantling of charcoal filter is shown on Figure 6.

Lighting

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

Recycling of the packaging

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EQUIPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

WARRANTY AND AFTER-SALE SERVICES

Warranty

Warranty service as stated on the warranty card

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC
• Directive RED 2014/53/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Abstract recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.
