USER MANUAL 10027054 Klarstein

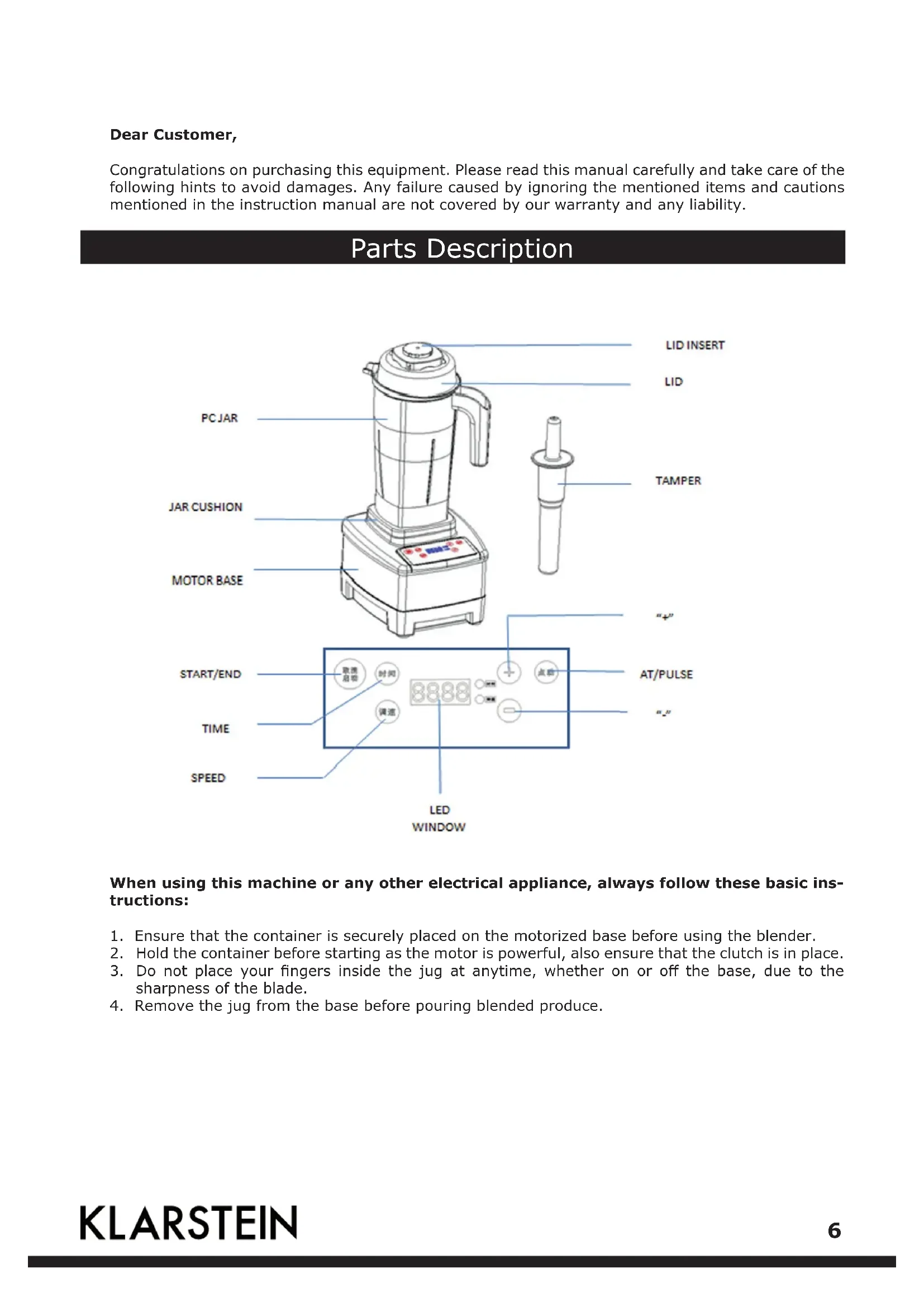

1. Ensure that the container is securely placed on the motorized base before using the blender.

2. Hold the container before starting as the motor is powerful, also ensure that the clutch is in place.

3. Do not place your ngers inside the jug at anytime,whetheronoro the base, due to the

sharpness of the blade.

4. Remove the jug from the base before pouring blended produce.Safety Instructions

1. Read all instructions.

2. Unplug from wall when blender is not in use.

3. The cover (Lid) can only be opened when the blade has completely stopped rotating.

4. When cleaning, ensure that you unplug the appliance, the jug can be washed separately.

5. To protect against risk of electrical shock, do not submerge the motorized blender base in water

or other liquid or place in the dishwasher.

6. When in use, keep children away to prevent accidents.

7. Do not operate this appliance with damaged cord or plug or after appliance malfunctions or is

dropped or damaged in any manner.

8. Do not put the metal matter in the container. Such as knife, fork, scoop…

9. Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.

10. Do not place the machine on or near a hot gas or electrical burne, in a heated oven, or allow

machine to touch hot surfaces. External sources of heat can damage your appliance.

11. Do not use outdoors.

1. Place the container on the motorized base securely

2. Put thefoodin the container.Please inpouring some uidity(such as water, milk, honey, fruit

juice… ) if it is solid food.

3. Covertherobberlid,thenputthemixingrodorllcap.

4. Plug and hold the container, then the machine will have one bumming. the LED window indicate

“00:00”, and the “TIME” indicator light is on. That mean machine is standby mode. Then you can start the blending by two settings Set the time and speeds before start. a) Time setting when machine in standby mode, the LED window indicate “00:00”, push “TIME” button, in default status is “01:30”(1minute and 30 seconds) , you can push “+” or “-” to add or reduce the time,5 seconds’s change when you push the “+” or “-” each time. Such as push “+” button one time, the time is “01:35”, push it again, the time is “01:40”… “-” button is opposite setting. Max time is “02:00”, Min time is “00:00”. b) Speed setting push “SPEED” button, the “SPEED” indicator light will be on. in default status is “: 250. It is Max speed), you can push “-” to reduce the speed, 1000 RPM’s change each time. Such as push “-” button one time, the speed is “240”(push it again, the speed is “230”…,Min speed is “150”. Completed above time and speed setting, then push “START/END” button, machine start working. Start working, then set the time and speeds. a) when machine in standby mode, push “START/END” button, machine start working with default data(time is 01:30, speed is 250) b) Push “TIME”or ”SPEED” button, then make the time or speed setting by “+” or “-” button. Tips: you can change the speed or time by “+”/”-” button when blending. 6 7“AT/PULSE” Button When machine in standby mode, push this button one by one time, usually for ICE crush function.

5. Completed blending, push “START/END” button, blender stop working.

2. Clean the blender body and the cover with a sponge or cloth

3. Do not clean inside the jug by hand unless the blade is already removed.

4. Clean the rotary shaft and the motor base with a dry rag.

5. If required use a clean cloth with a mild-ph detergent to clean. Never place the motor base in

water or other liquid. Troubleshooting Checkifthecurrentprotectorbuttonisturnedo,pressitandthenreset.Iftheblenderstilldoesn’t work. Check the following:

1. Whether the appliance is plugged in

2. If there is a power cut

3. Ifnoneoftheaboveapplies,pleasedonotattempttoxtheblenderyourselfandinstead,ask

specialized personnel for repair or approved supplier for replacement. Hints on Disposal According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household was- te. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correct- ly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailled information about recycling of this product, please contact your local council or your household waste disposial service. Declaration of Conformity Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. This product is conform to the following European Directives: 2014/30/EU (EMC) 2014/35/EU (LVD) 2011/65/EU (RoHS)
