USER MANUAL TH120 Cresta

ON/OFF button = AAN/UIT knop

FABRIKANT: Hangzhou Hu'an Medical & Health Instruments Co. Ltd.

Building 2, 1 Fuzhu Nan Road, Wuchang Town

Yuhang District, 310023 Hangzhou, Zhejiang, China

EC REP: Shanghai International Holding Corp. GmbH (Europe)

Eiffestrasse 80

D-20537 Hamburg

Germany

IJKWAARDE

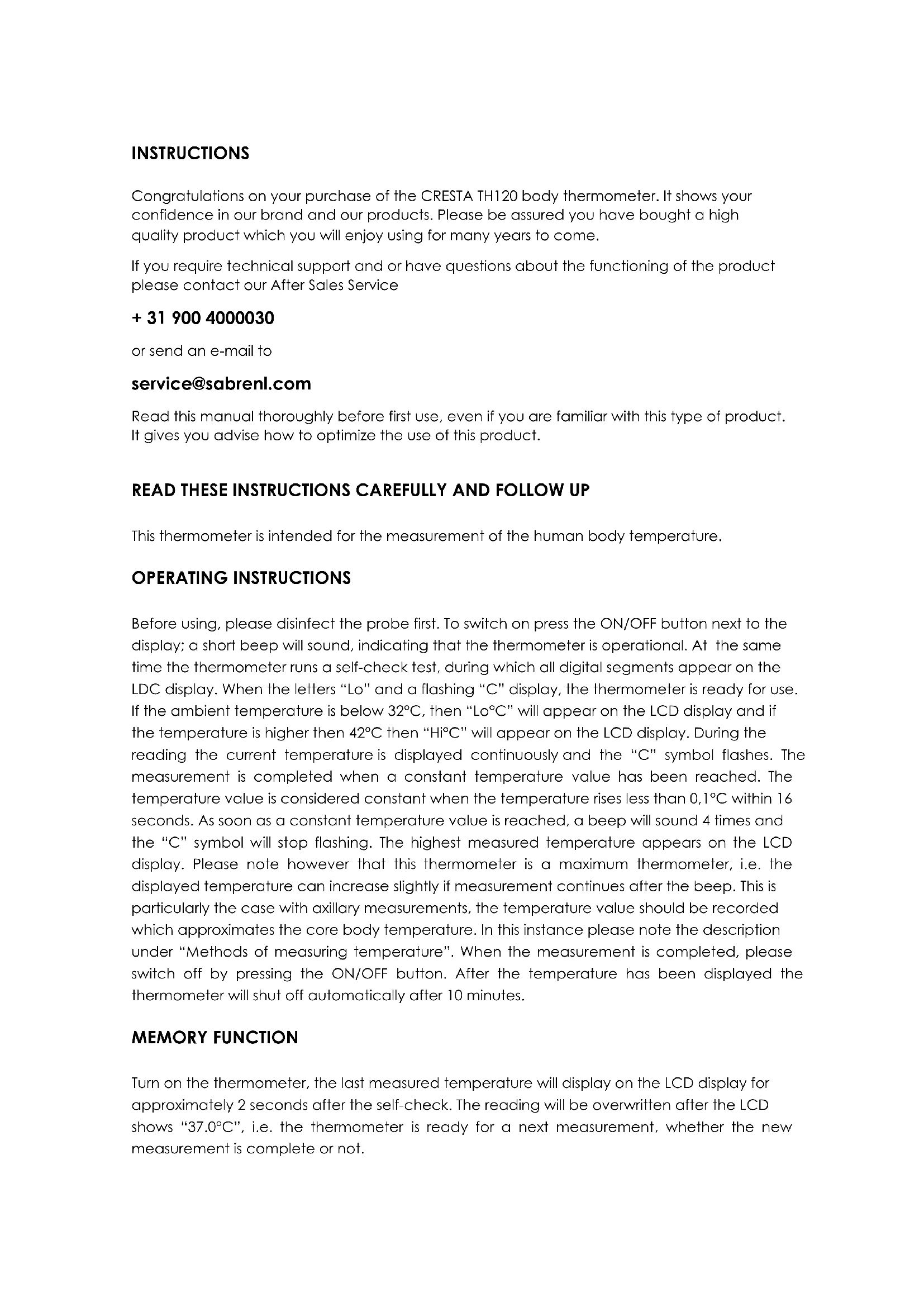

Congratulations on your purchase of the CRESTA TH120 body thermometer. It shows your confidence in our brand and our products. Please be assured you have bought a high quality product which you will enjoy using for many years to come.

If you require technical support and or have questions about the functioning of the product please contact our After Sales Service

[phone]

or send an e-mail to

[e-mail]

Read this manual thoroughly before first use, even if you are familiar with this type of product. It gives you advise how to optimize the use of this product.

READ THESE INSTRUCTIONS CAREFULLY AND FOLLOW UP

This thermometer is intended for the measurement of the human body temperature.

OPERATING INSTRUCTIONS

Before using, please disinfect the probe first. To switch on press the ON/OFF button next to the display; a short beep will sound, indicating that the thermometer is operational. At the same time the thermometer runs a self-check test, during which all digital segments appear on the LDC display. When the letters "Lo" and a flashing "C" display, the thermometer is ready for use. If the ambient temperature is below 32^ , then "Lo°C" will appear on the LCD display and if the temperature is higher than 42^ then "Hi°C" will appear on the LCD display. During the reading the current temperature is displayed continuously and the "C" symbol flashes. The measurement is completed when a constant temperature value has been reached. The temperature value is considered constant when the temperature rises less than 0,1^ within 16 seconds. As soon as a constant temperature value is reached, a beep will sound 4 times and the "C" symbol will stop flashing. The highest measured temperature appears on the LCD display. Please note however that this thermometer is a maximum thermometer, i.e. the displayed temperature can increase slightly if measurement continues after the beep. This is particularly the case with axillary measurements, the temperature value should be recorded which approximates the core body temperature. In this instance please note the description under "Methods of measuring temperature". When the measurement is completed, please switch off by pressing the ON/OFF button. After the temperature has been displayed the thermometer will shut off automatically after 10 minutes.

MEMORY FUNCTION

Turn on the thermometer, the last measured temperature will display on the LCD display for approximately 2 seconds after the self-check. The reading will be overwritten after the LCD shows "37.0°C", i.e. the thermometer is ready for a next measurement, whether the new measurement is complete or not.

METHODS OF MEASURING TEMPERATURE

It is important to remember that the body temperature reading depends on the site where it is measured. For this reason the measurement site must always be specified in order to ensure that the correct temperature reading is recorded.

IN THE RECTUM (RECTAL)

This is the most accurate method from a medical point of view, because it comes closest to the core body temperature. The thermometer tip is inserted carefully into the rectum for a maximum 2 cm. The usual measuring time is around 40 to 60 seconds.

UNDER THE ARM (AXILLARY)

Placing the thermometer in the armpit provides a measurement of the surface temperature that can fluctuate by around 0,5^ to 1,5^ from rectal temperature readings in adults. The usual measuring time for this method is approximately 80 to 120 seconds. It should be noted that an exact reading won't be obtained if, for example, the armpit temperature is lower than normal (the armpit temperature has been cooled down). If in this case we recommend extending the measurement time by around 5 minutes in order to obtain the most precise possible reading that corresponds as closely as possible to the core body temperature.

IN THE MOUTH (ORAL)

There are different heat zones in the mouth. As a general rule, the oral temperature is 0,3^ to 0,8^ lower than the rectal temperature. To ensure the reading is as accurate as possible, place the thermometer tip to the left or right of the root of the tongue. The thermometer tip must have constant contact with the tissue during the reading and be placed under the tongue in one of the two heat pockets at the back. Keep the mouth closed during the reading and breathe evenly through the nose. Do not eat or drink anything before the measurement. The usual measuring time is approximately 50 to 70 seconds.

Note: We strongly recommend the rectal method as the most accurate method for identifying the basal temperature and advise you to extend the measuring time by 3 minutes after the beep.

CLEANING AND DISINFECTION

The best way to clean the thermometer tip is by applying a disinfectant (e.g. 70% medical alcohol) with a damp cloth. It shall be disinfected before each use.

Waterproof thermometers can be immersed in liquid or lukewarm water for through cleaning and disinfection.

SAFETY PRECAUTIONS

• Do not allow the device to come into contact with hot water

• Do not expose to high temperatures or direct sunlight

• Do not drop the thermometer. It is neither shock-proof nor impact-resistant

• Do not modify this device without the authorization of the manufacturer
• Do not bend or open the device except the battery compartment.
• Do not clean with thinners, petrol or benzenel. Only clean with water or disinfectant.
• The thermometer contains small parts - battery, battery compartment - which can be swallowed by children. For this reason do not leave the thermometer unattended in the hands of children.
• If the ambient temperature is over 35^ dip the thermometer in cold water for approx. 5 to 10 seconds prior to measuring the temperature.
  Persistent fever, in particular in children, has to be treated by a doctor - please get in touch with your doctor.
• Do not use near strong electromagnetic fields, i.e. keep it away from any radio systems and mobile phones.

BATTERY COMPARTMENT

The battery is empty and needs replacing when the "battery" symbol appears in the right of the LCD display. Remove the battery cover and replace it with a battery - preferably non-mercury - of the same type. Please note the "+" sigh up, the "-" sign down.

ENVIRONMENTAL FRIENDLY DISPOSAL

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment – WEEE – requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation that when you dispose of the appliance, it must be separately collected. Contact your local authority for information concerning the correct disposal of your old appliance.

TECHNICAL DATA.

Type: Maximum thermometer

Measurement range 32C-42°C

Accuracy +/-0,1°C between 35,5°C and 42°C

+/- 0,2°C between 32,0°C and 35,5°C

Storage temperature: -25°C - 55°C, ≤ 95 & RH

Ambient temp. during use 5^ - 35^, ≤ 80% RH

Min. Scale 0,1^

Battery type: LR 41

Service life Minimum 100 hours under continuous operation.

Weight Approx. 10 gram

EXPLANATION OF THE SYMBOLS

or" battery is empty

Product disposal instructions for electronic devices

Battery complies with European directive 2006/66/EEC

LO°C

Temperature under 32^

HI°C

Temperature over 42^

Type BF equipment

LEGAL REQUIREMENTS AND GUIDELINES

This product complies with the European Directive for Medical Devices 93/42/EEC and carries the CE mark. The device also complies with the specifications of the European Standard EN12470-3 Clinical Thermometers-Part3: Performance of compact electrical thermometers (non-predictive and predictive) with maximum device. The CE marking confirms that this is a medical device with a measuring function in the sense of the Medical Devices Act which has undergone a conformity assessment procedure. A Notified Body confirms that this product fulfils all the appropriate statutory regulations.

CALIBRATION CHECK

This thermometer is initially calibrated at the time of the manufacture. If this thermometer is used according to the operation instructions, periodic re-adjustment is not required.

The calibration check has to be carried out immediately if there are indications that the product does not keep the defined error limits or the calibration properties could have been affected by an intervention of any statutory regulations. The calibration check can be carried

out by the competent authorities or by authorised service providers. A test institution for calibration check can be provided to the relevant authorities and authorised providers on request.

MANUFACTURER: Hangzhou Hu'an Medical & Health Instruments Co. Ltd.

Building 2, 1 Fuzhu Nan Road, Wuchang Town

Yuhang District, 310023 Hangzhou, Zhejiang, China

EC REP: Shanghai International Holding Corp. GmbH (Europe)

Eiffestrasse 80

D-20537 Hamburg

Germany

WARRANTY

The original purchaser of the body thermometer is provided with the following warranty, subject to the following conditions.

We warrant this product for a period of 2 years from the date of purchase for all parts defective in workmanship or materials. The product or defective parts will be replaced free of charge. The warranty period starts on the day of your purchase. Please keep your original sales receipt since you will need this when you have a guarantee claim.

WARRANTY CONDITIONS

1. This warranty is only valid for appliances used according to the manufacturer's instructions.
2. This appliance should not be modified or changed in any way.
3. The manufacturer does not accept liability for any direct or consequential damage, loss or other expenses arising from misuse or incorrect installation and operation of the appliance.
4. Warranty will only be given where proof of purchase is provided, e.g. original invoice.

REtain & FILE WITH YOUR RECEIPT.

Your Purchase Receipt/ Invoice is proof of the date of your purchase. You should be able to present it at the place of purchase to obtain a replacement or service under warranty.

We reserve the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.
