Product type	Quartz watch with chronograph
Brand	Lotus
Model	15500
Movement	Caliber FS00 / FS01
Movement dimension	23.7 x 22 mm (10 1/2 lignes)
Total height	4.13 mm (FS00) / 4.28 mm (FS01)
Battery	SR626SW, lifespan approximately 2 years (1 hour of chronograph per day)
Accuracy	±20 seconds per month under normal conditions
Quartz frequency	32.768 Hz
Main functions	Hours, minutes, seconds, date, chronograph 1/1 sec up to 59 min 59 sec, tachymeter
Display	Analog with hands
Pushers	Slanted or parallel depending on configuration
Crown	3 positions: neutral position, date setting, time setting
Date	Window display, adjustment via crown (first click)
Chronograph reset	Button B, fine adjustment via button A (pull crown to second click)
Maintenance and cleaning	Clean with a soft dry cloth, avoid shocks, water, and magnetic fields
Safety	Do not immerse if waterproofness is not guaranteed, avoid extreme temperatures
Spare parts and repairability	Battery, crown, pushers available via authorized after-sales service
General information	Compliant with WEEE regulations, recycling at end of life

Frequently Asked Questions - 15500 Lotus

How to set the time on my Lotus 15500?

Pull the crown to the second click position (the second hand stops at [O]). Turn the crown to set the hour and minute hands. Push the crown back to its normal position.

How to set the date?

Pull the crown to the first click. Turn it clockwise to set the date. Avoid setting the date between approximately 9 PM and 1 AM to ensure correct change on the following day.

How to use the chronograph?

Press button A to start and stop the chronograph. Press button B to reset the hands to zero. The chronograph measures up to 59 minutes and 59 seconds in 1-second increments.

What to do if the chronograph hand does not return to zero?

Pull the crown to the second click. Press button A to position the chronograph second hand at [O]. Press briefly for fine adjustment or hold for fast advance. Do not push back the crown while the hand is moving.

How to use the tachymeter?

Start the chronograph at the beginning of a 1 km journey. Stop it after traveling 1 km. Read the speed on the tachymeter scale (e.g., 45 seconds = 80 km/h). The measurement is approximate and valid up to 60 seconds.

What type of battery does the Lotus 15500 use?

The watch uses a SR626SW battery. Its lifespan is approximately 2 years with 1 hour of chronograph use per day.

What is the accuracy of the watch?

The accuracy is ±20 seconds per month under normal use conditions thanks to a 32.768 Hz quartz oscillator.

How to clean my watch?

Use a soft dry cloth to clean the case and bracelet. Avoid chemicals, violent shocks, immersion in water (unless waterproofness is specified), and magnetic fields.

Can I replace the battery myself?

It is recommended to have the battery replaced by a professional (authorized after-sales service) to avoid damaging the movement or compromising waterproofness.

What to do in case of malfunction?

Refer to the complete manual for basic operations. For a persistent problem, contact Lotus after-sales service or an authorized watchmaker. The watch contains electronic components: do not dispose of it with household waste, follow WEEE regulations.

USER MANUAL 15500 Lotus

Displays and buttons 16

Setting the time 17

Setting the date 17

Using the chronograph 18

Tachymeter 22

Basic specifications 24

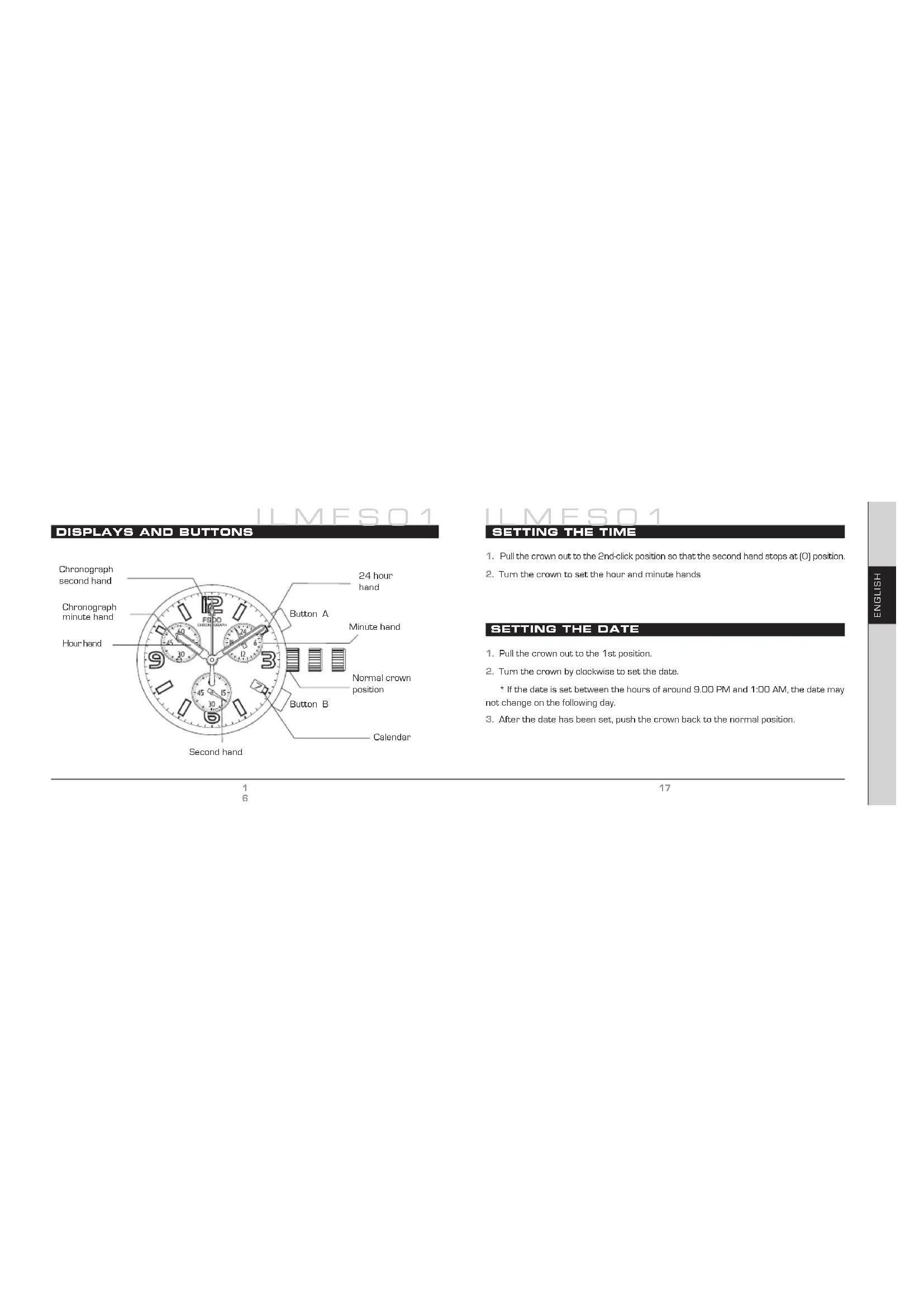

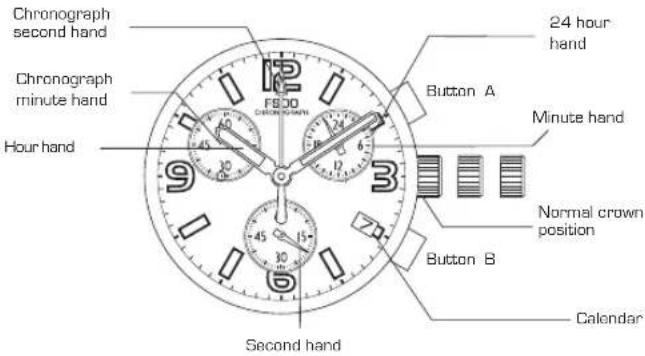

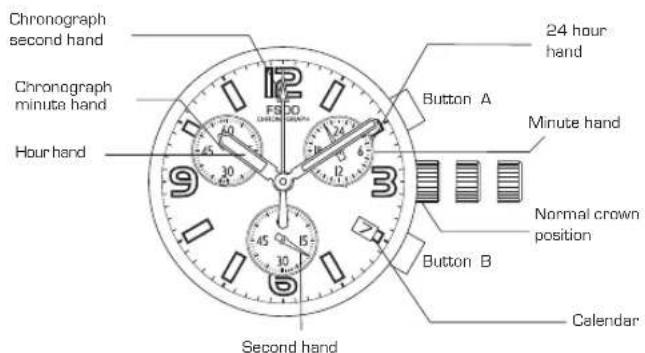

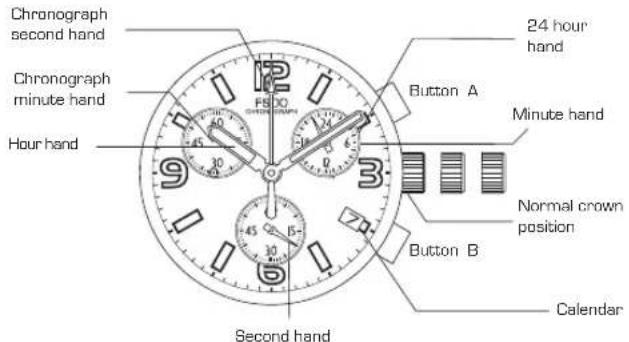

DISPLAYS AND BUTTONS

ILMESO1

SETTING THE TIME

1. Pull the crown out to the 2nd-click position so that the second hand stops at [O] position.
2. Turn the crown to set the hour and minute hands

SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown by clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

4. After the date has been set, push the crown back to the normal position.

LLMES01

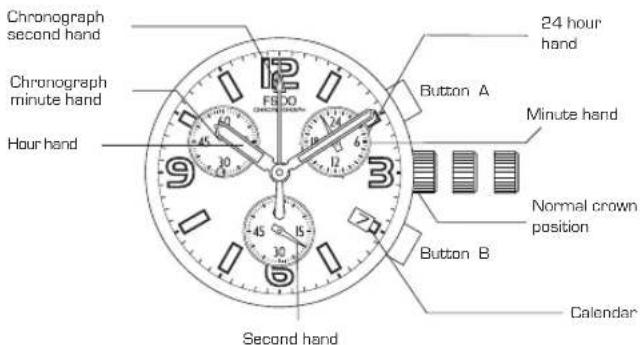

USING THE CHRONOGRAPH

LLMESQ1

USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 1 hour.

(Measuring time with the chronograph)

1. The chronograph can be started and stopped each time button [A] is pressed.
2. To reset, press button (B) and the chronograph second & minute hands return to their (O) positions.

[Chronograph reset, incl. after replacing battery]

USING THE CHRONOGRAPH

This procedure should be performed when the chronograph second hand do not return to the [0] second position after the chronograph has been reset, and including after battery has been replaced.

1.Pull the crown out to the 2nd. position.
2. Press button (A) to set the chronograph second hand to the (O) position.
3. The chronograph hands can be advanced rapidly by continuously pressing button (A).
4. Once the hands have been zeroed, reset the time and return the crown to its normal position.
*Do not return crown to normal position while chronograph second hand return to 12:00 [Zero] position.

Hand stops on the way when crown are returned to normal position and these positions are recognized as 12:00 [zero] position.

LLMES01

USING THE CHRONOGRAPH

TACHYMETER

TACHYMETER

The tachymeter is the device which measures the speed of an automobile. Knowing is how many seconds the car covers a distance of 1Km the meter can measure the approximate average speed per hour during a journey [up to the maximum measurable range of tachymeter is 60 seconds].
If the chronograph is started at the same time as measurement, and stopped after 1 Km, the average speed per hour can be determined according to the position of the second hand.
- If the car covers the distance of 1 Km in 45 seconds, the average hourly speed during the journey will be about 80 Km.

BASIC SPECIFICATIONS

• To confirm with mov't drawing attached

Calibre FS00 FS01
Pusher	Slanted Parallel
Ligne Size* mm	10 - 1/2 ø 23,7 x 22 mm [3H - 9H]
Date	0
Total height	4,13 mm 4,28 mm
Figure (push button placed angle)	Slanted Parallel
Power cell and life SR626SW 2 years*

• Based on the chronograph being used 1 hour per day

BASIC SPECIFICATIONS

[Time standard]

Type of quartz: Tuning fork type quartz crystal

Frequency: 32.768 Hz

Accuracy: ± 20 s/month worn under normal circumstances

[Balanceable weight of hand]

Other small hands: Max. 0.02 N.m

[Function]

CAL. IFMFS00/01: Chronograph 1/1 sec. basis (Up to 59 min, 59 sec.)

Powercell Saving Reset Mechanism (PSRM)

Overloading Compensation Device (OLCD)

Digital Frequency Control (DFC) for time adjustment

MANUEL D'INSTRUCTION

CHRONOGRAPHE

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products are selectively collected for processing. You may therefore dispose of your quartz watch products at any of our retail outlets or any other authorized collection point. The above collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
