HP10 - Glue gun Meister Craft - Free user manual and instructions
Find the device manual for free HP10 Meister Craft in PDF.
| Product type | Hot glue gun |
| Brand | Meister Craft |
| Model | HP10 |
| Power supply | 230 V ~ 50 Hz |
| Power | 150 W (estimated) |
| Heating time | 5 to 8 minutes |
| Setting time | Approximately 30 seconds |
| Adhesion after 1 minute | 90% |
| Compatible materials | Wood, plastic, expanded polystyrene, textiles, cardboard, tiles, ceramic |
| Included accessories | 2 glue sticks, 1 stand |
| Dimensions (estimated) | 20 x 5 x 10 cm |
| Weight (estimated) | 300 g |
| Safety | Rest stand mandatory, safety goggles recommended, avoid skin contact, do not use with water or solvents |
| Maintenance and cleaning | Clean with a damp cloth; never immerse in water |
| Spare parts and repairability | Repair by qualified personnel with original parts; opening voids warranty |
| Standards | Directive 2002/96/EC (WEEE), CE marking |
Frequently Asked Questions - HP10 Meister Craft
User questions about HP10 Meister Craft
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Glue gun in PDF format for free! Find your manual HP10 - Meister Craft and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HP10 by Meister Craft.

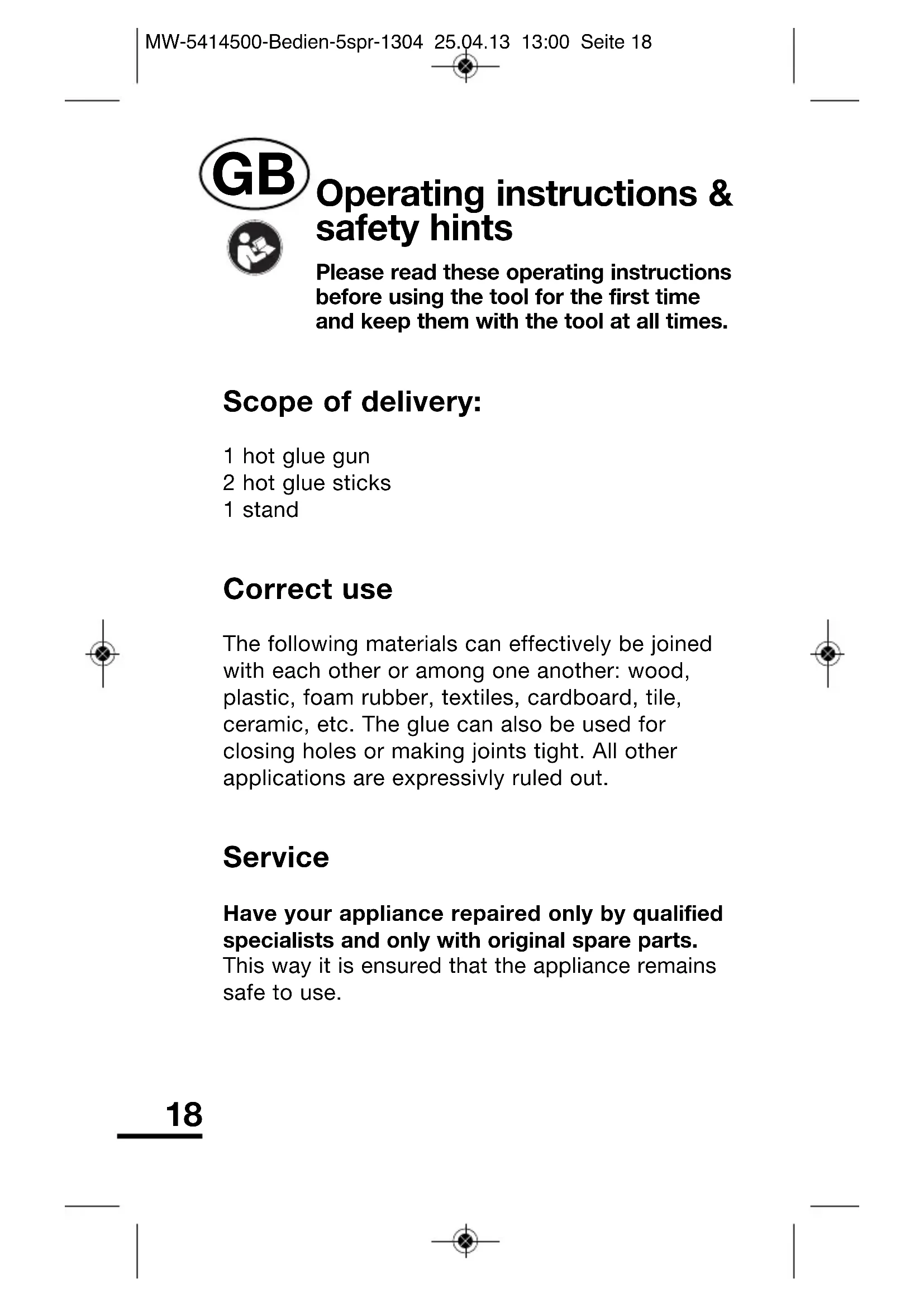

USER MANUAL HP10 Meister Craft
Operating instructions & safety hints
Please read these operating instructions before using the tool for the first time and keep them with the tool at all times.
Scope of delivery:
1 hot glue gun
2 hot glue sticks
1 stand
Correct use
The following materials can effectively be joined with each other or among one another: wood, plastic, foam rubber, textiles, cardboard, tile, ceramic, etc. The glue can also be used for closing holes or making joints tight. All other applications are expressively ruled out.
Service
Have your appliance repaired only by qualified specialists and only with original spare parts.
This way it is ensured that the appliance remains safe to use.
Safety instructions relating specifically to the equipment
Hot glue and housing parts can cause burns. Avoid skin contact. Avoid all contact with water and materials containing solvents! Only use trade customary gluing pins.
CAUTION! Glue stains on clothes cannot be removed. Wear protective glasses. For cooling off the gluing gun always place it on the support. For long breaks unplug the device.
This device may be used by children aged 8 and above, as well as by people with reduced physical, sensory or mental capacities or a lack of experience and knowledge, as long as they are supervised or have been taught how to use the device safely and are aware of the risks involved. Children may not play with the device. Cleaning and user maintenance may not be carried out by children without supervision.
CAUTION! This tool must be placed on its stand when it is not in use.
Operation
Mount the tool holder. Insert the glue stick. Insert the plug into the socket and allow 5-8 minutes to heat up. Apply glue by applying light pressure to the glue stick. Join parts within 15-20 seconds. When taking a break, always stand the tool on the holder.
Tips for use
Setting time is ca. 30 sec. ca. 90% of the adhesive force already after one minute. The setting time can become lengthened through the processing of thick drops of glue, or shortened through the processing of small amounts of glue. Large areas should be glued not all at once but in segments. Preheating the surfaces to be joined, e. g. with a hot air blower, increases the adhesive force. Heat-sensitive materials should be checked for their suitability.
Maintenance and environmental protection
CAUTION! Electrical and battery operated units that no longer work should not be
disposed of in the household waste! They are to be collected separately, in accordance with the 2002/96 EC directive for the disposal of electrical and electronic waste, and sent for proper and environmentally-friendly recycling.
Service instructions
-
Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.
-
Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.
- Meister devices are subject to stringent quality control. If however a functional fault should occur, send the device to our servicing address. The repairs will be carried out in a short time.
- A brief description of the defect speeds up the faulttracing and repair time.
- In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account.
PLEASE NOTE! Opening of the device invalidates the guarantee claim.
IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH Customer Service or an authorised specialist! The same applies analogously to the accessories used.
- Pack the device well or use the original packaging in order to avoid transit damage.
EC-Declaration of Conformity
The following product ...
... is herewith declared to conform with the following guidelines:
