USER MANUAL HD 9880 GRUNDIG

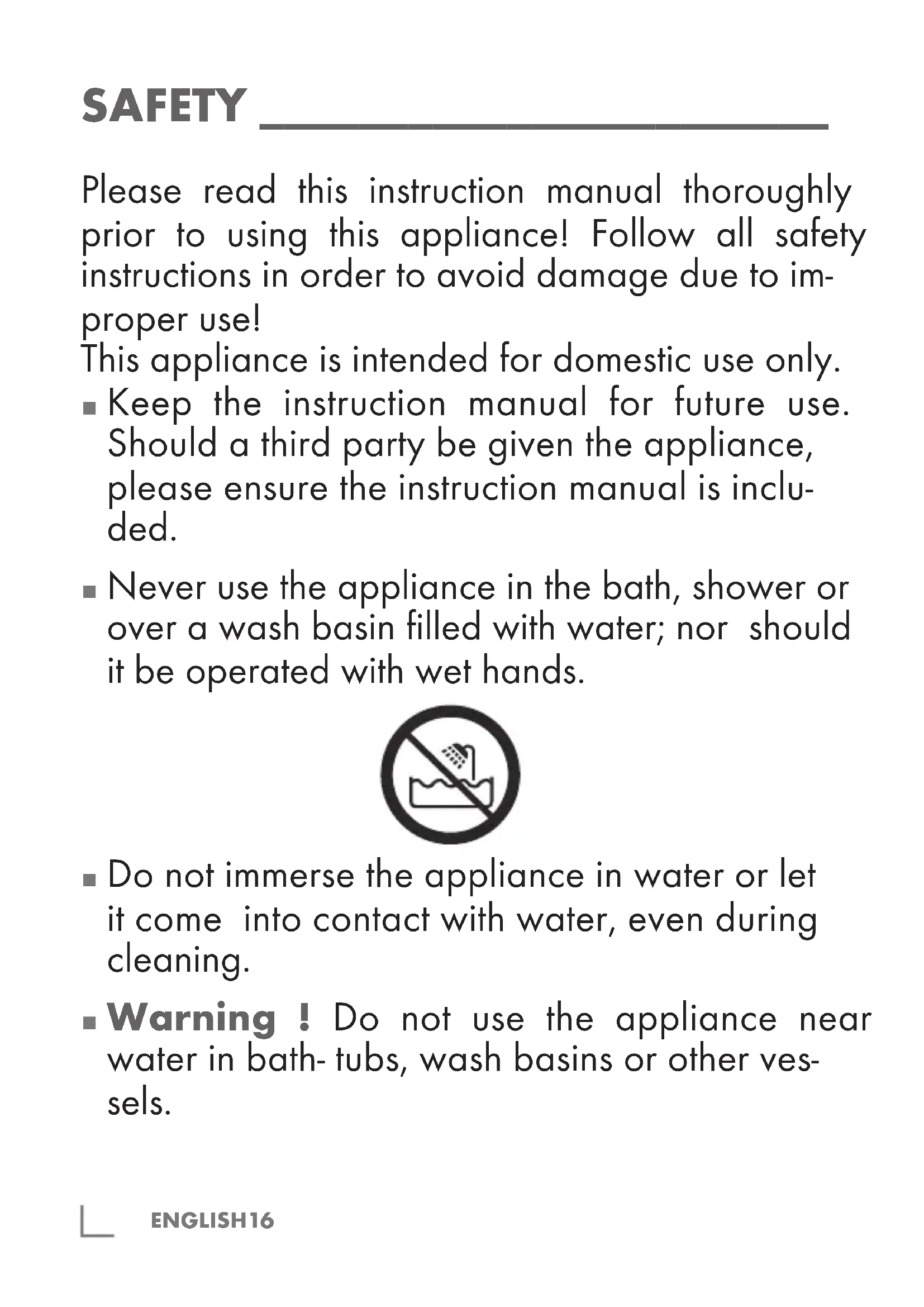

SAFETY _______________________ Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to im- proper use! This appliance is intended for domestic use only.

Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is inclu- ded.

Never use the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

Do not immerse the appliance in water or let it come into contact with water, even during cleaning.

Warning ! Do not use the appliance near water in bath- tubs, wash basins or other ves- sels.ENGLISH 17

Before cleaning or user maintenance operation first plug out.

If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as water close to the appliance can still constitute a danger, even if the appliance is switched off.

For additional protection, It is recommended you to install a residual current device (RCD) having a rated residual operating current not exceeding 30 mA in the electrical circuit sup- plying the bathroom. Ask your installer for ad- vice.

Never place the appliance on soft cushions or blankets during operation.

Ensure that the air induction and output open- ings are not covered during operation.

The appliance is equipped with an overheating protection system.

Unplug the appliance after use. Do not discon- nect the plug by pulling on the cord. SAFETY _______________________ENGLISH

Never use the appliance if it or the power cord is visibly damaged.

Never wind the power cord around the appli- ance, as this can result in damage. Check the power cord and the appliance regularly for vis- ible damage.

Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appli- ance or power cord is damaged, it must be re- paired or replaced by a service centre to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.

Always keep the appliance out of the reach of children.

This appliance can be used by children aged from 8 years and above and persons with re- duced physical, sensory or mental capabili- ties or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.ENGLISH 19 SAFETY _______________________ Cleaning and user maintenance shall not be made by children without supervision.

Do not dismantle the appliance under any cir- cumstances. No warranty claims are accepted for damage caused by incorrect handling.

A warm flow of air is required to achieve a per- fect result. Please note that a metallised brush can become extremely hot during prolonged or intensive use. To avoid injury, adjust the usage time of the appliance to the accessory being used.ENGLISH20 Dear customer, congratulations on the purchase of your GRUNDIG Heat Control Hair Dryer HD 9880. Read the following user notes care- fully to ensure full enjoyment of your quality Grundig product for many years to come. A responsible approach! GRUNDIG focuses on contractually agreed social working condi- tions with fair wages for both internal em- ployees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of sev- eral tonnes of plastic every year. Fur- thermore, all our accessories are available for at least 5 years. For a future worth living. Grundig. Controls and parts See the figure on page 3.

Removable air intake grille

1.8 meters of cable with hang-

Button for the temperature levels

Button for the air flow levels

Display - Control panel Settings Your appliance has the following settings: Heat Control Sensor

Measures the temperature directly on the hair and allows the constant maintenance of an optimal hair dry- ing temperature. Ionic function

For non-static, soft, shiny hair. Maintains vitality and momentum of the hair and naturally hydrates the hair structure. OVERVIEW ___________________ENGLISH 21 OVERVIEW ___________________ The ionic function button

switches the ion supply on and off Temperature setting

Button for raising or lowering the temperature Cold level

– : Interrupts the hot air supply with a cold air flow. Air flow setting

Button for raising or lowering the air flow speed Display - Control panel

Integrated display with control pan- el for controlling the Heat Control Sensor and manual temperature / air flow adjustment in the handle.ENGLISH22 OPERATION __________________ Operation 1 Thoroughly dry hair with a towel after washing. 2 If necessary, attach the small sty- ling nozzle

to the socket. Instructions

Check that the voltage on the ra- ting plate on the device handle matches the voltage of the local power supply. 4 Switch on the device with the on / off button.

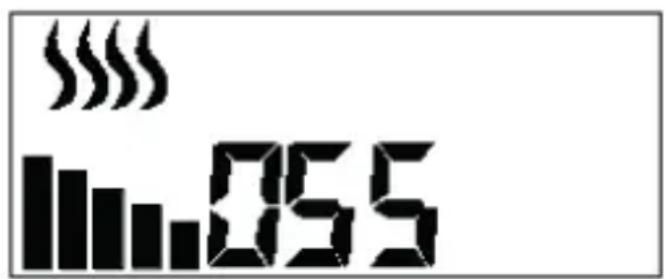

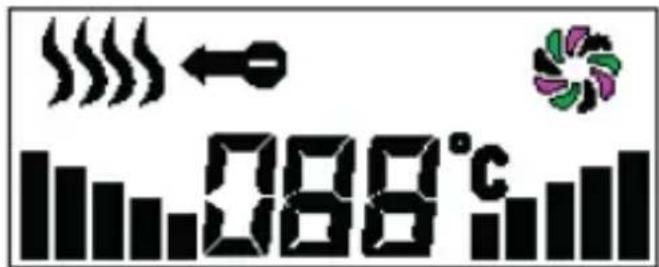

5 Set the temperature with the but- ton

- Temperature level 1 appears on the display and this lights up red. - With each actuation, increase the temperature level (5 levels). - After level 5, level 1 appears again. 6 Adjusting the air flow speed with the button

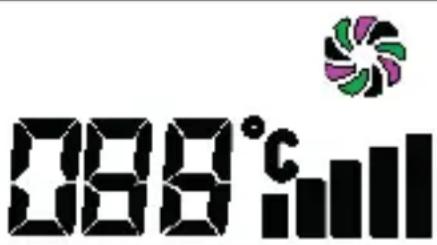

- Speed level 1 appears on the display and this lights up red. - With each actuation, increase the rotational speed (5 levels). - After level 5, level 1 appears again.

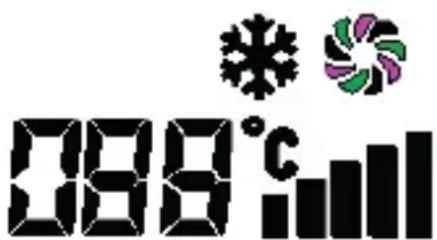

7 When drying, the hot air flow can be interrupted by pressing and holding the button for the cold level

- The cold level symbol appears on the display and this lights up blue. - The air flow setting can be chan- ged during the cold air function.ENGLISH 23 OPERATION __________________ Instructions

The cold level interrupts the hot air with a cold air flow. This allows a better fixation of the hairstyle. 8 If necessary, switch on the ion feed while the hair is drying by pressing the button

- The ion symbol appears on the display. 9 Switch off the device after use via button

from the socket. Caution

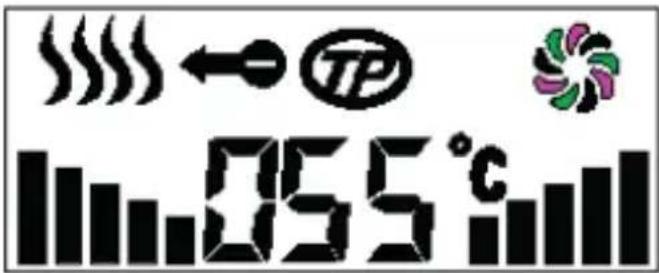

Never wrap the mains cable around the unit as this may cause damage. Check mains cable regu- larly for visible damage. Smart TP mode Press the button for Smart TP Mode

to turn on the automatic heating function. - The TP symbol appears on the display and this lights up pur- ple. - The temperature on the hair is then unchanged at 55 °C. - The air flow speed can be chan- ged.ENGLISH24 Cleaning and care 1 Switch off the device and disconnect the mains plug

from the socket. 2 Allow device to cool before clea- ning. The device can become very hot. 3 Regularly clean the air intake grille

with a soft brush to free it from dust and hair. 4 Only clean the housing of the de- vice with a soft, damp cloth. Caution

Never put the appliance or power cord in water or any other liquid. Do not use any cleaning agents.

Always allow the appliance to cool down on a heat resistant, safe and flat surface. Note

Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel. Storage

If you do not plan to use the ap- pliance for a long period of time, please store it carefully.

Make sure that it is unplugged, has completely cooled down and is completely dry.

Do not wrap the power cord around the appliance.

Keep the appliance in a cool, dry place.

Make sure that the appliance is kept out of the reach of children. Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This pro- duct bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other hou- sehold wastes at the end of its service life. Used device must be returned to offical collection point for recycling of elec- trical and electronic devices. To find these collection systems please con- tact to your local authorities or retai- ler where the product was pucha- sed. Each household performs important role in recovering and re- cycling of old appliance. INFORMATION _______________ENGLISH 25 INFORMATION _______________ Appropriate disposal of used appli- ance helps prevent potential nega- tive consequences for the environ- ment and human health. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Package information Packaging materials of the product are manufac- tured from recyclable ma- terials in accordance with our National Environment Regulati- ons. Do not dispose of the packa- ging materials together with the do- mestic or other wastes. Take them to the packaging material collection points designated by the local autho- rities. Technical data Power supply: 220-240 V∼, 50-60 Hz Output: 1850-2200 W Electrical insulation class: II Technical and design modifications reserved.TÜRKÇE26

Removable air intake grille
