Brand	Grundig
Model	HD 2200
Product type	Travel hairdryer
Power supply	Dual voltage (110-120 V~/220-240 V~), 50-60 Hz
Power	1000-1200 W
Temperature and speed settings	2 positions: low (1) and high (2)
Voltage selector	Manual rotation (120 V ↔ 240 V)
Included accessories	Concentrator
Safety	Overheat protection; do not use near water
Maintenance	Clean with a soft cloth; do not immerse
Dimensions (L x l x h)	Approximately 20 x 8 x 10 cm
Weight	Approximately 600 g
Insulation class	II
Recommended use	Travel (dual voltage)
Hanging loop	Yes

Frequently Asked Questions - HD 2200 GRUNDIG

How to adjust the voltage selector?

Turn the voltage regulator clockwise from 120 V to 240 V or counterclockwise from 240 V to 120 V, depending on your country's voltage. Make sure it is in the correct position before each use.

Can I use this appliance in a bathroom?

No, it is not recommended to use the hairdryer in a bathroom, under a shower, or over a basin filled with water. The appliance must not be exposed to water.

How to clean the hairdryer?

Unplug the appliance and let it cool down. Clean it with a soft cloth. Never immerse it in water or use harsh cleaning products.

What is the power of this appliance?

The power is between 1000 and 1200 W, depending on the voltage used.

Does the appliance have overheat protection?

Yes, the hairdryer is equipped with an overheat protection system. If it overheats, it turns off automatically. Unplug it and let it cool down before using it again.

Can I use the metal accessories for a long time?

A metal brush can become very hot with prolonged use. Adjust the usage time to avoid burns.

How to store the hairdryer?

Unplug it, let it cool down and dry completely. Store it in a cool, dry place out of reach of children. Do not wrap the cord around the appliance.

The power cord is damaged, what to do?

Do not use the appliance if the cord is damaged. Have it repaired or replaced by a Grundig authorized service center.

Is this appliance suitable for professional use?

No, this appliance is designed only for domestic use and not industrial.

What are the available settings?

The appliance offers two positions: 0 (off), 1 (low temperature/speed) and 2 (high temperature/speed). The voltage selector allows choosing between 110-120 V and 220-240 V.

USER MANUAL HD 2200 GRUNDIG

Sports & Travel Hair Dryer

User Manual

Silhouette of a human head with curved lines, resembling a stylized face or profile (no text or symbols)

HD 2200

Illustration of a hairdryer falling into an open box with an arrow indicating the drop (no text or symbols)

Line drawing of a hairdryer with a red arrow indicating motion (no text or symbols)

3

4 240V 120V

5

Safety warning sign showing no smoking allowed by a hand using a tool to avoid electrical shock, with an electrical outlet nearby.

Line drawing of a hair dryer with an inset showing a green liquid inside (no text or symbols)

Illustration of a person holding an object, no text or symbols present

8

9

Line drawing of a hair dryer with green directional arrows indicating motion (no text or symbols)

1

2

Prohibition sign with a red circle and white background depicting a human leg with surgical hardware, indicating no medical or safety hazard.

Prohibition sign with a crossed-out cat and plug symbol, indicating no smoking or disinfection

Safety warning sign with no smoking symbol and electrical socket diagram

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMÍZLEME VE BAKIM
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
HR	RAD ČIŠĆENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA

Prohibition sign with pictogram of a showerhead falling into water, crossed out by a diagonal line

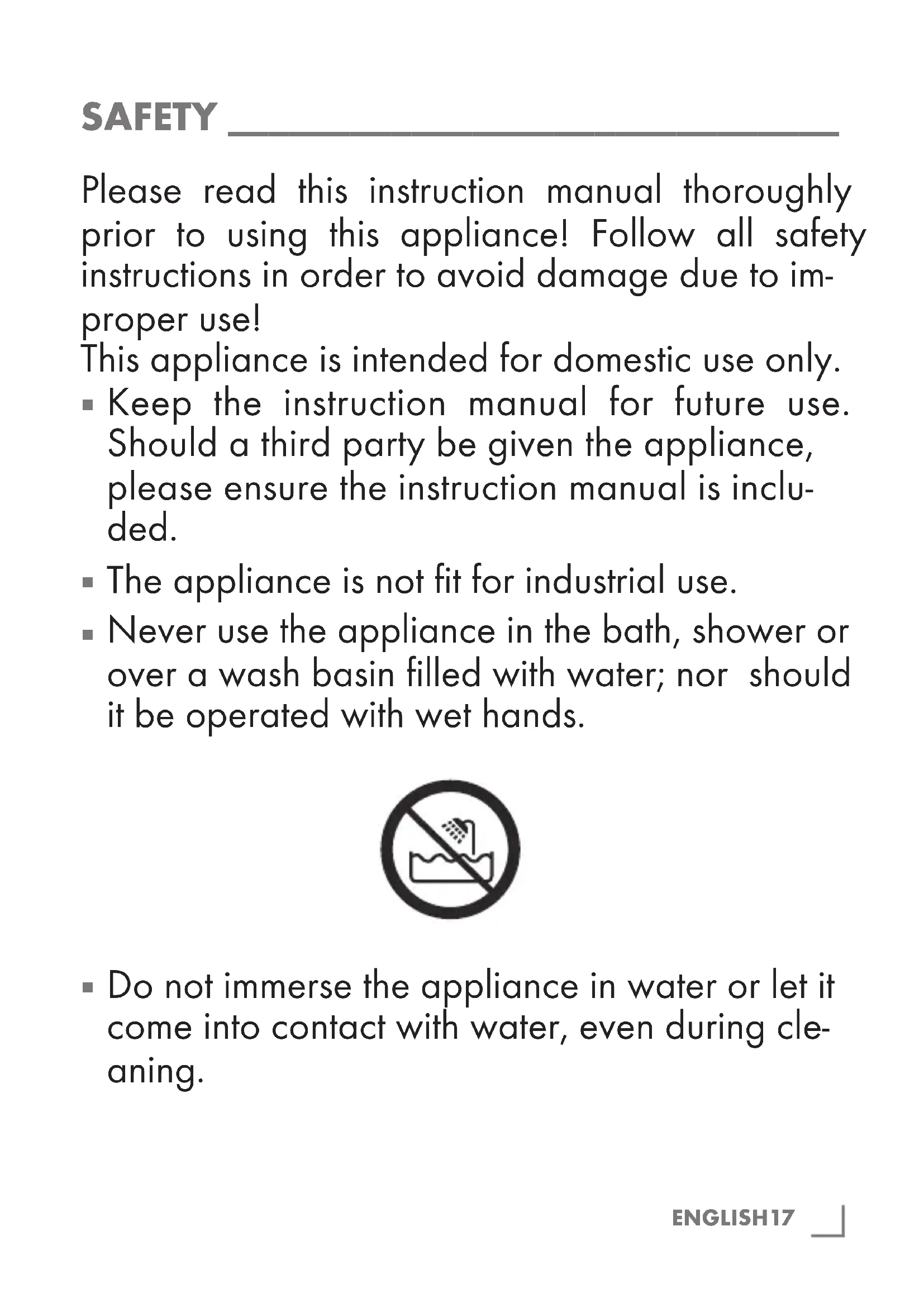

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

This appliance is intended for domestic use only.

• Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.
  ■ The appliance is not fit for industrial use.
  ■ Never use the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

Prohibition sign showing a showerhead spraying water, no text present

- Do not immerse the appliance in water or let it come into contact with water, even during cleaning.

■ Warning: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
■ Before cleaning or user maintenance operation first plug out.
- If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as water close to the appliance can still constitute a danger, even if the appliance is switched off.
- If not already in use, installing a residual current-operated protective device (RCD) is recommended for additional protection with a rated residual operating current not exceeding 30 mA in the electrical circuit of your bathroom. Ask your electrician for advice.
■ Never place the appliance on soft cushions or blankets during operation.
■ Ensure that the air induction and output openings are not covered during operation.
■ The appliance is equipped with an overheating protection system.

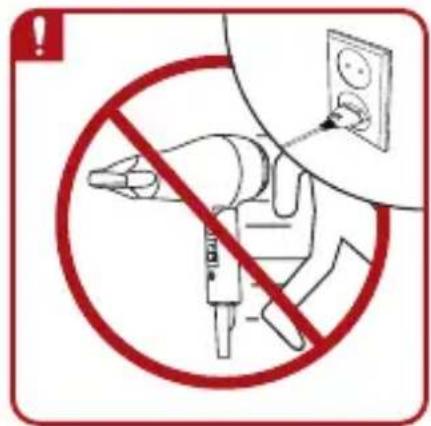

■ Unplug the appliance after use. Do not disconnect the plug by pulling on the cord.
- Never use the appliance if it or the power cord is visibly damaged. Contact an authorised service.

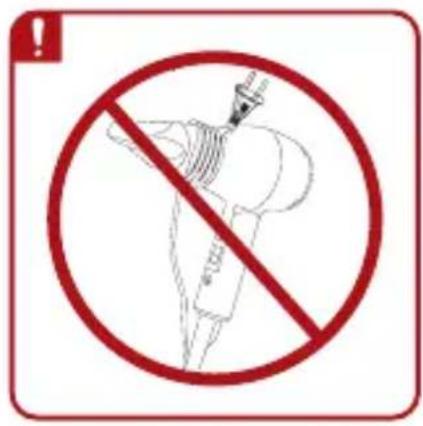

- Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.
- Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by a service centre to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
■ Always keep the appliance out of the reach of children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by incorrect handling.

Dear customer,

congratulations on the purchase of your GRUNDIG Travel Hair Dryer HD 2200.

Read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

Controls and parts

See the figure on page 3.

A Back cover
B Handle
C Button for temperature / blower settings
D Voltage switch
E Hanging loop

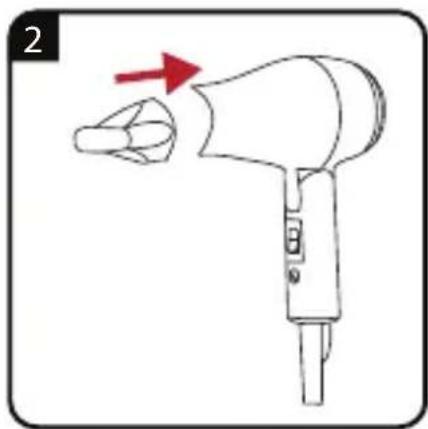

F Concentrator

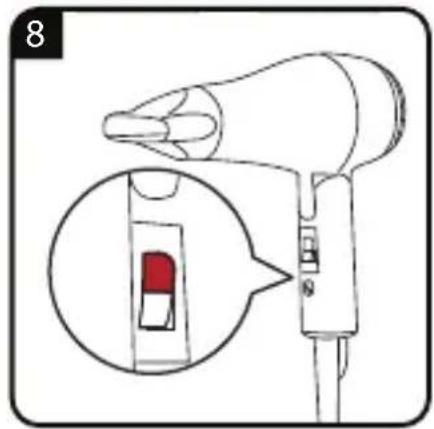

Settings

Your appliance has the following settings:

Speed level C

-0:off
- 1 : low temperature/speed
- 2 : high temperature/speed

Voltage switch D

• 120 (110-120 V\~)
• 240 (220-240 V\~)

Notes

- Check if the mains voltage on the type plate on the handle of the appliance corresponds to your local mains supply.

Switchable mains voltage warning:

Before each use, make sure that the voltage regulator is set to the correct voltage position according to the voltage in each country. For example, the voltage regulator should point to the 240 V mark when the product is used in EU countries.

Adjust the voltage by turning the voltage regulator clockwise from 120V to 240V or counterclockwise from 240V to 120V.

Cleaning and care

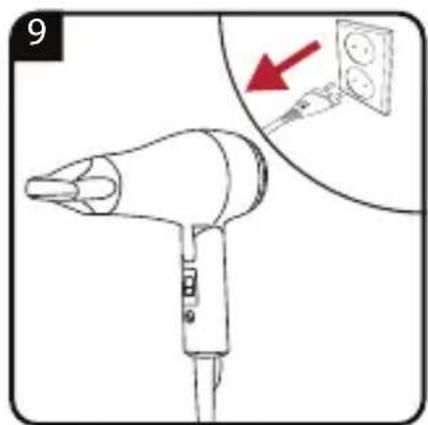

■ Turn the appliance off and unplug the power cord from the wall socket.
■ Before cleaning, allow the appliance to cool down. The appliance can become very hot.

Note

■ Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure that it is unplugged, has completely cooled down and is completely dry.
■ Do not wrap the power cord around the appliance.
- Keep the appliance in a cool, dry place.
■ Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our

National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply :

110-120V/220-240V 50-60Hz

Power : 1000-1200 W

Electrical insulation class: II

Technical and design modifications reserved.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.
