USER MANUAL IAN 298137 AURIOL

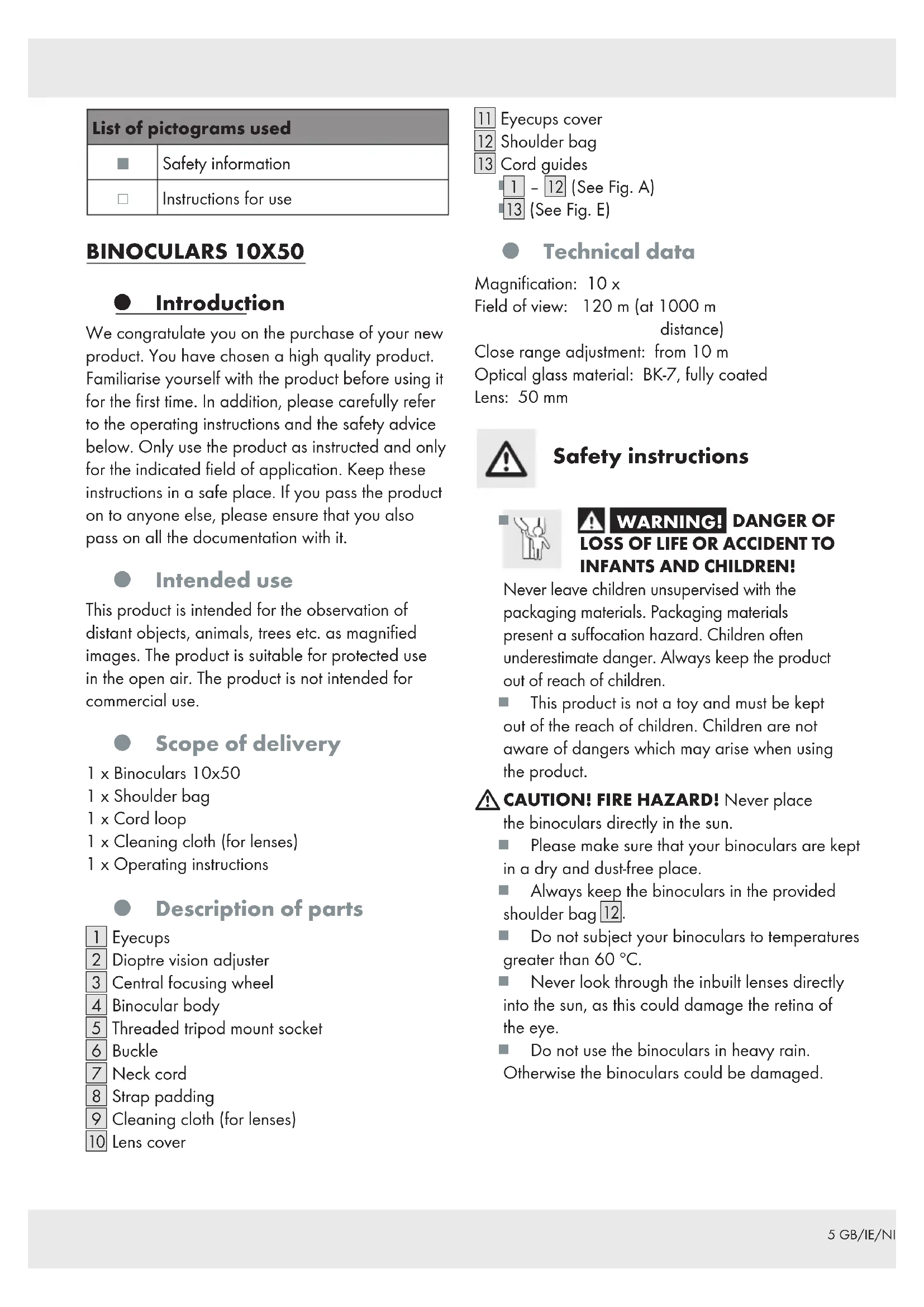

Instructions for use BINOCULARS 10X50 Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Intended use This product is intended for the observation of distant objects, animals, trees etc. as magnified images. The product is suitable for protected use in the open air. The product is not intended for commercial use. Scope of delivery 1 x Binoculars 10x50 1 x Shoulder bag 1 x Cord loop 1 x Cleaning cloth (for lenses) 1 x Operating instructions Description of parts [1] Eyecups [2] Dioptre vision adjuster [3] Central focusing wheel [4] Binocular body [5] Threaded tripod mount socket [6] Buckle [7] Neck cord [8] Strap padding [9] Cleaning cloth (for lenses) [] Lens cover [] Eyecups cover [] Shoulder bag [] Cord guides

[] (See Fig.E) Technical data Magnification: 10 x Field of view: 120 m (at 1000 m distance) Close range adjustment: from 10 m Optical glass material: BK-7, fully coated Lens: 50 mm Safety instructions

LOSS OF LIFE OR ACCIDENT TO

INFANTS AND CHILDREN! Never leave children unsupervised with the packaging materials. Packaging materials present a suffocation hazard. Children often underestimate danger. Always keep the product out of reach of children. This product is not a toy and must be kept out of the reach of children. Children are not aware of dangers which may arise when using the product.

CAUTION! FIRE HAZARD! Never place the binoculars directly in the sun. Please make sure that your binoculars are kept in a dry and dust-free place. Always keep the binoculars in the provided shoulder bag

Do not subject your binoculars to temperatures greater than 60ºC. Never look through the inbuilt lenses directly into the sun, as this could damage the retina of the eye. Do not use the binoculars in heavy rain. Otherwise the binoculars could be damaged.6 GB/IE/NI Preparing for use Focusing Close your right eye. Adjust the view by turning the central focusing wheel [3] so that the view for the left eye is sharp and clear. Dioptre vision adjuster Open your right eye and close your left eye. Turn the dioptre vision adjuster [2] until the object is sharp and clear. Retain this position for later use. + Focus on a closer object – Focus on a more distant object 0 No adjustment Adjustment for eye positions Hold your binoculars with both hands and move the binocular body [4] (see Fig. B) until the two circles are superimposed to form one full circle (see Fig. C). Fold down the eyecups [1] if you wear eyeglasses. After use: Before stowing away the product, fold up the eyecups. Adjusting the neck cord Thread the ends of the neck cord [7] through the buckles [6] (see Fig. D). Thread the ends of the neck cord [7] through the cord guides [] (see Fig. E). Then thread the ends of the neck cord [7] through the buckles [6] (see Fig. F+G). Pull the neck cord [7] tight on both sides of the buckle [6]. This fixes the neck cord [7] on the buckles [6] (see Fig. G). Use with a tripod Note: The tripod and the tripod adapter are not included with the product. They can be purchased separately from your specialist dealer. Observe the operating instructions supplied with your tripod during its assembly and use. Connecting the tripod adapter: Unscrew the protective cap from the threaded tripod mount socket [5]. Do not misplace the protective cap, keep it at a safe place. Screw the threaded connector of the tripod adapter clockwise into the threaded tripod mount socket [5] on the binoculars. Then connect the tripod to the attached tripod adapter. After use, separate the tripod from the tripod adapter. Then unscrew the threaded connector of the tripod adapter anti-clockwise out of the threaded tripod mount socket [5] on the binoculars. Before stowing away the product, screw the protective cap again onto the threaded tripod mount socket [5]. Note: Turn anti-clockwise to unscrew the protective cap for tripod adapter. Cleaning and care Never take your binoculars apart for cleaning. Clean the binocular lenses with the provided cleaning cloth [9] or use a soft threadless cloth. Do not press hard when cleaning the delicate lens surface. If the lenses are still dirty, dampen the cloth with a little clear alcohol (methylated spirit). During periods of non-use: Always cover the eyecups [1] and the lenses by the eyecups cover [] and the lens cover [] respectively. This helps to avoid scratches on the lenses. Clean the binocular body [4] with a dry, lint- free cloth.7 GB/IE/NI Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98:composite materials. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 5years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase. Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product. Should the product show any fault in materials or manufacture within 5years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts. This warranty becomes void if the product has been damaged, or used or maintained improperly. The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: Please have the till receipt and the item number (IAN445278_2307) available as proof of purchase. You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product. If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. Service Service Great Britain Tel.: 08000569216 E-Mail: owim@lidl.co.uk Service Ireland Tel.: 1800 200736 Service Northern Ireland Tel.: 0800 0927852 E-Mail: owim@lidl.ie8 DK Liste over anvendte symboler
