ICAPLB 23M - Wall mount Techly - Free user manual and instructions

Product Type	Wall Mount for TV
Brand	Techly
Model	ICAPLB 23M
Maximum Supported Weight	40 kg
Material	Steel
Color	Black
VESA Compatibility	200x200, 300x300, 400x400 mm
Dimensions (W x H x D)	440 x 260 x 30 mm
Distance from Wall	30 mm
Tilt	0 to 15 degrees
Swivel	No (fixed)
Bubble Level Included	Yes
Screws and Wall Plugs Included	Yes
Recommended Wall Types	Wood studs, solid and flat concrete
Installation	Recommended by a qualified professional
Care and Cleaning	Clean with a soft, dry cloth
Safety	Check wall integrity, respect maximum weight
Spare Parts and Repairability	Not available separately
Warranty	2 years
General Information	Techly ICAPLB 23M wall mount, suitable for flat screens

Frequently Asked Questions - ICAPLB 23M Techly

What is the maximum weight supported by the Techly ICAPLB 23M mount?

The maximum supported weight is 40 kg. Make sure your TV does not exceed this limit.

What types of walls are suitable for this wall mount?

This mount is designed for wood stud and solid flat concrete walls. For other materials, consult a professional.

Is the mount tiltable?

Yes, it offers a tilt of 0 to 15 degrees to adjust the viewing angle.

What VESA standards are compatible?

The mount is compatible with VESA standards 200x200, 300x300, and 400x400 mm.

Is the mount supplied with the necessary screws?

Yes, a kit of screws and wall plugs is included to facilitate installation.

Can I install the mount myself?

It is recommended to call a qualified professional for installation, especially if you have doubts about the wall type.

How to maintain the wall mount?

Simply clean it with a soft, dry cloth. Do not use abrasive products.

What to do if a part is missing or damaged?

Check the contents of the box against the parts list. If a part is defective, do not use it and contact customer service.

Is the mount repairable if a part breaks?

Spare parts are not available separately. In case of damage, it is best to replace the entire mount.

What is the warranty on this product?

The warranty is 2 years against manufacturing defects.

USER MANUAL ICAPLB 23M Techly

TECHly® The Modern IT brand

SLIM FULL-MOTION LED LCD TV WALL MOUNT

10 YEARS WARRANTY

32”▶70”

81”▶ 178” cm

+5° -10°

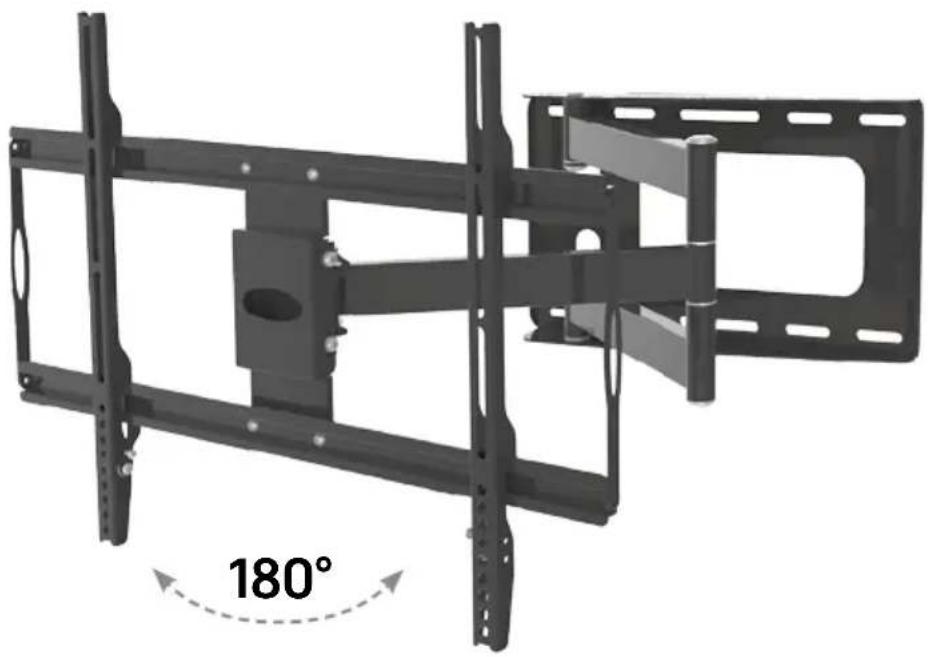

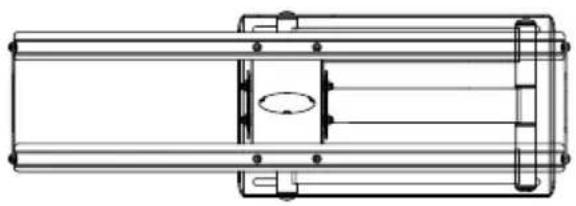

Mechanical assembly with angular dimension labeled 180°, showing two black metal frames connected by vertical supports (no text or symbols beyond the angle marker)

Technical features

45 KG

99 lb

standard vesa 600x400 MAX

hardware included

#

easy installation

LED 300

QR code displayed on a smartphone screen, likely for mobile scanning or linking to online content

SCAN QRCODE

P/N: ICA-PLB 23M

8051128106671

Wall distance 8,4-68,8 cm

Bubble Level

BLACK Color

EN

Dear Customer, thanks for choosing a Techly product.

Unpacking Instructions

• Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.
• Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
• Carefully read all instructions before attempting installation.
• Please keep this user's manual for future consultations.

Note: Recommended mounting surfaces: wooden studs and solid-flat concrete. Please consult your installer and/or specialist supplier. We cannot be held responsible for any injury and/or damage caused by incorrect installation. Before proceeding, please make sure the wall is suitable for installation. Respect the maximum load capacity indicated on the box of the product.

Important Safety Information

Please read this instruction before beginning the installation, and carefully follow all herein contained recommendations. Use proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

• Don't understand these directions or have any doubts about the safety of the installation.
• Are uncertain about the nature of your wall, consult a qualified installation contractor.
  Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby disclaim any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product. At the end of the installation make sure the procedure was correctly observed.

IT

Gentile Cliente,

CAUTION: This TV mount must be securely attached to the vertical wall. If the mount is not properly installed it may fall,

resulting in possible injury and/or damage.

	A x1		B x2
C x4 x4 x4		D x4
E x4 x4		F x4 x4
x4 x6 x1	H		I

Simple illustration of a house with a door and arrow pointing left (no text or symbols)

Illustration of a screwdriver with a plus sign, no text or symbols present

Line drawing of an adjustable wrench (no text or symbols)

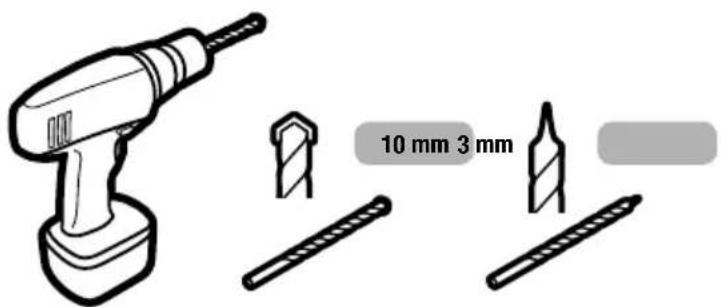

10 mm 3 mm

10M

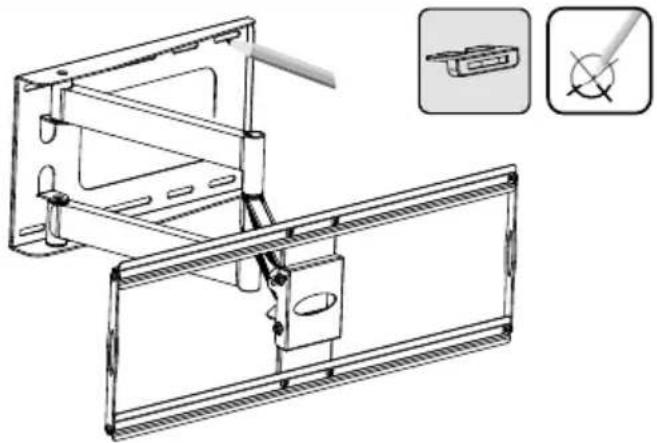

1

Technical line drawing of a mechanical assembly with two inset diagrams showing a device and a crosshair symbol (no text or labels)

2a

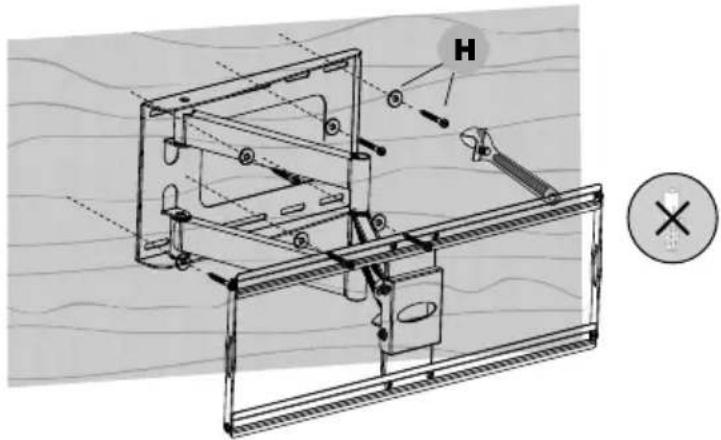

EN Wood stud mounting
IT Installazione su pareti con intelaiatura in legno
DE Installation auf Wänden mit Holzrahmen
FR Installation sur murs avec montants en bois
ES Instalación en paredes con armazón de madera
PL Mocowanie w ścianie z drewna

3mm (0.12")

Technical diagram of a mechanical device with labeled components and directional arrows, including a cross symbol.

2b

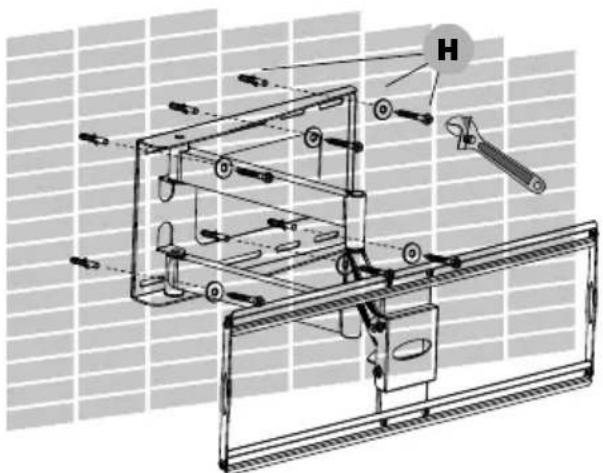

EN Solid Concrete mounting
IT Installazione su cemento
DE Installation auf Stahlbeton
FR Installation sur béton armé
ES Instalación hormigón armado
PL Mocowanie w betonu oraz

10mm(0.39")

Technical line drawing of a mechanical assembly with labeled component H, no readable text or symbols present

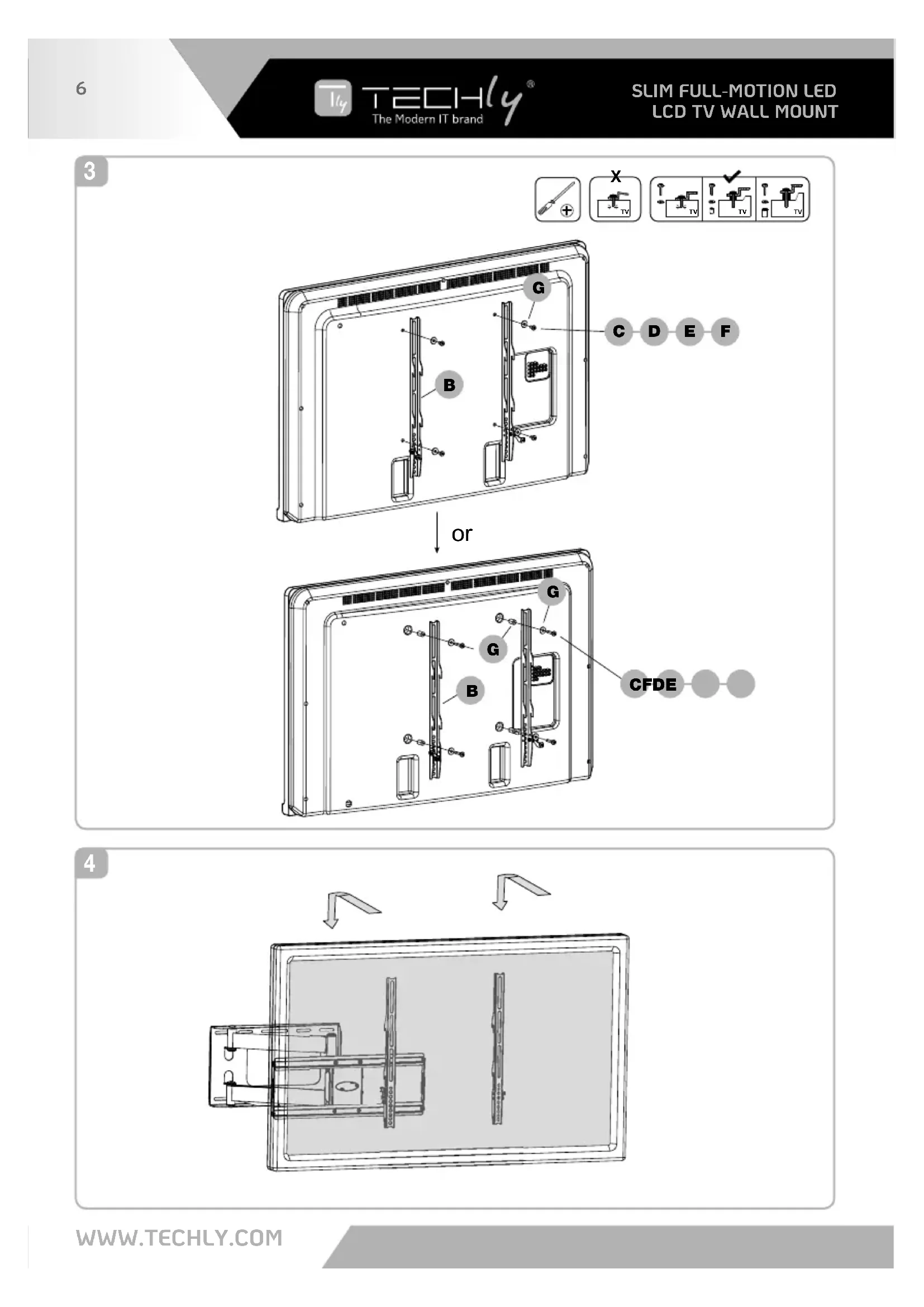

3

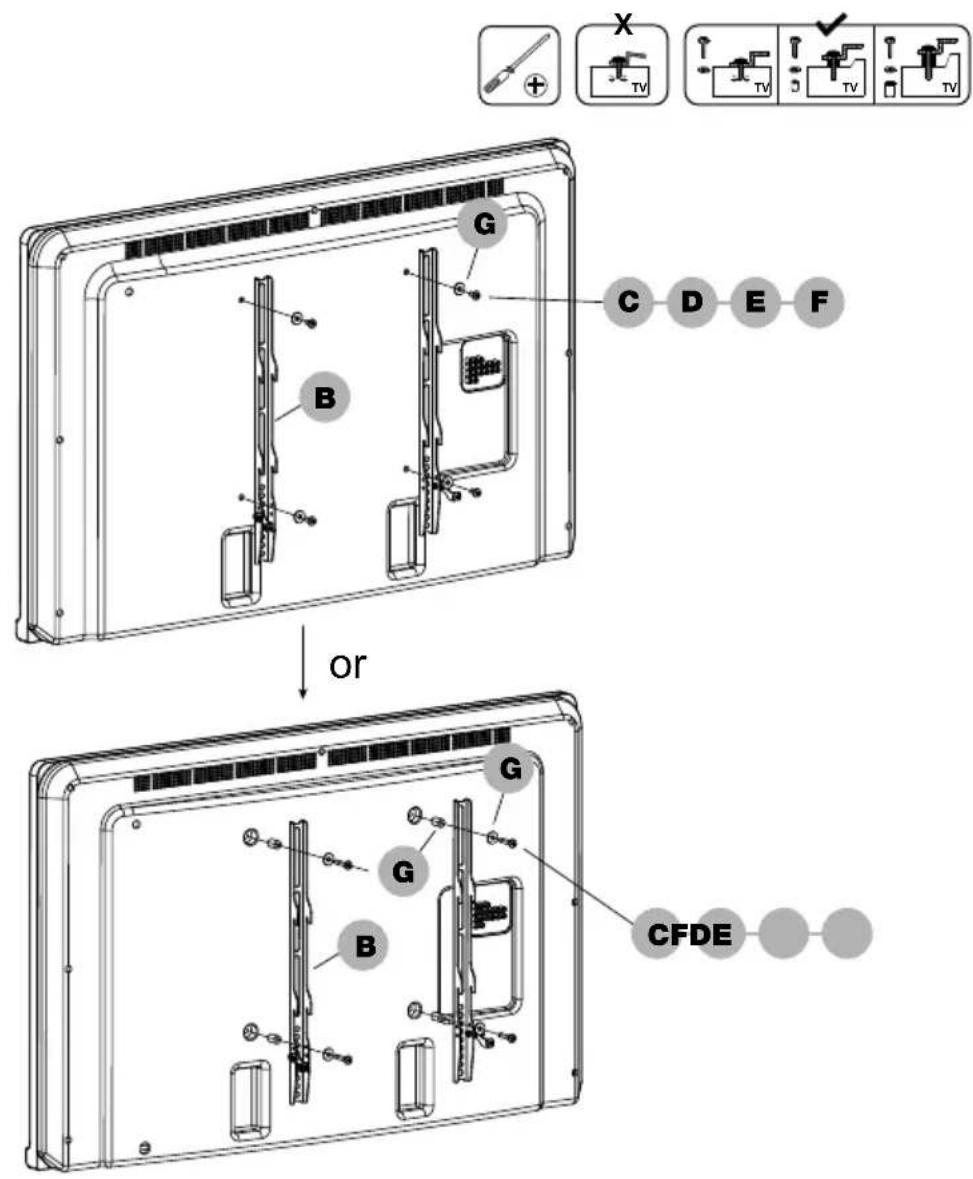

G B C D E F or G B CFDE

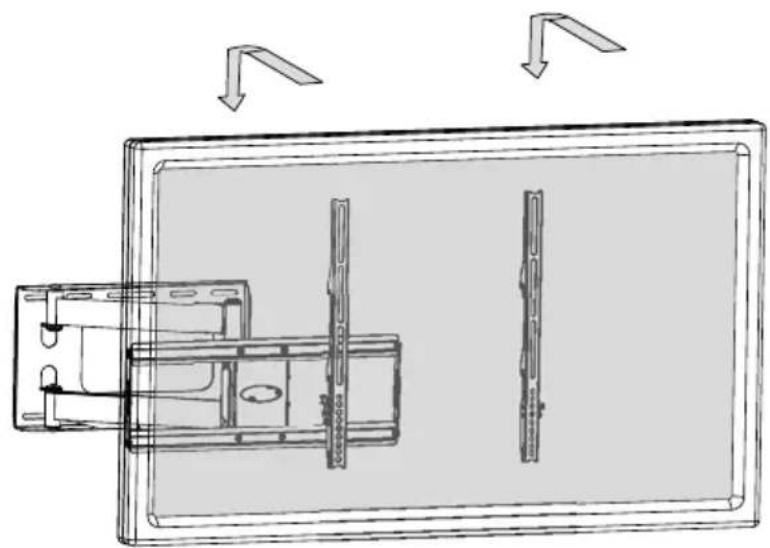

4

Technical line drawing of a mechanical assembly with two vertical components and directional arrows indicating motion (no text or symbols)

5

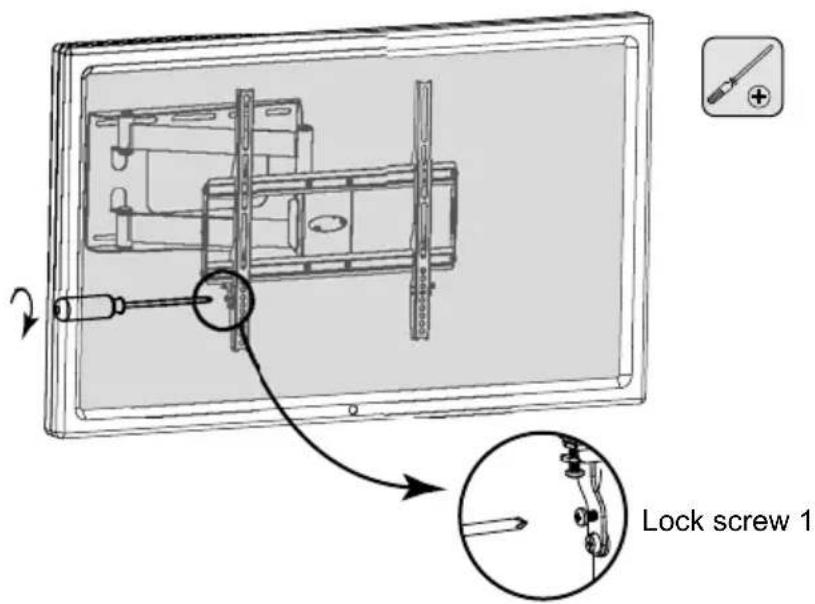

Lock screw 1

6

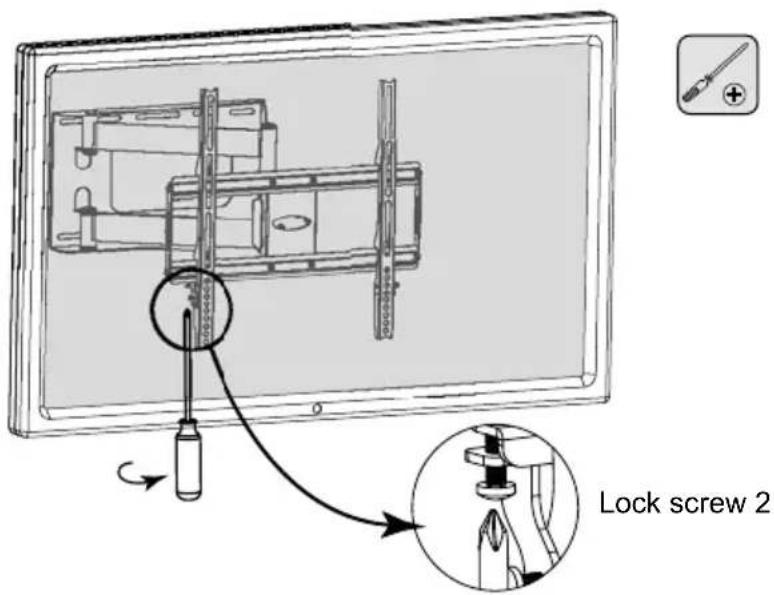

Lock screw 2

7

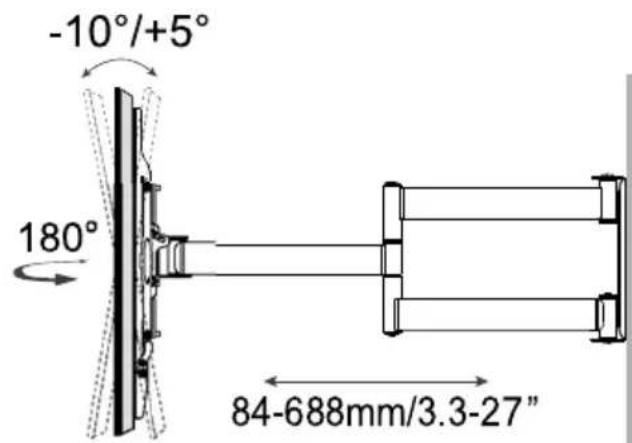

-10°/+5° 180° 84-688mm/3.3-27"
