ICAPLB 546T - Wall mount Techly - Free user manual and instructions

Product type	Wall mount for TV
Brand	Techly
Model	ICAPLB 546T
Materials	High strength steel
Color	Black
Maximum supported weight	50 kg
VESA compatibility	200x200, 300x300, 400x400 mm
Approximate dimensions (W x H x D)	600 x 400 x 50 mm
Mount weight	3.5 kg
Tilt	Yes, adjustable from -5° to +15°
Rotation	No
Landscape/portrait orientation	No
Compatible wall types	Wood frame, solid concrete, solid brick
Package contents	Wall mount, mounting kit, installation manual
Warranty	2 years
Care and cleaning	Wipe with a soft dry cloth. Do not use abrasive products.
Safety	Check wall integrity before installation. Respect maximum weight. Use personal protective equipment.
Spare parts and repairability	Spare parts are not available. If damaged, replace entire unit.
General information	Installation by a qualified professional recommended. Keep the manual for future reference.

Frequently Asked Questions - ICAPLB 546T Techly

What is the maximum weight supported by the Techly ICAPLB 546T wall mount?

The maximum supported weight is 50 kg. Never exceed this limit to avoid any risk of falling.

On what types of walls can this mount be installed?

This mount is designed to be installed on wood frame walls, solid concrete walls, or solid brick walls. Check the wall's integrity before installation.

Does the mount allow tilting the TV?

Yes, the mount offers an adjustable tilt from -5° to +15° for a better viewing angle.

What VESA standards are compatible with this model?

The mount is compatible with VESA standards 200x200, 300x300 and 400x400 mm, covering most TVs from 32 to 65 inches.

Can I install this mount alone or should I call a professional?

Installation can be done by an experienced person, but it is strongly recommended to call a qualified professional to ensure a secure installation.

What to do if a part is missing or damaged in the package?

Check the provided parts list. If a part is missing or damaged, do not use the product and contact Techly's after-sales service.

Is the mount delivered with all necessary mounting hardware?

Yes, the mount is delivered with a complete mounting kit including screws, wall plugs, and spacers suitable for the mentioned walls.

How to clean and maintain the wall mount?

Clean the mount with a soft dry cloth. Do not use chemical or abrasive products that could damage the finish.

Is there a warranty on this product?

Yes, the Techly ICAPLB 546T mount comes with a 2-year warranty against manufacturing defects.

What to do if in doubt about the safety of the installation?

If you have any doubt, consult a professional. Incorrect installation can cause the TV to fall and result in injury or property damage.

USER MANUAL ICAPLB 546T Techly

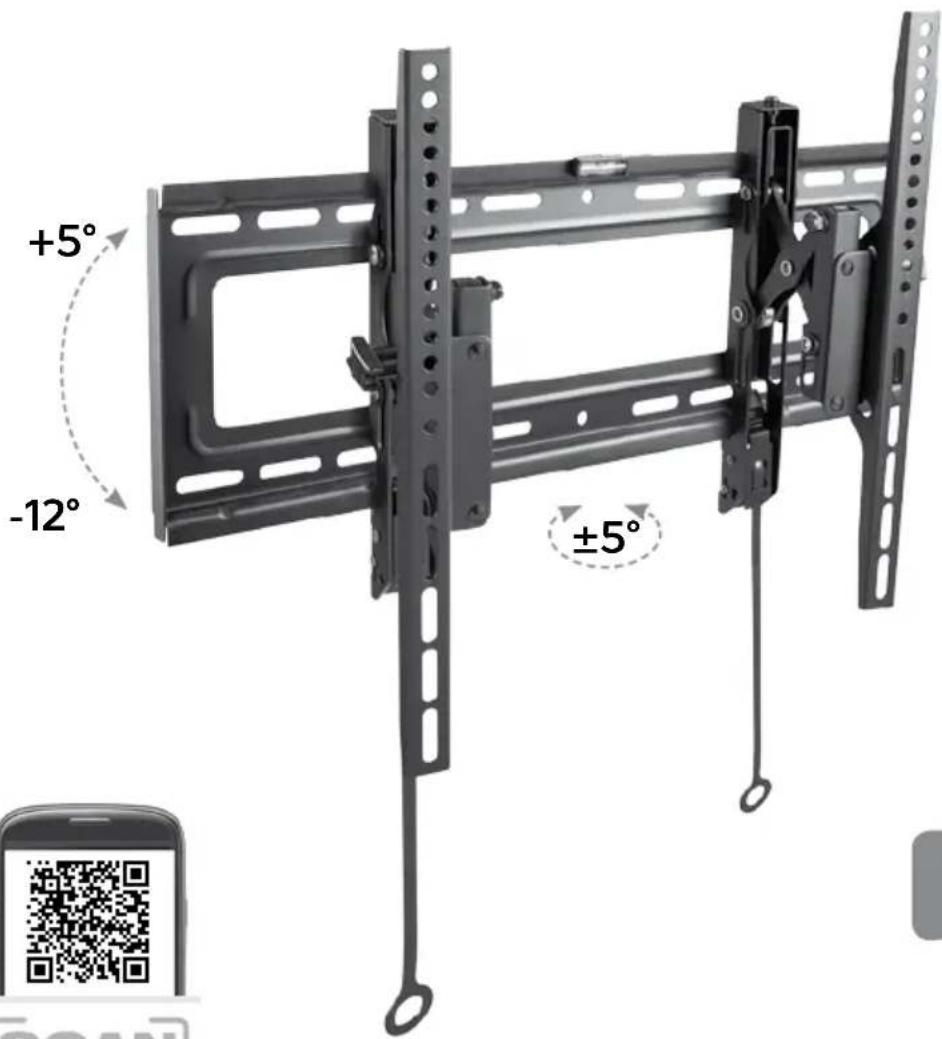

ADVANCED EXTENSION TILT TV WALL MOUNT

10 YEARS

37^ > 80^

94203cm

Technical features

70 KG 154 lb

standard vesa 400x400 MAX

easy installation

LED 300

for MORE

PRODUCT INFO

P/N:ICA-PLB 546T

8051128107197

Wall distance 7,8-13,4 cm

SCREEN adjustment

Bubble Level

Locking System

Curved TV

Color

EN

Dear Customer, thanks for choosing a Techly product.

Unpacking Instructions

• Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.
• Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
• Carefully read all instructions before attempting installation.
• Please keep this user's manual for future consultations.

IT

Gentile Cliente,

Note: The product is designed to be installed on wood stud walls, solid concrete walls or brick walls. If the hardware you need for your installation is not included, please consult your local hardware store for proper mounting hardware for the application. We cannot be held responsible for any injury and/or damage caused by incorrect installation. Before proceeding, please make sure the wall is suitable for installation. Respect the maximum load capacity indicated on the box of the product.

Important Safety Information

Please read this instruction before beginning the installation, and carefully follow all herein contained recommendations. Use proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

• Don't understand these directions or have any doubts about the safety of the installation.
  Are uncertain about the nature of your wall, consult a qualified installation contractor.

Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby disclaim any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product. At the end of the installation make sure the procedure was correctly observed.

CAUTION: This TV mount must be securely attached to the vertical wall. If the mount is not properly installed it may fall,

resulting in possible injury and/or damage.

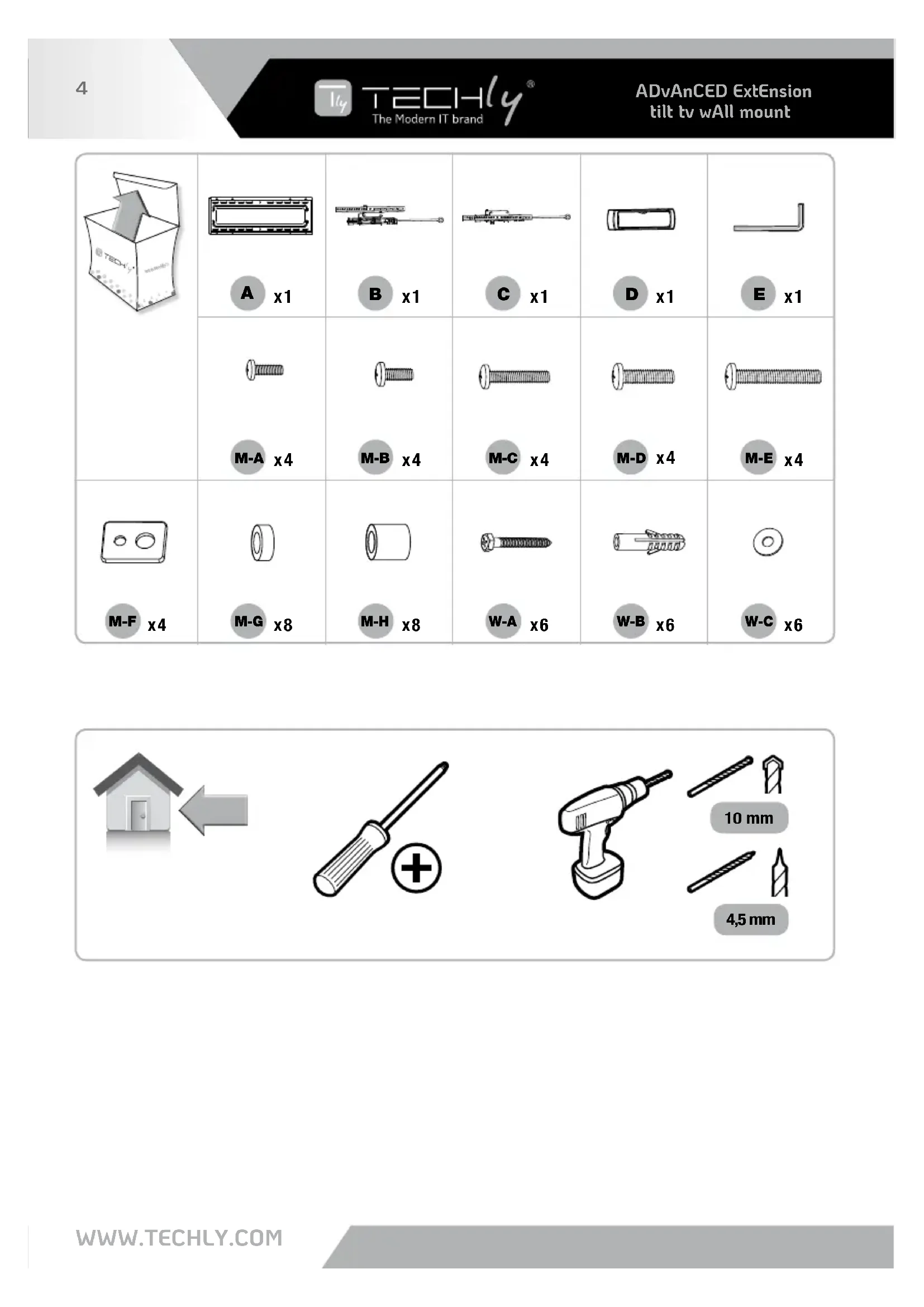

A x1	B x1	C x1	D x1	E x1
M-A x4	M-B x4	M-C x4	M-D x4	M-E x4
M-G x8	M-H x8	W-A x6	W-B x6	W-C x6

10 mm

4.5mm

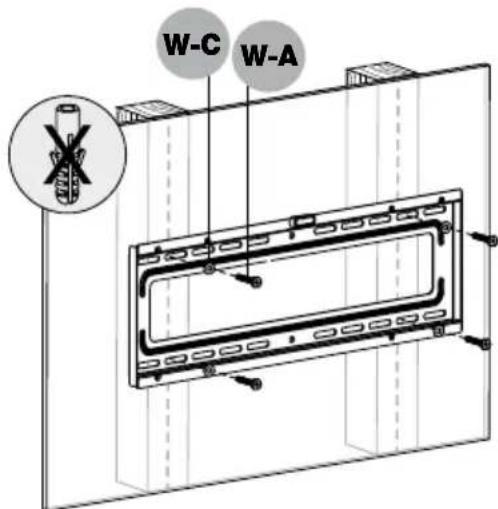

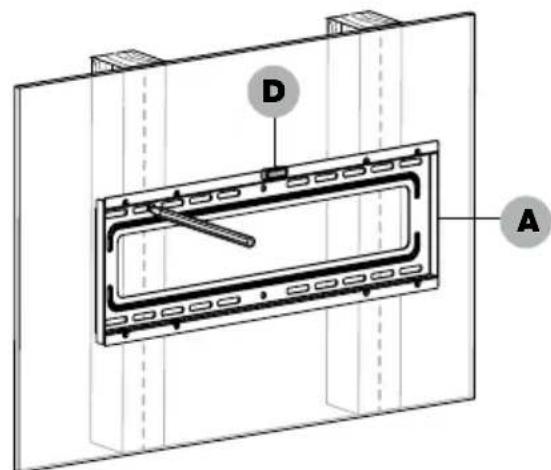

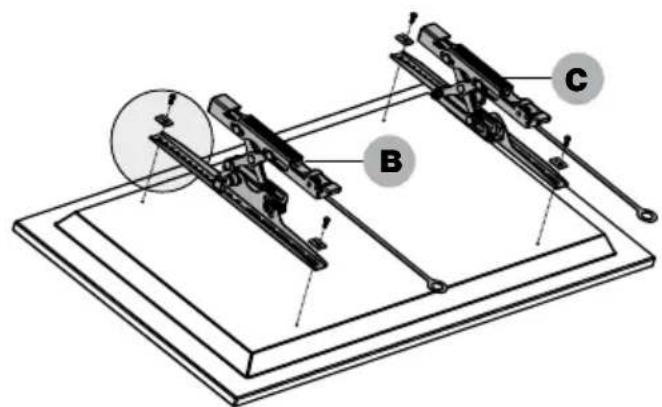

1a

1b

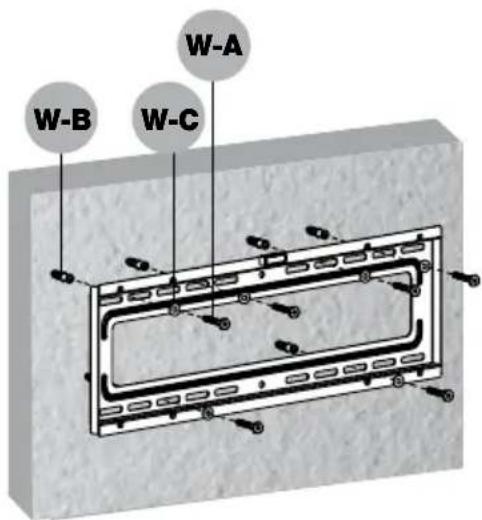

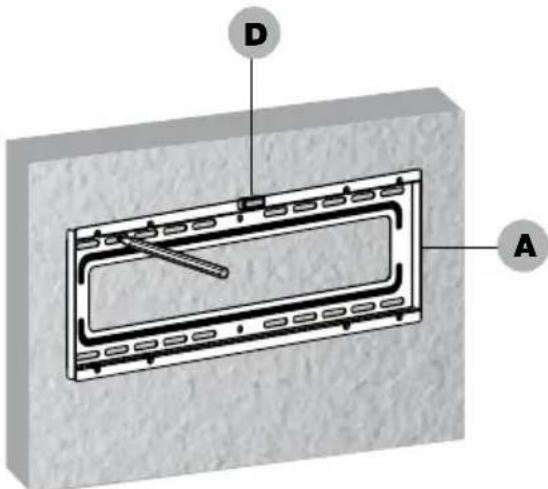

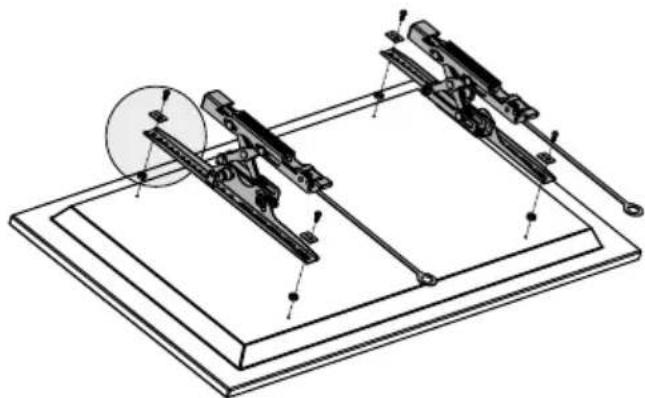

2a

2b

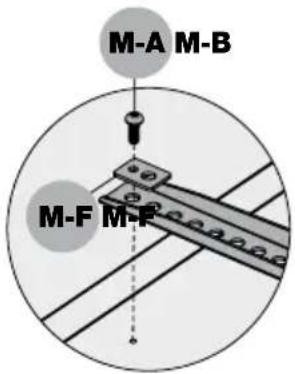

3

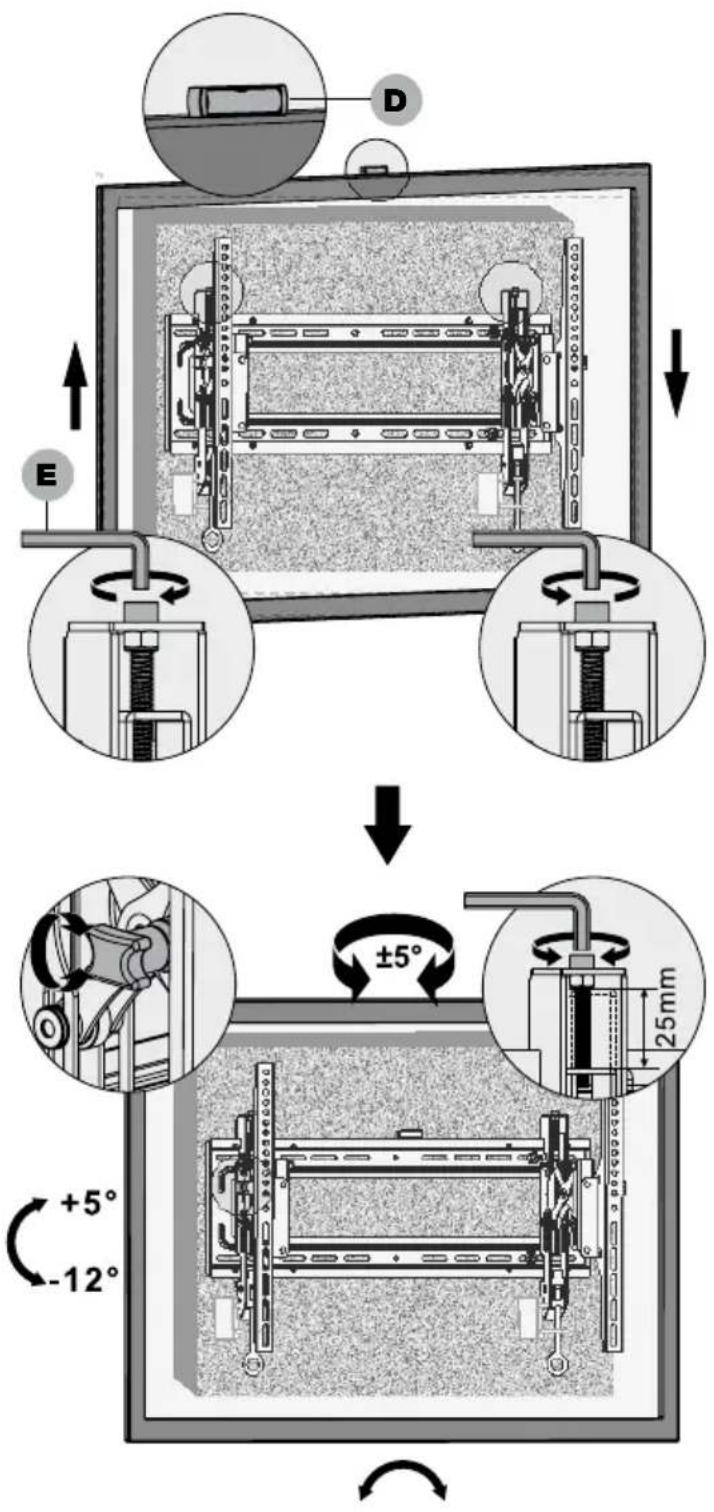

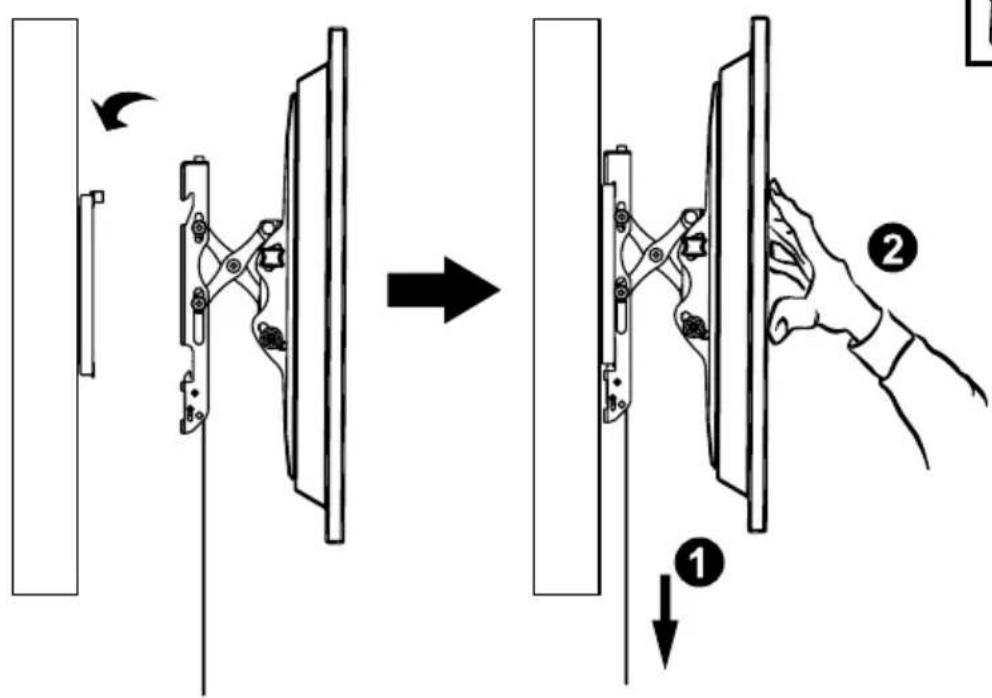

4

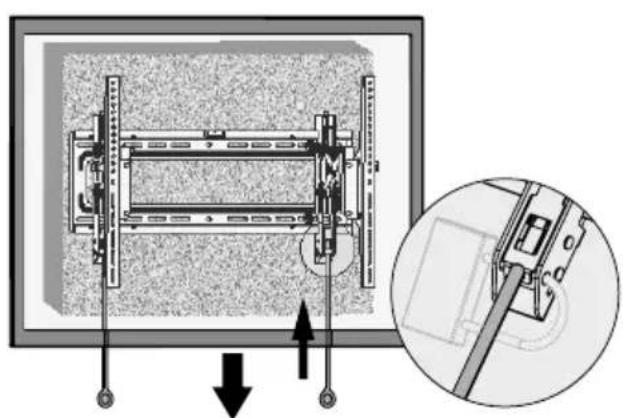

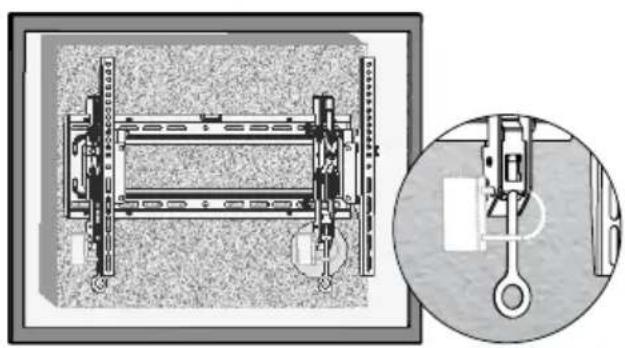

5
