| Brand | Techly |
| Model | ICAPLB 400DTY |
| Product type | TV wall mount |
| VESA compatibility | Up to 400 x 400 mm |
| Maximum load capacity | 30 kg |
| Recommended screen sizes | 26 to 55 inches |
| Material | High-strength steel |
| Tilt | 0° to 15° (forward) |
| Rotation | Not applicable |
| Distance from wall | Approximately 20 mm |
| Built-in bubble level | Yes |
| Supported wall types | Concrete, brick, wood stud |
| Installation | Requires drilling and anchors |
| Package contents | Wall mount, screws, anchors, manual |
| Warranty | 2 years |
| Maintenance | Clean with a soft, dry cloth |
| Safety | Use appropriate safety devices |
| Repairability | Parts not available separately |
| Net weight | 1.2 kg |
| Support dimensions (W x H x D) | 430 x 200 x 20 mm |
Frequently Asked Questions - ICAPLB 400DTY Techly
User questions about ICAPLB 400DTY Techly
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wall mount in PDF format for free! Find your manual ICAPLB 400DTY - Techly and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ICAPLB 400DTY by Techly.
USER MANUAL ICAPLB 400DTY Techly

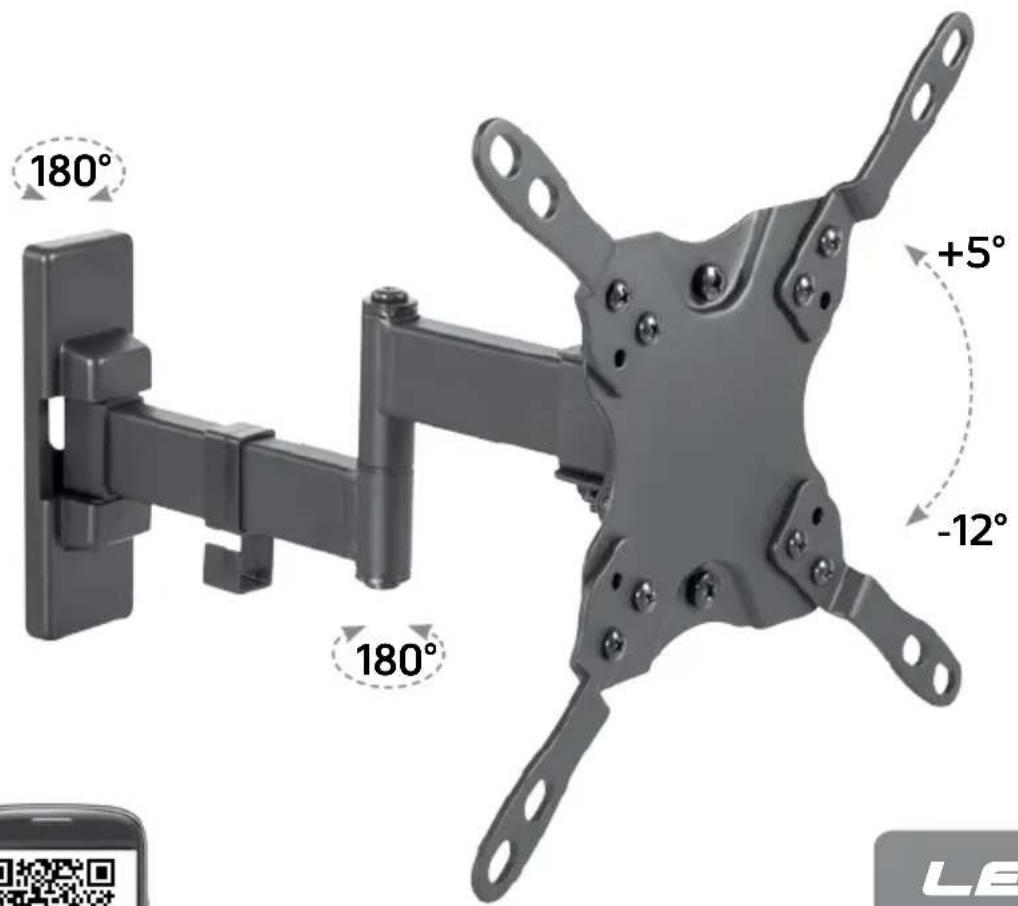

FULL MOTION TV WALL MOUNT
10 YEARS
13'' > 42''
33107cm
Technical features
20 KG 44 lb
standard vesa 200x200 MAX
easy installation
LED100
for MORE
PRODUCT INFO
P/N:ICA-PLB400DTY
8051128109177
Wall distance 6-23 cm
TV supported 13"42"
SCREEN
adjustment
Cable Management
Color
EN
Dear Customer, thanks for choosing a Techly product.
Unpacking Instructions
- Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.

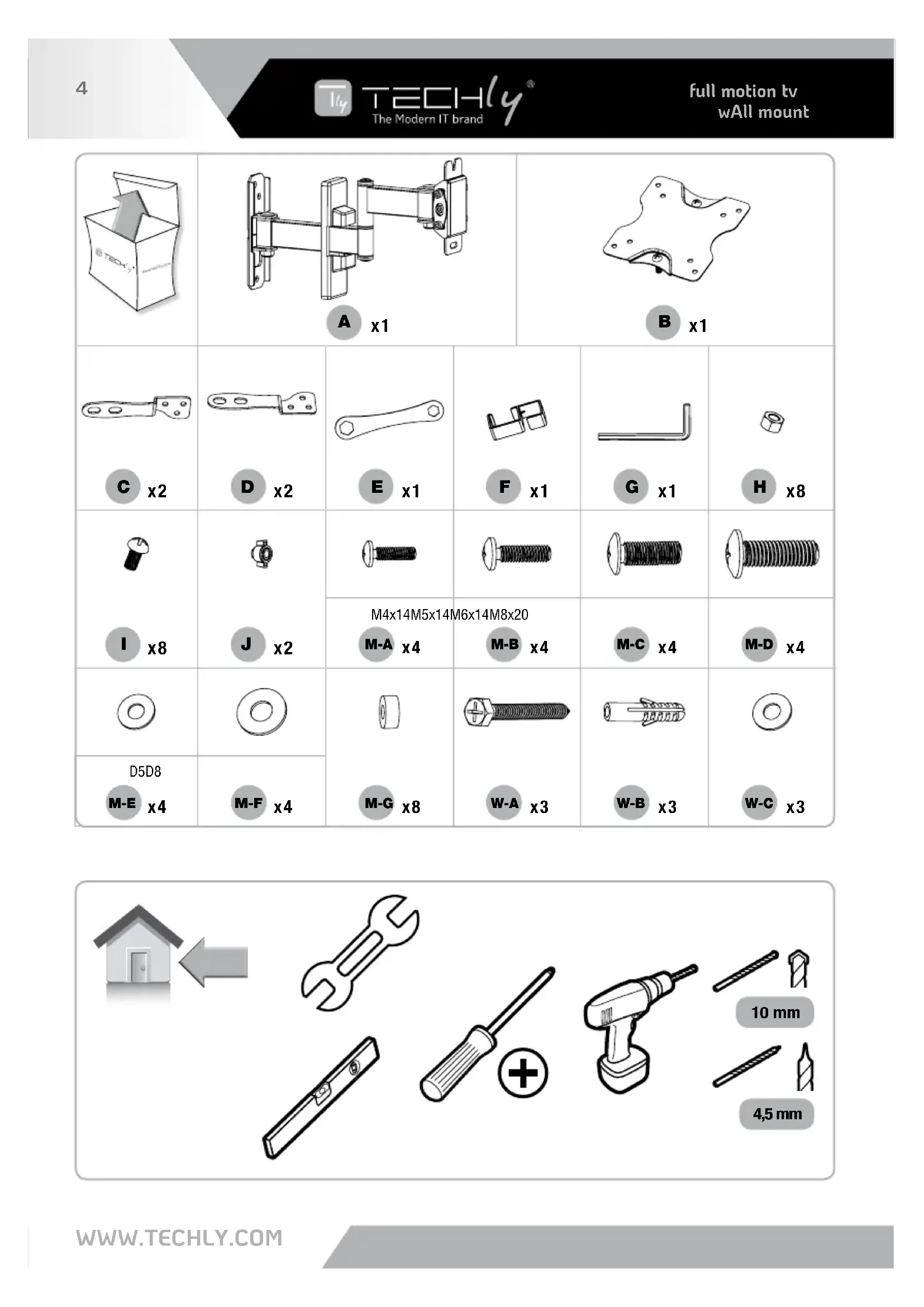

- Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
- Carefully read all instructions before attempting installation.
- Please keep this user's manual for future consultations.
Note: The product is designed to be installed on wood stud walls, solid concrete walls or brick walls. If the hardware you need for your installation is not included, please consult your local hardware store for proper mounting hardware for the application. We cannot be held responsible for any injury and/or damage caused by incorrect installation. Before proceeding, please make sure the wall is suitable for installation. Respect the maximum load capacity indicated on the box of the product.
Important Safety Information
Please read this instruction before beginning the installation, and carefully follow all herein contained recommendations. Use proper safety equipment during installation.
Please call a qualified installation contractor for help if you:
- Don't understand these directions or have any doubts about the safety of the installation.
Are uncertain about the nature of your wall, consult a qualified installation contractor.
Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby disclaim any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product. At the end of the installation make sure the procedure was correctly observed.
IT
Gentile Cliente,
CAUTION: This TV mount must be securely attached to the vertical wall. If the mount is not properly installed it may fall,
resulting in possible injury and/or damage.
