SM 02 - Smartphone BLAUPUNKT - Free user manual and instructions

Product type	Smartphone
Brand	Blaupunkt
Model	SM 02 (2019)
Dimensions (estimate)	145 x 70 x 8 mm
Weight (estimate)	150 g
Screen	Capacitive touchscreen (approx. 5 inches)
Power supply	Rechargeable Li-ion battery 2100 mAh, 3.8 V
Charger	Input: AC 100-240 V ~ 50/60 Hz 0.2 A; Output: DC 5 V – 1 A
SIM card	Nano SIM
Memory card	Micro SD (up to unspecified capacity)
Main functions	Calls, SMS, camera, Internet, apps, Google Assistant
Emergency calls	Possible without SIM card
SAR value (head)	0.366 W/kg
SAR value (body)	0.911 W/kg
Safety	Turn off in regulated areas; use approved accessories; keep at 2.5 cm from body
Care and cleaning	Keep dry; do not use solvents; clean with a soft cloth
Spare parts and repairability	Removable battery; repair by qualified personnel only
General information	Warranty according to conditions; declaration of conformity available online

Frequently Asked Questions - SM 02 BLAUPUNKT

How to insert SIM card and memory card?

Turn off the device, remove the back cover and battery. Insert the Nano SIM card into the slot in the correct orientation. Insert the Micro SD card. Replace the battery and cover.

How to turn on or off the phone?

To turn on, press and hold the Power button on the side. To turn off, press and hold the Power button then select Power off in the menu.

How to make an emergency call?

You can dial an emergency number (112, etc.) even without a SIM card. The phone must be turned on and in network coverage area.

How to charge the battery?

Connect the supplied charger to a wall outlet and then to the phone. The battery recharges automatically. Do not leave charging for more than a week.

What to do if the phone freezes or stops responding?

Press and hold the Power button for about 10 seconds to force a restart. If the problem persists, contact customer service.

How to clean the screen and casing?

Use a soft, dry cloth. Do not use chemicals or solvents. Avoid any contact with liquids.

Is the phone waterproof?

No, the device is not waterproof. Keep it dry and avoid any contact with water or moisture.

Where to find the declaration of conformity?

The declaration of conformity is available on the Blaupunkt or manufacturer's website. Visit www.blaupunkt.com or www.htmmmobile.hu.

How to use Google Assistant?

Press and hold the Home button to launch Google Assistant. Follow on-screen instructions for setup.

Which accessories are compatible with this model?

Use only accessories approved by the manufacturer. The recommended charger is the one supplied. Do not use incompatible accessories.

USER MANUAL SM 02 BLAUPUNKT

1. Safety instructions 2
2. Technical Specifications 3
3. Insert the memory card and SIM card 3
4. Switch the device on and off 3
5. Using the Phone's Buttons 3
6. Emergency calls. 4
7. Handling and maintenance 4

7.1 Battery 4 7.2 Maintain the appliance 4 8. Declaration of Conformity 5

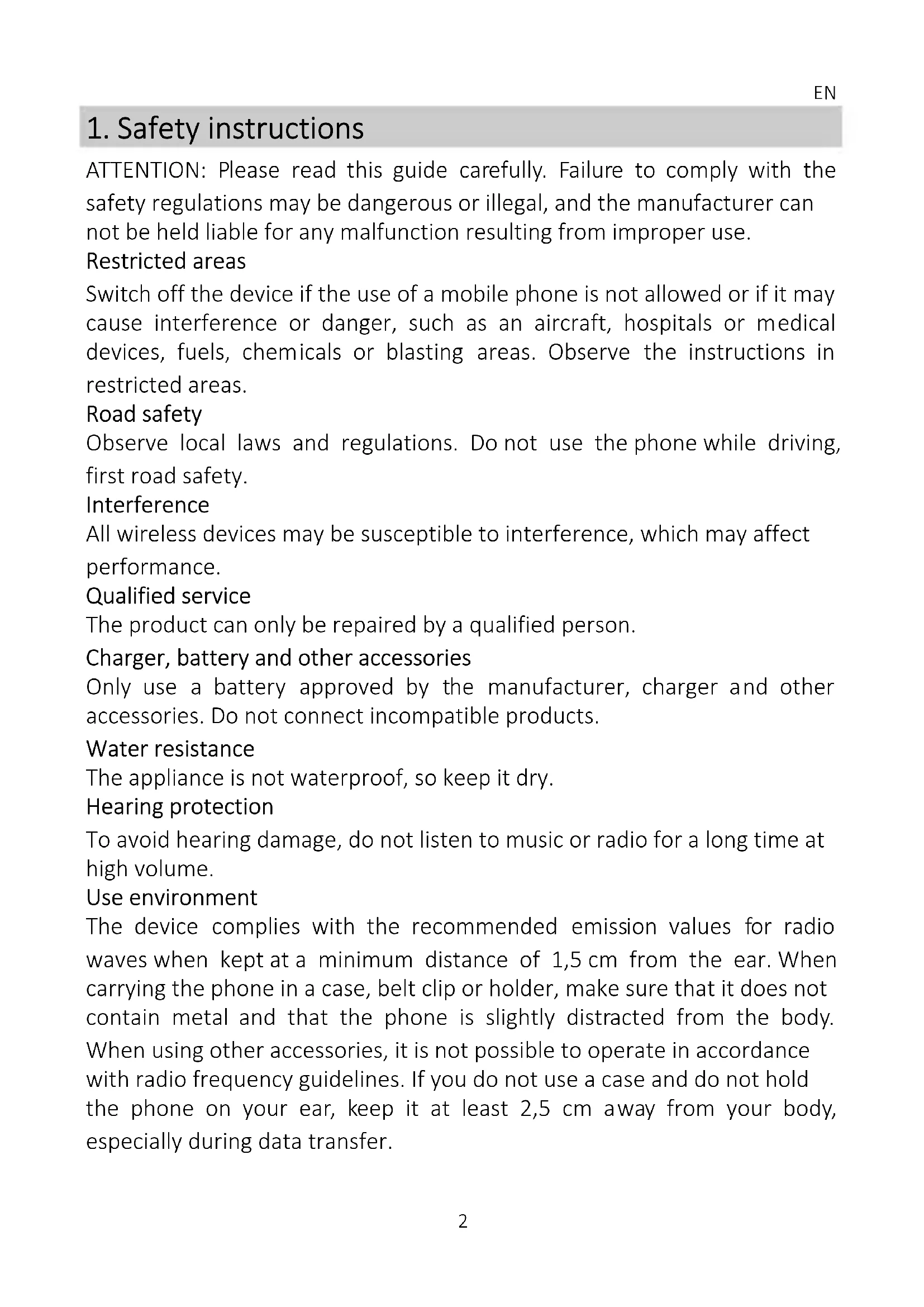

1. Safety instructions

ATTENTION: Please read this guide carefully. Failure to comply with the safety regulations may be dangerous or illegal, and the manufacturer cannot be held liable for any malfunction resulting from improper use.

Restricted areas

Switch off the device if the use of a mobile phone is not allowed or if it may cause interference or danger, such as an aircraft, hospitals or medical devices, fuels, chemicals or blasting areas. Observe the instructions in restricted areas.

Road safety

Observe local laws and regulations. Do not use the phone while driving, first road safety.

Interference

All wireless devices may be susceptible to interference, which may affect performance.

Qualified service

The product can only be repaired by a qualified person.

Charger, battery and other accessories

Only use a battery approved by the manufacturer, charger and other accessories. Do not connect incompatible products.

Water resistance

The appliance is not waterproof, so keep it dry.

Hearing protection

To avoid hearing damage, do not listen to music or radio for a long time at high volume.

Use environment

The device complies with the recommended emission values for radio waves when kept at a minimum distance of 1.5 cm from the ear. When carrying the phone in a case, belt clip or holder, make sure that it does not contain metal and that the phone is slightly distracted from the body.

When using other accessories, it is not possible to operate in accordance with radio frequency guidelines. If you do not use a case and do not hold the phone on your ear, keep it at least 2.5 cm away from your body, especially during data transfer.

2. Technical Specifications

Power Supply Features:

Input: AC 100-240V~50/60Hz 0.2A - Output: DC 5V - 1A

Battery and Voltage: 2100mAh - 3.8V

SAR value: 0.366W/Kg (Head) - 0.911W/Kg (Body)

The mains power socket used must be close to the charger/holder and easily accessible, so that it can be used as an 'on/off' facility.

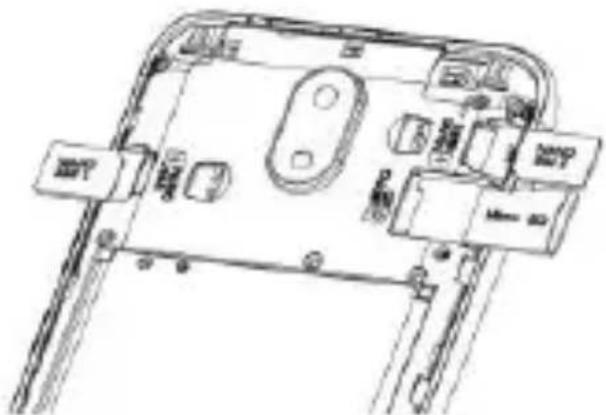

3. Insert the memory card and SIM card

Turn off the power and remove the back cover and battery. Insert the SIM card according to the mark on the device. Make sure that the chip contact and the cut edge of the card are aligned in the correct direction. Slide the card into the slot until it stops. The device handles Nano SIM + Micro SD cards.

4. Switch the device on and off

Press and hold the Power button to turn on the power.

Press and hold the power button and select "Power off" from the Options menu.

5. Using the Phone's Buttons

Button	Description
	Apps: Opens the list of recent applications.
Home: returns to Home screen. Press and hold to open GoogleTM Assistant.
Back: returns to the previous screen you were working in

6. Emergency calls

You can also make emergency calls without a SIM card. For more information, contact your network service provider.

7. Handling and maintenance

7.1 Battery

• The device has a rechargeable battery. When the power supply is low, charge the battery.
• Disconnect the charger from the power outlet and the appliance when not in use. Do not allow the battery to charge for more than a week, as it may reduce the battery life.
• Extreme temperatures may also affect the battery. If the ambient temperature exceeds 40°C, do not charge the battery.
• Do not use a damaged battery or charger.
• Do not short-circuit the battery. For example, a metallic object such as a coin, clip or pen may cause a short circuit.
• Do not leave the battery too hot (such as in a car in summer) or too cold (such as freezing), as it may reduce its service life. Try to store the battery between 15°C and 25°C. A too cold or too hot battery may temporarily not work, even if it is fully charged.
• Do not throw the battery in a fire. Dispose of the used battery according to local regulations and recycle if possible.

7.2 Maintain the appliance

• Keep the appliance dry. Precipitation, mist and all other liquids can cause corrosion in the circuit boards.
• Do not store the product in dusty places, as moving parts and electrical accessories may be damaged.
• Do not store the device in hot places. High temperatures can shorten the life of the electrical devices, damage the battery and melt the plastic parts.
• Do not store the device in a cold place. When the device returns to normal temperature, the inside moisture can damage the electrical circuits.
• Open the appliance only as instructed in this manual.
• Do not drop, shake the appliance as small parts break.
• Do not use strong chemicals or solvents to clean the appliance.
• Do not paint the appliance. Paint can clog the moving parts and hinder proper operation.
• Use only approved parts. Improper parts may damage the unit and may result in loss of warranty. If the product does not work properly, consult the service provided on the warranty card.
• The manufacturer is not liable for any malfunction resulting from improper use.

8. Declaration of Conformity

The Blaupunkt SM 02 2019 model complies with the essential requirements and relevant provisions of the 2014/53/EU Directive and RoHS Directive 2011/65/EU. The Declaration of Conformity is available on our website.

CE

Designed and Engineered by

Blaupunkt Competence Center Mobile Europe

HTM Mobile Kft.

Assembled in P.R.C by

HONGKONG SYMSONIC TECHNOLOGY CO., LIMITED

FIAT B07, 23/F HOVER IND BLDG NO. 26-38 KWAI CHEONG RD NT HONG KONG

For more information on this product, visit our website at

www.htmmmobile.hu or www.blaupunkt.com.

Google and other marks are trademarks of Google LLC.

Do not use the device in places where it is prohibited.

Using a mobile phone may interfere with radio signals in certain situations, e.g., in airplanes, in hospitals, in close proximity to medical devices, flammable materials, chemicals, and explosion zones.

Follow the instructions strictly in restricted areas.

Road safety

Follow local laws regarding distribution. Do not use the device while driving; road safety is paramount.

Interference

Any wireless device may be sensitive to interference, which could affect its operation.

Qualified service

The product can only be repaired by a qualified specialist.

Charging device, battery, and other accessories

Only use the battery, charging device, and other accessories approved by the manufacturer. Do not connect incompatible products.

Hearing protection

To prevent hearing loss, do not listen to music or radio at high volume for extended periods.

Water resistance

The device is not waterproof, so keep it dry.

Before use

The device has been tested for radio frequency emissions and safety at a minimum distance of 1.5 cm from the ear. When wearing the phone in a belt clip or holster, ensure that no metal is present and that the phone is kept away from the body. When using other accessories, it is not possible to guarantee compliance with radio frequency guidelines. If you do not

use the clip and do not hold the phone directly against the ear, hold it at least 2.5 cm away from the body, especially during data transfer.

2. Technical specifications of the product

Charging:

• Input: (AC), 100 - 240V - 50/60Hz - 0.2A
• Output: (DC), 5V - 1A

Battery type and voltage:

• 2100mAh - 3.8V

SAR values:

• 0.366W/Kg (head)
• 0.911W/Kg (body)

The electrical outlet used must be near the charging device / adapter and easily accessible, so that it can be used as a switch for turning on/off.

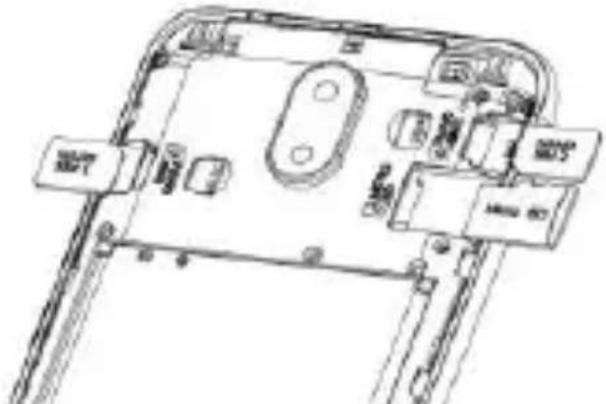

3. Inserting the SIM card

Disconnect the charger and remove the battery cover. Insert the SIM card according to the marking on the device. Make sure that the contact with the chip is aligned and in the correct direction. Slide the card into the slot until it stops.

Insert the card for Nano SIM + Micro SD card.

4. Turning the device on and off

Press and hold the button for power on the device to turn it on.

Press and hold the button for power and select Off.

5. Charging the device

7.2 Maintenance of the machine

• Keep the device dry. Humidity, moisture, and all types of liquids can cause corrosion of the electronic circuits. Do not store the product in direct sunlight, as the plastic and electronic accessories may be damaged. Do not store the device in hot places. High temperatures can shorten the life of electronic devices, damage the battery, and melt the plastic parts. Do not store the device in cold places. When the device returns to normal temperature, the internal moisture may damage the electronic circuits. Open the device only as indicated in this manual. Do not drop or disassemble the device, as the internal parts may be damaged. Do not use harsh chemicals or solvents for cleaning the device. Do not bend the device. Water may enter the internal parts and prevent proper operation.
• Use only approved parts. Non-original parts may damage the device and lead to loss of warranty. If the device is not repaired properly, contact the service center indicated on the warranty card.

The manufacturer is not responsible for incorrect results or improper use.

8. Declaration of Conformity

Blaupunkt SM 02 2019 complies with the essential requirements and relevant provisions of Directives 2014/53/EU and 2011/65/EU. The Declaration of Conformity is available on our website.

Importer: HTI Mobile Ltd.

Address: 1118 Budapest, Dayka Gabor street 3. HUNGARY

Manufacturer: HONGKONG SYMSONIC TECHNOLOGY CO., LIMITED

Address: FLAT B07, 23/F HOVER IND BLDG NO. 26-38 KWAI CHEONG RD NT HONG KONG

For more information about this product, please visit our website at www.htmmobile.hu or www.blaupunkt.com.

Google and the Google logo are trademarks of Google LLC.

First steps Mobile Phone SM 02 2019

Contents

1. Safety regulations 2
2. Getting to know the device 3
3. Inserting memory and SIM card 3
4. Turning the device on and off 3
5. Device keys 3
6. Emergency calls 4 7. Operation and maintenance 4

7.1 Battery 4 7.2 Device maintenance 4

1. Declaration of conformity 5

1. Safety regulations

Please read the safety regulations carefully, as neglecting them can be dangerous and even illegal.

The device owner is responsible for its use.

Quick User Guide

Mobile Phone SM 02 2019

Contents
