EV 2510 - Cooker ECG - Free user manual and instructions

Brand	ECG
Model	EV 2510
Product type	Electric two-plate hob
Number of plates	2
Plate 1 diameter	185 mm
Plate 1 power	1500 W
Plate 2 diameter	155 mm
Plate 2 power	1000 W
Total power	2500 W
Rated voltage	220-240 V ~ 50-60 Hz
Control type	Rotary thermostat with indicator light
Safety	Safety thermostat, automatic shut-off in case of overheating
Container compatibility	Flat bottom, diameter 15-17 cm for small plate
Maintenance	Clean with soft cloth and mild cleaner, do not immerse
Reparability	Entrust to an authorized professional service

Frequently Asked Questions - EV 2510 ECG

How to use the hob for the first time?

Before first use, run the appliance empty for 3 to 5 minutes at maximum temperature to stabilize the surface. Then clean it with a damp cloth and place it on a stable surface.

What to do if the appliance does not heat up?

Check that the plug is properly inserted and that the thermostat is not set to MIN. If the problem persists, contact a professional service. Do not repair the fuse yourself.

Can I use glass or ceramic containers?

Preferably use containers with a flat, solid bottom, such as metal pans and pots. Glass or ceramic containers are not recommended as they may break under heat.

How to clean the cooking plates?

Unplug the appliance and let it cool completely. Clean with a soft cloth and a mild cleaning product. Do not use hard brushes, alcohol, gasoline, or abrasive products. Never immerse the appliance in water.

Why does the indicator light turn off during use?

This is normal. The light goes off temporarily when the thermostat interrupts heating to maintain the temperature. This indicates the appliance is working correctly.

Can I use both plates at the same time?

Yes, both plates can be used simultaneously. Ensure that containers do not overhang the plates to avoid spillage or burns.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by an authorized professional service to avoid electric shock.

Can children use the appliance?

Children over 8 years can use it under supervision. Children under 8 must be kept away from the appliance. Never leave the appliance unattended while in use.

Can I leave the hob on unattended?

No, never leave the appliance on unattended. This could cause a fire or burn hazard.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a collection point for electrical and electronic equipment. Paper and cardboard packaging should be recycled separately.

USER MANUAL EV 2510 ECG

Black ECG portable electric stove with two circular heat sinks and a rotary knob (no text or symbols visible)

EV 2510

DOUBLE ELECTRIC HOB

INSTRUCTION MANUAL

Diagram of a black electrical stove with labeled components, showing two circular lamps and two handles.

English

1. Plate
2. Thermostat control with indicator

Deutsch

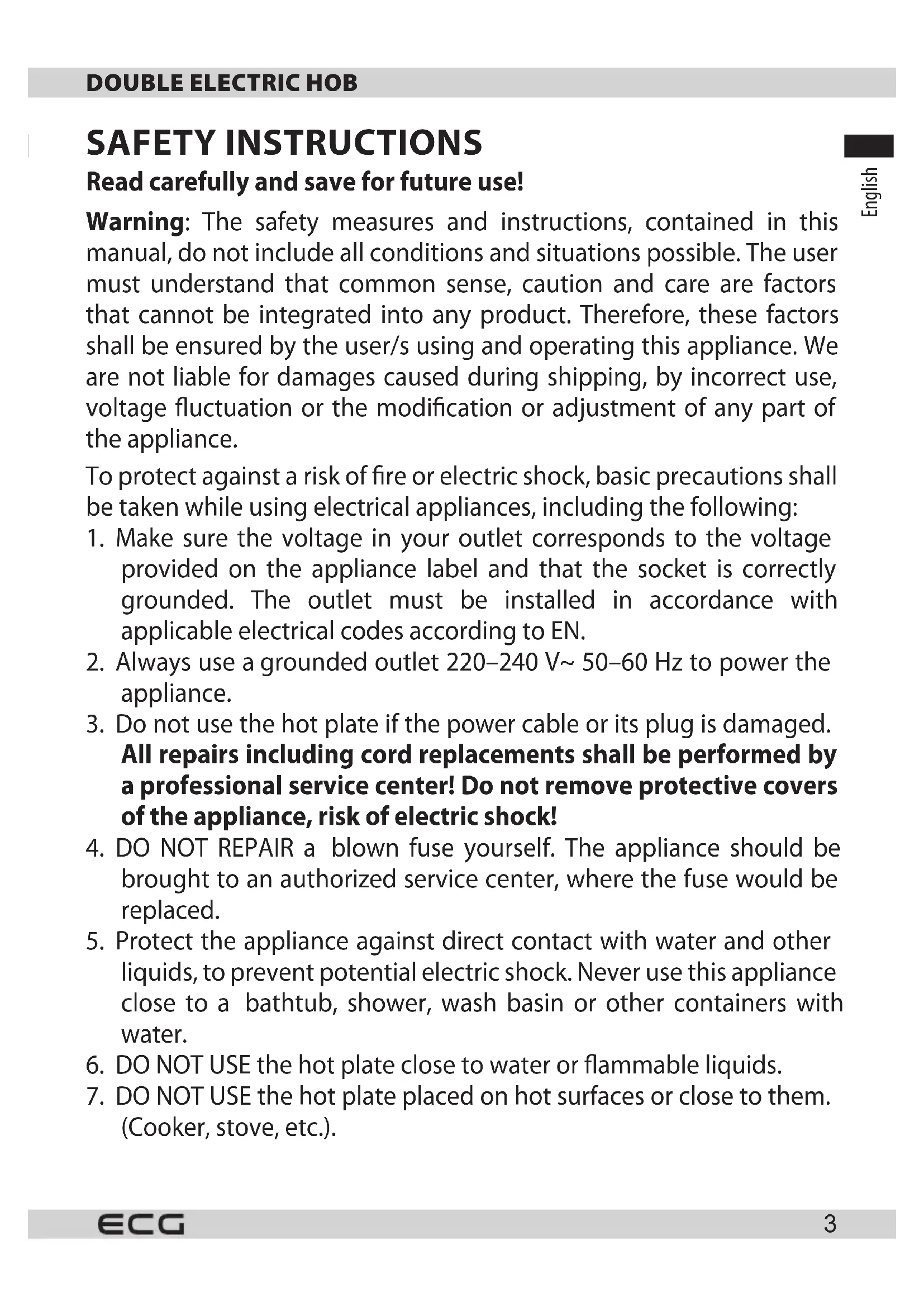

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Always use a grounded outlet 220–240 V\~ 50–60 Hz to power the appliance.
3. Do not use the hot plate if the power cable or its plug is damaged. All repairs including cord replacements shall be performed by a professional service center! Do not remove protective covers of the appliance, risk of electric shock!
4. DO NOT REPAIR a blown fuse yourself. The appliance should be brought to an authorized service center, where the fuse would be replaced.
5. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. Never use this appliance close to a bathtub, shower, wash basin or other containers with water.
6. DO NOT USE the hot plate close to water or flammable liquids.

7. DO NOT USE the hot plate placed on hot surfaces or close to them. (Cooker, stove, etc.).

8. Do not use the appliance outside or in a wet environment and do not touch the power cable or the appliance with wet hands. Risk of electric shock.

9. Make sure that the double hot plate is placed on a stable, secure surface to prevent it from overturning or to prevent water from entering it.

10. We do not recommend using extension cords. They could overheat and cause fire. If it is necessary to use an extension cord, the crosssection of the cable wires should be 1,5 mm^2 or conform to the NO.14AWG standard.

11. To prevent overloading and blowing fuses, make sure that there is no other appliance with high power consumption connected to the same outlet or on the same circuit.

12. DO NOT PLACE the power cord under a rug or a blanket. Do not step on the power cord.

13. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges.

14. Pay close attention when handling the appliance to prevent injury, for example, burning, scalding.

15. Do not use the hot plate close to flammable objects or underneath them, e.g. close to curtains. The temperature of surfaces near the operating appliance is hotter than usual. Place the hot plate away from other objects to provide necessary distance. Do not put any objects on the hot plate, avoid risk of burns.

Yellow triangular warning sign with black smoke symbol indicating hot weather

Surfaces marked this way become hot when used.

1. Disconnect the cord from the electrical outlet prior to performing maintenance. When disconnecting the power cable, pull the plug, not the cable.

2. When cooking, do not use oil spray, use basting brush soaked in oil. Be especially careful, because oil and fat can ignite when overheated. When heating cans or other closed containers, always

open the lid, otherwise there is a danger of explosion because of the heat build-up inside.

1. Use the hot plate only according to the instructions in this manual. The manufacturer is not liable for damages caused by the improper use of this appliance.
2. Never try to touch the hot surface of the hot plate before it cools down.
3. The appliance is not designed to be used with timers or any other remote control systems.
4. A close supervision is necessary when the hot plate is used by children. Never leave a switched on appliance unattended.
5. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

Do not immerse in water!

OPERATING INSTRUCTIONS

Preparation before use

Before first using the hot plates run it at the highest temperature for 3–5 minutes. You will thermally stabilize the surface layer this way. After that never start the hot plate without a cooking vessel.

You will achieve the most effective operation when using cookware with firm flat bottom with diameter 15–17 cm and about 1 l volume (on the smaller plate).

1. Clean the hot plate using soft wet cloth. Place it on an even, stable surface close to the electrical outlet.
2. Check if the voltage marked on the appliance corresponds to the voltage of your outlet. Before plugging it in, make sure that the thermostat control is in the "MIN" position.
3. When cooking, always use pots and pans with flat bottoms that have close contact with the cooking plate. Keep the surface of both hot plates clean and dry.

Operation

Used cookware should not have larger diameter than the diameter of the plate. The cookware used should never extend to the area of control elements.

Using both plates in the same time

Note: Both plates can be used in the same time, but you have to be careful that the dishes do not extend outside of the plates.

1. Put food in the pot (the total amount of water and food in the pot should not exceed 80% of the volume of the pot, to prevent overflowing). Cover the pot with a lid and place it on the hot plate.

2. Plug the hot plate in the outlet. The degree of heating can be controlled by turning the thermostat toward the position MIN or MAX. Turn the thermostat control from the "MIN" position to maximum. The control light comes on and the hot plate starts warming up.

3. There are two points, which you have to remember when using new hot plate:

4. When using the new hot plate the first time, the surface can emit odor or smoke. This is normal and it is caused by an invisible layer of protective film applied to the appliance during production.

5. Before the food starts to boil, the control light on the hot plate can go off temporarily because the thermostat temporarily switches off. This safety feature is a normal function of the hot plate.

6. When you finish cooking put the control in the MIN position and always disconnect from power supply. Wait until the appliance cools off before moving it or cleaning it.

CLEANING AND MAINTENANCE

1. Make sure that the power cable is unplugged. Clean the hot plate using gentle detergent or gel cleaner and soft cloth after it thoroughly cools down.

DO NOT CLEAN THE APPLIANCE WHILE IT IS HOT.

1. DO NOT USE hard brushes, abrasives or alcohol, kerosene or other organic cleaners.

2. Do not immerse the hot plate in water while cleaning it.

3. Store the hot plate in a cool place after cleaning.

TECHNICAL SPECIFICATIONS

Two plates with diameter 185 (1500 W) and 155 (1000 W) mm

Nominal voltage: 220–240 V\~ 50–60 Hz

Nominal input power: 2500 W

NOTE: The following situations void the warranty:

Incorrect or inappropriate handling of the device, failure to observe safety measures applicable to the device, the use of force, alterations or repairs made by a party other than authorized service center.

Components subject to normal wear and tear are not covered under warranty.

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
