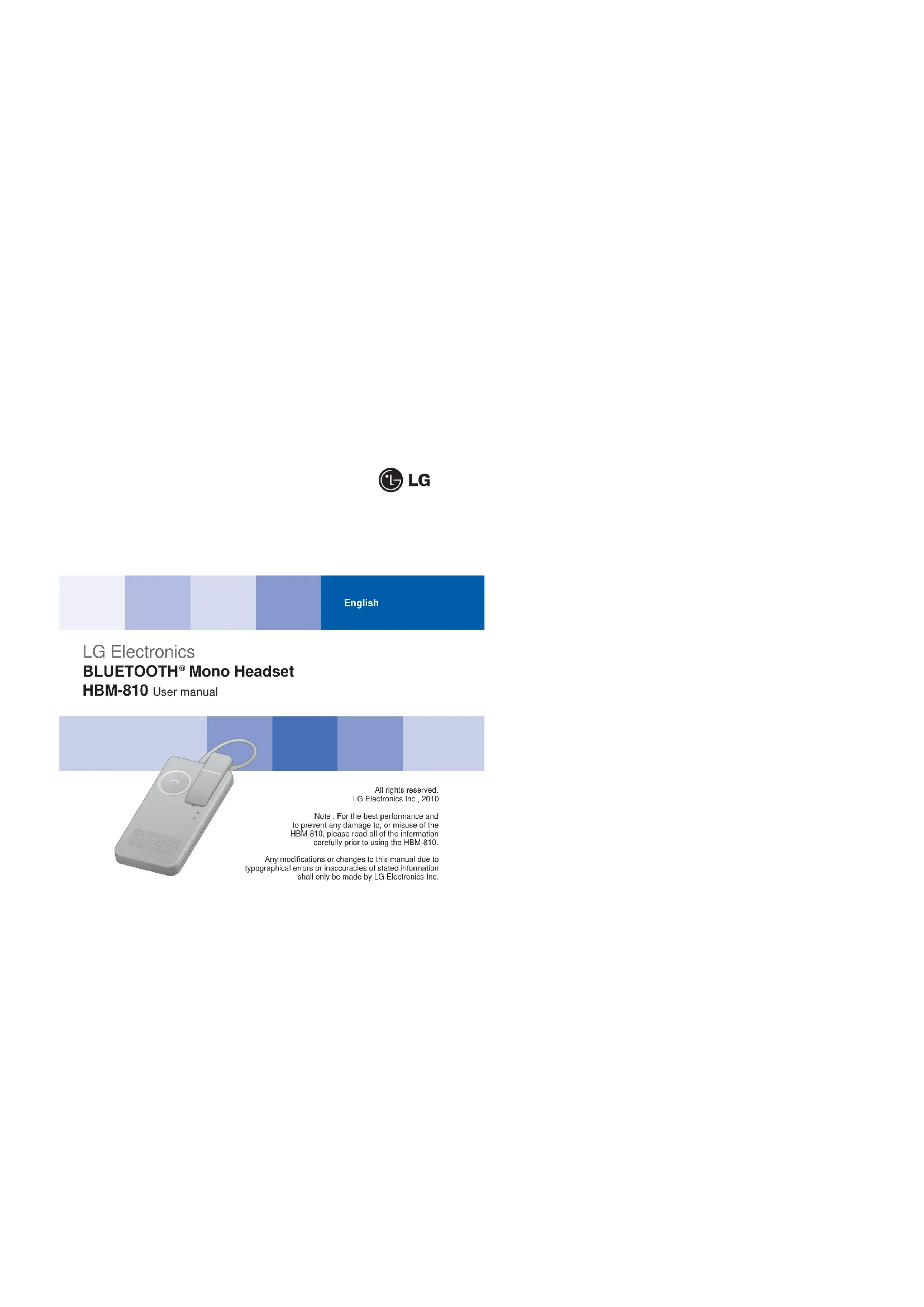

USER MANUAL HBM810 LG

All rights reserved. LG Electronics Inc., 2010 Note : For the best performance and to prevent any damage to, or misuse of the HBM-810, please read all of the information carefully prior to using the HBM-810. Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc. LG Electronics BLUETOOTH

Headset HBM-810 is a light weight wireless Headset utilizing Bluetooth

technology. This product can be used as an audio accessory for devices supporting either the Headset or Handsfree Bluetooth

Profiles. If the Headset is attached to the Cradle, it can be used as a Hands Free Kit. Included in package

Table of Contents Introduction 3 - Included in Package 3 Part Description 4 - Headset 4 - Cradle 4 How to use 5 - Installing in car 5 - Before Use 5 - Charging 5 - Pairing 6

• Power on / Power off 7

• Transferring a call 8

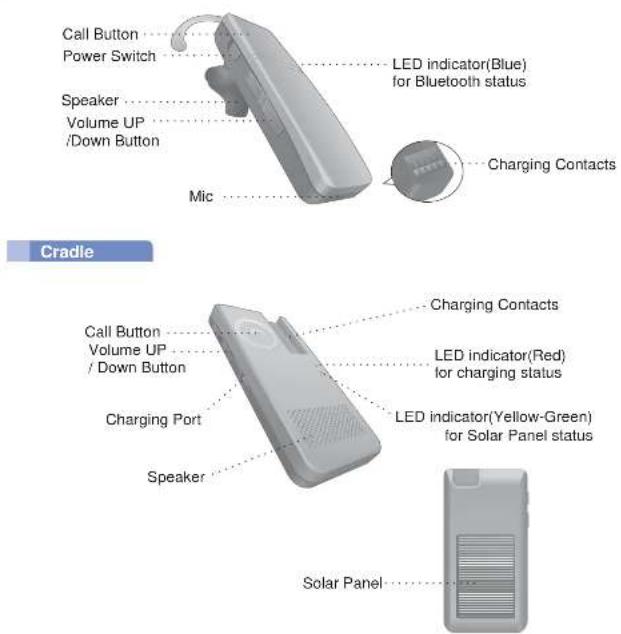

Part Description Charging USING CRADLE: - Attach the Headset to the Cradle.

• The headset will charge when attached to the cradle, even if the headset is powered off.

• If the cradle battery is empty, the headset will not charge (the LED indicator on the headset will not turn on, while in the cradle). - The LED indicator on the headset will show a solid blue light while charging. - It takes 2 hours to fully charge the Headset. - When charging is complete, the LED indicator will turn off. Speaker Volume UP /Down Button Mic Charging Contacts Charging Contacts Headset Volume UP / Down Button Charging Port Speaker Solar Panel LED indicator(Red) for charging status LED indicator(Yellow-Green) for Solar Panel status Call Button Call Button Power Switch LED indicator(Blue) for Bluetooth status How to use

- For the best performance, the HBM-810 should be positioned and installed on the windshield near the driver.

• The HBM-810 must be positioned on the windshield in such a way that it does not obstruct the driver's view of the road.

• Do not position the HBM-810 in the path of any of your vehicle's airbags. ENG ENG76 How to use How to use Multipoint Pairing - The LG HBM-810 is capable of having two handsets connected to the headset at the same time. This will give you the freedom of having only one headset to operate both of your handsets. Multipoint Connect - Pair the headset with one of your Bluetooth-enabled handsets. (per the easy pairing instructions on Manual Pairing). - Turn off the headset. Now, follow the manual pairing process with your other Bluetooth- enabled handset. (This will be your Primary handset). - Once this handset is paired and connected, go back and connect the first paired handset to the headset. (This will be your Secondary handset). Note: When the HBM-810 is connected to two handsets at the same time(Multipoint), the headset calling functions will work with the Primary handset (or handset which made the last outgoing call). - Before using the headset for the first time, you must pair it with a Bluetooth-enabled handset. - There are 2 Pairing Mode Methods with the HBM-810 Easy Pairing (First Time Pairing)

1. Move the Power switch to the ON position to turn on the HBM-810 (you will see green

beneath the power switch). When the Headset enters Pairing Mode, the LED indicator will show a solid blue light (Speech: "Please pair phone now").

2. Using your handset, find the Bluetooth Menu and “search for” or “add” new devices.

• Select “LG HBM-810” from the list of devices and pair it with your handset.

3. If asked for the Pass/PIN code please enter “0000” (4 Zeros).*

• Note : If your handset supports Secure Simple Pairing(SSP), you will not need to enter Pass/PIN code.

• Once pairing has completed successfully, you will hear "Paired to phone successfully".

4. Once paired, be sure to connect to the phone. You will hear "Connected to phone".

Some handsets might ask for permission to access the phone's contact list. If you receive a message from your handset, please select “OK” or “Allow access”

• The HBM-810 will automatically turn off if not paired within 3 minutes. Manual Pairing

• With the Power off, press the CALL button and move the Power Switch to the on side at the same time. Hold for 2 seconds.

• When the Headset enters Pairing Mode, the LED indicator will show a solid blue light and you will hear, "Please pair phone now". Repeat Easy Pairing steps 2 through 4. Controls Headset power ON / power OFF - Slide the Power Switch to the ON (green) / OFF (black) position. Cradle power ON / OFF - The cradle does not have power ON/OFF controls. When the headset is inserted into the cradle with the power ON, the cradle automatically powers ON. When the headset is removed, the cradle will power OFF. Volume Control - Briefly press the VOLUME UP/DOWN button. Battery Status Alert - To check the battery status, press and hold the VOLUME DOWN button for 3 seconds. - There are 4 levels of battery status : “Battery full”,”Battery half”,”Battery low”, and “Battery very low”

• Direct the solar panel on the back of the hands-free car kit toward the sun. (Please refer to the recommended installation position, as mentioned above.)

• For every 2 hours the cradle Solar Panel receives sufficient sunlight, you can talk for an additional 1 hour for headset. When using solar power to charge the HBM-810, the talk time and standby time will be extended, without any need to plug in the charger.

• WARNING : Do not attempt to charge the HBM-810 with any charger other than the one provided in the box. Using another charger may damage the HBM-810. ENG ENGAuto reconnect

Music Play (A2DP) How to use The HBM-810 supports music streaming (A2DP). When you play music from your mobile phone it will automatically transfer to your headset or cradle. Music will automatically pause when you have an incoming call. When the call is ended the music will start playing again. Controlling your music is only possible from your handset. - If the HBM-810 is turned off (either accidentally or intentionally) while connected to a handset, the headset and handset will disconnect.The headset and handset will automatically reconnect when the HBM-810 is turned back on (provided that both devices are within the required range of 33 feet 10 meters). [ Out of range ] - When your handset and HBM-810 are separated by a range of 33 feet (10 meters) or more, the headset and handset will disconnect. When the handset and HBM-810 are within the required range again, the HBM-810 will automatically reconnect to the handset. - If the headset and handset do not automatically reconnect when they are back within the required range, briefly press the Call button on the HBM-810 to reconnect manually. Low battery - An announcement will be made once every 2 minutes. (Speech:Battery very low, please charge now) - If the battery is not charged, the headset will turn off. Answering a call / Ending a call - Briefly press the CALL button. Last number redial* - Press and hold the CALL button for 1second to activate “Last Number Redial”. Making a call - If you make a call from the handset, the call will (subject to phone settings) automatically transfer to the headset. If the call is not automatically transferred, you can manually transfer the call by briefly pressing the CALL button on the headset/cradle. (Headset and handset must be paired). Voice dialing* - Briefly press the CALL button to activate “Voice Command”. NOTE: If the handset does not support Voice Dialing, it is possible that performing this action will activate Last Number Redial. Transferring a call* - While on a call on your handset, briefly press the CALL button on the headset to transfer the audio to the headset. And to transfer a call from the headset to handset, press and hold VOLUME UP button for 3 seconds. Call waiting* - Answer a second call without hanging up the first call by pressing the CALL button for 1 second (you will hear a beep). Press the CALL button for 1second to return to the original call. - Briefly press the CALL button to terminate the active call or both calls at once. (subject to handset's support) Call Reject* - Press the CALL button for 1second when the handset rings.

• Calling instructions apply to the headset AND the cradle (when the headset is attached). Using HBM-810 as a Hands Free Car Kit - To use the HBM-810 as a Hands Free Car Kit, attach the headset to the Cradle. - When the headset is attached to the Hands-free Car Kit, the headset CALL button is deactivated, and will not work. - Once the headset is attached to the cradle, all audio will be played through the cradle. ENG ENGHow to use Name Alert

)Activate Idle Press and hold the VOLUME UP button / Deactivate for 5 seconds Enter language Idle Press and hold the VOLUME UP and selection mode VOLUME DOWN button simultaneously for 3 seconds Browse language type Language Press the VOLUME UP or VOLUME Selection Mode DOWN button. Select language Language Press CALL button once. Selection Mode Check battery status Idle Press and hold the VOLUME DOWN button for 3 seconds. Summary of button functions The LG HBM-810 is capable of announcing the caller's name, and confirmations of headset operation*.

function is not supported by all handsets. Enable/Disable 'Name Alert TM' - Press and hold the VOLUME UP button on the HBM-810 for 5 seconds to enable/disable 'Name Alert

function allows you to choose from 5 different language options. Which are English,French,German,Italian and Spanish. - To enter Language Selection Mode, press and hold the VOLUME UP and VOLUME DOWN buttons simultaneously on the HBM-810 for 3 seconds. You will hear "Please select language". - To browse language type, press the VOLUME UP or VOLUME DOWN button to scroll through the language options. - To select a language, press the CALL Button once after hearing your language. You will hear "English Selected" - If no language is selected for 3 seconds, the current language will remain. (Speech: Cancelled). ENG ENGPrecautions

Keep unit away from humidity & dust. Do not place heavy objects on the unit.

• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

• There is a risk of explosion if the battery is replaced by on incorrect type.

• Dispose of used batteries according to the instructions.

• The earloop is made of a durable plastic. However, bending the earloop repeatedly is not recommended. LED indication Troubleshooting Do not drop the unit from high places. Do not modify, repair, or take apart. Do not expose directly to flammables. Do not place or keep the unit near flammables. Do not expose directly to water, alcohol, benzene, etc. for leaning. Only use the headset with an original LG charger, otherwise it may be damaged.

Specification Function Action Charging Charging The red LED light stays on.Charging complete The red LED light turns off.Solar charging The yellow-green LED light stays on. HBM-810(Cradle) Status Function Action Operating Power on The blue LED light flickers 4 times.Power off The blue LED light flickers 4 times and then turns off.Pairing mode The blue LED light stays on.Headset/handsfree The blue LED light flickersProfile connected 1 time every 5 seconds.Call connected The blue LED light flickers 1 time every 5 seconds.Charging Charging The blue LED light stays on.Charging complete The blue LED light turns off. HBM-810(Headset) Status Does not turn on Check whether the battery Charge the battery.of the HBM-810 is fullycharged.Unable to Check whether Determine whether yourcommunicate with the handset supports handset supportsthe LG Bluetooth the Headset or Handsfree the Headset or HandsfreeHeadset HBM-810 Bluetooth profiles. Bluetooth profiles.Check whether the battery Charge the battery.of the HBM-810 is low.Unable to pair the Check and make sure theMove the Power switch toHBM-810 with the Headset is on.ON position.Bluetooth deviceCheck and make sure Press and hold the CALLthe Headset is placed button and move the in pairing mode. POWER switch to ONposition.Low sound (speaker)Check the speaker volume.lncrease the volume level. ITEM (Headset) Description Bluetooth specification V2.1 +EDR (Handsfree / Headset / A2DP profiles)Battery Battery 3.7V / 125mAh Li-PolymerStand by time Up to 140HrTalk Time Up to 4.5HrCharging time < 2HrsOperation temperature -10℃ 60℃Dimension / weight 52.3 X 17.4 X 8.8 mm / 10.3g ITEM (Cradle) Description Battery Battery 3.7V / 520mAh Li-PolymerStand by time Up to 230HrTalk Time Up to 6.5HrCharging time < 2HrsOperation temperature -10℃ 60℃Dimension / weight 107 X 54 X 13.5 mm / 67g ENG ENGDeclaration of Confirmation Additional Information

1. Radio frequency exposure

Headset, HBM-810, is a radio transmitter and receiver. When in operation, it communicates with a Bluetooth

equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2.4 to 2.4835 GHz. The output power of the radio transmitter is low, 0.001 watt. Your Bluetooth

Headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used any compatible LG Electronics mobile phone.

2. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. FCC NOTICE TO USERS : This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE : To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device. Hereby, LG Electronics Inc. declares that this HBM-810 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Additional Information

3. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +60。 (+140。F) or under -20。(-4。F). For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10。(+50。F) and + 45。(+113。F). For your safety, do not remove the battery incorperated in the product. If you need to replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance.

4. Recycling the battery in your Bluetooth

Headset The battery in your Bluetooth

Headset must be disposed of properly and should never be placed in municipal waste. The LG Electronics service partner removing battery will dispose of it according to local regulations.

- The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer. - If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of LG Electronics. - This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God or damage resulting from liquid. - This warranty does not cover product failures due to improper repair installations, modifications or service performed by a non-LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty. ENG ENG16 Important Safety Information Limited Warranty Avoiding hearing damage Permanent hearing loss may occur if you use your headset at a high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use headset at high volume.

• Avoid turning up the volume to block out noisy surroundings.

• Turn the volume down if you can't hear people speaking near you. Please refer to your handset user guide for more information on how to adjust listening levels on your handset. Using headsets safely Use of headsets to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention. Subject to the conditions of this Limited Warranty, LG Electronics warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year. Should your product need warranty service, please return it to the dealer from whom it was purchased or contact your local LG Electronics contact center to get further information. ENGAlle rettigheder forbeholdes. LG Electronics Inc., 2010 Bemærk: For at opnå den bedste ydeevne og undgå beskadigelse og forkert brug af HBM-810-enheden skal du læse alle oplysningerne grundigt, før du bruger HBM-810-enheden. Tilføjelser og ændringer af denne vejledning pga. typografiske fejl eller unøjagtige oplysninger bør kun foretages af LG Electronics Inc. LG Electronics BLUETOOTH

Product Details Applicable Standards Details Declaration Supplementary Information

R&TTE Directive 1999/5/EC The conformity to above standards is verified by TIMCO.

echnical construction File No.: DRF-L1006AZ I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above mentioned standards and Directives Name Issued Date Signature of representative LG Electronics Inc. – EU Representative

eluwezoom 15, 1327 AE Almere, The Netherlands Doo Haeng Lee / DirectorMEMO
