USER MANUAL F2050 BLACK & DECKER

Please Read and Save this Use and Care Book

Register your product online at www.prodprotect.com/applica, for a chance to WIN $100,000! For US residents only

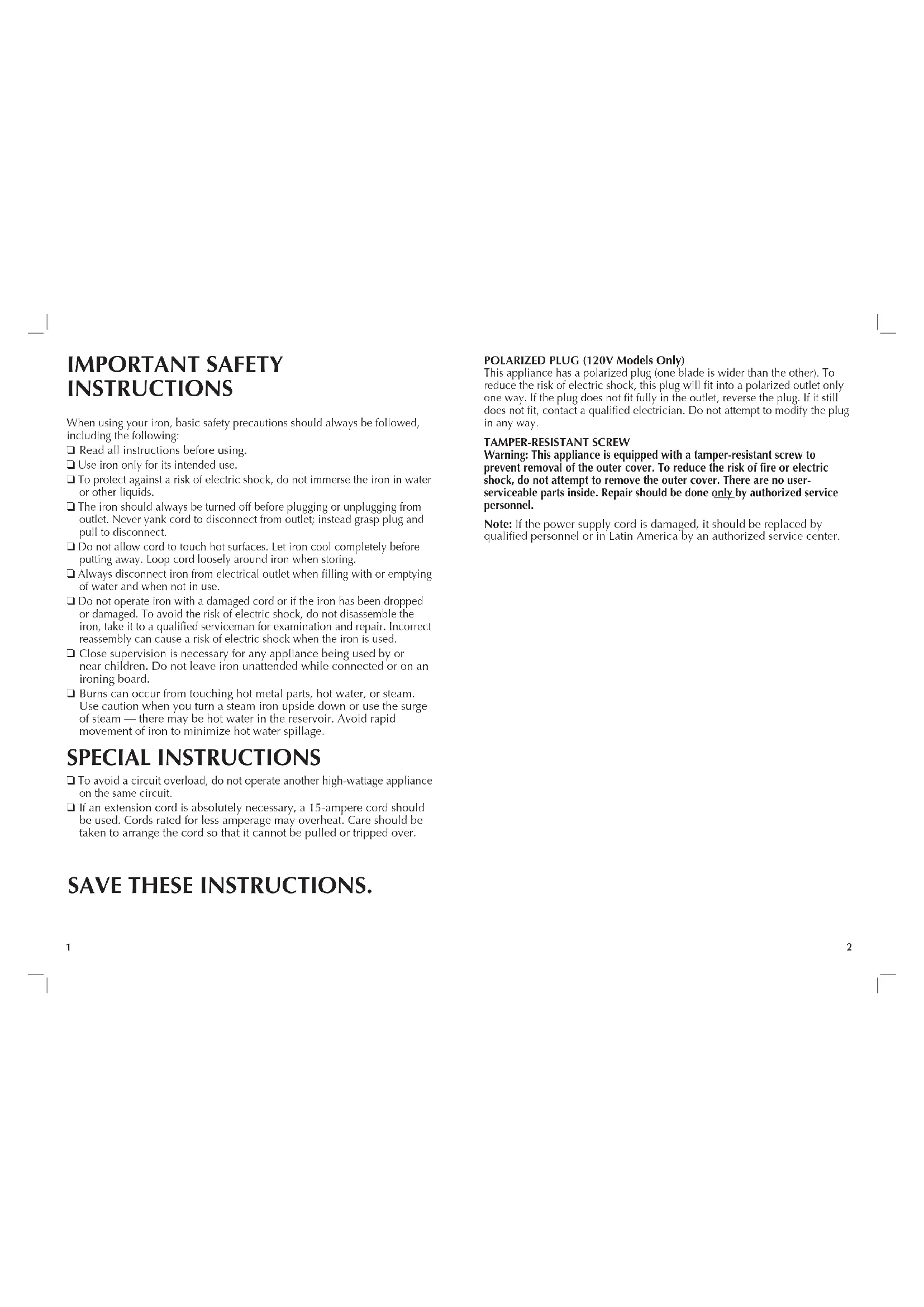

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:
Read all instructions before using.
Use iron only for its intended use.
To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
The iron should always be turned off before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
Always disconnect iron from electrical outlet when filling with or emptying of water and when not in use.
Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
- Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down or use the surge of steam — there may be hot water in the reservoir. Avoid rapid movement of iron to minimize hot water spillage.

SPECIAL INSTRUCTIONS

To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
If an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

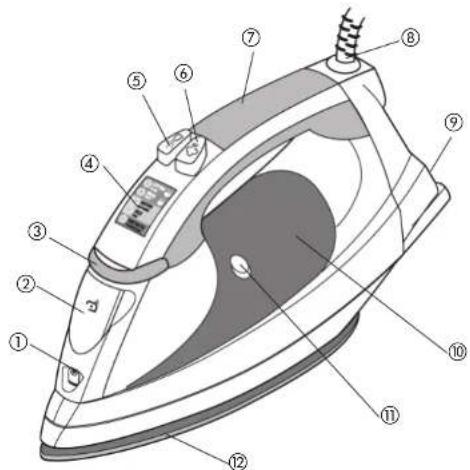

Product may vary slightly from what is illustrated.

1. Spray NOZZLE
2. Water-fill cover
3. Fabric-select dial
4. Fabric guide with LED display
5. Spray button
6. Steam surge button
7. Comfort Grip handle
8. 360^ pivoling cord
9. Heel rest
10. Water tank
11. AUTO CLEAN button
12. Soleplate

How to Use

This appliance is intended for household use only.

GETTING STARTED

Remove any labels, stickers or tags attached to the body or soleplate of the iron.

Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system.

Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

FILLING WATER TANK

1. Open the water-fill cover (A).

1. Tilt the iron and using a clean measuring cup, pour water into opening until the water reaches the MAX level mark on the water tank (B). Do not overfill.
2. Close the water-fill cover.
   Note: If you need to add water while ironing, unplug the iron and follow above steps.
3. Plug in the iron.

SELECTING FABRIC TEMPERATURE

1. Read garment's label to help you determine fabric type.
   Tip: If unsure of a garment's fiber, test a small area (on an inside seam or hem) before ironing.
2. Once you determine the fabric type, turn the fabric-select dial to appropriate fabric setting (C). The LED indicator light next to the fabric type you selected blinks until it reaches the appropriate temperature.

Suggestions for each setting:

COTTON: use on 100% cotton garments such as blouses and shirts, as well as for linen garments and items like tablecloths
WOOOL: use on natural woven wool garments such as trousers, slacks, jackets, scarves and blouses
RAYON: use on rayon and rayon blend garments - iron on the opposite side (inside - out)
SILK: use on delicate silk items such as lingerie, robes, scarves & sleepwear - iron on the opposite side (inside out)
SYNTHETIC: use on synthetic fabrics such as acrylic, nylon and polyester garments - iron on the opposite side (inside out)

SPECIAL FEATURES Automatic Shutoff in 3 Positions

• Your iron will automatically turn off after 30 seconds of inactivity if left on its soleplate or on its side. If left vertically on its heel rest, it will turn off after 8 minutes (D).
  The unit beeps six times and the LED indicator light blinks to let you know the iron has shut off.

Once you pick up the iron, an internal motion-sensitive detector is activated and the iron starts heating again. You might have to move the iron or shake it gently until the LED indicator light stops blinking.

Note: Wait for iron to reheat completely before resuming operation.

Anti-Drip System

The anti-drip system prevents water spotting at low temperatures.

IRONING WITH STEAM

Smart Steam™ Technology

The Smart SteamTM system automatically generates the right amount of steam for the fabric type selected at high temperature settings. Once you select the temperature, the Smart SteamTM technology detects the set temperature and adjusts the steam power accordingly. Note: At high temperature settings, it is not necessary to hold the steam button for steam ironing. Using steam button will provide an extra powerful burst of steam to help remove tough wrinkles. Surge of Steam

Use to remove stubborn creases.

1. With the water tank filled to the MAX mark, set fabric selection dial to appropriate fabric setting. Read garment's label to help you determine fabric type.

Note: Steam is automatically turned off at Synthetic, Silk and Rayon settings (E).

1. Select the desired fabric setting. The LED indicator light next to the fabric type you selected blinks until it reaches the appropriate temperature.

2. Press the surge-of-steam button to generate a burst of steam (F). For best performance, leave an interval of 5 seconds between bursts.

Important: Always stand the iron on its heel rest when powered on but not in use.

Vertical Steam

Use for removing wrinkles from hanging clothes and drapes.

1. Be sure the water tank is filled to the MAX mark.
2. Hang the garment to be steamed on a clothes hanger. (Curtains or drapes can be steamed once they are hung.)

1. Turn the fabric-select dial to appropriate fabric setting. The LED indicator light next to the fabric type you selected blinks until it reaches the appropriate temperature.
2. Hold the iron close to, but not touching, the fabric.
3. Pull the fabric tight in your free hand and pump the surge-of-steam button as you move the iron over the fabric (G).

Important: Always stand the iron on its heel rest when powered on but not in use.

USING SPRAY

Use to dampen tough wrinkles at any setting.

1. Be sure the iron is filled with water.
2. On first use, pump the spray button several times (H).

IRONING WITHOUT STEAM

Select the Synthetic, Silk or Rayon setting to iron without steam. The Smart Steam system will automatically turn off and there will not be any steam generated.

1. To dry iron at Wool and Cotton settings, empty the water from the reservoir to prevent steaming.
2. Plug in the iron, select desired fabric setting. The LED indicator light next to the fabric type you selected blinks until it reaches the appropriate temperature.

EMPYTING WATER TANK (OPTIONAL)

Note: It is not necessary to empty the water after each use.
1. Unplug the iron and let it cool.
2. Open the water-fill cover.
3. To release the water, hold the iron over a sink with the tip pointing down. Water will empty out of the water-fill opening (J).

Care and Cleaning

This product contains no user-serviceable parts. Refer service to qualified service personnel.

CLEANING OUTSIDE SURFACES

1. Make sure iron is unplugged and has cooled completely.
2. Wipe the soleplate and outer surfaces with a soft cloth dampened with water.

3. Use mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.

4. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

AUTO CLEAN ^® SYSTEM

1. Fill the water tank well below the MAX line. Plug in the iron.
2. Select Cotton setting and stand the iron on its heel rest.

3. Wait for the LED indicator light to stop blinking.

4. Unplug the iron and hold over a sink with the soleplate facing down.

1. Press and hold the AUTO CLEAN button. Be careful, as after several seconds, hot water and steam will come out of the steam vents (k). Continue to hold the AUTO CLEAN button until all the water has emptied. If necessary, rock iron side-to-side and front-to-back.
2. When finished, release the button, stand the iron on its heel rest and plug it in.
3. I heat the unit for about 2 minutes to dry out any remaining water.

STORING YOUR IRON

1. Unplug the iron and allow it to cool.
2. Store vertically on its heel rest to prevent water leaking from the soleplate.

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

NECESITA AYUDA?

Copyright © 2006-2008 Applica Consumer Products, Inc.

Made in People's Republic of China Printed in People's Republic of China
