Product Type	Steam Iron
Brand	Black & Decker
Model	IR02V
Power Supply	120 V, 60 Hz (estimated, typical household iron)
Power Rating	1500 W (estimated)
Soleplate Material	Stainless steel or non-stick (not specified, typical)
Water Tank Capacity	Approximately 300 ml (estimated from typical iron)
Dimensions (approx.)	12 x 5 x 6 inches (estimated)
Weight (approx.)	2.5 lbs (estimated)
Cord Length	6-8 feet (estimated, with 360° pivoting cord)
Main Functions	SmartSteam™ Technology (combined heat and steam control), Spray Mist, Dry Ironing option
Temperature Settings	6 settings: Synthetic, Nylon/Silk, Polyester, Blend, Wool, Cotton/Linen
Steam Settings	No steam to medium/high steam depending on temperature
Anti-Drip Feature	Yes (prevents water dripping when temperature too low)
Auto Shut-Off	Not mentioned, likely not present
Safety Features	Polarized plug, tamper-resistant screw, warnings for hot surfaces
Care and Cleaning	Wipe with damp cloth; use tap water or 50/50 tap/distilled for hard water; empty after use
Spare Parts and Repairability	No user-serviceable parts; contact customer service for service
Warranty	2 years limited (US and Canada)
Country of Origin	Not specified, designed in China (typical)

Frequently Asked Questions - IR02V BLACK & DECKER

How do I fill the water tank?

Tilt the iron and use a clean measuring cup to pour water into the opening until it reaches the MAX level. Do not overfill. For best results, use normal tap water or a 50/50 mix of tap and distilled water if your water is very hard. Avoid perfumed or scented additives.

What do the SmartSteam™ numbers mean?

The SmartSteam™ dial combines temperature and steam level. Settings 1-3 (Synthetic, Nylon/Silk, Polyester) are for low heat with no steam. Settings 4-6 (Blend, Wool, Cotton/Linen) allow medium to high heat with steam. Always check garment labels.

Why is no steam coming out?

Ensure the SmartSteam™ dial is set to 4-6 for steam. Make sure the water tank is filled to MAX. Allow the iron to fully preheat (about 2 minutes) – the anti-drip feature prevents steam if the soleplate is too cool.

Can I use distilled water?

It is recommended to use untreated tap water. If your water is very hard, you can mix 50% tap water with 50% distilled water. Do not use 100% distilled water or softened water, as this may cause buildup.

How do I clean the iron?

Unplug and let it cool completely. Wipe the soleplate and outer surface with a soft damp cloth. Use mild dish soap if needed. Never use abrasive cleaners or vinegar. After cleaning, dry thoroughly and steam over an old cloth to remove residue.

How should I store the iron?

Set the dial to MIN, unplug, and let cool. Empty the water tank by opening the fill door and turning the iron upside down over a sink. Wrap the cord loosely around the heel and clip the plug. Always store vertically on the heel to prevent leaks.

What does the Spray Mist button do?

Pressing the Spray Mist button releases a fine spray of water to dampen tough wrinkles. It works at any temperature setting. Avoid spraying silk.

Why is water dripping from the soleplate?

This occurs if the soleplate is not hot enough to turn water into steam. Allow the iron to heat up for a minute or two at the desired setting before using. The anti-drip feature should minimize dripping once hot.

What should I do if the iron stains my clothes?

Staining may come from residue buildup. Empty water after each use, avoid descaling agents or scented water, and clean the soleplate regularly. If using starch, clean the iron afterward.

How can I get warranty service?

Keep your receipt as proof of purchase. Call 1-800-231-9786 (US and Canada) or visit www.prodprotect.com/applica for a replacement product. Do not return to the store or mail the product.

USER MANUAL IR02V BLACK & DECKER

Exterior view of a black-and-white steam iron with visible branding and grille (no text or symbols beyond brand name)

Thank you for your purchase! Gracias por su compra!

Should you have any questions or concerns with your new product, please call our Customer Service Line at 1-800-231-9786 (US and Canada). Please do not return to the store.

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING.
• Only use iron for intended use.
  • To avoid the risk of electric shock, do not immerse the iron in water or other liquids
  • Always turn the iron to MIN setting before plugging in or unplugging from the outlet. Never pull on the cord to disconnect from the electrical outlet; instead grasp plug and pull to disconnect.
• Do not allow cord to touch hot surfaces. Let iron cool completely before putting away.
  • Always disconnect iron from electric outlet before filling with or emptying water, cleaning, and when not in use.
• Do not operate the iron if it has been dropped, if there are visible signs of damage to the iron or its cord, or if it's leaking. To avoid the risk of electric shock, do not dissemble the iron; take it to a qualified service person for examination and repair, or call the appropriate toll-free number on the cover of this manual. Incorrect reassembly can cause risk of electric shock when the iron is used.

• Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended when plugged in or on an ironing board.

• Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn the iron upside down - there may be hot water in the reservoir. Avoid rapid movement of iron to minimize hot water spillage.

• The iron must be used and rested on a stable surface.
• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance. SPECIAL INSTRUCTIONS
• To avoid circuit overload, do not operate another high wattage appliance on the same circuit.
• If an extension cord is absolutely necessary, a minimum 10-ampere cord should be used. Cords rated for less amperage can result in a risk of fire or electrical shock due to overheating. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electrical shock, do not attempt to remove

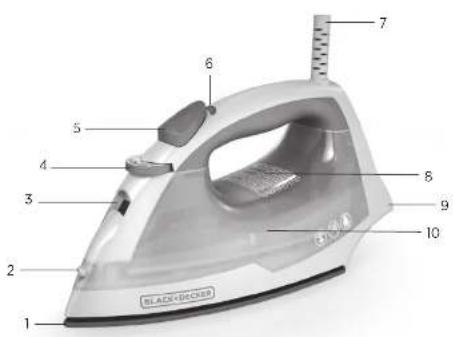

GETTING TO KNOW YOUR EASY STEAM IRON

1. Soleplate

2. Power light

3. Spray nozzle

4. 360° pivoting cord

5. Water-fill opening

6. Fabric guide

7. Fabric select dial

8. Heel rest

9. Spray mist button

10. Water tank

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove the plastic band around the power plug and all labels, tags and stickers attached to the body, cord, or soleplate of the iron.
• Remove and save literature.

FILLING THE WATER TANK

1. Tilt the iron and using a clean measuring cup, pour water into opening until the water reaches the MAX level mark on the water tank. Do not overfill.
   Tip: This iron is designed to use normal tap water. Do not use water processed through a home softening system. If your water is very hard, you can use a mixture of 50% tap water and 50% distilled water to avoid build-up. It is not recommended to use water with perfumes or scented additives.
2. Stand the iron on the heel rest.
3. To refill at any time during the ironing process, unplug the iron and follow the above procedure.

USING YOUR IRON

1. Plug the iron into an outlet. The red Power light will illuminate on the handle, indicating that the iron is heating.
2. Read the manufacturer's fabric label for clothing care recommendations to help select the correct temperature setting.

Tip: Since it takes an iron longer to cool down than heat up, organizing your clothing from Low to High temperature can cut down your ironing time.

1. Select the temperature and steam level on the iron by turning the SmartSteam ^™ dial until you've reached the desired setting. A fabric guide is printed on the water tank for easy reference.
2. Allow the iron about 2 minutes to heat up to the desired temperature.

Tip: To dry iron on low heat use SmartSteam™ settings 1-3, or for high heat simply empty the water tank and follow the normal directions.

SETTING GUIDE

For best results it's recommended to use the manufacturer's garment tags for heat and steam instructions. When in doubt, always start at the low heat setting.

Setting number Setting name Setting		Description	Icons
-- Do not Iron
1 Synthetic Low Heat and		No Steam
2 Nylon and Silk Low Heat and		No Steam
3 Polyester Medium Heat		and No Steam
4 Blend Medium Heat		and Light Steam
5 Wool High Heat and		Medium Steam
6 Cotton and Linen High Heat and

ADDITIONAL FEATURES

SmartSteam™ Technology

This technology gives you the control of both soleplate heat and steam level in one dial. On traditional irons the controls are separated, making it difficult to know what settings are right for each fabric. These simple controls take the guesswork out of ironing and ensure optimal results every time. (A)

Spray Mist

Press the Spray Mist button to generate a light spray of water. Spray Mist is used to dampen tough wrinkles while dry or steam ironing. This setting works at any SmartSteam™ dial setting. Do not spray silk.

CLEANING AND CARE

This product contains no user serviceable parts. Refer to qualified service personnel.

CLEANING OUTSIDE SURFACES

1. Make sure the iron is unplugged and has completely cooled.
2. Wipe the soleplate and outer surface with a soft, damp cloth. Water and small amounts of gentle household soaps, such as dishwashing liquid, can be used. Never use heavy-duty cleaners, vinegar or abrasive scouring pads that may scratch or discolor the iron.
3. After the iron has been thoroughly dried, turn the iron back on and lightly steam over an old cloth. This will help remove any reside left in the steam holes.
4. When finished cleaning, turn iron off and allow time to cool before storing.

STORING YOUR IRON

1. Check that the iron is on the MIN setting, unplugged and completely cool.
2. Empty the water tank by opening the water fill door and turning the iron upside down over a sink.
3. Wrap the cord loosely around the heel of the iron and use the clip on the plug to clip the end of the cord to the wrapped cord. (B)
4. Always store the iron vertically on its heel to prevent water leaking from the soleplate.

IRONING TIPS AND TRICKS

• This iron is designed to use normal tap water. If your water is very hard, you can use a mixture of 50% tap water and 50% distilled water to avoid build-up. It is not recommended to use water with perfumes or scented additives.
• Since it takes an iron longer to cool down than heat up, organizing your clothing from Low to High temperature can cut down your ironing time.
• Whenever temperature settings are changed, allow the iron to stand a minute or two to allow heat up or cool down. Test garment by pressing a small hidden area to make sure temperature of iron is correct.
• Whenever ironing a garment with mixed fabrics, read the garment's tag for detailed directions or select the fabric setting for the most delicate fabric. For example, when ironing a shirt that is 65% cotton and 35% polyester, use the polyester setting.
• If you're unsure of the fabric's content, test a small area (on the inside seam or hem) before you proceed to iron the entire garment or cloth.
• If water dripping occurs, this means that the soleplate isn't hot enough to create steam. Just allow the iron a minute to reheat and then resume ironing.
  • To prevent iron marks on your fabric, iron the fabric inside out.
• Putting on your clothes right after ironing can actually create wrinkles. Always allow your clothing to cool for about 5 minutes after ironing to set the press.

TROUBLESHOOTING

ProblemCauseSolution
The iron is plugged in, but the soleplate is not heating.	Power supply issue. Check that the plug is properly inserted into the outlet or try plugging the iron into a different outlet.
Not enough steam or no steam is coming out of the iron.	SmartSteamTM setting selected is too low. Lower heat levels are not intended to have steam.	Turn the SmartSteamTM Dial to settings 4-6 to iron with steam.
	Not enough water in the water tank.	Follow the Instructions under the "filling the water tank" section and fill to Max level marker.
	Iron is not proheated. If the iron isn't fully preheated to the desired setting, the anti-drip feature will prevent the iron from creating steam. Allow the iron additional time to heat.
Discolored water is coming through the holes and staining the fabric	Residue build-up in the soleplate cavity or in the soleplate holes.	Empty the water tank after each use.
	Use of descaling agents, perfumed or scented additives.	Refrain from using descaling agents, perfumed or scented additives.
	Use of Starch. Always clean your soleplate after using starch and clean your iron regularly.
	Pure distilled water or softened water is being used.	Use only untreated tap water or a mix of half tap and half distilled water and clean your iron regularly.

NEED HELP?

For service, repair or any questions regarding your appliance, please call our Customer Service Line at 1-800-231-9786. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this pamphlet.

Warranty Information

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Spectrum Brands' liability will not exceed the purchase price of product.

For how long?

• Two years from the date of original purchase with proof of such purchase.
  What will we do to help you?
• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
  • If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.
