Product Type	Steam Iron
Brand	Black & Decker
Model	AS800
Wattage	1500W (120V) / 1500W (220V)
Voltage	120V (USA/Canada) / 220V (Mexico)
Auto Shutoff	30 seconds on soleplate or side; 8 minutes on heel rest
Steam System	Smart Steam™ Technology (activates at settings 4-7)
Surge of Steam	Horizontal and vertical use
Spray Function	Yes, for dampening tough wrinkles
Digital Display	Yes, shows temperature setting and READY indicator
Cord	360-degree swivel cord
Water Tank Capacity	Filled to MAX mark (exact capacity not specified)
Soleplate Material	Not specified (assumed non-stick)
Safety Features	Polarized plug, tamper-resistant screw, automatic shutoff
Cleaning	Auto Clean button; wipe exterior with damp cloth
Warranty	1 year limited (USA and Canada only)

Frequently Asked Questions - AS800 BLACK & DECKER

How do I fill the water tank?

Open the water-fill cover, tilt the iron, and pour water using a clean measuring cup until the water reaches the MAX mark on the water tank. Do not overfill. Close the cover securely.

How do I select the correct temperature?

Check the garment's label for fabric type. Turn the fabric-select dial to the appropriate setting (1 to 7). The digital display shows the setting and fabric type. Once heated, the iron beeps and displays READY.

What is the 3-way automatic shutoff feature?

The iron automatically turns off after 30 seconds of inactivity when left on its soleplate or tipped over on its side. If left vertically on its heel rest, it shuts off after 8 minutes. Wait for the iron to reheat completely before resuming.

How do I use the surge of steam function?

Ensure the water tank is filled to MAX. Set the dial to a temperature between 4 and 7 (steam only works at these settings). Wait for READY to display, then press the surge-of-steam button. For best results, allow 5 seconds between bursts.

Can I use the iron vertically?

Yes, for removing wrinkles from hanging clothes or drapes. Fill the tank, set the dial to 4-7, wait for READY, hold the iron close to the fabric, and pump the surge-of-steam button while moving the iron.

How do I clean the iron?

Use the AUTO CLEAN function monthly: fill the tank below MAX, set dial to 7, heat until READY, unplug, hold over sink with soleplate down, press and hold AUTO CLEAN button until water empties. For exterior, wipe with damp cloth and mild detergent; never use abrasives.

What type of water should I use?

Use ordinary tap water. Do not use water from a home softening system, as it may affect performance.

Why is my iron not producing steam?

Ensure the temperature setting is between 4 and 7 (steam only activates at higher settings). Check that the water tank is filled to MAX and the iron has reached the selected temperature (READY displayed). Also, verify you are pressing the correct button.

How should I store the iron?

Unplug the iron and allow it to cool completely. Store it vertically on its heel to prevent water leakage. Wrap the cord loosely around the smart stand/cord wrap for storage.

What does the warranty cover?

The one-year limited warranty (USA and Canada only) covers defects in material or workmanship. It does not cover damage from commercial use, misuse, abuse, modifications, or glass parts. Liability does not exceed the purchase price. Contact 1-800-231-9786 for service.

USER MANUAL AS800 BLACK & DECKER

Please Read and Save this Use and Care Book

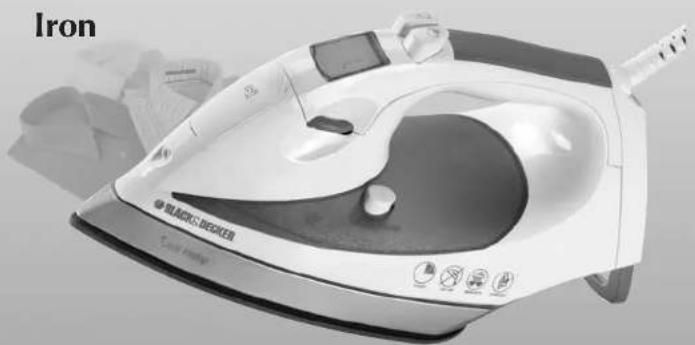

BLACK&DECKER®

Power Pro™

Plancha

Exterior view of a iron iron steam iron (no text or symbols visible on the device itself)

Register your product online at www.prodprotect.com/applica, for a chance to WIN \$100,000!

USA/Canada 1-800-231-9786

Mexico 01-800-714-2503

www.blackanddecker.com

Accessories/Parts (USA/Canada)

1-800-738-0245

Modelo

Model

AS800

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

☐ READ ALL INSTRUCTIONS BEFORE USING.
□ Use iron only for its intended use.
☐ To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
☐ The iron should always be turned to "Off" before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
☐ Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around the iron when storing.
□ Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
☐ Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
☐ Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down- there may be hot water in the reservoir.

SPECIAL INSTRUCTIONS

☐ To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
☐ If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

Soft-Touch Parts

Note: The soft-touch parts of this unit are free of natural rubber and latex. They are safe for individuals allergic or sensitive to these materials.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a lamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

Symbols

Surge-of-Steam

Spray

Dry

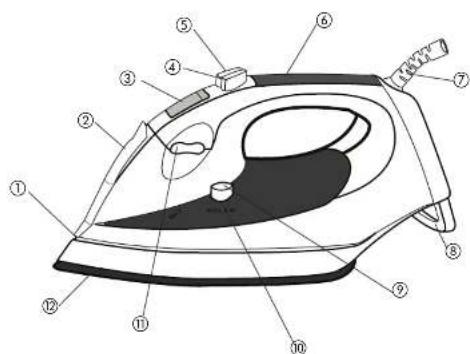

1. Spray nozzle

2. Water-fill cover

3. Digital display window

4. Surge-of-steam button

5. Spray button

6. Comfort Grip™ handle

7. 360-degree swivel cord

8. Smart stand/cord wrap

9. AUTO CLEAN® button

10. Water window with MAX mark

How to Use

This appliance is intended for household use only.

GETTING STARTED

Remove any labels, stickers or tags attached to the body or soleplate of the iron. Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system

Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

Filling Water Tank

1. Open the water-fill cover as shown in (A).

1. Tilt the iron and using a clean measuring cup, pour water into opening until the water reaches the MAX level mark on the water tank (B). Do not overfill.

2. Close the water-fill cover.

Note: If you need to add water while ironing, unplug the iron and follow above steps.

1. Plug in the iron. The iron beeps and digital display window illuminates green.

Selecting Temperature

1. Read garment's label to help you determine fabric type.

Tip: If unsure of a garment's fiber, test a small area (on an inside seam or hem) before ironing.

1. Once you determine the fabric type, turn fabric-select dial to appropriate temperature setting (from 1 to 7).

Tip: As a guide, the digital display shows the setting number with the corresponding recommended fabric type.

1. Once the iron reaches the selected temperature, it beeps and displays READY (C).

3-Way Automatic Shutoff

The automatic shutoff feature in your iron works as follows:

- Once the iron reaches appropriate temperature, it will turn off after 30 seconds of inactivity if left on its soleplate or tipped over on its side. If left vertically on its heel rest, it will shut off after 8 minutes (D).

Note: Wait for iron to reheat completely before resuming operation.

Smart Steam™ Technology

The Smart Steam ^™ system generates steam only at higher temperature settings (between 4 and 7) (F). Once you select the temperature, the Smart Steam ^™ technology detects the set temperature and adjusts the steam power accordingly. The higher the setting, the more powerful the steam.

Surge of Steam

• Horizontal

Use to remove stubborn creases.

1. With the water tank filled to the MAX mark, set fabric-select dial to appropriate setting (between 4 and 7) for your fabric. Read garment's label to help you determine fabric type.

Note: Steam is automatically turned off between settings 1 and 3.

1. Once you select the appropriate setting, wait for iron to beep and display READY.

2. Press the surge-of-steam button to generate a burst of steam (G). For best performance, leave an interval of 5 seconds between bursls.

Important: Always stand the iron on its heel rest when powered on but not in use.

• Vertical

Use for removing wrinkles from hanging clothes and drapes.

1. Be sure the water tank is filled to the MAX mark.

2. Hang the garment to be steamed on a clothes hanger. (Curtains or drapes can be steamed once they are hung.)

3. Set the fabric-select dial to appropriate setting (between 4 and 7) for your fabric.

1. Wait for iron to beep and display READY

2. Hold the iron close to, but not touching, the fabric,

3. Pull the fabric tight in your free hand and pump the surge of steam button if you move the iron over the fabric (H).

Important: Always stand the iron on its heel rest when powered on but not in use.

Using Spray

Use to dampen tough wrinkles at any setting (I).

1. Be sure the iron is filled with water.

2. On first use, pump the spray button several times.

1. To dry iron at higher settings, empty the water from the reservoir to prevent steaming.

Emptying Water Tank (Optional)

Note: It is not necessary to empty the water after each use.

1. Unplug the iron and let it cool.
2. To release the water, hold the iron over a sink with the tip pointing down. Water will empty out of the water-fill hole (L).

Care and Cleaning

This product contains no user-serviceable parts. Refer service to qualified service personnel. Cleaning Outside Surfaces

1. Make sure iron is unplugged and has cooled completely. Wipe the soleplate and outer surfaces with a soft cloth dampened with water. Add mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.
2. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

Auto Cleaning

To keep the steam vents free of any buildup, about once a month follow these instructions.

1. Fill the water tank well below the MAX line. Plug in the iron.
2. Turn the fabric-select dial to 7 and stand the iron on its heel rest.
3. Wait for the iron to beep and READY to display on the digital window.
4. Unplug the iron and hold over a sink with the soleplate facing down.

1. Press and hold the AUTO CLEAN* button. Be careful, as hot water and steam will come out of the steam vents (M). Continue to hold the auto-clean button until all the water has emptied. If necessary, rock iron side to side and front to back.
2. When finished, release the button, stand the iron on its heel rest and plug it in. Heat for about 2 minutes to dry out any remaining water.

Storing your Iron

1. Unplug the iron and allow it to cool.
2. Store vertically on its heel to prevent water leaking from the soleplate. You can wrap the cord around the smart stand for storage (N).

¡NECESITA AYUDA?

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

• One year after the date of original purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

Póliza de Garantía

26-D Centro. Mexico D.F.

Mexico (2) Tel. 05-80

(55) 1106-1400

(5.1) 1405-1416

Nicaragua

Servitocal

3.1 Independence Square, Part of Spain

Port of Spain Trinidad, 145

Trinidad, W.

Tel: [phone]

Venezuela

Inversiones BDR CA

Av. Casanova C.C. City Market

Nivel Plaza Local 153,

Diagonal Hotel Mella

Caracas

Tel. [phone]

Marca registrada de The Black & Decker Corporation, Towson, Maryland, E.U. BLACK&DECKER is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

1500 W 120 V 60Hz

1500 W 220 V 50/60 Hz

Copyright © 2006 Applica Consumer Products, Inc.

Pub. No. 1000003154-00-RV01

Made in People's Republic of China

Printed in People's Republic of China

Importado por:
