USER MANUAL FME7024IXM FAR

INSTALLATION DU PRODUIT

RECYCLAGE DU PRODUIT

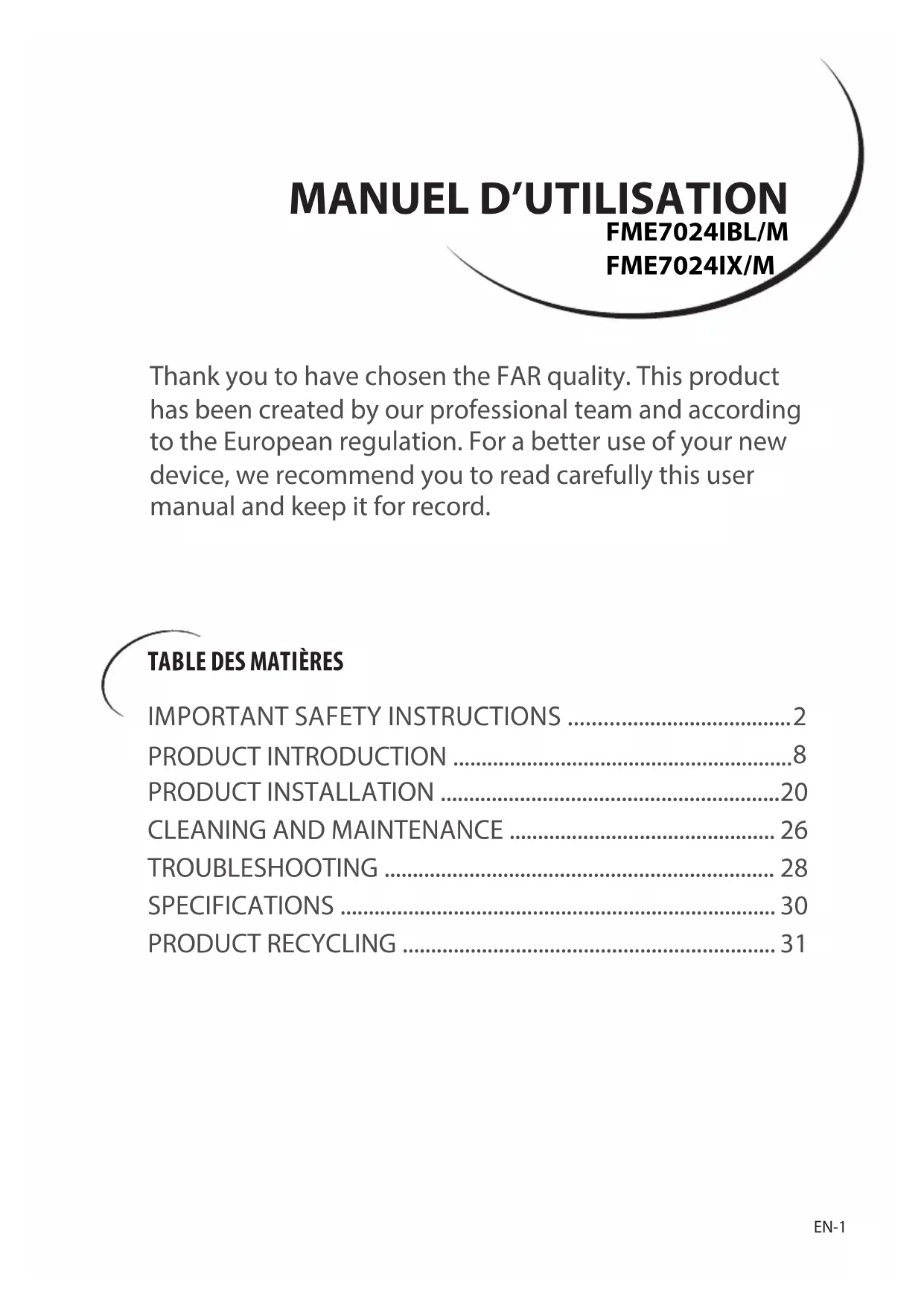

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

APPLIANCE. To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

• Call only the Service Centers authorized by store where you buy the cooker.

When the oven is rst switched on, it may give o an unpleasant smell. is is due to the bonding agent used for the insulating panels within the oven. Please run the new empty product with the conventional cooking function, 250°C, 90 minutes to clean oil impurities inside the cavity. During the rst use, it is completely normal that there will be slight smoke and door. If it does occur, you should wait for the smell to be cleared before putting food into the oven. Please use the product under an open environment.ENGLISH EN-3

Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. If the surface is cracked, switch o the appliance to avoid the possibility of electric shock. is appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven. Do not allow children to go near the oven when it is operating, especially when the grill is on.

WARNING: e appliance and its accessible

parts become hot during use.ENGLISH EN-4

e means for disconnection must be incorporated in the xed wiring in accordance with the wiring specications. Children should be supervised to ensure that they do not play with the appliance. is appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety. Accessible parts may become hot during use. Young children should be kept away. An all-pole disconnection means must be incorporated in the xed wiring in accordance with the wiring rules. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

WARNING: Ensure that the appliance is

switched o before replacing the lamp to avoid the possibility of electric shock.ENGLISH EN-5

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Only use the temperature probe recommended for this oven. A steam cleaner is not to be used. e appliance is not intended to be operated by means of an external timer or a separate remote control system. Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet. For oven: Oven door should not be opened often during the cooking period. e appliance must be installed by an authorized technician and put into use. e producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel. For details about the correct installation of the shelves can be found in the PRODUCT INSTALLATION section.ENGLISH EN-6

When the door or drawer of oven is open do not leave anything on it, or you may unbalance your appliance or break the door. Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly. If you will not use the appliance for a long time, it is advised to plug it o.

27. e appliance must not be installed behind a

decorative door in order to avoid overheating.

28. Replacing certain parts of your household

electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualied professional. is appliance is intended to be used in household and similar applications such as: - sta kitchen areas in shops, oces and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments;ENGLISH EN-7 - bed and breakfast type environments.

29. Do not place any heavy load on the oven door

when it is open, and do not let children climb or sit on it.

30. Regarding the instructions for installation and

electric connection of the appliance, thanks to refer to the below paragraph of the manual.

31. Regarding the instructions for cleaning and

maintenance, thanks to refer to the below paragraph of the manual.

32. Regarding the instructions for cleaning surfaces

in contact with food thanks to refer to the below paragraph of the manual.

33. Regarding the information pertaining to the

installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

34. Regarding the information of the method for

replacing illuminating lamps, thanks to refer to the below paragraph of the manual.ENGLISH EN-8

DECLARATION OF COMPLIANCE

• When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualied person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children. PRODUCT INTRODUCTION Oven When removing food, please wear heat insulating gloves to prevent burns! At the moment of opening the door of the furnace, pay attention to the steam. Please open the door at a small Angle to avoid the steam on your face.ENGLISH EN-9 Grill food or place heat-resistant cooking containers Cook large portions of food or catch food scraps Control panelMounting xing hole Ventilating openingsMounting xing holeGlass doorHandle Accessories Grill rack Grill tray Screws Mounting fixing holeENGLISH EN-10 For the oven to work properly, the grill rack and Grill tray should only be placed between the rst and fth levels. When used together, place the Grill tray under the grill rack. Accessories use(Only for some models)

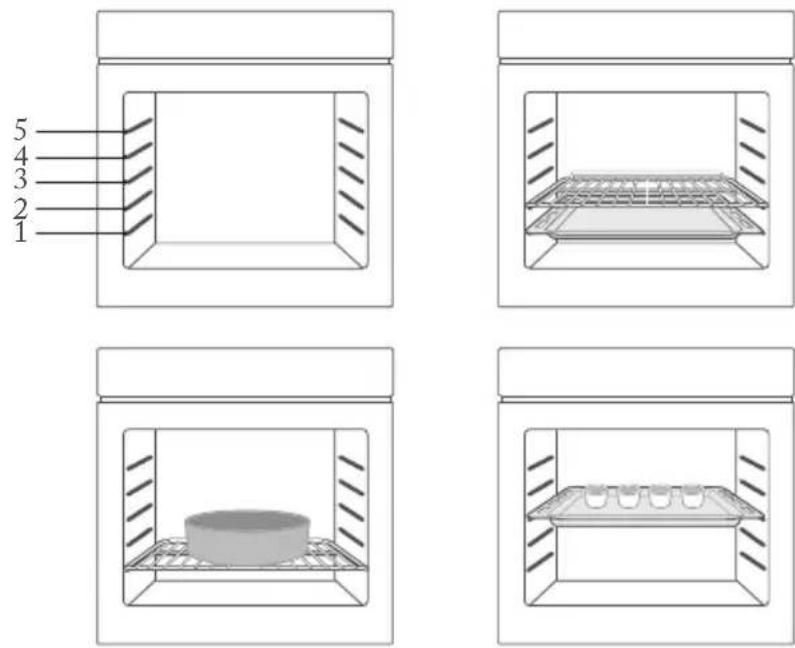

tray, hot food items should not slide out. it will ensure that during careful removal of the shelf The shelves should be used with the right direction, Upward, inwardENGLISH EN-11

Function Lamp Function introduction e cooking process can be observed under illuminated conditions. Except ECO function. Control Panel K1: For selecting oven functions. K2: For setting the temperature. Time Setting: For adjusting the cooking time. Time Setting k2 Defrost e circulation of air at room temperature enables quicker thawing of frozen food (without the use of any heat). e radiant heating element and top heating element are working with fan. Double grill with fanENGLISH EN-12 Double grill e radiant heating element and top heating element are working. Single grill e inner grill element switchs on and o to maintain temperature. Can be used to grill a small number of food. Conventional e top and bottom heating elements work together to provide convectional cooking. Conventional +fan e combination of fan and the top and bottom heating elements provides more even heat penetration and coloration, primarily for cooking meat. Bottom heating Heating is provided by heating pipes at the bottom of the oven. Mainly used for keeping warm and the coloring of the food.ENGLISH EN-13 ECO For energy-saving cooking. Cooking the selected ingredients in a gentle manner, and the heat comes from the top and the bottom. Before using for the rst time

1. e oven must not be operated until it has been

correctly installed.

2. To avoid re, remove all transport protection

materials and ensure that the oven is free of residual packaging items and accessories (e.g. foam, cardboard, grill tray, grill rack, etc.).

3. Clean the oven cavity and accessories with

soapy water and a soft cloth.

4. Open kitchen windows and cooker hoods to

maintain high ventilation.

5. Do not let children or pets into the kitchen and

close the doors of adjacent rooms.

6. After connecting the power, activate the oven

mode, time, and temperature in the table below to remove odors in the cavity. Function Conventional 250°C 0.5-1 Hour Temperature TimeENGLISH EN-14 When the oven is connected to the power supply for the rst time, you need to set the clock. Note: e clock is a 24 hour clock.

1. Press " " or " " key to adjust the hour

2. Press " " key to conrm the hour setting.

3. Press " " or " " key to adjust the minute

4. Press " " key to complete the clock setting.

Setting the clock Regular operation

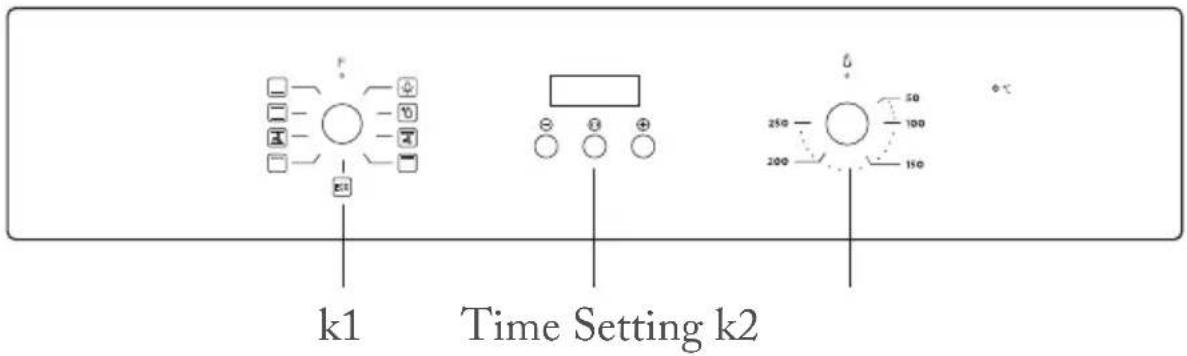

1. Turn knob K1 to select the oven functions.

4. When cooking is nished, turn all knobs to the

7. After the rst use, please open the oven door at

a small angle and wait for the cooling to complete.ENGLISH EN-15 In standby mode, press and hold the " " key for 3 seconds to enter manual mode, the " " icon will light up. Under manual mode, press the " " key to enter the time mode selection: manual →minute minder → dur → End → manual. e automatic cooking modes that can be set are semi-automatic: dur or End. If the display does not show the icon " ", the oven will not work or heat up. e oven will only work or heat up if the display shows icon " ". Notes

1. Manual mode - the cooking time is controlled

2. Minute minder - you can set an audible

reminder for the time period of completion. Mode setting k1 Time Setting k2ENGLISH EN-16

3. Dur - you can set the oven so it will cook for a

4. End - you can set the oven so it will cook to a

desired time. Manual mode In manual mode, only the current time and the symbol " " lights up. e oven is always in working order and the cooking time is controlled by the user. Notes

1. In manual mode, after 5 hours of no operation,

the displayed time starts to ash. After 10 hours without any operation, return to the standby state.

2. When the time is ashing, if you want to use

the manual mode again, please press the " " or " " key. Minute minder is mode is only used as a reminder function.

1. Press " " key to select the minute minder

function. e relevant " " " . " symbol will ash.ENGLISH EN-17

2. Press the " " or " " key to enter the alarm

clock time setting (the setting method is the same as "Clock Setting" ).

3. After setting, press the " " key to conrm

the alarm clock setting, and the " " icon is always on.

4. When the time is up, the buzzer beeps to

remind you, and the " " symbol on the screen begins to blink. At this point, press any key to cancel the reminder. Cooking dur time If the dur mode is set for 1 hour, cooking ends after 1 hour.

1. Press the " " key continuously until the

2. Press the " " or " " key to enter the dur

mode time setting (the setting method is the same as "Clock Setting" ). e maximum setting time is 10 hours.

3. After conrming the time setting, press the

" " key to start. At this time, the icons " " and " A " are always on.ENGLISH EN-18

4. If the dur mode is set for 1 hour, the buzzer

sounds after 1 hour to indicate the end of cooking and the icon "A" ashes.

5. At this point, press any key to return to

standby, stop the chirping alert and the icon "A" disappears. Cooking End time Cooking starts at the current time and ends at the set clock time.

1. Press the " " key continuously until the

2. Press the " " or " " key to enter the End

mode time setting (the setting method is the same as "Clock Setting" ).

3. After conrming the time setting, press the

" " key to start. At this time, the icons " " and " A " are always on.

4. When the End time is the same as the system

clock time, the buzzer will sound, indicating the end of cooking. e icon " " disappears and the icon "A" ashes.

5. At this point, press any key to return to standby,

stop the chirping alert and the icon "A" disappears.ENGLISH EN-19 Precautions for timer use

1. When setting the time, press and hold the " "

or " " key for 3 seconds to increment or decrement the time continuously.

2. In alarm or automatic cooking mode, press and

hold the " " and " " keys until the buzzer sounds to cancel all mode settings and enter standby mode.

3. When setting the timer mode, if nothing is

done for 5 minutes, it will return to manual mode.

4. During each function setting, press and hold the

" " key for more than 3 seconds to cancel the current setting and enter manual mode.

5. When setting the timer mode, only one of the

alarm clock and automatic cooking modes can be selected.ENGLISH EN-20 PRODUCT INSTALLATION If there is any discrepancy between the illustration and the actual product, please refer to the actual product. Cupboard Diagram (Standing Cupboard)

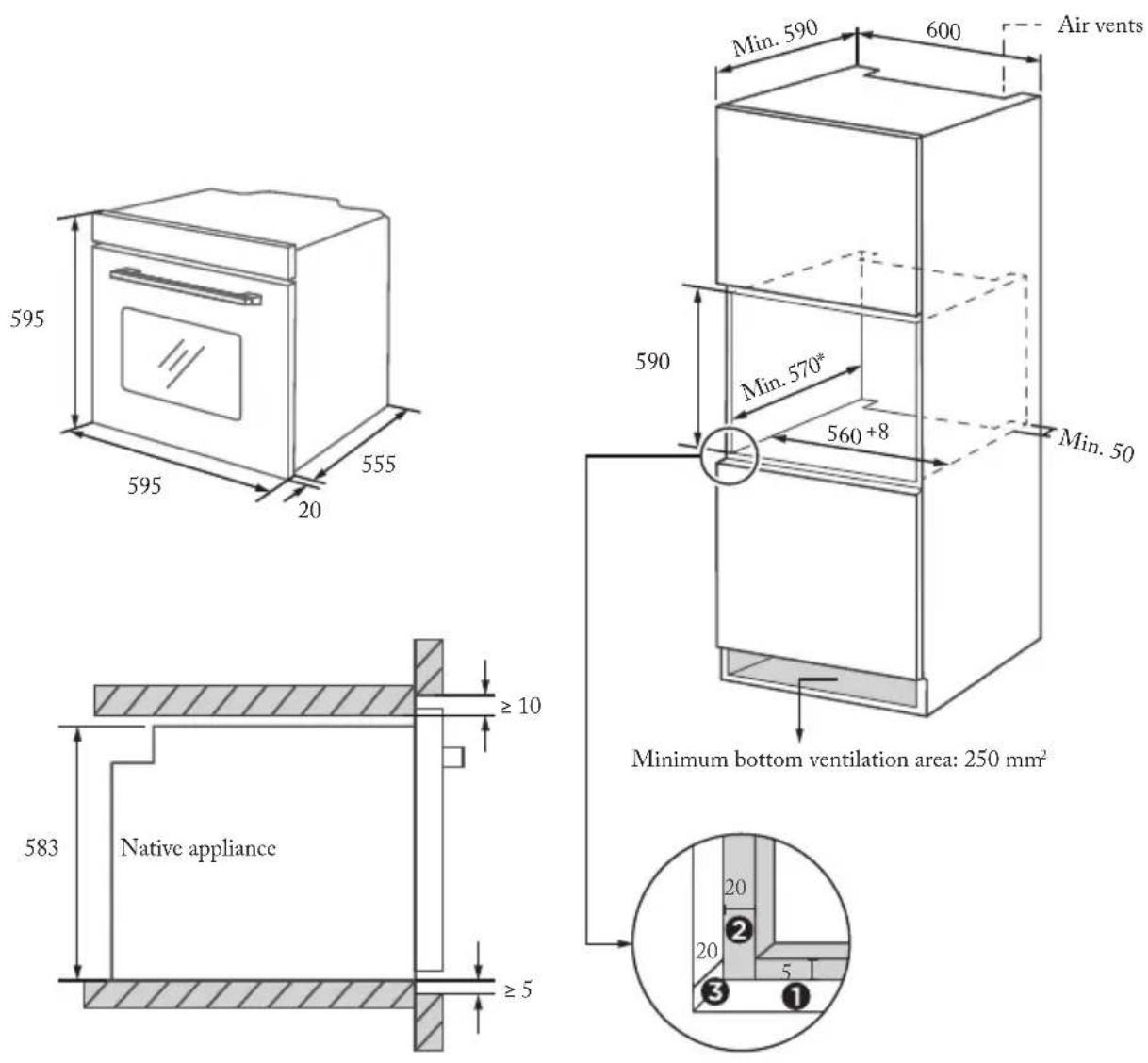

1. Reserve 5 mm for the door panel at the top and

bottom respectively.

2. Reserve 20 mm for the door panel on the left

and right respectively.

3. Reserve 20 mm for the door panel in thickness.

• e thickness of the cupboard board is 20 mm.

• If the power socket is installed on the back of the appliance, the depth of the cupboard opening shall be increased from a minimum of 590 mm to 620 mm.

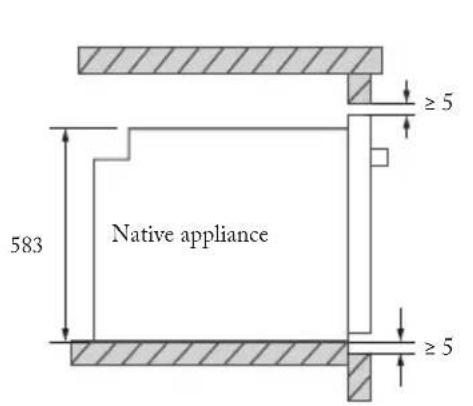

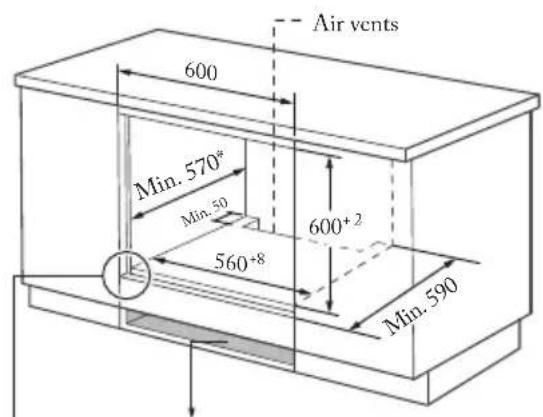

• e dimensions in the gures are in mm. Cupboard Diagram (Ground Cupboard)

1. Reserve 5 mm for the door panel at the top and

bottom respectively.

2. Reserve 20 mm for the door panel on the left

and right respectively.

3. Reserve 20 mm for the door panel in thickness.

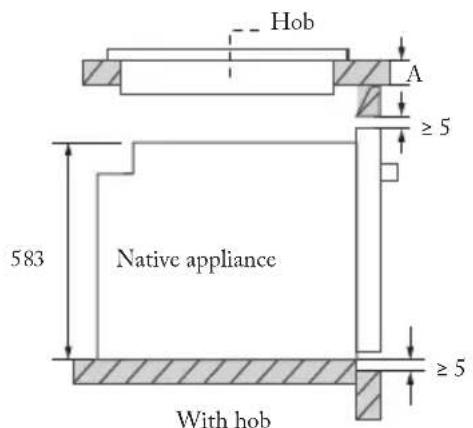

If the appliance is installed under the hob, the minimum thickness of worktop A is shown below: Hob type worktop A Induction hob 37 mm Full-surface induction hob 47 mm Gas hob 30 mm Electric hob 27 mmENGLISH EN-23

1. e thickness of the cupboard board is 20 mm.

2. If the power socket is installed on the back of

the appliance, the depth of the cupboard opening shall be increased from a minimum of 590 mm to 620 mm.

3. e dimensions in the gures are in mm.

1. e safe operation of this appliance can only be

guaranteed if it has been installed to a professional standard in accordance with these installation instructions. e installer shall be liable for any damage resulting from incorrect installation.

2. e entire installation process requires two

professional installers. Wear dry protective gloves during installation to avoid scratch or electric shock.

3. Fitted units must be heat-resistant up to 90°C,

and adjacent unit fronts up to 70°C.

4. Please use a 16A socket.

Installation Important Instructions Content that means [mandatory]ENGLISH EN-24

1. Do not install the appliance behind a

decorative door or the door of a kitchen unit, as this may cause the appliance to overheat.

2. Check the appliance for damage after

unpacking it. Do not connect the appliance if it has been damaged in transit.

3. Do not block the vent of the appliance and the

gap between the cupboard and the appliance.

4. Use extreme caution when moving or installing

the appliance. It is very heavy, do not lift the appliance by the door handle.

5. If the power cord or power plug is damaged,

stop using the appliance immediately, to avoid re, electric shock or other injuries. Content that means [prohibit ]

1. Be very careful when moving or installing the

appliance to avoid damage to the appliance or damage to the cupboards.

2. Before starting up the appliance, remove all

packaging materials and accessories from the cavity. Content that means [note]ENGLISH EN-25

3. e power socket shall be accessible to users

(such as next to the cupboard) for easy power-

4. After installation is complete, make sure that

the power plug is rmly inserted into the socket.

5. Please refer to the "Cupboard Diagram" for the

requirements of net depth of the cupboard. e clearance between the cupboard bottom board and the rear board (or wall) shall not be less than 50 mm.

1. Please customize the cupboard according to the

2. Before installation, please check for normal

power socket and appropriate grounding, and check whether the cupboard dimension meets the installation requirements.

3. Place the appliance in designated locations in

the kitchen, install it in a vertical cupboard, and connect the power supply.

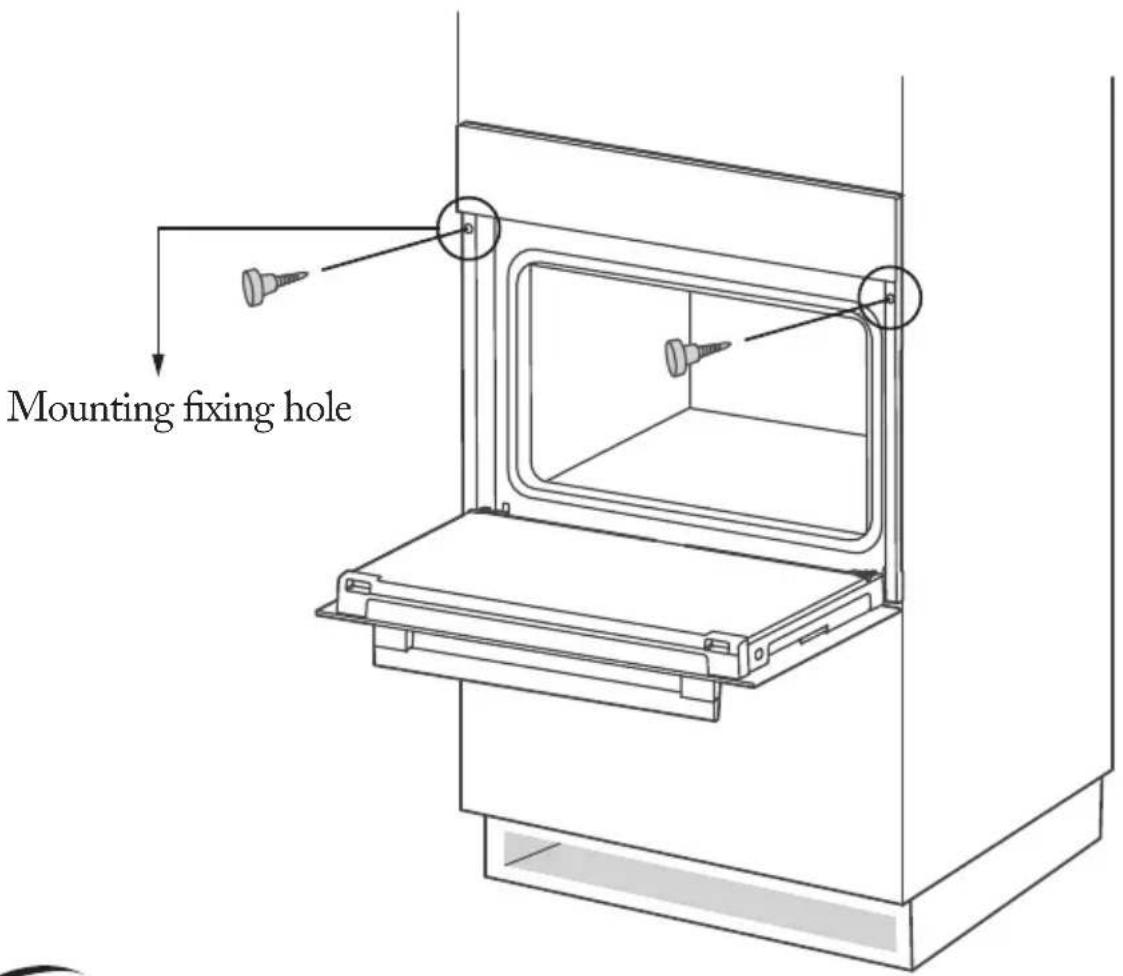

4. To locate the mounting xing holes, open the

appliance door and look at the side frame of the appliance (position shown above). Installation stepsENGLISH EN-26

5. Fix the appliance to the cupboard with two

rubber plugs A and screws B provided with the appliance. Mounting xing hole

CLEANING AND MAINTENANCE

Cleaning Disconnect the power supply before cleaning and maintenance. In order to ensure the life of the oven, it should be thoroughly cleaned frequently.ENGLISH EN-27 Cleaning steps are as follows:

1. After cooking, wait for the oven to cool

2. Remove oven accessories, rinse with warm

3. Clean up food debris from the oven chamber.

4. Wipe the oven with a soft cloth stained with

detergent, then dry with a dry soft cloth. Notes

1. Do not use sharp cleaning tools, hard brush

and corrosive cleaning products, so as not to damage the oven and its accessories.

2. Do not use rough scrubbing agent or sharp

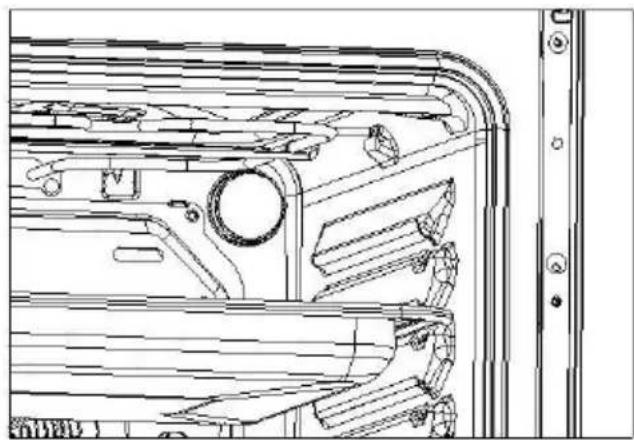

metal spatula to clean the door glass. Lamp Replacement

1. Switch o and disconnect the power from the

oven. Ensure that the internal parts are cool before touching internal parts.

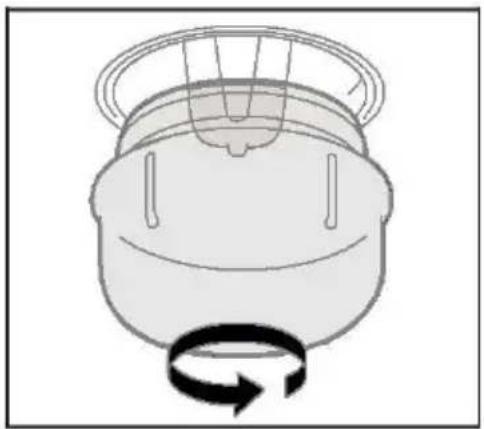

2. Remove the lamp cover by turning it counter-

clockwise (note, it may be sti), replace the bulb with a new one of the same type.ENGLISH EN-28

3. Insert the new bulb, which should be resistant

to 300°C. For replacement bulbs contact your local service centre.

4. If in any doubt, consult a qualied electrician

for help. Warning To avoid electric shocks-please ensure that the electricity supply to the appliance is switched o and the appliance is fully cold. before removing the lamp lens. TROUBLESHOOTING If the problem cannot be solved or other problems occur, please contact the after-sales service.

Only use 25 W/230V~ type G9, T300 halogen lamps.ENGLISH EN-29 Problem Unable to start Power is not connected connect power supply e main power switch is not turned on Turn on the power switch Oven door not closed Close the oven door Possible reason Solution lamp does not come

Has a pungent odor or smoke Food is not cooked e fan did not stop working after stopping the heating Burnt or uneven food rst use It's broken No processing required Temperature is too low Use a higher temperature Food portion is too large Cook food in smaller pieces or extend the cooking time Contact after-sales service e temperature is set too high or the heating time is too long Adjust the cooking temperature or time e food is too close to the heating tube Adjust the placement layers of accessories Fan delays blowing for heat dissipation No processing requiredENGLISH EN-30 SPECIFICATIONS Model Usable Volume Rated voltage Rated frequency Electric power FME7024IBL

70L 220-240V~ 50Hz-60Hz 3,0 kW Information for domestic ovens Symbol Value Unit Model identication Type of oven Mass of the appliance M kg Number of cavities Heat source per cavity (electricity or gas) Volume per cavity V l Energy consumption (electricity) required to heat a standardised load in a cavity of an electric heated oven during a cycle in conventional mode per cavity (electric nal energy)

electric cavity kWh/cycle Energy consumption required to heat a standardised load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric nal energy)

electric cavity kWh/cycle Energy Eciency Index per cavity EEI cavity Electric oven

0,99 0,7 Electricity FME7024IBL/MFME7024IX/MFan-forced:84.6(at position )Conventional:112.7(at position )(at position )(at position ) 9FRANÇAIS EN-31 PRODUCT RECYCLING European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obli- gations of separated collection. This instruction book is also available on our website: www.conforama.frENGLISH EN-32 If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances: https://sav-client.conforama.fr 09 69 32 05 05CONFORAMA France SA 80 Boulevard du Mandinet Lognes 77432 Marne la Vallée Cedex 2 FRANCE PN:16171100A41798
