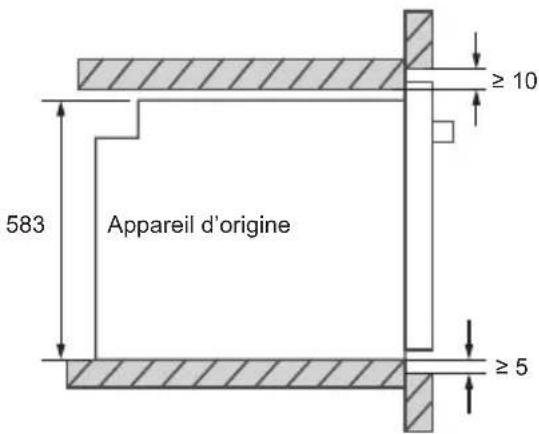

Appareil d'origine 583 ≥ 10 ≥ 5

Technical line drawing of a mechanical component with internal parts and a circular component, alongside a circular diagram showing rotational flow (no text or symbols)

Avertissement

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ......EN-2

PRODUCT INTRODUCTION ......EN-9

PRODUCT DESCRIPTION ......EN-12

PRODUCT INSTALLATION ......EN-17

CLEANING AND MAINTENANCE ......EN-23

TROUBLESHOOTING ......EN-25

SPECIFICATIONS ......EN-26

DISPOSAL OF YOUR OLD APPLIANCE......EN-27

CUSTOMER SERVICE......EN-28

IMPORTANT SAFETY INSTRUCTIONS

THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. PLEASE READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.

To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

• Call only the Service Centers authorized by store where you buy the cooker.
  • Always use original Spare Parts.

• When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run the new empty product with the conventional cooking function, 250°C, 90 minutes to clean oil impurities inside the cavity.

• During the first use, it is completely normal that there will be slight smoke and door. If it does occur, you should wait for the smell to be cleared before putting food into the oven.

• Please use the product under an open environment.

• WARNING: The appliance and its accessible parts become hot during use.
  Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.

• Do not allow children to go near the oven when it is operating, especially when the grill is on.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.

• Accessible parts may become hot during use. Young children should be kept away.

• An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or a separate remote control system.
• For details about the correct installation of the shelves can be found in the PRODUCT INSTALLATION section.

• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet.

• For oven: Oven door should not be opened often during the cooking period.

• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the door or drawer of oven is open do not leave anything on it, or you may unbalance your appliance or break the door.
• Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly.
• If you will not use the appliance for a long time, it is advised to plug it off.

• The appliance must not be installed behind a decorative door in order to avoid overheating.

• Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional

This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

1. Do not place any heavy load on the oven door when it is open, and do not let children climb or sit on it.

2. Regarding the instructions for installation and electric connection of the appliance, thanks to refer to the below paragraph of the manual.

3. Regarding the instructions for cleaning and maintenance, thanks to refer to the below paragraph of the manual.

4. Regarding the instructions for cleaning surfaces in contact with food thanks to refer to the below paragraph of the manual.

5. Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.
6. Regarding the information of the method for replacing illuminating lamps, thanks to refer to the below paragraph of the manual.
7. The oven must be switched off before removing the guard and that, after cleaning, the guard must be replaced in accordance with the instructions.

DECLARATION OF COMPLIANCE

- When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

PRODUCT INTRODUCTION

Oven

When removing food, please wear heat insulating gloves to prevent burns!

At the moment of opening the door of the furnace, pay attention to the steam. Please open the door at a small Angle to avoid the steam on your face.

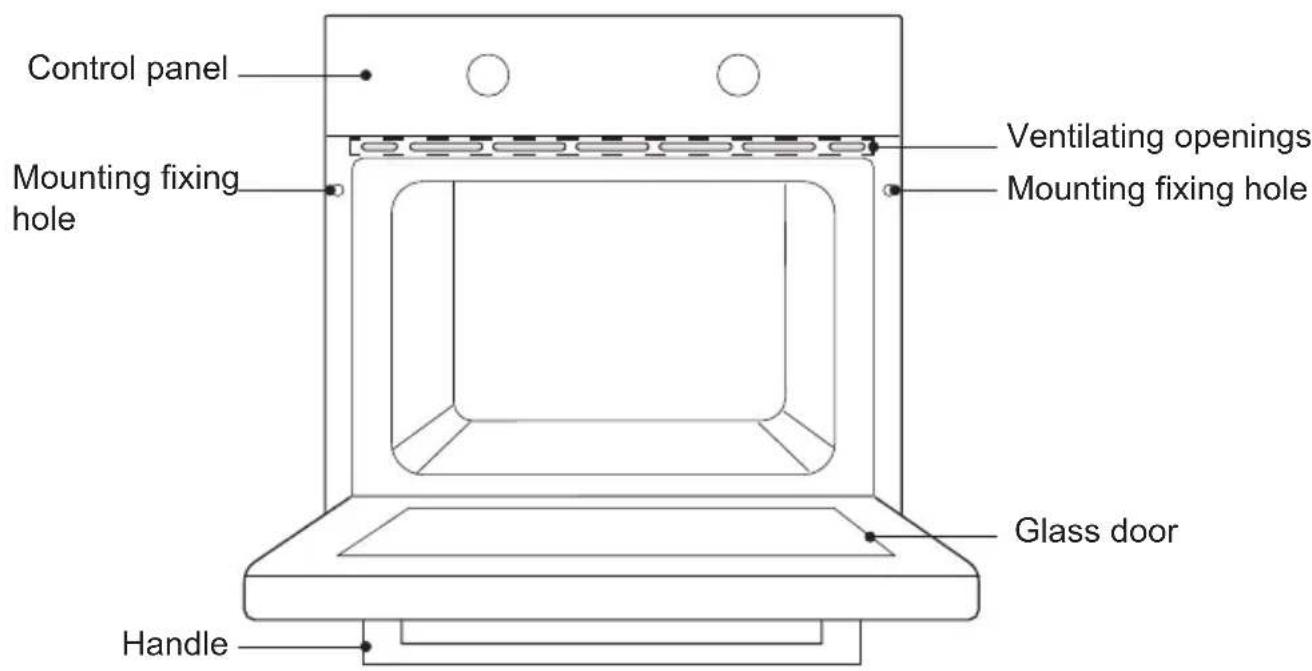

Control panel Mounting fixing hole Ventilating openings Mounting fixing hole Glass door Handle

Accessories

Pure structural grid diagram without any text, numbers, or symbols

Simple line drawing of a rectangular tray with cutouts and a central triangular shape (no text or symbols)

Grill rack Grill tray

Grill food or place heat-resistant cooking containers

Cook large portions of food or catch food scraps

Screws

Mounting fixing hole

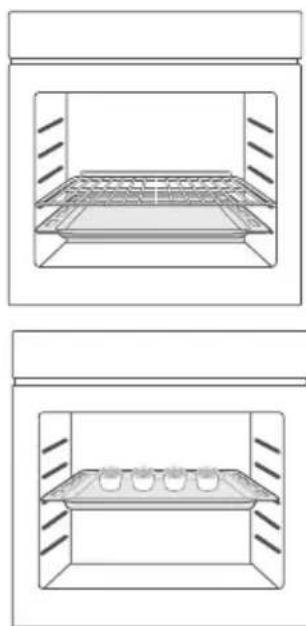

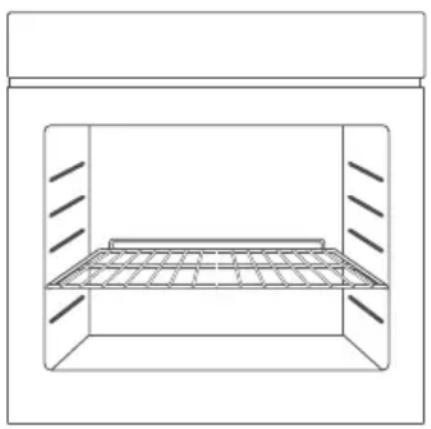

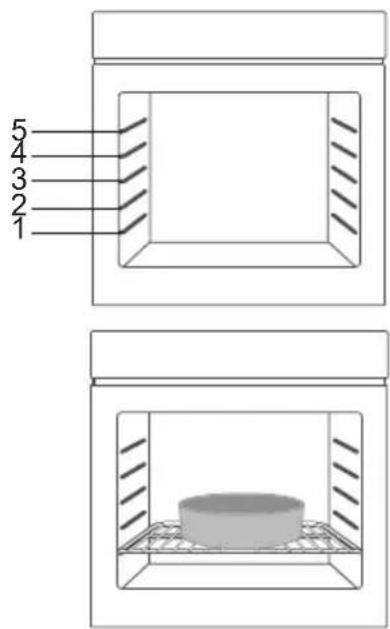

Accessories use(Only for some models)

For the oven to work properly, the grill rack and Grill tray should only be placed between the first and fifth levels. When used together, place the Grill tray under the grill rack.

1 2 3 4 5

Two technical line drawings of a storage or drying unit with internal compartments and trays (no text or symbols)

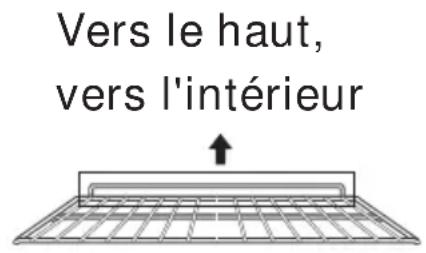

The shelves should be used with the right direction, it will ensure that during careful removal of the shelf or tray, hot food items should not slide out.

Line drawing of a laboratory or storage unit with internal grid structure (no text or symbols)

Upward, inward

How to use

• To set functions by turning the function knob to desired level.
• To set the temperature by turning the temperature knob.
  The oven will automatically start cooking after function and temperature are set.
• If the oven is not in use, always set all the knobs to "0".

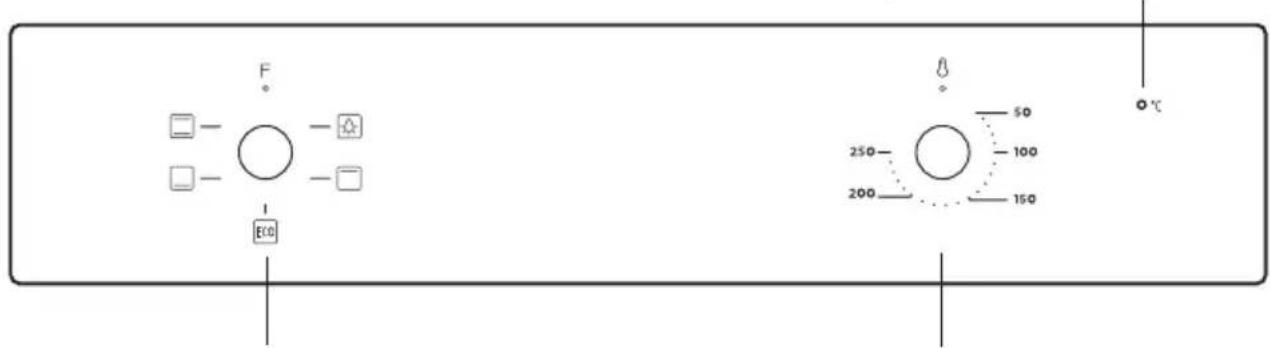

PRODUCT DESCRIPTION

Temperature indicator

F ECO 250- 200- 50 100 150 °C

Function Knob Temperature Knob

Symbol Function description
	Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions.except ECO function.
	Top heater: The top heating element is working.
	Conventional cooking: Heaters from the upper and the lower side uniformly heat the exposed food.
	Bottom heater: Heat is applied only by the bottom side of the oven. Use this option for browning the bottom side of the food. This function is suitable for slow cooking recipes or for warming up meals.
	For energy-saved cooking. Cooking the selected ingredients in a gentle manner, and the heat comes from the top and the bottom.

Recipes for ECO mode

Recipes	Temperature (°C)	Level	Time (min)	Pre-heat
Potato Cheese Gratin	180 1 90 - 100 No
Cheese Cake	160 1 100- 150 No
Meatloaf	190	1	110 - 130	No

Removing the door from oven

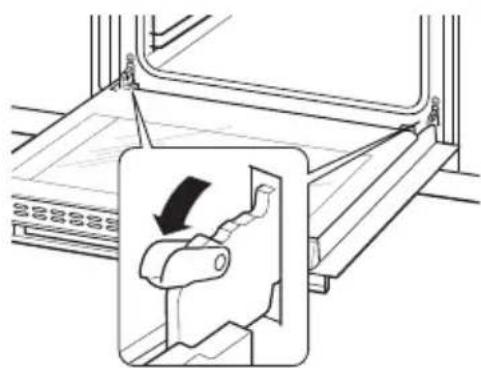

Disassembly of oven door components

1. To remove the door, open the door to the maximum angle. hen pull the buckle at the door hinge backward.

Technical diagram showing a mechanical assembly with an inset view of a device component (no text or symbols present)

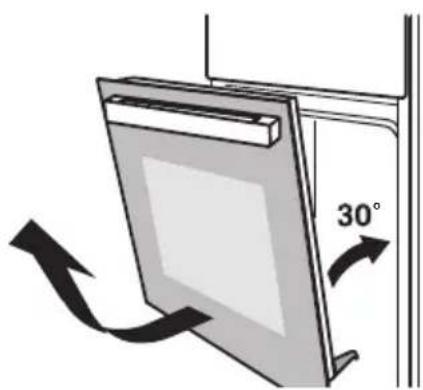

1. Close the door to an angle approximately 30^ . Hold the door with one hand on each side. Lift up and slowly pull the door out from the oven.

Diagram of a door frame with an 30-degree angle indicator and directional arrows (no text or symbols)

1. Open the door rotation bracket assembly, refer the action in the following picture.

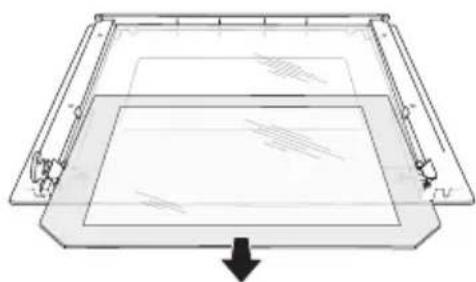

2. Lift up the door outer glass and pull it out, then take the door middle glass out in the same way.

WARNING

Don't forcibly pulled out the door and prevent the glass breakage during the dismantling process.

Line drawing of a rectangular frame with four corner supports (no text or symbols)

The hinge springs could loose, causing personal injury.

Pure technical line drawing of a mechanical component or frame structure without any text, numbers, or symbols

Do not lift or carry the oven door by the door handle.

Pure technical line drawing of a mechanical component or frame structure without any text, numbers, or symbols

PRODUCT INSTALLATION

If there is any discrepancy between the illustration and the actual product, please refer to the actual product.

Cupboard Diagram (Standing Cupboard)

85±5° 456.5 mm 580.5mm 595mm 558mm 17mm 595mm 590 Min. 590 600 Air vents 560+8 05.niM ≥ 10 583 Native appliance ≥ 5 Minimum bottom ventilation area: 250 mm² 20 20 5 ①

1. Reserve 5 mm for the door panel at the top and bottom respectively.
2. Reserve 20 mm for the door panel on the left and right respectively.

3. Reserve 20 mm for the door panel in thickness.

4. The thickness of the cupboard board is 20 mm.

5. If the power socket is installed on the back of the appliance, the depth of the cupboard opening shall be increased from a minimum of 590 mm to 620 mm.

- The dimensions in the figures are in mm.

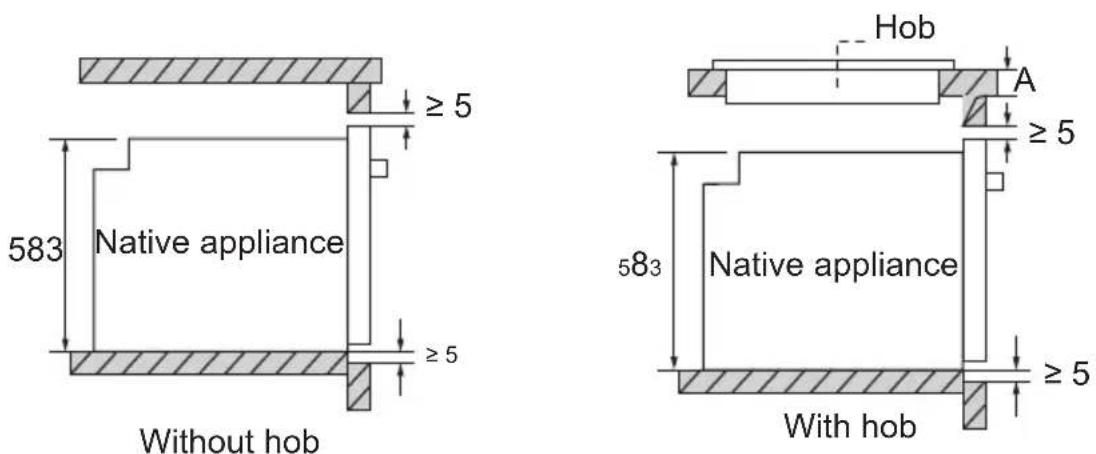

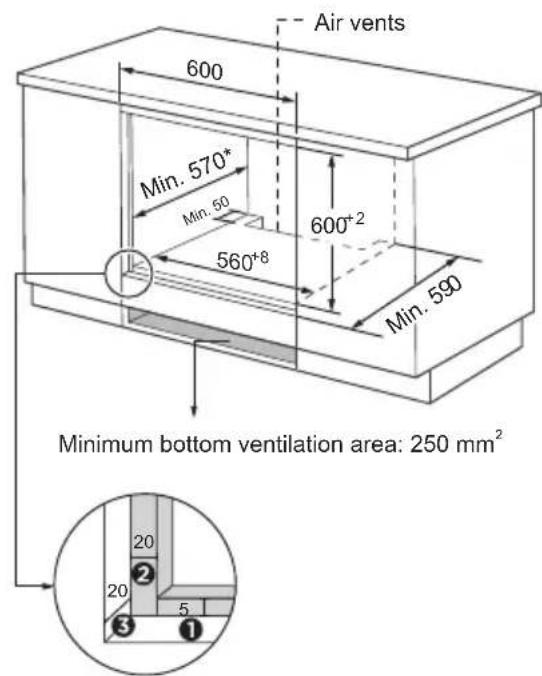

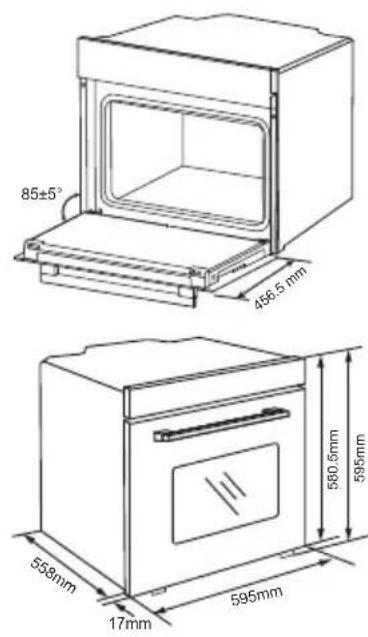

Cupboard Diagram (Ground Cupboard)

85±5° 456.5 mm 558mm 17mm 595mm 580.5mm 595mm

Air vents 600 Min. 570* Min. 50 560+8 600+2 Min. 590 Minimum bottom ventilation area: 250 mm² 20 20 3 5 ①

1. Reserve 5 mm for the door panel at the top and bottom respectively.
2. Reserve 20 mm for the door panel on the left and right respectively.
3. Reserve 20 mm for the door panel in thickness.

If the appliance is installed under the hob, the minimum thickness of worktop A is shown below:

Hob type worktop A
Induction hob 37 mm
Full-surface induction hob 47 mm
Gas hob 30 mm
Electric hob 27 mm

1. The thickness of the cupboard board is 20 mm.
2. If the power socket is installed on the back of the appliance, the depth of the cupboard opening shall be increased from a minimum of 590 mm to 620 mm.
3. The dimensions in the figures are in mm.

Installation Important Instructions

Content that means [mandatory]

1. The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard in accordance with these installation instructions. The installer shall be liable for any damage resulting from incorrect installation.
2. The entire installation process requires two professional installers. Wear dry protective gloves during installation to avoid scratch or electric shock.
3. Fitted units must be heat-resistant up to 90^ C, and adjacent unit fronts up to 70^ C.
4. Please use a 16A socket.

Content that means [prohibit]

1. Do not install the appliance behind a decorative door or the door of a kitchen unit, as this may cause the appliance to overheat.
2. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit.
3. Do not block the vent of the appliance and the gap between the cupboard and the appliance.
4. Use extreme caution when moving or installing the appliance. It is very heavy, do not lift the appliance by the door handle.
5. If the power cord or power plug is damaged, stop using the appliance immediately, to avoid fire, electric shock or other injuries.

Content that means [note]

1. Be very careful when moving or installing the appliance to avoid damage to the appliance or damage to the cupboards.

2. Before starting up the appliance, remove all packaging materials and accessories from the cavity.

3. The power socket shall be accessible to users (such as next to the cupboard) for easy power-off.

4. After installation is complete, make sure that the power plug is firmly inserted into the socket.
5. Please refer to the "Cupboard Diagram" for the requirements of net depth of the cupboard.
   The clearance between the cupboard bottom board and the rear board (or wall) shall not be less than 50 mm.

Installation steps

1. Please customize the cupboard according to the "Cupboard Diagram".
2. Before installation, please check for normal power socket and appropriate grounding, and check whether the cupboard dimension meets the installation requirements.
3. Place the appliance in designated locations in the kitchen, install it in a vertical cupboard, and connect the power supply.

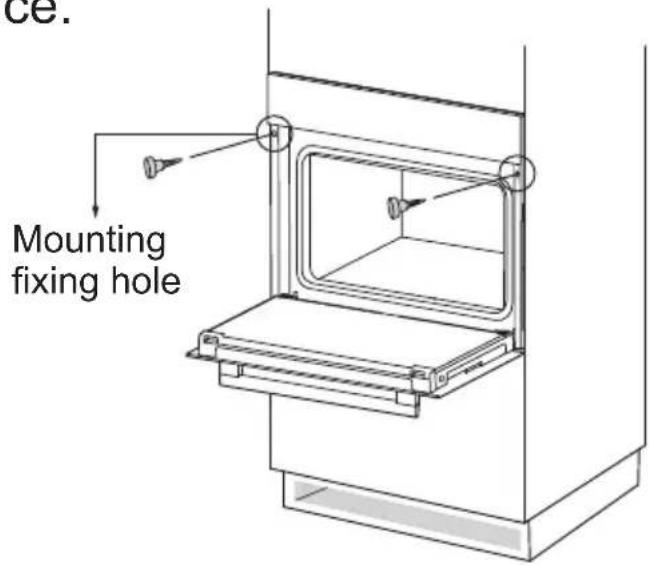

4. To locate the mounting fixing holes, open the appliance door and look at the side frame of the appliance (position shown above).

5. Fix the appliance to the cupboard with two rubber plugs A and screws B provided with the appliance.

ce. Mounting fixing hole

CLEANING AND MAINTENANCE

Cleaning

Disconnect the power supply before cleaning and maintenance.

In order to ensure the life of the oven, it should be thoroughly cleaned frequently.

Cleaning steps are as follows:

1. After cooking, wait for the oven to cool completely.
2. Remove oven accessories, rinse with warm water and dry.
3. Clean up food debris from the oven chamber.
4. Wipe the oven with a soft cloth stained with detergent, then dry with a dry soft cloth.

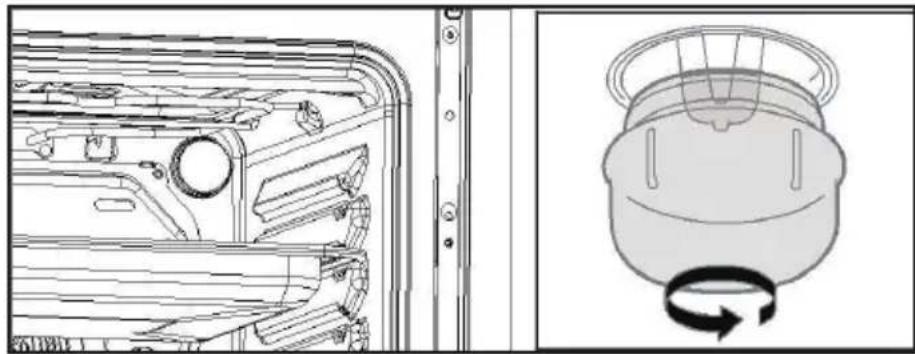

Lamp Replacement

1. Switch off and disconnect the power from the oven. Ensure that the internal parts are cool before touching internal parts.
2. Remove the lamp cover by turning it counterclockwise (note, it may be stiff), replace the bulb with a new one of the same type.
3. Insert the new bulb, which should be resistant to 300^ C . For replacement bulbs contact your local service centre.
4. If in any doubt, consult a qualified electrician for help.

Technical line drawing of a door frame and a mechanical component with rotational arrow (no text or symbols)

Warning

To avoid electric shocks-please ensure that the electricity supply to the appliance is switched off and the appliance is fully cold. before removing the lamp lens.

Only use 25 W/230V\~ type G9, T300 halogen lamps.

TROUBLESHOOTING

If the problem cannot be solved or other problems occur, please contact the after-sales service.

Problem	Possible reason	Solution
Unable to start	Power is not connected	connect power supply
	The main power switch is not turned on	Turn on the power switch
	Oven door not closed	Close the oven door
lamp does not come on	It's broken	Contact after-sales service
Has a pungent odor or smoke	first use	No processing required
Food is not cooked	Temperature is too low	Use a higher temperature
	Food portion is too large	Cook food in smaller pieces or extend the cooking time
Burnt or uneven food	The temperature is set too high or the heating time is too long	Adjust the cooking temperature or time
	The food is too close to the heating tube	Adjust the placement layers of accessories
The fan did not stop working after stopping the heating	Fan delays blowing for heat dissipation	No processing required

SPECIFICATIONS

Model	FCNE7024BKM G
Usable Volume	70L
Rated voltage	220-240V~
Rated frequency	50Hz-60Hz
Electric power	2,1 kW

Information for domestic ovens

	Symbol	Value Unit
Model identification		FCNE7024BKM G
Type of oven		Electric oven
Mass of the appliance M		27	kg
Number of cavities		1
Heat source per cavity (electricity or gas)		Electricity
Volume per cavity V		70	I
Energy consumption (electricity) required to heat a standardised load in a cavity of an electric heated oven during a cycle in conventional mode per cavity (electruc final energy)	EC electric cavity	0,79	kWh/cycle
Energy consumption required to heat a standardised load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric final energy)	EC electric cavity	/ (at position ECO)	kWh/cycle
Energy Efficiency Index per cavity	EEI cavity	Fan-forced:94,0 (at position ECO)
Energy efficiency ckass A

Energy consumption

Product information for power consumption to reach applicable low power mode.

Off mode

0.3 W

DISPOSAL OF YOUR OLD APPLIANCE

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

CUSTOMER SERVICE

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

Purchase of the device in a Conforama store:

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

https://sav-client.conforama.fr/

09 69 32 05 05

From Monday to Saturday, 08:30 to 19:00

Price of a local call

This instruction manual is also available on our website: www.conforama.fr

Purchase of the device in a BUT store:

Contact our After-Sales Service, before going to your BUT store:

09 78 97 97 97

From Monday to Friday from 09:00 to 19:00, and

Saturday 09:00 to 18:00

Price of a local call

This instruction manual is also available on our website: www.but.fr.

CONFORAMA FRANCE

la-Vallée CEDEX 2 France

BUT INTERNATIONAL

1 Avenue Spinoza

77184 Emerainville

FRANCE

28 10/25/

LE TRI + FACILE BAC DE TRI
