USER MANUAL P905I1M30XP BERTAZZONI

Dear new owner of a Bertazzoni appliance, I want to thank you for choosing one of our beautiful products for your home. My family started manufacturing kitchen appliances in Italy in 1882, building a reputation for quality of engineering and passion for good food. Today, our products stand out because of their unique blend of authentic Italian design and superior appliance technology. It is our mission to make products that function perfectly and bring joy to their owners. By making beautiful products we respond to our customers’ flair for good design. By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure. This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come. Enjoy! Paolo Bertazzoni President 37MANUAL VALIDITY The following manual applies to all the product codes listed below:

These instructions are suitable for different types of appliances, so they may contain descriptions of functions which your appliance may not contain or support. The images and illustrations in this document refer to various models and may differ slightly from the product purchased. The manufacturer does not accept any responsibility for personal injury or damage to property arising from incorrect installation or misuse of the appliance. The manufacturer reserves the right to modify the various models as required to comply with the technical regulations in force. In the event of complaints, please contact the customer service.

INTRODUCTION AND SAFETY

Read the instructions provided in this manual carefully before installing and/or using the appliance. This will help you to get to know your new device. Keep this document to hand so that you consult it at any moment, and hand it on to any subsequent owners. Read the safety messages provided in the introduction to this manual and give due consideration to the safety notes such as: “Attention”, “Warning” and “Danger” which appear in the text. DANGER This symbol indicates a situation that is a danger to you and others. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous or fatal accidents. WARNING This symbol indicates safety information. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous accidents. CAUTION This symbol indicates a procedure which could put the appliance’s structure or components at risk. Take particular care over these procedures. NOTE This symbol indicates useful advice and draws your attention to correct procedures and practices. Complying with the instructions marked with this symbol will avoid problems for you. The symbol highlights methods or procedures for correct use of the appliance. 41GENERAL INFORMATION APPLIANCE IDENTIFICATION Fig. 1 The data plate contains the following information:

This appliance complies with European directive 2012/19/EU (RoHS). This appliance is tagged in accordance with European directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE). This directive contains the regulations governing the collection and recycling of decommissioned appliances throughout the European Union. The symbol of a waste bin with a cross over it which appears on the product indicates that Waste Electrical and Electronic Equipment (WEEE) must not be thrown away with ordinary urban waste but must be disposed of separately, so it can undergo special processing to enable its reuse or specific treatment for safe removal and disposal of any substances harmful to the environment and extraction of raw materials which can be recycled. Therefore, WEEE must be delivered to Recycling Centres run by Municipal Authorities or Waste Management Companies. What’s more, when a new appliance is purchased WEEE can be consigned to the retailer, who is obliged to take it back free of charge (“1:1” take-back). “Very small” WEEE (with no dimension exceeding 25 cm) can be consigned to retailers free of charge even when no purchase is made (“0:1” take-back - which however is only compulsory for stores with sales area of over 400 m2). DANGER This appliance is not intended for use by people, including children, with reduced mental or motor capabilities, or who do not have experience in or knowledge of the product’s operation. These persons may only use the appliance under the supervision of a person responsible for their safety and with suitable instruction in use of the appliance. DANGER If the surface of the induction hob is cracked, switch the appliance off to avoid the risk of electric shocks. DANGER Fire hazard: do not leave inflammable objects on cooking surfaces. Bertazzoni Spa Via Palazzina, 8 42016 Guastalla (RE)Italywww.bertazzoni.com A T T E N T I O N : T h i s a p p l i a n c e m u s t b e i n s t a l l e d i n a c c o r d a n c e w i t h t h e r e g u l a t i o n s c u r r e n t l y i n f o r c e a n d m u s t b e o n l y u s e d i n w e l l v e n t i l a t e d p r e m i s e s . R e a d t h e i n s t r u c t i o n s b e f o r e i n s t a l l i n g o r u s i n g t h i s a p p l i a n c e . P XXXXXXXXXXX Produc t T ype : Inductio n Built-i n Ho b Factor y Model:PXXXXXXXXXXX Rate d V oltage : 220-24 0 V ~ Rate d Frequency : 50/6 0 H z T ota l Powe r (kw ) : 7. 0 k w (230v~) ; CLAS S I Mad e i n Chin a

INSTALLING AND USING THE APPLIANCE. These instructions are valid only for the countries whose identifying symbols are included on the cover of this manual and on the appliance label. The manufacturer shall not be held liable for property damage or personal injury resulting from incorrect installation or improper use of the appliance. The manufacturer shall also not be held liable for any imprecisions due to printing or transcription errors in this booklet. The appearance of the gures included herein is only for guidance. The manufacturer reserves the right to make modications to its products when it considers this necessary or benecial; however the essential safety and performance characteristics shall not be aected.

THIS APPLIANCE IS DESIGNED FOR NON-

PROFESSIONAL, DOMESTIC USE. This user manual is an integral part of the appliance and must therefore be kept in its entirety in a place accessible to the user for the entire lifetime of the appliance. Read this manual before using the appliance. MANUFACTURER LIABILITY The manufacturer shall bear no liability for property damage or personal injury due to:

• use of the appliance other than that specied;

• failure to comply with the instructions in the user manual;

• tampering with/unauthorized modications to any part of the appliance;

• use of non-genuine spare parts; CAUTION Applying the marking on this product is a declaration, under the manufacturer’s full responsibility, that the appliance complies with all European health, safety and environmental requirements laid out in the legislation. ENVIRONMENTAL PROTECTION Please think of the environment when disposing of the packaging. This appliance is tagged in accordance with European directive 2012/19/EU regarding waste electrical and electronic equipment (WEEE). This directive contains the regulations governing the collection and recycling of decommissioned appliances throughout the European Union. The packaging of this appliance is composed of the elements strictly necessary to ensure sucient protection during transport. The packaging materials are completely recyclable, thus reducing their environmental impact. Please help to protect the environment by taking the following tips into consideration:

• Sort the packaging materials for recycling.

• Render the old appliance unusable before taking it to the collection facility. Ask the competent local authorities for details of the nearest recycling center you can take the old appliance to.

• Do not dispose of used oil down the drain. Keep it in a closed container and take it to a recycling center; if this is not possible, dispose of it in mixed waste (in this manner it will be disposed of at a monitored facility – although this is not the best solution, it at least prevents contamination of the sewage/water systems). 44loading-circle-1INSTALLATION

• If the hob is installed over a drawer, the hob ventilation heats the items inside the drawer during the cooking process. Do not store sharp or small objects, paper, napkins, etc. in the drawer. These could penetrate or be sucked in through the ventilation slots and damage the cooling fan or affect cooling

• If the appliance is built-in over an oven equipped with a pyrolytic cleaning system, it must not be used while the pyrolytic process is in progress, as this could trigger the hob's overheating protection

• Warning for people wearing pacemakers: be aware that an electromagnetic field is generated in the immediate vicinity of the appliance when it is in operation. The possibility of affecting the functioning of the pacemaker is very remote. If in doubt, contact the manufacturer of the pacemaker or your doctor.

• The electromagnetic field of the switched-on hob can influence the functioning of objects subject to magnetisation. Do not keep credit cards, memory devices or calculators in the immediate vicinity of the hob

• If you use an adapter for cooking pots that are not induction-compatible, the hob’s heating system could be damaged. CAUTION The cooking process must be constantly monitored

Ensure that the hob is fully present and undamaged after removing all loose parts from their inner and outer packaging. In the event of any uncertainty, do not use the appliance and contact technical support. Considering the critical dimensions of the appliance (see Fig. 2 ), make an opening in the top of the unit following the measurements in the table. 46INSTALLATION Fig. 2 A B

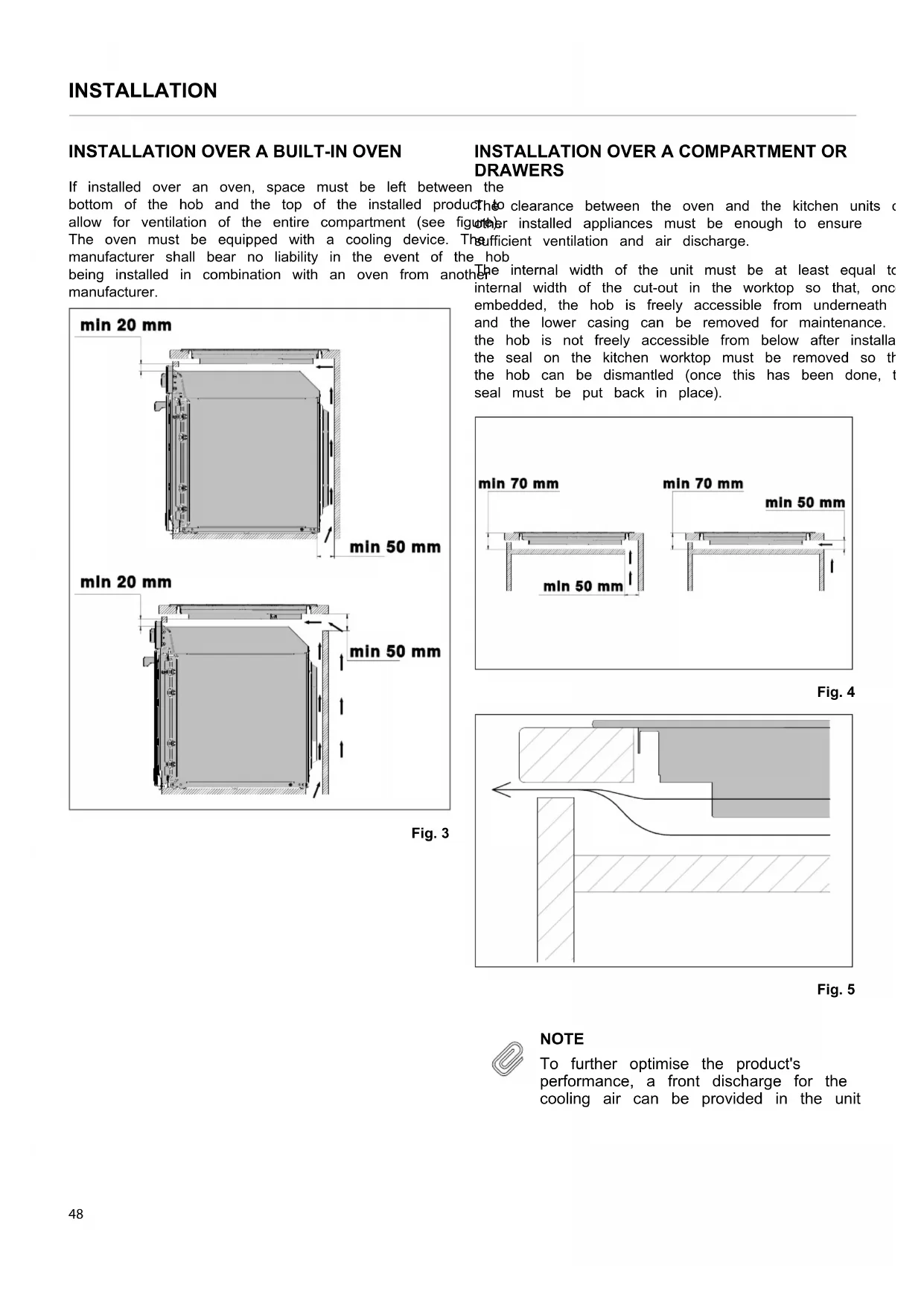

If installed over an oven, space must be left between the bottom of the hob and the top of the installed product to allow for ventilation of the entire compartment (see figure). The oven must be equipped with a cooling device. The manufacturer shall bear no liability in the event of the hob being installed in combination with an oven from another manufacturer. Fig. 3

INSTALLATION OVER A COMPARTMENT OR

DRAWERS The clearance between the oven and the kitchen units or other installed appliances must be enough to ensure sufficient ventilation and air discharge. The internal width of the unit must be at least equal to the internal width of the cut-out in the worktop so that, once embedded, the hob is freely accessible from underneath and the lower casing can be removed for maintenance. If the hob is not freely accessible from below after installation, the seal on the kitchen worktop must be removed so that the hob can be dismantled (once this has been done, the seal must be put back in place). Fig. 4 Fig. 5 NOTE To further optimise the product's performance, a front discharge for the cooling air can be provided in the unit min 20 mm min 50 mm min 20 mm min 50 mm min 70 mmmin 50 mmmin 70 mmmin 50 mm 48INSTALLATION FLUSH-MOUNTED INSTALLATION The hob can be flush-mounted only on natural stone(granite, marble), solid wood and tiled worktops. Forworktops made of other materials, contact themanufacturer to check whether they are suitable for flush-mounting a hob.Check the flatness of the hob only after it has been fitted.After installing the hob in the niche, spray heat-resistantsilicone sealant (at least 160℃) into the gap between thehob and the worktop.The recommended height for applying the seal is indicatedin the drawing.Fig. 6T S U VHob 90 cm 904 mm 524 mm5 mm 5 mm

To prevent accidental infiltration of liquid into the unit below,the appliance is equipped with a special seal.1) After cleaning the surface, spread the sealant along thelower edge of the top where the hob is built-in.

2) Glue it 2 mm from the edge of the outer glass or the

decorative frame.Fig. 73) Fit the hob into the opening in the unit. NOTE The seal must also be inserted for flush- mounted installations.

2 mm2 mm 49INSTALLATION ROOM VENTILATION To guarantee that the appliance functions correctly, the room where it is installed must be properly ventilated. Ventilation of the room must be guaranteed in compliance with current regulations. ELECTRICAL CONNECTION The electrical connection must be made in accordance with applicable standards and legislation. Before making the connection, check that:

• The characteristics of the mains power supply are compatible with the data shown on the label.

• The connection and the system must be earthed in accordance with current regulations. NOTE The cable supplied allows for both single- phase and two-phase connection. Position the power cable in such a way that it does not reach a temperature of 90℃ at any point. The circuit must be tted with an omnipolar circuit breaker of suitable capacity for the appliance's rated load. As an alternative, an RCD may also be used. The earth conductor must not be switched by the breaker and must be connected to the earthing system. 50INSTALLATION

POSSIBLE CONNECTIONS WITH THE CABLE SUPPLIED

SINGLE-PHASE CONNECTION The installed cable allows a single-phase connection

• Connect the two paired wires in the BLUE sheath to the mains neutral

• Connect the yellow-green wire to the mains earth

• Connect the two paired wires in the BLACK sheath to the mains phase

• Cable section: 5 x 2.5 mm

• Voltage: 220-240 V~ Remove the jumpers and the cable from the terminal block (for instructions see REPLACING COMPONENTS) THREE-PHASE CONNECTION For the three-phase connection, replace the installed cable with the one supplied, remove the jumpers on the phase connections and connect the cable to the terminal block as shown in the images.

• Cable section: 5 x 1.5 mm

• To be used, the appliance must be correctly installed in a kitchen on a suitable work surface, in accordance with current safety regulations and the instructions in this booklet.

• The appliance cannot be used on top of a dishwasher or a tumble dryer: the steam could damage the electronic components of the appliance.

• Have installation and servicing carried out by qualified personnel in compliance with applicable standards and legislation. Do not try to repair the appliance yourself or without the assistance of a qualified technician.

• If the power supply cable is damaged, contact technical support immediately and they will arrange for it to be replaced

• This appliance and its accessible parts become very hot during use.

• Do not touch heating elements during use.

• During use, do not place metal objects on the appliance, as they may become incandescent.

• Switch o the appliance after use.

• Do not leave objects on the cooking surfaces.

• Ensure that hot surfaces are allowed to cool before proceeding to clean the appliance.

• Do not use abrasive or corrosive detergents (e. g. scouring powders, stain removers and metallic sponges) on glass parts.

• Sudden and extreme changes in temperature can cause the glass to break – never pour cold liquids onto the hob when in use.

• In the event of breakage or cracking in the glass top, switch off the hob immediately and disconnect it from the power supply. Contact technical support.

• Damaged containers, those that are the wrong size, that overhang the edge of the hob or are badly positioned can cause serious injury.

• Use of the hob generates heat, humidity and combustion products; ventilate the room thoroughly when it is in operation.

• Do not modify this appliance.

• Do not insert anything in the slots.

• Do not obstruct ventilation openings and heat dispersal slots.

• Do not use the appliance as a space heater for any reason.

• Do not sit on the appliance.

• Do not use steam jets to clean the appliance.

• Keep children under 8 years of age at a safe distance unless they are constantly supervised.

• Children must not play with the appliance.

• This appliance may be used by children from 8 years of age and people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they are supervised or instructed by adults responsible for their safety.

• Never try to put out a flame/fire with water. Switch the appliance off and cover the flames with a lid or a fire blanket. 52USE HOB DESCRIPTION Fig. 8POSITION SIZE POWER1 Ø 145 mm 1.4 kW / 1.8 kW2 Ø 200 mm 2.3 kW / 3.0 kW3 210 x 190 mm 2.1 kW / 3.0 kW4 210 x 190 mm 2.1 kW / 3.0 kW Ø 250 mm 2.3 kW / 3.0 kWFig. 9ICON DESCRIPTIONSwitch the hob on and offBlock controlsTimer displayActive timerCooking zone powerFunctions buttonICON DESCRIPTIONPower buttonIncreases or decreases thepower of a cooking zone,allows you to changesettings and select optionsfrom the user menuHeating functionGrill functionClean function

COOKING WITH INDUCTION

Under each cooking zone there is a coil called an inductor.The inductor generates a variable magnetic field usingelectrical power. When a pan is placed inside this magneticfield, the base heats up, producing the heat necessary forcooking.

USING THE TOUCH CONTROLS

• The controls respond to touch, so there is no need toapply pressure.• Use the pad of your finger and not the tip.• Each detected touch produces an acoustic signal.
• Make sure that the controls are always clean, dry and not covered by any object (such as a tool or cloth). Even a thin layer of water can make it difficult to use the controls.Fig. 10

The induction plate automatically adapts to the size of the pan: however, if the diameter of the pan is too small, the plate will not work. The minimum diameter varies according to the diameter of the plate. COOKING ZONE MINIMUM VALUE Round coil 145 mm ø 90 mm Round coil 200 mm ø 110 mm Round coil 250 mm ø 130 mm OCTA coil (single) ø 110 mm

CHOOSING THE MOST SUITABLE COOKING

CONTAINERS Do not use cooking containers with a rough bottom or a curved base. Fig. 11 Make sure that the base of the pan is smooth, rests evenly on the glass and is the same size as the cooking area. Use pans of a suitable diameter, as shown in the figure of the selected area. By using a slightly wider pan, the energy will be used at maximum efficiency. If you use a smaller pan, the efficiency may be lower than expected. Always centre the pan on the cooking zone. Fig. 12 Always remove the pans from the hob by lifting them, do not drag them, as there is a risk of scratching the glass. 54USE Fig. 13 The bottom of the pan must be iron or steel/iron to generate the magnetic field necessary for the heating process. NOTE Pans made from the following materials are not suitable:

• steel, aluminium or copper without magnetic bottom. Make sure that the material of the pan is suitable for induction. To check the material, place a magnet on the bottom of the pan: if it sticks, the pan is suitable for induction. If you do not have a magnet, to check if a pan is suitable, just pour a little water in it, place it on a cooking zone and switch on the zone. If the symbol appears on the display, the pan is not suitable. When buying pans, make sure they are suitable for use on an induction hob.

COOKING TIME LIMITATION

The appliance has an automatic device that limits the operating time. If the cooking settings of the container are not changed, the maximum operating time depends on the selected power level. POWER LEVEL MAXIMUM OPERATING TIME [H] Heating

SWITCHING ON AND OFF

To switch on the hob press the button for 1 second. When it switches on, the letters appear on the display of the timer and the word in the special functions bar. Only Timer and CLEAN can be activated without pans positioned on the hob.

USING THE COOKING ZONES

Induction does not work if there is no pan on the cooking zone. Place a pan (not empty) in the centre of the cooking zone you want to use. The cooking zone display will light up automatically. You can then set the desired power.

• By sliding your finger on the slider from left to right until you reach the desired value

• By directly touching the desired power level

• To switch off the cooking zone, touch the display of the cooking zone you want to switch off

• Slide your finger on the slider from right to left until it reaches 0

• By directly touching the area of the slider corresponding to 0 (last mark on the left) CLEAN 55USE POWER FUNCTION This function allows you to have more power on a cooking zone for a limited time (for example to reduce the time it takes to heat water). To activate it, directly touch the button. The Power function remains active at maximum for 5 minutes, after which the power is automatically lowered to 9. To deactivate the booster, set a lower power level. MULTIZONE The Multizone function allows you to combine two adjacent cooking zones to form a single larger area, ideal for using long or rectangular pans such as grill pans, griddles or fish kettles. The function can be activated on adjacent cooking zones located on the left side of the hob. The Multizone function is automatically activated if a pan is detected that covers both cooking zones. It is possible to activate the function manually by pressing the controls of the corresponding cooking zones at the same time. A tone confirms activation. After activation, the power can be adjusted using the slider and selecting the front area, ensuring even cooking over the entire extended area. To deactivate Multizone, press the controls of the two zones at the same time. The two zones will return to functioning separately.

AUTOMATIC HEATING FUNCTION

This function allows you to heat a cold pan (not empty) at maximum heat and automatically return to the previously set cooking level. To activate it, press the desired power level (from 1 to 8) for 3 seconds. The automatic cooking symbol will appear on the display. Once the heating time is over, the power level will return to the preset level. The time during which the cooking zone is heated at maximum power depends on the selected cooking level. POWER LEVEL AUTOMATIC HEATING (SECONDS)

9 / P / The function can be deactivated manually by selecting a lower power level than the one initially set. AUTOMATIC SWITCH-OFF The hob switches off automatically 20 seconds after all cooking zones have been switched off. 56USE TIPS ON THE POWER TO BE USED FOR VARIOUS COOKING METHODS The use of power can vary according to experience and cooking habits.

Quick heating Quickly raising the temperature of food to boiling point in the case of water, or quickly heating up cooking liquids 8–9 Frying, boiling Browning, starting to cook, frying frozen products, quick boiling HIGH POWER 7–8 Browning, light-frying, boiling, grilling Light-frying, keeping at a high boil, cooking and grilling (for short periods, 5– 10 minutes) 6–7 Browning, cooking, stewing, light-frying, grilling Light-frying, keeping at a slow boil, cooking and grilling (for medium periods, 10–20 minutes). Preheating pans MEDIUM POWER 4–5 Cooking, stewing, light- frying, grilling Stewing, keeping at a low boil, cooking (for long periods), creaming pasta 3–4 Cooking, simmering, thickening, creaming Prolonged cooking (rice, mushrooms, roasts, fish) in the presence of accompanying liquids (water, wine, stock, milk), creaming pasta 2–3 Cooking, simmering, thickening, creaming Prolonged cooking (less than a litre: rice, sauces, roasts, fish) in the presence of accompanying liquids (water, wine, stock, milk) LOW POWER 1–2 Melting, defrosting, keeping warm, creaming Melting butter, gently melting chocolate, defrosting small products

Melting, defrosting, keeping warm, creaming keeping small portions of freshly cooked food warm or keeping serving dishes at the right temperature and creaming risotto 57USE POWER MANAGEMENT The hob is equipped with a power management module that optimises consumption, avoiding overloading the electrical mains. If more than one zone is active and the power consumed exceeds the power supply limit, this function distributes the available power among all the cooking zones (connected to the same phase). The electronic control tries to maintain the maximum levels of power that can be delivered. Priority is given to the last zone set, the displays of the other zones flash indicating the new value to which they will be reset. CAUTION In the case of power limitation set at a very low level, the electronic control could switch off a cooking zone because it is not possible to redistribute the power. CAUTION Lower power levels are reached by switching the inductor on and off at pre-set intervals. This method of operation minimises the heat supplied to food when cooking at low temperatures. TIME FUNCTIONS MINUTE-MINDER When it switches on, the letters appear on the timer display. Press the timer display and use the slider to set first the minutes and then the desired tens of minutes. After 2 seconds the symbol lights up and the countdown begins. At the end of the set time (maximum 99 minutes) a tone will be emitted. To switch off or change the cooking time, repeat the same procedure and change the time (possibly setting it to 0). NOTE The timer can be set and only works when all the cooking zones are switched off.

END OF COOKING TIMER

If you want to set an end of cooking timer for a zone:

3) Press the timer display and use the slider to set first the

minutes and then the desired tens of minutes

4) After 2 seconds the symbol above the display of the

corresponding cooking zone lights up and the countdown begins

5) At the end of the countdown, a tone sounds and the

cooking zone is switched off. To switch off or change the cooking time, repeat the same procedure and change the time (possibly setting it to 0). NOTE If more than one timer is set, the timer will always display the lowest remaining time PAUSE With this function it is possible to suspend the operation of ALL cooking zones. Press the button for 3 seconds, all the zones will switch off and the PAUSE symbol will appear on the display, but the set power levels will be memorised. To reactivate the hob, press for 3 seconds and then press any button (except the button). At this point, all zones will start to function as before. The appliance switches off automatically after a 10-minute pause 58USE RESIDUAL HEAT The residual heat indicator is a safety feature. Once cooking is finished, the cooking zone may be at a high temperature. The symbol appears on the display corresponding to the hot zone. The symbol may also appear:

• for nearby cooking zones, even if they are not in use

• when placing hot pans on the cold cooking zone The symbol disappears when the zone reaches a temperature below 60℃ CHILD LOCK This function allows you to lock the interface to prevent the hob from being used by children. Press the display of a cooking zone for 3 seconds then slide the slider from 0 to 9. Complete this procedure within 10 seconds. The indication appears on all displays. Repeat the same sequence to deactivate the function. KEYPAD LOCK This function allows you to lock the keypad during use to avoid accidentally changing settings. To activate, press the button, which lights up to indicate the active function. To deactivate the function, press the button again. PAN SENSOR When a pan is placed on a cooking zone with the hob switched on, the controls for that cooking zone are automatically activated and the desired power level can be set directly. The function can be disabled via the user menu. With the function disabled, after positioning the pan you must choose the relative cooking zone before setting the power. NO PAN If the pan is removed from a cooking zone without turning off the zone, the display indicates that there is no pan . CAUTION If the zone is not turned off, the hob remains active, so it could heat up another pan placed on the same zone by mistake. DISPLAY OVERTEMPERATURE If a hot object is placed on the interface, the interface will go into protection mode, switching off the hob completely and indicating ER21. When the temperature drops below the limit of 85℃, the hob can be switched back on. WARMING This function allows you to maintain the temperature of the pan at 70℃. Activate the cooking zone on which you want to set the function, press the function button . The function is activated and Warming appears on the display. To deactivate or change the power, select the corresponding cooking zone and set the desired power level using the slider. The function can also be set in the case of active bridge zones. GRILL This special function facilitates the grilling of food. Place the grill pan on the multizone and select it. Press the function button twice until the function is activated. Set the power level using the slider:

• for levels 1-3 one mark will appear on the display

• for levels 4-6 2 marks will appear on the display

• for levels 7-9 3 marks will appear on the display CLEAN This function locks the keypad for 30 seconds to allow cleaning. Without selecting cooking zones, press the button to activate the function. The countdown will appear on the display, reminding you how long the keypad remains locked. GRILL CLEAN 59USE 60USE USER MENU The user menu allows you to customise some basic settings of the induction hob. To enter the user menu, the hob must be switched off

1) Switch on the hob by pressing

2) Press the button again

3) The hob is switched off, the button starts to flash

4) With the button pressed, press the cooking zone

buttons in sequence in a clockwise direction (starting from the front left button) - each time a button is pressed, it will be confirmed by a beep

5) Release the button

6) The display at the back left shows the letters U and 0

7) To choose the desired function, use the slider by

pressing the corresponding mark (the slider function is not active) FUNCTIONS/LEVELS

• U0 Total power set for each phase

• U2 Tone volume for when buttons are pressed (the volume of the button cannot be changed)

• U4 Display brightness 0–9 (1 maximum brightness – 9 minimum brightness)

• U5 Timer animation 0 (no animation) - 1 (countdown in the last 60 seconds)

• U6 Automatic pan detection active 1 Automatic pan detection deactivated 0

• U7 Timer signal length 0 (120 seconds) - 1 (10 seconds) - 2 (no alarm tone) The front left display shows the set level of the function Press the front left display and use the slider to press the desired level. To exit the menu without saving - press the button To exit the menu and save the modified settings - press the button for at least 2 seconds (the changes are saved and the hob switches off) SERVICE MENU NOTE The service menu should only be used by the installer or specialised personnel. To enter the service menu, the hob must be switched off and powered for less than 2 minutes

1) With the button pressed, press the cooking zone

buttons in sequence in a counterclockwise direction (starting from the front right button) - each time a button is pressed, it will be confirmed by a beep

2) Release the button

3) The display at the back left shows the letters C and 0

4) To choose the desired function, use the slider by

pressing the corresponding mark (the slider function is not active) FUNCTIONS

• C6 Demo mode 1 – demo mode active 0 – deactivated

• C8 Power management The front left display shows the set level of the function.

the button for at least 2 seconds (the changes are saved and the hob switches off) 61USE POWER LIMITATION To avoid overloading the power line, it is possible to set the maximum power absorbed by the hob. See SERVICE MENU CAUTION The reduction of the maximum power could mean that it is not possible to use all the zones at the same time, or that the booster function has to be set for some zones. Table 1 HOB 90 POWER CONFIGURATION MANAGEMENT

62MAINTENANCE REPLACING COMPONENTS Disconnect the appliance from the power mains before carrying out any maintenance procedure. Contact an authorized service center if functional and electrical components require replacement. WARNING If the power cable requires replacement, the installer/maintenance technician must use a cable of the type and with the cross-section as per the table and leave the earth lead about 2 cm longer than the phase leads. The instructions given for the initial electrical connection must also be complied with. Permitted cable types: H05VV-F, H05RR-F, H07RN-F TYPE OF CONNECTION VOLTAGE CABLE SECTION SINGLE- PHASE 220-240 V 5x2.5 mm

For the two-phase or three-phase connection, follow the procedure below:

1) Turn the hob over and place it on a cloth or other soft

surface to avoid scratching it.

2) Remove the terminal block cover and the cable clamp

using a screwdriver. Unscrew the cable fixing clamps and remove the cable and jumpers.

3) Depending on the connection required, prepare the

jumpers, insert the cables into the terminals and tighten the screws adequately. Refit the cable clamp and terminal block cover. CAUTION Make sure that the cables and jumpers are correctly fixed and that the screws are properly tightened. For the different electrical connection possibilities, use the brass connection jumpers already assembled in the terminal block. Fig. 14

• Two-phase connection 4x4 mm

220-240 / 380- 415V 2N~ Fig. 15 POWER LIMITATION Power limitation defines how much power is used by the hob in total, within the limits of the fuses for domestic installation. The hob is preset to the maximum power level. To set a different power limit, see chapter POWER FUNCTION, obviously the higher the power set, the greater the number of functions and power levels that can be used simultaneously on the cooking zones.

A pulsating or continuous hum during operation is normal and can vary in intensity depending on the different types of pans and the power setting. The cooling fan protects the electronics from overheating, so it is normal to hear it running even after switching off the induction hob.

CLEANING THE APPLIANCE

Before performing any manual cleaning operation, wait for all parts to cool down and check that the hob is switched off or in cleaning mode.

Do not use steam to clean the hob, as the steam could reach the electronic components and cause a short circuit. All surfaces can become discoloured or damaged if cleaning agents that are too aggressive or unsuitable are used.

CLEANING THE DECORATIVE FRAMES

Clean the parts with soapy water and then dry them with a soft cloth. The shine can be maintained by periodic use of commonly available products. Never use scouring powders or pads.

To degrease, use washing-up liquid and vinegar, then rinse; otherwise, clean with washing-up liquid, rinse, then pass over with a moist cloth before drying. To remove encrusted food, soak with soapy water or washing-up liquid for a few minutes. After a few minutes, rinse o then dry with a soft cloth. Avoid anti-limescale, abrasive and multi-purpose products, as they will aect the look of the glass after a while. 64TROUBLESHOOTING

BEHAVIOUR POSSIBLE CAUSES

The hob will not turn on There is no power supply or it could be interrupted (for example, blown fuse) The hob does not heat up DEMO mode is activated, see section SERVICE MENU The letter L appears on the display Child lock is activated - see relevant section CHILD LOCK No pan symbol The pan has been removed from the cooking zone Symbol A alternates with the power level The automatic cooking system has been set The power of the chosen cooking zone cannot be selected The pan has not been recognised (it may have been positioned incorrectly, it may not be suitable for induction cooking or its diameter may be too small The power level selected is higher than the maximum power level set for the hob Residual heat symbol does not light up The zone just used for cooking has not reached a high temperature The cooking zones change power autonomously See section POWER MANAGEMENT When a cooking zone is switched on, another one switches off See section POWER MANAGEMENT A cooking zone or the entire hob turns off automatically The hob is overheated, check that there are no obstructions to the lower cooling system (e.g. bulky material inside a drawer under the hob) If the problem persists, contact customer support Food does not heat up in the expected time Although the pan is compatible with induction cooking, it conducts heat poorly The pan is much smaller than the cooking zone and only receives part of the possible power When the hob is on, you can hear a slight ticking sound The noise is due to the automatic pan sensor function (see relevant section) After switching off the hob, you can hear noises The cooling fan works until the electronic components have cooled down completely, after which it switches off automatically The control panel becomes warm to the touch A pan that was too big was placed in the front cooking zones near the control area The food in the pan alternates between boiling and not boiling It is absolutely normal at the lowest power levels (below level 6) (see section POWER MANAGEMENT The cooking platform has dedicated error codes for quick and efficient diagnostics. The Lite Slider shows the error codes on the 7-segment displays of the cooking zones. An error code always begins with the letters E... or ER..., depending on the electronic component that generated the error:

• Error codes that begin with E... refer to a specific zone or component.

• Error codes that begin with ER... refer to the entire hob. Before calling customer service, make sure that the appliance is connected correctly; the following cases are not covered by the warranty

• Damage caused by improper use, storage or maintenance.

• Damage caused by unauthorised disassembly and repair.

• Damage caused by improper use. 65TROUBLESHOOTING

• Use of the induction hob for commercial purposes. NOTE If an anomaly occurs, the induction hob automatically goes into protection mode and displays the corresponding protection codes indicated in the table below. NOTE For other errors, contact technical support.

ERROR CODE BEHAVIOUR POSSIBLE CAUSES REMEDIES

ER03 The hob switches off after 10 seconds Water or pans placed on the user interface Remove the water or pans from the glass ER21 The hob switches off The temperature sensor on the user interface has detected a temperature >85°C Let the hob cool down (the error will disappear if the temperature drops below 75°C). Check the thermal insulation of the user interface E2 / ER21

Incorrect 400V connection, not suitable for the grill board

Bertazzoni is committed to providing the highest quality service to our customers. In the unlikely event that your product should have a manufacturing defect, please contact our service team at: https://uk.bertazzoni.com/more/care-service You will be requested to provide product information, proof of purchase, a photo of the silver data label and a description of the issue. Please have this information ready. 67ASSISTENZA CUSTOMER SERVICE

CONVENTIONAL WARRANTY CERTIFICATE: WHAT DO

I NEED TO DO? Your product is guaranteed, on the terms and conditions set forth in the certified supplied with the product and in accordance with the provisions of current law, for a period of 24 months from the date of delivery of the appliance. As required by the aforesaid Legislative Decrees, you must conserve the duly compiled warranty certificate, so that it can be shown to the Authorised Service Partner if necessary together with a fiscally valid document issued by the dealer at the time of purchase (delivery note, invoice, fiscal receipt, etc.) which carries the dealer’s name, the delivery date, identification of the product and the price of sale It is understood that, unless proven to the contrary, since conformity defects which emerge within six months after delivery of the appliance are assumed to have already existed at that date, unless this assumption is incompatible with the nature of the appliance or the nature of the conformity defect, after checking the warranty cover, the Bertazzoni S.p.A. Authorised After-Sales Service will do the necessary work without charging for the call-out, labour and parts. However, for the subsequent eighteen months of the warranty period, consumers intended to claim remedies granted under the warranty shall be responsible for proving that the conformity defect has been present ever since delivery; therefore, if consumers are unable to provide this proof, the warranty conditions shall not be applied and therefore the Bertazzoni S. p. A. Authorised After-Sales Service will do the work required and charge all the relative costs to the consumer.

ANOMALIES AND MALFUNCTIONS: WHO DO I

CONTACT? The service partner is always ready to assist you with all necessary explanations, but in case of anomalies or malfunctions affecting your product you are urged to perform all the checks listed in the instruction manual before contacting the Authorised After-Sales Service. To order parts or accessories, telephone our service and parts department.

FINDING YOUR NEAREST SERVICE CENTRE

If the problem persists, you can find your local Authorised Service Partner at any time by contacting your dealer or distributor or visiting www.bertazzoni.com. PRODUCT MODEL: WHERE CAN I FIND IT? When talking to the Authorised Service Partner, you must state the product’s model and its serial number (10 figures), which are provided in the instruction manual (silver sticker) or on the decal applied to the product. This will help to avoid unnecessary call-outs and above all save the relative costs.
