USER MANUAL P604I2M28NV BERTAZZONI

INDUCTION BUILT IN HOB

www.bertazzoni.com2FROM THE DESK OF OUR PRESIDENT Dear new owner of a Bertazzoni appliance, I want to thank you for choosing one of our beautiful products for your home. My family started manufacturing kitchen appliances in Italy in 1882, building a reputation for quality of engineering and passion for good food. Today, our products stand out because of their unique blend of authentic Italian design and superior appliance technology. It is our mission to make products that function perfectly and bring joy to their owners. By making beautiful products we respond to our customers’ flair for good design. By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure. This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come. Enjoy! Paolo Bertazzoni President

34USER MANUAL VALIDITY

The following manual is valid only for P604I2M28NVS product code.

These instructions are suitable for different types of appliances, so they may contain descriptions of functions which your appliance may not contain or support. The images and illustrations in this document refer to various models and may differ slightly from the product purchased. The manufacturer does not accept any responsibility for personal injury or damage to property arising from incorrect installation or misuse of the appliance. The manufacturer reserves the right to modify the various models as required to comply with the technical regulations in force. In the event of complaints, please contact the customer service.

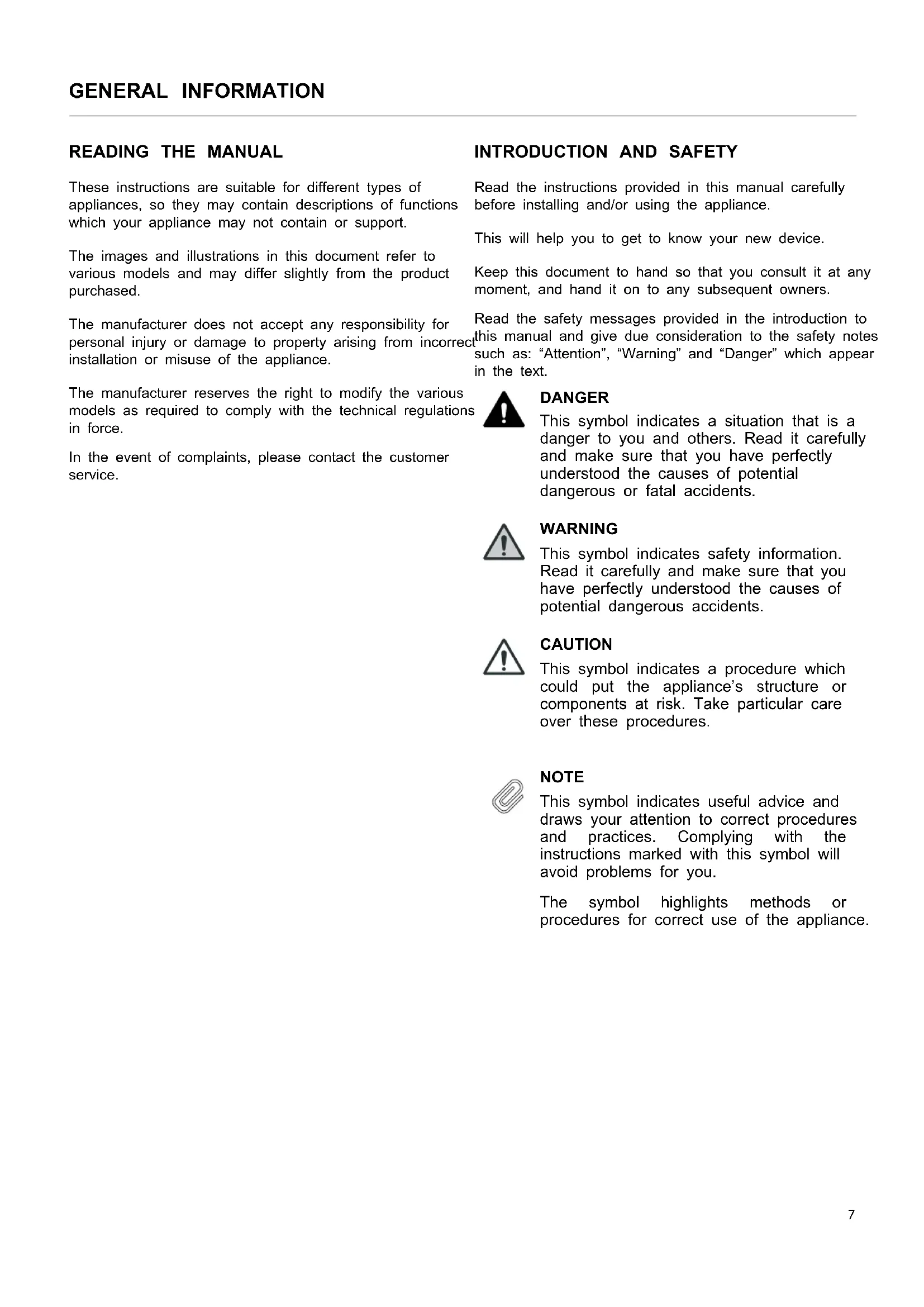

INTRODUCTION AND SAFETY

Read the instructions provided in this manual carefully before installing and/or using the appliance. This will help you to get to know your new device. Keep this document to hand so that you consult it at any moment, and hand it on to any subsequent owners. Read the safety messages provided in the introduction to this manual and give due consideration to the safety notes such as: “Attention”, “Warning” and “Danger” which appear in the text. DANGER This symbol indicates a situation that is a danger to you and others. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous or fatal accidents. WARNING This symbol indicates safety information. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous accidents. CAUTION This symbol indicates a procedure which could put the appliance’s structure or components at risk. Take particular care over these procedures. NOTE This symbol indicates useful advice and draws your attention to correct procedures and practices. Complying with the instructions marked with this symbol will avoid problems for you. The symbol highlights methods or procedures for correct use of the appliance. 7GENERAL INFORMATION APPLIANCE IDENTIFICATION Fig. 1 The dataplate contains the following information:

This appliance complies with European directive 2012/ 19/EU (RoHS). This appliance is tagged in accordance with European directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE). This directive contains the regulations governing the collection and recycling of decommissioned appliances throughout the European Union. The symbol of a waste bin with a cross over it which appears on the product indicates that Waste Electrical and Electronic Equipment (WEEE) must not be thrown away with ordinary urban waste but must be disposed of separately, so it can undergo special processing to enable its reuse or specific treatment for safe removal and disposal of any substances harmful to the environment and extraction of raw materials which can be recycled. Therefore, WEEE must be delivered to Recycling Centres run by Municipal Authorities or Waste Management Companies. What’s more, when a new appliance is purchased WEEE can be consigned to the retailer, who is obliged to take it back free of charge (“1:1” take-back). “Very small” WEEE (with no dimension exceeding 25 cm) can be consigned to retailers free of charge even when no purchase is made (“0:1” take-back - which however is only compulsory for stores with sales area of over 400 m2). DANGER This appliance is not intended for use by people, including children, with reduced mental or motor capabilities, or who do not have experience in or knowledge of the product’s operation. These persons may only use the appliance under the supervision of a person responsible for their safety and with suitable instruction in use of the appliance. DANGER If the surface of the induction hob is cracked, switch the appliance off to avoid the risk of electric shocks. DANGER Fire hazard: do not leave inflammable objects on cooking surfaces. Bertazzoni SpaVia Palazzina,842016 Guastalla (RE)Italywww.bertazzoni.comATTENTION : This appliance must be installed in accordance with the regulationscurrently in force and must be only used in well ventilated premises. Read theinstructions before installing or using this appliance.PXXXXXXXXXXXProductType:InductionBuilt-inHobFactoryModel:PXXXXXXXXXXXRatedVoltage:220-240V~RatedFrequency:50/60HzTotalPower(kw) :7.0kw(230v~);CLASS IMadeinChina8057971105069SN:XXXX00001

8GENERAL INFORMATION DANGER Automatic cooking on the hob with fat or oil may be hazardous and may cause fires. If a fire breaks out, do not attempt to put it out with water. Switch the appliance off and cover the flames with a lid or a fire blanket. DANGER This appliance can be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or without the necessary of experience and knowledge, provided they are supervised or have received instruction concerning safe use of the appliance and an understanding of the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children. WARNING The appliance and its accessible parts become very hot during use. Do not touch the heating elements. Children under 16 years of age must be kept away from the appliance unless constantly supervised. Do not touch the heating elements of the hob and/or inside the oven. WARNING Accessible parts may become hot during use. Children must be kept well away. WARNING Make sure that the appliance is disconnected from the electrical mains before replacing the lamp to avoid possible electric shocks. WARNING Do not use steam cleaners to clean the appliance. WARNING Do not use an external timer or other remote control systems to operate the appliance.

The listed installation, adjustment, conversion and maintenance procedures must only be performed by qualified staff in accordance with the current regulatory framework. DANGER Incorrect installation may cause injury to people and pets or damage to property, for which the manufacturer cannot be held liable. During the lifetime of the system, appliance safety or automatic adjustment devices may only be modified by the manufacturer or the duly authorised installer.

INSTALLING THE PRODUCT

NOTE Remove all parts of the packaging from the appliance before disposing of the packaging. NOTE Remove all packaging and protective films prior to installation. DANGER Keep all parts of the packaging (expanded polystyrene, bags, cardboard box, nails) out of reach of children since they are dangerous items. DANGER Make sure that the product is intact after removing the internal and external packaging from the various movable parts and before proceeding with installation. If in doubt, do not use the appliance and contact qualified staff. WARNING The air vent flue must be constructed in accordance with regional regulations and laws. WARNING Sufficient air intake must be guaranteed. CAUTION Any vertical surfaces of adjacent furniture units and the wall behind the product must be in heat-resistant material able to withstand a temperature of 90℃.

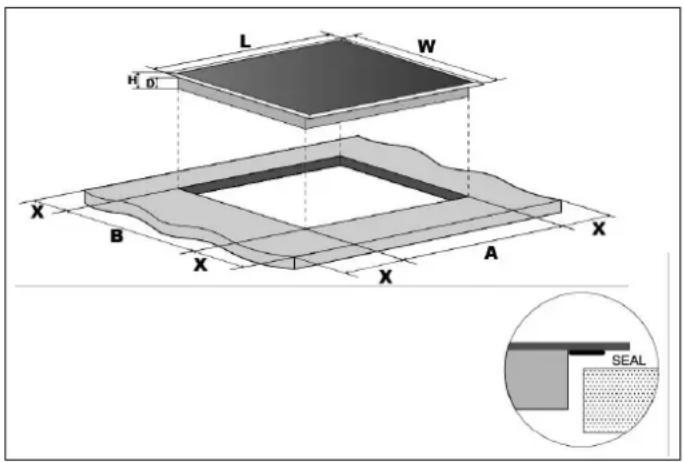

Cut out the work surface according to the sizes shown inthe Fig. 2 . For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.Fig. 2

MIN Be sure the thickness of the work surface is at least 30 mm.Please select heat-resistant work surface material to avoidlarger deformation caused by the heat radiation from thehotplate.Under any circumstances, make sure the cooktop hob iswell ventilated and the air inlet and outlet are not blocked.Ensure the cooktop hob is in good work state.Fig. 3A(MM) B(MM) C(MM) 650 20 MIN 20 MIN Airintake NOTE The safety distance between the hotplate and the cupboard above the hotplate should be at least 650 mm. BEFORE YOU INSTALL THE HOB, MAKE SURE THAT• The work surface is square and level, and no structuralmembers interfere with space requirements.• The work surface is made of a heat-resistant material.

• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.• The isolating switch must be of an approved type andprovide a 3 mm air gap contact separation in all poles (orin all active [phase] conductors if the local wiring rulesallow for this variation of the requirements).
• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.• You use heat-resistant and easy-to-clean finishes (suchas ceramic tiles) for the wall surfaces surrounding the hob. WHEN YOU HAVE INSTALLED THE HOB, MAKE SURE THAT

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of fresh air from outside the cabinetry to the base of the hob.• If the hob is installed above a drawer or cupboard space,a thermal protection barrier is installed below the base ofthe hob.• The isolating switch is easily accessible by the customer.

1) Cut out worktop to supplied dimensions shown with

suitable equipment. Seal the cut edge of the worktop using silicone or PTFE and allow to dry prior to fitting the hob. Fig. 4

2) Stretch out the supplied seal along the underside edge

of the hob, ensuring the ends overlap. Fig. 5

3) Do not use adhesive to fix the hob into the worktop.

Once the seal is fitted position the hob into the cutout in the worktop. Fig. 6

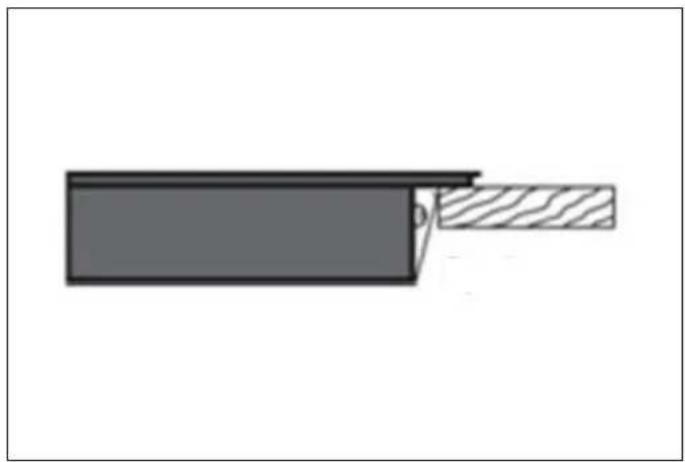

4) Apply gentle downwards pressure onto the hob to push

it into the worktop ensuring a good seal around the outer edge. Fig. 7 CAUTIONS

1) The ceramic hotplate must be installed by qualified

personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.

2) The hob will not be installed directly above dishwasher,

fridge,freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.

3) The ceramic hotplate shall be installed such that better

heat radiation can be ensured to enhance its reliability.

4) The wall and induced heating zone above the table

surface shall withstand heat.

5) To avoid any damage,the sandwich layer and adhesive

must be resistant to heat.

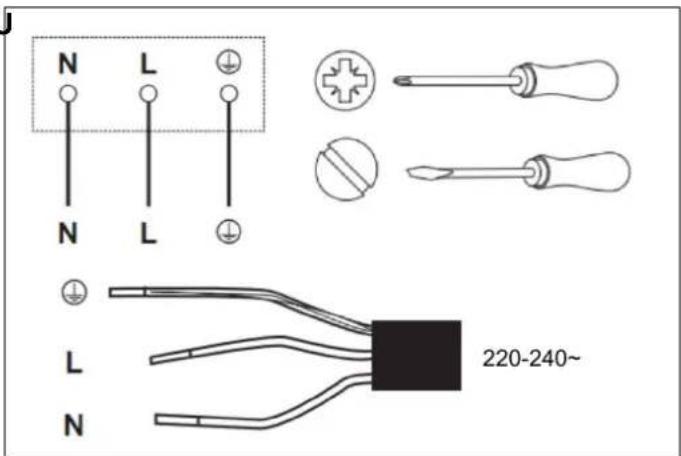

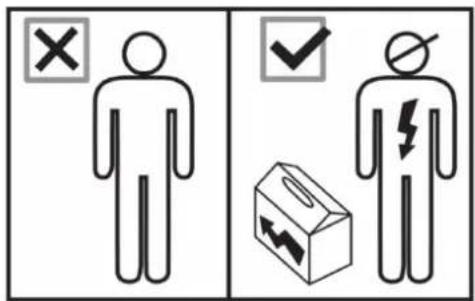

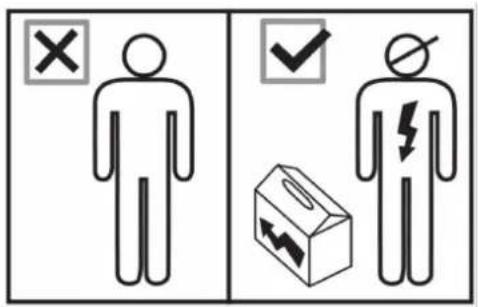

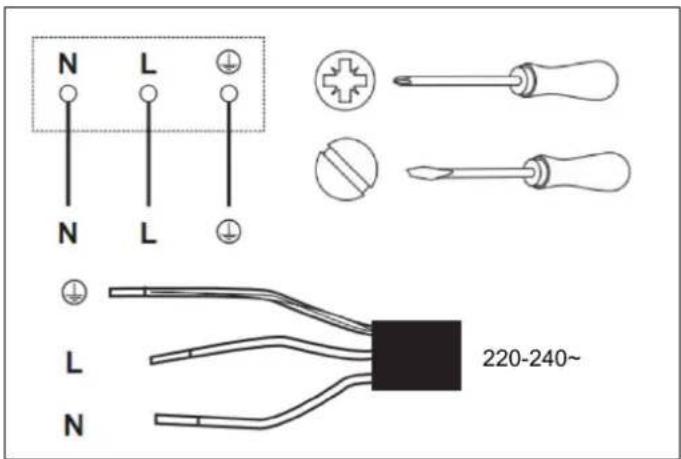

POWER SUPPLY All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooktop hood. WARNING THIS APPLIANCE MUST BE ARTHED. CAUTION This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply,check that:

1) The domestic wiring system is suitable for the power

2) The voltage corresponds to the value given in the rating

3) The power supply cable sections can withstand the load

specified on the rating plate. CAUTION To connect the hob to the mains power supply, do not use adapters, reducers or branching devices, as they can cause overheating and fire. CAUTION The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 180˚C at any point. This appliance is supplied with a 3 core mains cable coloured as shown in Fig. 8 Fig. 8

• – Green and Yellow: Earth

THIS APPLIANCE REQUIRES A 32 AMP MINIATURE

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.

• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.

• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

• The cable must not be bent or compressed.

• The cable must be checked regularly and replaced by authorised technicians only. 220-240~ 13USE

IMPORTANT WARNINGS FOR THE USER

WARNING Do not place metal items such as knives, forks, spoons or lids on the surface of the hob since they may become hot. WARNING After use, switch the hob elements off using their controls; do not rely on the pan sensor. WARNING Accessible parts may become overheat during use. Keep children well away from the appliance. WARNING Cooking processes must be monitored. A short cooking process must be constantly supervised. WARNING The appliance becomes hot during use. Avoid touching the heating elements inside the oven. WARNING The appliance is not intended to operate by means of an external timer or other remote control system. CAUTION Do not use abrasive cleaning products or sharp-edged metal scrapers to clean the glass of the oven door, since they may scratch its surface and the glass may break. 14INDUCTION HOB COOKTOP LAYOUT

Timer regulating key (reduce)

Timer regulating key (increase)

Power Touch Slider Regulating Key G Child lock

• The controls respond to touch, so you don’t need to apply any pressure.

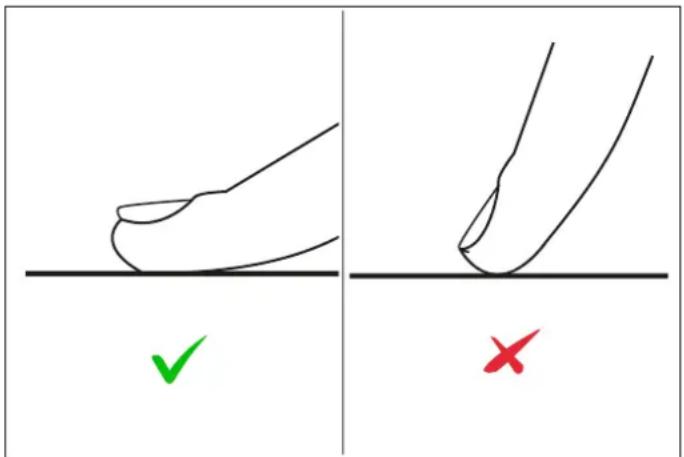

• Use the ball of your finger,not its tip.

• You will hear a beep each time a touch is registered.

• Make sure the controls are always clean, dry, and that there is no object (e. g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate. Fig. 10

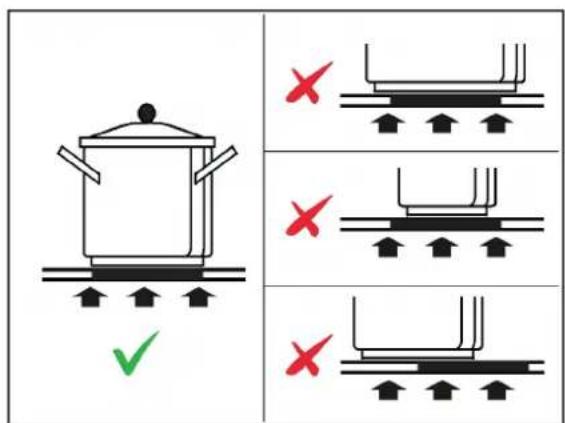

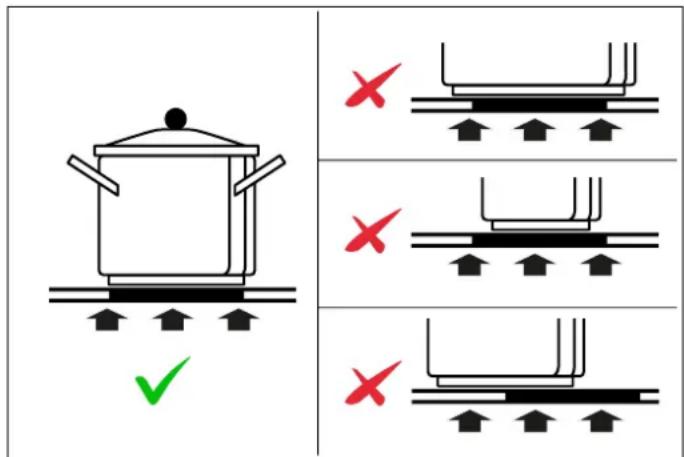

CHOOSING THE RIGHT COOKWARE

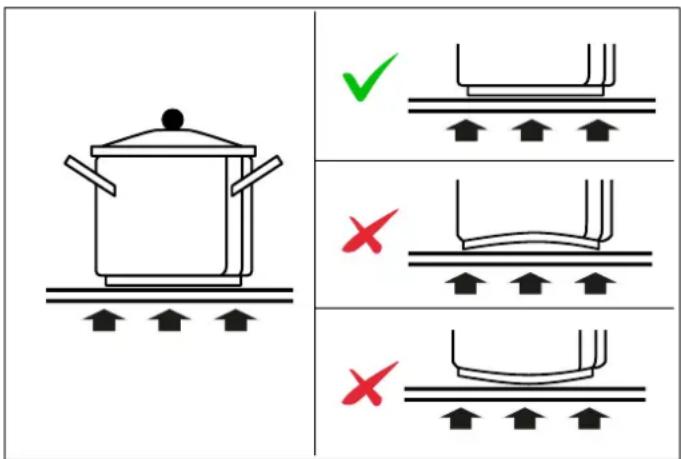

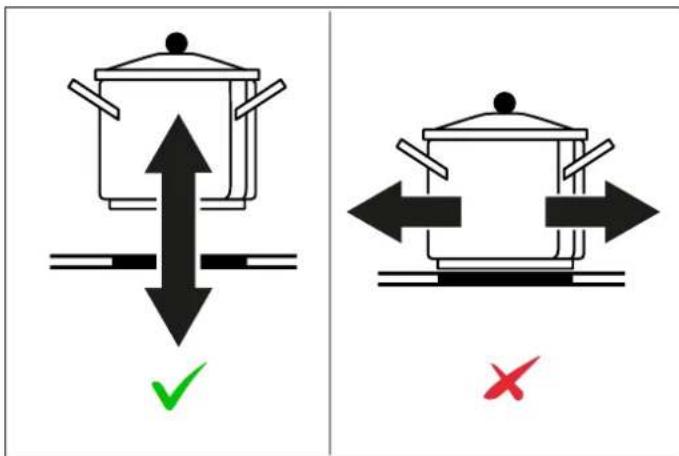

Do not use cookware with jagged edges or a curved base. Fig. 11 Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Always centre your pan on the cooking zone. Fig. 12 Always lift pans off the hob – do not slide, or they may scratch the glass. 17INDUCTION HOB Fig. 13 The bottom of the pan must be iron or steel/iron to generate the magnetic field necessary for the heating process. NOTE Pans made from the following materials are not suitable:

• steel, aluminium or copper without magnetic bottom. To check that a pan is suitable, simply put a little water in the pan, place it on a cooking zone and switch the zone on. If appears on the display instead of the power, the pan is not suitable. Make sure that the material of the pan is suitable for induction. For checking the material place a magnet at the bottom of the pan, if it sticks, the pan is appropriate for induction.

1) Place a suitable pan on the cooking zone that you wish

to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. Fig. 14

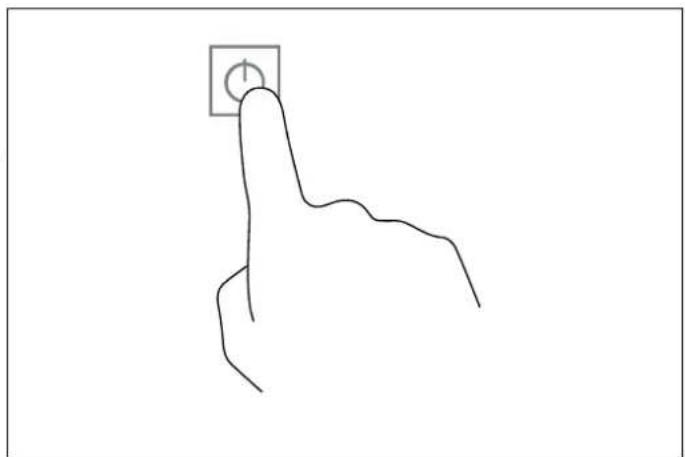

2) Touch the ON/OFF key

After power on, the buzzer beeps once, all displays show “ 8 “, indicating that the hob has entered the state of standby mode. Fig. 15 18INDUCTION HOB

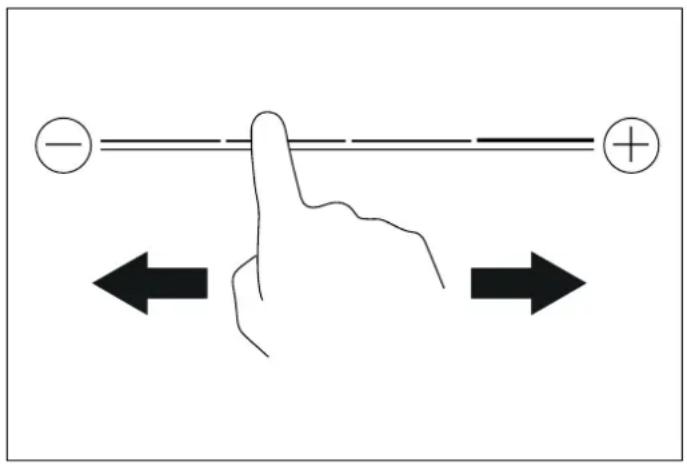

3) According to the heating zone where the pan is placed,

adjust heat setting by touching the slider regulating key control. Fig. 16

• If you don’t choose a heat setting within 20 seconds, the induction hob will automatically switch off. You will need to start again at step 2.

• You can modify the heat setting at any time during cooking.

USING CHILD LOCK FUNCTION

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).

• When the controls are locked, all the controls except the OFF control are disabled.

TO LOCK THE CONTROLS

Touch the child lock key for 3 seconds. The indicator above the child lock key will be on and the timer indicator will show “Lo“.

TO UNLOCK THE CONTROLS

1) Make sure the hob is turned on.

2) Touch and hold the keylock control for a while.

3) You can now start using your induction hob.

NOTE When the hob is in the lock mode, all the controls are disable except OFF, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation.

• You can set it to turn one cooking zone off after the set time is up.

• You can set the timer for up to 99 minutes.

1) Select the relevant cooking zone which is working by

touching the zone select key.

of timing from 1 to 99 minutes.

4) When the time is set, it will begin to count down

immediately. The indicator will return to show power level after 10 seconds. The power level indicator will always remain active and the timer icon will be displayed.

5) If you need to check the remaining time, you can operate

step 1 and step 2 again.

6) When cooking timer expires, the corresponding cooking

zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously.

USING THE FLEX-ZONE FUNCTION

For activating the Flex-zone function:

1) Simultaneously press anywhere on the left and right side

of the slider bar. For instance, press level 1 on the left side and level 8 on the right side. The Flex-zone icon will be displayed indicating the function has been activated.

2) After the flex-zone icon appears, the display will switch

to level 5 automatically. Once level 5 is shown, you can adjust the desired level by simply touching the slider bar.

3) If you want to cancel the flex-zone function, press the left

and right zone scroll bars simultaneously and the zones will be reset to zero.

• Touch booster key once, the display area will show p, indicating that the hob has entered the booster mode. After entering the booster mode, touch the booster key again, the display area will show b, indicating that the hob has entered the double booster mode. 19INDUCTION HOB

USING THE PAUSE & RECALL FUNCTION

The pause function can be used at any time during cooking. Allows stop the hob and restore cooking without losing any adjustments.

1) Make sure the cooking zone is running.

2) Press the button. The Cooking zone indicators will

show . The hob Will Be deactivated, except for the Pause & Recall, ON/OFF and Child Lock. .

3) To Cancel the pause, press the Pause & Recall button

again; the indicators will start flashing, then within 10 seconds press any button (other than the Pause & Recall button) to reactivate the zones in operation.

USING THE COOKING FUNCTION

Touch the cooking zone selection button that you wish to use, then touch . The cooking zone indicator will show one of the icon below for each cooking function:

• Melt or defrost (about 50℃)

• Heating or keeping warm (about 70℃)

• Simmering, temperature close to boiling, useful for slow cooking SPECIAL FUNCTIONS

PROTECTION FROM OVER-HEATING

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

RESIDUAL HEAT INDICATOR

When the hob has been operating for some time, there will be some residual heat. The letter H appears to warn you that it is too hot to touch the surface.

AUTOMATIC POT DETECTION

Placing the pan on the desired cooking zone, the specific power indicator will automatically light up. POWER LIMITATION The power limitation function adapts the appliance’s power draw to the electrical power available in the home. To activate the function, proceed as follows:

1) Press for 3 seconds. The display will show -.

2) Simultaneously press the cooking function key of the

rear left heating zone and . The display shows

3) Press . The display will show

4) Simultaneously press the cooking function key of the

rear left heating zone and . The display will show the current Max Power setting values 28/45/60/72".

5) Press "-" or "+" keys, to change and reset your expecting

power 9000 W / 3500 W / 2800 W.

6) Press to save the setting and exist this mode.

Auto shut down is a safety protection function for your induction hob. It shuts down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: POWER LEVEL DEFAULT WORKING TIMER (MIN) 1-3 360 4-6 180 7-8 120

NOTE Protection against unintended operation. If the electronic control detects a button being held down for approx. 10 seconds it will switch off automatically. The control sends out an audible error signal to warn the sensors have detected the presence of an object. The display will indicate an error code ER03. If the hob is still hot, the display H and 0 flash alternatively.

21CARE AND MAINTENANCE

WARNING Always switch off the electricity supply before performing maintenance work. In the event of a fault, contact customer services. WARNING Always disconnect the appliance from the electrical mains before cleaning. WARNING Do not use steam cleaners when cleaning. Damaged power cables should be replaced by a competent person or qualified electrician. For domestic use only. Never place an empty pan on the hob as this will cause an error message to appear on the control panel. When a cooking zone has been on for a long time, the surface remains hot for some time afterwards so do not touch the ceramic surface. For sealed foods, please do not heat them before opening removing the lid so as to avoid any dangers of explosion due to heating expansion. If the surface of the hob is cracked, disconnect from power supply to avoid any possibility of electric shocks. Do not place rough or uneven pans on the hob, as they could damage the ceramic surface. Avoid banging pots and pans down on the hob. The ceramic surface is tough but not unbreakable. Do not put detergents or flammable materials beneath the hob. INDUCTION HOB Before starting cleaning, leave the hob to cool until the heat warning light goes out. Do not use abrasive pastes or powders or metallic sponges. All water, food and detergent residues must be removed before reuse. Remove light dirt with a soft cloth dipped in water and detergent then polish with a microfibre cloth. For the most stubborn stains, use a specific product, following the producer’s instructions for use. In case of spills of very sugary materials (such as jam) or if plastic or metals are accidentally melted onto the surface, switch the hob off and remove the dirt immediately, taking great care because the hob and dirt will be very hot. GLASS Clean with a soft cloth wet with hot water and liquid detergent. Dry with a microfibre cloth. Stubborn dirt can be removed with a cream detergent. Do not use sharp objects as they may scratch the glass.

22CARE AND MAINTENANCE

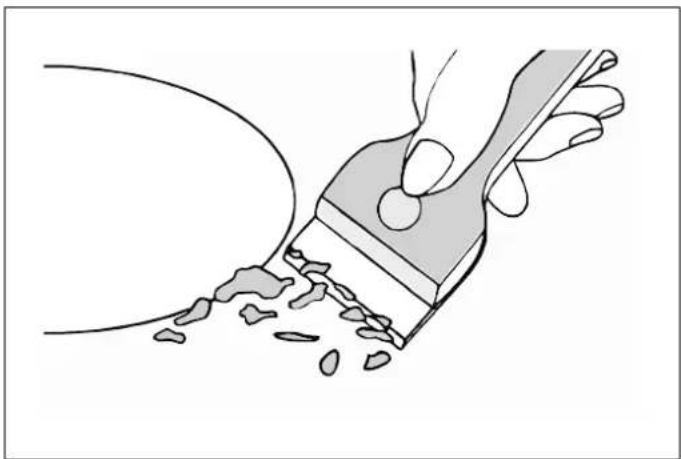

APPLIANCE CLEANLINESS CAUTION Avoid rubbing with any abrasive or with the base of the pans, etc, as this will wear the markings on the top of the induction hob over time. CAUTION Clean the induction hob on a regular basis to prevent the build up of food residue.

• The appliance should be cleaned after use.

• The surface of the induction hob may be easily cleaned as explained in the table below. By means of a scraper immediately remove any aluminum foil bits, food spills, grease splashes, sugar marks and other high sugar content food from the surface in order to avoid damaging the hob. Subsequently clean the surface with some towel and appropriate product, rinse with water and dry by means of a clean cloth. Under no circumstance should sponges or abrasive cloths be used, also avoid using aggressive chemical detergents such as oven sprays and spot removers. Fig. 17 TYPE OF DIRT CLEANING METHOD CLEANING MATERIALS Lime scale Apply white vinegar to the surface, then wipe it dry with soft cloth Special ceramic cleaner Burnt-on stains Clean with damp cloth and dry it with a soft cloth Special ceramic cleaner Light stains Clean with damp cloth and dry it with a soft cloth Cleaning sponge Melted plastics Use a scraper suitable for ceramic glass to remove residue Special ceramic cleaner 23TROUBLE SHOOTING Before calling the customer services, please check that the appliance is correctly connected, any of the following cases are not covered by the guarantee

• Damage caused by improper use, storage or maintenance.

• Damage caused by unauthorised disassembly and repair.

• Damage caused by misuse.

• Using the induction hob for commercial purposes. If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes shown in the table below. CAUTION Do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob. If further service is needed, please contact the supplier. ERROR CODE POSSIBLE CAUSE WHAT TO DO No pot or pot not suitable; Replace the pot; ER03 Water or pot on the glass over the control Clean the user interface F1E The connection between the display board and the left mainboard is fail (the cooking zone which indicator showing E)

1) Connection cable not correctly

plugged or defective;

2) Replace the Mainboard.

F3E Coil temperature sensor failure. (the cooking zone which indicator showing

Replace the coil sensor F4E Mainboard temperature sensor failure. (the cooking zone which indicator showing “E”) Replace the mainboard E1E Temperature sensor of the ceramic glass plate is high Please restart after the induction hob cools down. E2 E Temperature sensor of the IGBT is high Please restart after the induction hob cools down. E3 E Abnormal supply voltage (too high) Please inspect whether power supply is normal; Power on after the power supply is normal. E4 E Abnormal supply voltage (too low) Please inspect whether power supply is normal; Power on after the power supply is normal. E5 E Temperature sensor failure (the cooking zone which indicator showing

Connection cable not correctly plugged or assemble defective; 24WARRANTY

WARRANTY AND SERVICE

Bertazzoni is committed to providing the highest quality service to our customers. In the unlikely event that your product should have a manufacturing defect, please contact our service team at: https://uk.bertazzoni.com/more/care-service You will be requested to provide product information, proof of purchase, a photo of the silver data label and a description of the issue. Please have this information ready.
