Product type	Induction hob with integrated extractor hood
Brand	Bertazzoni
Model	P904IBH2M30NT
Number of cooking zones	4 induction zones
Cooking type	Induction
Special functions	Booster, Flexi Mode (bridge), Pan detection, Timer, Countdown
Child safety	Yes (Child Lock)
Residual heat display	Yes (H)
Integrated extraction system	Yes, 6 speeds (including 2 timed intensive speeds)
Extraction modes	Extraction (ducted) or Recirculation (filtered)
Filters	Metal grease filter (washable) and activated carbon filter (replaceable)
Power supply	230 V ~ 50 Hz, adjustable power (3–4 kW)
Booster power	Available (5 minutes maximum)
Liquid collection tray	0.7 L
Maximum safety temperature	Automatic shut-off in case of overheating
Cleaning	Specific products for ceramic glass, scraper for residues
Spare parts available	Grease and charcoal filters

Frequently Asked Questions - P904IBH2M30NT BERTAZZONI

How to turn on the hob?

Press the power key for at least 2 seconds. All displays light up. If no further action, the hob switches off after a few seconds.

How to activate the Booster function?

Select the cooking zone, set the power to 9, then press + again. The Booster remains active for 5 minutes, then returns to power 9.

How to use the timer on a zone?

Select the zone and set the power, then press + and - simultaneously. Use + or - to choose the minutes (1 to 99). A beep signals the end and the zone turns off.

How to activate or deactivate the Child Lock?

Ensure no zone is selected, press power, then simultaneously press the bottom right zone key and -, then again the bottom right zone. The display shows L. To deactivate, repeat the same sequence pressing - at the end.

What does error code E2 mean and how to fix it?

The E2 code indicates excessive temperature of the cooking zone (pan overheating). Let the system cool down by reducing the power or removing the pan. If the error persists, contact after-sales service.

How to clean the induction hob?

Let it cool down, activate Child Lock for safety. Use a special product for ceramic glass and a damp cloth. For stubborn residues, use a glass scraper. Avoid abrasive products, steel wool, and steam cleaners.

How to empty the liquid collection tray of the hood?

The collection tray has a capacity of 0.7 L. It must be emptied frequently. If liquid overflows, immediately turn off the device, empty the tray and dry. Contact after-sales service if necessary.

How to reset the filter saturation alarm?

Press the Filter Reset key (F). The grease alarm triggers after 30 hours of operation (flashing F/G display) and the charcoal alarm after 120 hours (flashing F/C display). After cleaning or replacement, this action resets the counter.

How to switch between extraction and recirculation mode?

At first power-up, the display shows the active mode (C for recirculation, C without flashing for extraction). Press the F key to switch. A beep confirms the change. The choice is saved.

What to do if the display shows 'u'?

The symbol u means no suitable pan is detected on the zone. Place an induction-compatible pan (ferromagnetic base) of appropriate diameter. The zone turns off automatically after 10 minutes without a pan.

USER MANUAL P904IBH2M30NT BERTAZZONI

INSTRUCTIONS ON MOUNTING AND USE

PRESCRIPTIONS DE MONTAGE ET MODE D'EMPLOI

MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIZING

MONTERINGS- OCH BRUKSANVISNINGAR

MONTERINGS- OG BRUGSVEJLEDNING

BERTAZZO ITALIA

P90V..G3NE.50

Illustration of two gloves with bandages and straps (no text or symbols)

IT Per tutte le operazioni di installazione e manutenzione utilizzare guanti da lavoro
EN Always wear work gloves for all installation and maintenance operations
DE Bei allen Installations- und Instandhaltungsarbeiten immer Schutzhandschuhe tragen.
FR Munissez-vous de gants de travail avant d'effectuer toute opération d'installation et d'entretien.
NL Draag bij alle installatie- en onderhoudswerkzaamheden werkhandschoenen.
ES Todas las operaciones de instalación y mantenimiento se deben realizar utilizando guantes de trabajo.
PT Para todas as operações de instalação e manutenção, utilize luvas adequadas para este tipo de atividade
GR Πάντοτε να φοράτε γάντια εργασίας για όλες τις επεμβάσεις εγκατάστασης και συντήρησης.
SV Använd alltid skyddshandskar vid installation och underhåll.
FI Käytä asennus- ja huoltotöissä suojakäsineitä.
NO Ved alle installasjonsprosedyrer og alt vedlikehold av ventilatoren må man bruke arbeidshansker
DA Ved alle installations- og vedligeholdelsesindgreb skal der bæres arbejdshandsker.
PL Wszelkie czynności montażowe i konserwacyjne wykonywać w rękawicach ochronnych.
CZ Při všech instalačních a údržbových pracích používejte pracovní rukavice
SK Pri všetkých inštalačných a údržbárskych prácach používajte ochranné pracovné rukavice.
HU Valamennyi üzembe helyezési és karbantartási művelethez használjon védőkesztyűt
BG за всички операции по инсталиране и техническо обслужване използвайте работни ръкавици.
RO Pentru toate operațiile de instalare și întreținere utilizați mănuși de protecție.
RU Для выполнения всех операций по установке и уходу используйте рабочие перчатки.
ET Kasutage paigaldus- ja hooldustöödel kaitsekindaid.

Fig.1

Min. 4mm Min. 70 mm X : Schublade X : Drawer X : Tiroir X : Cajón X : Cassetto

Technical line drawing of a multi-level electronic device with internal components and directional arrows indicating flow or movement (no text or symbols)

+ 1 + 2 + 3 + 4

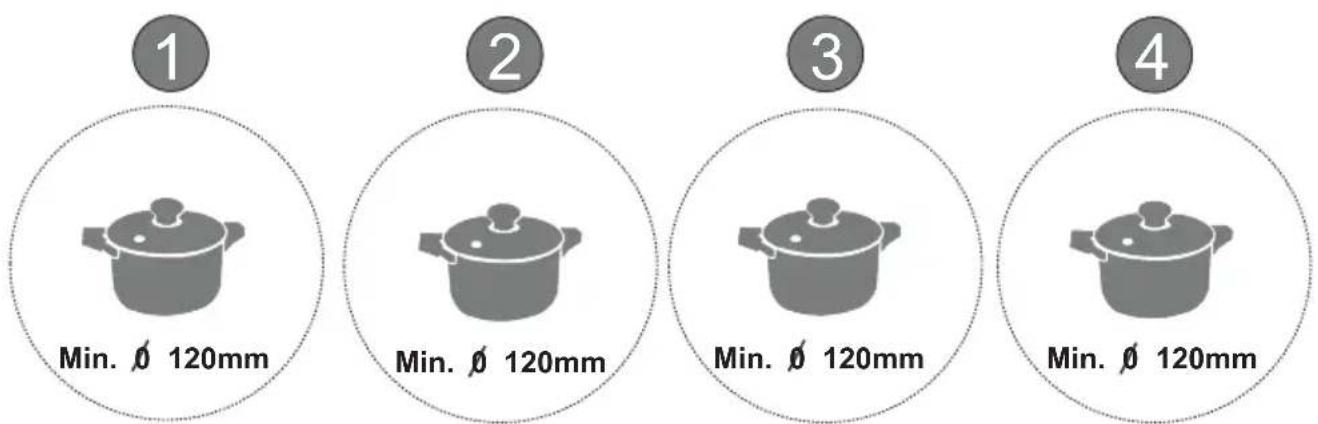

1 Min. Ø 120mm 2 Min. Ø 120mm 3 Min. Ø 120mm 4 Min. Ø 120mm

P90V..G3NE.50 can be installed in 4 different modes to better suit the layout of every kitchen; choose the mounting type that is more suitable for your furniture.

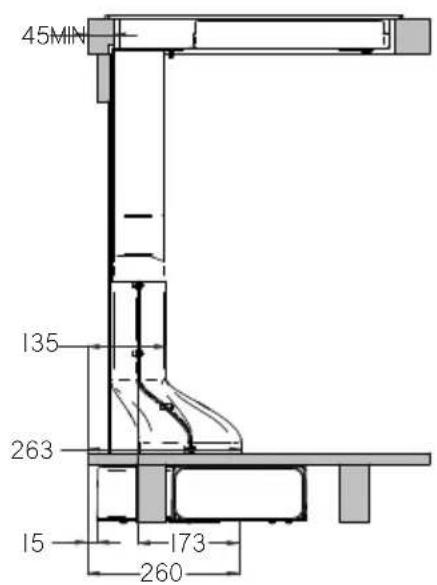

Installation version 1

Installation version 1

Not included

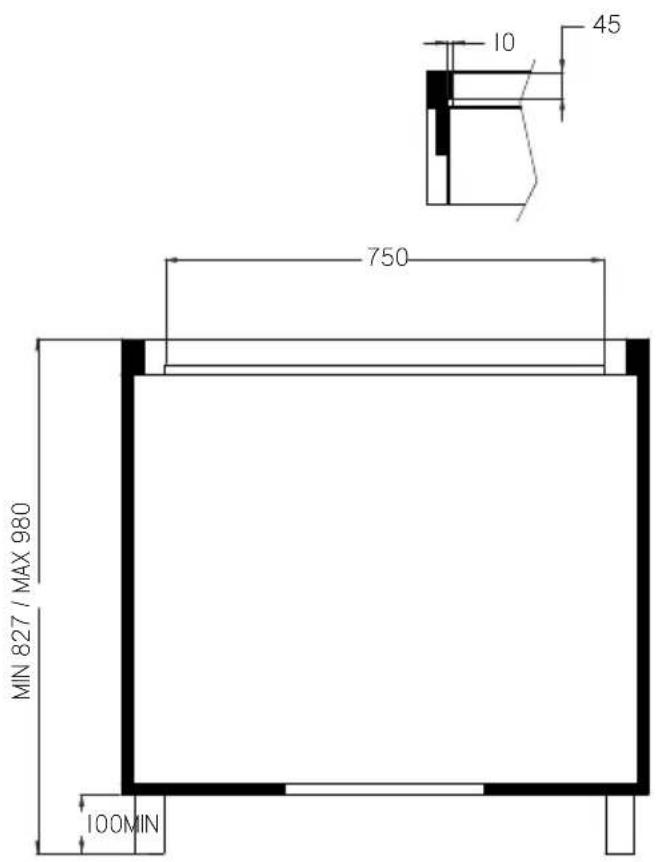

10 45 750 MIN 827 / MAX 980 100MIN

45MIN 135 263 15 173 260

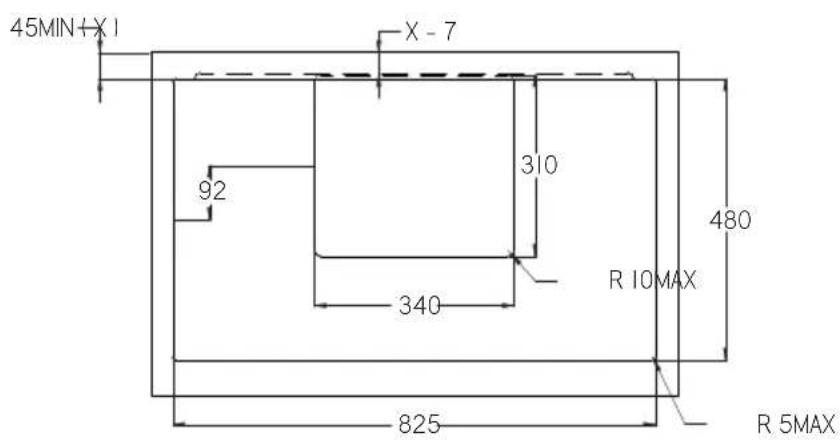

45MIN+X 1 X - 7 92 310 340 480 R 10 MAX 825 R 5MAX

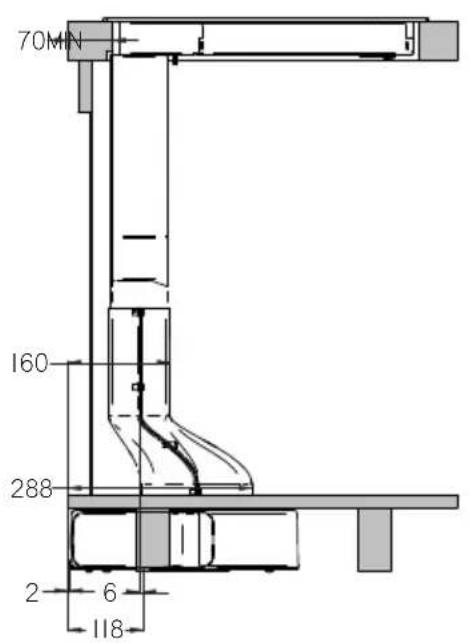

Installation Version 2

Installation version 2

Installation version 2

Not included MIN 827 / M

MAX 980 100MIN 750 45 10

70MN 160 288 2 6 118

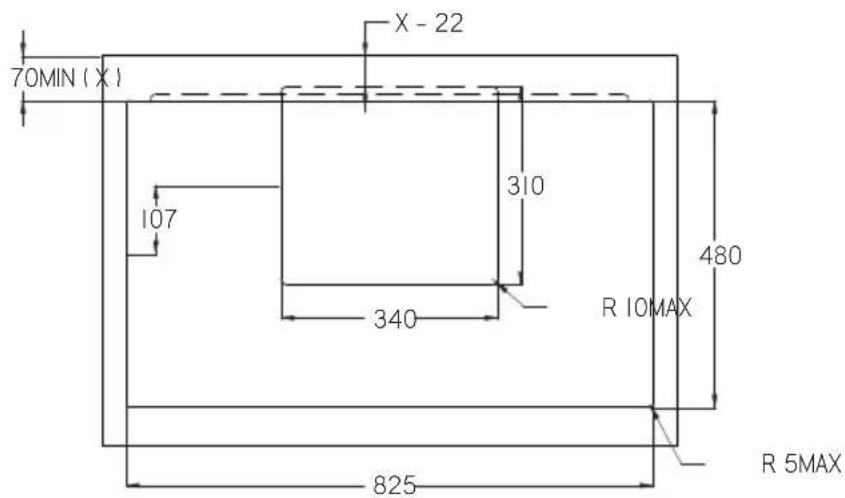

70MIN (X) X - 22 107 310 340 R 10MAX 480 825 R 5MAX

Installation Version 3

Installation version 3

Installation version 3

Installation version 4

Installation version 4

Not included 750 MIN 827 / MAX 980 100MIN

250 340 115 3 119-173

MIN 250 X - 205 310 290 340 MAX R 10 480 MAXR 5 825

From this point on, the assembly instructions apply to each of the four setup modes; be careful to the position of the motor and the fitting, specific to the type of installation chosen.

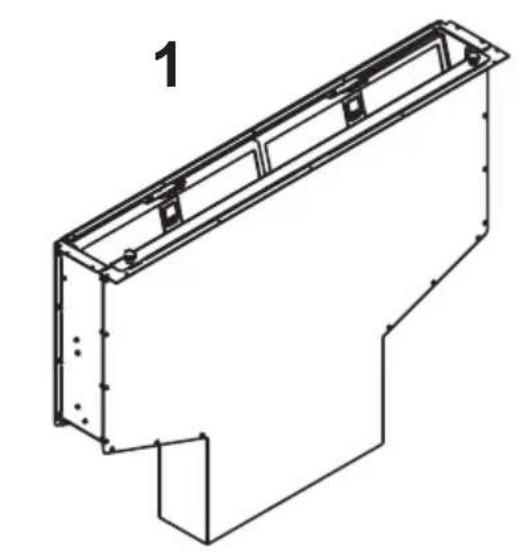

1 2 Not included 3 Not included 4 AFV0010 X6 Not included

X>140mm

Not included

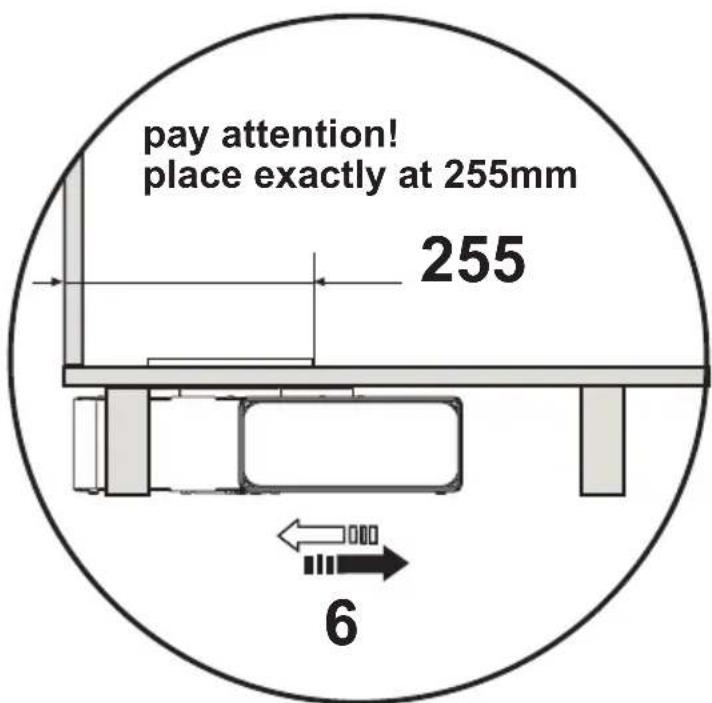

pay attention! place exactly at 255mm 255 6

Technical line drawing of a rectangular enclosure or enclosure with internal partitions and mounting holes (no text or symbols)

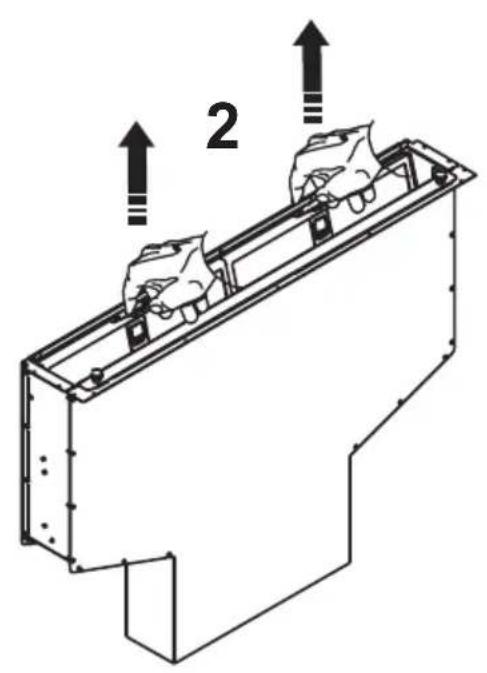

2

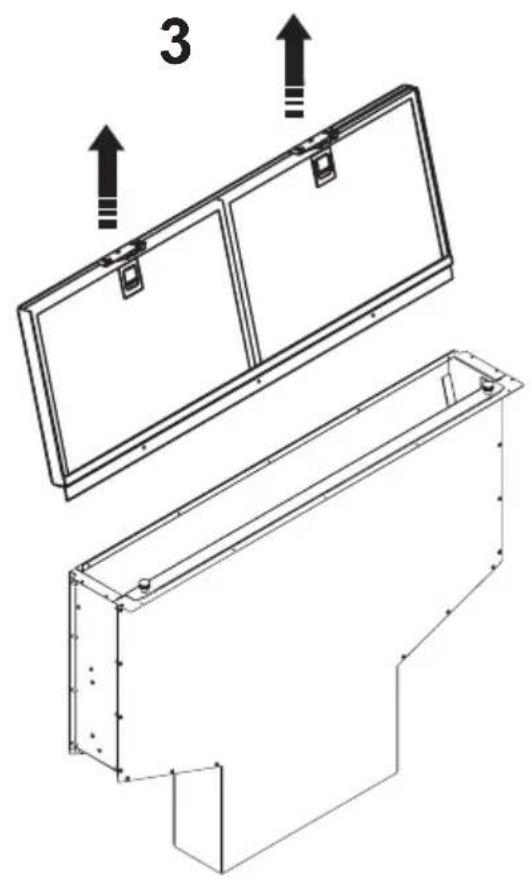

3

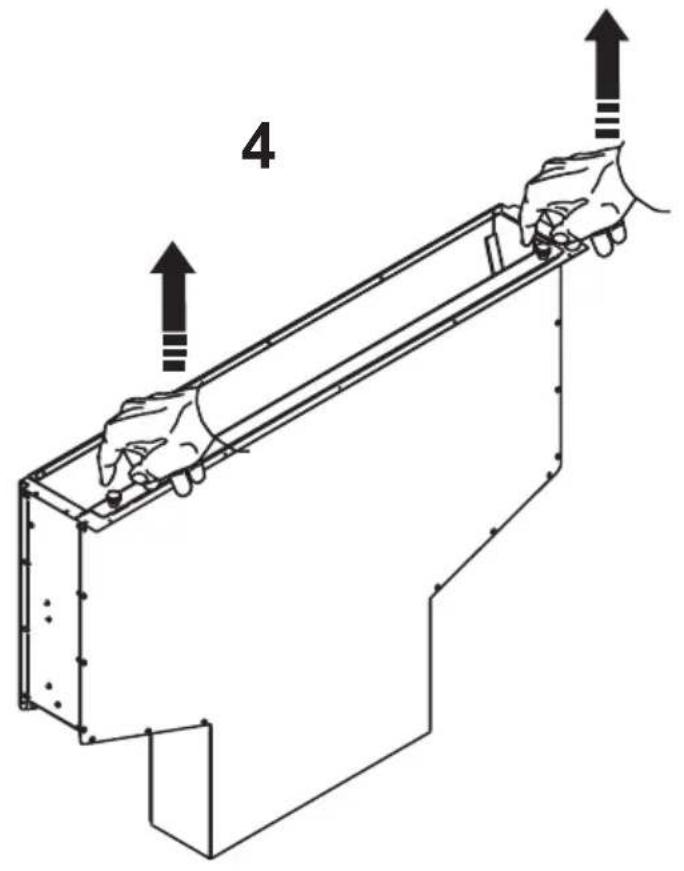

4

5

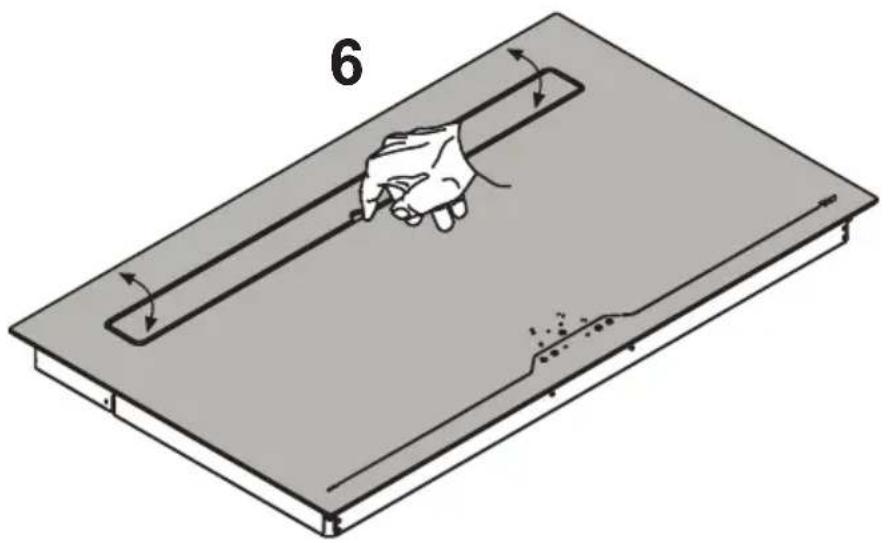

Diagram of a hand pressing down on a rectangular plate with arrows indicating motion (no text or symbols)

90° 7 8 7 8 7 9 9 8 7 9

Diagram showing a device panel with labeled components and a hand holding a tool, marked with number 10.

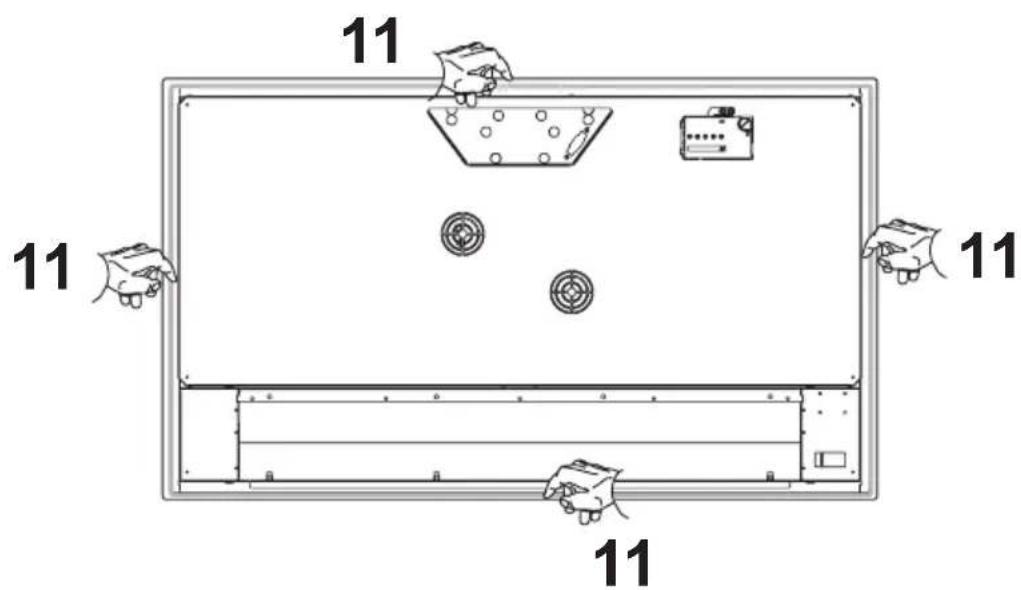

11 11 11 11 11

12A 12B 12

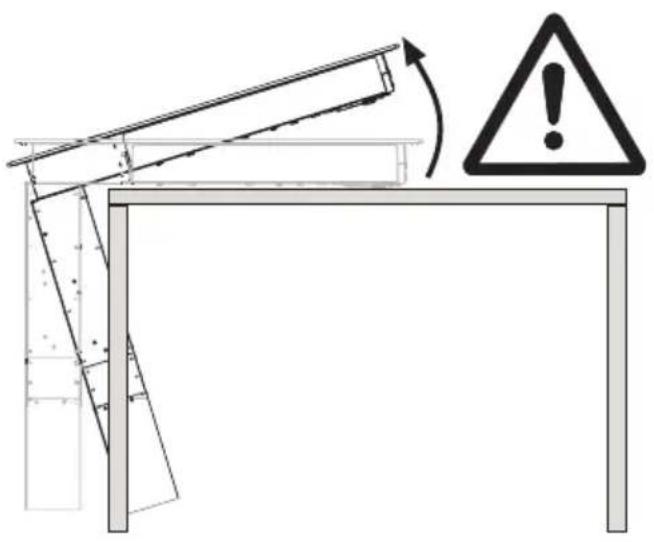

Diagram showing a structural support frame with an arrow indicating rotational motion and a warning symbol with an exclamation mark.

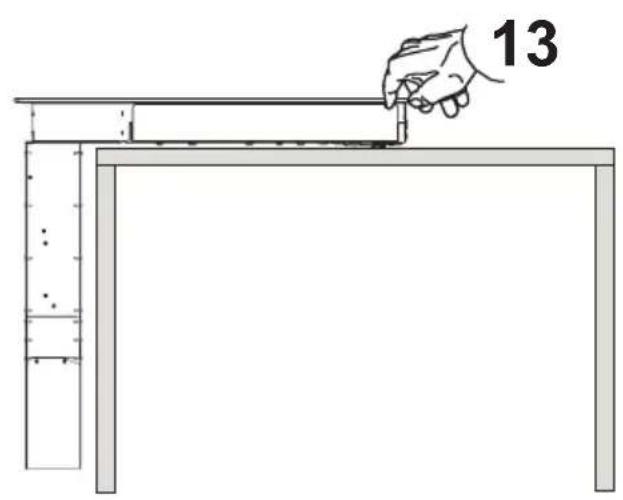

13

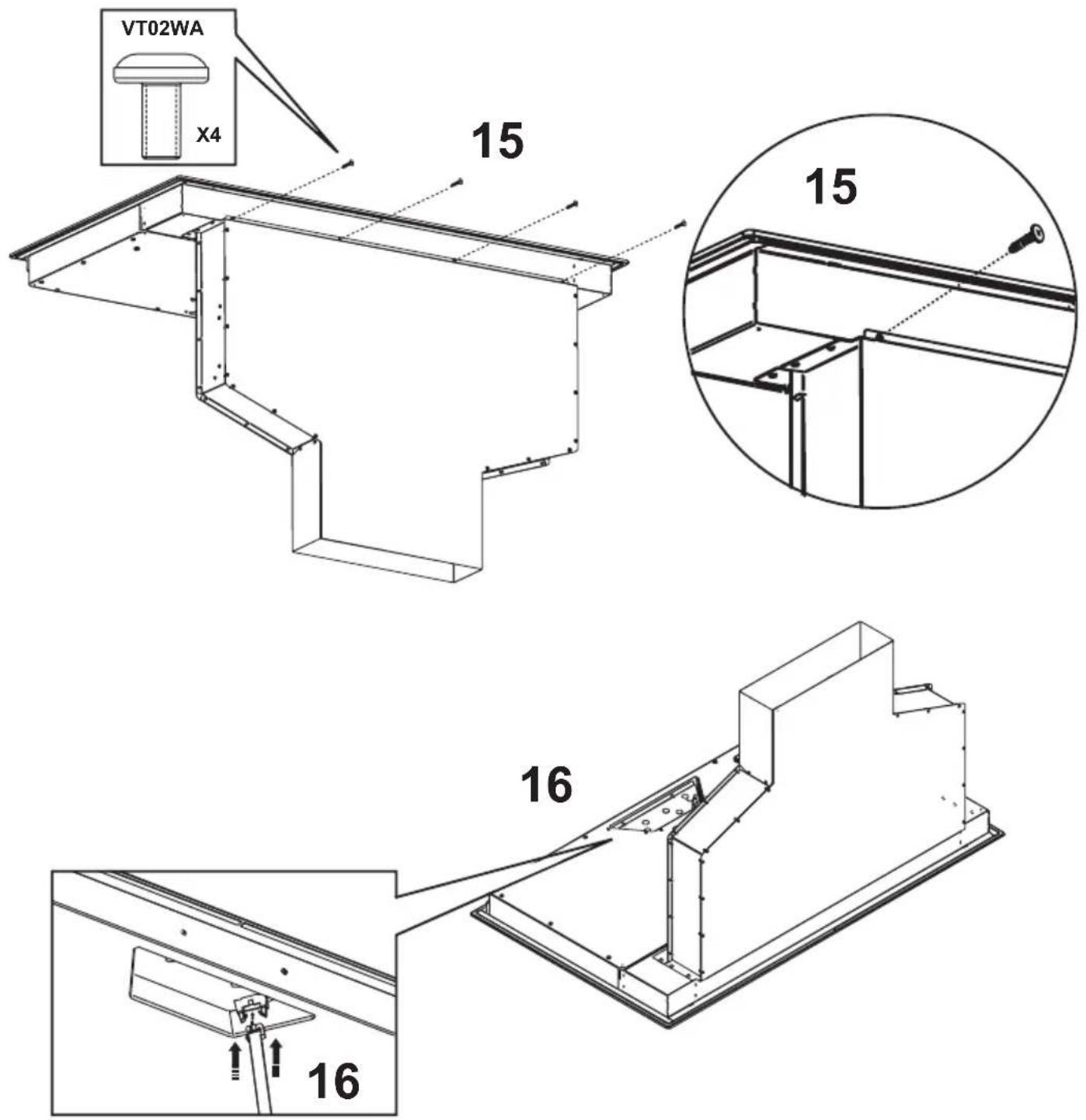

VT02WA X4 14 13

3D technical drawing of a mechanical component with no visible text or symbols

18 19

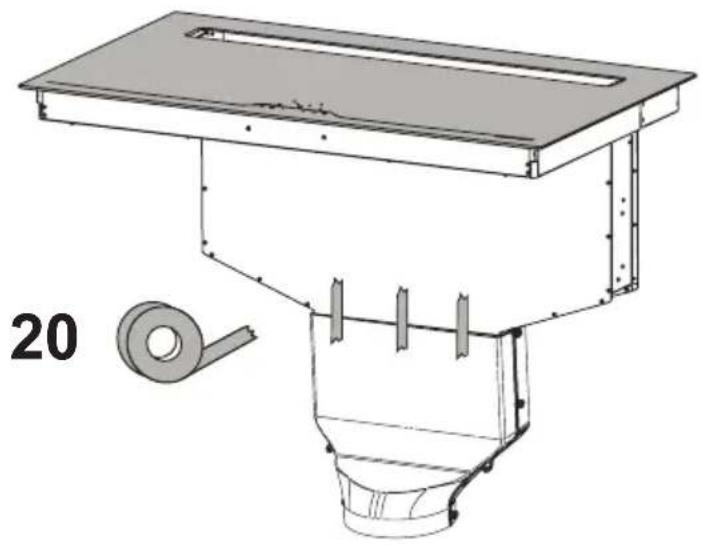

Technical line drawing of a mechanical device with a labeled part '20' (no text or symbols on the diagram itself)

21 Not included

22 silicone Not included

23 24 Not included

25 Not included

258 pay attention! place exactly at 258 mm 26

Top-down schematic of a room layout with furniture and fixtures (no text or labels)

27 x4 or 27 x4

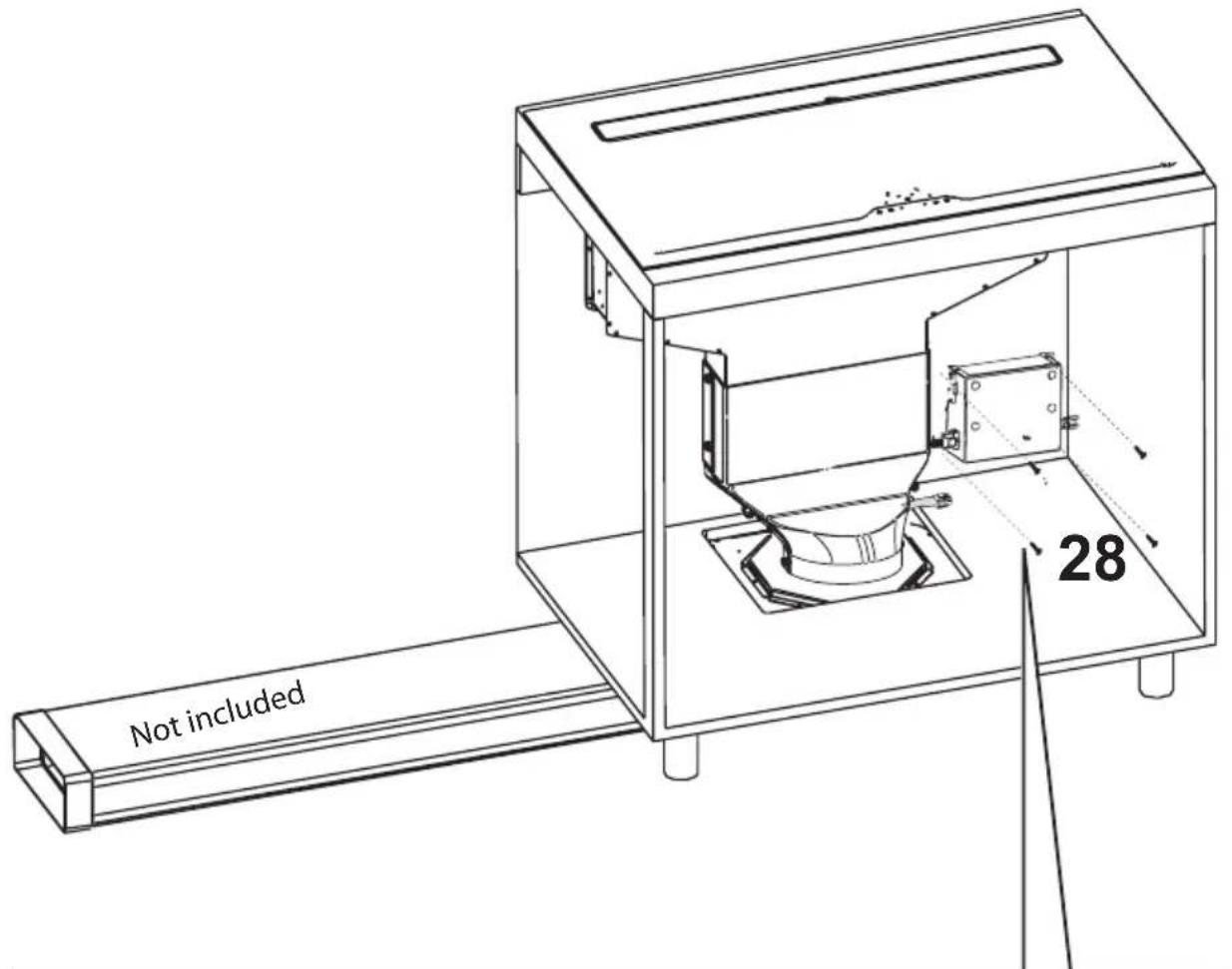

Not included 28

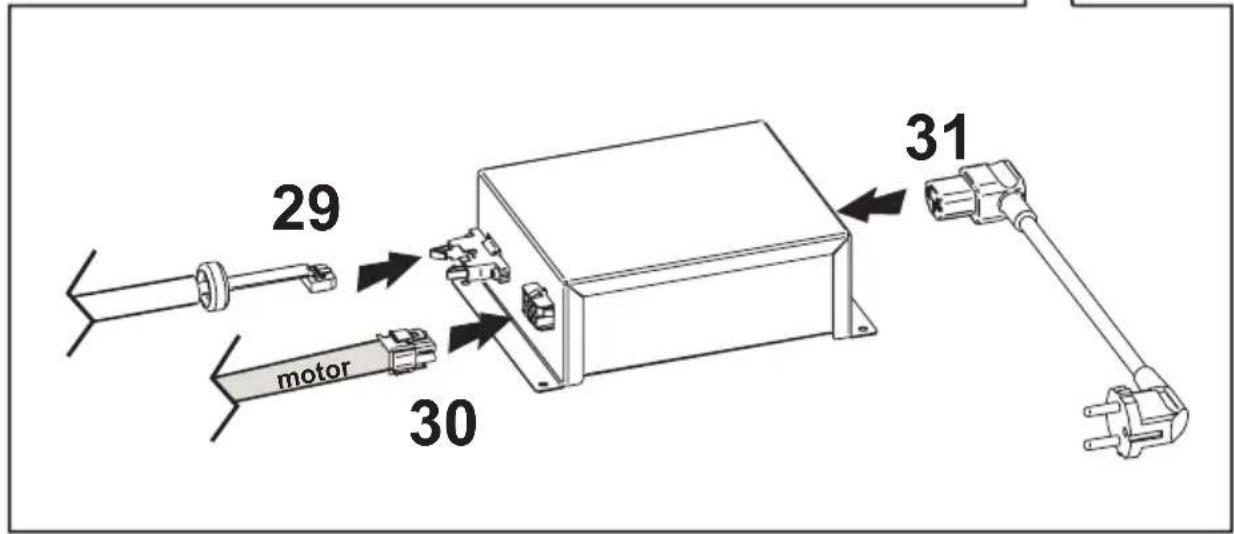

29 motor 30 31

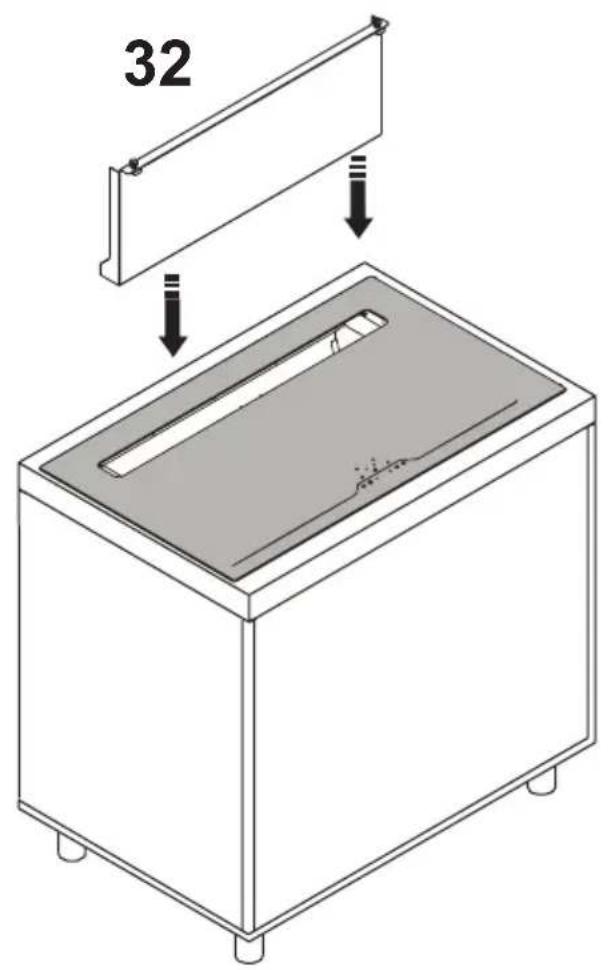

32

33

34

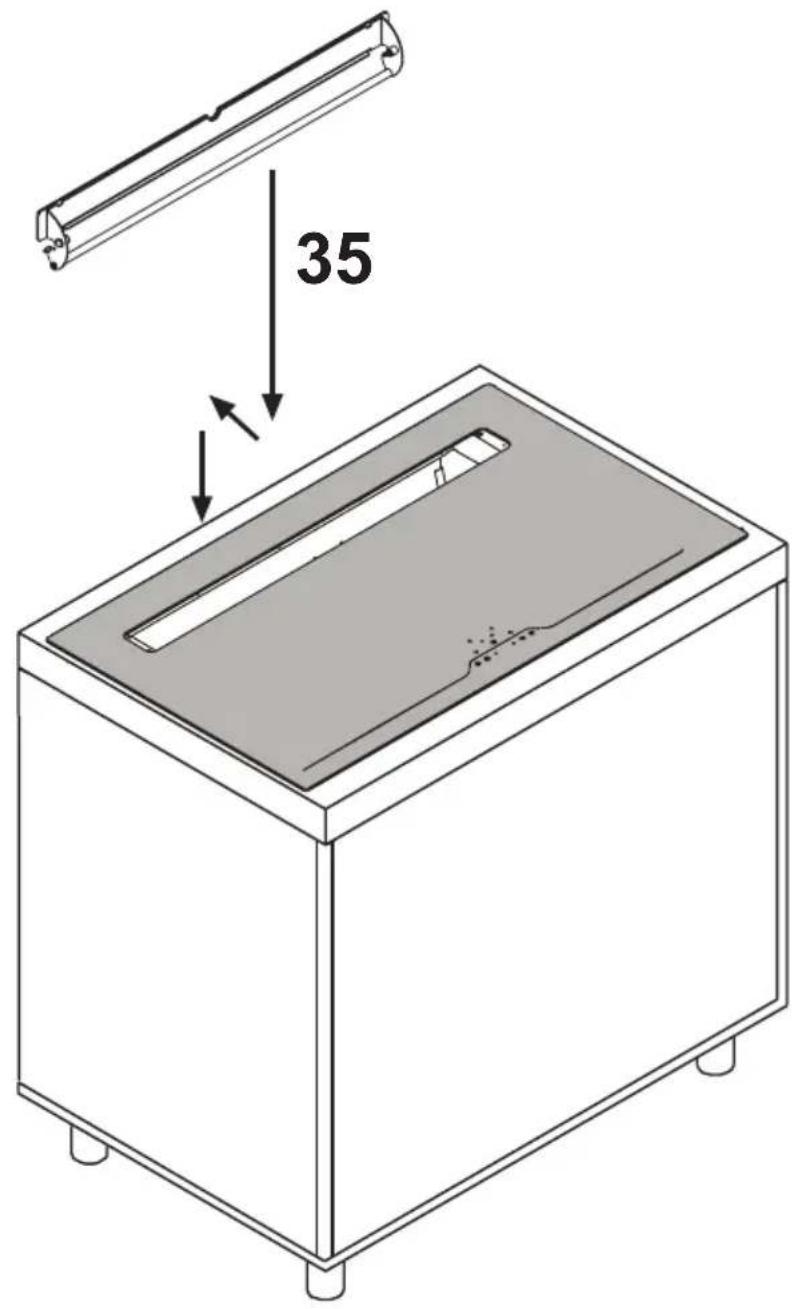

35

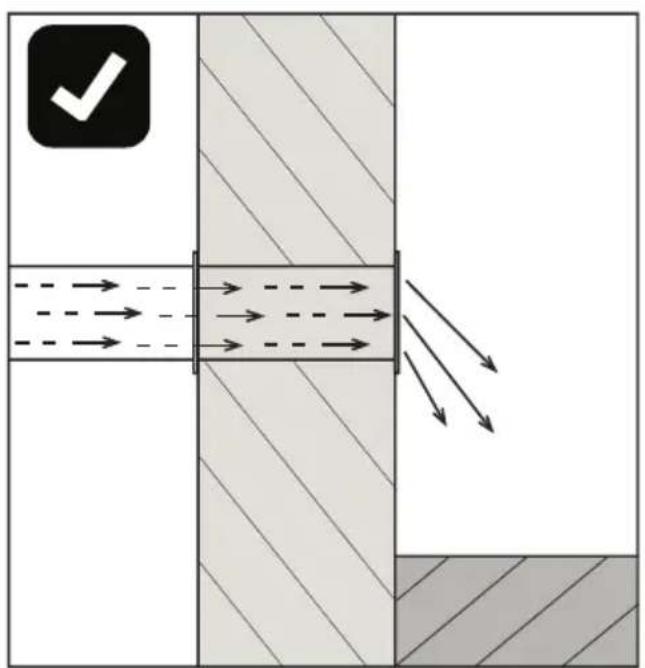

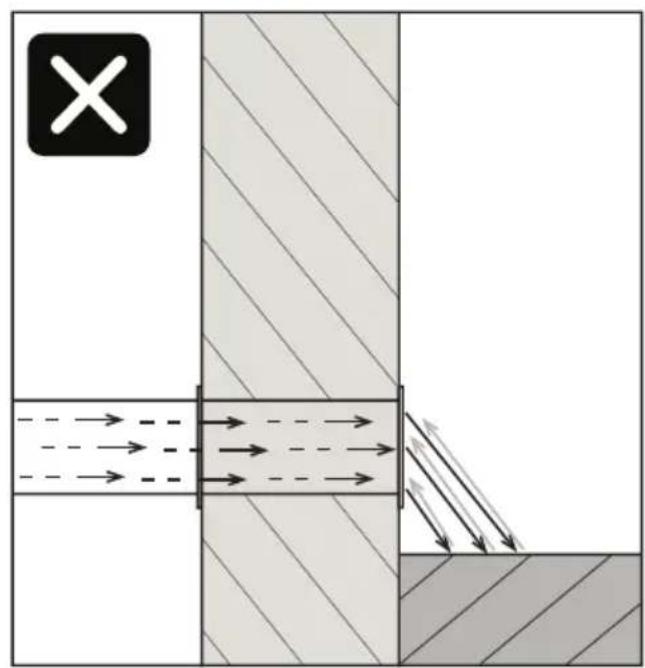

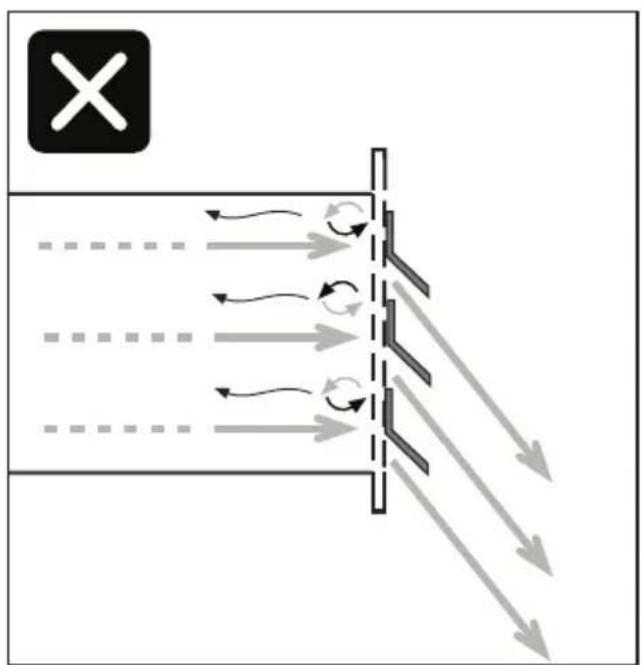

Diagram illustrating fluid flow through a channel with directional arrows and a checkmark icon, likely representing a filtration or ventilation system.

Diagram illustrating fluid flow through a channel with directional arrows and a cross symbol, likely representing a filtration or particle flow system.

Diagram illustrating light ray paths through a lens system with directional arrows and a checkmark icon

Diagram showing light rays reflecting off a barrier with directional arrows, no text or symbols present

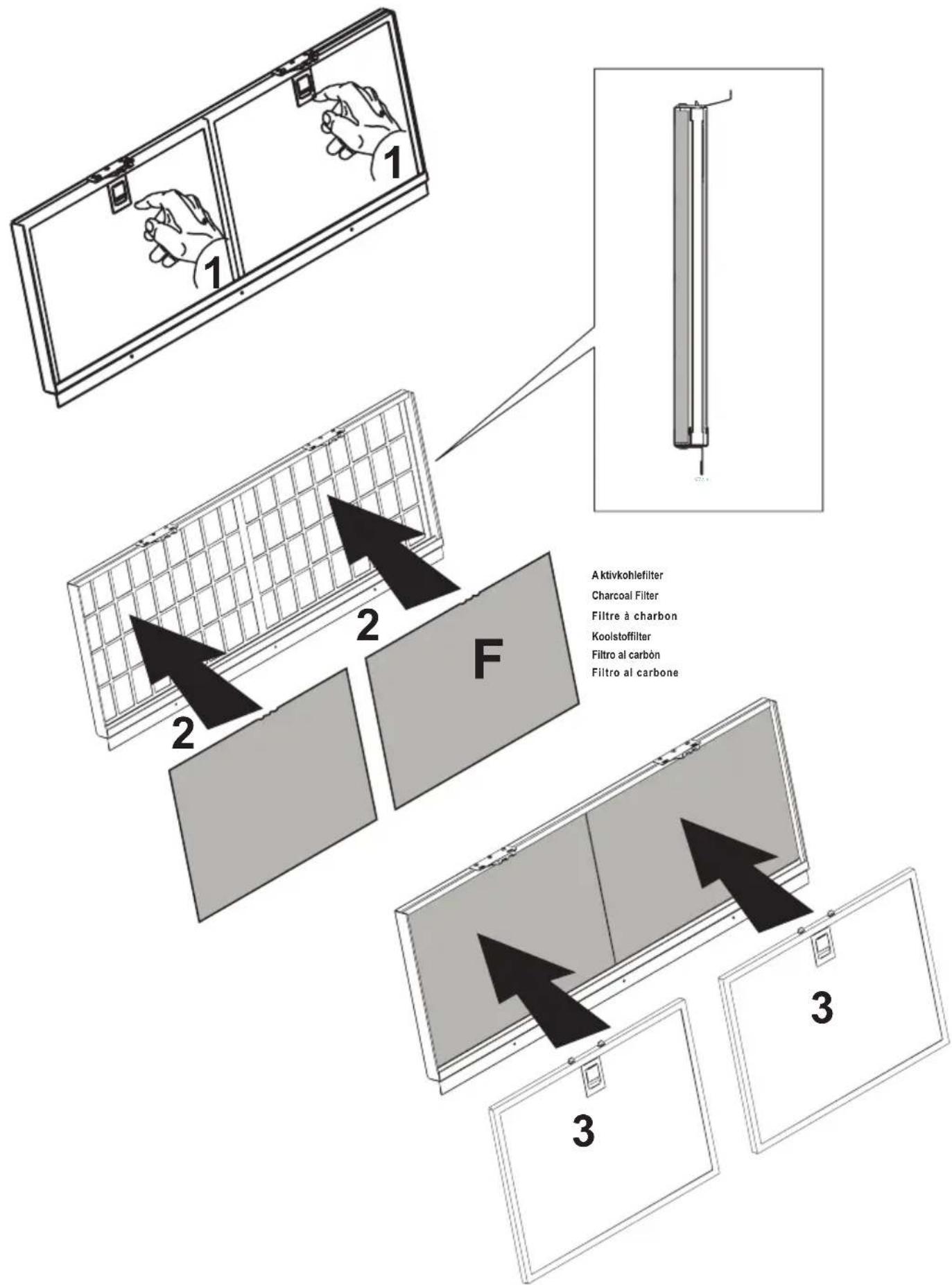

Charcoal filter installation and replacement

1 2 F 3 Aktivkohlefilter Charcoal Filter Filtre à charbon Koolstoffilter Filtro al carbon Filtro al carbone

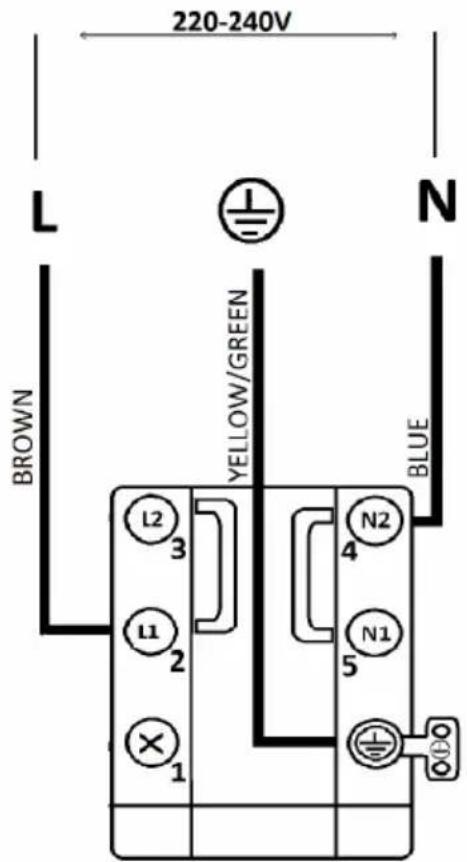

Electrical connection diagram

220-240V 50-60Hz

BROWN YELLOW/GREEN BLUE 220-240V N1 N2 5 1 2 3 O#0

BLACK BROWN 1 X 2 3 YELLOW/GREEN 5 N1 4 N2 BLUE 220-240V Z

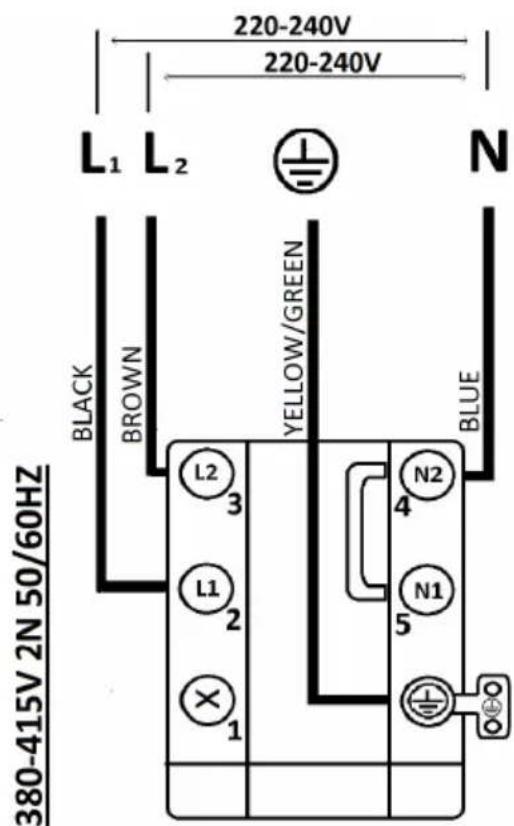

380-415V 2N 50/60HZ BLACK BROWN YELLOW/GREEN BLUE L1 L2 220-240V 220-240V N

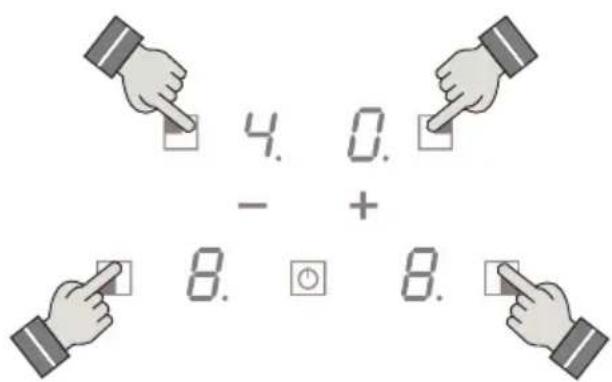

• Setting is possible only during the first two minutes after plug in the appliance
• The touch has to be unlocked and all heaters are switched off
• PPress at the same time all the four cookinzones and hold it for 3 seconds

8. 8. - + 8. 8. 8.

• After that there is a signal which you can hear

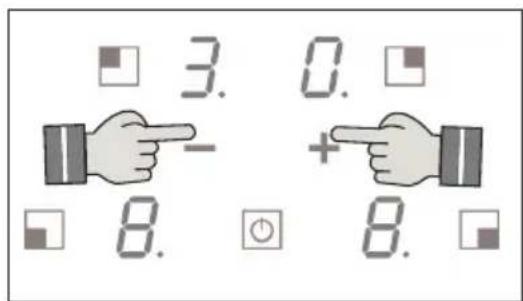

- You can now switch with + and - between the power limitation levels (e.g. 3kW and 4kW below)

3. 0. - + 8. 8.

4. 0. - + 8. 8. 8.

- Press now at the same time the four cookinzones and hold it for 3 seconds to confirm the powermanagement signal for confirmation

4.0 - + 8.008.

Note: If there is during the setting no action for 60sec then the change is not accepted.

Illustration of kitchenware including a stove, pan, and pot (no text or symbols)

Two grayscale illustrations of kitchen utensils, one with a side panel and the other showing front and back views (no text or symbols)

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

Illustration of kitchenware including a cooking pan, a pot, and a lid (no text or symbols)

Two grayscale illustrations of kitchen utensils, one with a side plate and the other with a fork (no text or symbols)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

This instruction handbook is conserved together with the P90V..G3NE.50, for future consultation. If the equipment is sold or transferred to another person, make certain the instruction handbook is supplied together with it, so that the new user can become aware of the operation of the cooker hood and related warnings. These warnings have been compiled for your safety and the safety of others. Please take the time to read them carefully before installing and using the equipment. Be sure to also consult the drawings in the front pages, including the alphabetic and numeric references in the text descriptions. Closely follow the instructions in this manual. The manufacturer declines all responsibility for any inconveniences, damage or fires caused due to non-compliance with the instructions in this manual. The installation and electrical connection must be provided by a qualified service technician. The supplier is not liable for any warranty for damages caused by improper installation or improper use of the appliance. Do not modify or seek to modify the specifications of this appliance.

The cooking top must always be used within the limits of normal domestic use, not for professional use, but simply to prepare and keep dishes warm. Any other use is not allowed. The unit should not be left unsupervised during its operation.

This appliance can be used by children from the age of 8 onwards, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they are properly monitored, or if they have been instructed in the safe use of the appliance and are aware of related dangers.

Children must not be allowed to play with the appliance.

Make use of the locking device to prevent children from accidentally turning on the device, or modifying its functions. The unit should not be left unsupervised during its operation.

Do not control the cooking top using a remote timer.

The unit should not be left unsupervised during its operation.

Make certain children at home are prevented from toppling hot pots and pans to the floor. Turn the handles and knobs of pots and pans to the side on the cooking top, so that they are above the cooking top, and to prevent the risk of burns.

For safety reasons, the cooking top must be used only after having been installed in its recessed housing.

Prior to proceeding with the installation, check to make sure there are no visible signs of damage to the cooking top. Never start up a damaged unit, as it may pose a safety risk.

Cleaning and maintenance must not be carried out by children without proper supervision.

If the power cord is damaged, it must be replaced by a qualified service centre or technician only.

The electrical installation must have a breaker upstream from the appliance which ensures that all poles are disconnected with a contact gap of at least 3mm.

CAUTION: The hob protection devices must be only those designed by the appliance manufacturer or those indicated as suitable in the manufacturers instructions or the hob protection devices incorporated in the appliance.

The use of inappropriate protection devices may provoke accidents.

During the installation the equipment must be connected to a power source whose system impedance is matched to a value of 0.005+j0.005[Ohm].

Do not seal the area between the glass and the worktop with silicone because should the cooktop need to be replaced, the glass could break during removal.

The unit's installation and electrical connection to the power grid must be carried out by qualified service technicians only. The device's electrical safety can be guaranteed solely if a regular ground connection is provided for the cooking top. If in doubt, have the electrical system checked by a qualified electrician. Do not connect the cooking top to the mains using extension cords or multiple sockets, since they will not guarantee the required safety (e.g. risk of overheating).

Prior to connecting the cooktop, compare the connection specifications (voltage and fre quency) indicated on the unit's identification nameplate with those of the mains electricity supply.

These specifications must absolutely correspond, otherwise the unit may be subject to damage. Contact an electrician if in doubt.

Disconnect the unit from the mains when carrying out installation work, maintenance or repairs.

Comply with all air discharge regulations.

CAUTION: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Never open unit's outer casing. Any contact with live parts or the modification of electrical or mechanical parts can cause operating abnormalities.

The induction hob should not be used as a work surface. The rough underside of food containers can scratch the surface of the cooktop.

Always keep the cooking areas and underside of food containers perfectly dry.

Fire hazard

Oil and grease that are too hot will catch fire quickly.

Do not leave overheated oil or grease unsupervised.

If oil or grease should catch fire, do not attempt to put out the flames with water. Extinguish the flames with a lid or plate, or with a fireproof blanket. Turn off the cooking zone. Never place flammable items on the hob.

WARNING: Fire hazard: do not leave objects on the cooking surface.

Burn hazard

CAUTION: This appliance and its accessible parts become very hot during use.

Pay attention to avoid touching the heating elements.

Keep children under 8 years of age away from the appliance, unless they are continually monitored.

Do not place objects such as knives, forks, spoons or lids on the induction top, as they may overheat.

Do not heat closed containers, such as tin receptacles, on the cooking top. The excess pressure generated could blow up the container.

Cooking containers

Only use pans that carry the symbol. Important:

to avoid permanent damage to the hob surface, do not use:

• containers with a base that is not perfectly flat;
• metal containers with an enamelled base;
• containers with a rough base, to avoid scratching the hob surface;
• never place hot pots and pans on the surface of the hob's control panel.

Not all pans suitable for induction work in an efficient manner due to the base only partially consisting of ferromagnetic material! When purchasing pots or pans ensure that:

- that the base is made entirely from ferromagnetic material.

If this is not the case, the efficacy of the transmission of heat is lessened and the uniformity of heat and the temperature of the pot/pan may not be suitable for cooking.

Illustration of kitchenware including a cooking pan, a pot, and a lid (no text or symbols)

The base does not contain aluminium: the crockery does not heat and may not be recognised by the inductors.

Two grayscale illustrations of cooking utensils: a flat pan with a lid and a pan with a side pan (no text or symbols)

Bases that are not flat or that have rough surfaces.

These lower the contact surface area between the inductor and the pan, lowering efficiency and harming the cooking experience.

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

Important: never put hot pots or pans on the hob control panel surface.

Pre-existing containers You can check if the pot material is magnetic simply by using a magnet. Pots are not suitable if they are not magnetically detectable. The indications from the previous paragraph also apply here.

Danger of mishaps

Pots from which liquids have completely evaporated can cause damage to the glass ceramic top, for which the manufacturer does not assume any responsibility.

The appliance is equipped with a cooling fan. If a drawer is set under the recessed hob, a suitable distance must be ensured between the contents of the drawer and the lower part of the unit, in order to avoid compromising ventilation.

The worktop should be flat and horizontal. The furniture should be cut to measure before installing the appliance. Remove any chips to avoid compromising the operation of electrical components.

Considering the ventilation of the cooktop, the following must be provided:

-if the cooktop is installed above a drawer, leave a 70 mm space between the drawer and the top of the cooktop (fig.1).

Do not store small objects or sheets of paper in the drawer under the cooking hob, since such objects may be aspirated and could break the fan, thus hindering the unit's cooling; likewise, do not store metal or inflammable objects, which could become very hot or catch fire.

If the cooking hob is assembled behind a cabinet door, power it on only with the door left open. Close the cabinet door only if the appliance and residual heat indicator lights are off.

If the unit is assembled above an oven or an electric pyrolytic stovetop, it should not be operated while the pyrolytic process is ongoing, as it can trigger the cooktop's overheating protection.

The cooktop should not be installed above dishwashers because the steam released by the latter may lead to faulty operation of the electronic circuit of the cooktop.

Do not make use of any steam devices, as steam can reach the appliance's live parts and cause a short circuit.

Any interventions or repairs on the unit during the warranty period must be carried out solely by the manufacturer's authorised service centre; conversely, the warranty will be is invalidated and terminated immediately. The manufacturer will not recognise any warranties under any circumstances for any problems subsequently encountered.

Replace any defective or damaged parts with original spare parts: only original spare parts can ensure compliance with safety standards.

Notice to persons with pacemakers: keep in mind that an electromagnetic field is generated in the immediate vicinity of the unit while it is in operation.

The possibility that the pacemaker's operation may be affected is very remote. If in doubt, contact the pacemaker manufacturer or your doctor.

Warning: do not pour any type of liquid into the suction slot of the hood.

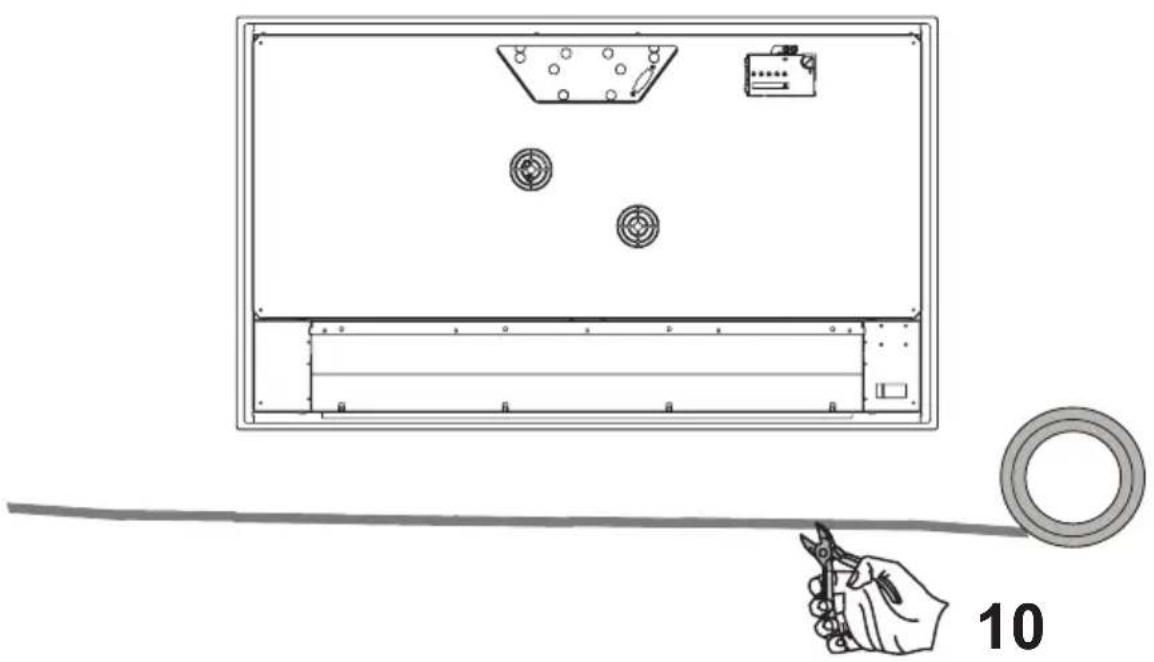

Warning: it is recommended to seal with silicone or adhesive tape all the joints of the pipes, both of the exhaust pipes and the fittings that join the various parts.

In the case of installation in filtration mode, pay particular attention to the positioning of the fume exhaust area to avoid possible turbulence, so as not to interfere either with the suction system or with the hob.

In the installations in filtration mode, place the pipes inside of the plinth of the furniture, ensuring air evacuation to the outside via a special grid, in order to prevent moisture from building up inside of the same.

Turn on the suction device only when the cover is open. To open and close the cover, use only the dedicated slot.

The liquid collection tray must be emptied on a regular basis.

Such tray is designed to contain about 0,7 litre of water; in case of spillage or fall of fluids on the device, turn off the appliance immediately and empty the tray. If the liquid fallen on the floor is greater than the maximum capacity of the tray, turn off the device and contact the customer service immediately.

After use, turn off the cooking hob through its control device and do not rely on the cookware detector.

Noise emissions

Induction can generate slight noise emissions, which can vary depending on the material, type of pot and power setting selected.

When the cooktop is used frequently, the cooling fan turns itself on to protect the electronics, generating a buzzing sound: this is perfectly normal.

First usage

Use a damp cloth to clean and dry the cooktop before using it for the first time. It is recommended to dry the appliance after having cleaned it with a damp cloth, in order to prevent the build-up of limescale.

When the unit is powered on for the first time, odours or fumes may be generated. The odour will diminish with each subsequent use, until it disappears altogether. Odours and any fumes are not caused by a faulty connection or damage to the appliance, and are not hazardous to health.

Switching on the cooktop

Aspira is equipped with touch sensitive electronic sensor keys.

Switch on the cooktop firstly, and then the desired cooking zone.

Activating the desired cooking zones

Press the power button

at least 2 seconds.

All of the displays will light up. If no other inputs are provided, after a few seconds the cooktop will automatically shut itself off for safety reasons.

Touch the key button for the desired cooking zone.

The display will show "0"; press + or - to select the desired power setting, ranging from 1 to P

P: indicates the Booster function, and is present on each of the cooking zones. To activate it, press the + key to get to power setting 9, then press the key once more. This function will remain active for 5 minutes, after which the system will reset itself to power setting 9. This function is recommended to bring water to the boil more quickly.

Pot Detection

If no pots or receptacles are placed or recognised on the various cooking zones, the pot detection function will indicate this condition with the symbol "u".

Set a pot or pan of a suitable diameter and material onto the cooking zones, as described in the section on suitable cooking containers.

The cooking zone will switch off automatically after 10 minutes if no pot is recognised.

Switching off the cooktop and residual heat indication

Touch the power button.

The main indicator light and cooking zone lights will switch off. The cooktop is now powered off. The residual heat indicator, displayed as a H on each cooking zone, will remain lit until these zones have not sufficiently cooled down.

Warning: risk of burns

Do not touch a cooking zone for which the indication (H) appears.

If a cooking zone remains lit for too long at the same power level, the appliance will automatically switch it off, and the residual heat indicator H will appear. Switch it back on to reset the cooking zone's operation.

The table below lists the maximum uninterrupted operating time for each power level:

Powen	Operating limit in minutes
1 520
2 402
3 318
4 260
5 212
6 170
7 139
8 113
9 90
P	5

Timer

The timer function can be set from 1 to 99 minutes on each cooking zone.

To activate the timer: select a cooking zone and set the desired power level, then simultaneously press the + and - keys, and press + or – to set the desired minutes. A buzzer will sound of 2 minutes duration will indicate the end of the time setting, and the cooking zone will switch off automatically.

Countdown

The countdown function can be set from 1 to 99 minutes, but contrary to the timer it does not switch off the cooking zone.

The end of the minutes set will be given by an acoustic signal.

With the hob on: without selecting a cooking zone, simultaneously press keys + and -, then use + or - to set the desired minutes.

Once set, it continues to work also having switched off the hob until the minutes set end.

Child-Lock safety function

The cooktop is equipped with a safety-lock to ensure that it is not inadvertently switched on by children. It can be activated only if the cooking zones have not been selected. To enable the Child

GB OPERATION

Lock function: touch the power button, then simultaneously press the button that indicates the cooking zone at the lower right, followed by the – key; press the button that indicates the cooking zone at the lower right once again. Once the Child Lock function has been enabled, the symbol L will appear on the display. To disable the Child Lock function: touch the power button, then simultaneously press the button that indicates the cooking zone at the lower right, followed by the – key; press the – key once again.

Flexi Mode

The Flexi Mode function allows use of two cooking zones simultaneously as if they were one, allowing use of fairly big saucepans to cover two adjoining cooking zones.

To activate this function, simultaneously select two adjoining cooking zones; on one of the two the symbol (8) appears while on the other, the cooking power is displayed which must be set using the + and - keys.

To disable the Flexi Mode function, simultaneously press a second time the keys in the two cooking zones.

ATTENTION: the Flexi Mode function can only be activated on two zones on the left and/or on two zones on the right, while it cannot be activated on the two central zones.

If the Flexi Mode function is on, only one booster can be on, and only on the cooking zones that are not in Flexi Mode.

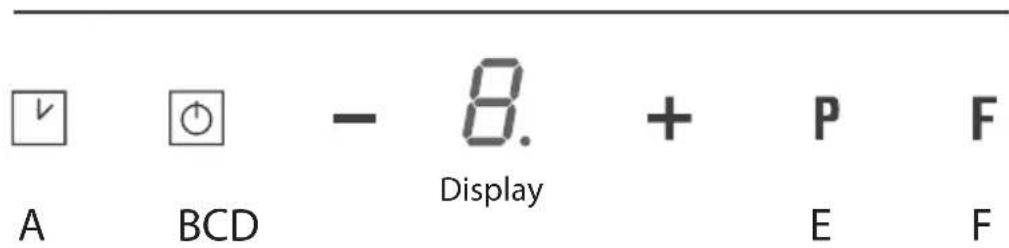

A BCD - 8. Display + P E F

This device allows you to choose the operating mode (suction or filtration), depending on the installation.

Upon first start-up, the display shows which operating mode is enabled.

Filtration: the display shows the letters C and the filter reset button flashes quickly.

Suction: the display indicates the letter C and the filter reset button is off.

During this phase you can change the operating modes by pressing the key F

A beep confirms the program change.

Once the set time elapses, the program will exit this operating mode and goes to standby mode or by pressing the on/off button of the motor

To access the operating mode selection again, turn off power to the appliance and then power it again.

Note: in suction mode, when the device is turned off, suction still operates for 20 minutes at a minimum speed, to allow evaporating any possible condensation that has formed during the cooking phases.

B:Motor on/off key: when touched, this key enables the motors; if pressed, it shuts down the motor. By operating the keys "+" and "-" the user can modify the suction speed (power).

C:Suction speed (power) decrease key: when touched, this key decreases the suction speed of the hood.

D:Suction speed (power) increase key: when touched, this key increases the suction speed of the hood.

F:Filter reset key: when touched, this key will reset the warnings on anti-grease metal filter (1) saturation and replacement of carbon filter (2).

(1) After 30 hours of hood operation, the symbol F, alternating with the symbol G, will flash indicating the need to clean the anti-grease metal filters; this alarm prevents the operation of the suction system until it is reset, to allow the condensate tray to empty (operation to be performed as needed, but however each time you reset the filters).
(2) Active only in filtration mode: After 120 hours of operation of the hood, the symbol F, alternating with the symbol C, will flash indicating the need to clean/replace the activated carbon filters; the carbon filters can be washed in the dishwasher once, and then they must be replaced.

In suction mode, the alarm of carbon filters is disabled.

A:Timer key: when touching the key, the timer will be enabled, regardless of the selected suction speed. Upon first touch, the time will be 5 minutes (shown by a flashing button on the key), the second touch corresponds to 10 minutes (double flashing time) and the third touch to 20 minutes (triple flashing time). The timer key will flash throughout the entire operation.

A fourth pressure of the button will disable the timer function.

E:Intensive key: when touching the button, the motor switches directly to the first intensive phase (5th speed, timed for approximately 8 minutes); a second pressure of the button activates the second intensive phase (6th speed, timed for approximately 6 minutes).

The timing of speed is active only in suction mode.

Cooking top

The cooking top must be cleaned after each use. Allow the appliance to cool before cleaning it.

Prior to cleaning the ceramic glass cooking hob, it is advisable to activate the Child Lock function, so that the cooking top is not switched on accidentally (see Child Lock function).

Use only cleaning products specially formulated for ceramic glass cooking tops. Respect all indications on the product packaging.

Do not use the following cleaning products, as they may cause damage to the surfaces of the ceramic glass cooking top:

softeners or products for eliminating stains and/or rust;

dishwashing and/or dishwasher detergents;

detergents for glass;

detergents containing soda, ammonium, acids or chlorides;

any abrasive detergent, sponge or brush;

solvents;

dirt removing rubber erasers;

pointed objects;

oven or grill cleaning products;

any steam device, as steam can reach the appliance's live parts and cause a short circuit.

To prevent damaging the cooking top frame, observe the following guidelines:

Use hot water only, with little soap;

Never use pointed utensils or abrasive products;

Do use a window scraping tool.

Any cooking or dirt residue should be removed with a window scraping tool. Be careful when using scraping tools to avoid injury.

If sugar or food preparations containing sugar, plastic or aluminium foil end up on the hot cooking top, it is advisable to switch it off. Remove these substances immediately from the cooking zone, even if the cooking top is still hot, using a scraper; otherwise these substances can damage the ceramic glass top when cooling down.

(Warning: burn hazard!!!) Lastly, clean the cooking zone when it has cooled.

The symbols on the cooking top can wear out as a result of using abrasive or aggressive detergents, steel wool, and the scraping of pots and pans. Avoid using these cleaning products. In any case, this will not in any way compromise the unit's correct operation.

Note: all of the problem issues described in this section are solely of an aesthetic nature and do not in any way affect the appliance's correct operation. They cannot be restored under the warranty.

These errors appear on the cooking top display.

Error code	Description	Possible causes	Solution
C, E, C flashing, E flashing or - symbol	If the display in one of the cooking zones shows one of these symbols, an intervention has occurred or is occurring in the system's basic configurations.	Problems or changes detected to the system's basic configurations.	Contact the authorised service centre, specifying the error code.
E2	Excessive temperature on the cooking zone.	Overheated pot.	Allow the system to cool down, decreasing the power or removing the pot.*
E3	Malfunction due to the use of inappropriate cookware materials.	Pots of inappropriate material or possible loss of magnetic properties at higher temperature.	Use pots of a suitable material or replace them.*
E4, E5, E6, E7, E8, E9, EA, EC, EH,	Hardware fault Hardware errors detected		Contact the authorised service centre, specifying the error code.
No display / Function	Voltage or touch control error.	Faulty electrical connection or faulty component.	Contact the authorised service centre, specifying the error code.
u Pot not detected		Inappropriate cooking pot	Use a suitable pot. Refer to the section of the manual on suitable recipients.*
Er31, Er47, Er22, Er20 or segments on the display lighting up cyclically	Touch control fault	Touch control error detected	Contact the authorised service centre, specifying the error code.

CLEANING AND MAINTENANCE GB

Er 03 or √	Continuous activation of one of the control keys; the control switches off after 10 seconds.	Liquid or pot on the control zone	Dry and clean the glass or remove the pot from the control zone.
The power returns to level 0		Fault detected on a hardware component	Contact the authorised service centre, specifying the error code.
L	No error!Child Lock enabled		Disable the Child Lock function: refer to the section of the manual

* If the error persists, contact your authorised service centre, specifying the error code.

Attention

Two grayscale illustrations of cooking utensils, one with a circular lid and handle, the other with a square pan (no text or symbols)

Illustration of a frying pan and its side view showing the lid and pan (no text or symbols)

Illustration of kitchenware including a plate with a lid and a pan with a lid (no text or symbols)

Two grayscale illustrations of cooking utensils, one with a lid and the other showing panes (no text or symbols)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

Illustration of kitchenware including a cooking pan, lid, and pan (no text or symbols)

Two grayscale illustrations of kitchen utensils, one with a side dish and the other with a pan (no text or symbols)

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

Illustration of kitchenware including a pot, lid, and pan (no text or symbols)

Two grayscale illustrations of frying panes with handles, one showing a side dish and the other showing a pan with a lid (no text or symbols)

Illustration of a frying pan and its side view showing the exterior (no text or symbols)
