USER MANUAL Multi Mixer 304940 Arendo

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Important safety guidelines for this appliance

• Read the user manual completely before using this appliance. There is risk of injury if used incorrectly!
  • You can be seriously or fatally injured if you do not follow these instructions.
• The appliance is not intended for use by persons, including children, with reduced physical, sensory or mental abilities as well as inexperienced and uninformed people. Such people may use the appliance only under supervision or with instructions on safe use of the appliance and the associated risks.
• Never use this appliance without the lid on it! There is a risk of injury!
• Check the product for damage every time before use. Do not operate the appliance if the cable, the plug or the

appliance show any visible signs of damage.

• Do not make any modifications or repairs to the appliance.
• Caution! The blade unit is very sharp!
• Plug the appliance only into a properly installed power socket!
• Never leave the blender unattended and choose a location in which the appliance is out of reach of animals and/or children.
• Children should not play with the appliance.
• Keep the appliance out of the reach of children under 8 years of age.
• Keep it on an suitable surface so that it does not tip over.
• Do not keep the blender next to heat sources (e.g., electric stove).

arend

• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Do not move the appliance when it is being operated.
• Ensure that the power cable does not come into contact with any hot surfaces.
• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.
• Never touch the plug with wet hands.
• Protect the appliance against fire.
• Do not immerse the cable, the plug or the entire appliance in water or any other liquids.

• Keep the entire appliance away from water or other liquids.

• The product should not be used by children. Keep this appliance and the power plug out of reach of children.

• Switch off the appliance and pull the power plug when you want to replace any accessories or to move the appliance to another location.
• Do not allow the power cable to protrude over edges (e.g., table edge or edge of a countertop, etc.).
• Remove the power plug from the socket when the appliance is not being used, during cleaning and assembly.
• If the power cord is damaged, this must be replaced by the manufacturer or by a qualified person in the event of a defect, in order to prevent damage.
• Do not remove the expansion cover. This function is not supported.
• Do not insert any body parts or objects

that they are not intended for the purpose, into the mixer or into the spiral drive behind the expansion cover.

• Avoid contact with moving parts of the appliance. During mixing or if the appliance is turned on, all the body parts as well as hair, clothes and all utensils have to be kept away from the appliance to avoid the risk of injury and damage to the appliance.

• Only use accessories recommended by the manufacturer.

• Remove the mixing attachments before cleaning the appliance.
• This product is intended for personal use only!

• Connect the cable to a properly installed and earthed socket. Do not use an extension cable, adapter or power strip.

• Please do not use outdoors.

• Close supervision is required if the appliance is used by children or near children.
• Be careful when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Brief operation! Use the appliance for a maximum of 3 minutes at a time!
• Allow the appliance to cool down completely (at least 10-15 min) after use, before reusing it!

Thank you for choosing an Arendo product. Please read the following user manual carefully to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Base station
• User manual
• 1x blender jar + lid
• Pusher tool

2. Technical data

Power supply 220-240V AC 50/60 Hz
Power consumption 2000 W
Weight approx. 3650 g
Capacity (blender jar) about 2 L
Ambient temperature + 0-3°C until 35-40°C
Features • Non-slip base	• Safety lock • Pulse function • Adjustable speed

3. Initial use

Take the appliance out of the packaging and remove all the packaging material. Clean the blender jar and the blade unit. The appliance is not suitable for cleaning in dishwashers. Do not use any aggressive or strong cleaning agents.

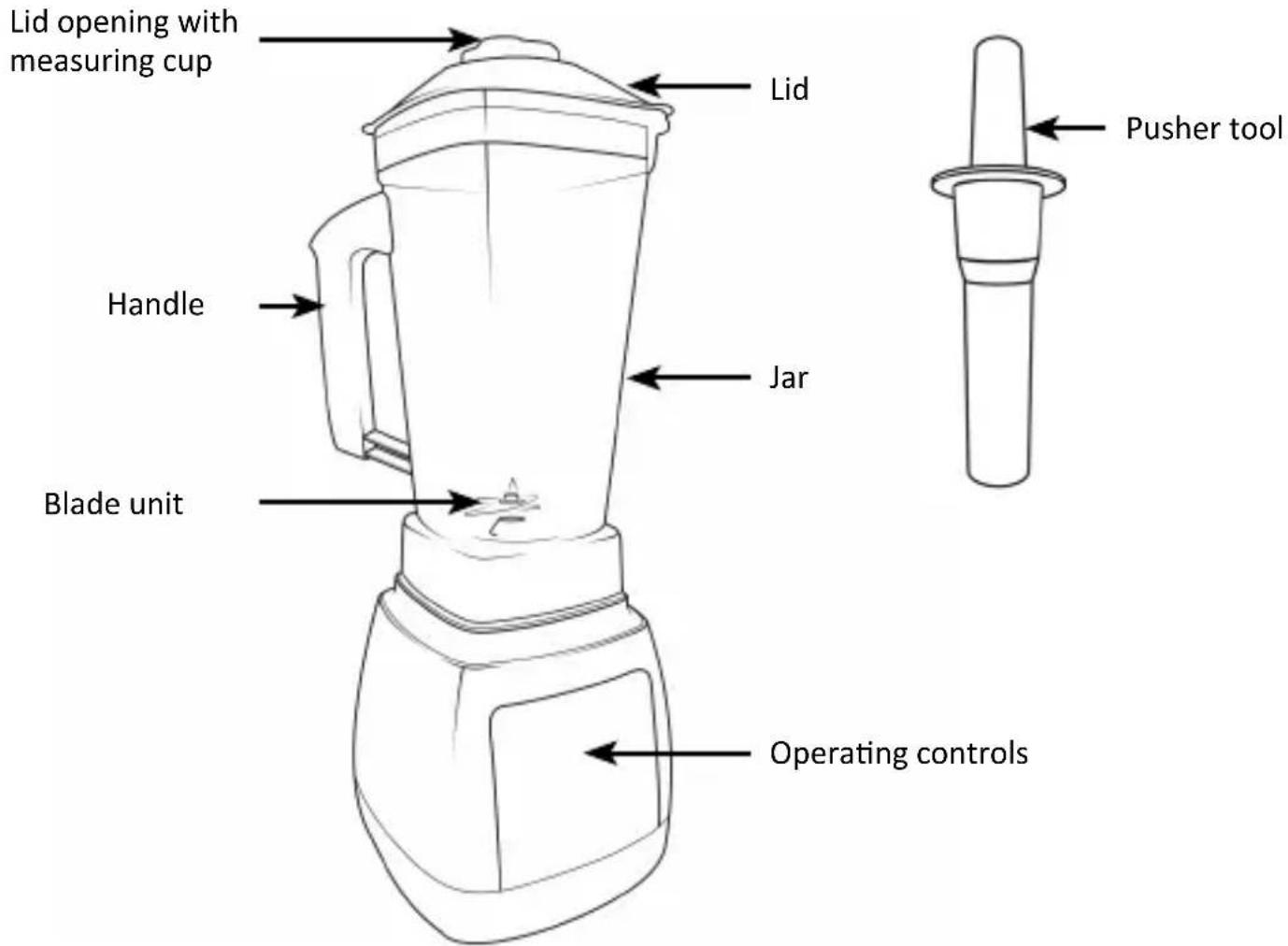

4. Product details

5. Safety switch

The appliance can be operated only if the blender jar is fixed in place. Make sure the container is properly fixed. Only then can the appliance be started. The correct position is shown in the figure above (from the front: handle to the left).

6. Brief operation

The appliance is designed only for brief periods of operation. You can use the blender continuously for about 2-3 minutes. After this time, you have to allow the motor to cool down completely (about 10-15 minutes).

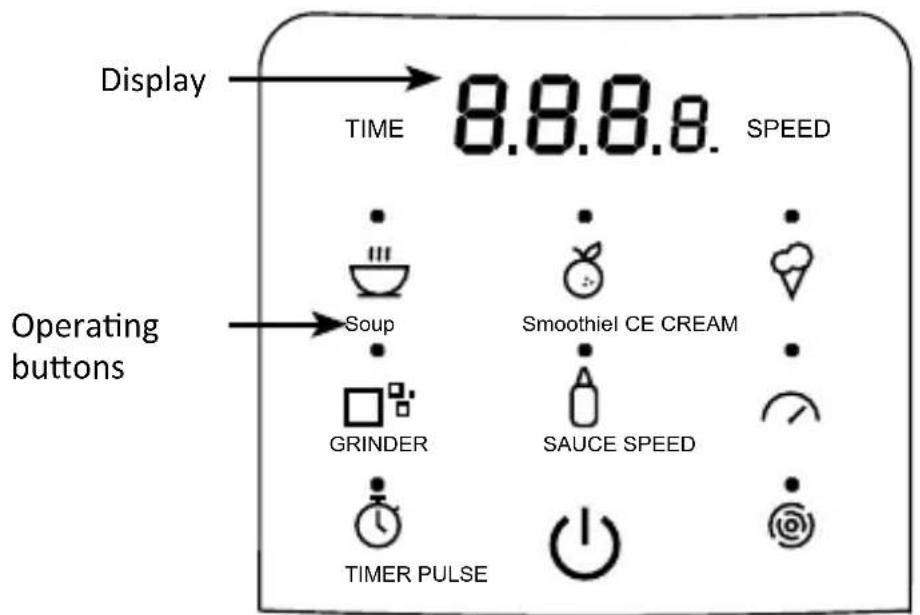

7. Operating controls

Soup	Soup button
GRINDER	Grind button
Smoothie	Smoothies button
SAUCE	Sauce button
ICE CRFAM	Ice Cream button
Speed	Speed button (speed levels)
PULSE	Pulse / Clean button
TIMER	Timer button
()	ON / OFF button

Press the "Speed" button to increase the speed. Once the maximum speed level is reached, the next setting is the minimum speed level.

The pulse function runs the blender at maximum speed for as long as button is pressed.

The programs and their function are given in the table below.

Soup	Press "Soup". After 3 seconds, the appliance runs for about 180s in this functional mode. The blender switches between the different speed levels during the program.
ICE CREAT	Press "Ice cream". The corresponding indicator flashes. Touch the "ON / OFF" button to start the function. The appliance runs for 18 seconds in this mode.
Smoothie	Select the "Smoothie" function in the standby mode. The corresponding indicator starts flashing. Touch the "ON / OFF" button to start the function. The appliance runs for 20 seconds in this mode.
SAUCE	Select the "Sauce" function in the standby mode, the corresponding indicator starts flashing. Touch the "ON / OFF" button to start the function. The appliance runs for 20 seconds in this mode.
GRINDER	Select the "Grind" function in the standby mode, the corresponding indicator starts flashing. Touch the "ON / OFF" button to start the function. The appliance runs for 40 seconds in this mode.

8. Initial use

Place the container on the motor unit. Then connect the power plug of the appliance into a properly installed mains socket.

Make sure that the container is placed correctly (seen from front: Handle to the left). Now open the top of the blender jar and put in the required ingredients.

Do not use dry ingredients and ensure that there is enough liquid in the blender jar. Add liquid (eg water) if necessary.

Select the desired program or the desired speed by pressing the "Speed" button. The display shows the current speed level. Start the appliance using the "ON / OFF" button. The blender will then start to chop the chosen ingredients into smaller pieces. Adhere to the prescribed operating time. Do not exceed the blending time under any circumstances.

The blender runs at maximum speed as long as the "PULSE" button is kept pressed.

After completing the blending process, please remove the blending jar from the base unit and disconnect the plug from the socket.

Note: The appliance is designed only for brief periods of operation. Allow the appliance to cool down adequately after about 2 - 3 minutes of continuous operation before you reuse it!

8.1 Timer function

Press the "Timer" button in Standby mode. The 3-bit digital display shows "000" by default. Then press the "Timer" button repeatedly to set the time. It is incremented each time you press the button (one increment is equal to 10s). Pressing the button for a long time allows you to set the time in faster increments (3 increments / second).

Then press the "ON / OFF" button twice. The system goes to the Timer mode; the time in the display counts down to show the remaining time. The appliance switches off after the set time is counted down. You will hear a beep and the appliance automatically changes to standby mode. Press the "Speed" button in Timer mode to select the speed level.

9. Cleaning and Care

Unplug the power cord from the mains outlet. Clean the base unit with a slightly dampened soft cloth. Caution! Do not use liquids to wipe the base unit and the power connections. Do not use any aggressive, strong or abrasive cleaning agents. You can clean the blender jar, the lid and the blade unit in soapy water. To clean the appliance quickly and immediately after use, fill the blender jar with warm water up to about 60% , add some detergent and let the appliance run briefly. Then, take the blender jar and shake it. Finally, rinse only the blender jar and the blade unit using clean water until all residue and traces of the detergent are removed. Allow all parts of the appliance to dry completely!

10. Important safety guidelines for this appliance

• Never use this appliance without placing the lid on it! There is a risk of injury!
• Do not use dry ingredients and ensure that there is enough liquid in the blender jar.
• Never operate the appliance in a dry condition.
• Check the appliance for damage every time before use. Do not operate the appliance if the cable, the plug or the appliance show any visible signs of damage.
• Do not make any modifications or repairs to the appliance.
• Caution! The blade unit is very sharp!
• Plug the appliance only into a properly installed power socket!
• Never leave the blender unattended and choose a location in which the appliance is out of reach of animals and/or children.
  Children should not play with the appliance.
• This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if

they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

• Keep the blender out of reach of children under 8 years of age.
• Keep it on an suitable surface so that it does not tip over.
• Do not keep the blender next to heat sources (e.g., electric stove).
• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Do not move the appliance when it is being operated.
• Ensure that the power cable does not come into contact with any hot surfaces.
• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.
• Never touch the plug with wet hands.
• Protect the appliance against fire.
• Do not immerse the cable, the plug or the entire appliance in water or any other liquids.
• The appliance should not be used by children. Keep this appliance and the power plug out of reach of children.
• Switch off the appliance and pull the power plug when you want to replace any accessories or to move the appliance to another location.
• Remove the power plug from the socket when the appliance is not being used, during cleaning and assembly.
• If the power cord is damaged, this must be replaced by the manufacturer or by a qualified person in the event of a defect, in order to prevent damage.
• Never insert body parts, or objects which are not defined for it, in the blender.

11. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow.

Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance

304940 complies with the fundamental requirements and all other rele

vant stipulations. A complete conformity statement can be obtained from:

(IT) +49511/13221740

(ES) +49511/13221750

MO-FR 9:30am - 18pm CET

www.arendo.de
