303039 - Mixer Arendo - Free user manual and instructions

Product type	Blender
Brand	Arendo
Model	303039
Power supply	220-240 V ~ 50/60 Hz
Power consumption	220 W
Dimensions (H x Ø)	350 mm x 110 mm
Weight	1450 g
Bowl capacity	1000 ml
Bowl material	Glass or plastic (not specified)
Number of speeds	2 (1, 2) + pulse function (P)
Safety lock	Yes (bowl engaged)
Non-slip feet	Yes
Maximum continuous use	2-3 minutes, then cool down 5 min
Bowl and lid dishwasher safe	Yes
Blade unit dishwasher safe	No
Cleaning the base	Slightly damp soft cloth
Package contents	Base station, bowl, lid, blade unit, instruction manual

Frequently Asked Questions - 303039 Arendo

How to use the pulse function?

Set the switch to the "P" position to activate pulse. Alternate between "P" and "0" for pulsed mixing. This allows you to grind hard or frozen ingredients while controlling the texture.

Can I blend frozen ingredients?

Yes, use the pulse function ("P") to blend frozen ingredients. Do not exceed 2-3 minutes of continuous operation.

How to clean the blade unit?

The blade unit is not dishwasher safe. Clean it by hand with soapy water and a soft brush, then rinse with clean water. Dry it completely before reassembling.

What to do if the appliance does not start?

Make sure the mixing bowl is correctly locked onto the base. The appliance only works if the bowl is properly positioned (integrated safety feature). Also check the electrical outlet.

Is the bowl dishwasher safe?

Yes, the bowl and lid can be washed in the dishwasher. The blade unit must be hand washed.

What is the maximum capacity?

The bowl capacity is about 1000 ml. Do not overfill to avoid spills.

Can I use the appliance continuously?

No, the blender is designed for short-term operation. Use it in cycles of 2 to 3 minutes maximum, then let it cool down for 5 minutes before the next use.

How to change the blades?

The blades are not designed to be changed by the user. If damaged, contact the manufacturer or a qualified professional. Do not attempt to disassemble the blade unit yourself.

Is the appliance safe for children?

The appliance should not be used by children without supervision. It can be used by children over 8 years of age under supervision. Keep it out of reach of children under 8 years.

What to do if the cable is damaged?

Do not use the appliance. The cable must be replaced by the manufacturer, an authorized service center, or a qualified person to avoid any danger.

USER MANUAL 303039 Arendo

Thank you for choosing an Arendo product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1 Scope of supply

• Base station
• User manual
• 1x blender jar + lid
• Blade unit

2 Technical data

Power supply 220-240V AC 50/60 Hz

Power input 220W

Dimensions approx. 350 mm (height) x 110 mm (dia)

Weight 1450 g

Capacity of the blender jar approx. 1000 ml

Features • Anti-skid base

3 Commissioning

Take the appliance out of the package and remove all packaging material. Clean the blender jar and the blade unit You can clean the blender jar and the blender lid in the dishwasher or in soapy water. The blade unit is not suitable for dishwashers. Do not use any aggressive or strong cleaning agents.

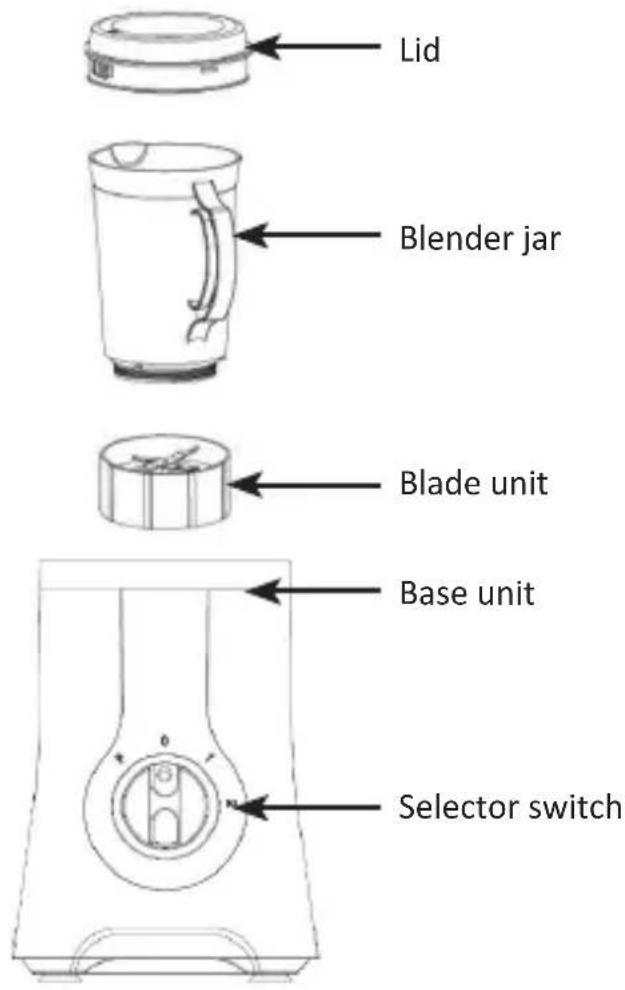

4 Product details

5 Safety switches

The appliance can be operated only if the blender jar is fixed in place. The jar has to be fixed in place correctly. Only then can the appliance be operated.

6 Brief operation

The appliance is designed only for brief periods of operation. You can use the blender continuously for about 2-3 minutes. After this time, you must allow the motor to cool down for approx. 5 minutes.

7 Setting up

Fix the blade unit onto the blender jar. Then connect the power plug of the appliance into a properly installed power socket.

Place the blender jar with the blade unit onto the base unit. Ensure that it engages properly. Now open the top of the blender jar and put in the desired ingredients.

There is a selector switch with the positions "P", "1" and "2" on the front of the appliance. The positions "1" and "2" are for the blending speed. The position "P" is for the "pulsing" function. The pulse function allows tough or frozen ingredients to be chopped into smaller pieces at high speed. In this way, you can better control the blending time and the consistency and positively influence the final result. Select the desired position of the selector switch. The blender will then start to chop the chosen ingredients into smaller pieces. Adhere to the prescribed operating time. Do not exceed the blending time under any circumstances. If you wish to blend the ingredients by pulsing them in stages, move the selector switch repeatedly back and forth between "P" and "0". This allows you to vary even the pulsing interval. Then remove the blender jar from the base unit.

Note: The appliance is designed only for brief periods of operation. You have to allow the appliance to cool down sufficiently after 2-3 minutes of continuous use before you start again!

8 Cleaning and Maintenance

Unplug the power cord from the outlet. Clean the base unit with a slightly dampened soft cloth. Caution! Do not use liquids to clean the base unit and the power connections. Do not use any aggressive, strong or abrasive cleaning agents.

You can clean the blender jar, the lid and the blade unit in soapy water. The blender jar and the lid can also be cleaned in a dishwasher.

To clean the appliance quickly and immediately after use, fill the blender jar with warm water up to about 60% , add some dishwashing liquid and let the appliance run briefly. After this, take the blender jar and shake it. Finally, rinse only the blender jar and the blade unit using clean water until all residues and traces of the dishwashing liquid are removed.

Allow all parts of the appliance to dry completely.

9 Important safety guidelines for this appliance

• Always check the appliance for any damage before using it. If the cable, the plug or the appliance show any visible signs of damage, then the appliance should not be used.
• Do not make any modifications or repairs to the appliance.
• Caution! The blade unit is very sharp!
• Plug the appliance only into a properly installed power socket.
• Never leave the blender unattended and choose a location in which the appliance is safe from the reach of animals and children.
  Children should not play with the appliance.
• Children above 8 years of age and persons with restricted physical, sensory and mental abilities may use the appliance only if they are instructed or supervised by a person who is responsible for their safety.
• Keep the blender out of the reach of children under 8 years of age.
• Keep it on an appropriate surface so that it does not tip over.
• Do not keep the blender next to heat sources (e.g. electric stove).
• Unplug the power plug when the appliance is not in use or during cleaning.
• Do not move the appliance when it is being operated.
• Ensure that the power cable does not come into contact with any hot surfaces.
• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.
• Never touch the plug with wet hands.
• Protect the appliance from fire.
• Do not immerse the cable, the plug or the entire appliance in water or any other liquids.
• The appliance should not be used by children. Keep the appliance and the power plug out of the reach of children.

• Switch off the appliance and pull the power plug when you want to replace any accessories or to move the appliance to another location.

• Remove the power plug from the socket when the appliance is not in use, and during cleaning and assembly.

• If the power cord is damaged, this must be replaced by the manufacturer or by a suitably qualified person in the event of a defect, in order to prevent damage.

10 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

11 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU
WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303039/20170821NB057 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
