USER MANUAL BETA PRO 6000 BK CATA

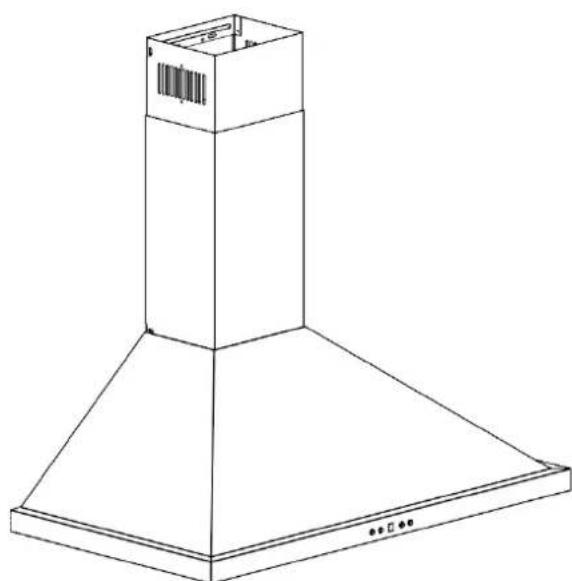

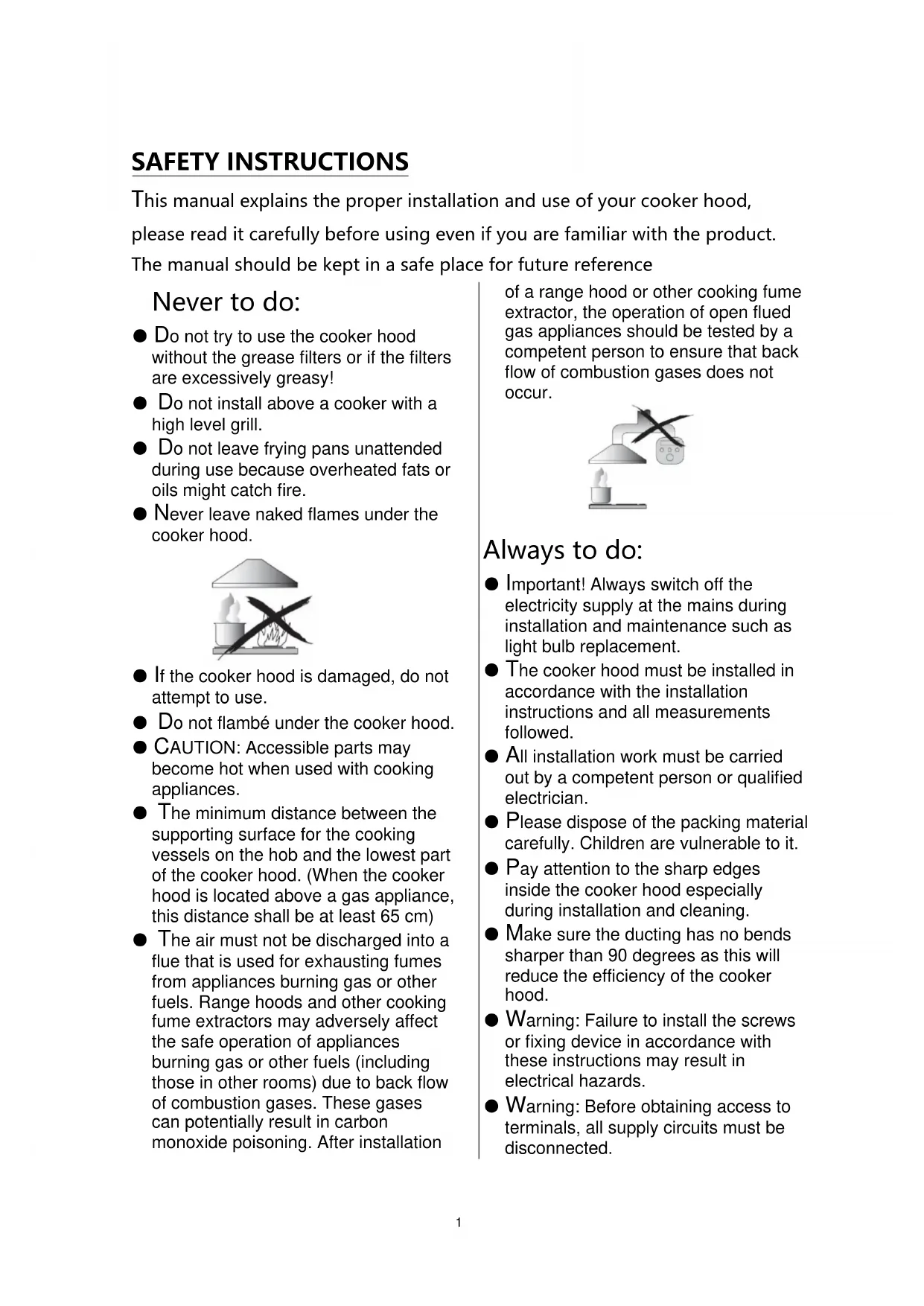

16SAFETY INSTRUCTIONS This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference Never to do: ● Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy! ● Do not install above a cooker with a high level grill. ● Do not leave frying pans unattended during use because overheated fats or oils might catch fire. ● Never leave naked flames under the cooker hood. ● If the cooker hood is damaged, do not attempt to use. ● Do not flambé under the cooker hood. ● CAUTION: Accessible parts may become hot when used with cooking appliances. ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm) ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur. Always to do: ● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement. ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed. ● All installation work must be carried out by a competent person or qualified electrician. ● Please dispose of the packing material carefully. Children are vulnerable to it. ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning. ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood. ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected. 17● If the voltage rating of the lamp is less than the rated voltage of the appliance, the voltage rating of the lamp shall also be marked on or near the lamp holder. Always to do: ● Always put lids on pots and pans when cooking on a gas cooker. ● When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam. ● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels. ● Cooker hood is for domestic use only.

● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety ● Children should be supervised to ensure that they do not play with the appliance. ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Always to do: ● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision. ● There is a fire risk if cleaning is not carried out in accordance with the instructions. ● Regulations concerning the discharge of air have to be fulfilled. ● Clean your appliance periodically by following the method given in the chapter MAINTENANCE. ● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual. ● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual. ● Regarding the information about how the appliance is to be fixed to its support, please refer to Operation section, the Installation procedures in this manual. ● Cleaning and user maintenance shall not be made by children without supervision. ● When the cooker hood and appliances supplied with energy other 18than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa(4 x 10

bar). ● WARNING: Danger of fire: do not store items on the cooking surfaces. ● A steam cleaner is not to be used. ● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

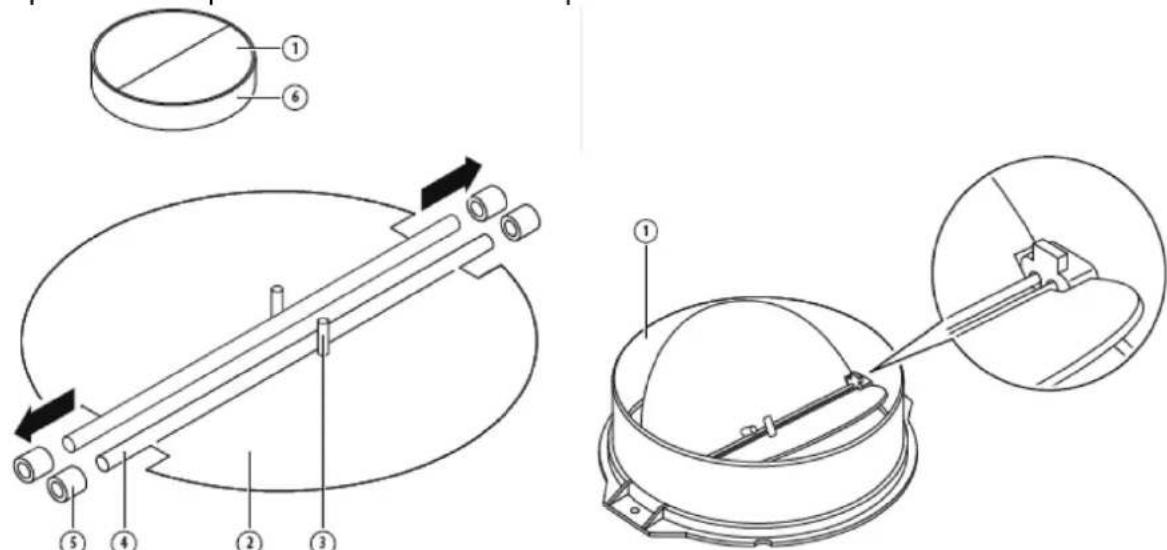

MOUNTING OF THE V-FLAP

If the cooker hood does not have an assembled V-flap 1, you should mount the half- parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations. To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6;

• the pin 3 should be top oriented;

• the axis 4 should be inserted into the holes 5 on the body;

• repeat all the operations for the 2nd half-part.

INSTALLATION If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

192.The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best effect.

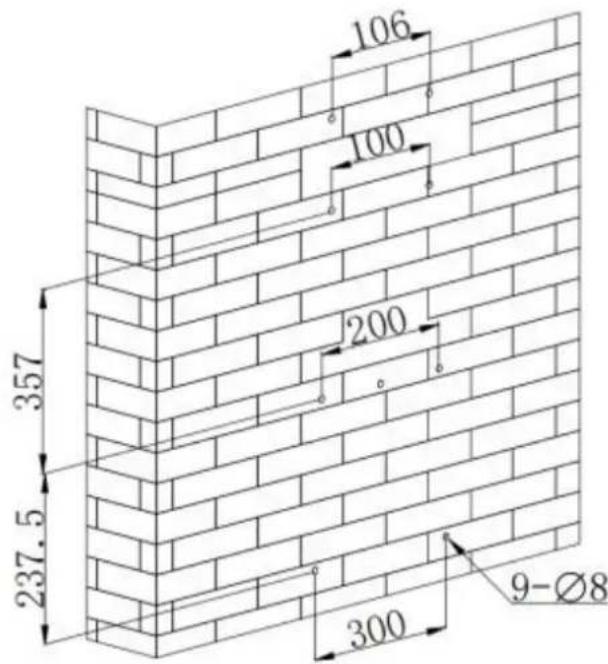

3. After deciding the position of cooker hood,drill 9pcs holes and insert wall plugs into

each holes.Use 2pcs sc rews ST4*40mm to fix inside chimney bracket on the wall and 3pcs screws ST4*40mm to fix hook on the wall.Each row of screws should be level to ensure that the hood is secured horizontally. See pic 2. Pic2

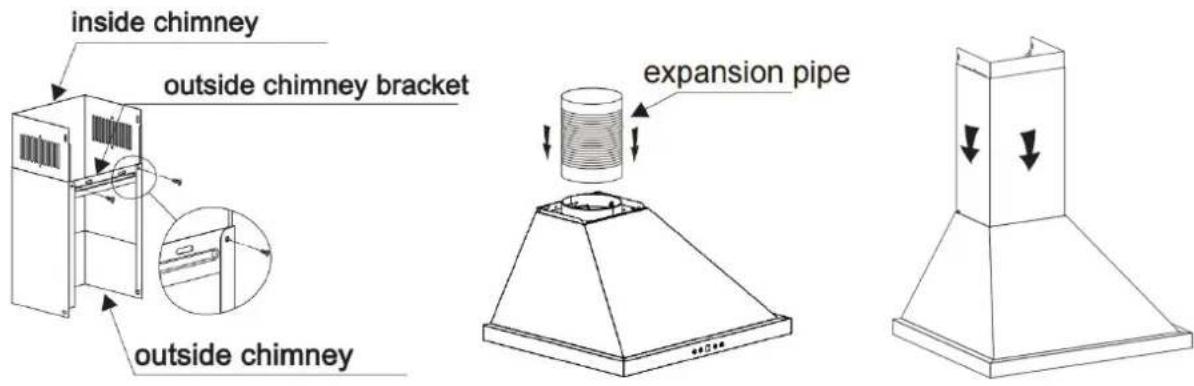

204. Fix the outside chimney bracket on the outside chimney with 2pcs screws

ST4*8mm,and be sure that the inside chimney c an be adjusted in it freely.Afterwards, install the expansion pipe and chimney on the cooker hood.Fix the expansion pipe with the cable tie on the outlet and fix the outside chimney on the cooker hood body with 2pcs screw ST4*8mm. Note :The expansion pipe is not included in the product. See pic 3&5. Pic3

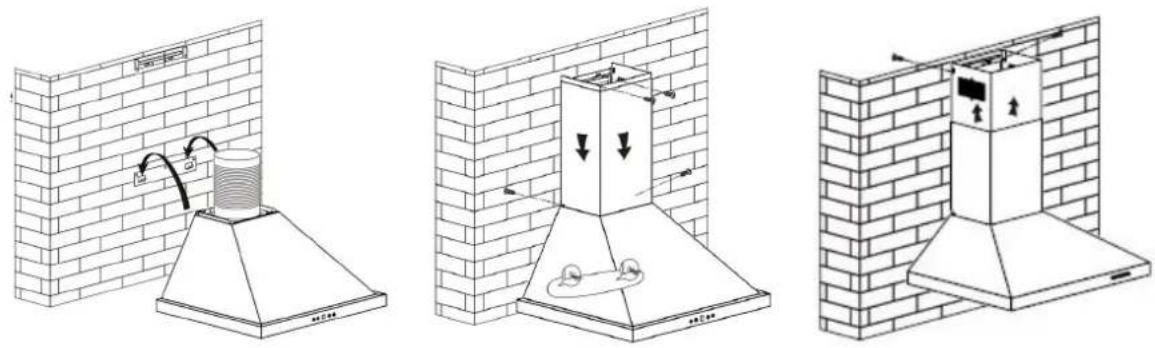

6. Adjust the height of the inside chimney to the position of the inside chimney bracket

it on the bracket with 2pcs screws ST4*8mm.After adjusting the position, fix the body with safety screws ST4*30mm. Note: The two safety vents are positioned on the back housing, with diameter of 6mm. Lay the expansion pipe to the wall outlet. See pic 5. Pic4 Pic5

21HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.

• Do not reduce the size or restrict the expansion pipe.

• When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.

• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.

• Any installation work must be carried out by a qualified electrician or competent person.

• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance ,such as warmer tube, gas tube , hot wind tube.

• The angle of the bend of the expansion pipe should not be less than 120°; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

• After the installation ,make sure that the cooker hood is level to avoid grease collection at on end.

• Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

22WARNING: For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

1. Power-on: After connecting the cooker hood to the main supply, the backlight of all

buttons will turn on and the buzzer sounds for once. The LED display is closed . The cooker hood doesn’t work and enters into stand-by mode.

Press (Lamp) button, the lights will be on. Press again, the lights will be off. The above steps can be repeated operating. The lamp function could be operated without pressing the (Power) button.

3.1 Press (Power) button ,the cooker hood starts to work at the low speed

and the LED display will display “1”. Press again, the cooker hood will stop.The cooker hood speeds can only be adjusted when starting the power button.

3.2 After switching off the speeds of cooker hood by power button, when press

the power button again to start-up the hood, motor will work at the speed before the last exit.

The cooker hood has three speed levels ,they are low,mid,high, and the corresponding LED display will be ”1”,”2”,”3”.

4.1 After switching on the power button,the hood starts to work at low speed and

the LED display will display “1”.

4.2 Press (Speed) button again when it works at low speed, the cooker hood

23works at mid speed and the LED display will display “2”.

4.3 Press (Speed) button again when it works at mid speed, the cooker hood

at the high speed and the LED display will display “3”. After working at high speed (boost) for 7mins, the cooker hood will switch to mid speed automatically.

4.4 During the working, you can press (Speed) button to change the speed

The timer button is only used for the timer function when the hood is working. (Press the button will be invalid when the hood is under standby mode or open the lamp separately).

5.1 Press the timer button, the hood enter into the timer function. The timer setting

is 9mins and the display shows “9”.

5.2 After the timing function starts, the display shows “9”, “8”, “7”..., decreasing by

minute. After the timing is completed, the motor will automatically cut off the power immediately and the motor output will be turned off. The lights are off at the same time.

5.3 Press the timer button once to enter the timer function. Press again to exit the timer

function. The above steps can be operated repeatedly. In the timing state, pressing the speed button will automatically exit the timing function. TROUBLESHOOTING Fault Possible Cause Solution Light on, but motor does not work Fan switch turned off Select a fan switch position. Fan switch failed Contact service center. Motor failed Contact service center. Light does not work, motor does not work House fuses blown Reset/Replace fuses. Mains power cable is loose or disconnected Refit mains power cable to power outlet. Switch power outlet on. Oil leakage One way valve and the outlet are not tightly sealed Take down the one way valve and seal with sealant. Leakage from the connection of chimney and cover Take chimney down and seal. Lights not working Broken or faulty bulbs Replace bulbs as per this instruction. Insufficient suction The distance between the cooker hood and the gas top is too far Refit the cooker hood to the correct distance. 24The Cooker hood inclines The fixing screw is not tight enough Tighten the hanging screw and make it horizontal. NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket.

• External surfaces are susceptible to scratches and abrasions, so follow the cleaning instructions to ensure the best possible result is achieved without damage. GENERAL Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces. STAINLESS STEEL The stainless steel must be cleaned regularly (e.g. weekly) to ensure a long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used. NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning. Important Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much 25pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

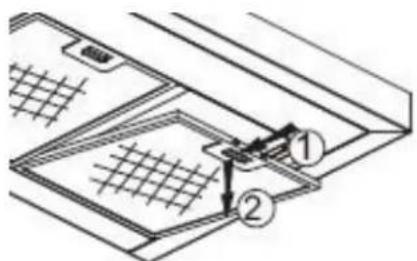

• To install filters for the following four steps: - Angle the filter into the slots at the back of the hood. - Push the button on the handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters. CARBON FILTER-not supplied Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below:

1. Before installing or replacing the carbon filters, disconnect the mains power to

2. Press the filter lock and remove the mesh filter.

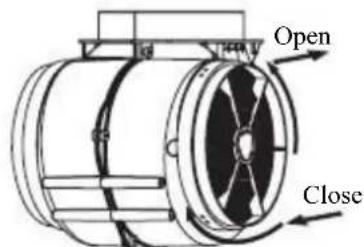

3. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the

carbon filters with the new carbon filters.

4. Place the mesh filter.

5. Connect the power supply to the wall socket.

• Make sure the filter is securely locked. Otherwise, it would loosen and cause danger.

• When activated carbon filter attached, the suction power will be lowered. Open Close 26BULB REPLACEMENT Important : The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands. When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb. Note: ● Before Replacement light that the cooker hood can be isolated from the supply mains by means of a plug or an all-pole switch. ● Protect against danger when changing lights, such as wearing gloves. Changing the lights: Remove the grease filter. Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out, see pic 1.Then slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire. See pic 2. Apply the reverse procedure to install the light back.

• ILCOS D code for this lamp is: DSR-1.5/65-S-64 – LED modules –round lamp – Max wattage: 2×1.5 W – Voltage range: DC 12V – Dimensions:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities. NOTE: The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process). (1) Install the cooker hood in a proper place where there is efficient ventilation. (2) Clean the cooker hood regularly so as not to block the airway. (3) Remember to switch off the cooker hood light after cooking. (4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retainer for recycling advice.
