USER MANUAL W40CC GaN INTENSO

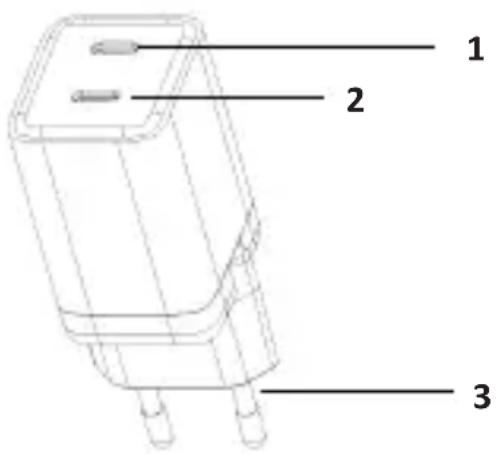

Please check whether the contents of this package are complete and undamaged. If this is not the case, please contact the seller or our service department: rma@intenso-internaonal.de Intenso Power Adapter W40CC GaN Operang Instrucon

Operaon Before use: The device can be used worldwide due to the supported mains voltage of 100 – 240 volts. Please note that a country-specic adapter may be necessary. Before connecng, check whether the connected device is suitable for this power adapter. Pay par- cular aenon to the required power in the operang manual of the device to be connected and also observe the instrucons given there before using this power adapter. Informaon about the power limits of this product can be found in the technical data of this ope- rang manual. Make sure that you have followed all the instrucons in this manual. Connecng the device: Plug a suitable USB cable rst into the device to be connected and then into the USB port of this device. Then plug the power adapter into the mains socket. The connected device should now be properly powered. If you are charging a device with a rechargeable baery, disconnect the device from the power supply again when it is fully charged. If you are using a product without a baery, disconnect the device from the power supply when it will not be used for a long period of me. Aenon: The output power of the available USB ports depends on the number and combinaon of USB ports used, if any. For details, see the technical specicaons in this user manual. This device supports Power Delivery (PD), PPS and QC for fast charging. No manual sengs are required; the standards automacally negoate the voltage and power between the devices if the connected device also supports one of the standards. Due to the large number of dierent end de- vices that support these standards, there may be restricons in the funcon, especially if the devices are already older and no longer have the latest soware, and the connected device may only be charged normally. Please also note that the cable you use must also support the desired fast charging standard and the higher power output. A 20 V / 3 A cable is required for power outputs up to 60 was and a 20 V / 5 A cable for higher power outputs up to 100 was. EN - Page 4 of 6 EN - Page 5 of 6

3EN - Page 4 of 6 SERVICE/DISTRIBUTOR INTENSO INTERNATIONAL GMBH I Kopernikusstraße 12-14 I D-49377 Vechta Email (technical support): support@intenso-internaonal.de Email (RMA number): rma@intenso-internaonal.de Internet: www.intenso.eu Telephone (technical support): +49 (0) 4441 – 999 111 (Mon.- Thurs. 09:00 a.m. - 4:30 p.m.; Fri. 09:00 a.m.- 2:00 p.m.) DISPOSAL EN - Page 5 of 6 Disposal of old electronic equipment: The devices marked with this symbol are subject to the European Direcve 2012/19/EC. All electrical appliances and old electrical appliances must be dis- posed of separate from the municipal waste stream via designated collecon facilies appointed by the government or the local authories. You avoid en- vironmental damage with the proper disposal of old electrical equipment. Packaging: Packaging is raw material. The packaging material of this product is suitable for recycling and can be reused. Please follow local recycling regulaons when dis- posing of any materials. OPERATING CONDITIONS Use the device at temperatures between 5 and 40 degrees Celsius and up to a maximum altude of 2000 m above sea level. If you do not plan to use the device for a long me, store it between -20 to 65 degrees Celsius and charge it approximately every three months to maintain full performance. Use and store at a humidity that is between 10% and 90%.TECHNICAL DATA EN - Page 6 of 6 Model designaon: W40CC GaN Dimensions (W/H/D): 30,4 x 35,4 x 85,4 mm Weight: 80,0 g Input voltage: 100 – 240 Volt Input alternang current frequency: 50 / 60 Hz Output voltage: Supports (backwards compable) PD 3.0, PPS and QC 4.0 USB-C 1/2: 5,0 V/DC 3,0 A, max. 15 was 9,0 V/DC 3,0 A, max. 27 was 12,0 V/DC 3,0 A, max. 36 was 15,0 V/DC 2,67 A, max. 40 was 20,0 V/DC 2,0 A, max. 40 was PPS: 3,3 – 11,0 V/DC 3,0 A, max. 40 was 3,3 – 21,0 V/DC 2,0 A, max. 40 was USB-C 1 + USB-C 2: USB-C 1: 5,0 V/DC 3,0 A, max. 15 was 9,0 V/DC 2,22 A, max. 20 was USB-C 2: 5,0 V/DC 3,0 A, max. 15 was 9,0 V/DC 2,22 A, max. 20 was Total: max. 40 was Average eciency in operaon: 88,57% Eciency at low load (10%): 78,02% Power consumpon at zero load: 0,12 wasVeuillez lire aenvement ce manuel et observer et suivre toutes les instrucons menonnées dans ce manuel an de garanr une longue durée de vie et une ulisaon able de l‘appareil. Conservez ces instrucons à portée de main et transmeez-les aux autres ulisateurs de l‘appareil.
