Motion and Light Sensor P2 - Smart Home Aqara - Free user manual and instructions

Brand	Aqara
Model	Motion and Light Sensor P2 (ML-S03E / ML-S03D)
Product type	Motion and light detector
Category	Smart home
Wireless protocols	Thread, Bluetooth 5.0
Power supply	2 CR2450 batteries (included)
Dimensions	33.1 × 33.1 × 41.6 mm
Weight	Approx. 50 g
Operating temperature	-10 °C to 55 °C
Operating humidity	0 ~ 95% RH (non-condensing)
Detection zones	Motion and ambient brightness
Compatibility	Matter, Aqara Home, Thread Border Router
Light indicator	Dual-color (red/blue)
Reset button	Yes (reset and factory reset)
Installation	Indoor only, height ≤ 2 m
Box contents (ML-S03E)	Main unit, 1 stand, 2 stickers, manual
Box contents (ML-S03D)	Main unit, 2 stands, 4 stickers, manual
Safety	Keep out of reach of children, do not ingest batteries
Maintenance	Clean with a soft dry cloth, do not use liquids
Repairability	Repairs by authorized personnel only
Bluetooth frequencies	2402-2480 MHz
Thread frequencies	2405-2480 MHz
Max output power	≤ 13 dBm
Manufacturer	Lumi United Technology Co., Ltd.

Frequently Asked Questions - Motion and Light Sensor P2 Aqara

How to reset the detector?

For a reset, press the button for 5 seconds and release it within 3 seconds when the indicator flashes quickly. For a factory reset, press the button 10 times quickly.

What are the prerequisites to use the sensor?

You need a Matter-compatible app and a Matter-compatible Thread Border Router.

What batteries are needed?

The sensor uses 2 CR2450 batteries (included). Observe polarity during installation.

Can I use this sensor outdoors?

No, this product is designed for indoor use only. Do not expose it to moisture or extreme temperatures.

How to install the sensor?

Remove the insulating tab, the indicator should blink. Open the compatible app and scan the Matter QR code on the manual or packaging. Follow the app instructions.

What does the blinking light mean?

The dual-color (red/blue) indicator breathes in pairing mode. A fast blink indicates a reset in progress.

Is the sensor compatible with Apple HomeKit?

Yes, via the Matter standard. Make sure you have a Matter-compatible Apple hub (e.g., Apple TV, HomePod) as a Thread router.

How to clean the detector?

Use a soft dry cloth. Do not spill water or liquid on the device.

What is the detection range?

The range is not officially specified. It depends on the environment and installation. For optimal performance, install the sensor at a height of less than 2 meters and in an open area.

How to recycle the product at end of life?

Do not dispose of the product with household waste. Take it to an approved WEEE collection point. Visit www.quefairedemesdechets.fr to find the nearest point.

USER MANUAL Motion and Light Sensor P2 Aqara

Motion and Light Sensor P2 detects human motion and condition of ambient light. When detecting human

movement or changes in ambient light conditions, Motion and Light Sensor P2 will send notice to the Aqara Home app through or link to other devices based on Thread.

• A Matter-compatible Thread Border Router is required for use.

Lens (with red/blue dual-color indicator)

Light Sensor

Reset Button

Reset: Press and hold for 5 seconds until light flashes quickly, then release within 3s.

Factory Reset: Press 10 times quickly

Quick Setup

1. Please make sure you have a Matter-compatible app and a Matter-compatible Thread Border Router.
2. Remove the insulating tab. The indicator should start breathing.

Please note: If the indicator is not breathing, press and hold the reset button for 5 seconds until the LED indicator starts blinking and release it. The device will enter the pairing mode.

1. Open the Matter-compatible app and scan the Matter QR setup code on the manual or package, or enter the Matter numeric setup code printed on the product to add the device to the app.

Product Specifications

Motion and Light Sensor P2

Model: ML-S03E/ML-S03D

Battery: CR2450 × 2

Wireless Protocols: Thread, Bluetooth 5.0

Bluetooth Operation Frequency: 2402-2480 MHz

Bluetooth Maximum Output Power ≤ 13 dBm

Thread Operation Frequency: 2405-2480 MHz

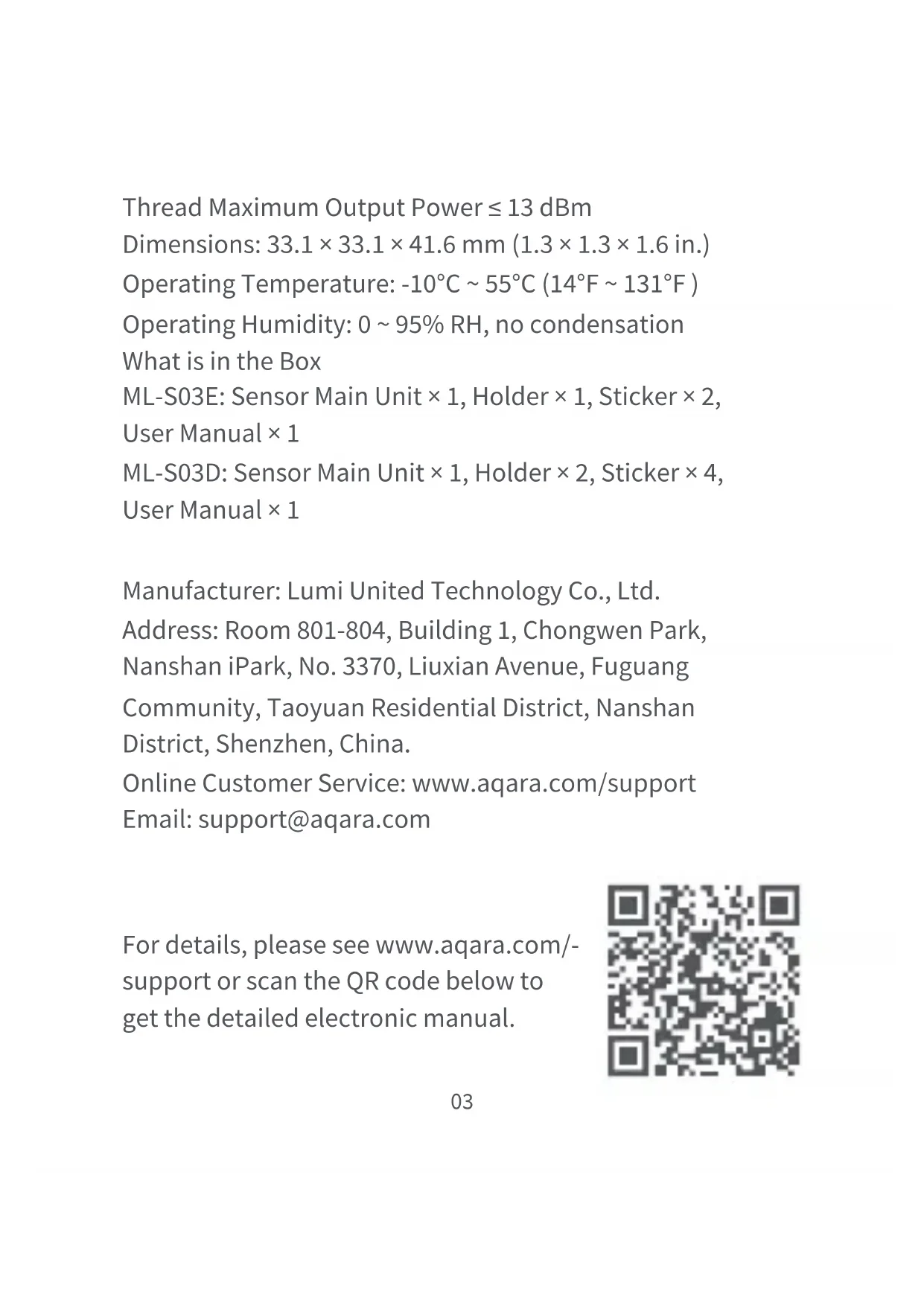

Thread Maximum Output Power ≤ 13 dBm

Dimensions: 33.1 × 33.1 × 41.6 ~mm ( 1.3 × 1.3 × 1.6 in.)

Operating Temperature: -10^ 55^ ( 14^ 131^ )

Operating Humidity: 0 95% RH, no condensation

What is in the Box

ML-S03E: Sensor Main Unit × 1 , Holder × 1 , Sticker × 2

User Manual × 1

ML-S03D: Sensor Main Unit × 1 , Holder × 2 , Sticker × 4

User Manual × 1

Manufacturer: Lumi United Technology Co., Ltd.

Address: Room 801-804, Building 1, Chongwen Park,

Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang

Community, Taoyuan Residential District, Nanshan

District, Shenzhen, China.

Online Customer Service: www.aqara.com/support

Email: [e-mail]

For details, please see www.aqara.com/support or scan the QR code below to get the detailed electronic manual.

Warnings

1. This product is not a toy, please keep children away from this product.
2. This product is designed for indoor use only. Do NOT use in humid environments or outdoors.
3. Beware of moisture, do NOT spill water or other liquids onto the product.
4. Do not place this product near a heat source.
5. Do not attempt to repair the product by yourself. All repairs should be performed by authorized personnel.
6. This product is designed only for improving the convenience of household life, and for status notifications. If the user violates the product instructions and this warning, the manufacturer is not responsible for any risks and property losses caused thereby.

Caution

1. Risk of explosion if the battery is replaced by an incorrect type.
2. Dispose of used batteries according to the instructions.

3. Do not ingest battery, Chemical Burn Hazard.

4. This product contains two coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

5. Keep new and used batteries away from children.
6. If the battery compartment does not close securely, stop using the product and keep it away from children.
7. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
8. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
9. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
10. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
11. The equipment is only suitable for mounting at heights ≤ 2m

EU Declaration of Conformity

Hereby, [Lumi United Technology Co., Ltd] declares that the radio equipment type [Motion and Light Sensor P2, ML-S03E/ ML-S03D]are is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.aqara.com/DoC/

WEEE Disposal and Recycling Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive

2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.

Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic

Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

FCC ID: 2AKIT-MLS03

Federal Communications Commission (FCC) compliance statement:

1. This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,

including interference that may cause undesired operation.

1. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

RF Exposure statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This

transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IC:22635-MLS03

IC NOTICE TO CANADIAN USERS

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES - 003.

This device complies with RSS - 247 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lumi United Technology Co., Ltd is under license. Other trademarks and trade names are those of their respective owners.

WEEE Disposal and Recycling Information

Protocolli Wireless: Thread, Bluetooth 5.0

Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang

Community, Taoyuan Residential District, Nanshan

District, Shenzhen, China.

Servizio clienti online: www.aqara.com/support

E-mail: [e-mail]

For details, please see www.aqara.com/support or scan the QR code below to get the detailed electronic manual.

Avvertenze

Modelo ML-S03E/ML-S03D

Pila: CR2450 × 2

Protocolos inalámbricos: Hilo, Bluetooth 5.0

Chongwen, Nanshan iPark, No. 3370, Avenida Liuxian,

Symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment.

aTnK DnXKeHnI n CBeTa P2

Mоделы:ML-S03E/ML-S03D

Баразец:CR2450×2

Bluetooth Operation Frequency: 2402-2480 MHz

Thread Operation Frequency: 2405-2480 MHz

Pa6o7a TeMnepaTypa: -10°C - 55°C (14°F - 131°F)

Pa6oay BnaXHOCTb: 0 - 95% OTHOCHTeIbHOB BnaXHOCTN, 6e3 KOHdEHCaU N KOMnJIeKTAuN

ML-S03E: OchOBHoi 6Iok daTUnka × 1, DepeKaTeIb × 1, HaKeiKa × 2, PyKOBoDCTBO nolb3ObaTeIa × 1

ML-S03D: OchOBHoi 6Iok daTUnKa × 1, IepKaTeIb × 2, NaKeiKa × 4, PyKOBoCTBO nolb3ObaTeIa × 1

Празибовпел: Lumi United Technology Co., Ltd.

AqpE: Knta, 53Hb4X3Hb, p-ON HaNbShaHb, XJIoN paOH TaOHaHb, 6BnHa FyrgaH, npocneKT JIOcHb, N3370, napK HAnbShaHb, napK YyHB3Hb, Kopnyc 1, oΦncbl 801-804. KIneHTcka OHlaH-N-cIy6a: www.aqara.com/support 3JIeKTPoHHa NoTu: [e-mail]

Model: ML-S03E/ML-S03D

Bacteria: CR2450 × 2

Model: ML-S03E/ML-S03D

Baterie: CR2450 × 2

Bezdrátové protokoly: Thread, Bluetooth 5.0

Model: ML-S03E/ML-S03D

Bacteria: CR2450 × 2

Bezdrotové protokoly: Thread, Bluetooth 5.0

Prevádková frekvencia Bluetooth: 2402-2480 MHz

Scan to get the Matter Setup Code.
