Testboy® TB 318 29

Mode d'emploi

Testboy TB 318 42

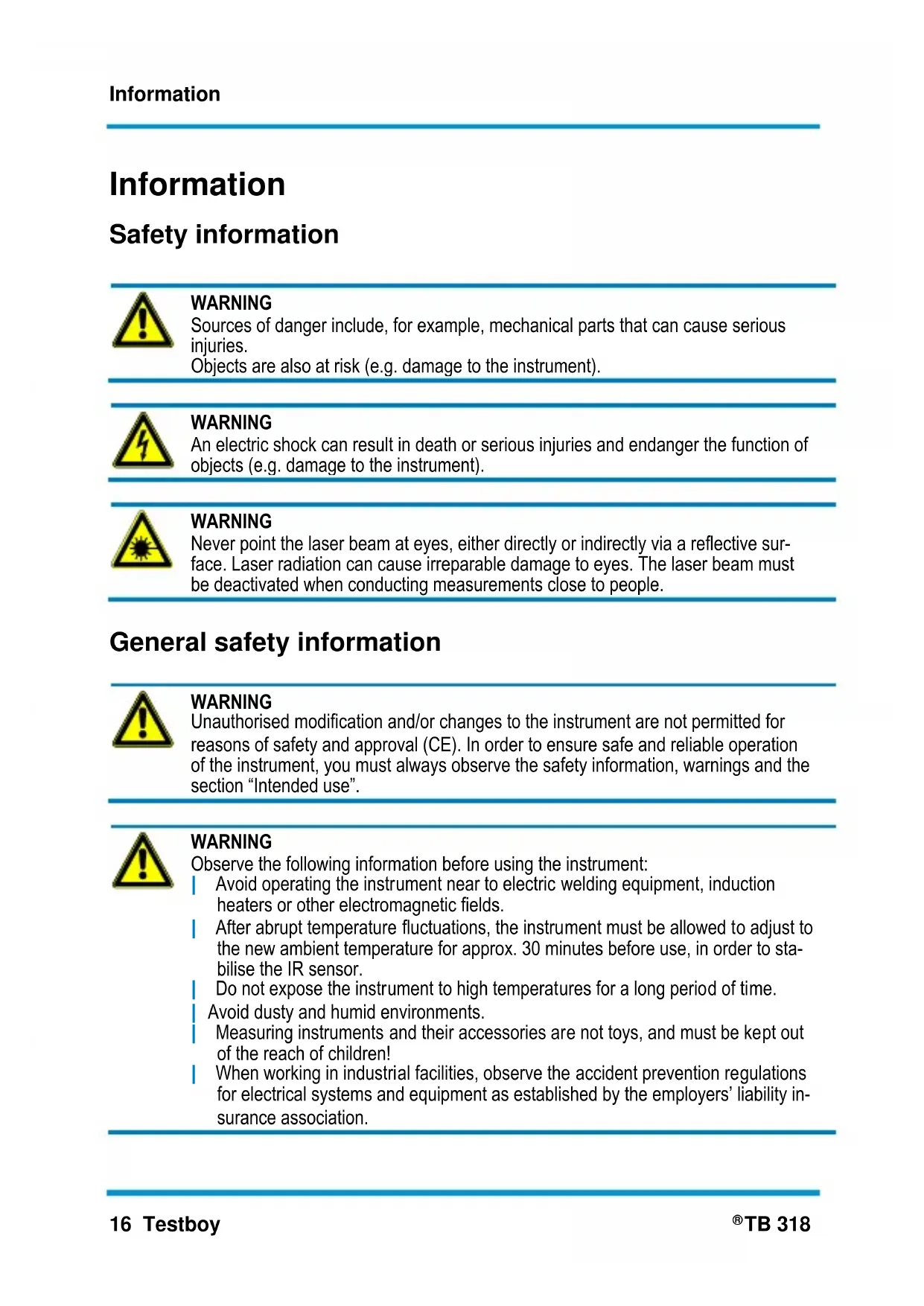

WARNING Sources of danger include, for example, mechanical parts that can cause serious injuries. Objects are also at risk (e.g. damage to the instrument).

WARNING An electric shock can result in death or serious injuries and endanger the function of objects (e.g. damage to the instrument).

WARNING Never point the laser beam at eyes, either directly or indirectly via a reflective surface. Laser radiation can cause irreparable damage to eyes. The laser beam must be deactivated when conducting measurements close to people.

General safety information

WARNING Unauthorised modification and/or changes to the instrument are not permitted for reasons of safety and approval (CE). In order to ensure safe and reliable operation of the instrument, you must always observe the safety information, warnings and the section "Intended use".

WARNING Observe the following information before using the instrument: | Avoid operating the instrument near to electric welding equipment, induction heaters or other electromagnetic fields. | After abrupt temperature fluctuations, the instrument must be allowed to adjust to the new ambient temperature for approx. 30 minutes before use, in order to stabilise the IR sensor. | Do not expose the instrument to high temperatures for a long period of time. | Avoid dusty and humid environments. | Measuring instruments and their accessories are not toys, and must be kept out of the reach of children! | When working in industrial facilities, observe the accident prevention regulations for electrical systems and equipment as established by the employers' liability insurance association.

Please observe the five safety rules:

1 Disconnect
2 Secure against reactivation
3 Ensure isolation from the power supply (check that there is no voltage on both poles)
4 Earth and short-circuit
5 Cover adjacent live parts

Intended use

The instrument is only intended for use in the applications described in the operating instructions. Any other usage is forbidden and can result in accidents or destruction of the instrument. Any such usage will immediately void all guarantee and warranty claims on the part of the operator against the manufacturer.

Remove the batteries if the instrument is not in use for a long period of time; this will protect the instrument against damage.

We shall not accept any liability for damage or injury resulting from improper handling or non-compliance with the safety information. Any warranty claim will be voided in such cases. An exclamation mark in a triangle indicates safety information in the operating instructions. Read all instructions through before commissioning. This instrument is CE-approved and thus fulfils the required directives.

We reserve the right to alter specifications without prior notice © 2022 Testboy GmbH, Germany.

Disclaimer

The warranty claim is voided in cases of damage caused by failure to observe the instructions! We shall not accept any liability for the resulting damage!

Testboy does not accept responsibility for damage resulting from

Failure to observe the operating instructions

Changes to the product that have not been approved by Testboy

Spare parts that have not been manufactured or approved by Testboy

The consumption of alcohol, narcotics or medicine

Correctness of the operating instructions

These operating instructions have been compiled with considerable care and attention. No guarantee is given that the data, figures and drawings are complete or correct. Subject to changes, printing mistakes and errors.

Disposal

Dear Testboy customer, Purchasing our product gives you the option of returning the instrument at the end of its lifespan to suitable collection points for waste electrical equipment.

The WEEE directive regulates the return and recycling of old electrical appliances. Manufacturers of electrical appliances are obliged to take back and recycle all electrical appliances free of charge. Electrical appliances may then no longer be disposed of through "conventional" waste disposal channels. Electrical appliances must be recycled and disposed of separately. All equipment subject to this directive is marked with this logo.

Disposal of used batteries

As an end user, you are legally obliged (battery law) to return all used batteries; disposal in domestic waste is prohibited!

Batteries containing contaminant material are marked with this symbol indicating that they must not be disposed of in domestic waste.

The abbreviations used for the respective heavy metals are:

Cd = cadmium, Hg = mercury, Pb = lead.

You can return your used batteries free of charge to municipal collection points or anywhere where batteries are sold!

Certificate of quality

All quality-related activities and processes performed by Testboy GmbH are subject to continual monitoring within the framework of a quality management system. Testboy GmbH confirms that the testing equipment and instruments used during the calibration process are subject to a continual monitoring process.

Declaration of conformity

The product conforms to the most recent directives. For further information, go to www.testboy.de

Operation

Introduction

The Testboy® TB 318 is a universal multimeter. This measuring instrument has been manufactured to the latest safety specifications, and guarantees safe and reliable operation. The multimeter is a valuable aid for all standard measurement tasks in trade and industry, as well as for electronics engineers. With its CAT IV 1000V classification, the TB 318 multimeter is ideal for use outdoors too. With a measurement range of up to 1500 V DC, this multimeter can also be used in the area of photovoltaics.

Safety precautions

The TB 317 left the factory with its safety features in a perfect operating condition. The user must observe the safety information contained in these instructions in order to maintain this condition.

Caution!

Only use the safety test leads included in the scope of delivery or equivalent leads that comply with the same measurement category.

In order to avoid an electric shock, comply with the precautions when working with voltages greater than 120V (60 V) DC or 50 V (25 V) eff. AC. These values represent the limits of safe-to-touch voltages in accordance with DIN VDE. (Values given in brackets apply e.g. to the medical or agricultural sectors)
Before taking each measurement, ensure that the test leads and the test instrument are in perfect operating condition.
The test leads and probes must only be handled using the grips provided. Avoid touching the probes under any circumstances.

The test instrument may only be used for the measurement ranges specified.

Attention!

Before use, check that the instrument is functioning correctly (e.g. using a known voltage source, also see DIN VDE 0105, part 1).

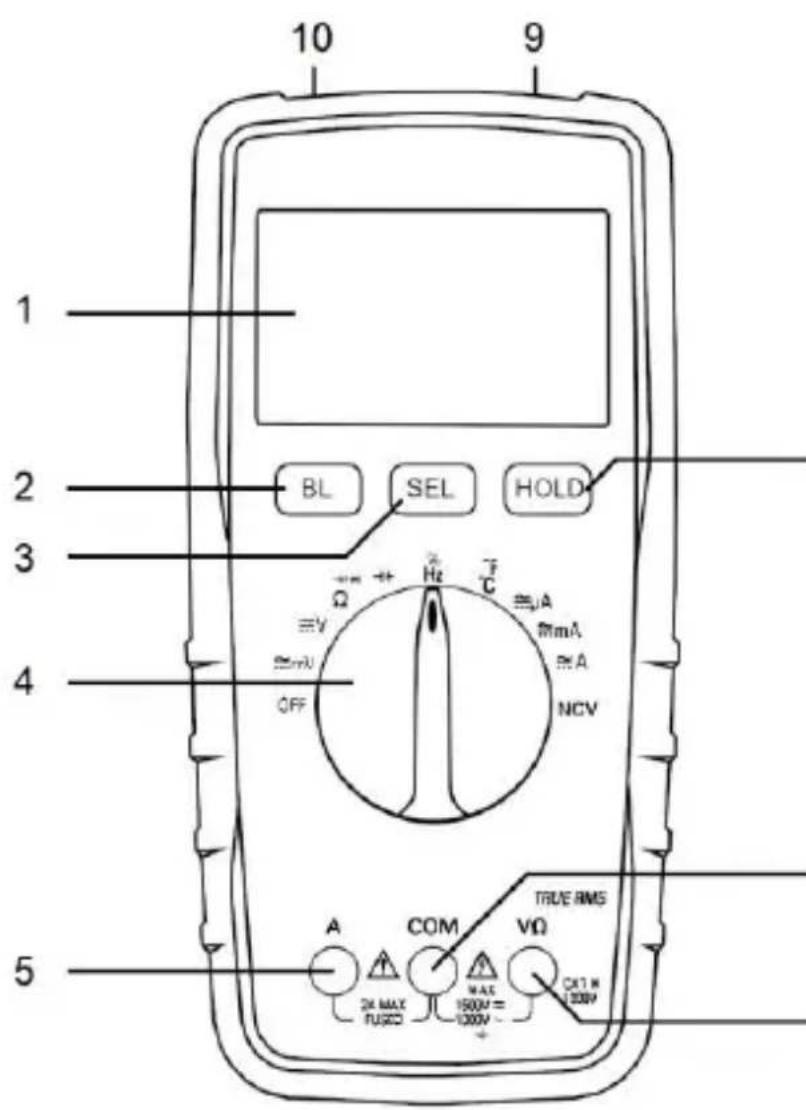

Explanation of switches, buttons and jacks

(1) Display
(2) BL button

Pressing this button switches on backlighting/measurement location lighting.
(3) SEL button

This button can be used to switch the instrument between categories.
(4) Measurement function selection switch

Switches the instrument on. TI measurement function is selected depending on the switch position.

(5) Measurement jack A
Measurement jack to be used for measuring current.
(6) Measurement jack V/Ω
Measurement jack to be used for measuring voltage/ resistance.
(7) COM/earth jack
(8) HOLD button

This button enables the currently displayed value to be saved.
(9) Measurement location lighting

Measurement location lighting located at the front for working in dark spaces.
(10) NCV sensor

This button enables contactless detection of live lines.

DC voltage measurement / V=

Set the appropriate range using the selector switch. Connect the black test lead with the "COM" jack and the red test lead with the "V/Ω" jack. Connect test leads to the test object. Read off measurement result from the display. The voltage polarity is also displayed.

Measurement range	Resolution	Input resistance	Overvoltage protection	Accuracy
600 mV	0.1 mV	>1000 MΩ	1500 Vrms	±0.8 % of the measurement range + 4 digit
6 V	1 mV
60 V	10 mV
600 V	100 mV	>10 MΩ
1000 V	1 V			±1 % of the measurement range + 5 digit
1500 V

AC voltage measurement / V~

Set the appropriate range using the selector switch. Press the "SEL" button and select AC. Connect the black test lead with the "COM" jack and the red test lead with the "V/Ω" jack. Connect test leads to the test object. Read off measurement result from the display.

Measurement range	Resolution	Input resistance	Overvoltage protection	Accuracy
600 mV	0.1 mV	>1000 MΩ	1500 Vrms	±0.8 % of the measurement range + 5 digit
6 V	1 mV
60 V	10 mV
600 V	100 mV	>10 MΩ
1000 V	1 V			±1.5 % of the measurement range + 5 digit
1500 V

Frequency range: 10Hz - 1.2kHz

DC current measurement / A=

Set the appropriate range using the selector switch. Connect the black test lead with the "COM" jack and the red test lead with the "A" jack. Connect the test leads with the test object and read off the measurement result from the display. The direction of current is indicated by the sign.

Measurement range	Resolution	Overvoltage protection	Accuracy
600 μA	0.1 μA	200 mA	±1.2 % of the measurement range + 3 digit
6000 μA	1 μA	Self-resetting fuse.
60 mA	10 mA
600 mA	100 μA
2 A	10 mA	2 A/1500 V	±2.0 % of the measurement range + 10 digit

In the 2 A range, observe the maximum duty cycles!

AC current measurement / A~

Set the appropriate range using the selector switch. Press the "SEL" button and select AC. Connect the black test lead with the "COM" jack and the red test lead with the "A" jack. Connect the test leads with the test object and read off the measurement result from the display.

Measurement range	Resolution	Overvoltage protection	Accuracy
600 μA	0.1 μA	200 mA	±1.5 % of the measurement range + 3 digit
6000 μA	1 μA	Self-resetting fuse.
60 mA	10 mA
600 mA	100 μA
2 A	10 mA	2 A/1500 V	±3.0 % of the measurement range + 10 digit

Frequency range: 10 Hz - 1.2kHz

Resistance measurement / Ω

Set the appropriate range using the selector switch. Connect the black test lead with the "COM" jack and the red test lead with the "V/Ω" jack. Connect the test leads with the test object and read off the measurement result from the display.

Measurement range	Resolution	Accuracy
600 Ω	0.1 Ω	±1.2 % + 5 digit
6 KΩ	1 Ω
60 KΩ	10 Ω
600 KΩ	100 Ω
6 MΩ	1 KΩ
60 MΩ	10 KΩ	± 2.0 % + 10 digit

Overvoltage protection: 250 V RMS

Off-load voltage: 1.2 V

Diode test

Set the selector switch to “ /“. Press the “SEL” button x 2. Connect the black test lead with the “COM” jack and the red test lead with the “V/Ω” jack. Connect the test leads with the test object (red test lead = anode, black test lead = cathode). The forward voltage is displayed.

Measurement range

Resolution

1mV

Display

Forward voltage

Overvoltage protection: 250 V RMS

Off-load voltage: 1.0V

Continuity test

Set to “ ” using the selector switch. Press the “SEL” button. Connect the black test lead with the “COM” jack and the red test lead with the “V/Ω” jack. Connect test leads to the test circuit.

Measurement range

Function

The integrated buzzer signals continuity less than 50

Off-load voltage: 1.0V

Temperature

Set the selector switch to "°C". Connect a type-K temperature sensor (nickel-chrome/nickel) to the "V/Ω" and "COM" jacks. Read off measurement result from the display.

Measurement range	Resolution	Accuracy
-20 to 0 °C	1 °C	±2 % + 3 digit
0 to 400 °C		±1 % + 2 digit
400 to 1000 °C		±2 % + 2 digit
-4 to 32 °F	1 °F	±2 % + 6 digit
32 to 752 °F		±1 % + 4 digit
752 to 1832 °F		±2 % + 4 digit

Capacitance measurement / F

Set the selector switch to "Connect the black test lead with the COM" jack and the red test lead with the V/Ω" jack. Connect the test leads with the test object and read off the measurement result from the display.

Measurement range	Resolution	Accuracy
60 nF	10 pF	± 4 % + 3 digits
600 nF	100 pF
6 μF	1 nF
60 μF	10 nF
600 μF	100 nF
6 mF	1 μF
60 mF	10 μF

Discharge the capacitors before every measurement.

Frequency

Set the selector switch to "Hz". Connect the black test lead with the "COM" jack and the red test lead with the "V/Ω" jack. Connect the test leads with the test object and read off the measurement result from the display.

Measurement range	Resolution	Accuracy
10 Hz	0.001 Hz	±1 % + 5 digit
100 Hz	0.01 kHz
1 kHz	0.1 Hz
10 kHz	1 Hz
100 kHz	10 Hz
1 MHz	100 Hz
10 MHz	1 kHz
Overvoltage protection: 250 V RMS

Duty cycle

Set the selector switch to %/Hz . Press the "SEL" button. Connect the black test lead with the "COM" jack and the red test lead with the V / jack. Connect the test leads with the test object and read off the measurement result from the display.

Measurement range	Resolution	Accuracy
0 - 99 %	0.1 %	±3 % + 2 digit
Overvoltage protection: 250 V RMS

Automatic switch-off

The instrument switches off after approx. 15 minutes (APO). Pressing and holding down the "HOLD" button switches on the Auto Power Off function. If the "SEL" button is held down while switching on, the Auto Power Off function is switched off.

Backlighting

Pressing the "BL" button switches on the backlighting. The lighting switches off automatically after approx. 15 seconds. If the button is pressed and held down, measurement location lighting is switched on.

Save function (HOLD)

In difficult measurement positions, it may not be possible to read the display correctly. Pressing the "HOLD" button freezes the real reading, which can then be read off when convenient. Pressing the "HOLD" button again returns the instrument to normal measuring mode.

True RMS

When using the True RMS function to measure non-sinus wave forms, small measurement errors can occur compared with conventional measurement procedures. Sinus-form and non-sinus form signals can be accurately measured using the True RMS function.

Maintenance

The instrument does not require special maintenance when used as specified in these operating instructions.

Cleaning

Use a damp cloth and mild household detergent to clean the instrument should it become soiled through daily use. Never use harsh cleaning agents or solvents to clean the instrument.

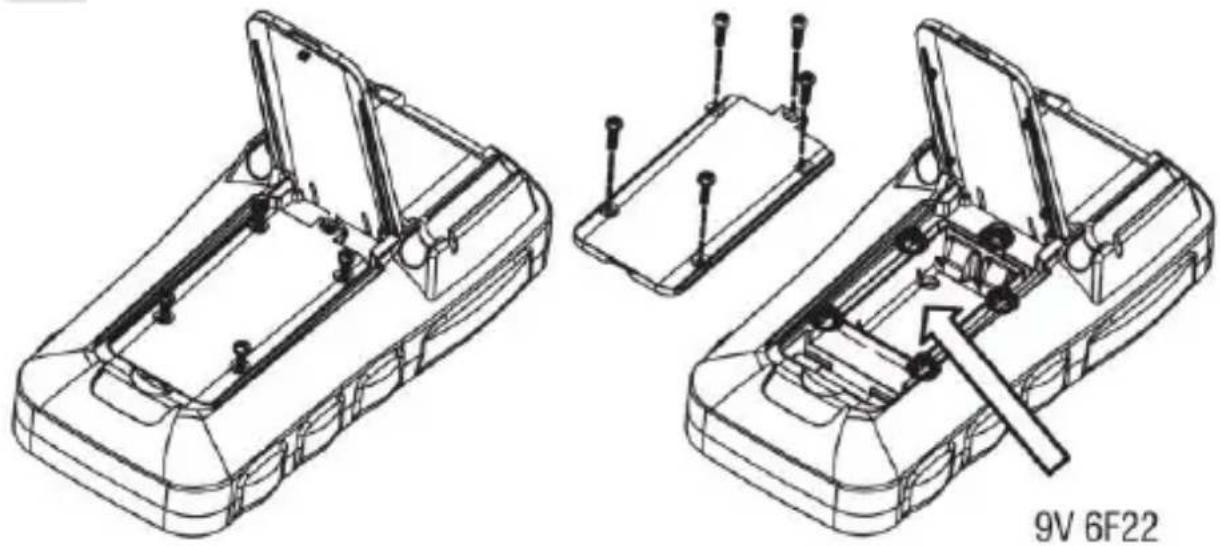

Battery replacement

Replace the batteries when the battery symbol appears on the display. Remove the test leads from the instrument before changing the batteries! Remove the screws at the back, open the battery compartment and remove the discharged battery. Insert new batteries (1 x 9 V block). Refit the battery compartment lid and secure with screws.

Only use the batteries specified! Batteries must not be disposed of in domestic waste! Observe the statutory regulations pertaining to disposal!

Changing the fuse

Remove the screws at the back, open the battery compartment, remove the holster, and remove the housing screws and fuse. Insert a new fuse (F 2A). Reassemble in the reverse order and secure with screws.

Only use the fuses specified!

The following measurement categories have been defined in accordance with EN 61010-1:

Measurement category CAT II

Measurements on circuits that are directly wired to the mains, via plugs in the home, office and laboratory.

Measurement category CAT III

Measurements on building installations: fixed consumers, distributor connection, equipment fitted permanently to the distributor.

Measurement category CAT IV

Measurements at the source of the low voltage installation: meters, primary surge protection, mains connection

Technical data

DC V measurement	0 V ~ 1500 V
AC V measurement	0 V ~ 1000 V
DC measurement	0 A ~ 2 A
AC measurement	0 A ~ 2 A
Resistance measurement	0 Ω ~ 60 MΩ
Continuity testing	0 Ω ~ 50 Ω
Temperature measurement	-200 °C ~ 1300 °C -328 °F ~ 2372 °F
Frequency measurement	10Hz ~10MHz
Fuses	F 200 mA self-resetting (maintenance-free) and F 2 A (10.3 x 38 mm)
Polarity indicator	Automatic
Overload indicator	“OL” is displayed
Overvoltage category	CAT IV 1000 V
Power supply	1 x 9 V block
Operating temperature	0 °C to 40 °C
Storage temperature	-10 °C to 50 °C
Dimensions	193 x 95 x 57 mm
Weight	500 g incl. battery
