VTSG60SFN - Welding machine VELLEMAN - Free user manual and instructions

Product type	Soldering station with wire
Brand	Velleman
Model	VTSG60SFN
Power supply	220-240 V~, 50 Hz
Heating power	Selectable: 30 W / 60 W
Dimensions	240 x 150 x 30 mm
Weight	363 g
Use	Soldering for electronic components
Main functions	Automatic solder wire feeding, two power levels, automatic cooling after shutdown
Maintenance and cleaning	Clean with a damp cloth. Do not use aggressive solvents.
Safety	Do not open the housing, use in a ventilated area, do not touch the hot tip, unplug after use
Spare parts	Use only original Velleman accessories
Repairability	Repair by a qualified technician only; do not replace the power cable
Warranty	24 months for consumers, 6 months for professional use

Frequently Asked Questions - VTSG60SFN VELLEMAN

How to install the solder spool on the soldering iron?

Press the rapid feed button (3) and insert the solder wire into the feed hole (2) until it comes out of the extraction tube (6). Make sure the wire is placed directly under the soldering tip.

What power levels are available?

The heating power is selectable: position 'I' for 30 W and position 'II' for 60 W. Position '0' turns off the device.

How to clean the soldering station?

Clean the device occasionally with a damp cloth. Do not use aggressive chemicals, solvents, or strong detergents.

What to do if the power cable is damaged?

A damaged cable must be replaced by the manufacturer, a qualified technician, or a competent person. Do not use the device and dispose of it if the cable is damaged.

Why does smoke come out during first use?

This is normal during first use and disappears after about 10 minutes of operation. It is due to the burning of manufacturing residues.

Can I leave the station plugged in after use?

No. After turning off the device, leave the cable plugged in for a few minutes to allow automatic cooling, then unplug it. Never leave the device plugged in unattended.

How to avoid burns when soldering?

Use the provided stand to place the hot soldering iron. Wear heat-resistant gloves and never point the tip toward the body or eyes. Let it cool completely before storing.

What type of solder to use?

Use resin-based solder or solder paste with no-clean flux. Do not use acid-core solder.

What to do in case of malfunction?

Immediately turn off the device and unplug it. Inspect it before reusing. Any repair must be carried out by a qualified technician.

Where to find the latest version of the user manual?

Check the website www.velleman.eu for the latest information about this item and the updated version of the user manual.

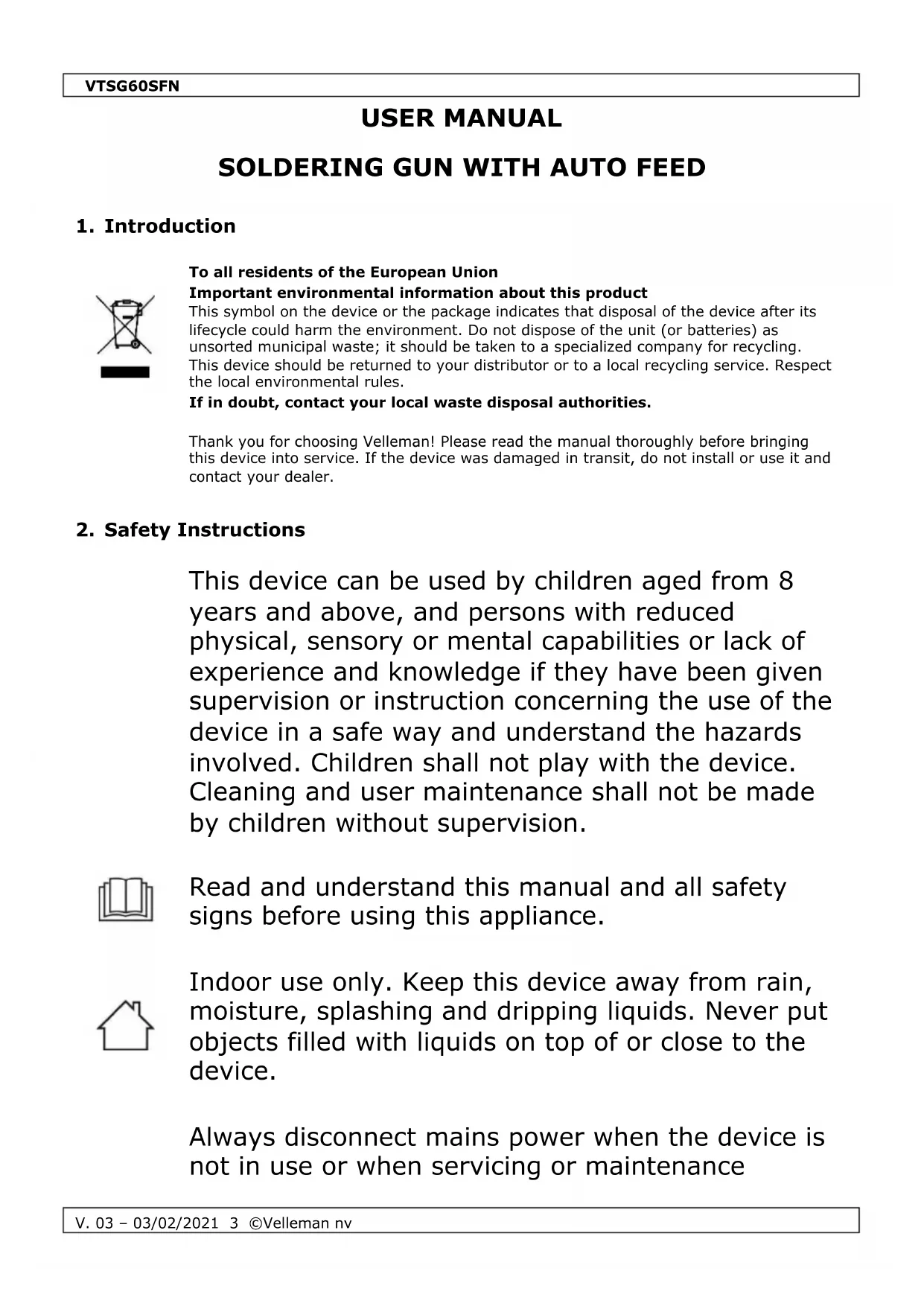

USER MANUAL VTSG60SFN VELLEMAN

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

Read and understand this manual and all safety signs before using this appliance.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.

Always disconnect mains power when the device is not in use or when servicing or maintenance

activities are performed. Handle the power cord by the plug only.

Caution! After switching off, leave the power cord plugged in for a few minutes. When you switch off the unit, the automatic cooling function blows cooling air through the heater pipe for a short period. This protects the heater from damage and extends its lifetime. Do not disconnect the mains plug during this cooling process.

Do not crimp the power cord and protect it against damage.

Warning! If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid any hazard.

Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.

Plug the power cord into a suitable, earthed mains outlet.

Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel.

Do not operate the device with wet hands.

Never use the device on live electronic circuits. Make sure power to the work piece is cut and capacitors are discharged.

Do not use near inflammable products or in explosive atmospheres. Heat can cause fire to

inflammable products even when they are not in sight. Only use in properly ventilated rooms.

Incorrect use may cause fire.

Do not touch the shafts, tips, or hot air gun as this can cause serious burns. Keep the tips and hot air away from the body, clothes, or other flammable material. Do not aim the hot air gun at the eyes.

Use gloves and/or heat-resistant tools to pick up the PCB assembly to prevent burns. Always return the irons and gun to their stands between uses; always let the device cool down after use and before storage.

Place the device on a level, stable, and fire resistant working surface.

WARNING! - This tool must be placed on its stand when not in use; do not leave the tool unattended when switched on.

Do not inhale solder fumes. The vapours that are released during soldering are harmful. Therefore, you shall only use the soldering station in well-ventilated areas or under an exhaust hood (solder fume extractor). Dispose of fume filters and solder residue in accordance with local regulations.

• Use the soldering iron on a heatproof workbench.
• Place the soldering iron in its holder after use.
• Let a hot soldering iron cool down naturally and do not immerse in water.

C

VTSG60SFN

The mains cable of this device should not be replaced. Discard the device if the power cable has been damaged.

Cleaning and user maintenance shall not be made by children without supervision.

6. Operation

1. Install the solder reel onto the soldering gun. Press the fast-feeding button and feed the soldering wire deep enough into the feeding hole until the wire protrudes out of the extraction tube. Make sure the wire sits perfectly under the soldering tip.
2. Connect the mains plug into an electrical outlet.
3. Select the heating power (0 = off, I = 30W, II = 60W) and let the soldering iron warm up.
4. You can start soldering once the soldering iron up to temperature. Feed soldering wire by pressing the feeding trigger.
5. Switch off and disconnect the appliance after use.

Do not apply the soldering iron to the same place for a long time.

Do not leave the device unattended when switched on.

7. Cleaning and Maintenance

Wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

If the appliance is running erratically or something unusual occurs during use, immediately switch off the appliance and unplug from the mains. Inspect the appliance before using it again. Repair must only be carried out by a qualified technician.

Store the appliance, its accessories and this user manual in the original packaging.

Always store in a cool and dry place.

8. Technical Specifications

power supply 220-240 V\~, 50 Hz

selectable heating power 30 W / 60 W

dimensions 240 x 150 x 30 mm

weight 363g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.VELLEMAN.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
