USER MANUAL LIFE E66476 (MD 44176) MEDION

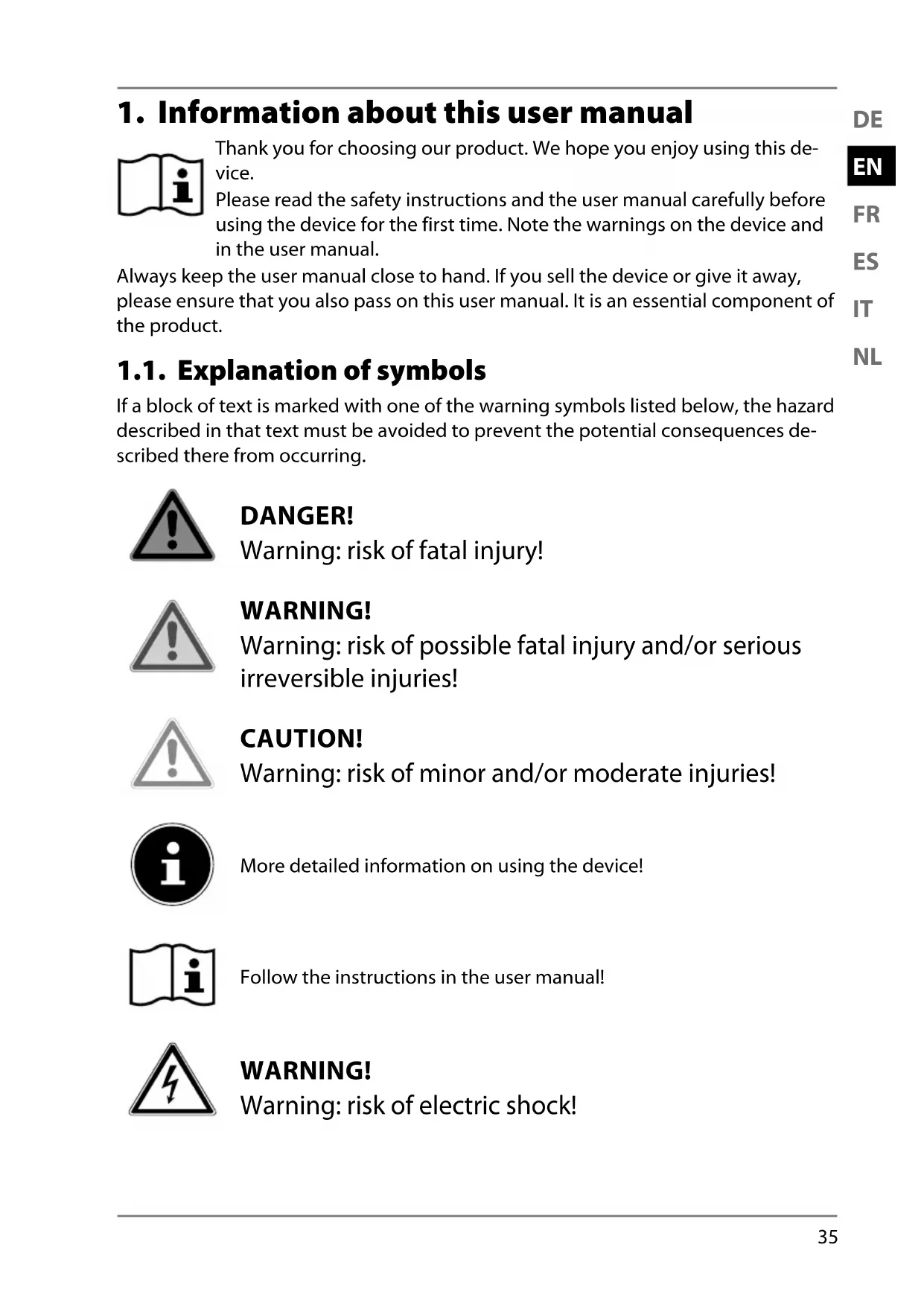

1. Information about this user manual

Thank you for choosing our product. We hope you enjoy using this de- vice. Please read the safety instructions and the user manual carefully before using the device for the first time. Note the warnings on the device and in the user manual. Always keep the user manual close to hand. If you sell the device or give it away, please ensure that you also pass on this user manual. It is an essential component of the product. 1.1. Explanation of symbols If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences de- scribed there from occurring. DANGER!

Warning: risk of fatal injury!

Warning: risk of possible fatal injury and/or serious

irreversible injuries! CAUTION!

Warning: risk of minor and/or moderate injuries!

More detailed information on using the device! Follow the instructions in the user manual! WARNING!

Warning: risk of electric shock!36

Warning: risk of explosive materials!

Warning: risk of chemical burns!

• Bullet point/information on steps during operation Instruction to be carried out

Safety instructions to be followed Symbol for direct current (DC) Symbol for alternating current (AC) Protection class II Electrical devices in protection class II are devices that have dou- ble and/or reinforced insulation throughout, and do not have the option of connecting a protective earth. The housing of an electri- cal device in protection class II, with surrounding insulating materi- al, might either form all of the additional or reinforced insulation, or part of it. Products that feature this symbol meet the requirements of the EU directives (see section entitled “Declaration of Conformity”). Tested safety Products that feature this symbol meet the requirements of the Ger- man Product Safety Act.DE

This is a home entertainment device. The device is intended for playing sound me- dia (CDs, MP3 data media, USB devices, cassettes), as well as for radio reception. The device is only intended for private use and not for industrial/commercial use. The specified reception frequency range represents the technical possibilities of the device. Information received outside this range may not be used or further distrib- uted. The respective national laws must be observed. Please note that we shall not be liable in cases of improper use:

• Do not modify the device without our consent and do not use any auxiliary equipment that we have not approved or supplied.

• Only use replacement parts or accessories that we have supplied or approved.

• Comply with all the information in this user manual, especially the safety infor- mation. Any other use is considered improper and can cause personal injury or property damage.

• Do not use the device in extreme environmental conditions. Avoid: – high humidity or wet conditions – extremely high or low temperatures – direct sunlight – open flames.38 2.1. Restricted group of people WARNING! Risk of injury! Risk of injury to persons with limited physical, sensory or mental abilities (for example, partially disabled peo- ple or older people with limited physical or mental abil- ities) or to those without experience and knowledge (such as older children). Keep the device and its accessories out of the reach of chil- dren. This device can be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the de- vice and have understood the dangers that result from it. Children must not be allowed to play with the device. Cleaning and user maintenance must not be carried out by children. Children younger than 8 must be kept away from the device and the mains cable. Do not store any of the packaging material used (bags, poly- styrene etc.) within the reach of children. Do not allow children to play with the packaging material. The packaging material is not a toy!DE

3. Declaration of Conformity

MEDION AG hereby declares that this device complies with the fundamental re- quirements and the other relevant provisions of:

• Radio Equipment Directive 2014/53/EU

• Ecodesign Directive 2009/125/EC

• RoHS Directive 2011/65/EU. You can download the complete Declaration of Conformity at www.medion.com/conformity.

4. Safety information

4.1. Operating safety Before using the device, inspect it for damage. A damaged or defective device or mains cable may not be used. Never allow children to use electrical devices unattended. DANGER! Risk of choking and suffocation! Packaging film can be swallowed or used improperly, creating a risk of choking and suffocation. Keep packaging material such as plastic film or plas- tic bags away from children. Do not let children play with the packaging material.40 4.2. Installation location

• The device should only be placed on level, stable surfaces.

• Protect the device from knocks and vibrations. The device is not designed for use in rooms with high humidity levels (e.g. bathrooms). Make sure that you do the following:

• To ensure adequate ventilation, do not cover the vents. Ventilation must not be impeded by covering up the vents with objects like newspapers, tablecloths, curtains etc.

• Allow at least 10 cm clearance at the sides and top of the de- vice if it is placed on a shelf or a similar enclosed space.

• Do not expose the device to extreme temperatures.

• Do not expose the device to direct sources of heat (e.g. heat- ers, sunlight).

• Do not place naked flames (for example, lit candles) near or on the device.

• Avoid contact with moisture, water and splashes. Do not place any objects filled with liquid, for example vases, on or next to the device.

• Do not place the device close to magnetic fields (for example, televisions or other speakers).DE

• Contact customer services if: – the mains cable is burnt or damaged – liquid has penetrated the device – the device is not operating correctly – the device has been dropped or the housing is damaged. Repairs to your device should only be carried out by qualified specialists. 4.4. Ambient temperature

• The device may only be used and stored in accordance with the ambient temperatures and relative humidity specified in the technical data. DANGER! Risk of electric shock! Major changes in temperature or fluctuations in hu- midity can cause moisture to build up within the device due to condensation – this can cause an electrical short circuit. After transporting the device, wait until it has reached ambient temperature before switching it on.42 4.5. Power supply Only operate the protection class II device on a 230 V~, 50 Hz earthed power socket that is close by and easy to access or by inserting 6 x 1.5 V, UM-1 D R20 batteries into the battery com- partment. DANGER! Risk of electric shock! Even when the device is switched off, some compo- nents are live. In order to interrupt the power supply to your de- vice or to completely disconnect the device from any power source, pull the mains plug out of the socket and remove the batteries from the device. Make sure that the mains cable does not present a trip haz- ard. The mains cable must not be trapped or pinched or run across hot surfaces. Before cleaning, pull the plug out of the mains socket. DANGER! Risk of electric shock! The device contains live parts. They pose a risk of elec- tric shock or fire if an unintentional short circuit occurs. Never open the housing and never insert any objects through the slots and openings into the device! Do not place any objects on the cable as this may damage it. Keep the device at a distance of at least one metre from sources of high-frequency or magnetic interference (televi- sions, speakers, mobile telephones etc.) to avoid malfunctions and data loss. In an emergency, for example, if you see smoke coming out of the device, or if it makes unusual noises, unplug it from the main power supply or remove its batteries.DE

The plug must always be easy to reach in an emergency. For this reason, it is important that the power socket is always easily accessible. The device uses a small amount of electricity, even when it is switched off. To completely switch off the device, either un- plug it from the power socket or remove the batteries from the battery compartment. Always hold the plug when disconnecting it from the socket. Never pull on the cable. Never unplug the mains plug with wet hands. Danger of an electric shock! Unplug the device from the power socket if it is not going to be used for a longer period of time (for example, if you go on holiday), or during a thunderstorm where there is the risk of a lightning strike. 4.6. CD player The CD player is a class 1 laser product. The de- vice has a safety system that prevents dangerous laser beams from escaping during normal use. To avoid eye injuries, never tamper with or damage the device’s safety system.44 4.7. Batteries The device can be operated with batteries. Please note the fol- lowing:

• Keep new and used batteries out of the reach of children. Do not swallow batteries as they can cause chemical burns. Bat- teries are not a toy!

• Avoid contact with battery acid. If battery acid comes into contact with skin, eyes or mucous membranes, rinse the af- fected areas with plenty of clean water and consult a doctor as soon as possible. WARNING! Risk of chemical burns! If batteries are swallowed, they can cause serious inter- nal chemical burns within two hours which may prove fatal. Seek medical help immediately if you think that bat- teries may have been swallowed or secreted in any part of the body. Stop using the device if the battery compartment does not close properly, and keep the device out of reach of children. Before inserting the batteries, check that the contacts in the device and on the batteries are clean and, if necessary, clean them. Always use new batteries of the same type. Never use old and new batteries together. Pay attention to the polarity (+/–) of the device when insert- ing the batteries. There is a risk of explosion if batteries are replaced incorrect- ly! Only replace batteries with those of the same or an equiva- lent type. Never try to recharge non-rechargeable batteries. Risk of ex- plosion!DE

Never expose the batteries to excessive heat (such as direct sunlight, fire or similar). Store batteries in a cool, dry place. Strong direct heat can damage batteries. Do not expose the device to sources of in- tense heat. Never short-circuit batteries. Never throw batteries into a fire. Remove leaking batteries from the device immediately. Clean the contacts before inserting new batteries. Battery acid can cause chemical burns! Always remove flat batteries from the device. Flat batteries tend to leak easily. If the device is not going to be used for long periods, remove the batteries.

DANGER! Risk of choking and suffocation! There is a risk of choking and suffocation due to swal- lowing or inhaling small parts or plastic wrap. Keep the plastic packaging out of the reach of chil- dren. Remove the product from the packaging and remove all packaging material. Please check your purchase to ensure that all items are included. If anything is missing, please contact us within 14 days of purchase. The following items are supplied with your product:

• CD/MP3/cassette player

1) USB – Connection port for USB storage medium

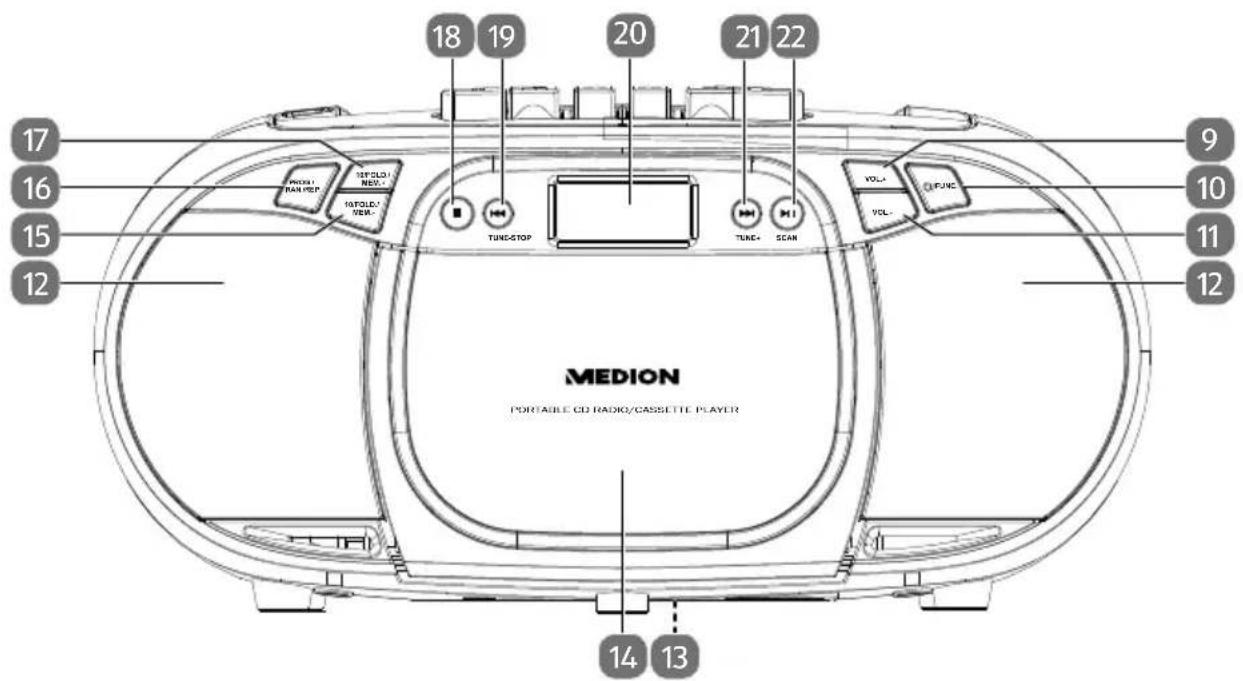

7) – CD compartment lid with opener

10) / FUNC. – Switch device on / switch to standby mode / select operating

13) Type plate (on the underside)

14) Cassette compartment

15) 10/FOLD./MEM. – Select stored radio station / select folder (USB mode)

17) 10/FOLD./MEM.+ – Select stored radio station / select folder (USB mode)

18) – Stop playback (CD/USB mode)

19) / TUNE – Previous track, rewind; previous folder / set radio station

21) / TUNE+ – Next track, fast forward; next folder / set radio station

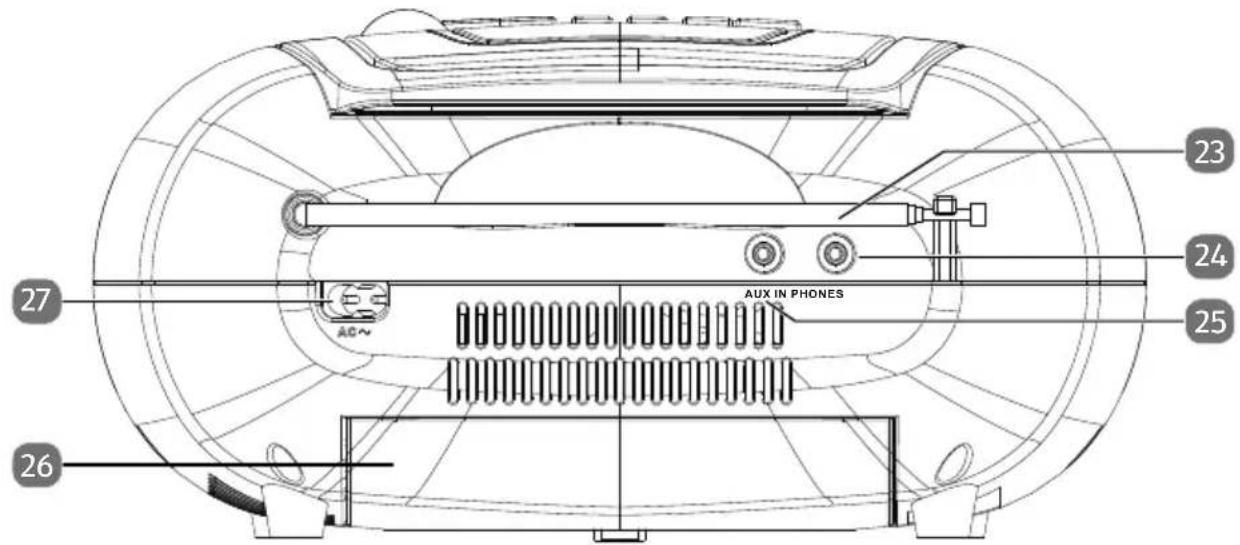

25) AUX IN – Connection port for audio device

26) Battery compartment (on the underside of the device)

27) AC~ – Connection for mains plug (on the back of the device)

7.1. Setting up the CD compartment Lift up the lid of the CD compartment on the front edge, where there is a curved recess . Remove the cardboard from the CD compartment. Close the CD compartment by gently pressing down the compartment lid.DE

7.2. Battery operation – inserting the batteries into the main device The battery compartment is located on the underside of the device. Release both latches and remove the battery compartment cover. Insert six 1.5 V UM-1 D R20 batteries (not supplied) with the negative ends on the springs. Refer to the diagram in the battery compartment! Replace the battery compartment cover. The latches must be locked into place. The device is now in standby mode. The device is battery-operated if no mains cable is connected to the AC~ socket. WARNING! Risk of explosion! Risk of explosion if batteries are replaced incorrectly. Replace batteries only with the same or equivalent type. 7.3. Mains operation – connecting the mains cable Connect the supplied mains cable to the AC~ socket on the back of the device. Plug the mains cable into an easily accessible 230V ~ 50Hz mains socket. The device is mains-operated even if batteries are inserted at the same time.

8. Connecting headphones

You will find a 3.5 mm headphone socket PHONES on the back of the device. Insert headphones with a 3.5 mm jack plug into the headphone socket. When headphones are connected, the speakers are disabled. The volume can still be controlled to change the headphone volume. WARNING! Risk of hearing damage! To prevent possible damage to or loss of hearing, avoid listening at high volume over long periods of time. Before pressing play, set the volume to the lowest setting. Start playback and increase the volume to a comfort- able level.50

9. Connecting an external playback device

You can use the AUX IN jack to connect an external playback device (for example a CD player or MP3 player). Switch the CD/MP3/cassette player to standby mode. Switch off your external device. Plug the end of a 3.5 mm jack cable (not supplied with the device) into the AUX IN socket on the rear of the CD MP3 cassette player. Connect the other end of the cable to the headphone output or the “Audio Out” connection on your external playback device. Switch on your external device. Press the / FUNC. button on the device once or several times until you see AUX in the display. The audio signal from your external device can now be played back.

10. Switching on the device/standby

Press the / FUNC. button to switch on the device. Press the / FUNC. button again to select the desired operating mode (FM / TAPE / CD / USB / AUX). Press and hold the / FUNC. button to switch the device back to standby mode. If there is no playback for 15 minutes, the devices automatically switches to stand- by mode.

To adjust the volume, use the VOL+ and VOL buttons.

Press the / FUNC. button once or several times as required to switch to radio mode. FM is shown on the display at the bottom right and the STEREO symbol at the top left (only for stereo reception). 12.1. Tuning the stations There is a telescopic aerial on the back of the device. Gently release the tip of the aerial from the catch on the right hand side of the device. Then fully extend the aerial and turn or swivel it for optimum radio reception. Press the / TUNE or / TUNE+ button briefly to set a particular frequency. The setting is amended in 0.05 MHz intervals. Hold down one of the buttons to automatically search for the next station.DE

12.2. Storing and selecting stations

12.2.1. Storing stations automatically

Press the / SCAN button to start the station search. All the stations found by the search are now stored automatically, one after the other. This can only be performed when the radio is switched on. Press the / SCAN button to stop storing the stations automatically. After the station search, playback starts with the station in the first programme position (P01). Use the 10/FOLD./MEM. and 10/FOLD./MEM.+ buttons to select the stored stations.

12.2.2. Storing stations manually

Tune in a station that you would like to store. Press the PROG./RAN./REP. button. The programme position (e.g. P01, P02 etc.) flashes on the display. While the display is flashing, use the 10/FOLD./MEM. and 10/FOLD./ MEM.+ buttons to select the desired programme position for this station. Press the PROG./RAN./REP. button again to store the station; the set fre- quency and the memory slot are displayed.

12.2.3. Selecting stations

Press the 10/FOLD./MEM. or 10/FOLD./MEM.+ button once or several times to select the desired memory slot. The programme position (e.g. P01) is shown on the display.

13. Playing back CDs and USB storage media

Press the / FUNC. button once or several times until, depending on the re- quired operating mode – CD or – USB is shown on the display. 13.1. Notes on the media Note the following:

• Due to the numerous different file systems and file formats, connected USB memory sticks cannot be guaranteed to function.

• Depending on the size of the data medium, it may take some time for the sys- tem to be detected.

• Supported file systems are FAT16 and FAT32. The supported file format is MP3.

• Depending on the medium, certain functions may not be supported. For exam- ple, on an audio CD you might not be able to select a folder or the track informa- tion.

• External hard disks are not supported.52 13.2. Inserting a CD Make sure that there is about 15 cm of space above the device so that the lid of the CD compartment can open without hindrance. Lift up the lid of the CD compartment on the front edge, where there is a curved recess . The CD compartment lid opens upwards. OP will appear on the display. Place a CD with the labelled side up onto the axis in the centre of the CD com- partment. Press lightly on the side, so that it clicks into place on the axis. Close the CD compartment by gently pressing down the compartment lid. The CD will start to rotate, and will appear on the display. If no disc is inserted, or if the disc cannot be read, NO will appear on the display. Wait until the CD has stopped rotating before opening the CD compart- ment. Press first. 13.3. Inserting USB memory sticks Insert the USB memory stick into the USB port. The tracks are read and the device immediately starts to play the first track. The USB port is not suitable for charging USB devices. 13.4. Starting/stopping playback Press the button to start playing tracks. To pause playback, press the but- ton again. Press the button once again to resume playback. 13.5. Track selection, fast rewind/fast forward Press the button to skip to the previous track. Use the button to skip to the next track. Hold down the button to fast rewind within a track or hold down the but- ton to fast forward.DE

13.6. Folder selection If you are playing MP3 files, you can store them in different folders to make it easier to keep an overview of the tracks. Press to stop playback. Press and hold the 10/FOLD./MEM. or 10/FOLD./MEM.+ button for ap- prox. one second to change folder on an MP3 data medium (the number of the current folder is displayed, e.g. F01, F02 etc.). If you keep one of the buttons pressed for longer, all existing folders are scrolled through quickly. Track selection Press 10/FOLD./MEM. or 10/FOLD./MEM.+ briefly to move through the tracks of the selected folder in steps of 10 (+/-10 tracks). Press to start playback in the selected folder. 13.7. Programming the track playing order Use the programme function to create your own music playlist by selecting which specific tracks you want to play. You can specify the order in which the list is played yourself. Proceed as follows: Press to stop playback. Press the PROG./RAN./REP. button. “PROG” and programme position P01 flashes on the display. Now press or to select a track. Press the PROG./RAN./REP. button to save more tracks in the same way. Press to start playing back the programmed playlist. Pressing twice deletes the programmed playback list. Opening the CD com- partment lid also deletes the programming. 13.8. Repeat functions/random playback In play mode, press the PROG./RAN./REP. button once or several times to run through the repeat modes. The device has a number of different modes: – Repeat individual track ( flashes on the display) – Repeat current folder ( FOLD appears continuously on the display) – Repeat tracks in all folders ( appears continuously on the display) – Random playback of tracks in all folders (RDM appears on the display) – The tracks in all folders are played for 10 seconds (INTRO appears on the dis- play). If you have programmed a playlist (see previous section), random play- back is deactivated.54

14. Cassette operation

Press the / FUNC. button once or several times until TAPE appears on the dis- play. 14.1. Inserting a cassette Press the button to open the cassette compartment. Insert a cassette into the compartment grooves with the tape side facing up. The side to be played faces forwards. Push the compartment closed. 14.2. Playing, stopping and pausing a cassette Press the button to start playing the cassette. You can stop playback by pressing the button. You can pause playback by pressing the button. Press the button again to re- sume playback. Once the end of the tape is reached, playback stops automatically. 14.3. Fast-forwarding and rewinding Press the button (rewind) or button (forward) to fast forward or rewind the tape. Press the button to stop fast-forwarding or rewinding. You can also press this button if you have reached the end or the beginning of the tape. Do not switch immediately from fast-forwarding or rewinding to playing. Stop the tape first to protect the tape from wear.

Always disconnect the device from the mains before cleaning it. Only use a dry, soft cloth to clean the device. Do not use chemical solutions or cleaning products because these may damage the device’s surface and/or markings. Do not touch or clean the lens in the laser unit.

16. Storing the device when not in use

If you are not going to use the device for a long period of time, store it in a dry, cool place and ensure that the device is protected from dust and extreme temperature fluctuations. Disconnect the mains plug from the socket and remove the batteries from the de- vice.DE

Problem Possible cause Remedy The device cannot be switched on. The batteries may be dead. The mains cable is not connected properly. If you are operating the device us- ing batteries, check that they are correctly inserted and charged. Ensure that the mains cable is properly connected. The device switch- es off when it is in use. The batteries may be dead. Operate the device using the mains cable or replace the batter- ies. No or poor radio reception The station signals are too weak. Adjust the frequency of the sta- tions. Move the radio to a different loca- tion or change the direction of the aerial to improve the reception, if necessary. No sound The volume is set too low. Increase the volume as required.56

PACKAGING Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmen- tally friendly manner. DEVICE Do not dispose of old devices in normal household waste. In accordance with Directive 2012/19/EU, the device must be disposed of correctly at the end of its service life. This involves separating the materials in the device for the purpose of recycling and minimising the environmental impact. Take old devices to an electrical scrap collection point or a recycling centre. Before doing so, remove the batteries from the device and take them to a separate collection point for used batteries. Contact your local waste disposal company or your local authority for more information. BATTERIES Do not dispose of used batteries with normal household rubbish. Batter- ies must be disposed of correctly. For this purpose, retailers that sell bat- teries and local collection points provide containers in which you can dispose of them. Contact your local waste disposal company or your lo- cal authority for more information. In connection with the sale of batteries or the supply of devices contain- ing batteries, we are obliged to draw your attention to the following: As the end user, you are legally required to return used batteries. You can return used batteries that we stock or have stocked in our range as new batteries to our dispatch warehouse (shipping address) free of charge.DE

Device Output power 2 x 2.2 watt RMS Protection class Protection class II Laser output Class 1 laser product Supported formats CD-R, CD-RW, audio CD, MP3 CD Number of memory slots of the pro- grammable playback 20 tracks (CD), 99 (MP3) Max. USB storage size 32 GB Power supply Voltage/frequency 100–240 V~ 60/50 Hz Operation Approx. 20 W Standby Approx. 0.178 W Battery operation 6 x 1.5 V (UM-1 D R20) Radio FM radio frequency range 87.5–108 MHz Station memory Max. 30 memory slots Connections FM antenna Permanently installed telescopic aerial AUX IN 3.5 mm jack Headphones 3.5 mm jack Headphone output voltage <150mV USB input Version 2.0 USB output voltage / current 5 V max. 200 mA Environmental conditions Temperatures In operation: +5 °C to +35 °C Not in operation: -20 °C to +60 °C Humidity (non-condensing) In operation: < 80% Not in operation: < 90% Dimensions / weight Dimensions (W x H x D) Approx. 285 x 140 x 213 mm58 Dimensions / weight Weight Approx. 1.6 kg

20. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at community.medion.com.

• Alternatively, use our contact form at www.medion.com/contact.

• You can also contact our Service team via our hotline or by post. Opening times Hotline number UK Mon – Fri: 08.00 – 20.00 Sat – Sun: 10.00 – 16.00

Service address MEDION Electronics Ltd. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom You can download this and many other sets of operating instruc- tions from our service portal at www.medionservice.com. You will also find drivers and other software for a wide range of devices there. You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.DE

Copyright © 2021 Date: 22.06.2021 All rights reserved. These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the company: MEDION AG Am Zehnthof 77 45307 Essen Germany Please note that you cannot use the address above for returns. Please always con- tact our Customer Service team first.60
