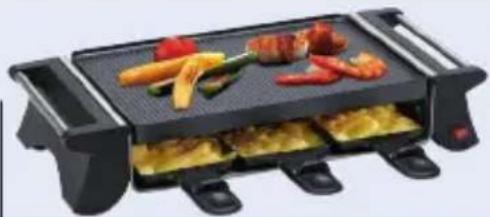

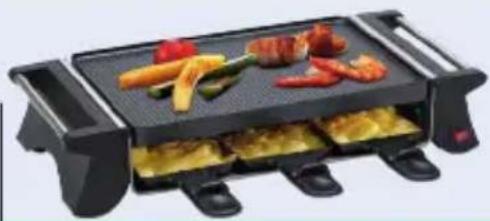

USER MANUAL 7554.42 TRISA

Trisa® ELECTRONICS

Art. 7554.42

Bedienungsanleitung

Mode d'emploi

Instructions for use

Close-up of a layered dessert with green garnish (no visible text or symbols)

Gebrauchen | Utiliser | Uso | Use | Uso

57

Close-up of a cheese and vegetables with cartoon food items (no visible text or symbols)

Close-up of sliced yellow fruit pieces on a white surface (no text or symbols visible)

Эксплуатация | Użycie | Kullanımı | Modul de utilizare | Използване

74

Garantie-Hinweis | Informations de garantie | Dichiriazione di garanzia | Warranty information | Garantía - Nota Upozornění k záruce | Garancia — tájékoztatás | Garancija — Uputa | Opozorilo o garanciji | Upozornenie na záruku Указание по поводу гарантии | Informacja dotycząca gwarancji | Garanti Açıklaması | Garanția — Informații | Указание за гаранция

Sicherheitshinweise

Row of nine icons including warning symbols, gear, star, hand, plus signs, and a letter 'S' with a plus sign.

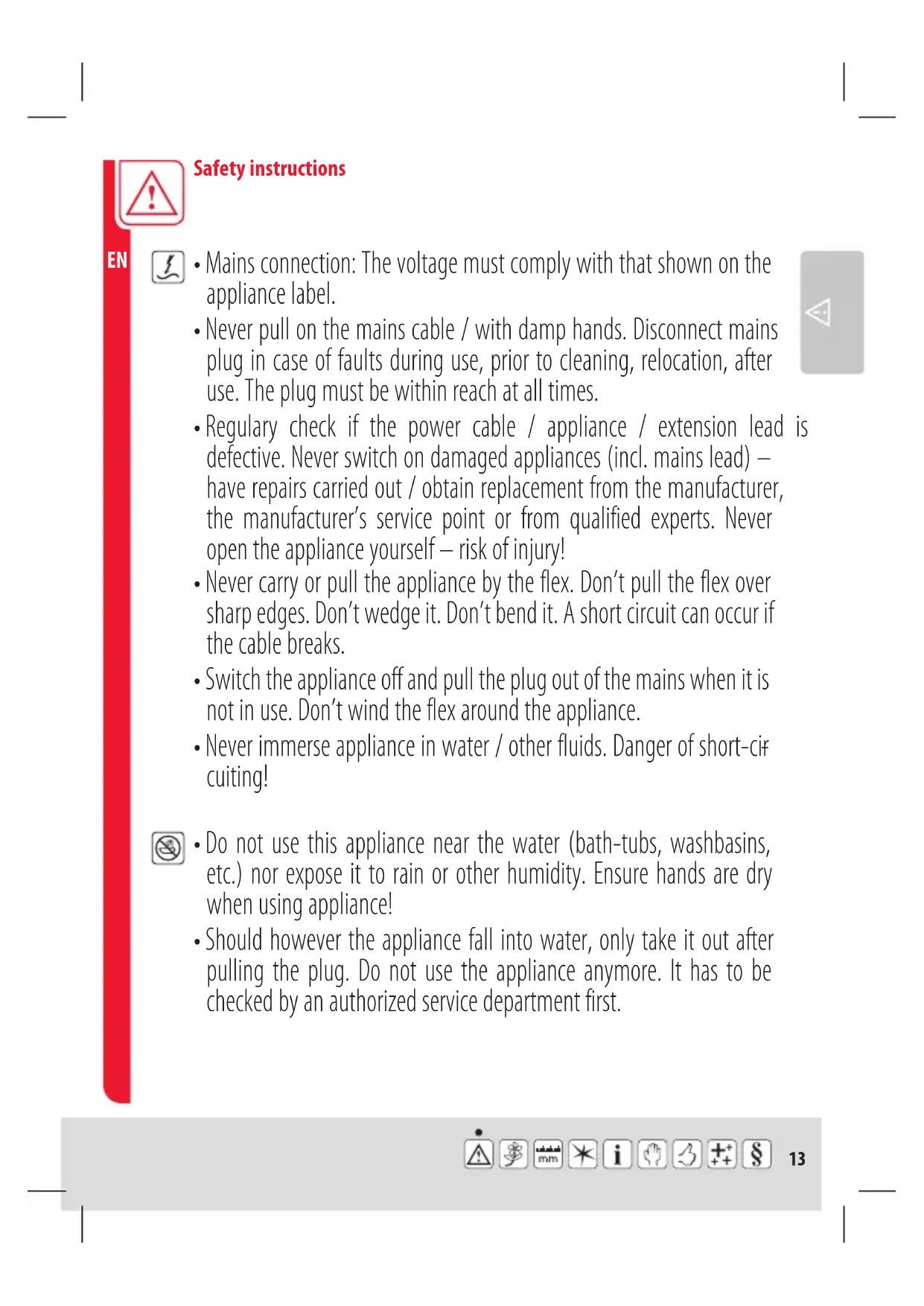

Safety instructions

- Mains connection: The voltage must comply with that shown on the appliance label.

- Never pull on the mains cable / with damp hands. Disconnect mains plug in case of faults during use, prior to cleaning, relocation, after use. The plug must be within reach at all times.

- Regulatory check if the power cable / appliance / extension lead is defective. Never switch on damaged appliances (incl. mains lead) — have repairs carried out / obtain replacement from the manufacturer, the manufacturer's service point or from qualified experts. Never open the appliance yourself — risk of injury!

- Never carry or pull the appliance by the flex. Don't pull the flex over sharp edges. Don't wedge it. Don't bend it. A short circuit can occur if the cable breaks.

- Switch the appliance off and pull the plug out of the mains when it is not in use. Don't wind the flex around the appliance.

- Never immerse appliance in water / other fluids. Danger of short-circuiting!

- Do not use this appliance near the water (bath-tubs, washbasins, etc.) nor expose it to rain or other humidity. Ensure hands are dry when using appliance!

- Should however the appliance fall into water, only take it out after pulling the plug. Do not use the appliance anymore. It has to be checked by an authorized service department first.

Safety instructions

EN

• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
  • Children should not be allowed to play with the appliance. Keep the appliance and its power cable out of reach of children aged under 8. Never leave the appliance un attended while in operation.
• Keep packaging (e.g. plastic bags) away from children.
• Never place the appliance / cable on hot surfaces or near open flames. Do not store / expose the appliance to intense heat (from radiators, prolonged sunshine).
• Do not use attachments not recommended / sold by the manufacturer.
• The appliance is designed for household use and not for industrial operation. Do not operate the appliance outdoors.
• Use the appliance on a dry, even, stable and heat resistant surface. Allow appliance to cool before storing away.

Safety instructions

- Only trained experts should repair electrical appliances. Unskilled repairs can cause considerable danger to the user.

- No warranty for any damage can be accepted if the appliance is used for improper purpose, wrongly operated or unprofessionally repaired. In such a case, any warranty claim is void.

• The appliance is not intended to be operated or connected to an external timer or separate remote control switch.
• Never place fingers or objects into appliance openings. Do not cover appliance opening.
• The appliance will become very hot during use – Do not touch, otherwise you may burn yourself.
• A heat-resistant cloth (cotton) under the appliance base prevents stains on the table.

Disposal

• Make worn out appliances unusable. Pull out the mains plug and sever the cord.
  • Electric appliances are to be returned to a shop of sale or handed over to an official dump.
• No household waste. Must be disposed of in accordance with local regulations.

Row of nine icons including warning, error, lock, star, hand,手势, plus, and symbol symbols

Bezpečnostné pokyny

Row of nine icons including warning symbols, gear, star, hand, plus signs, and a letter 'S' with a plus sign.

Please read all the information provided in these instructions. Keep the instructions in a safe place and pass them on to further users. The appliance must only be used for the intended purpose according to these instructions. Observe the notes on safety regulations. Appliance is best operated using an RCD (max. 30 mA).

Exterior view of a modern office building (no signage)

Feucht abwischen, trocknen lassen. Keine Lösungsmittel verwenden. Essuyer avec un chiffon humide et laisser sécher. Ne pas employer de solvants. Pulire con un panno umido e poi lasciare asciugare. Non usare mai soluzioni contenti acidi. Can be wiped with a damp cloth, then dried. Do not use scourers or solvents. Limpiarlo con un paño húmedo y dejarlo secar. No utilizar disolventes.

Black plastic tray with a brush and lid, no visible text or symbols

Mit heissem Spülwasser waschen, nachtrocknen. Laver à l'eau chaude avant de bien sécher. Lavare con acqua calda, poi asciugare. Wash with hot dishwater, then dry. Limpiar con agua caliente y secar.

Grillplatte und Pfännchen nie für längere Zeit im Wasser lassen. Ne jamais laisser tremper la plaque de gril et les poêlons trop longtemps dans l'eau. Non lasciare mai per troppo tempo la piastra per grigliare e i tegamini in acqua. Never allow the grill plate and pans to remain in water for a long time. Nunca dejar la placa del grill y las sartenes pequeñas durante demasiado tiempo en el agua.

Geräteübersicht | Description de l'appareil |

Black plastic tray with a brush and a flat blade, no text or symbols visible

2

Gerätebasis reinigen | Nettoyer la base de l'appareil | Pulire la base dell'apparecchio | Clean the base unit | Limpiar la base del aparato

10 Min. aufheizen, abkühlen lassen Faire chauffer pendant 10 min, laisser refroidir Riscaldare per 10 minuti, lasciare raffreddare Heat for 10 min., allow to cool Calentar durante 10 min., dejar enfriar

Exterior view of a modern office building (no signage)

Herstellrückstände werden verbrennt. Rauch- / Geruchsentwicklung möglich — lüften! Les résidus de fabrication sont carbonisés. Odeurs / fumée est possible — ouvrez une fenêtre! Gli scarti si bruciano. Odori / fumo e possibile — aprire una finestra! Residue from manufacturers is burned. Smell / smoke may develop — open a window! Los residuos de fabricación se queman. Es posible que se formen olores / humo. ¡Ventilar!

Gebrauchen | Utiliser | Uso | Use | Uso

Vorbereiten | Préparer | Preparare | Preparation | Preparar

1

Black electronic component with a red downward arrow indicating compression or dislocation (no text or symbols visible)

Illustration of a grater with water droplets on top (no text or symbols)

Place equipment in a stable position

To grill: Lightly oil the grill plate

Close-up of a black camera lens with a red arrow pointing to the left side (no text or symbols visible)

Modern black grater with various food items on its side, arranged in a tray (no visible text or labels)

Einschalten

Allumer

Accendere

Turn on

Encender

Close-up of a black mechanical component with a red arrow pointing to a circular mark (no text or symbols visible)

Close-up of a black electrical plug with three leads and a red arrow pointing to it (no text or symbols)

Ausschalten

Eteindre

Estrarre

Switch off

Apagar

Unplug, allow to cool properly

Close-up of a black electrical plug with three leads and a red arrow pointing upward (no text or symbols)

Einstecken

Insérer

Inserire

Plug in

Enchufar

Heizplatte wird sehr heiss — Verbrennungsgefahr. La plaque chauffante est brûlante — risque de brûlure. La piastra di riscaldamento diventa particolarmente calda: pericolo di ustione. Hotplate becomes very hot — danger of burning. La placa calentadora se calienta mucho.

Gebrauchtes Pfännchen / Spachtel nie auf die Grillplatte legen — Lebensmittelreste brennen an. Ne jamais poser les coupelles ou la spatule utilisés sur la plaque de gril — Les restes d'aliments brûlent. Mai posare sulla piastra per grigliare i tegamini / la spatola dopo l'uso: i resti dei cibi si bruciano. Never place used pans / spatula on the grill plate — any food left on them will burn. Nunca se deben colocar sartenes / espátulas usadas sobre la plancha de piedra — los restos de comida se queman.

Optionales Zubehör | Accessoires en option | Accessori opzionali Optional accessories | Accesorios opcionales

Product photo of a yellow box labeled 'T1300' next to a black tool labeled '4x', showing no visible text or symbols on the main subject.

Art. 7515 92 00 Art. 7515 93 00

Kunststoffspachtel

Product photo of a handheld device with a yellow box and 4x label, no readable text or symbols on the device itself.

Pfännchen-Halterung

Support à coupelles

Rectangular dark gray object with a flat top and rounded edges, resembling a tray or cover (no text or symbols visible)

Grillplatte

Plaque de gril

Row of ten black-and-white icons including warning symbols, gear, star, hand, and plus signs

Exterior view of a modern glass grater with handles and a handle (no text or symbols visible)

Black plastic tray with a brush and handle, no visible text or symbols

Black plastic tray with a brush and lid, no visible text or symbols

2

Exterior view of a modern office building (no signage)

Black electronic component with a red downward arrow indicating compression or dislocation (no text or symbols visible)

Illustration of a grater with water droplets on top (no text or symbols)

Close-up of a black camera lens with a red arrow pointing to the left side (no text or symbols visible)

Modern black grater with various food items on its side, arranged in a tray (no visible text or labels)

Close-up of a black mechanical component with a red arrow pointing to a circular mark (no text or symbols visible)

Close-up of a black electrical plug with three leads and a red arrow pointing to it (no text or symbols)

Vypněte Kikapcsolás Isključiti Izklop Vypnite

Close-up of a black electrical plug with three leads and a red arrow pointing upward (no text or symbols)

Připojte

Dugja be

Utaknuti

Vtaknite

Pripojte k sieti

Trigridone 4x

Art. 7515 92 00 Art. 7515 93 00

Plastová stěrka

Múanyag spatula

Lopatica od plastike

Plastična lopatica

Špachtla z plastu

Product photo of a yellow Trigal container and a gray triangular stand with a 4x label (no readable text or symbols)

Black rectangular electronic component with rounded edges and a small recess (no visible text or symbols)

Kamenná plotna

Kólap

Kamena ploča

Kamnita plošča

Grilovacia doska

Art. 9600 22 15 Art. 9600 26 06

Pánvička

Tálka

Tavica

Ponvica

Panvička

Row of ten black-and-white icons including warning symbols, gear, star, hand, and plus signs

Чистка | Czyszczenie | Temizleme | Curățarea | Почистване

Exterior view of a modern glass grater with handles and a handle (no text or symbols visible)

Black plastic tray with a brush and handle, no visible text or symbols

Black plastic tray with a brush and a flat blade, no text or symbols visible

2

Чистка основания прибора | Oczyscić podstawę urządzenia | Cihaz tabanının temizlenmesi | Se curăță baza aparatului | Почистване на основата

Нагреть в теч. 10 мин., дать остыть Podgrzać przez 10 min., poczekać aż się ochłodzi 10 dak. isitiniz, soğumasını bekleyiniz Se încălzește 10 minute, se lasă să se răcească Нагрява се 10 мин., остава се да се охлади

Exterior view of a modern office building (no signage)

i Отходы производства выгорят. Возможно появление копоти / появление посторонних запахов — проветрить! Pozostałości fabryczne ulegają spaleniu. Może zacząć wydzielać się dym / zapach — przewietrzyć! İmalât artikları yanar. Duman ve gaz oluşması mümkündür — odayı havalandırınız! Urmele rămase din fabricație se ard. Este posibilă apariția de fum / miros — aerisiți! Остатъците от производството изгарят. Възможно е да се появи дим / мирис — проветрете!

Эксплуатация | Użycie | Kullanımı | Modul de utilizare | Използване

Подготовка | Przygotowanie | Hazırlamak | Pregătiți | Пригответе

1

Black plastic electronic device with a red downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a black rectangular appliance with a yellow liquid droplet above it (no text or symbols visible)

Расположить прибор на устойчивой поверхности Urządzenie ustawić stabilnie Cihazi devrilmeyecek bir şekilde kurunuz Aşezati aparatul pe o suprafață stabilă Поставете уреда стабилно

Для гриля: плиты для жарки слегка смазать маслом W celu grillowania: naoliwić lekko płyty grilla Izgara yapmak için: izgara plakalarını hafifçe yağlayın Pentru grătar: ungeți cu ulei placa de prăjire За печене на скара: намажете плочите леко с олио

Close-up of a black camera lens with a red arrow pointing to the left side (no text or symbols visible)

Modern grater with colorful toppings on its tray (no text or symbols visible)

Включение Włączyć Açılması Conectare Включване

Приготовление раклета / поджаривание на гриле Przygotowaćraclette/produkty przeznaczone do grillowania Raclette/lzgaralikmalzemenin pişirilmesi Pregătirearacletei/alimentelor Приготовляване на продукти на грил / раклет

После использования | Po użyciu | Kullandiktan sonra | După folosire | След употреба

3

Close-up of a black mechanical component with a red arrow pointing to a circular mark (no text or symbols visible)

Close-up of a black electrical plug with three leads and a red arrow pointing to it (no text or symbols)

Выключение Wyłączanie Kapatınız Deconectare Изключване

Отсоединить и дать прибору остыть Wyjać wtyczkę, urządzenie pozostawić do ostudzenia Prizden çekiniz, cihazın soğumasını bekleyiniz Decuplați aparatul de la sursa de alimentare și lăsați-І să se răcească Изключете от щепсела, оставете уреда да изстине

Close-up of a black electrical plug with three leads and a red arrow pointing upward (no text or symbols)

Подключить вилку

Trigridone 4x

Art. 7515 92 00 Art. 7515 93 00

Product photo of a yellow Trigox brand container and a gray triangular stand with '4x' label (no readable text or symbols on the main objects)

Держатель формочки

Uchwyt patelenki

Rectangular black plastic tray or cover with a flat top and rounded edges (no text or symbols visible)

Плита для гриля

In accordance with the European guidelines for safety and EMC.

We reserve the right to make changes in design, equipment, technical data as well as errors.

Refined / protected by «ergonomic communication® » – Ergocomprendere AG

Unauthorized use / copying is liable to punishment.

§

Garantie-Hinweis | Informations de garantie | Dichiriazione di garanzia | Warranty information | Garantía – Nota

EN With this appliance you get a 2 year guarantee starting from the date of purchase. Under the guarantee, in the case of material or manufacturing defects, the appliance will be replaced or repaired. Replacement with a new appliance or money back return is not possible. Excluded from the guarantee is normal wear and tare, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances or caused by the batteries. The guarantee requires that the faulty appliance be returned at the purchaser's expense along with the retail outlets dated and signed guarantee card or a sales receipt.
